1543252C1 G109452 G105548 Hydraulic Cylinder Seal Kit for Case 1.5"Rod x 3"Bore

Hydraulic Cylinder Seal Kit for Case

This hydraulic cylinder seal kit for Case replaces OEM references 1543252C1, G109452, and G105548 on cylinders with a 1.5 inch rod and 3 inch bore.

Overview

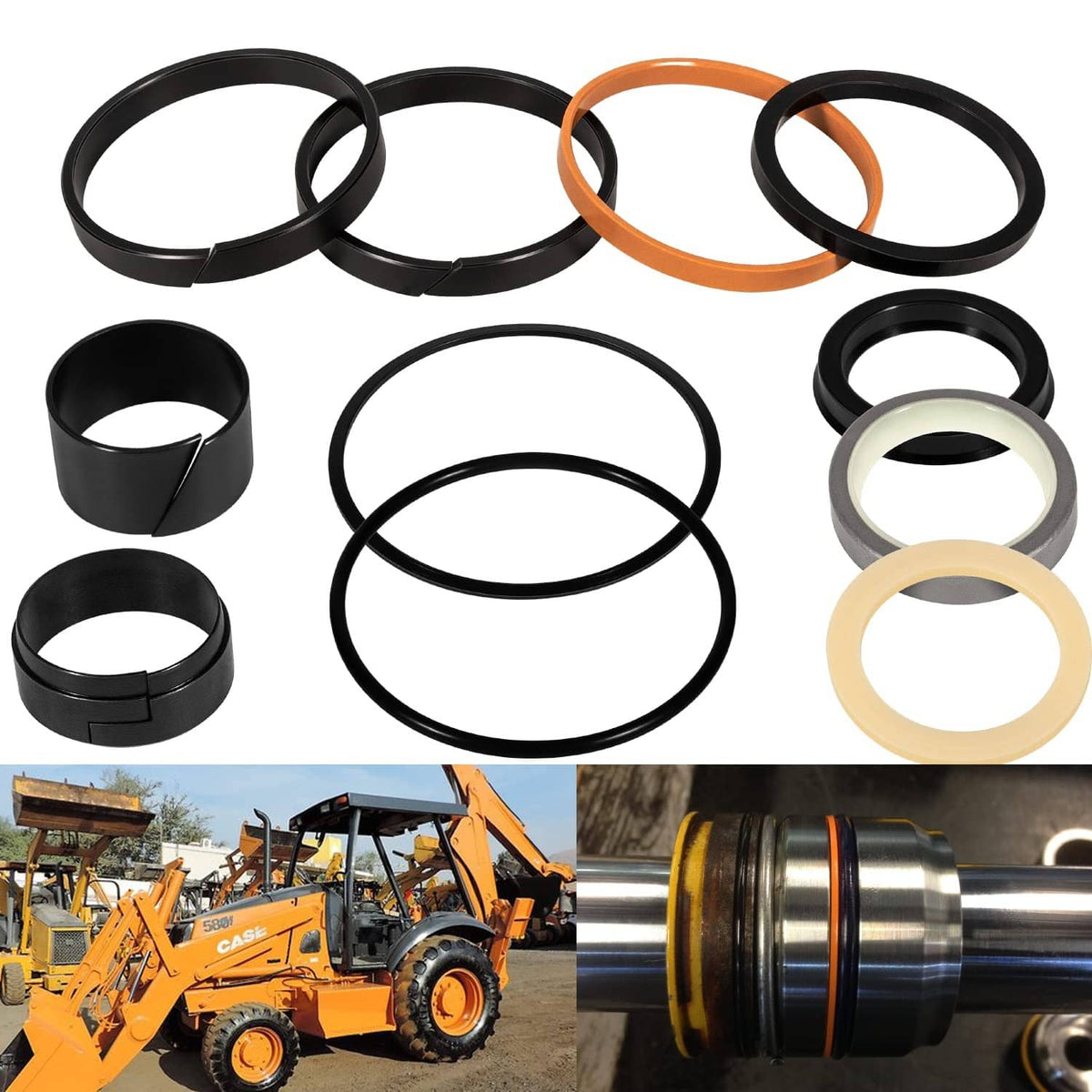

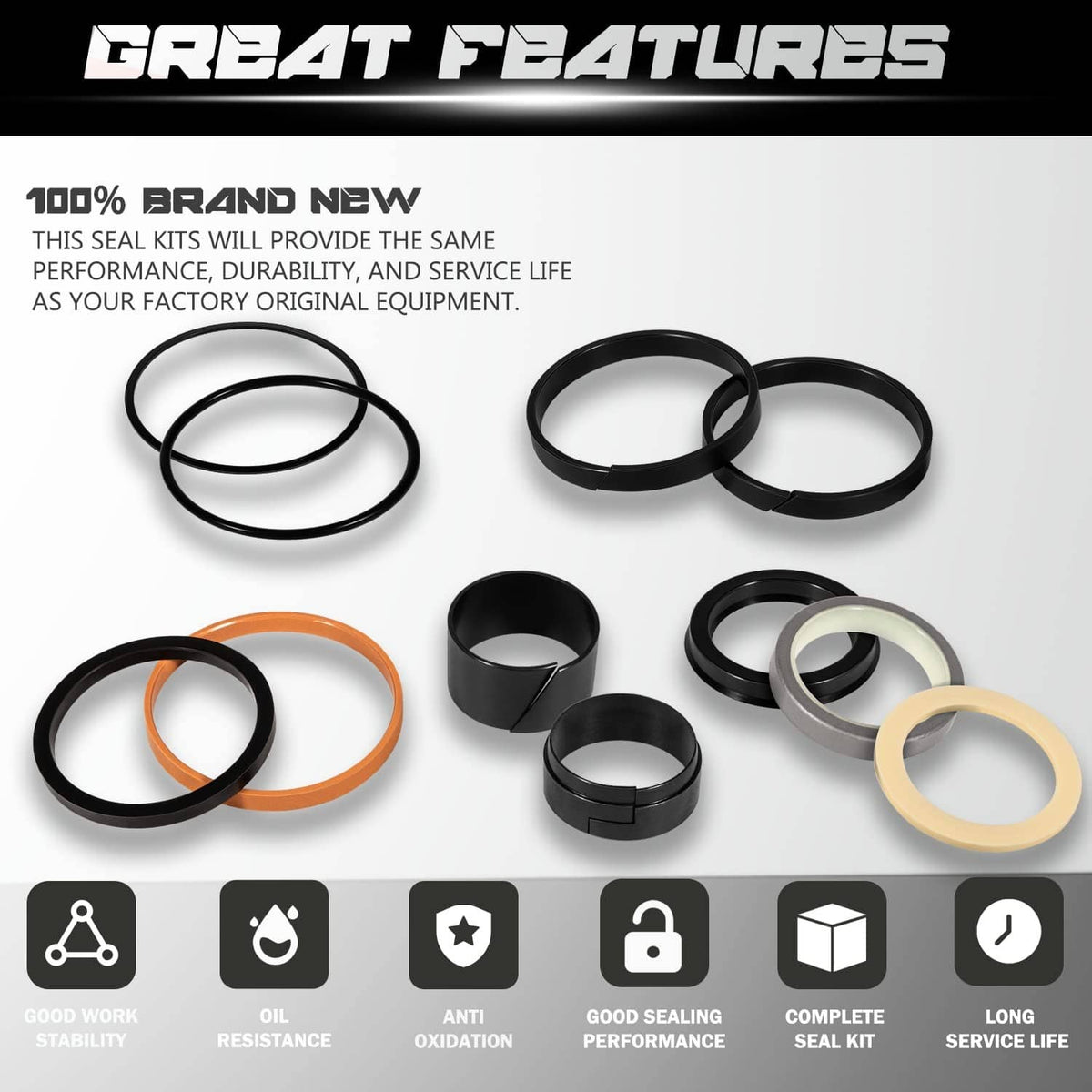

This hydraulic cylinder seal kit for Case supplies the seals, wipers, and rings needed to rebuild a leaking or weeping hydraulic cylinder. The kit is built for equipment owners, mechanics, and rebuild shops working on Case machines that run a 1.5 inch rod and 3 inch bore cylinder. Each hydraulic cylinder seal kit for Case is sized to the stated rod and bore so the rebuild goes back together with the correct sealing geometry.

Built For Performance

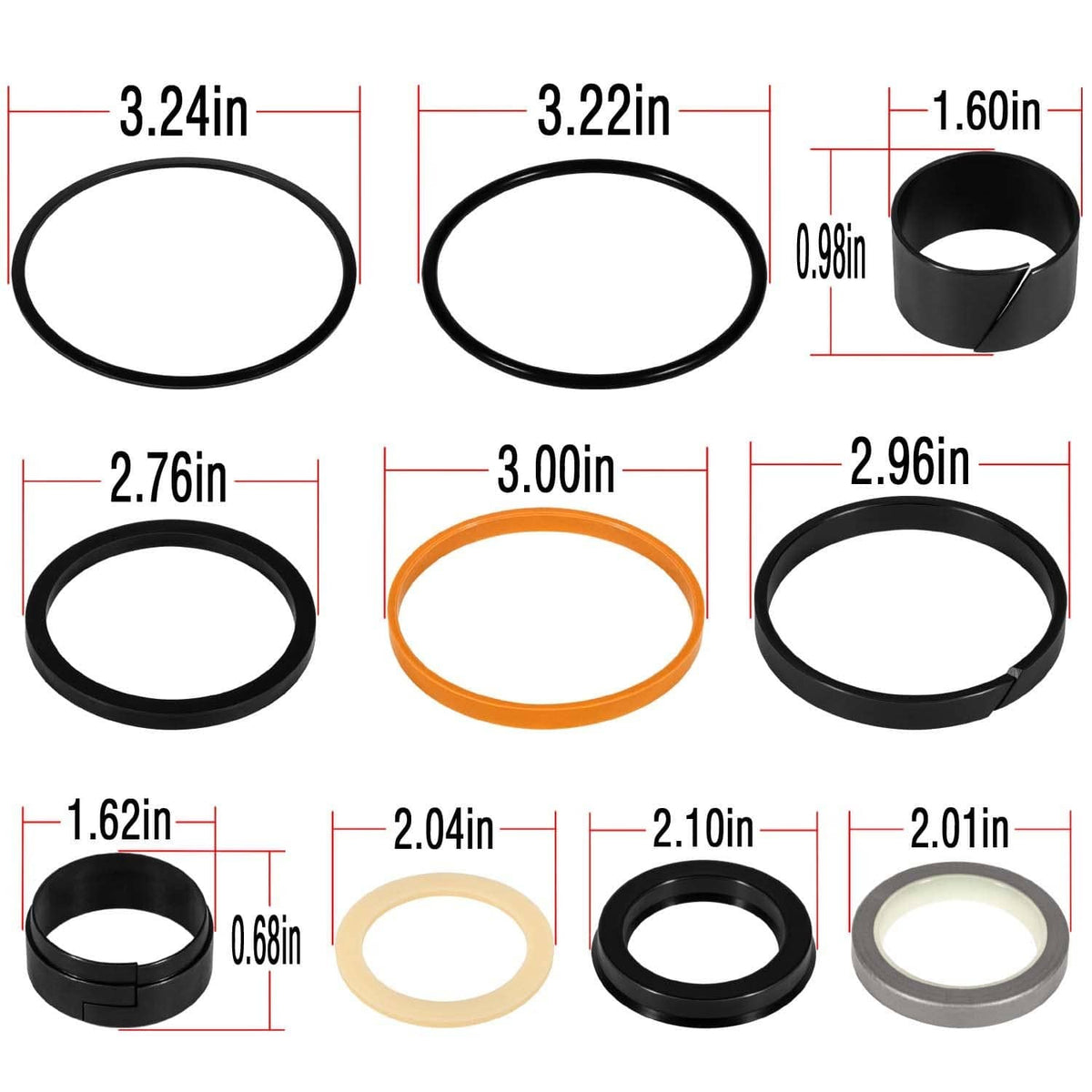

• Seals sized for a 1.5 inch rod diameter and 3 inch bore
• Cross-references OEM part numbers 1543252C1, G109452, and G105548
• Covers rod and piston sealing positions in one kit

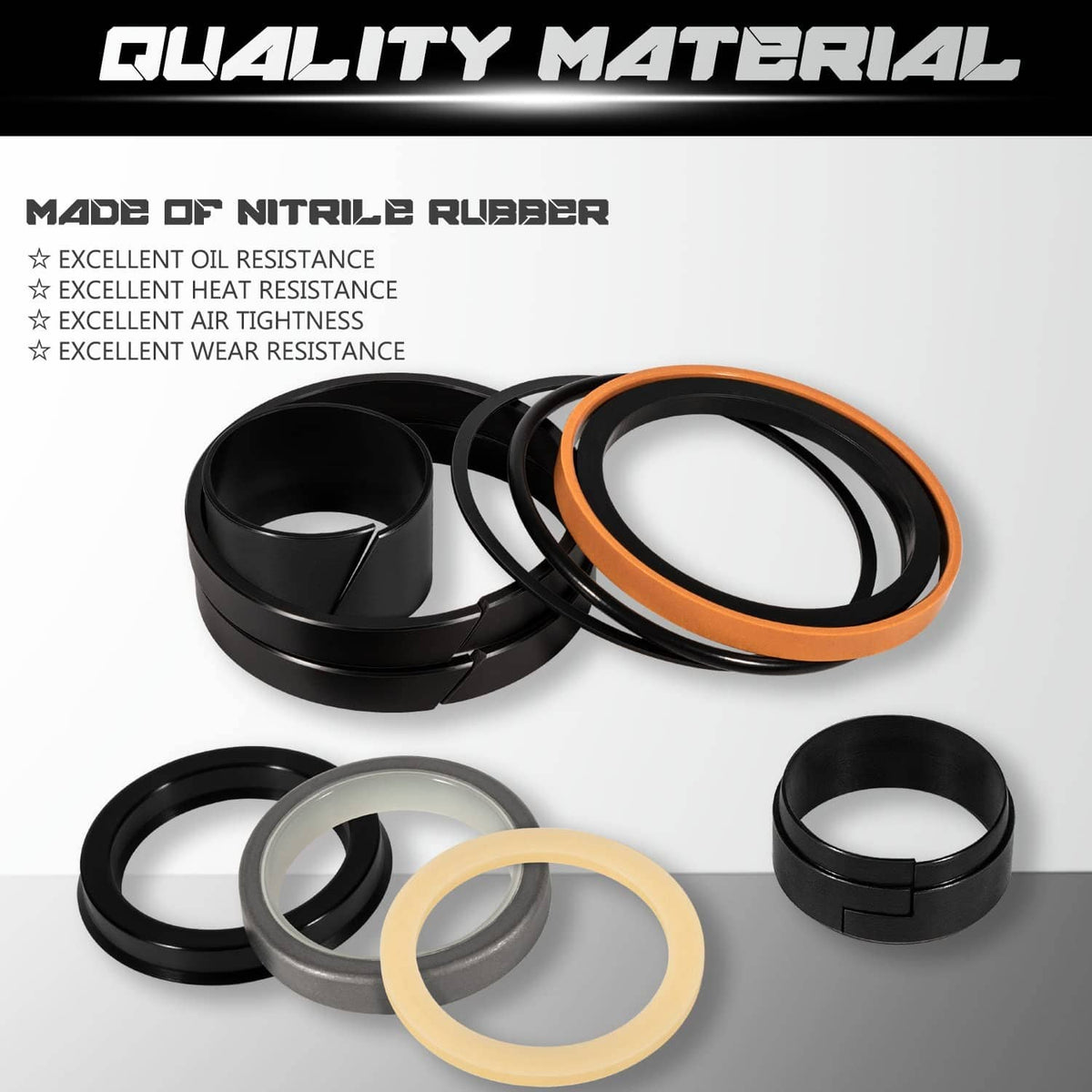

• Components resist hydraulic oil, heat, and pressure cycling
• Direct replacement for worn or weeping cylinder seals

On-The-Job Use

• Rebuilding lift, tilt, and steer cylinders on Case equipment
• Stopping fluid leaks that leave oil on the ground and drop boom pressure
• Restoring holding power to tired hydraulic cylinders
• Shop and field repair work on older Case machines

Specs At A Glance

Good To Know

Q: How do I confirm this kit fits my cylinder? A: Measure the rod at 1.5 inches and the bore at 3 inches before ordering, and match the OEM numbers on your old seal kit to 1543252C1, G109452, or G105548.

Q: What causes a hydraulic cylinder to need a seal kit? A: Worn rod seals leak fluid and internal piston seals let pressure bypass, which shows up as drift, weak lift, or oil on the cylinder. Replacing the full seal set restores sealing at both points.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
