3313-316, Front Brake Master Cylinder for Arctic Cat 650 4X4 2005-2012

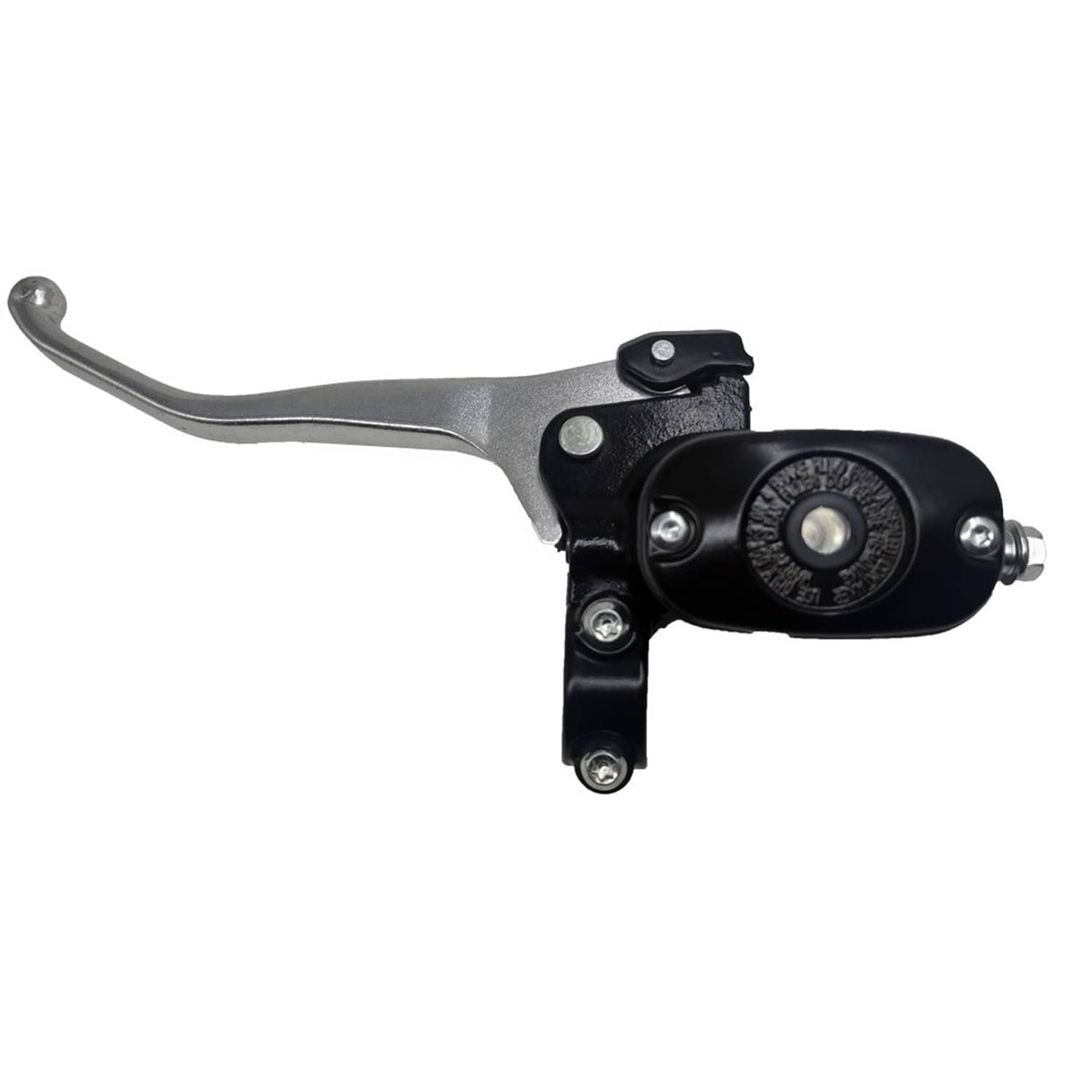

Front Brake Master Cylinder for Arctic Cat 650 4X4

This front brake master cylinder, referenced under part numbers 3313-316, generates the hydraulic pressure needed to operate the front brakes on Arctic Cat 650 4X4 machines, making it a practical replacement for riders restoring proper braking response.

Overview

The front brake master cylinder for Arctic Cat 650 4X4 converts lever input into hydraulic pressure that actuates the front brake calipers. Carrying the 3313-316 reference, this master cylinder serves as a direct replacement for a worn or leaking original unit. It suits riders and mechanics servicing Arctic Cat 650 4X4 models from 2005 through 2012 who need dependable front brake function.

Built For Performance

• Cast body construction for durable hydraulic operation
• Bore and lever geometry matched to the original front brake setup
• Reservoir design compatible with standard brake fluid service
• Direct replacement for the factory front master cylinder position
• Sealed piston assembly to maintain hydraulic pressure

Fits These Machines

• for Arctic Cat 650 4X4 (2005-2012)

On-The-Job Use

• Replacing a leaking or seized front master cylinder
• Restoring front brake lever feel and response
• Routine brake system maintenance on utility ATVs
• Workshop repairs and rebuilds

Specs At A Glance

Good To Know

Q: Will I need to bleed the brakes after fitting this master cylinder? A: Yes, air must be purged from the front brake line after installation to restore firm lever action. Use the correct brake fluid for your machine and bleed until no bubbles remain.

Q: Can this master cylinder be used with the existing brake line and caliper? A: It is designed as a replacement for the factory front unit, so original lines and calipers typically connect without modification. Check fittings and seals during installation for leaks.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
