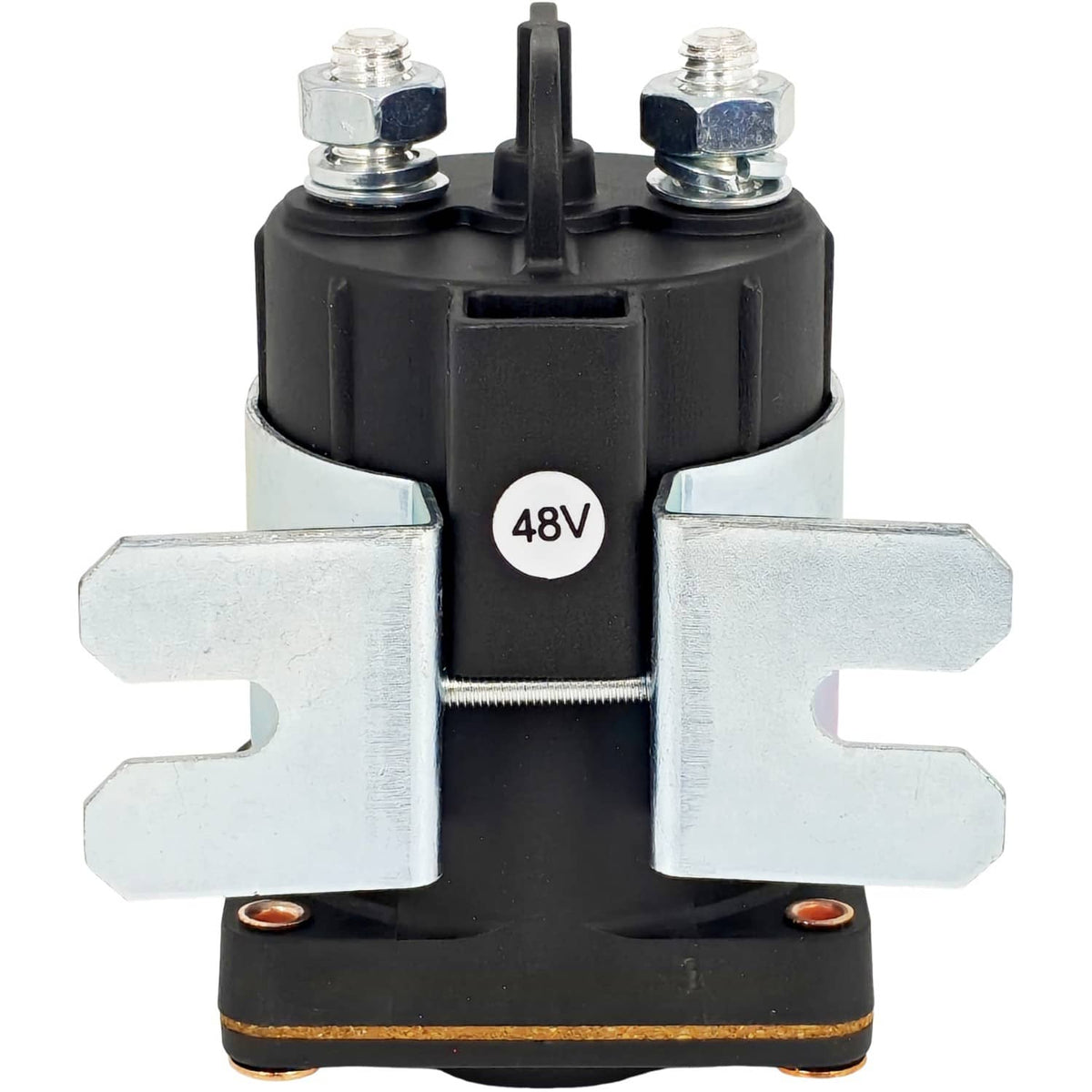

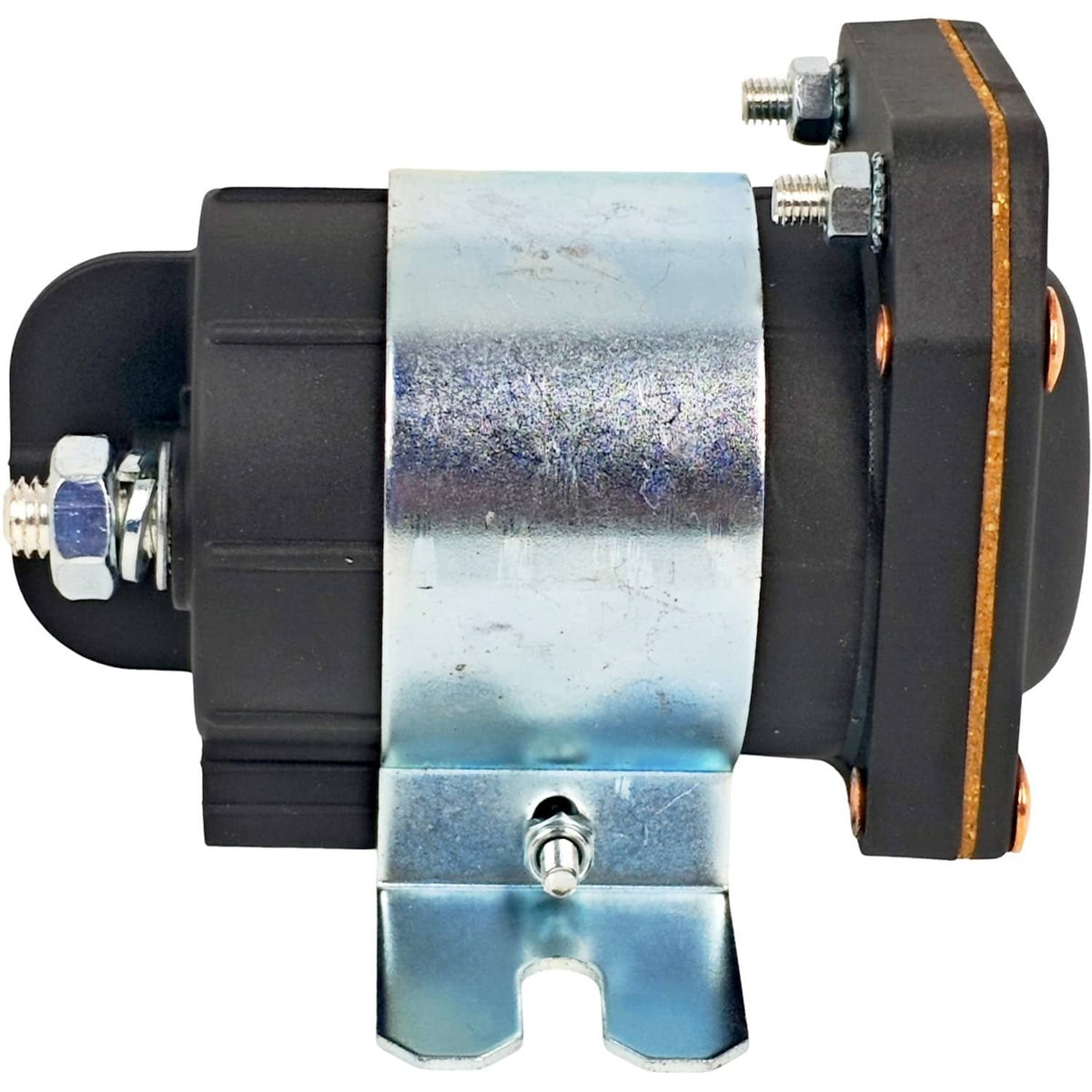

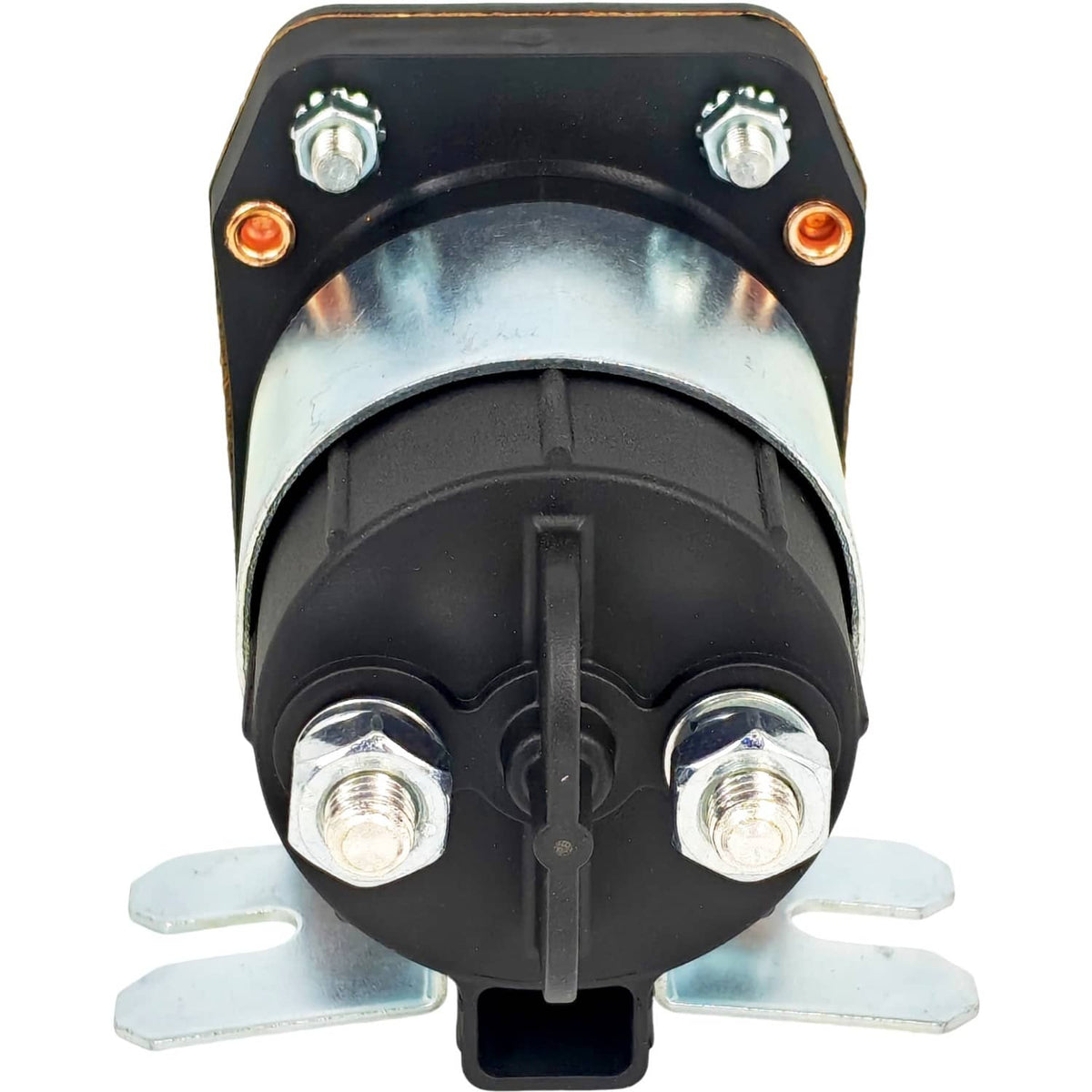

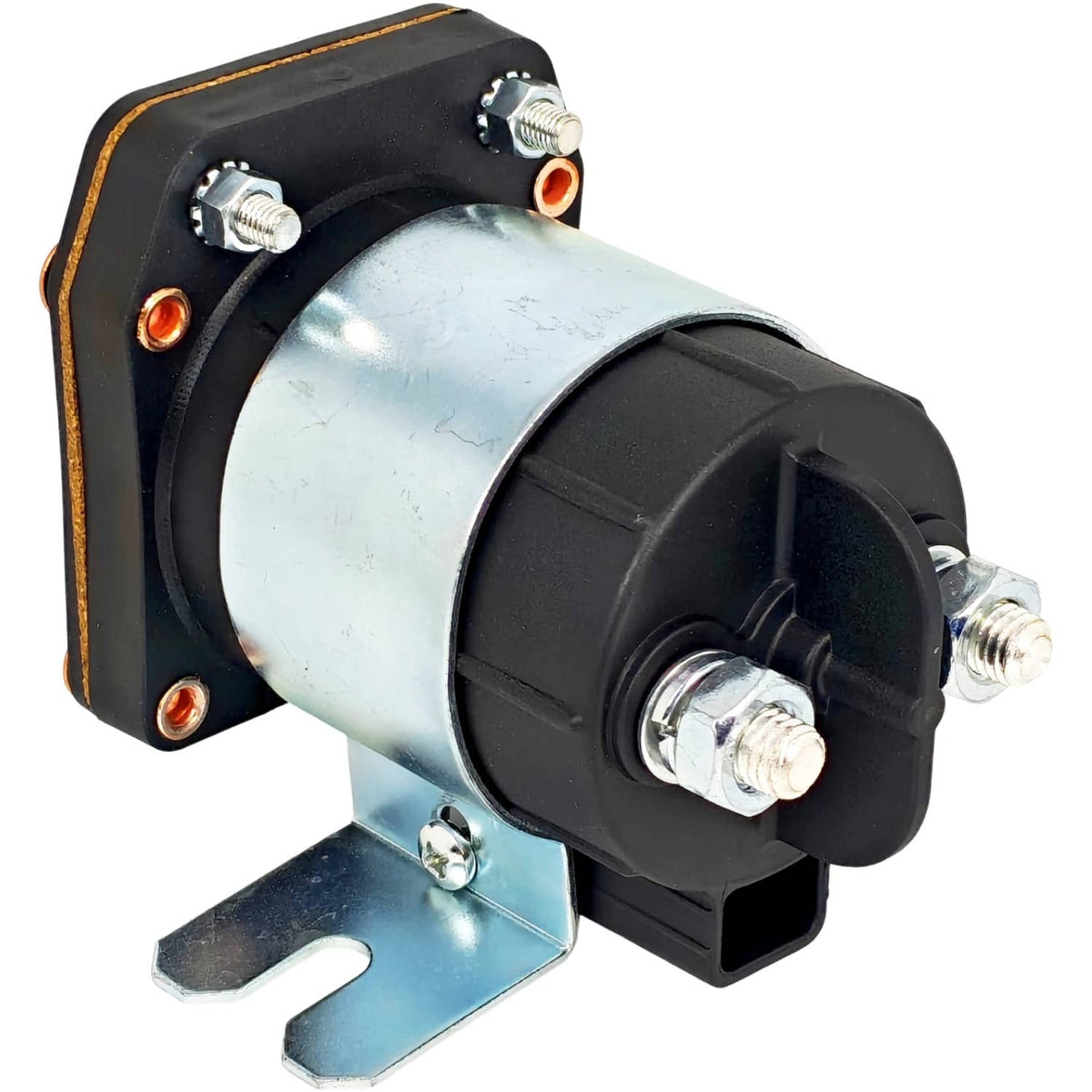

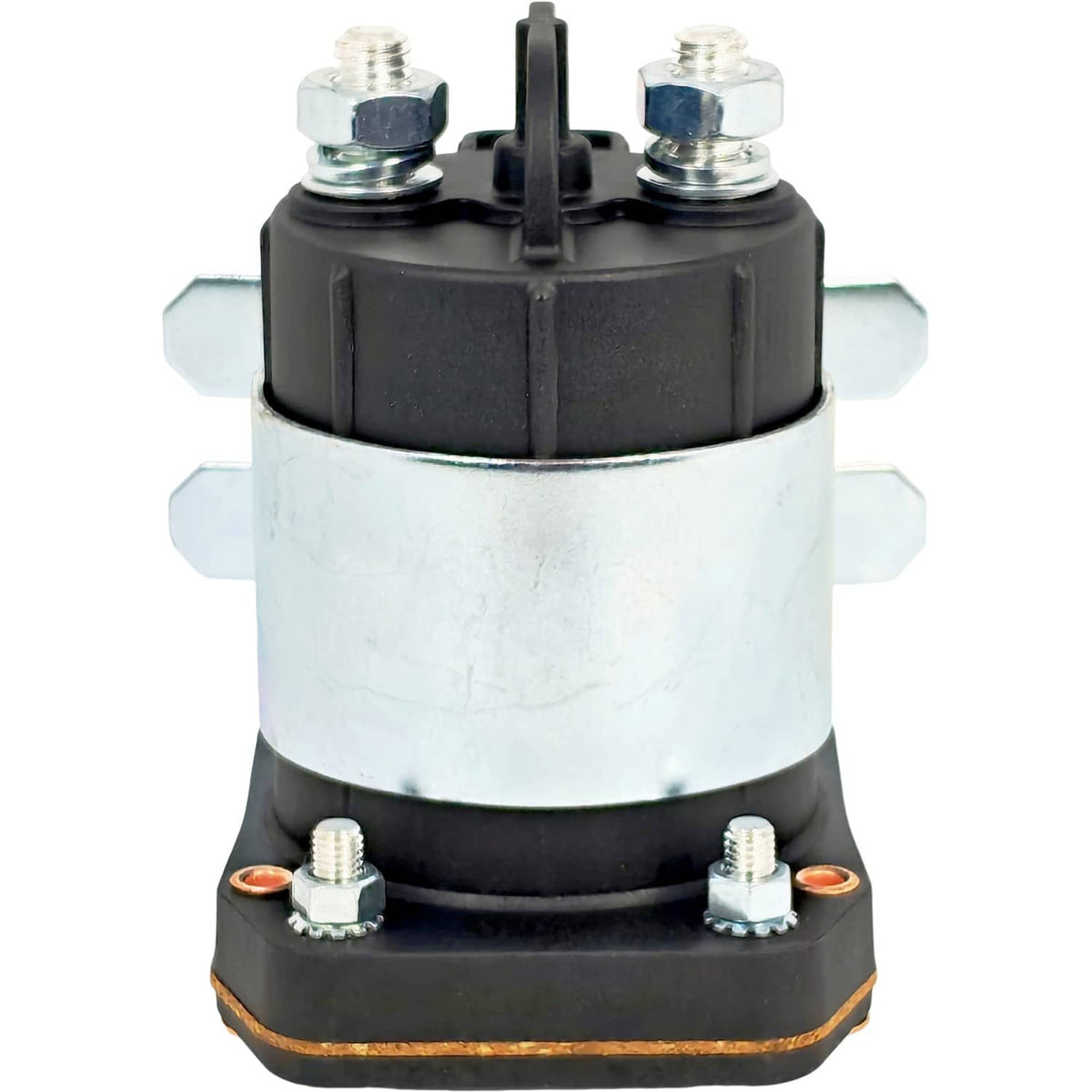

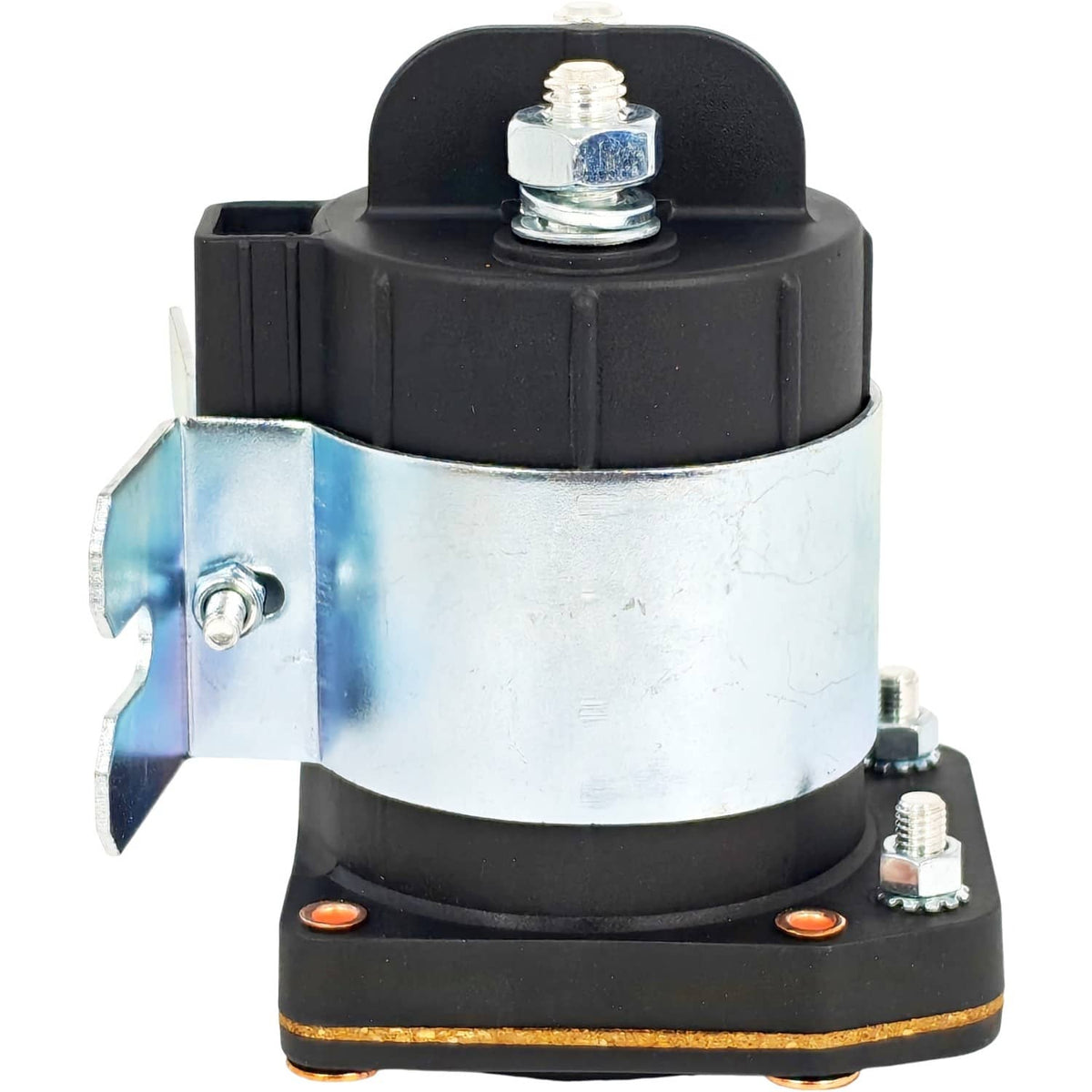

48V 4 Terminal JU6-H1950-00-00 Golf Cart Solenoid for Yamaha Drive G22 G29

48V 4 Terminal Golf Cart Solenoid for Yamaha Drive G22 G29

This 48V 4 terminal golf cart solenoid, referencing OEM cross number JU6-H1950-00-00, is an electrical switching component that manages high-current flow to the motor controller. It is designed for use in 48-volt electric golf cart systems, providing reliable engagement for drive and reverse circuits.

Overview

This 48V 4 terminal golf cart solenoid is a direct-acting relay that connects the battery pack to the motor controller when the accelerator is pressed. It is intended for electric golf carts operating on a 48-volt system, particularly for Yamaha Drive G22 and G29 models. The JU6-H1950-00-00 reference ensures it matches the original switching requirements for these carts.

Built For Performance

• 48-volt DC coil is matched to standard electric golf cart power systems.
• Four terminal configuration allows straightforward wiring to the controller and battery circuit.
• Continuous duty construction handles sustained operation during normal cart use.
• Sealed housing protects internal contacts from dust and moisture.
• Interchangeable with OEM part number JU6-H1950-00-00.

Fits These Machines

• for Yamaha Drive G22
• for Yamaha Drive G29

On-The-Job Use

• Engages the motor controller on 48V Yamaha Drive carts during acceleration.
• Disconnects power when the pedal is released, preventing unintended motor operation.
• Supports both forward and reverse switching in the cart's electrical system.

Specs At A Glance

Good To Know

Q: Will this solenoid work on a 36V cart? A: No, this is specifically rated for 48V systems, using it on a 36V cart would result in improper switching and potential failure.

Q: How do I know if my solenoid is faulty? A: A common sign is a clicking noise without the cart moving, or no click at all when the pedal is pressed, indicating the contacts are not closing.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
