71600 Broken Exhaust Manifold Drill Template for Ford V10 2V 3V 4.6L 5.4L 6.8L

Broken Exhaust Manifold Drill Template for Ford

This broken exhaust manifold drill template for Ford guides drilling during removal of broken exhaust manifold fasteners on specified Ford engine configurations, with part number 71600.

Overview

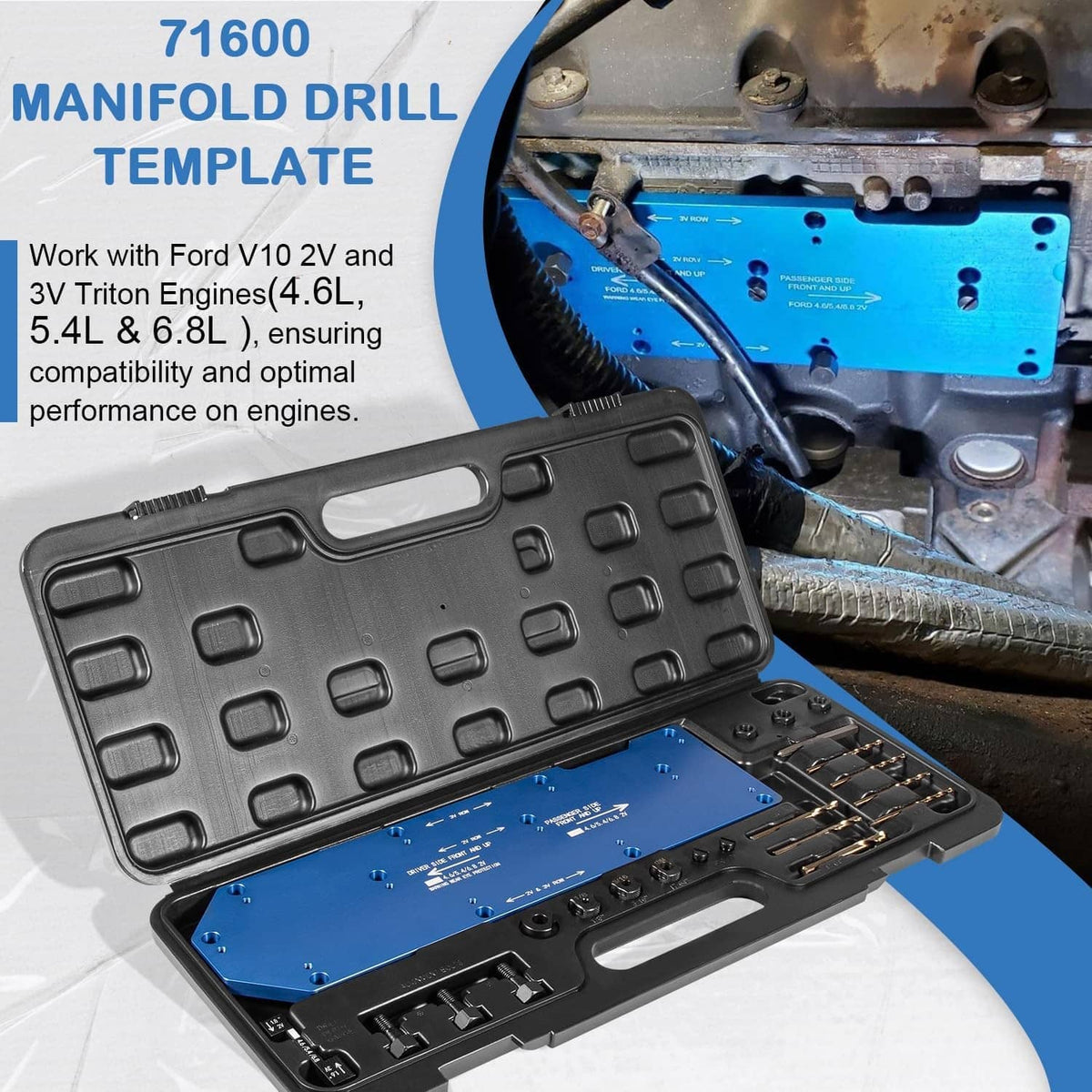

The broken exhaust manifold drill template helps position a drill accurately when servicing broken manifold fasteners. This broken exhaust manifold drill template is intended for repair work on Ford V10, 2V, 3V, 4.6L, 5.4L, and 6.8L engine configurations. The broken exhaust manifold drill template provides a repeatable guide for this targeted exhaust repair procedure.

Built For Performance

• Drill template design for broken exhaust manifold fastener repair
• Part number 71600 identification
• Coverage for listed Ford engine configurations
• Guided drilling support during manifold fastener extraction

Fits These Machines

• for Ford V10 engines
• for Ford 2V engines
• for Ford 3V engines
• for Ford 4.6L engines
• for Ford 5.4L engines
• for Ford 6.8L engines

On-The-Job Use

• Guiding drill placement around broken exhaust manifold bolts
• Supporting exhaust manifold repair on Ford engines
• Helping technicians establish a consistent drilling position during fastener extraction

Specs At A Glance

Good To Know

Q: What repair is this drill template used for? A: It is used to guide drilling for broken exhaust manifold fasteners on the listed Ford engine configurations.

Q: Does the template fit every Ford engine? A: Compatibility is limited to the V10, 2V, 3V, 4.6L, 5.4L, and 6.8L configurations stated in the title.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
