93mm Cylinder Piston Kit 3022701 For Polaris Sportsman 450 Ranger 500 2017-2022

Cylinder Piston Kit for Polaris Sportsman 450 and Ranger 500

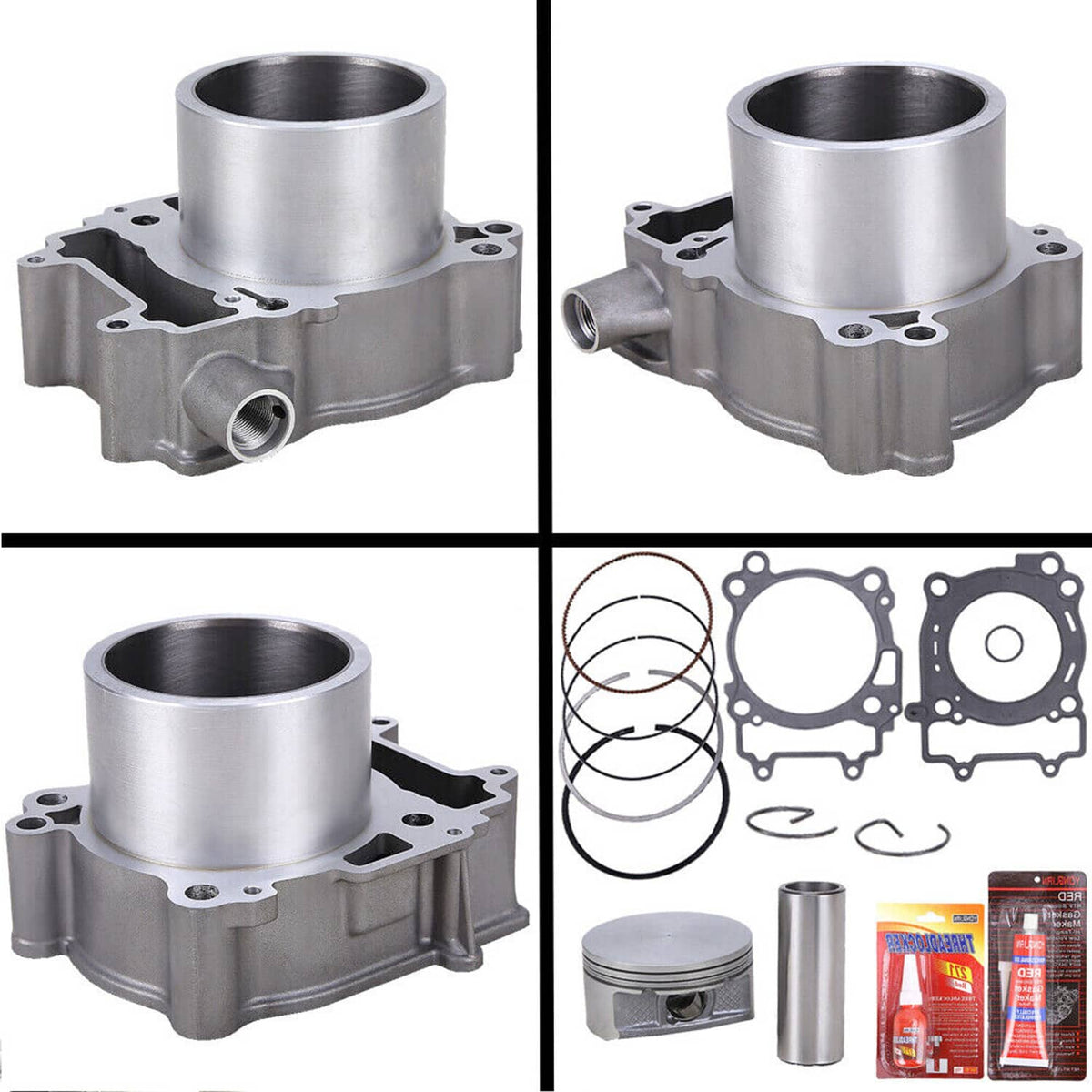

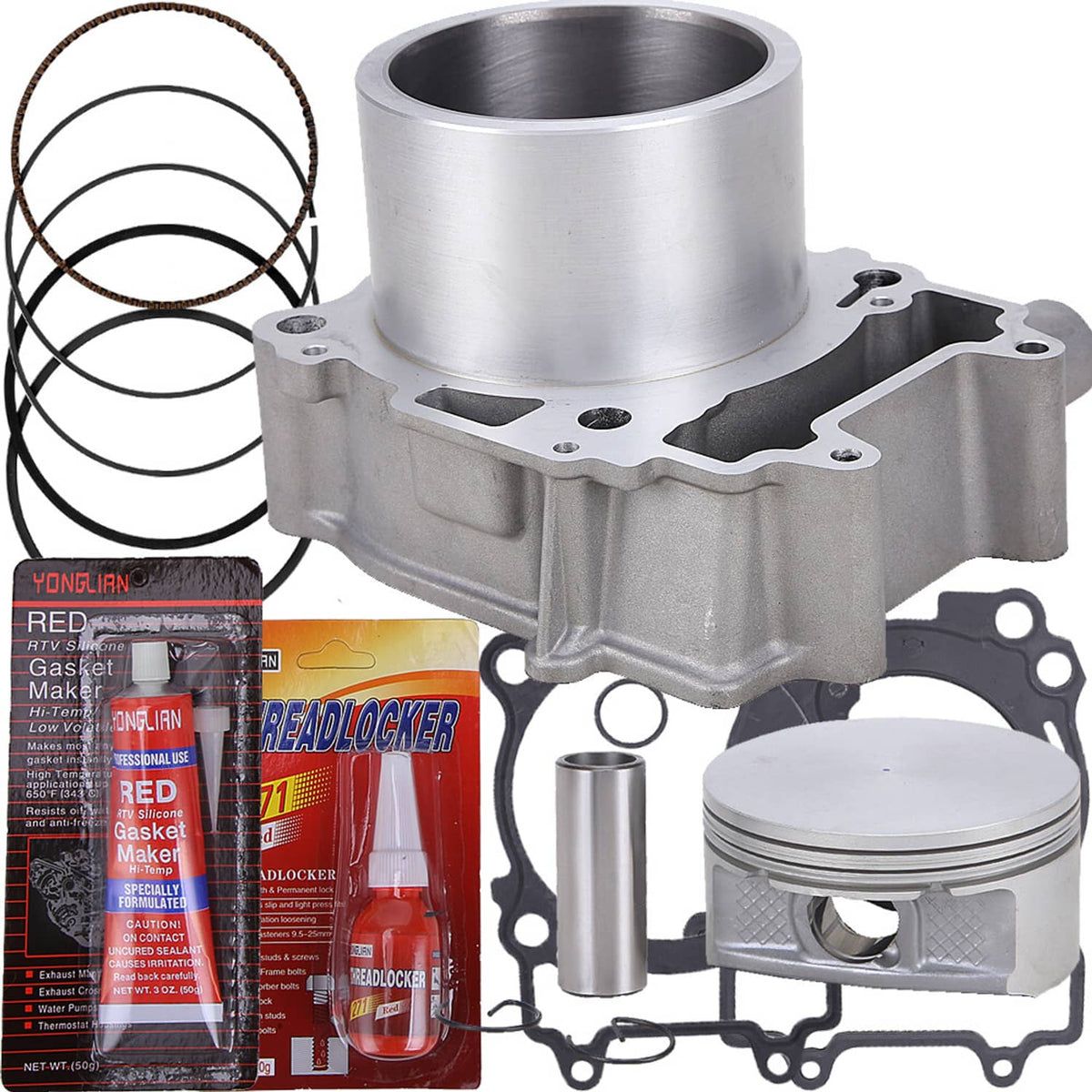

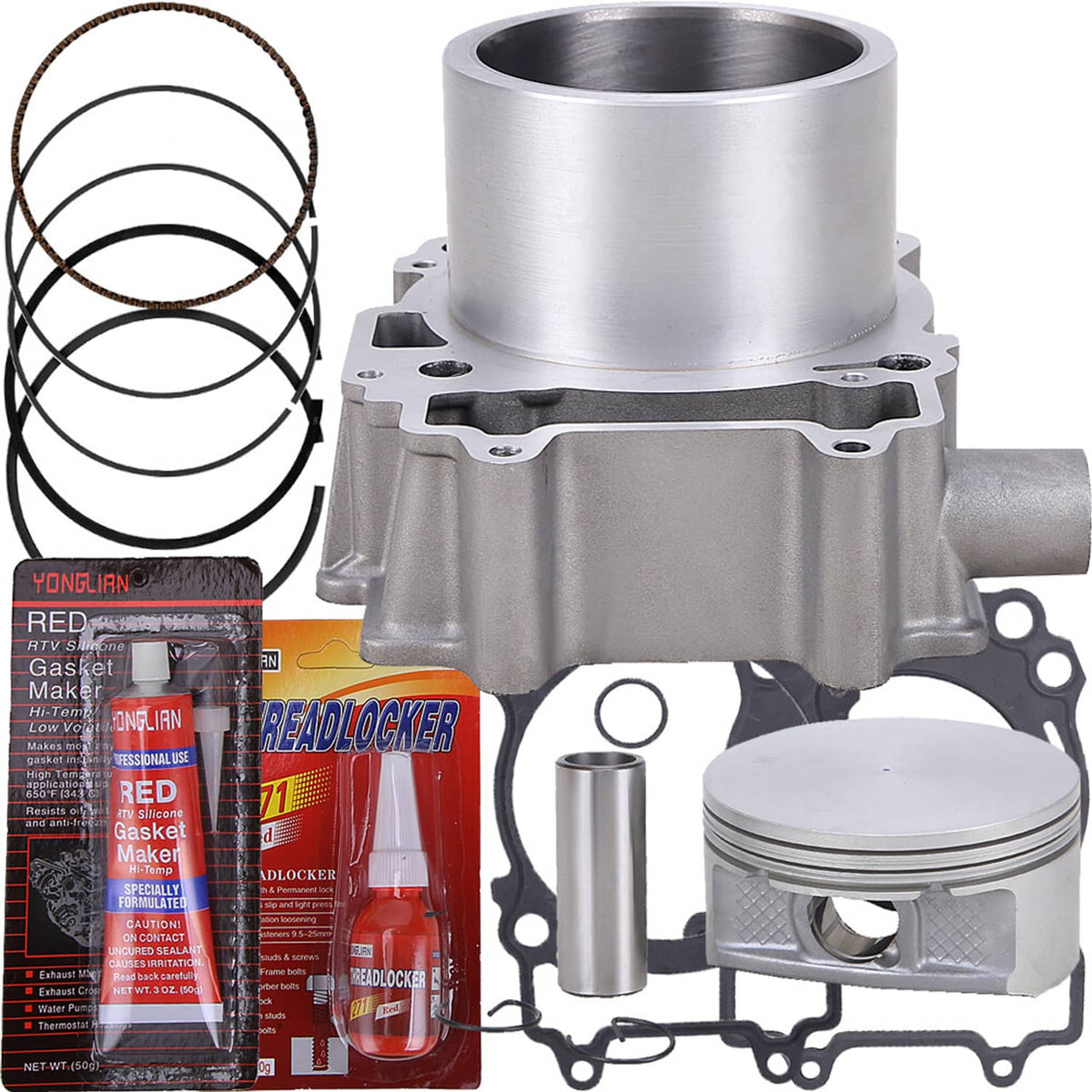

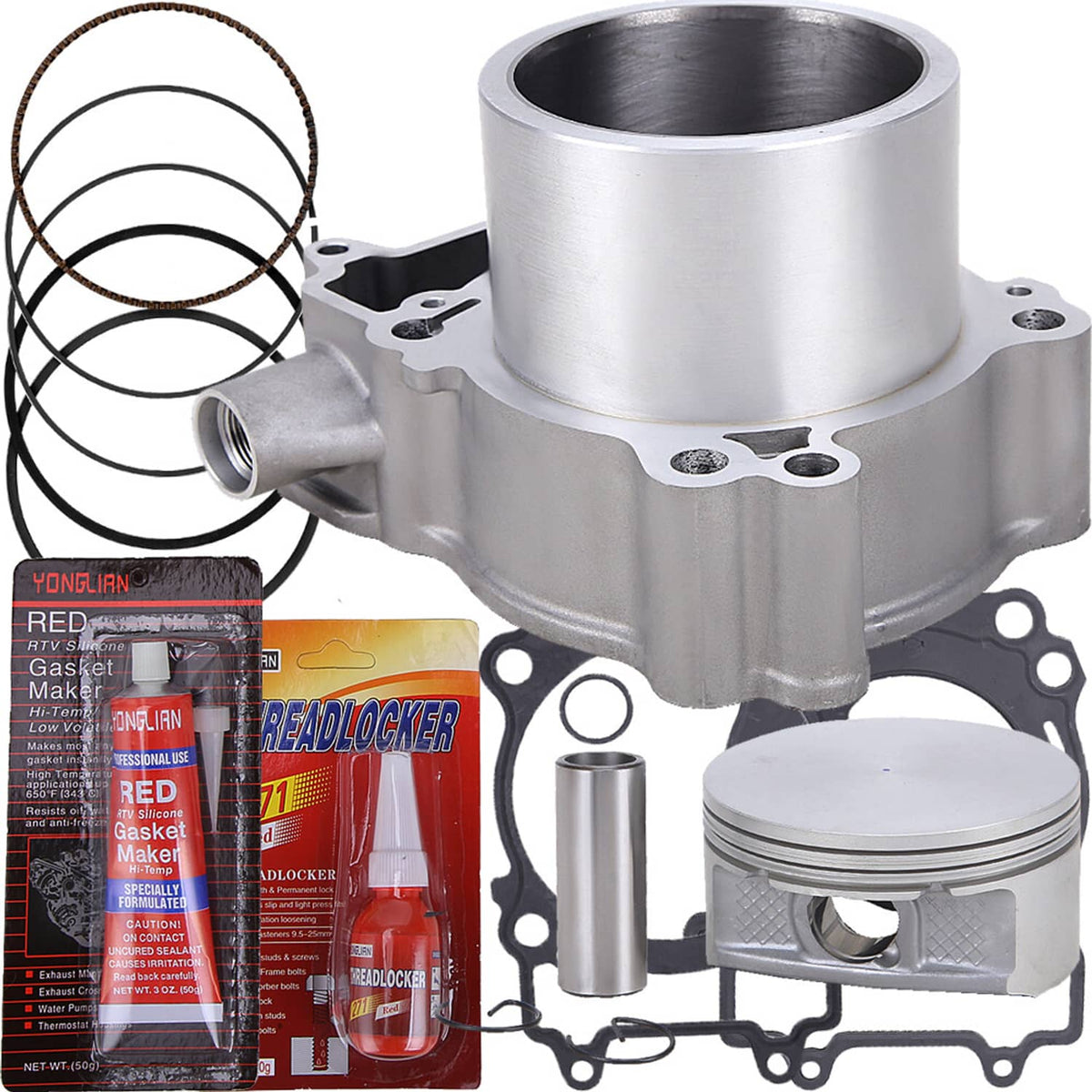

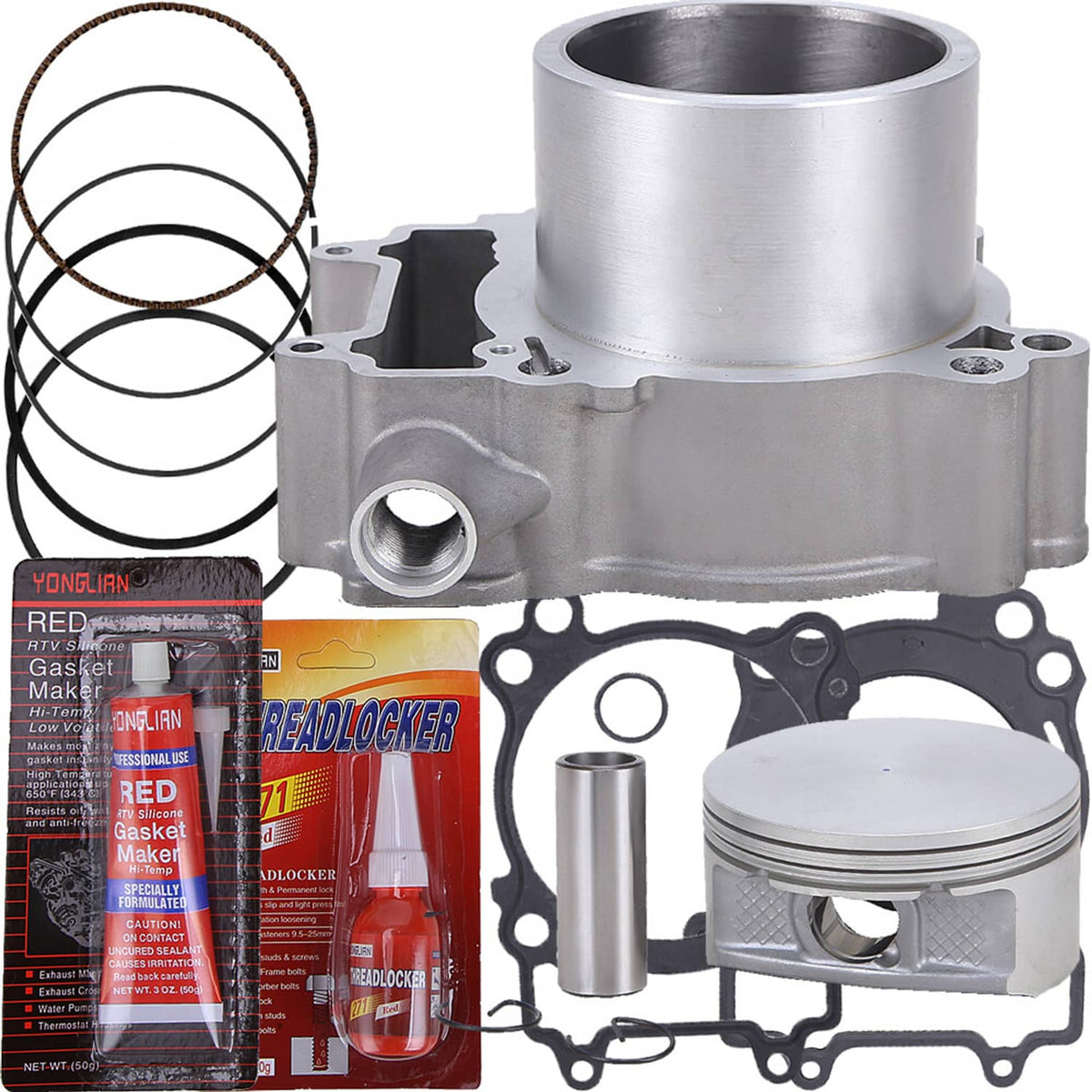

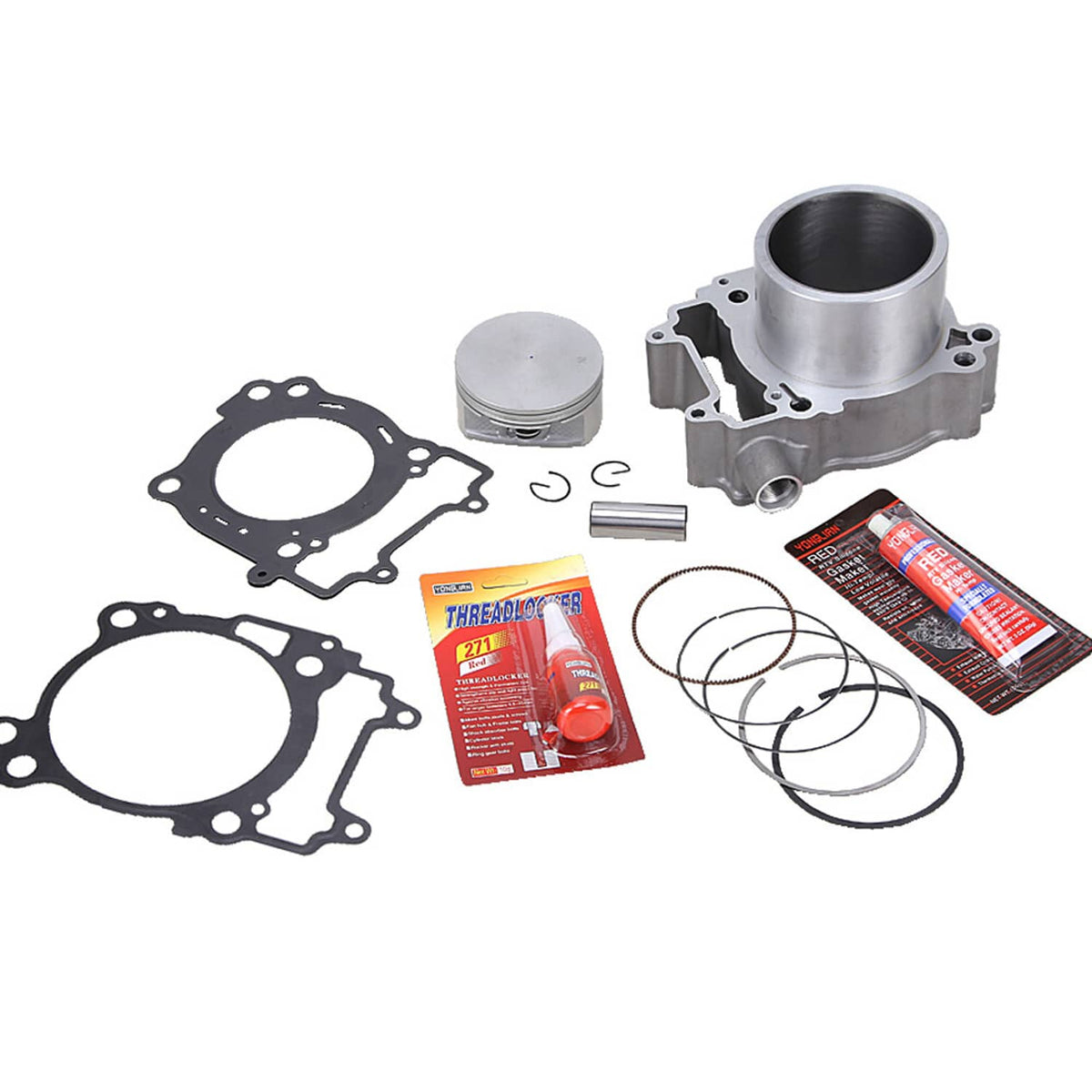

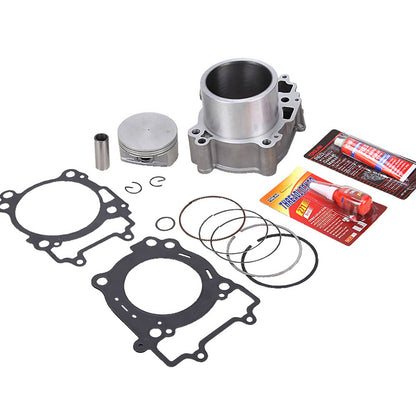

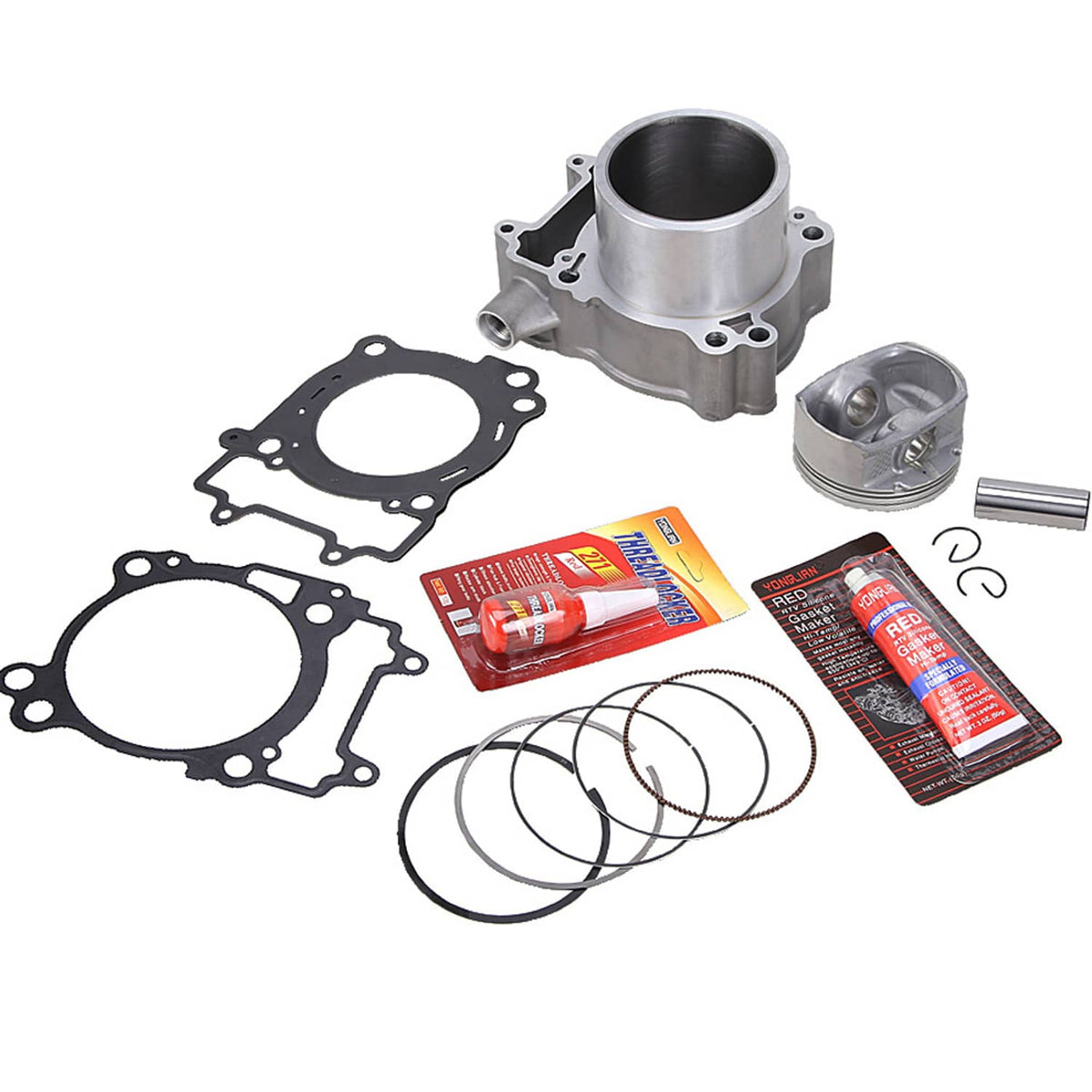

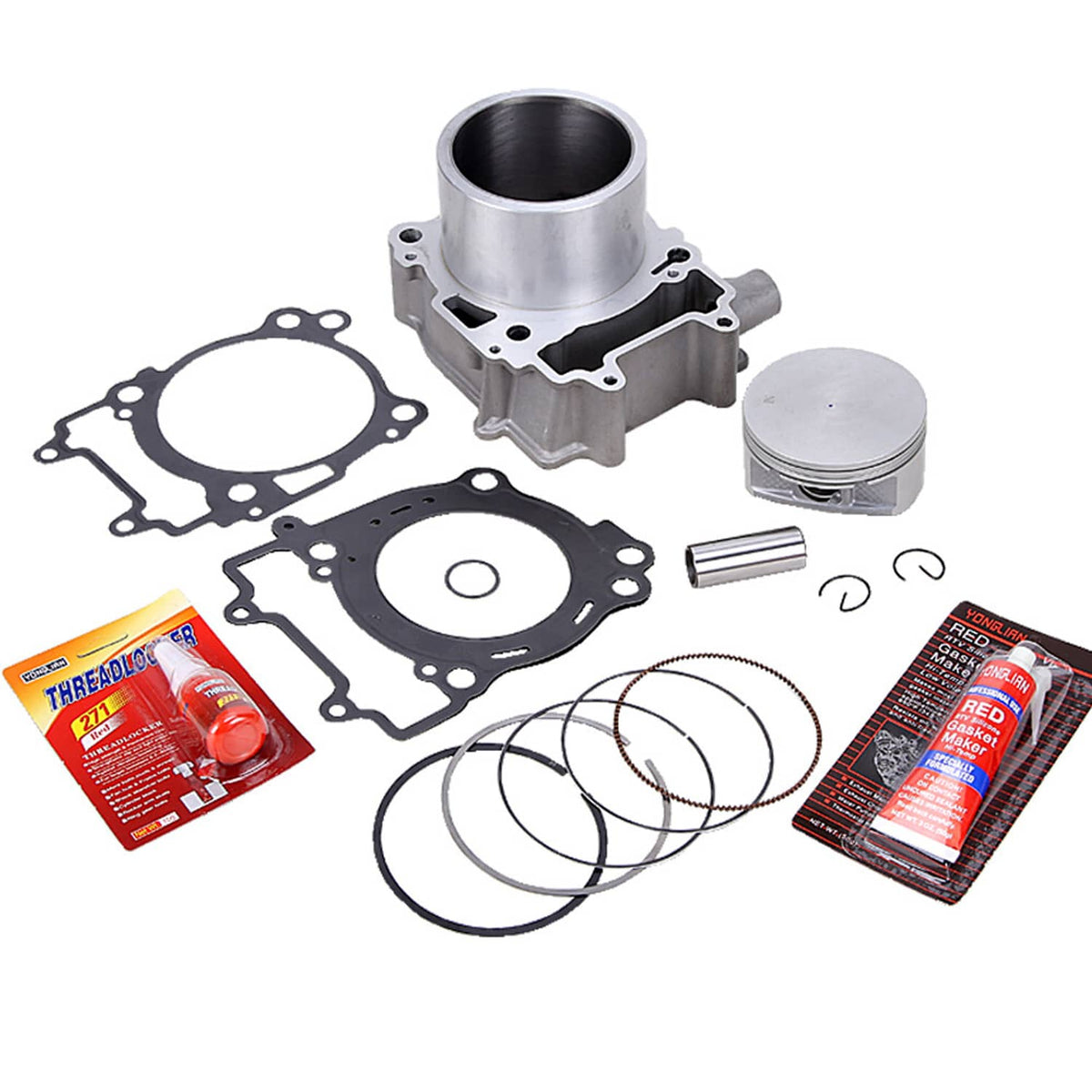

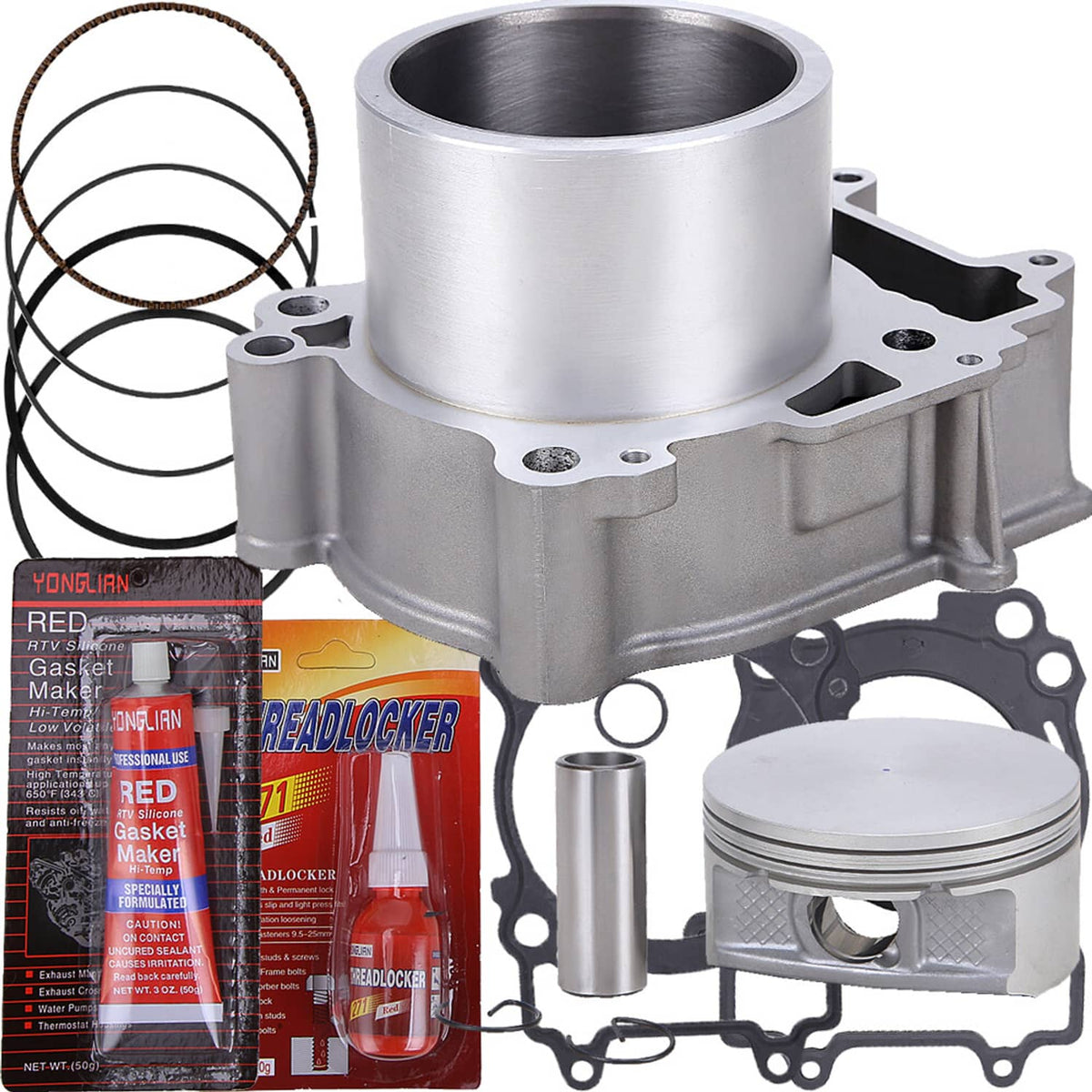

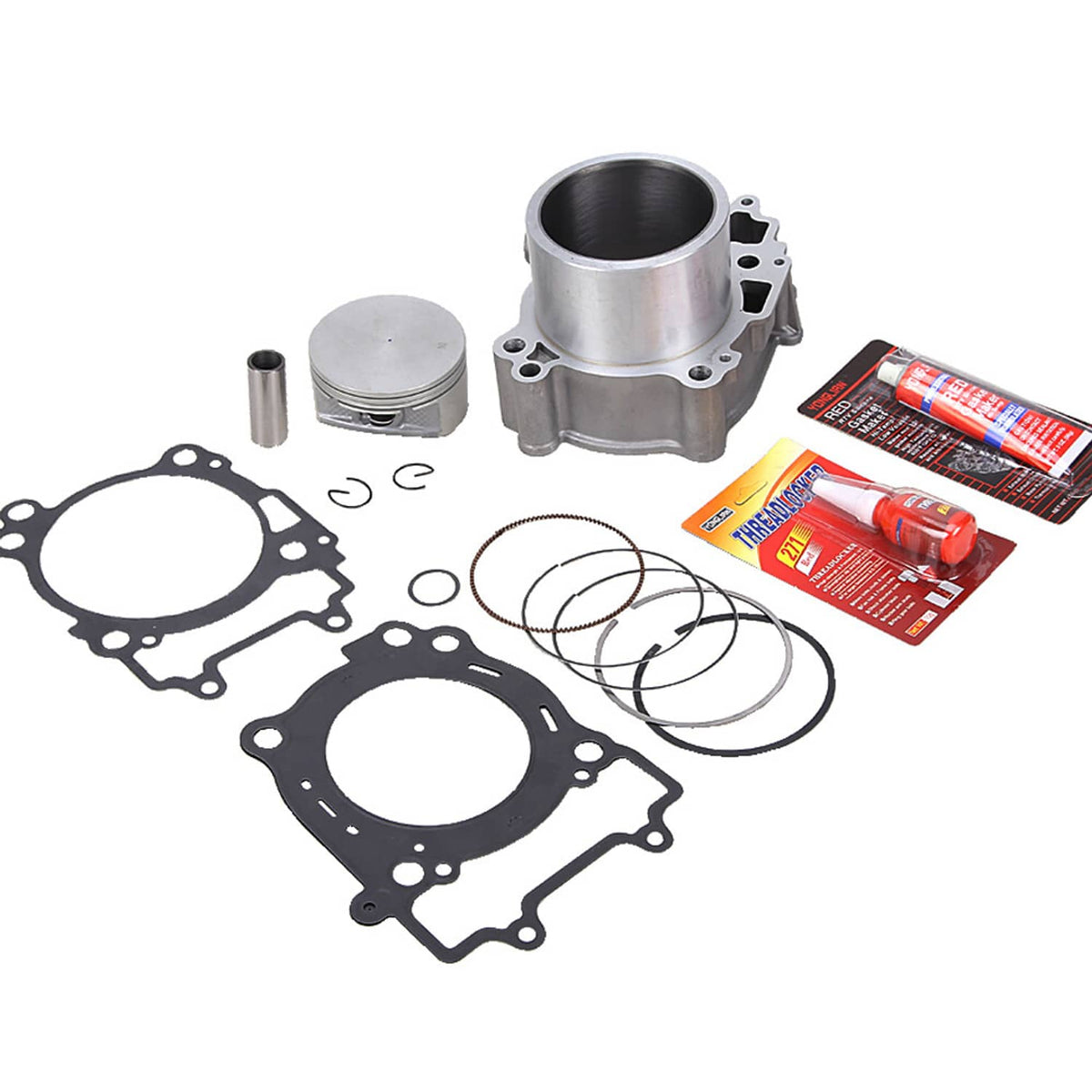

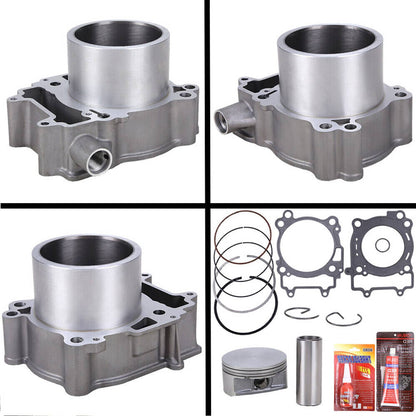

This 93mm cylinder piston kit, OEM cross-reference 3022701, rebuilds the top end on Polaris Sportsman 450 and Ranger 500 machines with a matched cylinder, piston, and gasket set.

Overview

This cylinder piston kit is a complete upper end assembly for Polaris Sportsman 450 and Ranger 500 models. The 93mm cylinder, piston, and gasket kit works together to restore compression and sealing on worn engines. It suits riders and mechanics taking on a top end rebuild where a matched bore and piston matter.

Built For Performance

• 93mm cylinder bore sized for the 450 and 500 engine platform
• Piston and rings supplied as a matched set for the cylinder
• Gaskets included to seal cylinder and head mating surfaces
• OEM cross-reference 3022701 for easy part lookup
• Direct fitment for the listed model years without machining

Fits These Machines

• for Polaris Sportsman 450
• for Polaris Ranger 500
• for Polaris Sportsman 450 2017-2022
• for Polaris Ranger 500 2017-2022

On-The-Job Use

• Top end rebuilds on high-hour utility quads
• Compression recovery after engine wear
• Farm and ranch maintenance on Sportsman and Ranger units
• ATV and UTV repair shop rebuild jobs

Specs At A Glance

Good To Know

Q: Will this kit fit both the Sportsman 450 and Ranger 500? A: It is listed for both platforms and carries the 3022701 cross-reference for confirmation. Always verify your machine's serial number and bore size before ordering.

Q: Is any machining required to install this cylinder piston kit? A: The cylinder and piston come matched, so installation is a direct top end replacement. Follow the service manual torque values for a reliable seal.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
