9B-116 Trim Cylinder Pin Cap Bushing Hardware Kit For MerCruiser Alpha 1 Gen 2

9B-116 Trim Cylinder Pin Cap Bushing Hardware Kit for MerCruiser Alpha 1 Gen 2

This 9B-116 trim cylinder pin cap bushing hardware kit for MerCruiser Alpha 1 Gen 2 contains the pin, cap, bushing and related hardware needed to service the trim cylinder mounting points on your stern drive, replacing worn components so the drive trims smoothly.

Overview

This 9B-116 trim cylinder pin cap bushing hardware kit for MerCruiser Alpha 1 Gen 2 supplies the pin, cap, bushing, and small mounting hardware used at the trim cylinder pivot points. It restores a solid, rattle free connection so the leg holds trim angle and moves through its range the way it should. Boat owners and marine mechanics rebuilding or refreshing a Gen 2 Alpha drive will find this trim cylinder pin cap bushing hardware kit a practical, direct service option.

Built For Performance

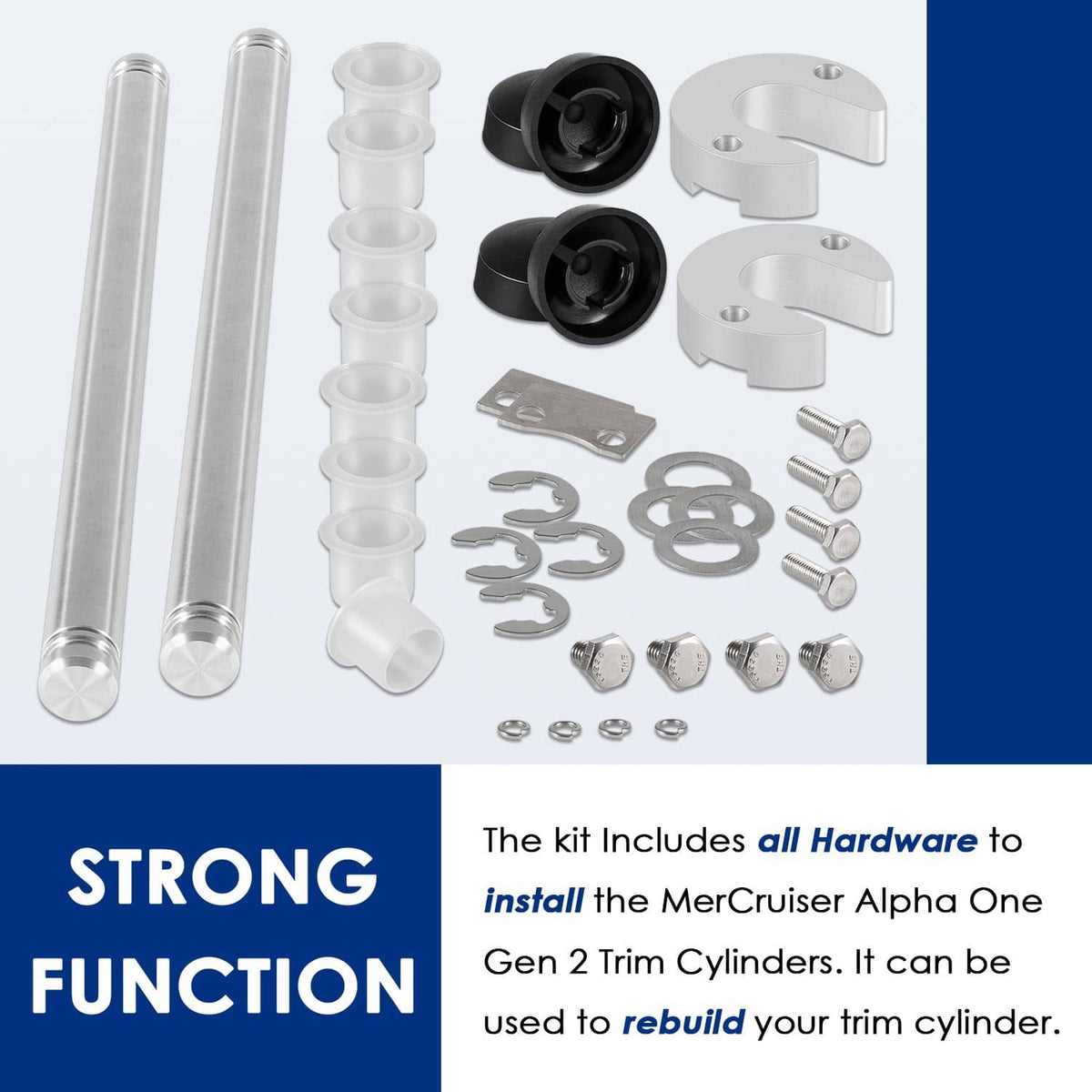

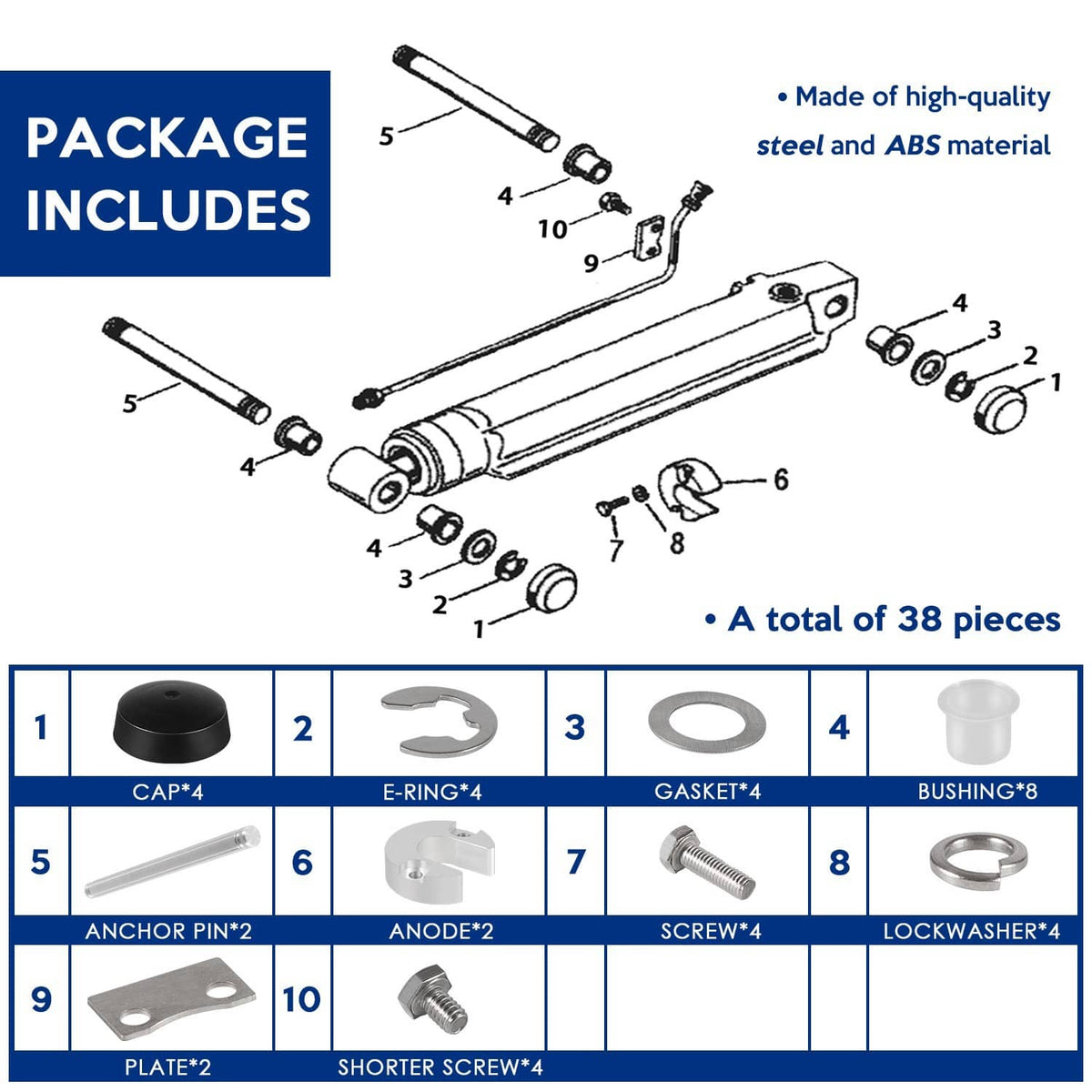

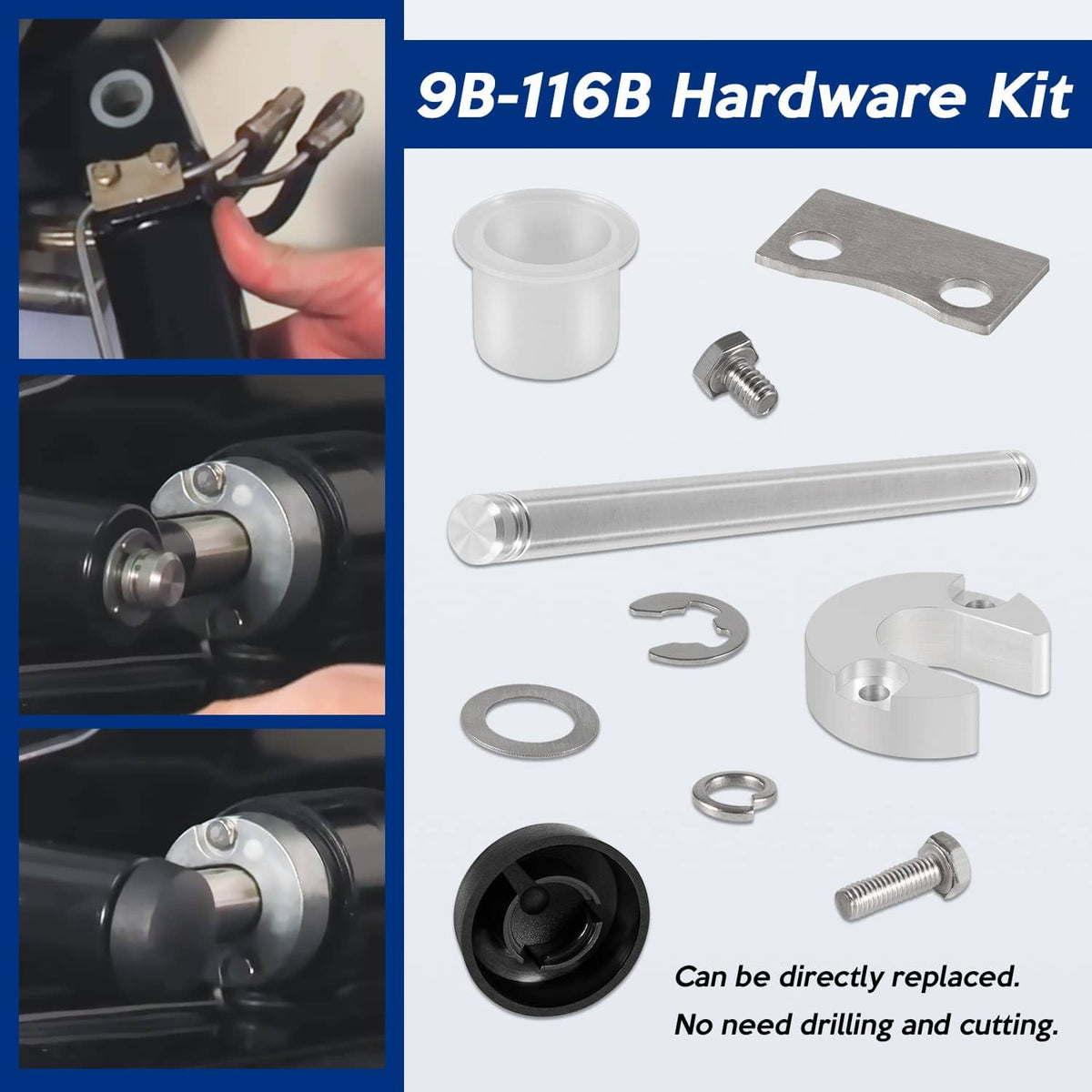

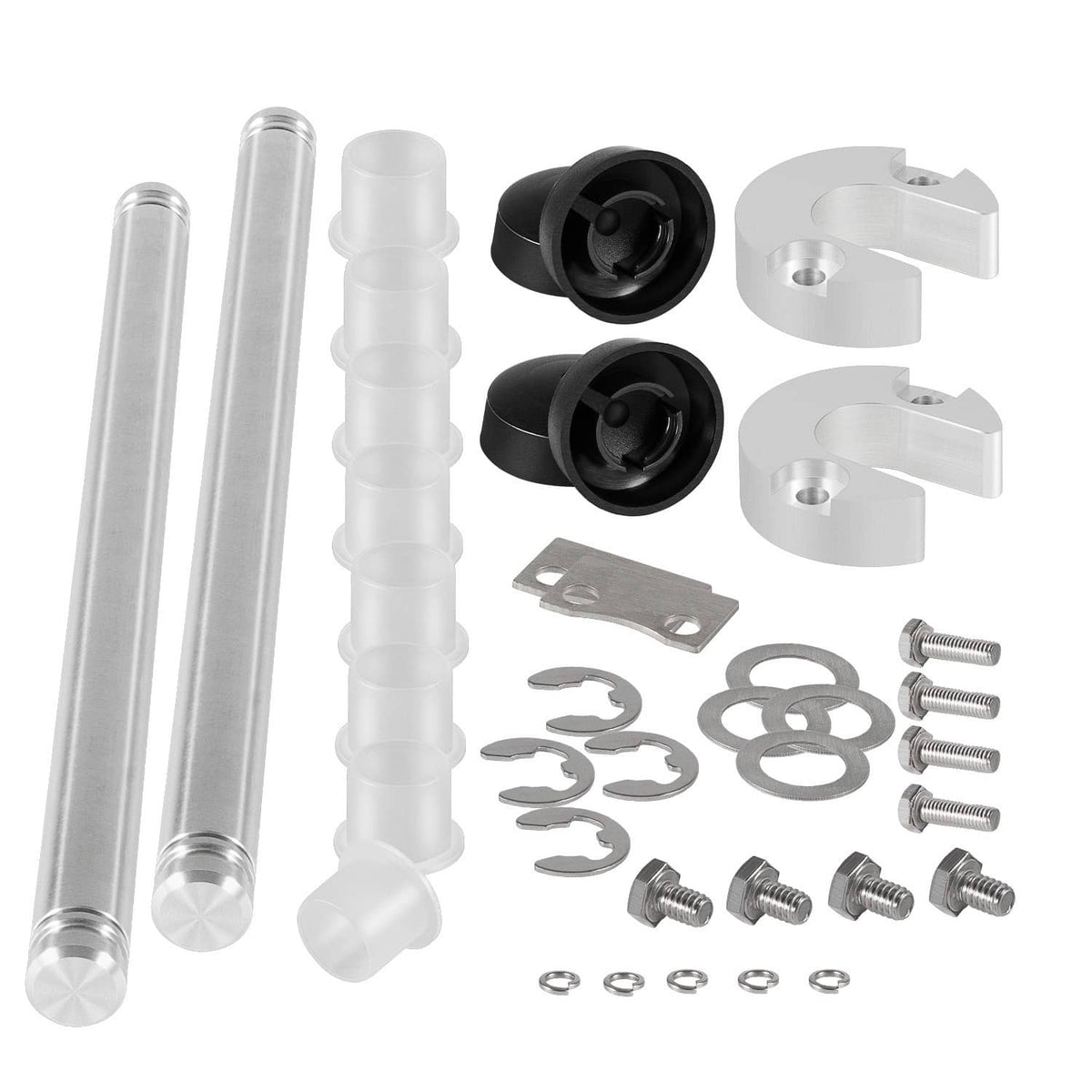

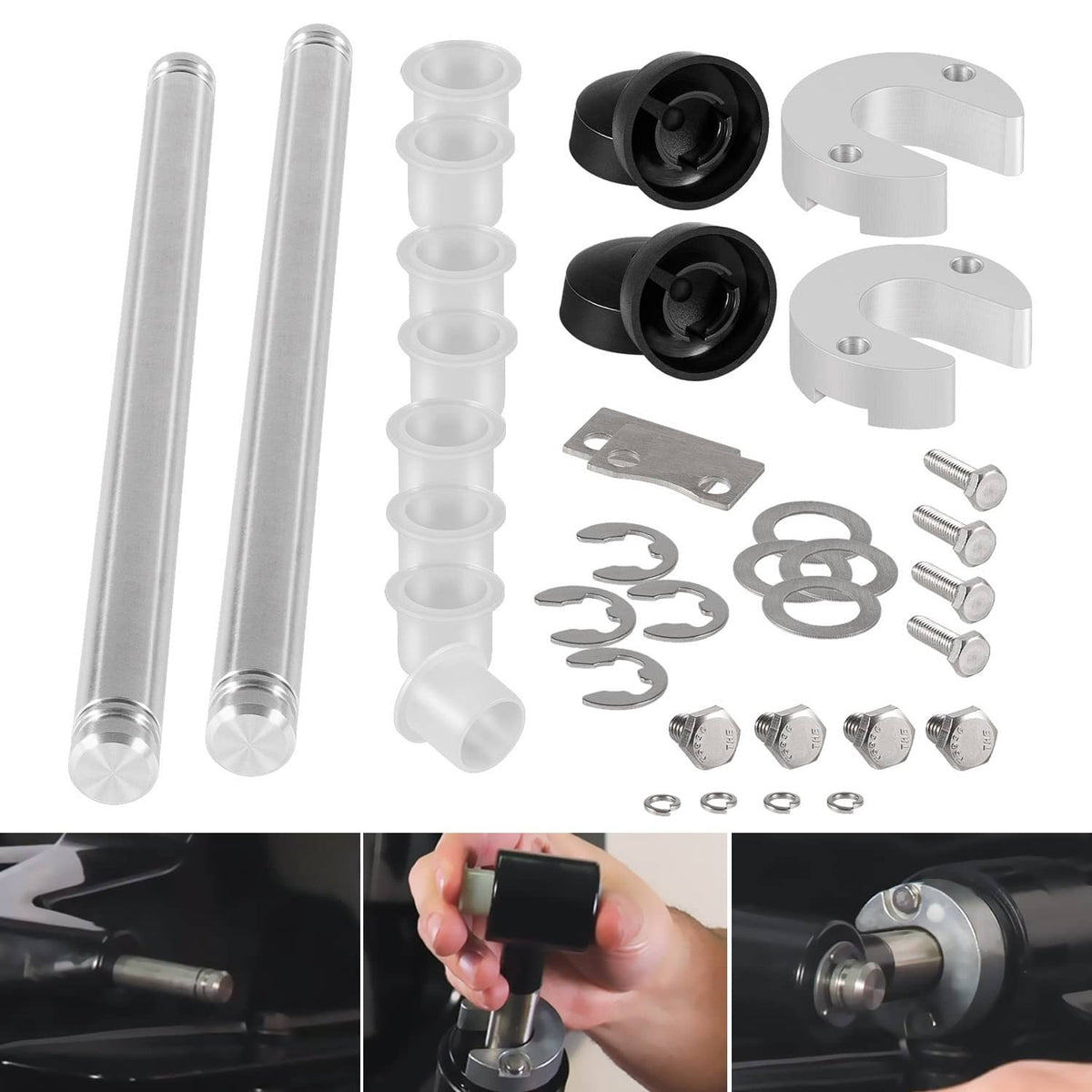

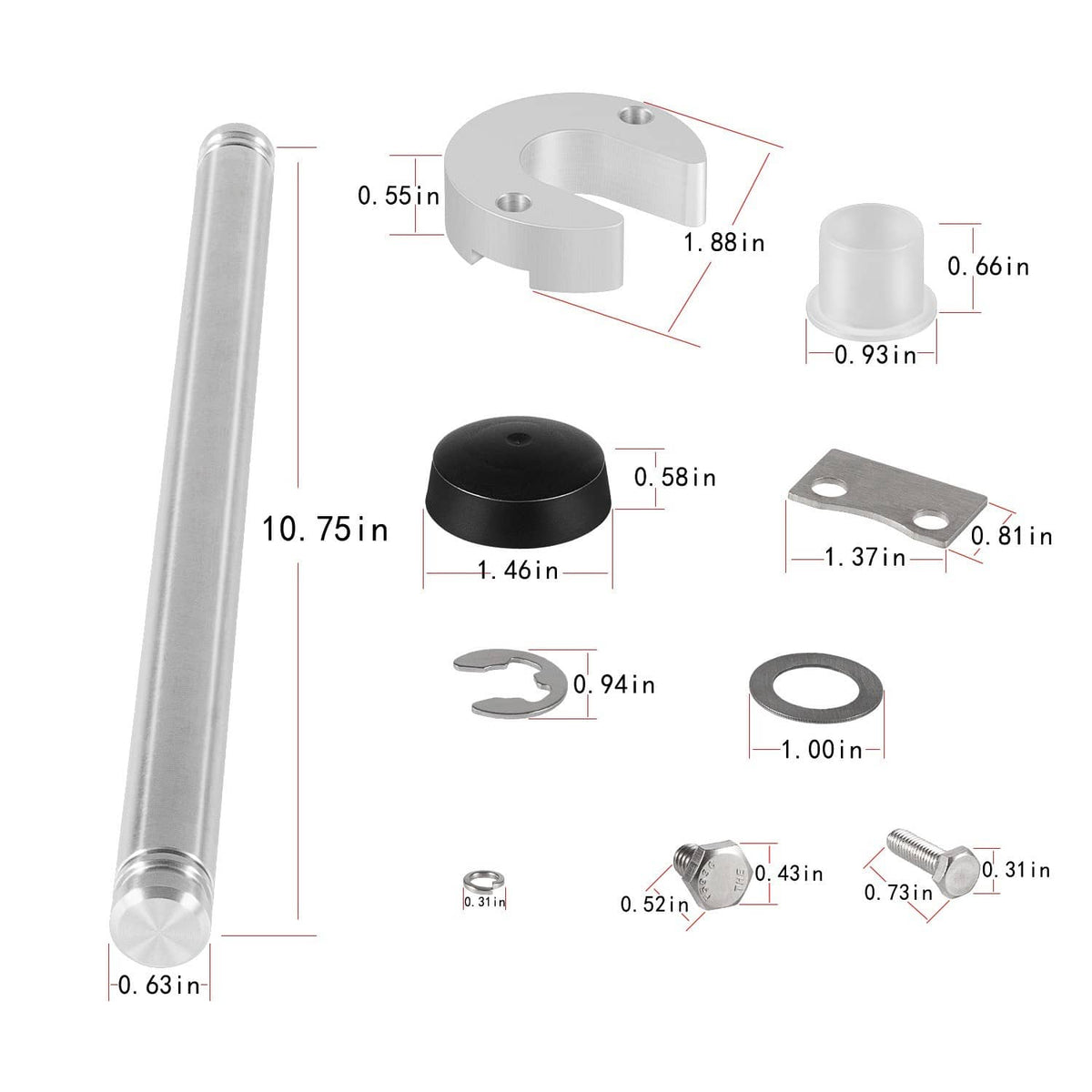

• Includes trim cylinder pin, cap, bushings, and mounting hardware in one kit
• Bushings made to cushion and center the pin inside the cylinder mount
• Pin sized to match the Alpha 1 Gen 2 trim cylinder geometry
• Cap holds the pin in place and keeps dirt and water out of the pivot
• Direct replacement part number 9B-116 for easy reference when ordering

Fits These Machines

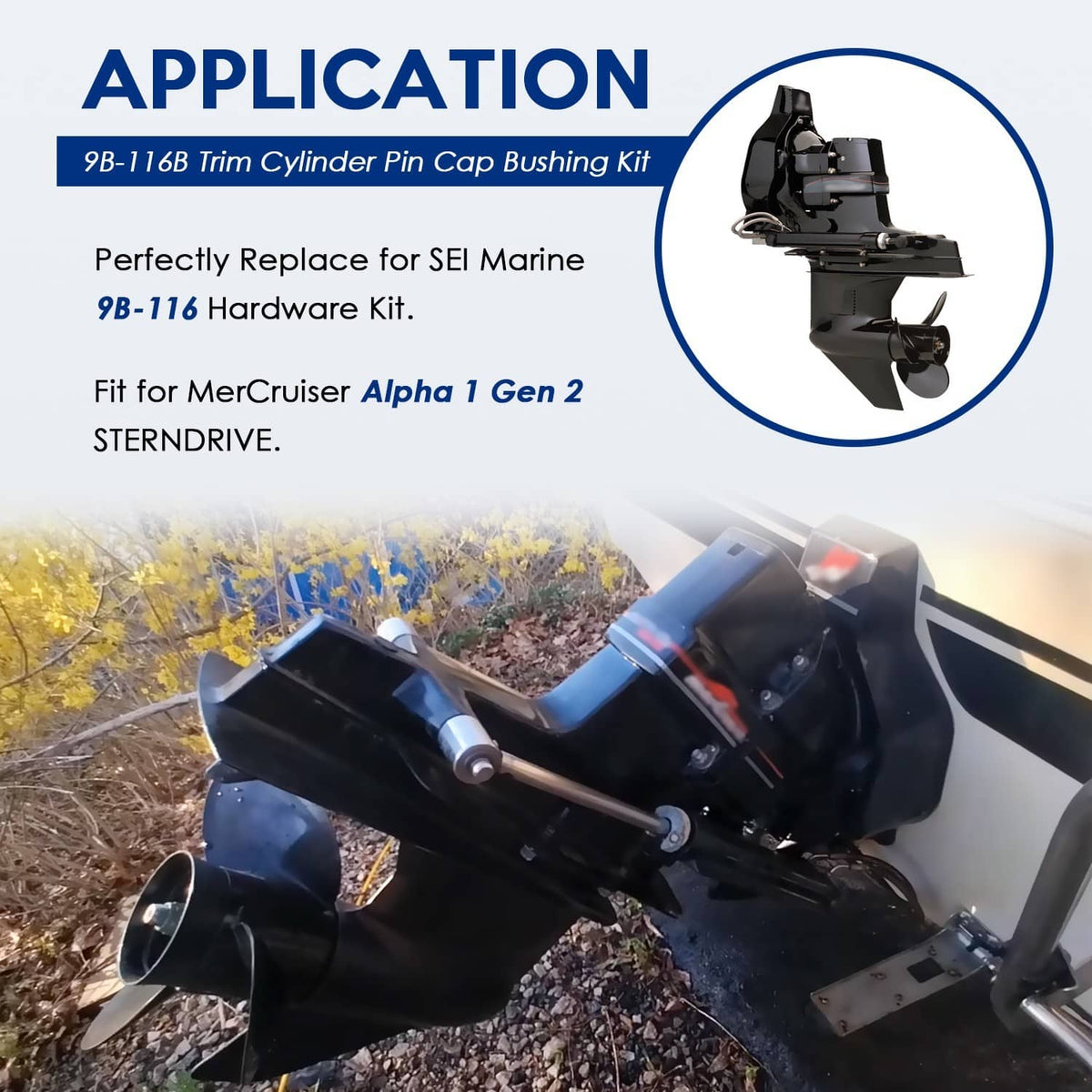

• for MerCruiser Alpha 1 Gen 2 stern drive

On-The-Job Use

• Refreshing trim cylinder pivot points during routine stern drive service
• Repairing a leg with play or noise at the trim cylinder mount
• Replacing perished bushings when the drive no longer holds trim angle
• Keeping a spare kit aboard for mid season repairs

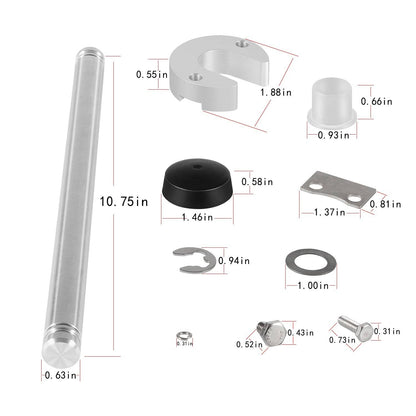

Specs At A Glance

Good To Know

Q: Do I need to remove the drive to fit this kit? A: Most trim cylinder pin and bushing work can be done with the drive in place, though access is easier with the boat out of the water. Check your service manual for the exact procedure on your Alpha 1 Gen 2.

Q: Why replace the bushings if the pin still looks fine? A: Worn bushings let the pin move, which causes noise, sloppy trim, and extra load on the cylinder. Replacing the bushing with the pin and cap keeps the pivot tight.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
