For 2014-2021 Honda Pioneer 700 Cylinder Jug Piston Top End Gaskets Rebuild Kit

Top End Rebuild Kit for Honda Pioneer 700

This cylinder jug piston top end gasket rebuild kit for Honda Pioneer 700 restores compression and oil control on worn or damaged engines, and carries the OEM cross-reference 12100-HL1-A00 for the cylinder.

Overview

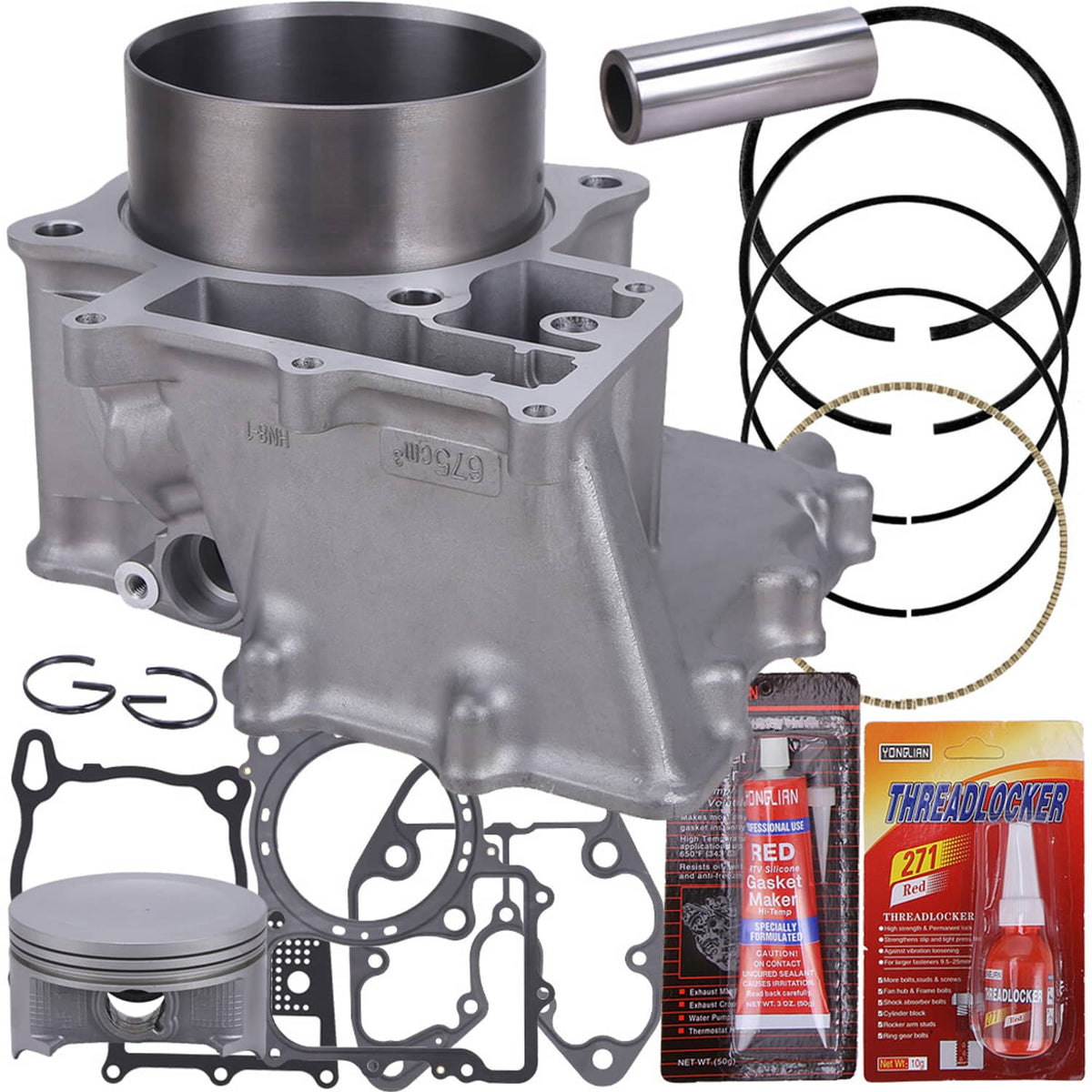

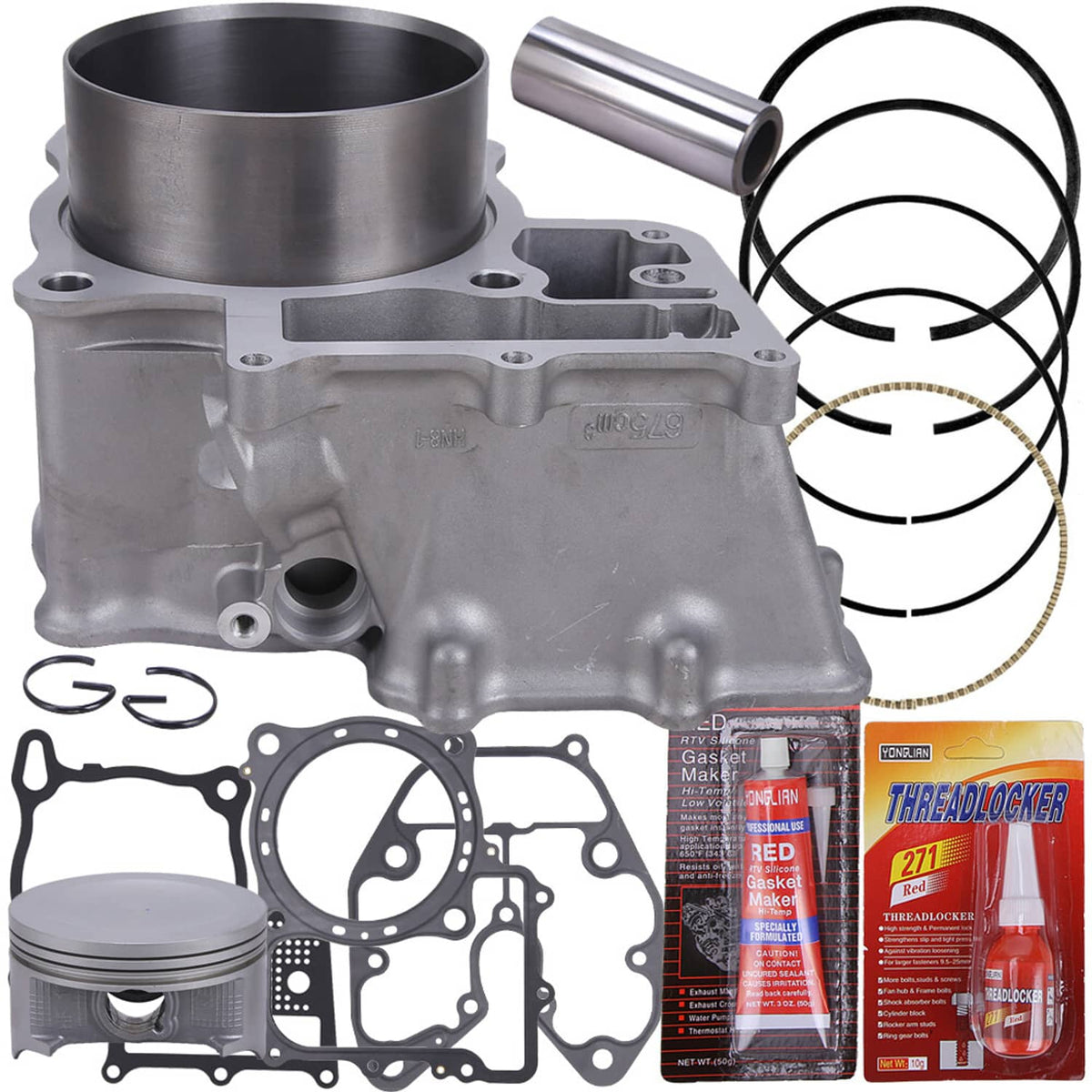

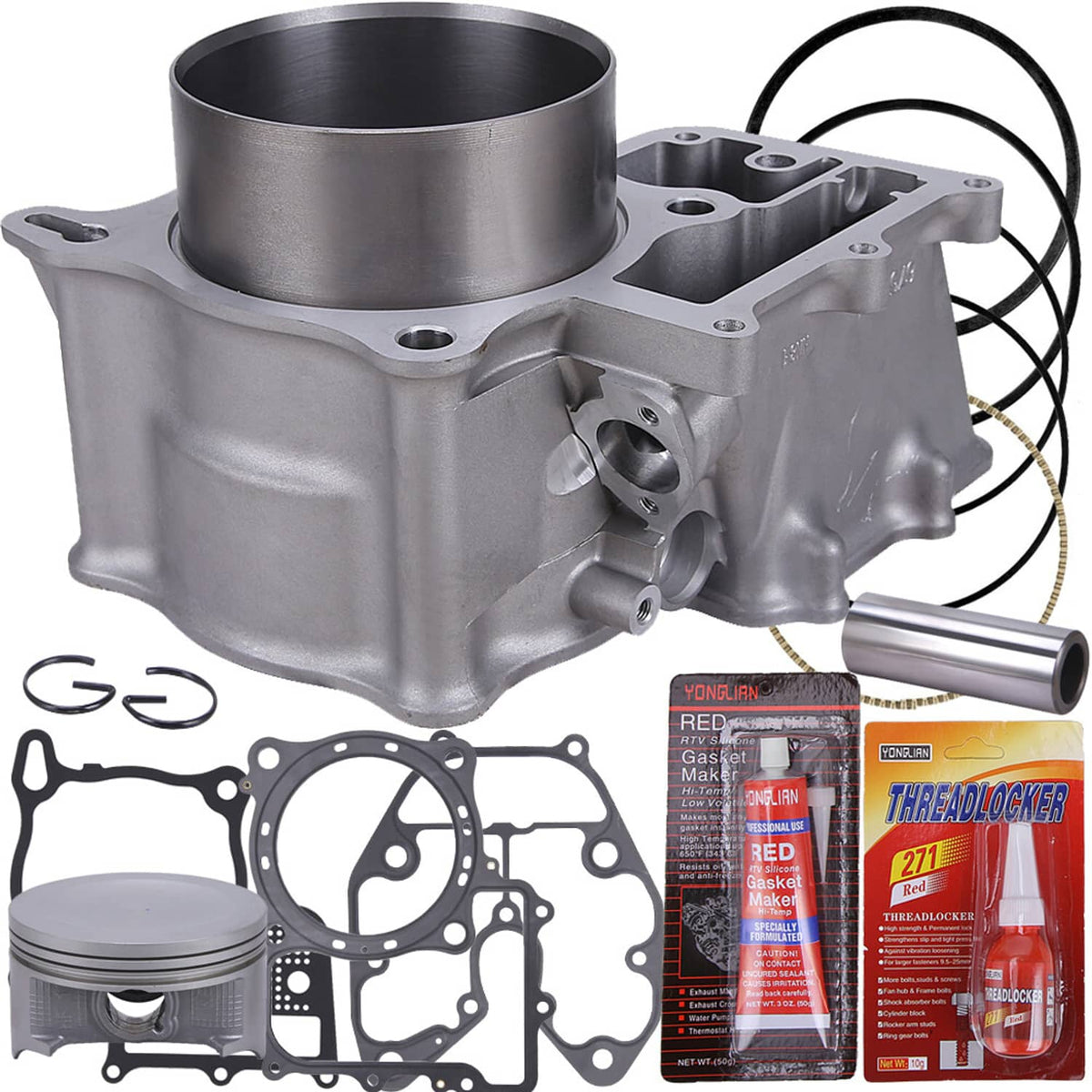

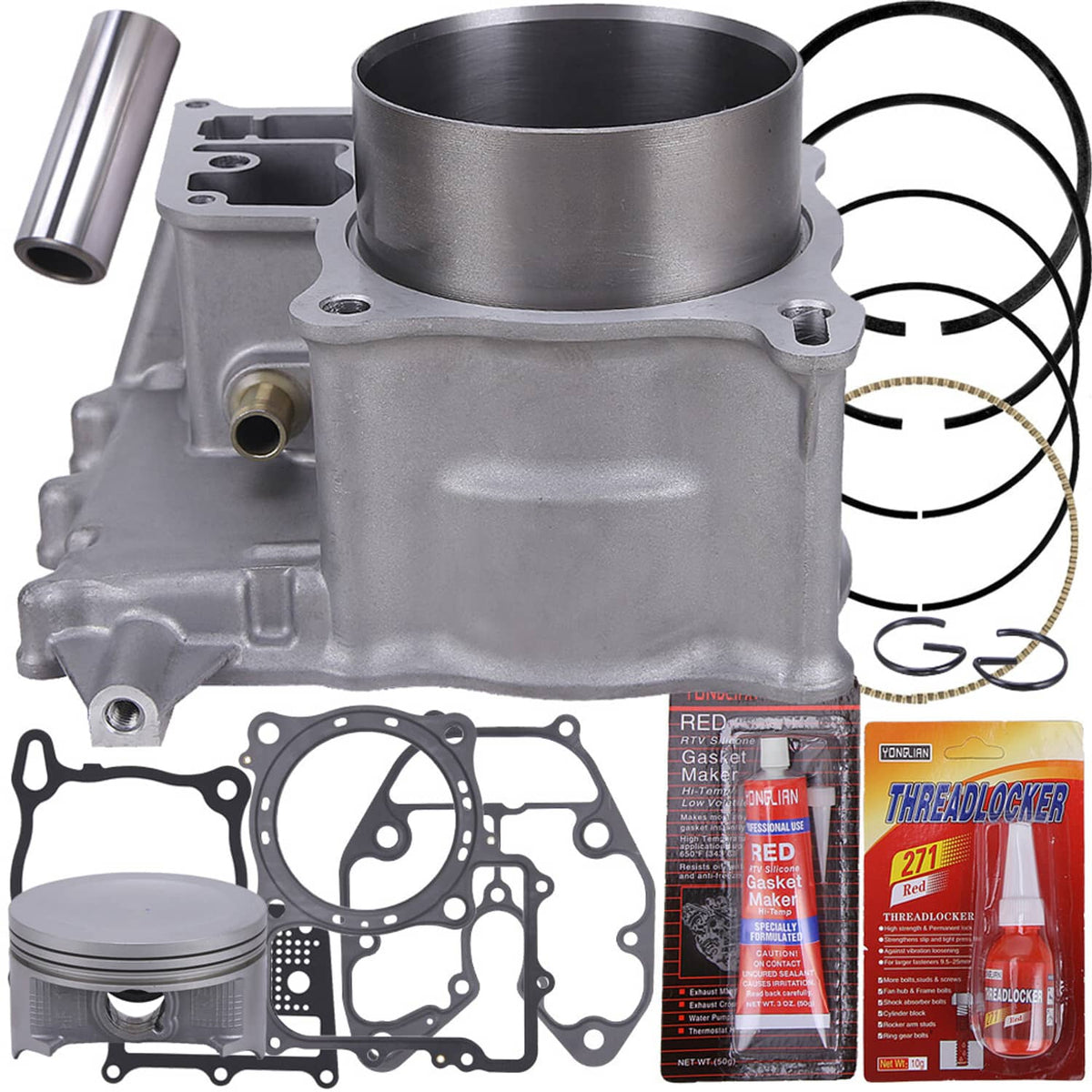

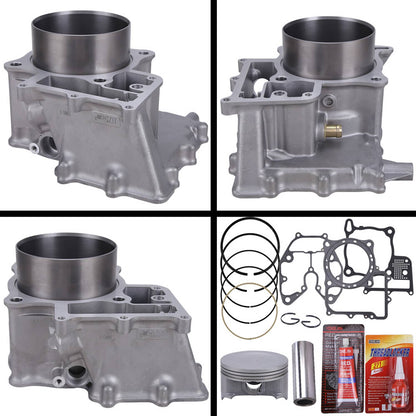

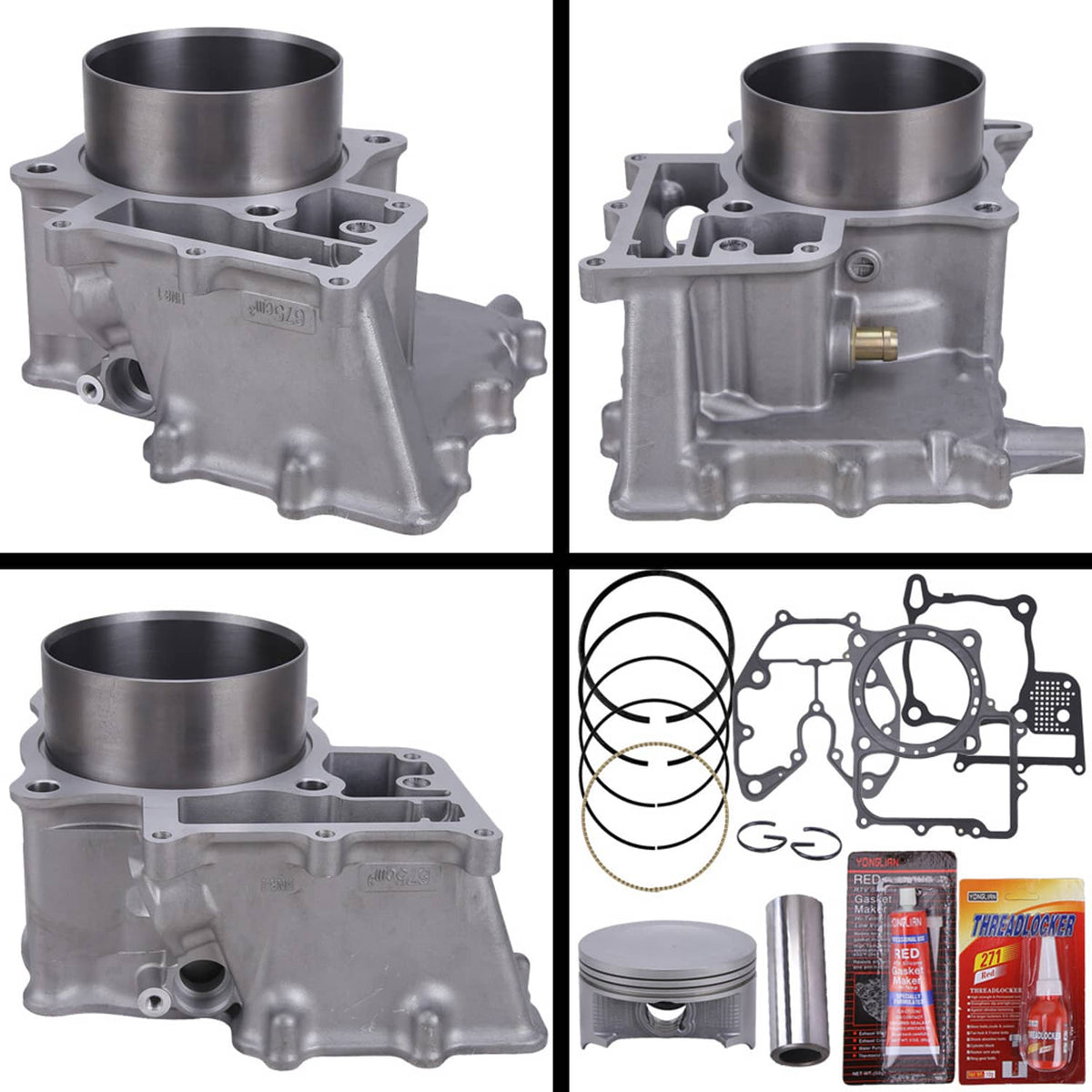

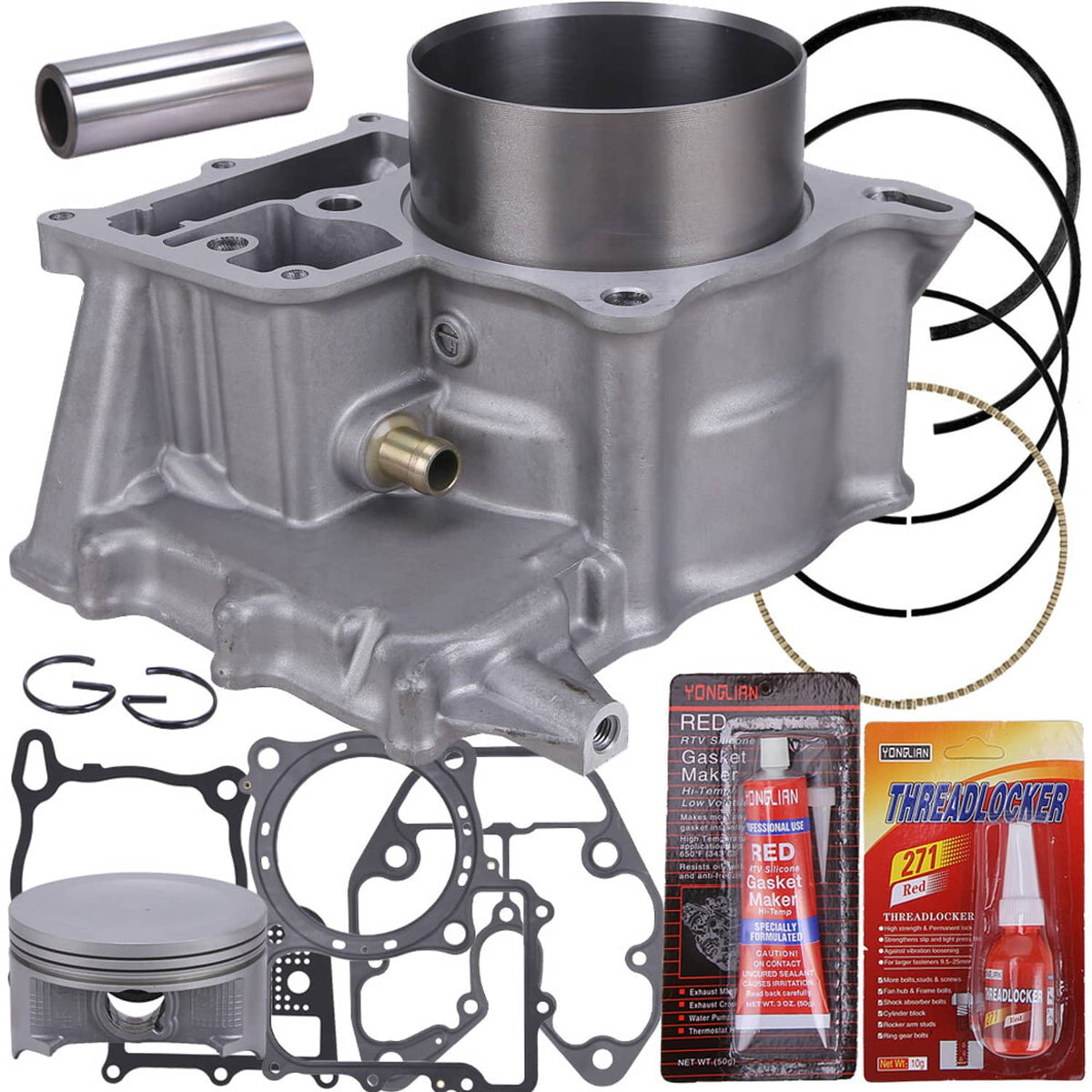

This top end rebuild kit for Honda Pioneer 700 packages a fresh cylinder jug, piston, rings, wrist pin, and complete gasket set into one convenient solution. It is built for owners and shops rebuilding a tired 2014-2021 Pioneer 700 engine that has lost compression, started burning oil, or suffered a scored cylinder. The kit covers the upper half of the engine, so the bottom end can stay in place while the top end is refreshed.

Built For Performance

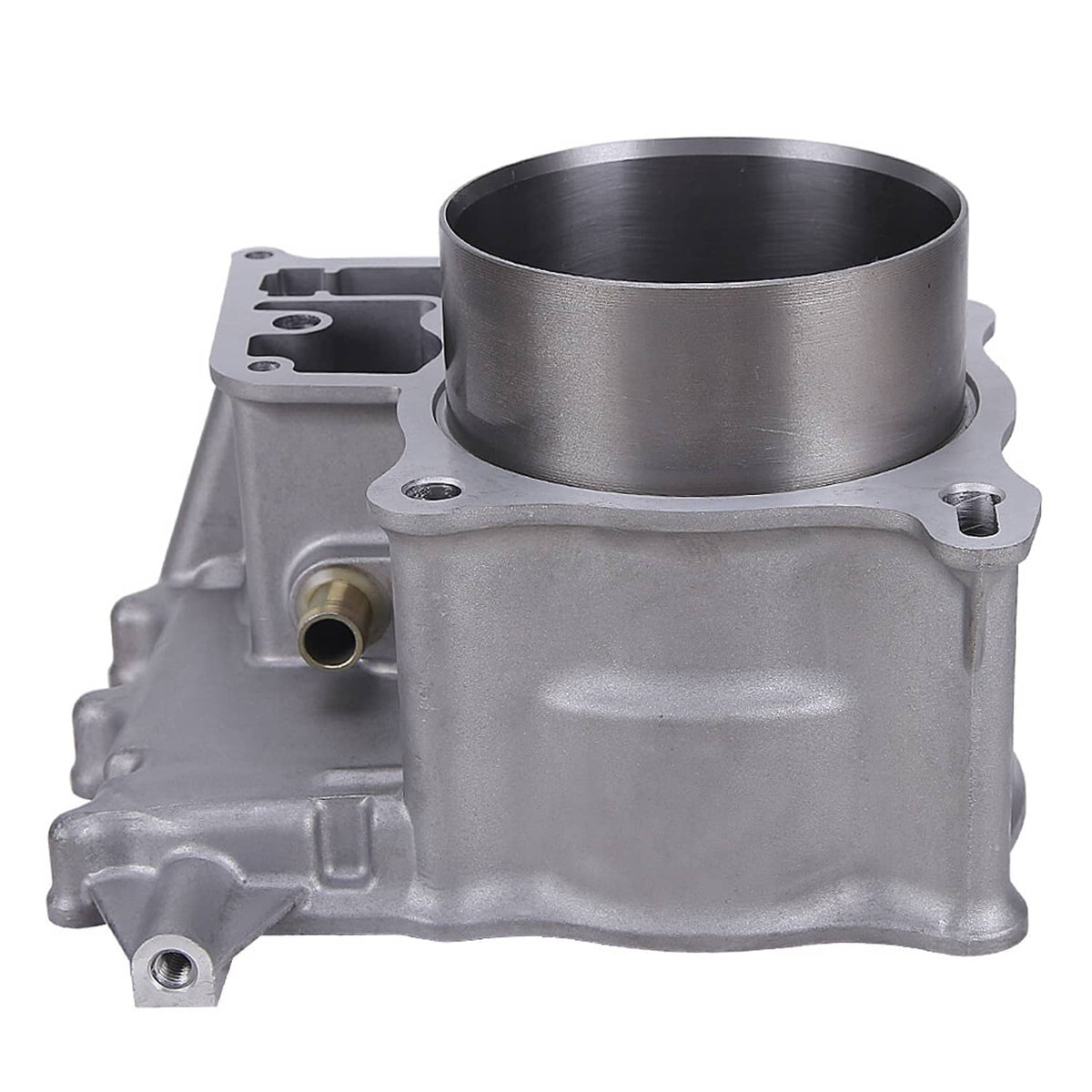

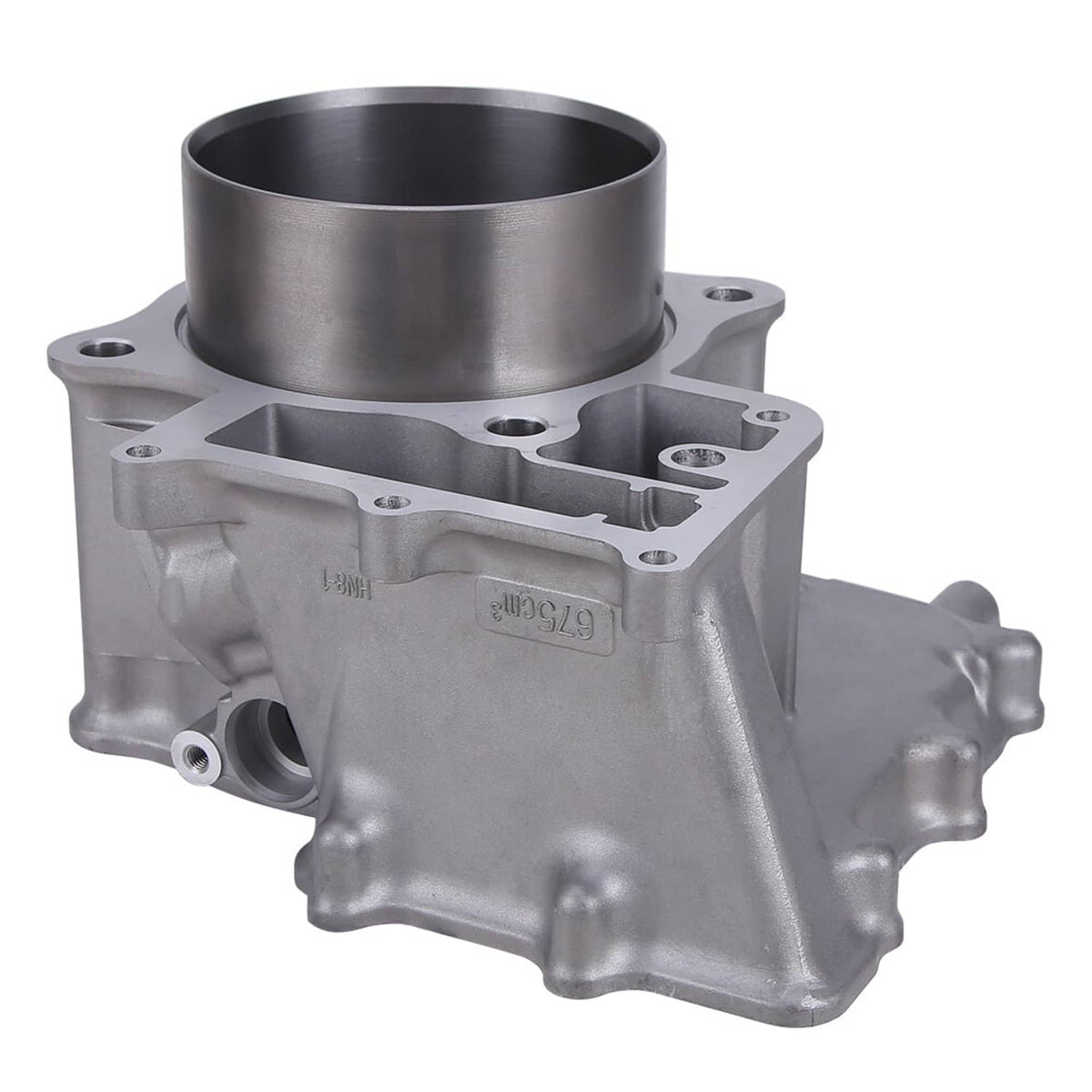

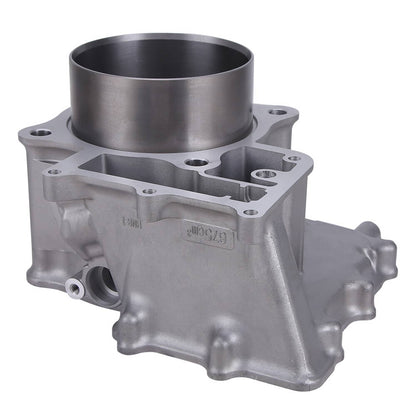

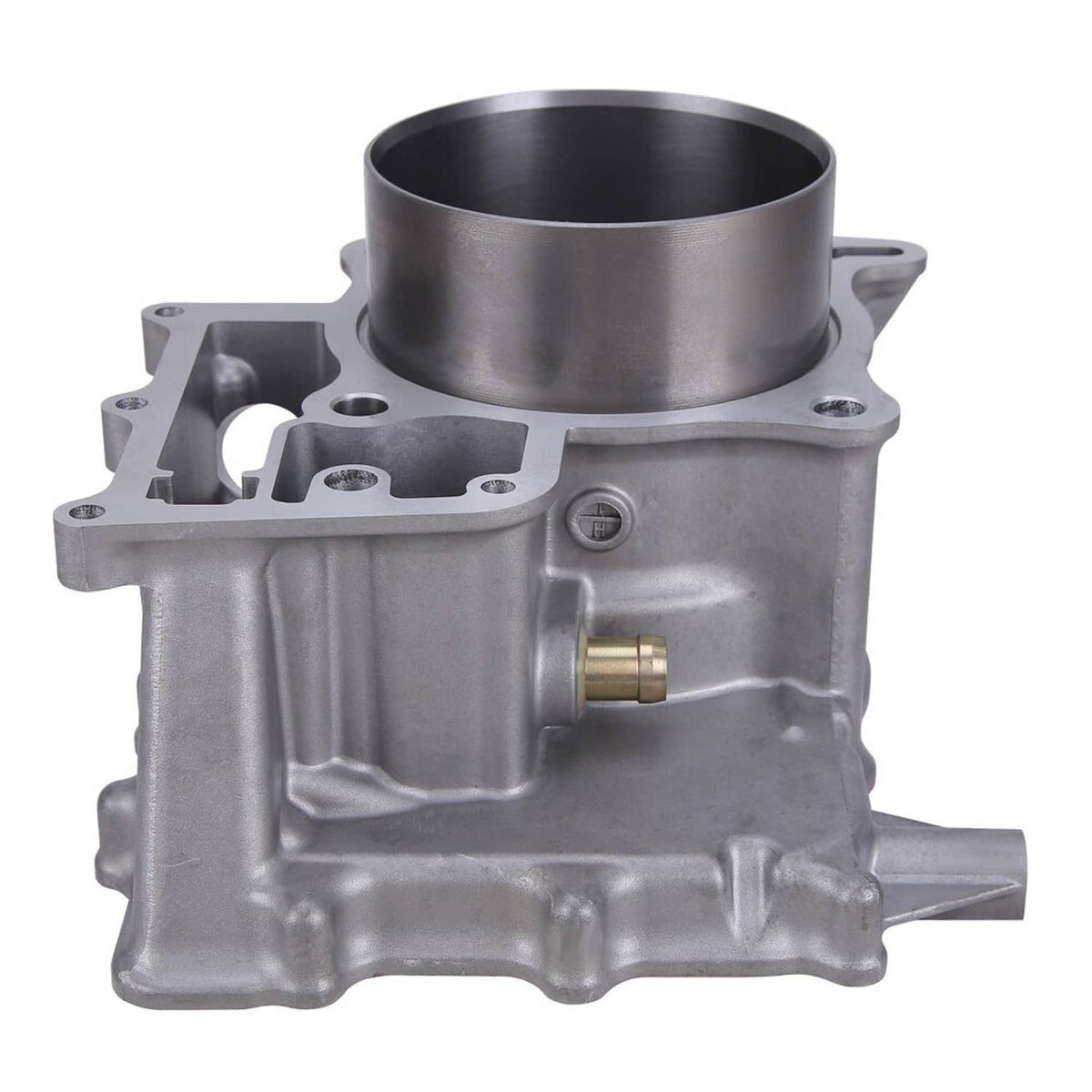

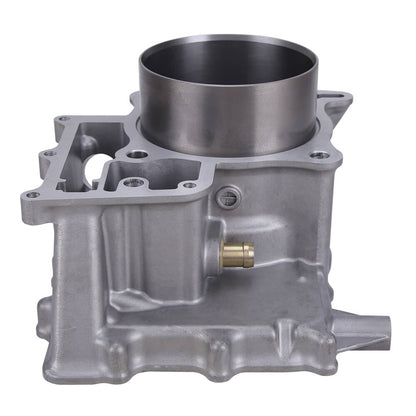

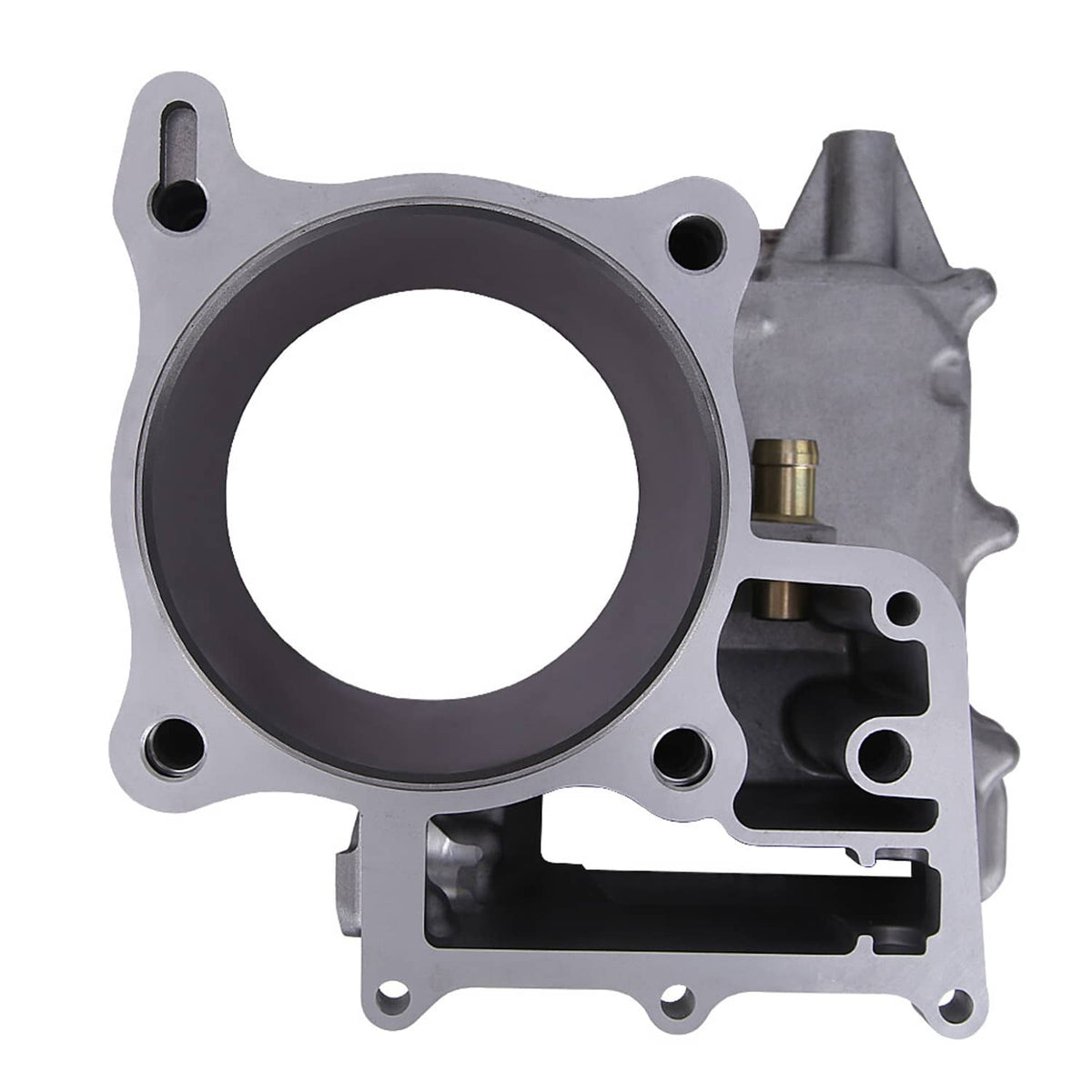

• New cast cylinder jug with a fresh bore for consistent ring seal
• Matching piston, rings, and wrist pin sized for the OEM bore
• Complete top end gasket set including head, base, and exhaust gaskets
• Seals and O-rings included for leak-free reassembly
• Direct replacement for the factory upper engine components

Fits These Machines

• for Honda Pioneer 700 (2014-2021)
• for Honda Pioneer 700-4 (2014-2021)
• for Honda Pioneer 700 Deluxe (2017-2021)
• for Honda Pioneer 700-4 Deluxe (2017-2021)

On-The-Job Use

• Top end refresh after low compression or excessive oil consumption
• Repair after overheating, detonation, or a scored cylinder wall
• Routine rebuild during scheduled engine service
• Restoring power for trail riding, farm work, and utility hauling

Specs At A Glance

Good To Know

Q: Do I need to split the cases to install this kit? A: No, this is an upper engine kit that installs with the engine in the frame, though removing the engine makes the job easier. The bottom end, crank, and transmission are not part of this kit.

Q: Should I measure the bore before ordering? A: Yes, confirm your engine is at standard bore and has not been overbored previously, since this kit is sized for the stock cylinder. If the cylinder has already been bored oversize, a standard piston will not fit.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
