For 926-149 Authentic 6R80 TCM Transmission Lead Frame AL3Z-7G276-D

6R80 TCM Transmission Lead Frame for Ford

The 6R80 TCM transmission lead frame replaces OEM cross-reference 926-149 and AL3Z-7G276-D, routing electrical signals between the transmission control module and internal solenoids.

Overview

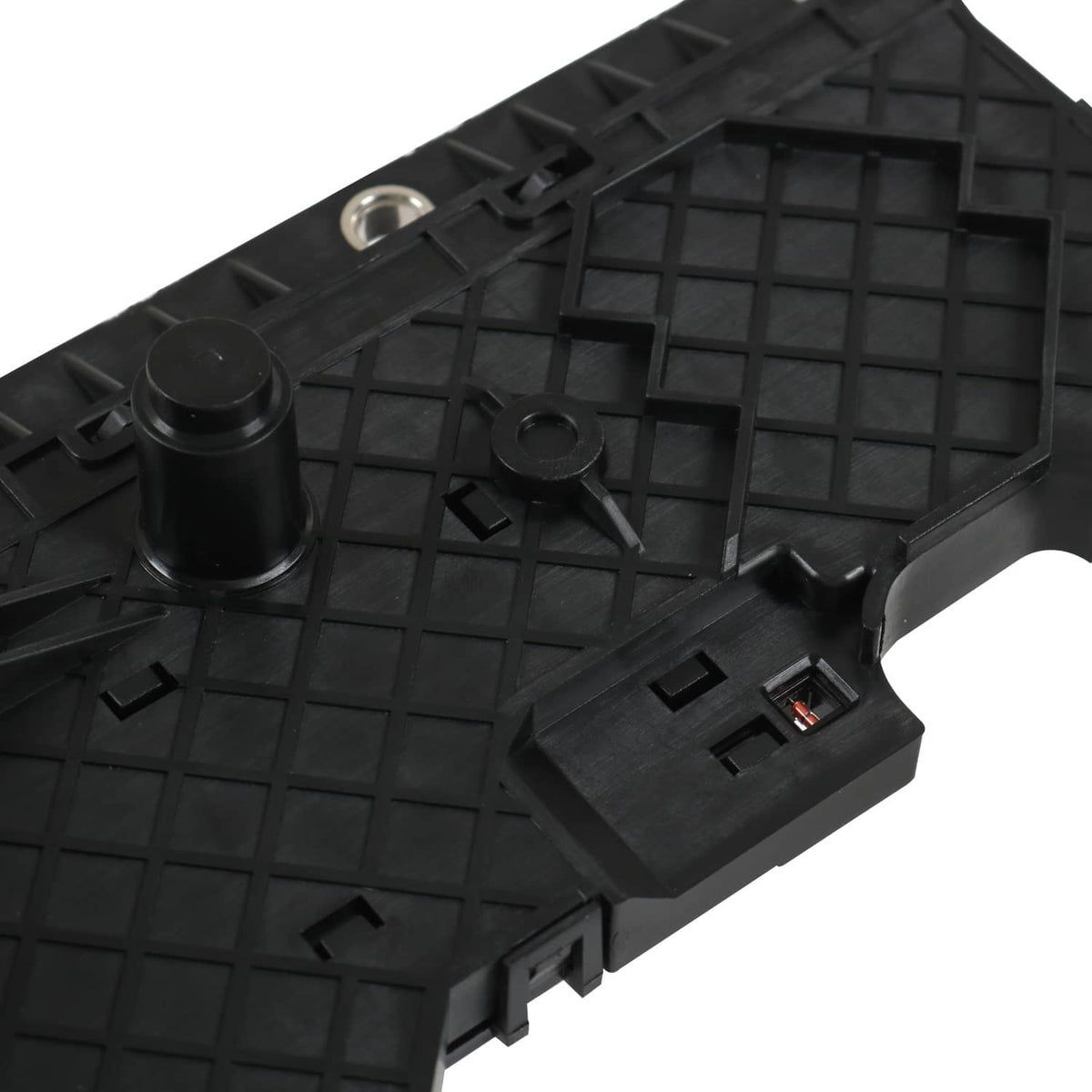

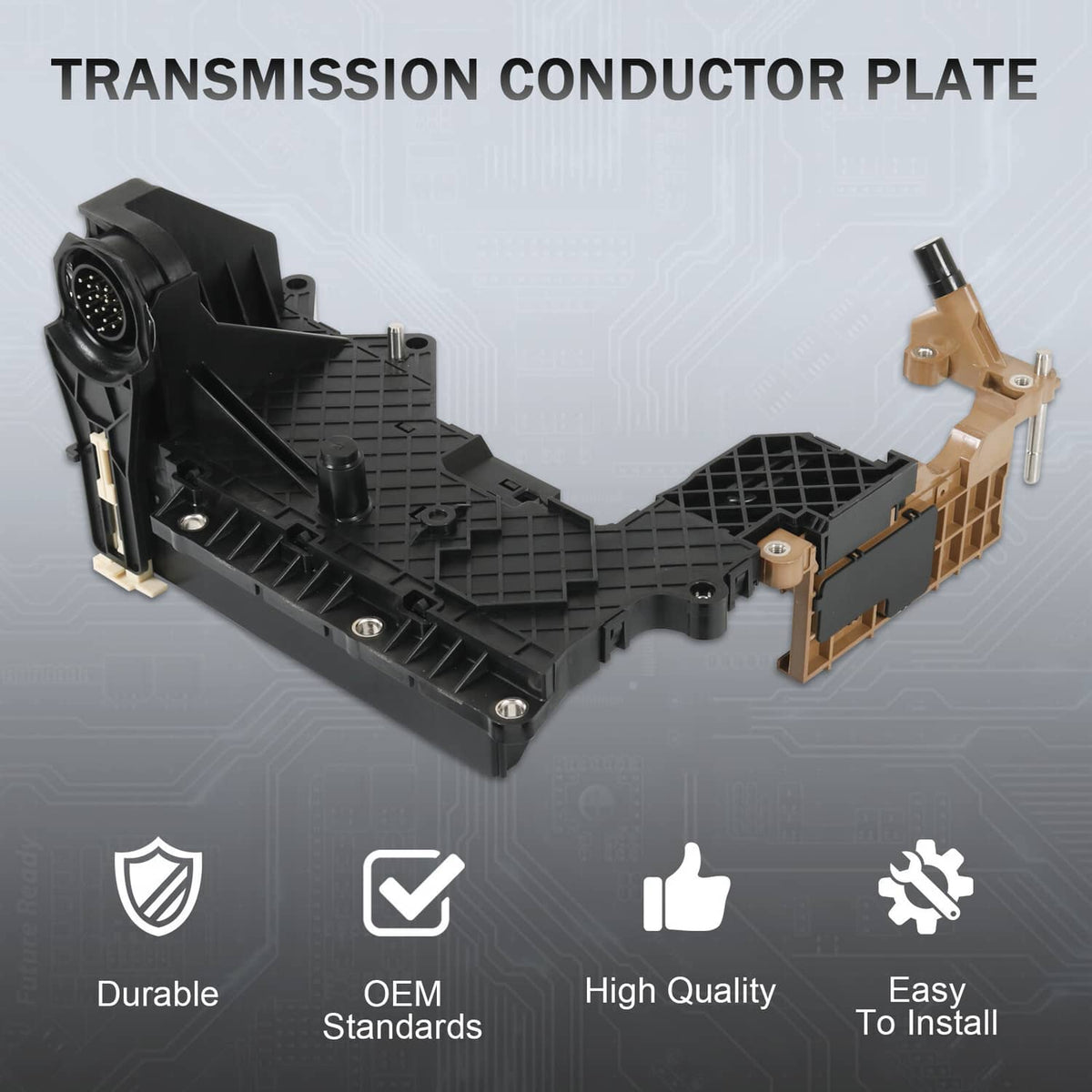

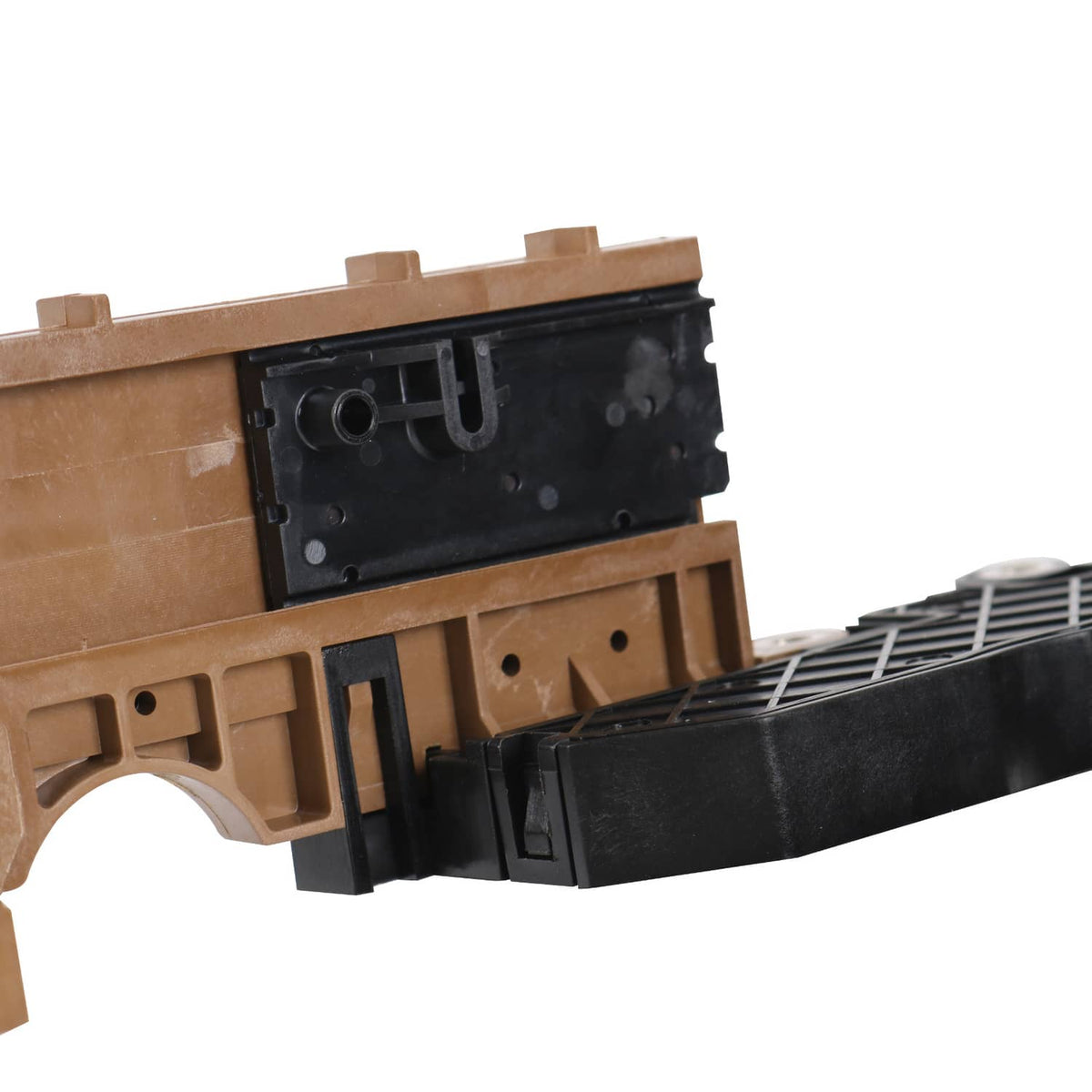

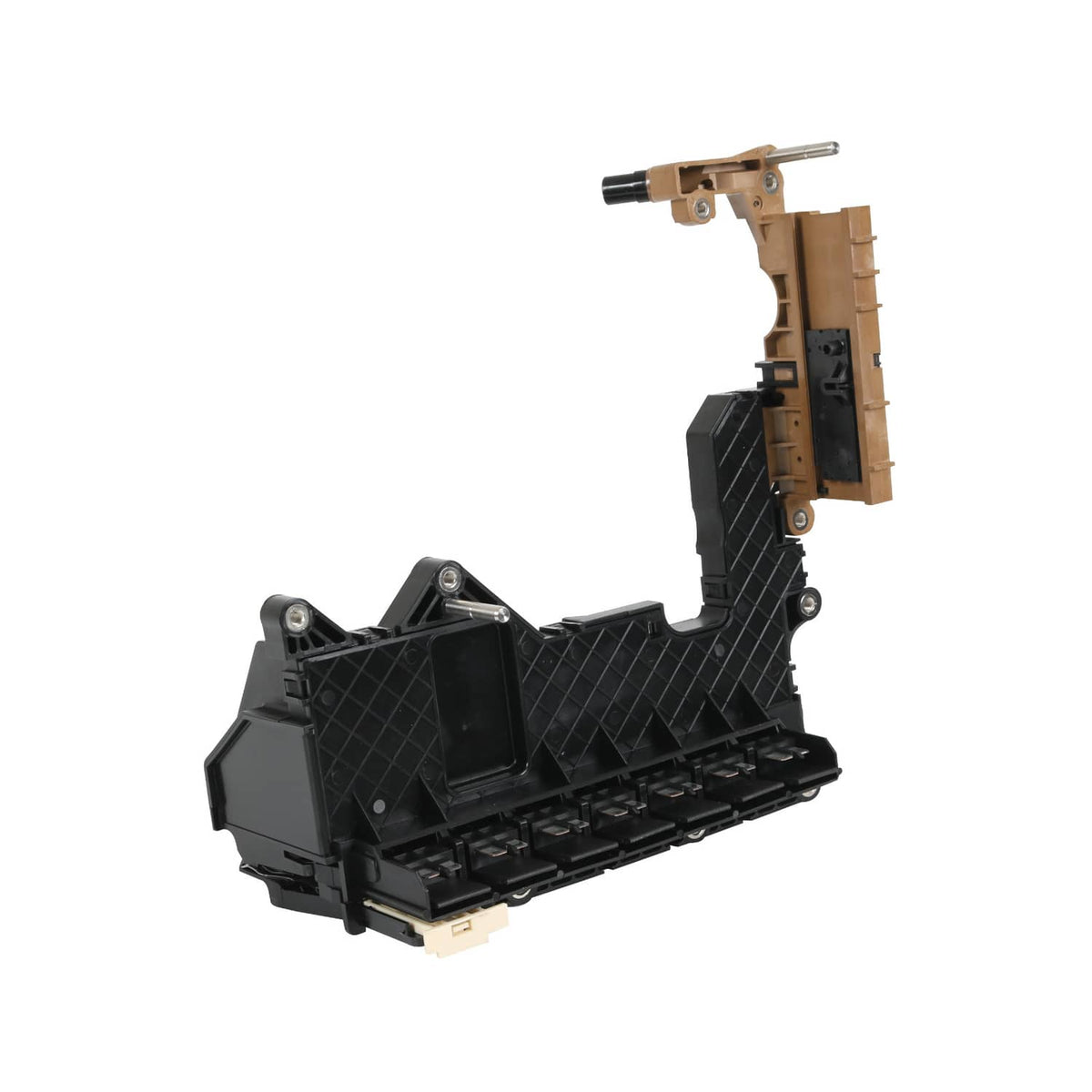

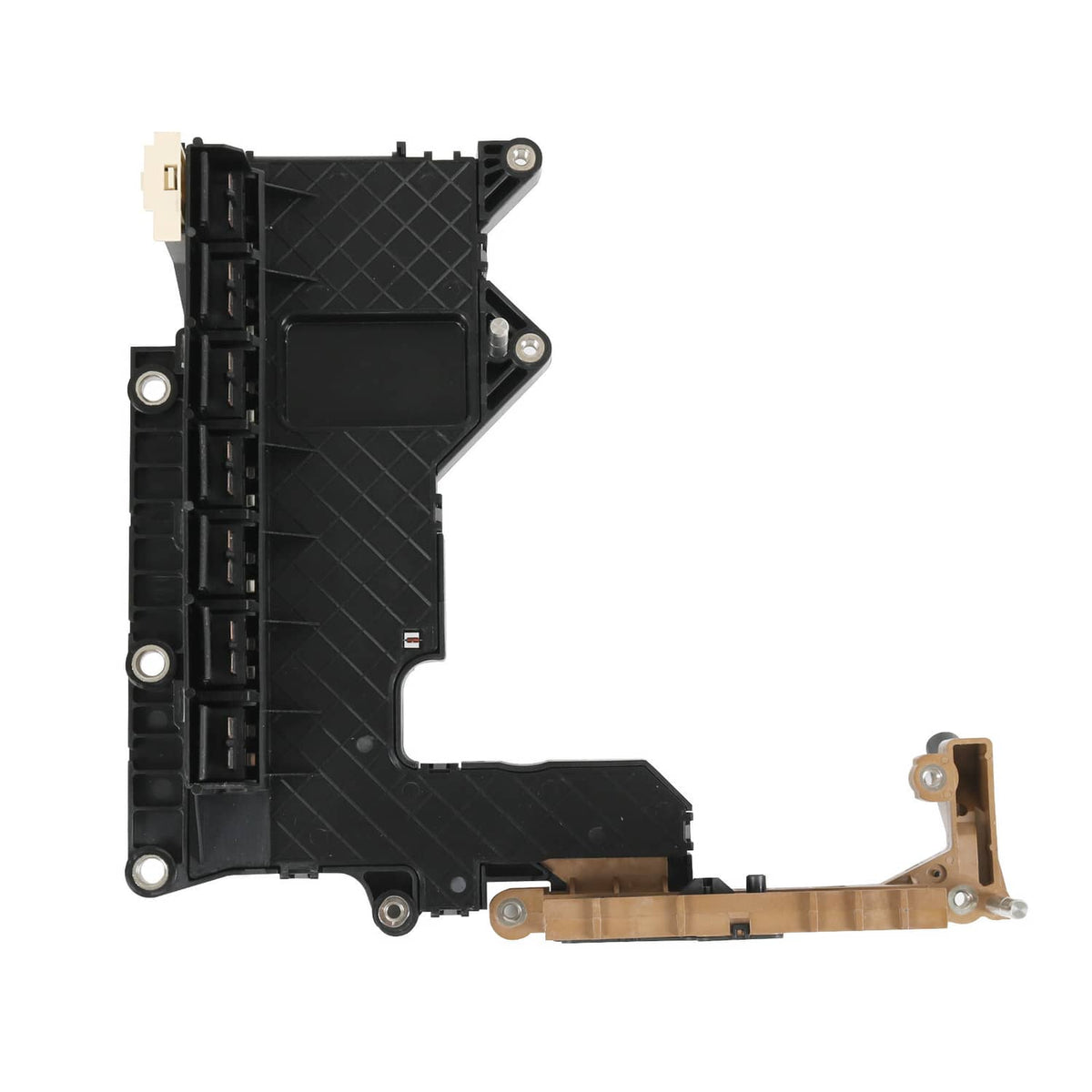

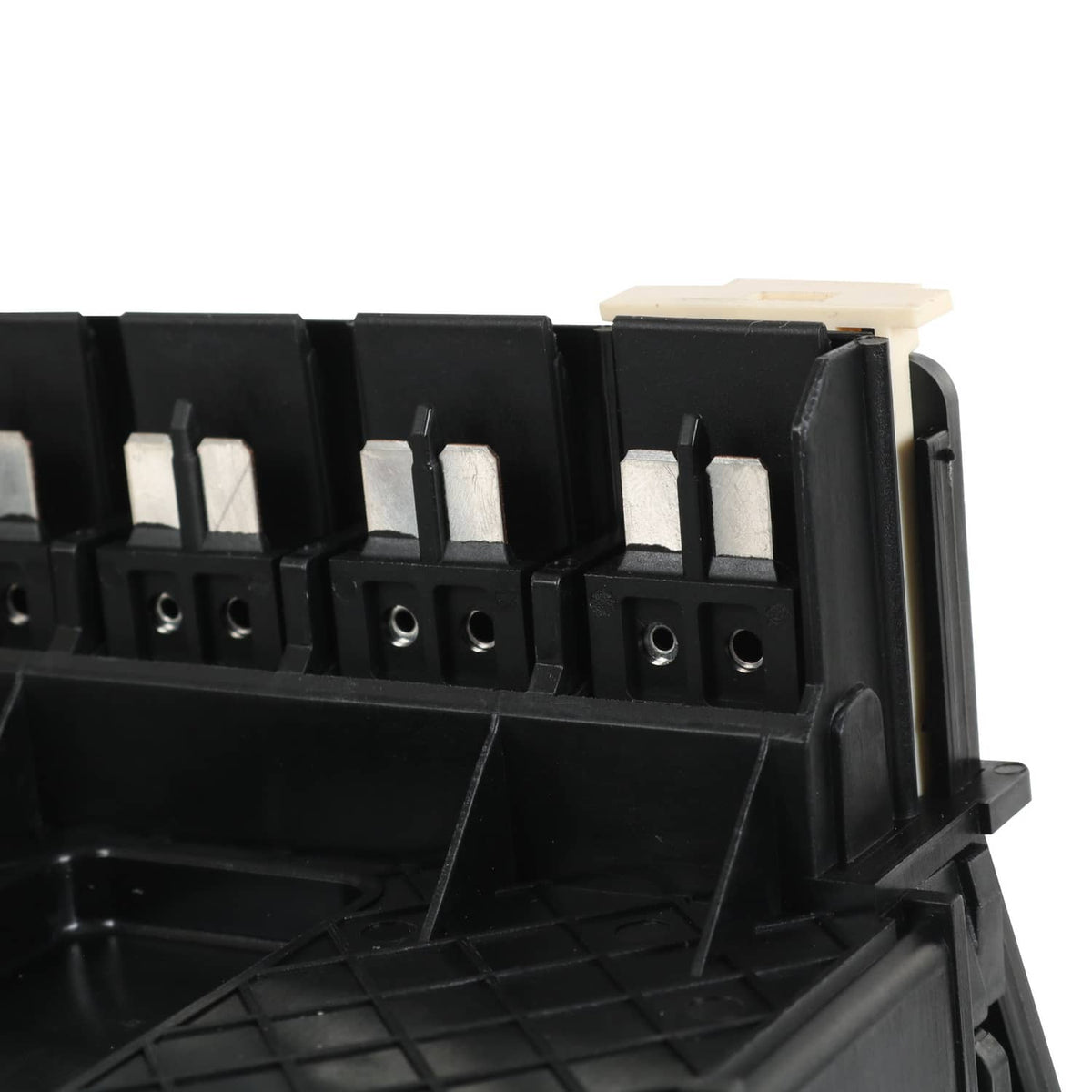

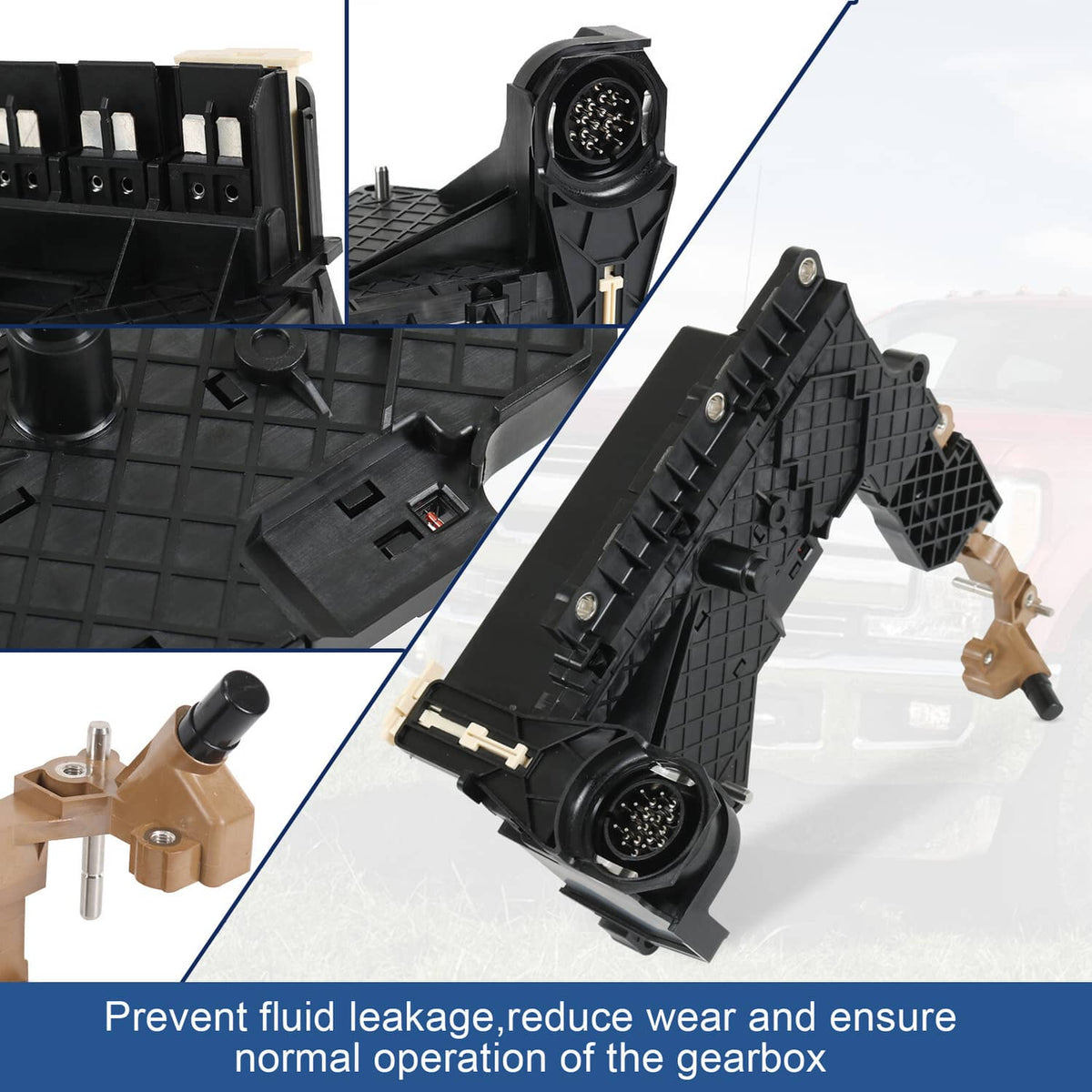

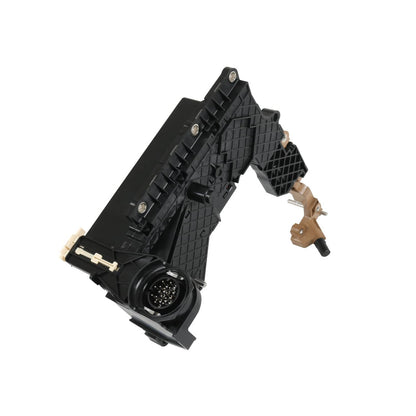

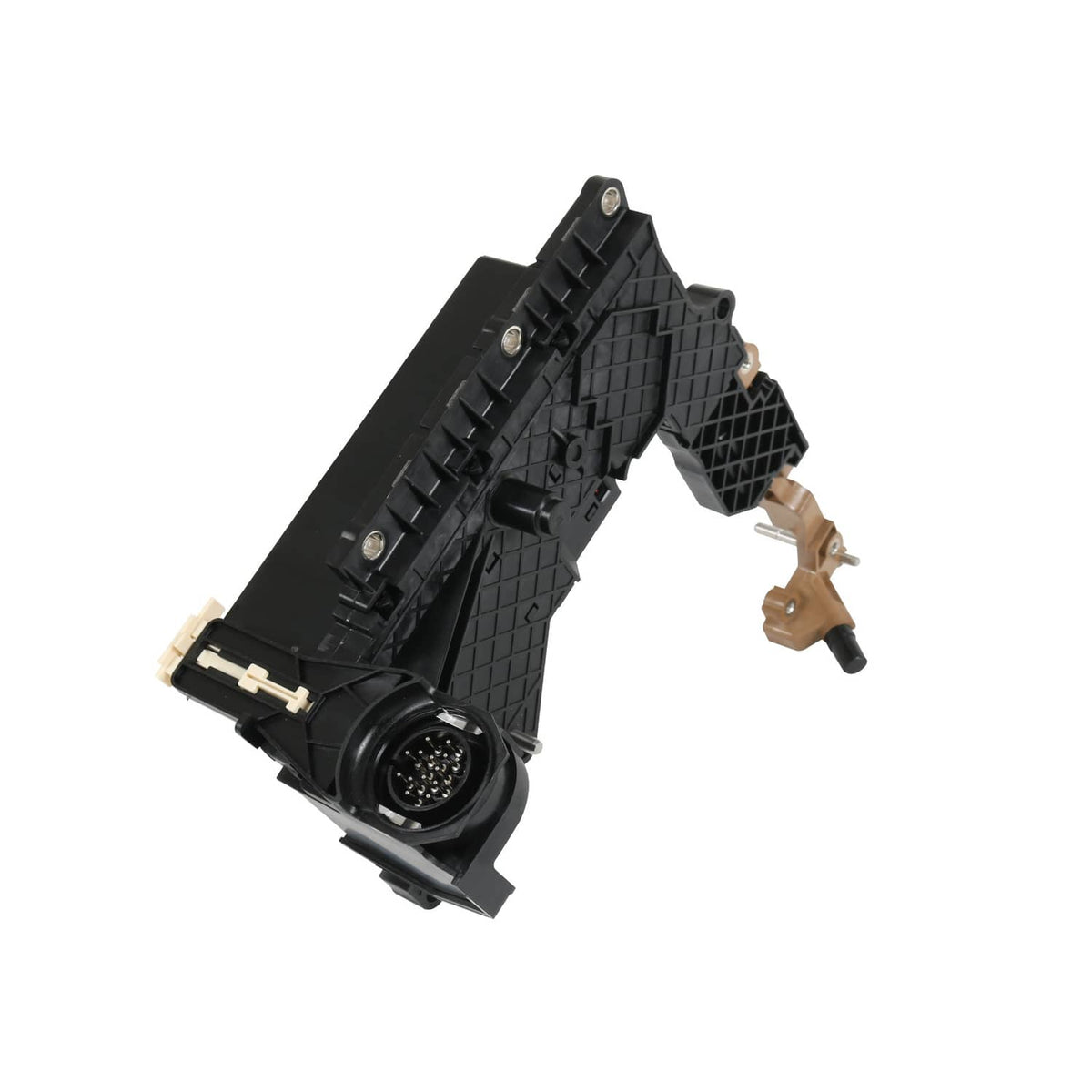

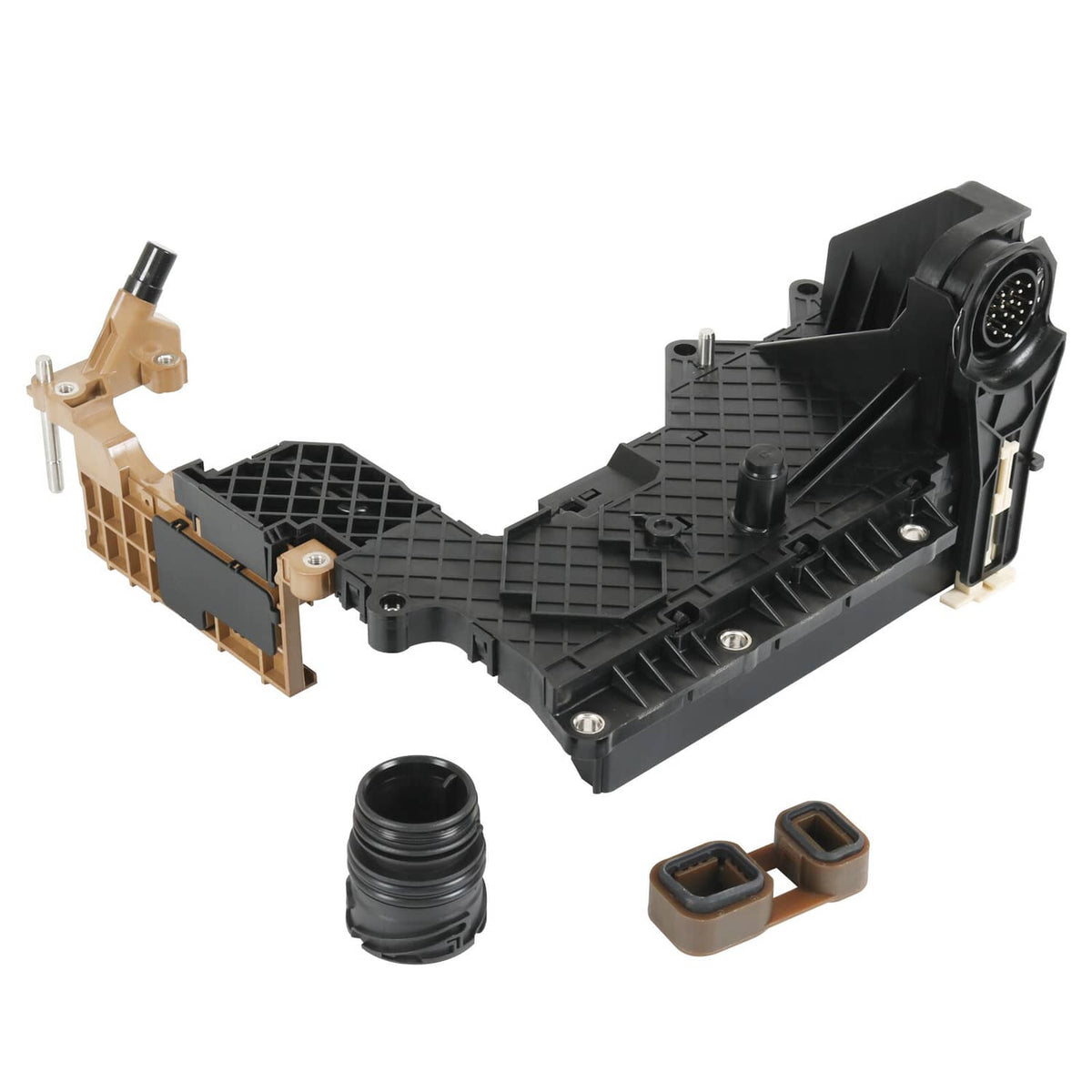

This 6R80 TCM transmission lead frame is a direct-fit replacement for the molded circuit board and connector assembly inside the 6R80 automatic transmission. It carries solenoid and sensor signals between the TCM and the valve body so the transmission can shift on command. It is built for transmission rebuilders, shops, and Ford owners chasing harsh shifting, limp mode, or no-shift faults.

Built For Performance

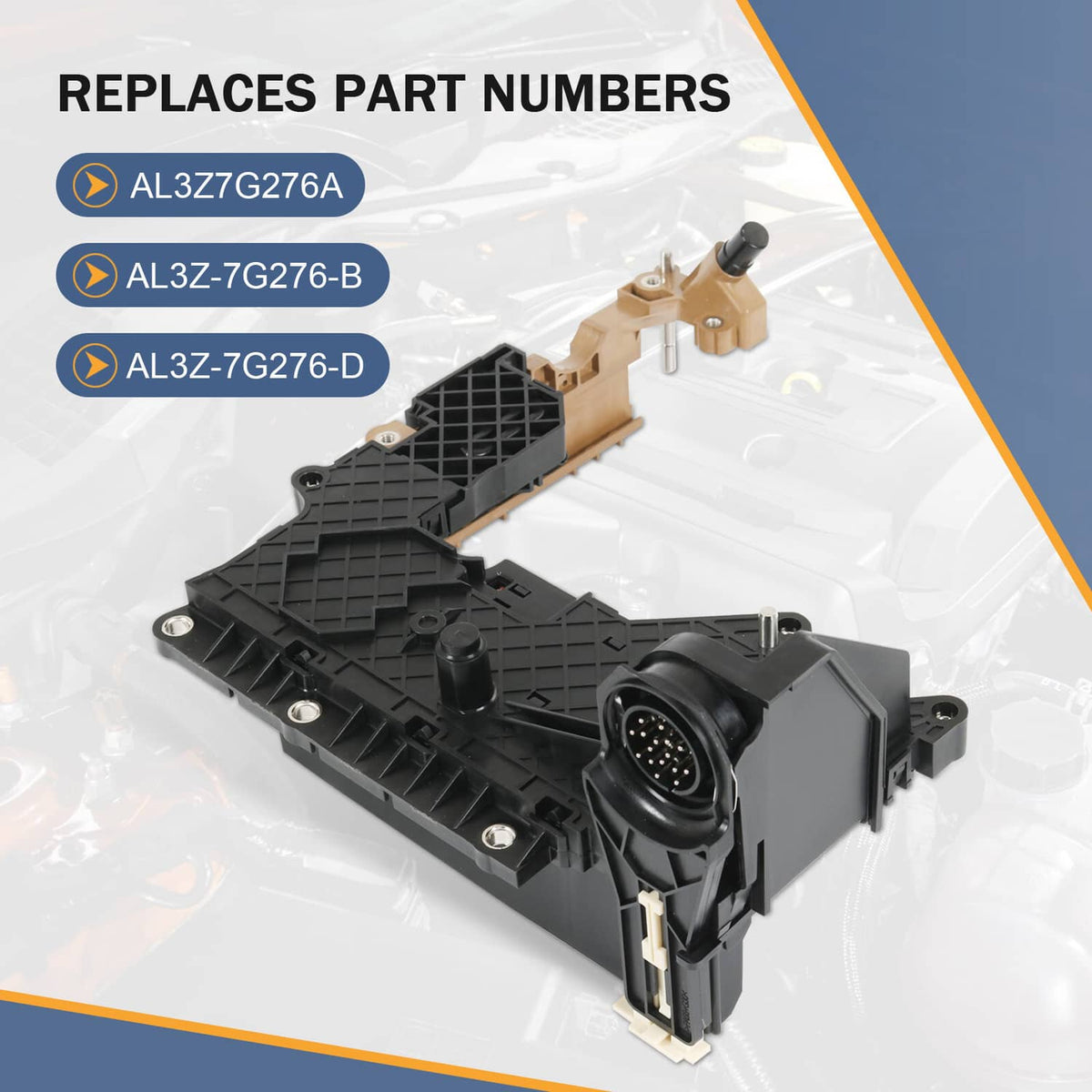

• Cross-references OEM part numbers 926-149 and AL3Z-7G276-D
• Molded conductor plate designed for the 6R80 transmission family

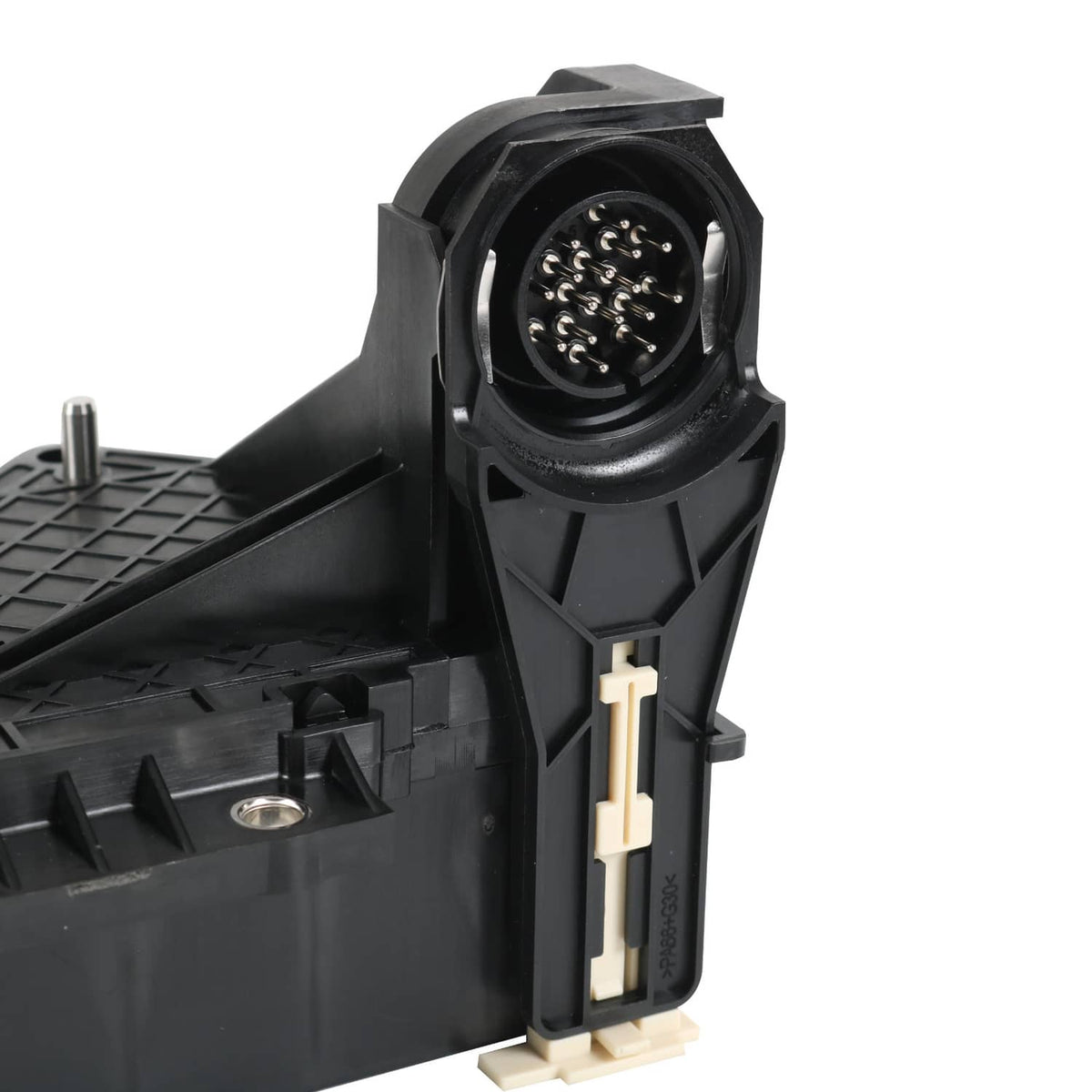

• Integrated connector for TCM and solenoid communication
• Direct replacement for failed or damaged lead frames
• Restores solenoid signal continuity for correct shift timing
• Serviceable unit suited to rebuild and repair work

Fits These Machines

• for Ford vehicles equipped with the 6R80 automatic transmission
• for Lincoln models running the 6R80 transmission

On-The-Job Use

• Transmission rebuilds and lead frame replacement jobs
• Diagnosing harsh shifts, delayed engagement, or limp mode
• Valve body service where the conductor plate is removed

Specs At A Glance

Good To Know

Q: Does this lead frame come with the TCM? A: This is the lead frame conductor assembly; check your existing TCM part number before ordering. Q: Will it fix harsh shifting? A: A failed lead frame can cause shift faults, so confirm the fault code points to the lead frame or TCM circuit first.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
