For Chevy GMC NP246 Front-Output Seal Install Tool 1998up T-M109RAC Adapt-A-Case

Front Output Seal Install Tool for Chevy GMC NP246

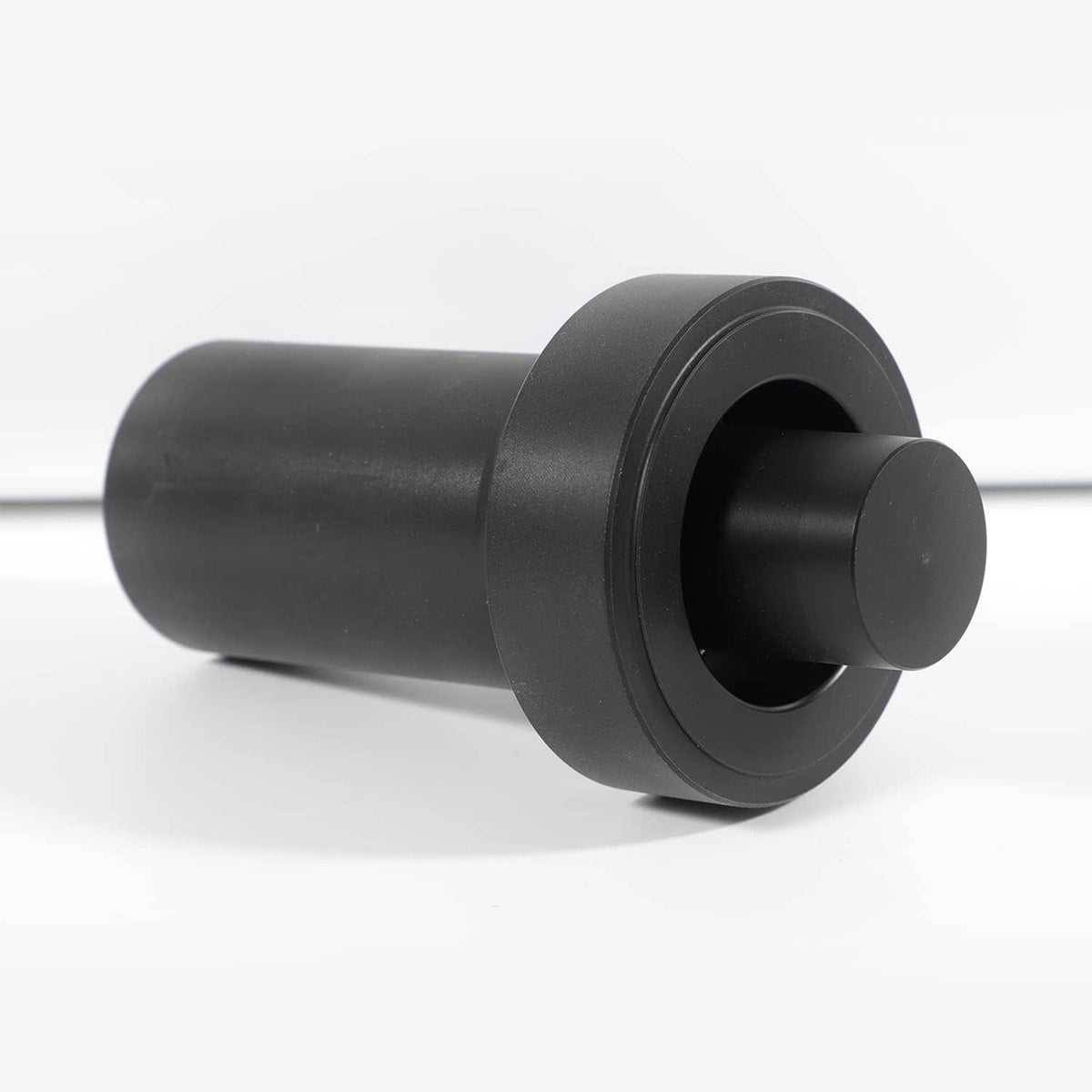

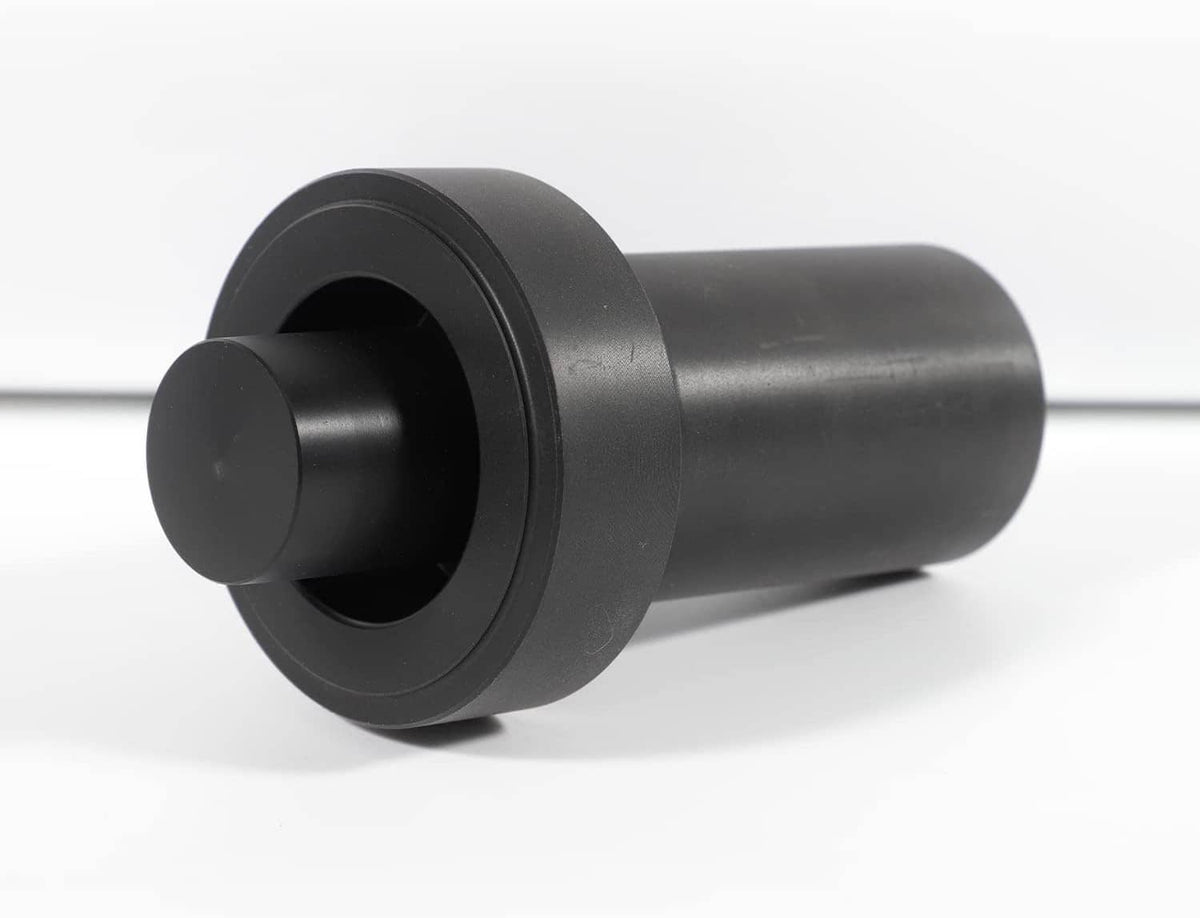

This Adapt-A-Case front output seal install tool presses the front output seal squarely into NP246 transfer cases on 1998 and newer Chevy and GMC trucks, and it carries the T-M109RAC reference.

Overview

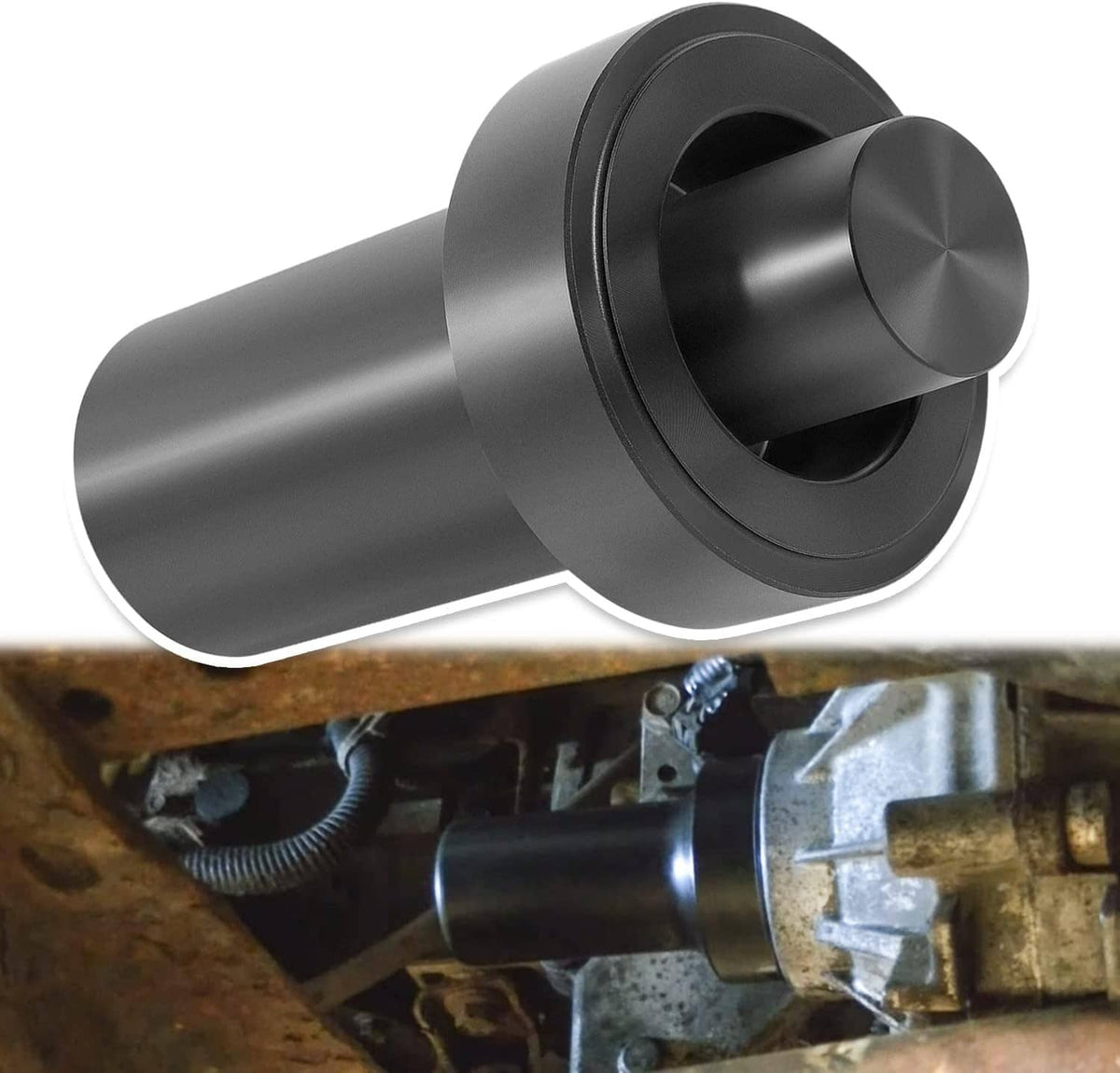

This front output seal install tool for Chevy GMC NP246 applications lets you seat the front output seal evenly without removing the transfer case. The T-M109RAC driver is built for 1998 and newer NP246 units, and it is aimed at transmission shops and do-it-yourself owners who want a straight, leak-free seal install the first time.

Built For Performance

• Steel driver body designed to press the seal square to the bore
• T-M109RAC reference for Adapt-A-Case tooling
• Works with a common handle or extension for hand-driven installs

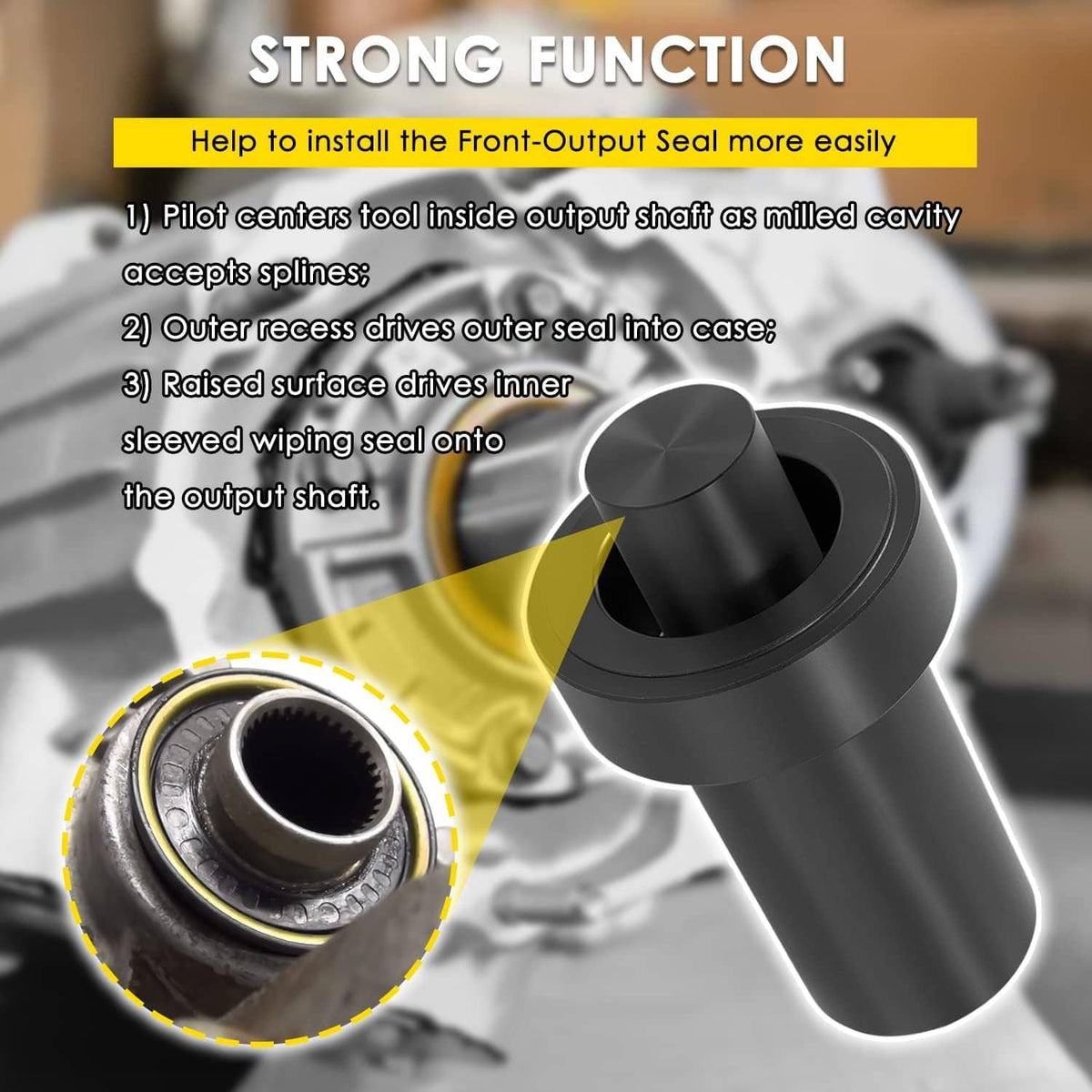

• Pilot section holds the seal concentric through the seat
• Rated for the NP246 front output position on 1998 and newer units

Fits These Machines

• for Chevy and GMC trucks running the NP246 transfer case, 1998 and newer

On-The-Job Use

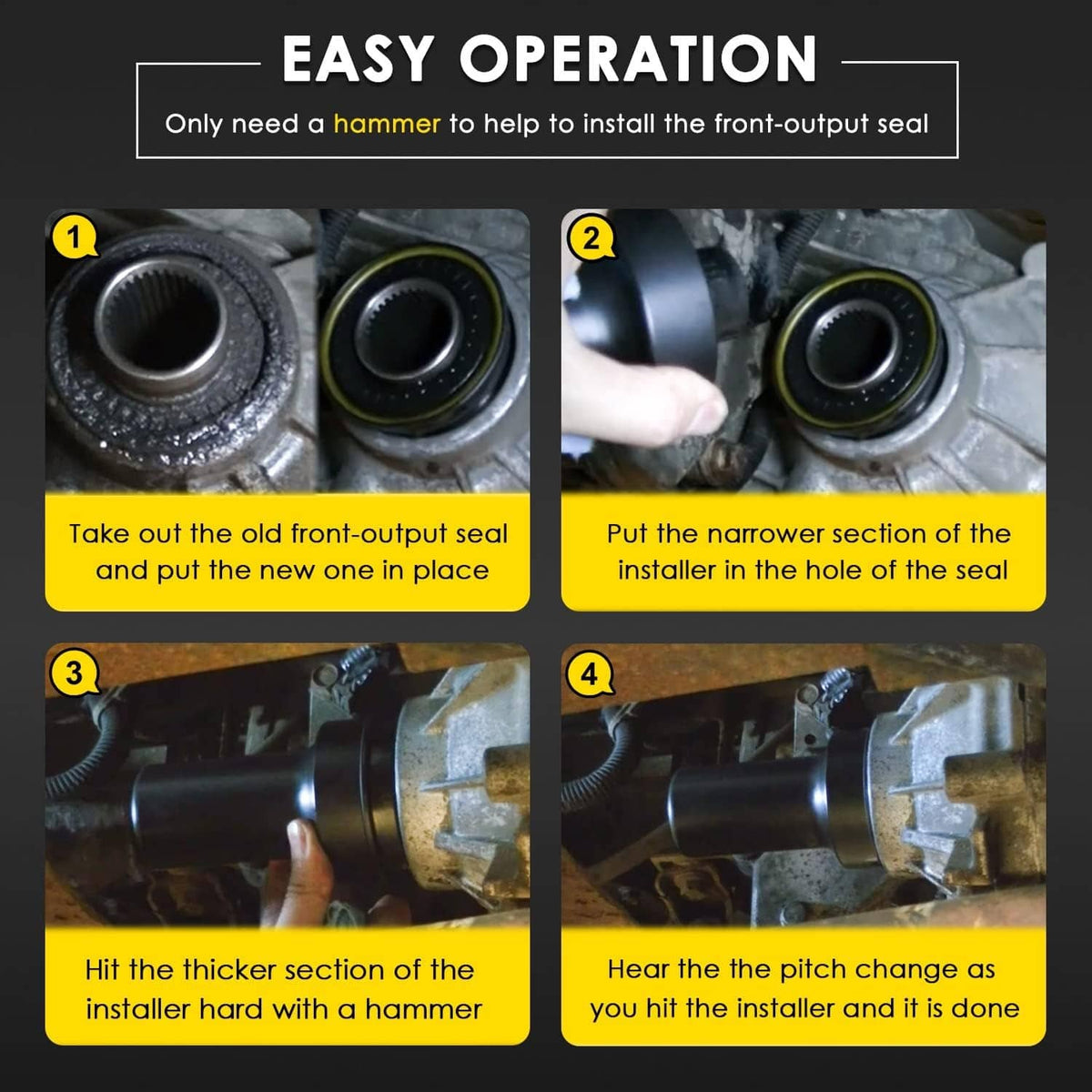

• Replacing a weeping or torn front output seal on the bench or in the truck
• Servicing the transfer case after a bearing or yoke job
• Fleet maintenance on 1998 and newer Chevy and GMC four-wheel-drive trucks

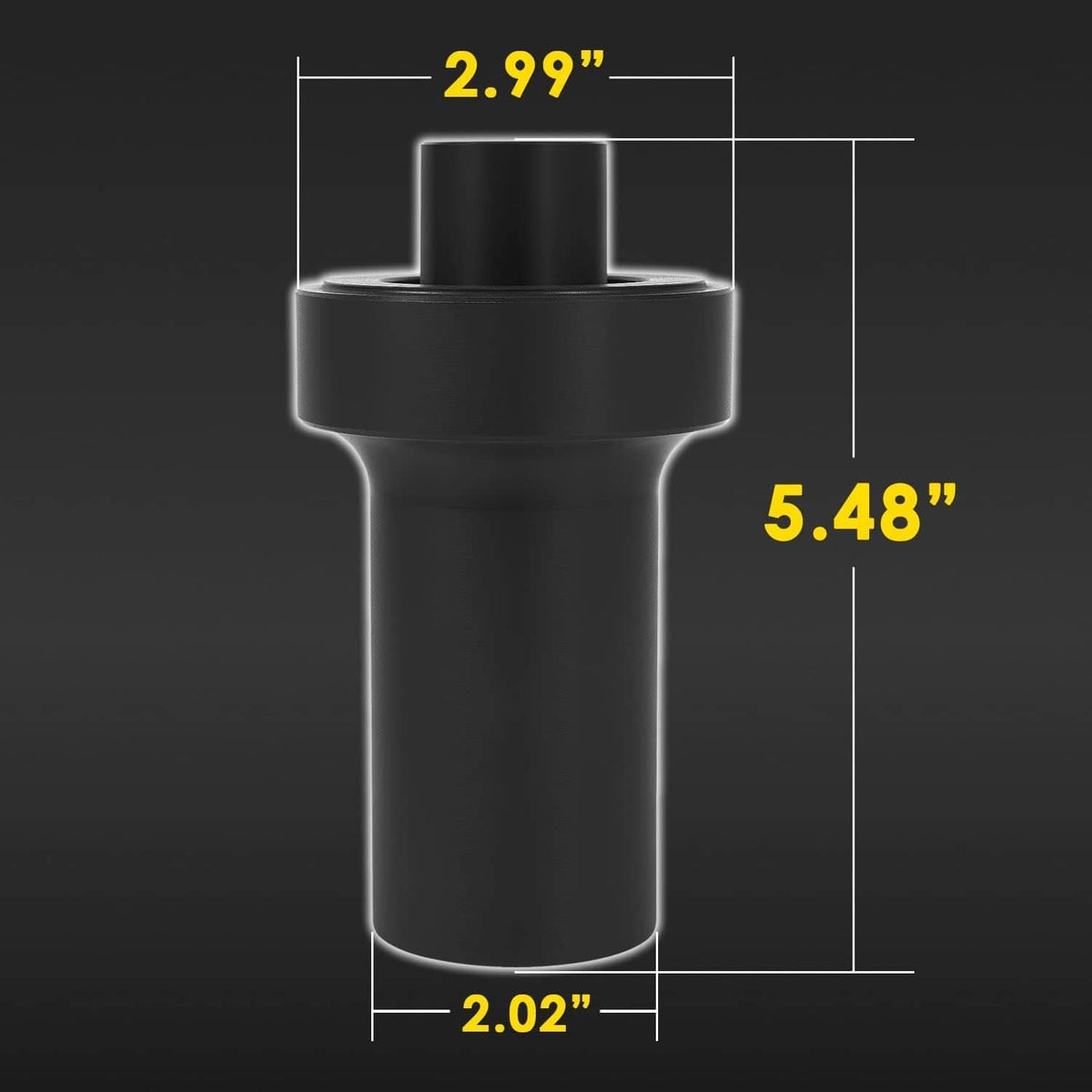

Specs At A Glance

Good To Know

Q: Does this tool install the seal or remove it? A: It is a seal driver, so it presses the new front output seal into place; use a seal puller to take the old one out.

Q: Will one tool cover both the front and rear output seals? A: No, this driver is sized for the front output position on the NP246, so check the seal diameter before ordering.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
