For Pentair 263045 CVA24 Valve Actuator Jandy 3-Port Valve 180 Degree Hayward

Valve Actuator for Pentair, for Jandy, and for Hayward

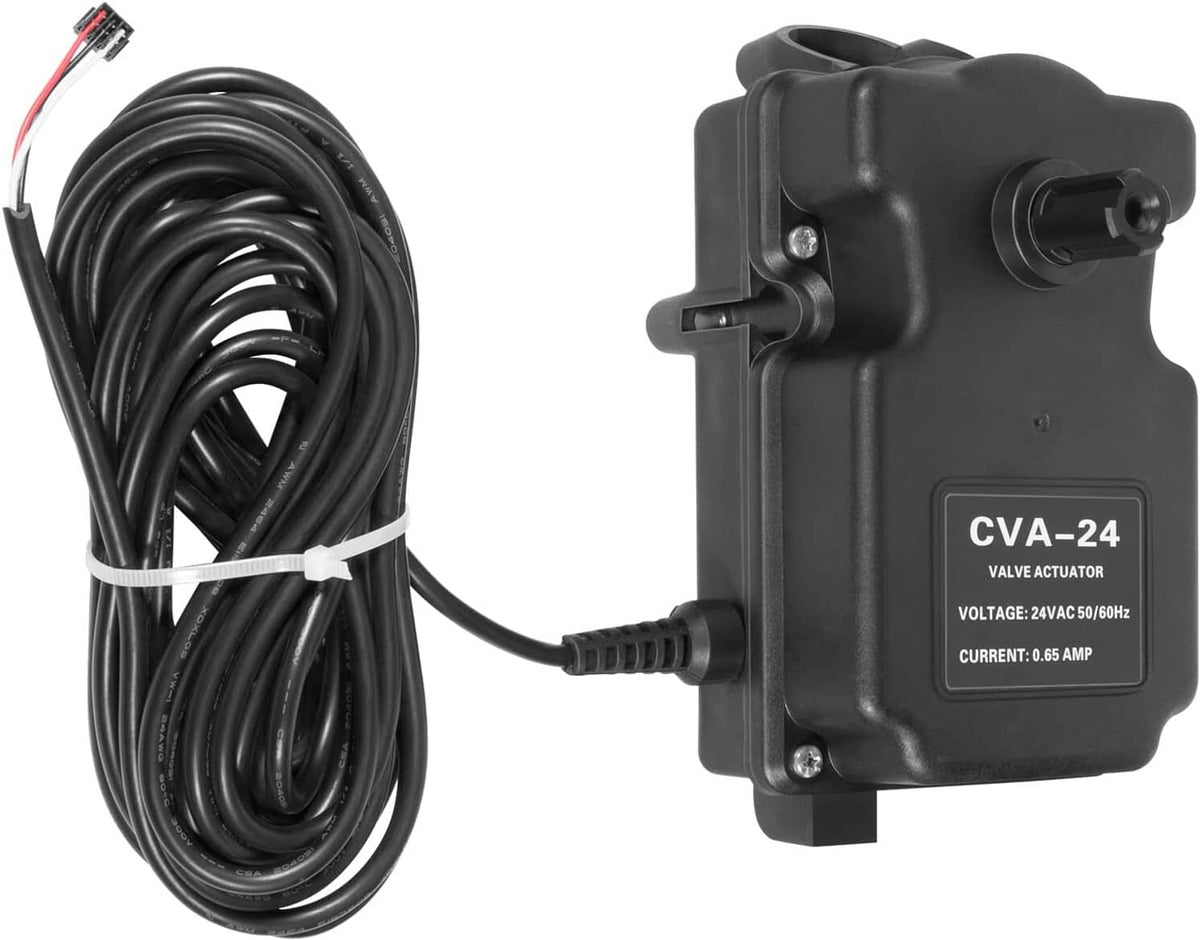

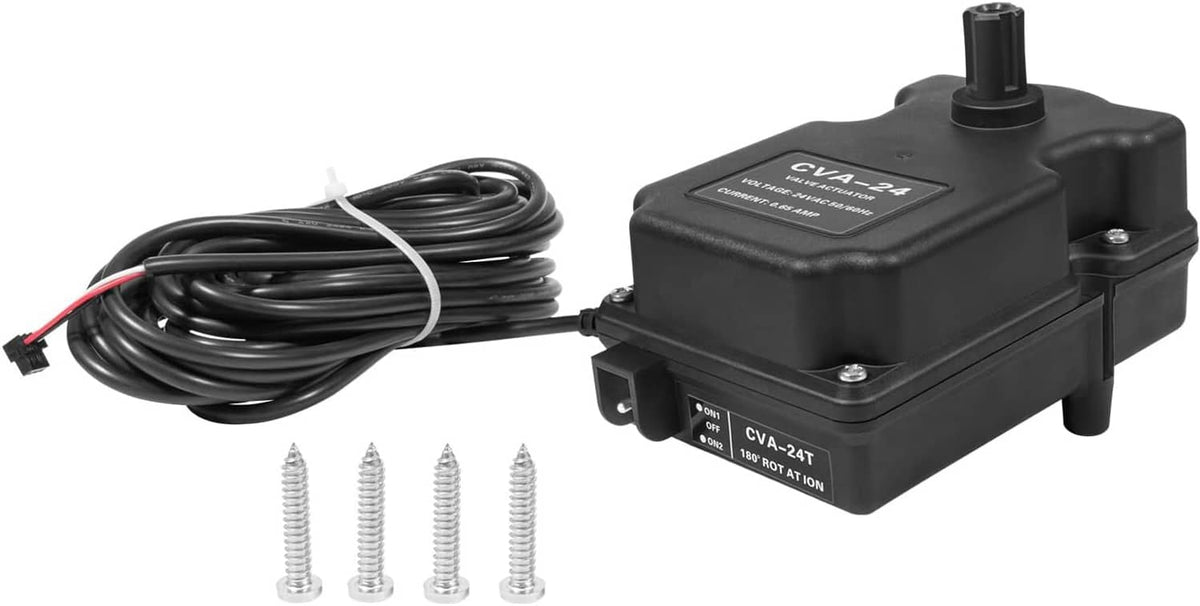

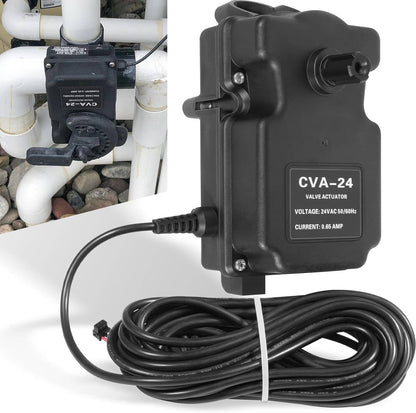

This valve actuator operates a 3-port valve through 180 degrees and carries OEM cross-reference 263045 for Pentair CVA24 applications.

Overview

This valve actuator controls the position of a 3-port valve in pool and spa equipment systems. The valve actuator is identified with the CVA24 designation and 263045 reference for Pentair applications. This valve actuator also corresponds to Jandy 3-port valve and Hayward references stated in the title.

Built For Performance

• Designed for a 3-port valve
• 180-degree operating range
• CVA24 model designation
• 263045 part reference
• Actuator format for automated valve control

Fits These Machines

• for Pentair CVA24 valve systems
• for Jandy 3-port valves
• for Hayward valve systems

On-The-Job Use

• Automating flow direction through a 3-port valve
• Managing pool and spa water circulation paths
• Operating valve positions across a 180-degree range
• Replacing a CVA24 valve actuator in compatible equipment

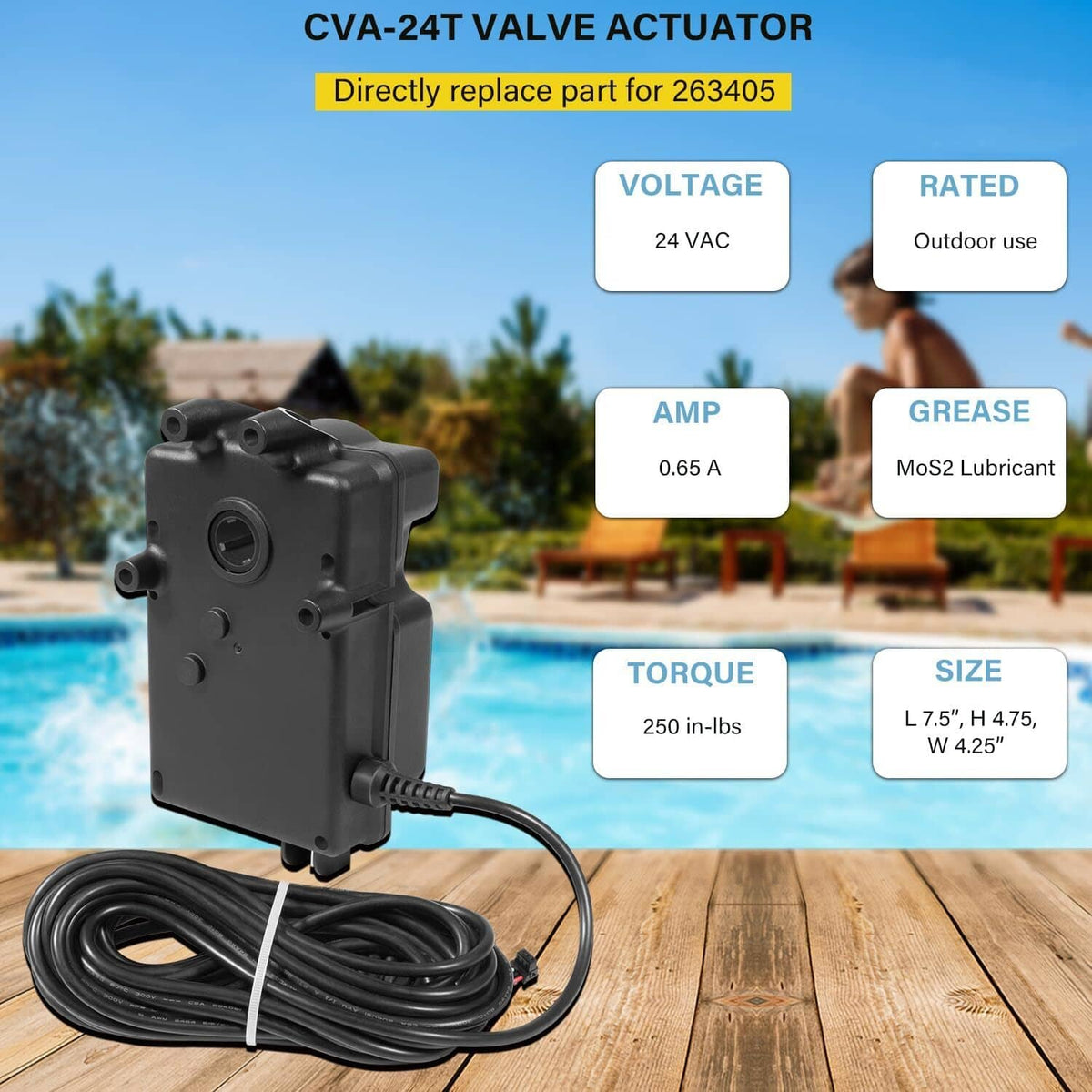

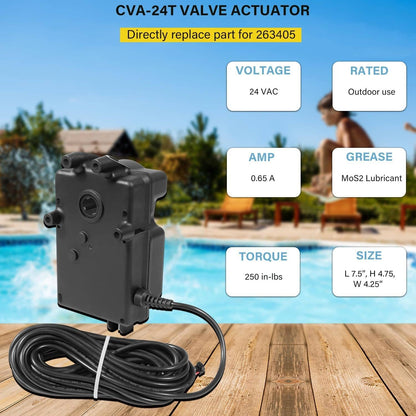

Specs At A Glance

Good To Know

Q: What valve does this actuator operate? A: The title identifies it for a Jandy 3-port valve with 180-degree operation. Confirm the valve configuration before installation.

Q: What reference numbers should be checked? A: Check part number 263045 and model CVA24 against the existing actuator and equipment documentation. Compatibility may vary by valve configuration and serial number.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
