Front or Rear Brake Caliper for Arctic Cat 250 300 400 450 500 550 700 1000 S

Front or Rear Brake Caliper for Arctic Cat

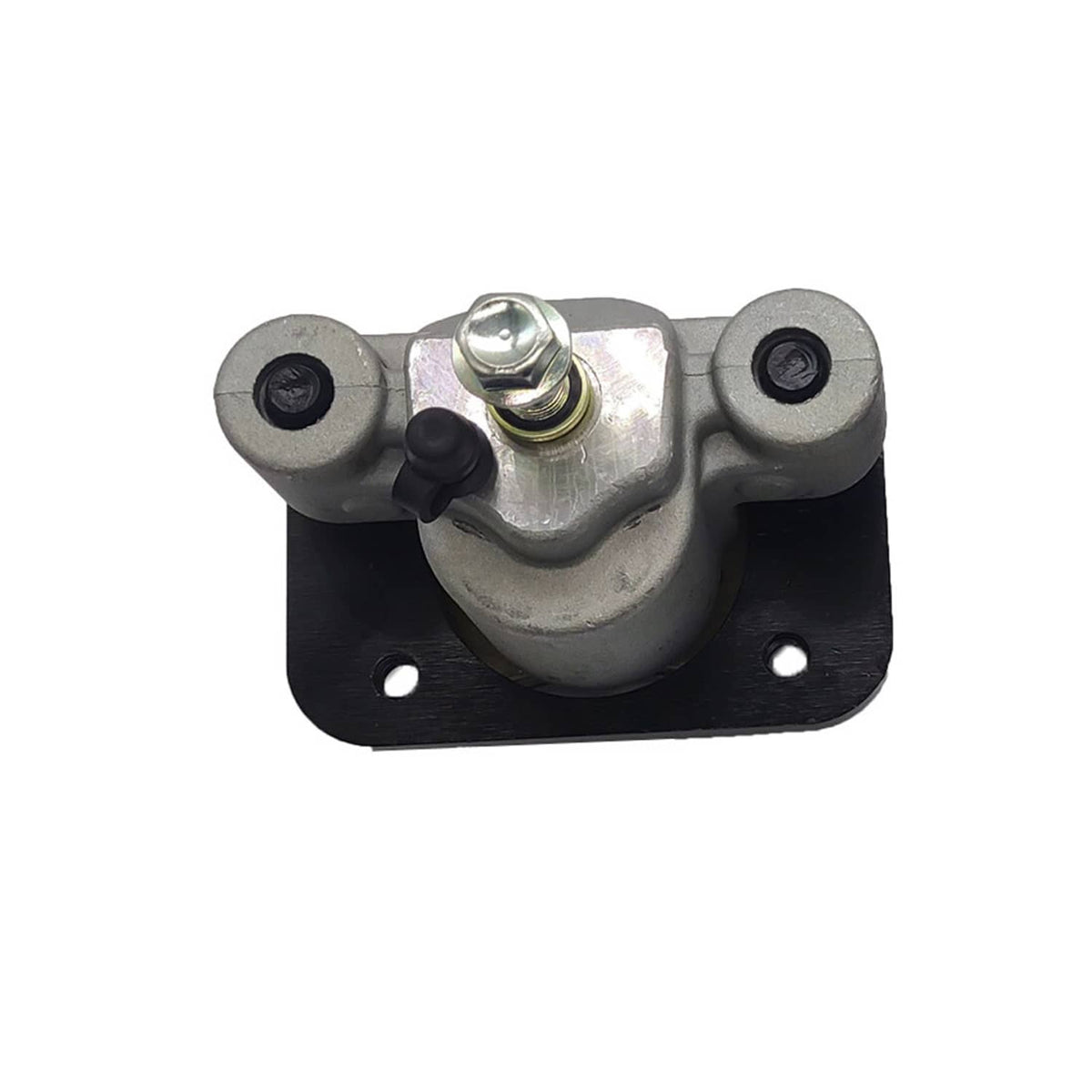

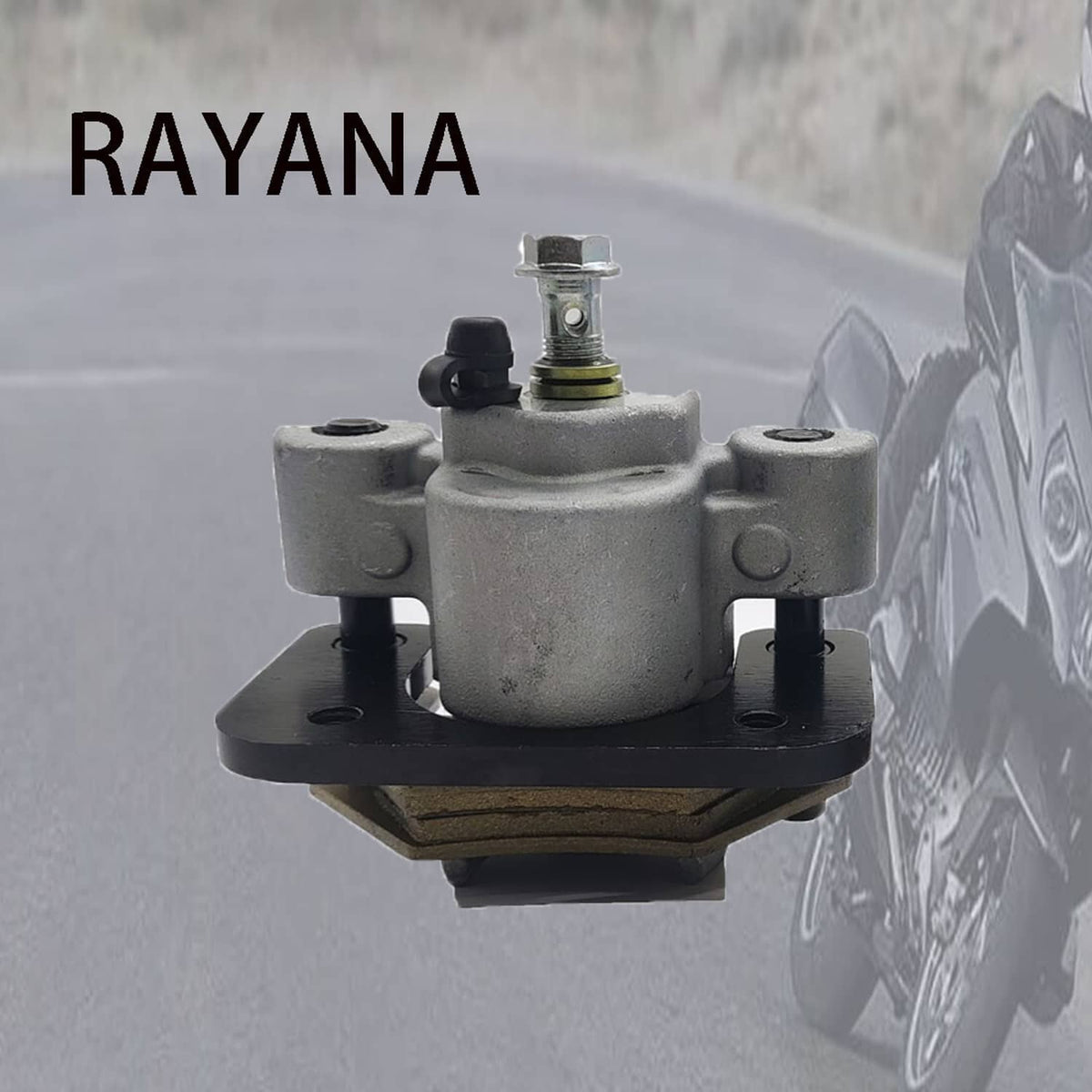

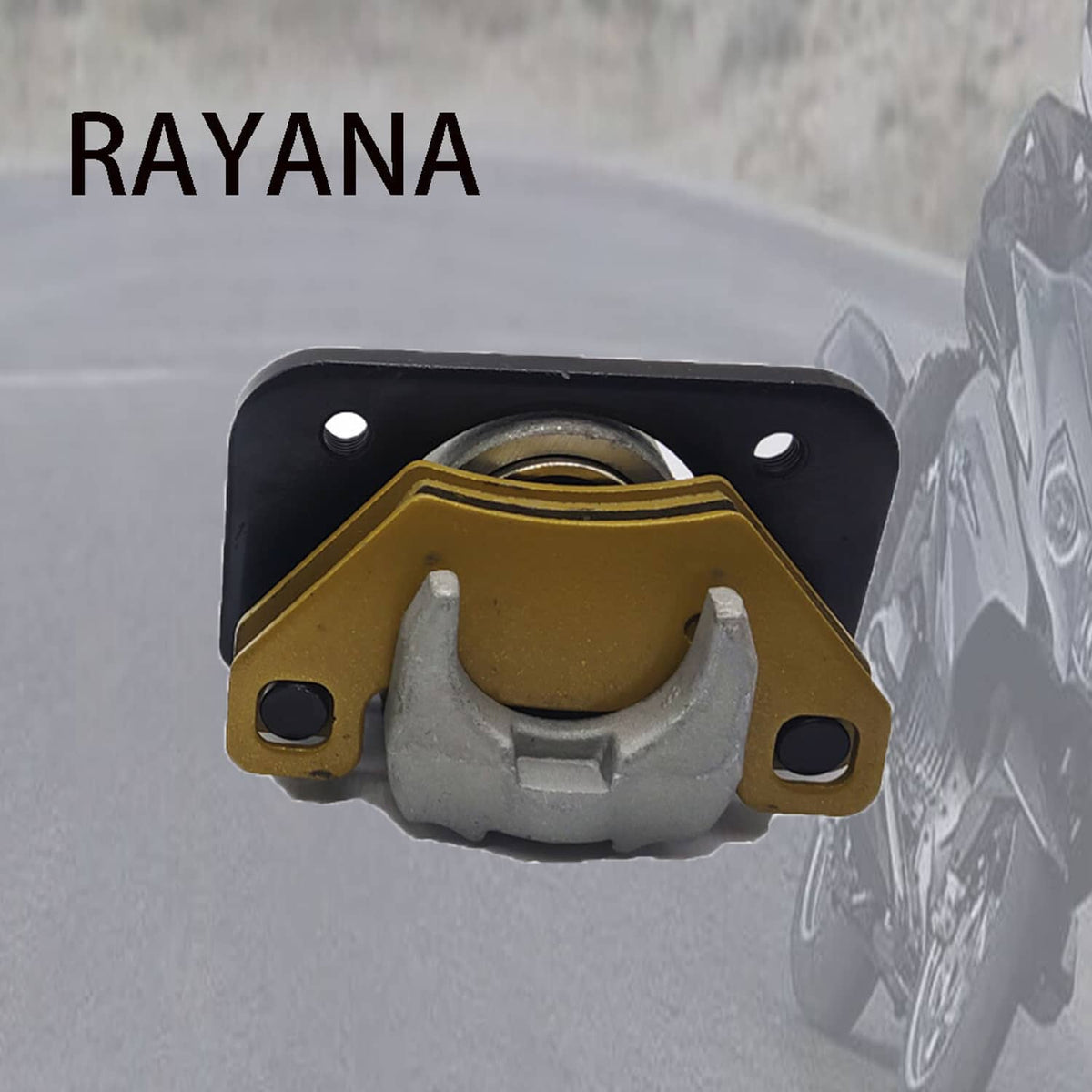

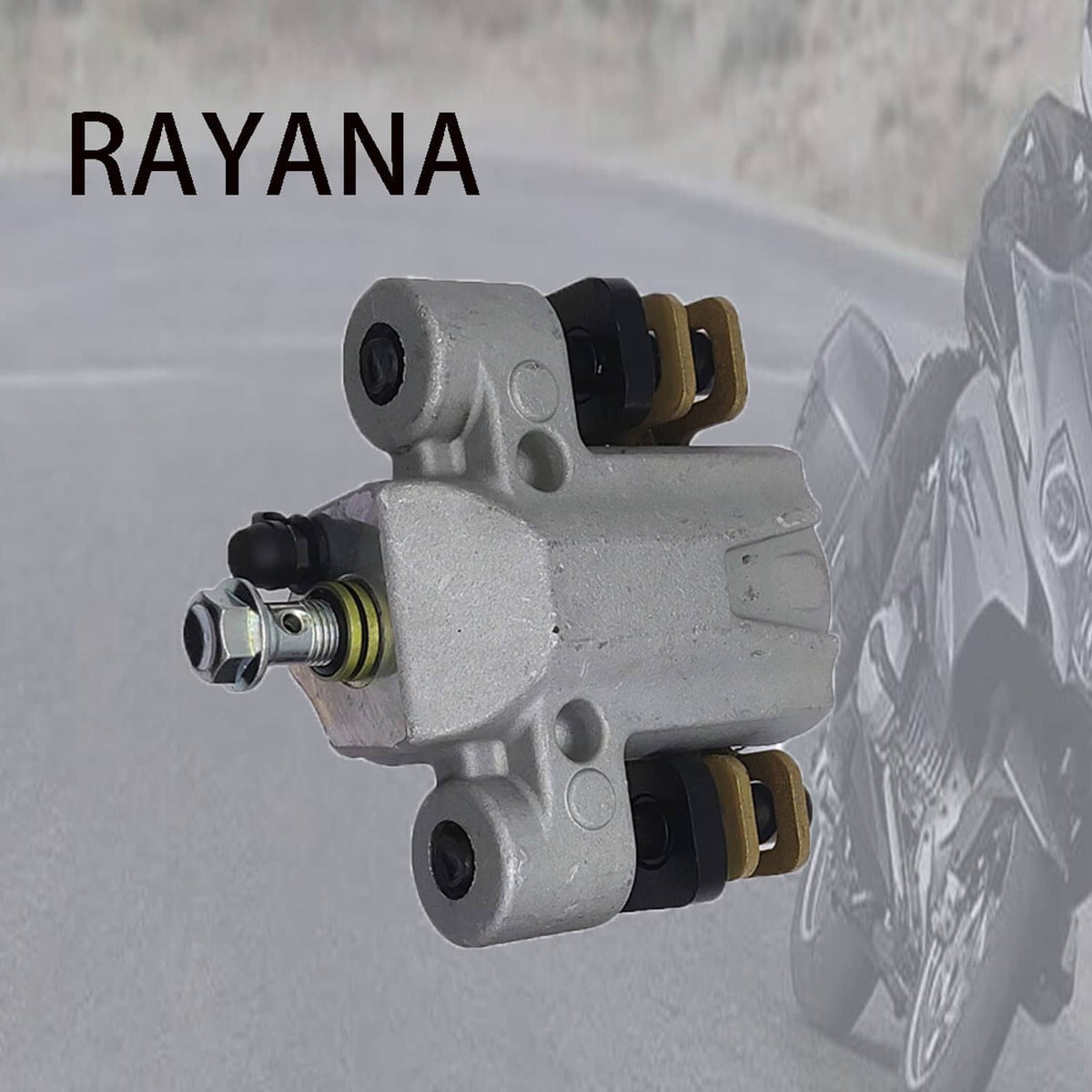

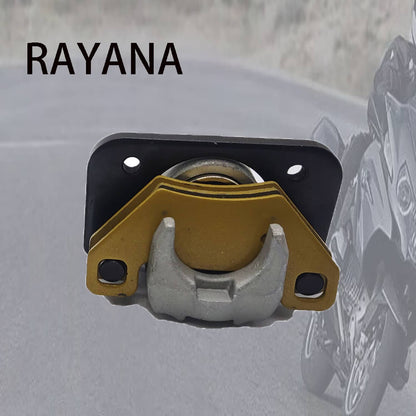

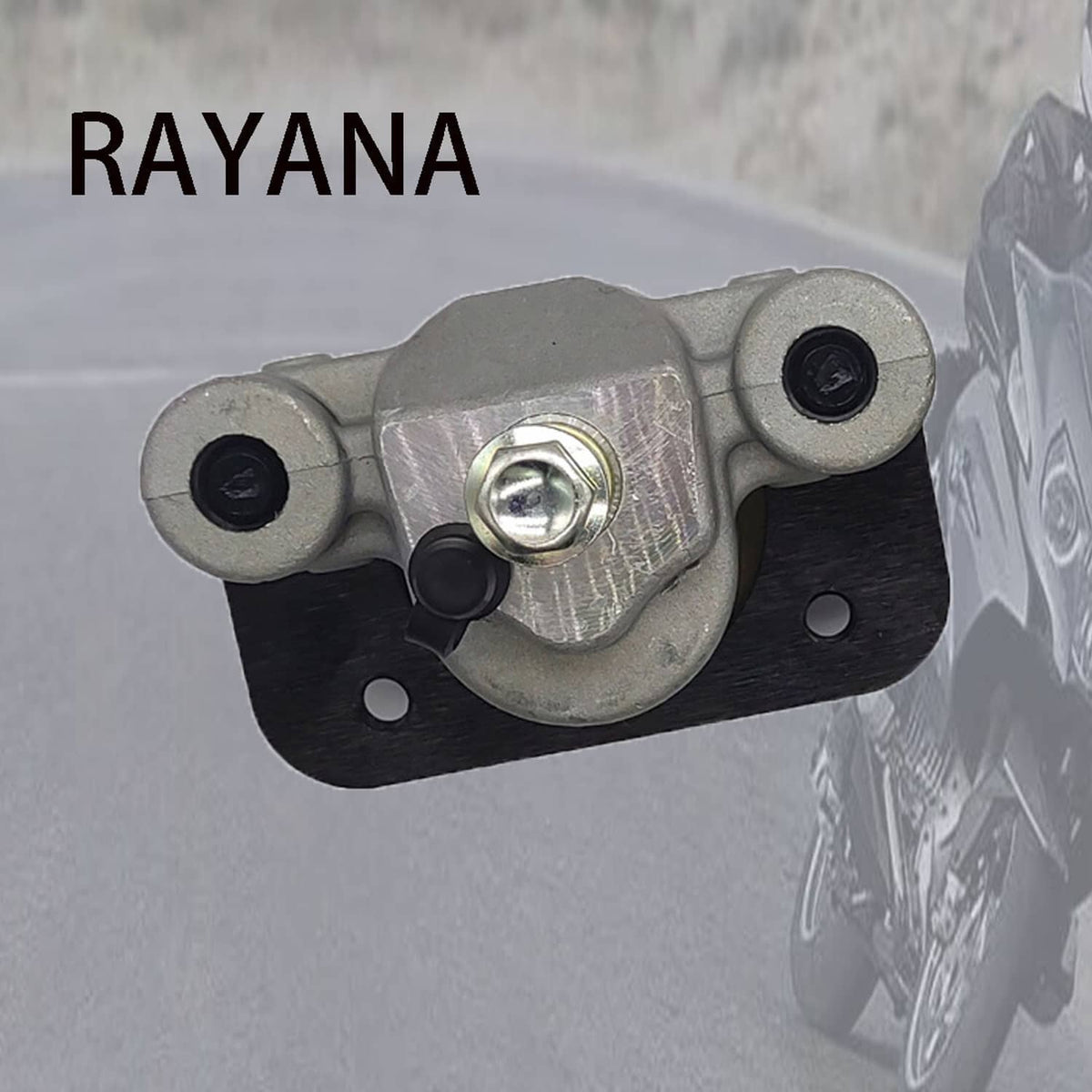

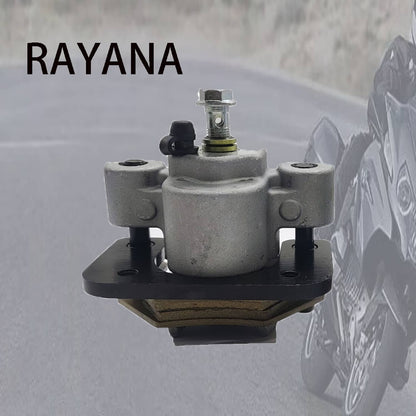

This brake caliper is a replacement unit for Arctic Cat ATV and side-by-side models, available in front or rear position fitments. It bolts to the factory mounting points and presses the pads against the rotor to restore stopping power.

Overview

This front or rear brake caliper for Arctic Cat is a hydraulic caliper assembly that clamps the brake pads onto the rotor when you pull the lever or press the pedal. It fits a wide range of Arctic Cat 250, 300, 400, 450, 500, 550, 700, and 1000 models. Riders and shops use this brake caliper to replace a seized, leaking, or damaged original unit.

Built For Performance

• Single or twin-piston caliper body machined for even pad pressure
• Sealed piston bores with dust boots to keep out mud and water
• Bleeder screw and fluid inlet port positioned for straightforward bleeding
• Cast body with corrosion-resistant coating for wet and dirty conditions
• Mounting holes matched to stock Arctic Cat bracket spacing

Fits These Machines

• for Arctic Cat 250
• for Arctic Cat 300
• for Arctic Cat 400
• for Arctic Cat 450
• for Arctic Cat 500
• for Arctic Cat 550
• for Arctic Cat 700
• for Arctic Cat 1000

On-The-Job Use

• Trail and utility riding where mud and water stress the braking system
• Farm, ranch, and property work with frequent stopping under load
• Replacing a seized caliper that drags or locks the wheel
• Rebuilding both ends of an ATV before a season of riding

Specs At A Glance

Good To Know

Q: How do I know whether I need the front or rear caliper? A: Check the position of the damaged caliper on your machine and match it to the option selected, since front and rear units are not interchangeable.

Q: Do I need to bleed the brakes after replacing a caliper? A: Yes, the system must be bled to remove air so the lever and pedal feel firm and braking is consistent.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
