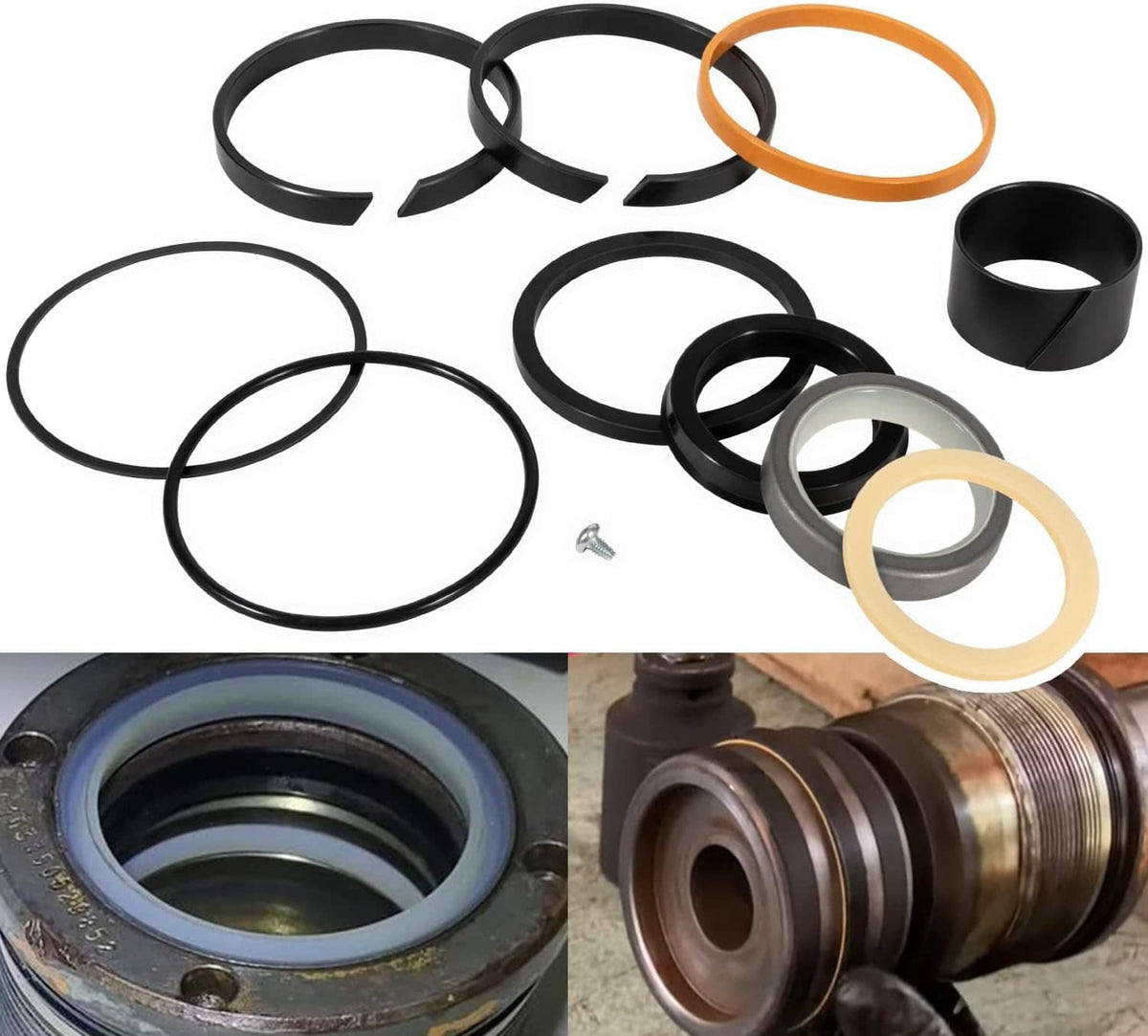

G109417 Hydraulic Cylinder Seal Kit for Case Equipment, For Rod 1.75" Bore 3.25"

Hydraulic Cylinder Seal Kit for Case Equipment

This G109417 hydraulic cylinder seal kit restores proper sealing on Case equipment cylinders built for a 1.75 inch rod and 3.25 inch bore, helping stop leaks and regain full hydraulic force.

Overview

The G109417 hydraulic cylinder seal kit is a direct-fit repair solution for worn or leaking cylinders on Case machinery. It renews the seals that hold hydraulic pressure, keeping rods moving smoothly and preventing fluid loss. This hydraulic cylinder seal kit is built for equipment owners and mechanics handling routine cylinder rebuilds.

Built For Performance

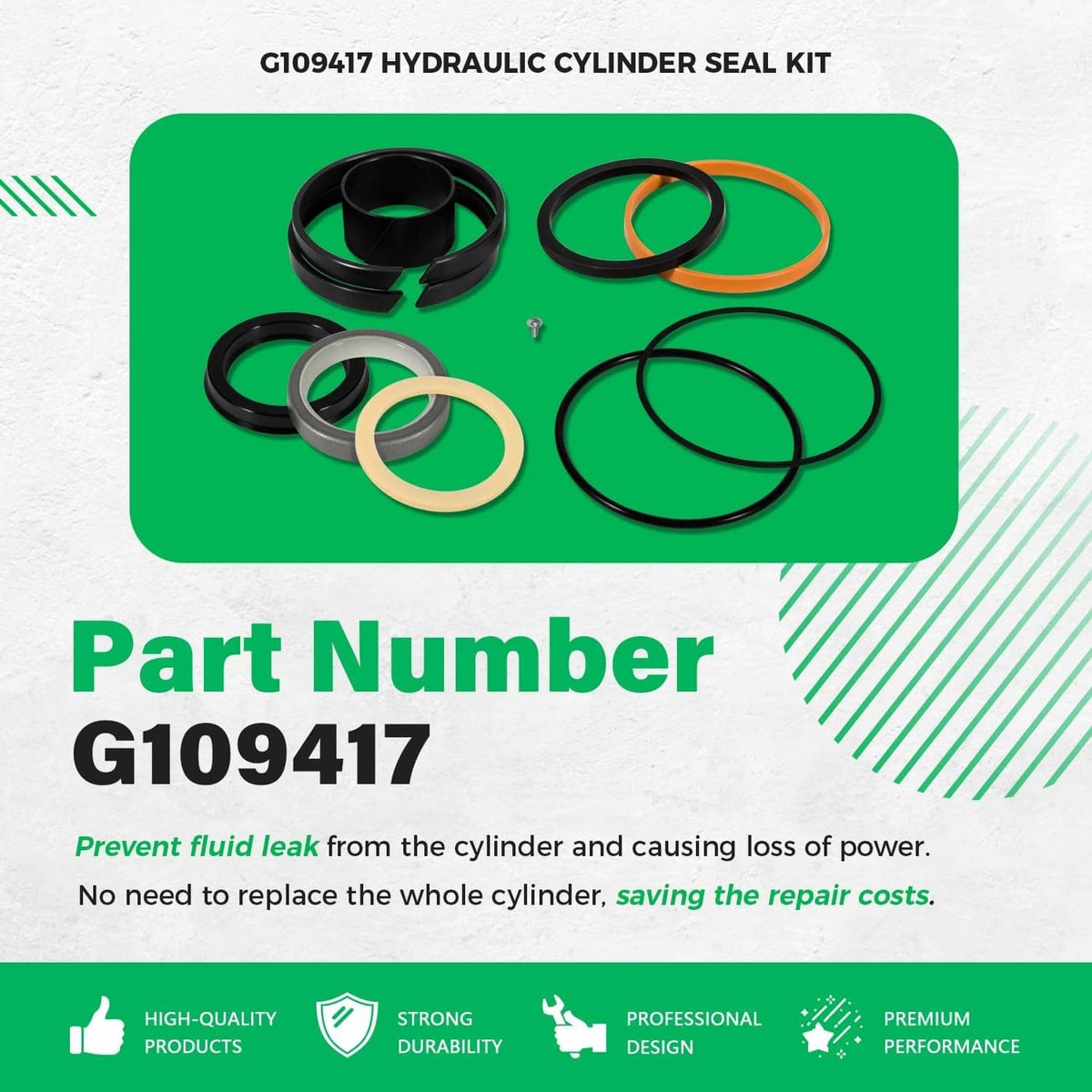

• Replaces original seal set under part number G109417
• Sized specifically for 1.75 inch rod diameter
• Matched to 3.25 inch bore cylinders
• Abrasion-resistant sealing material for hydraulic service

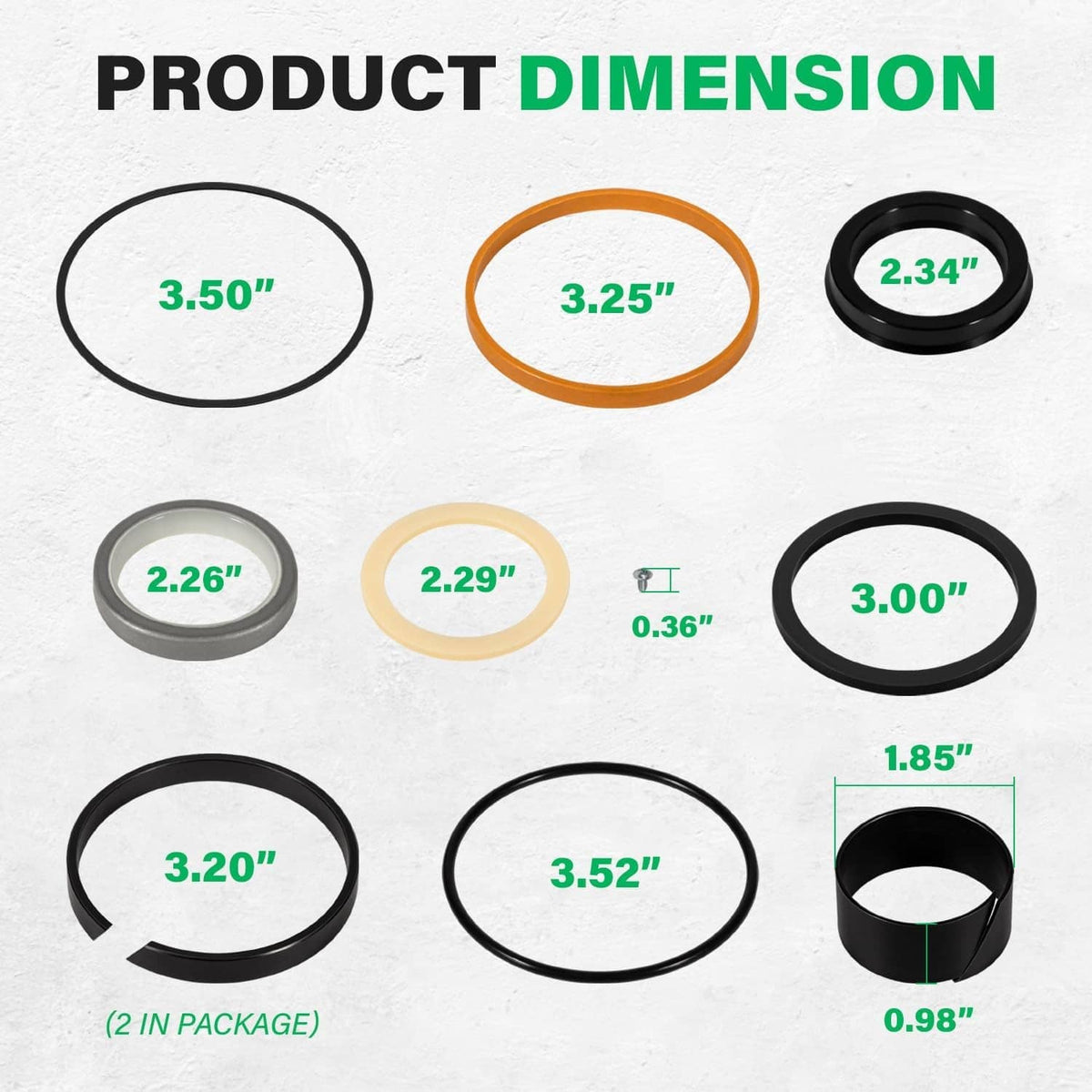

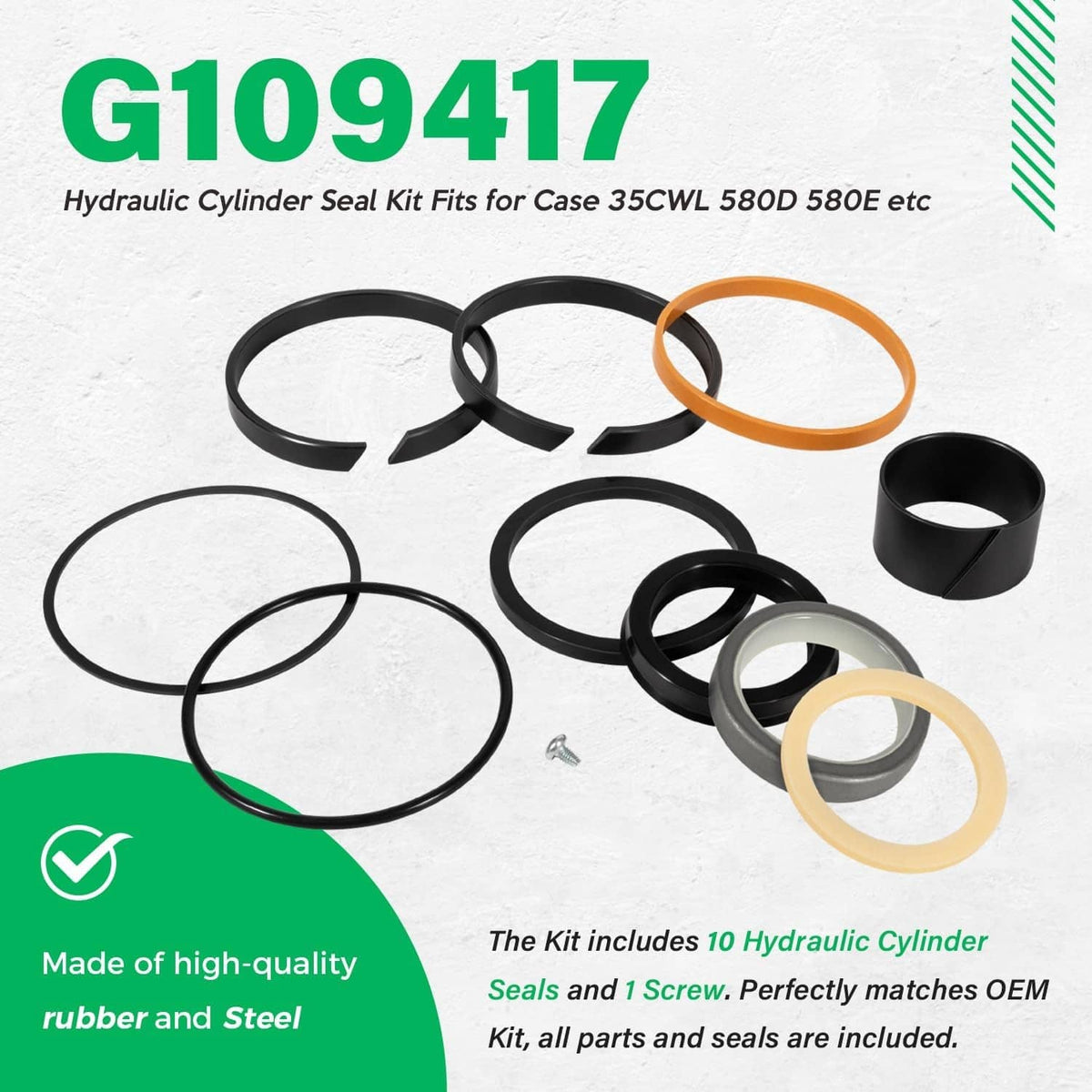

• Complete kit contents for a full cylinder reseal

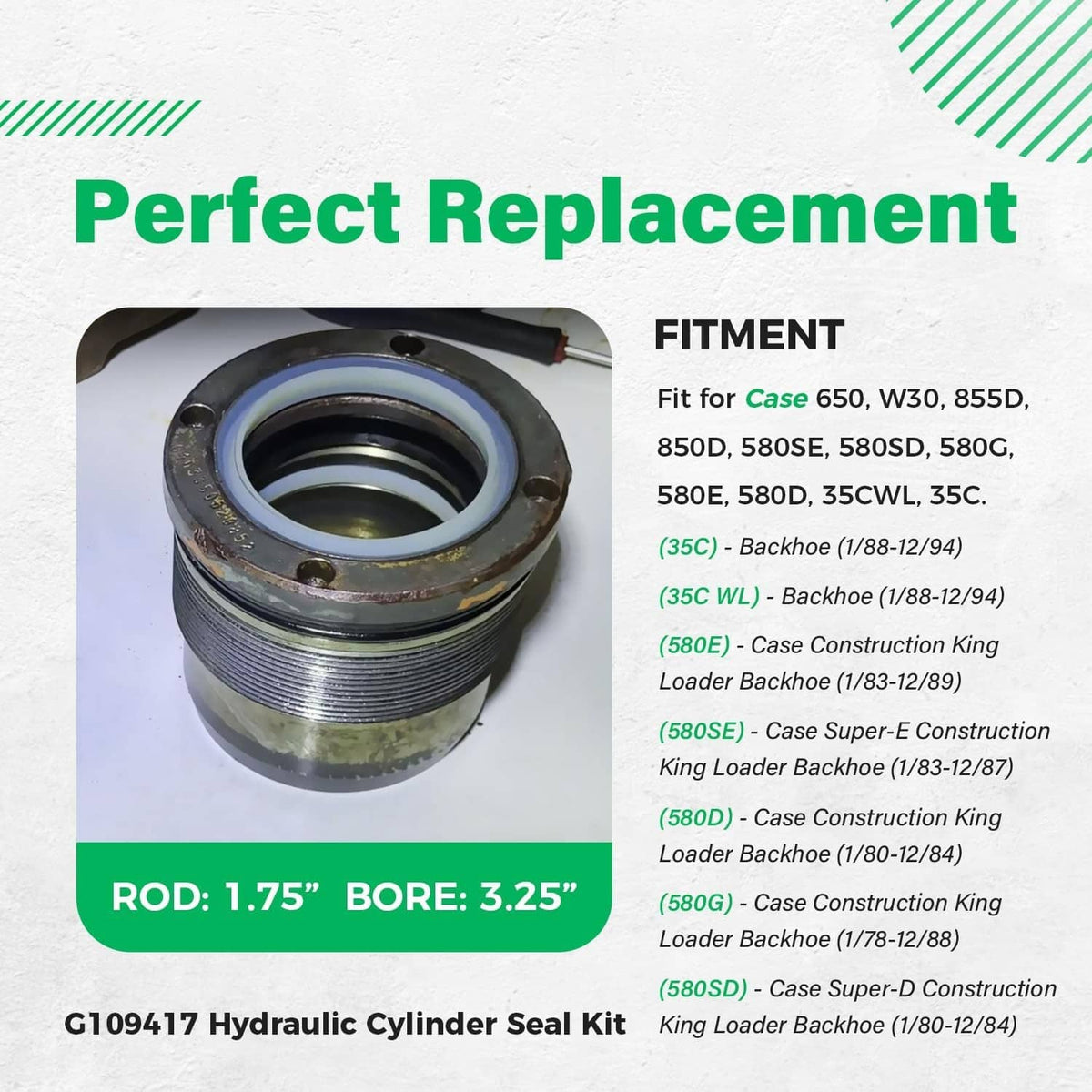

Fits These Machines

• for Case equipment using G109417 seals with 1.75 inch rod and 3.25 inch bore cylinders

On-The-Job Use

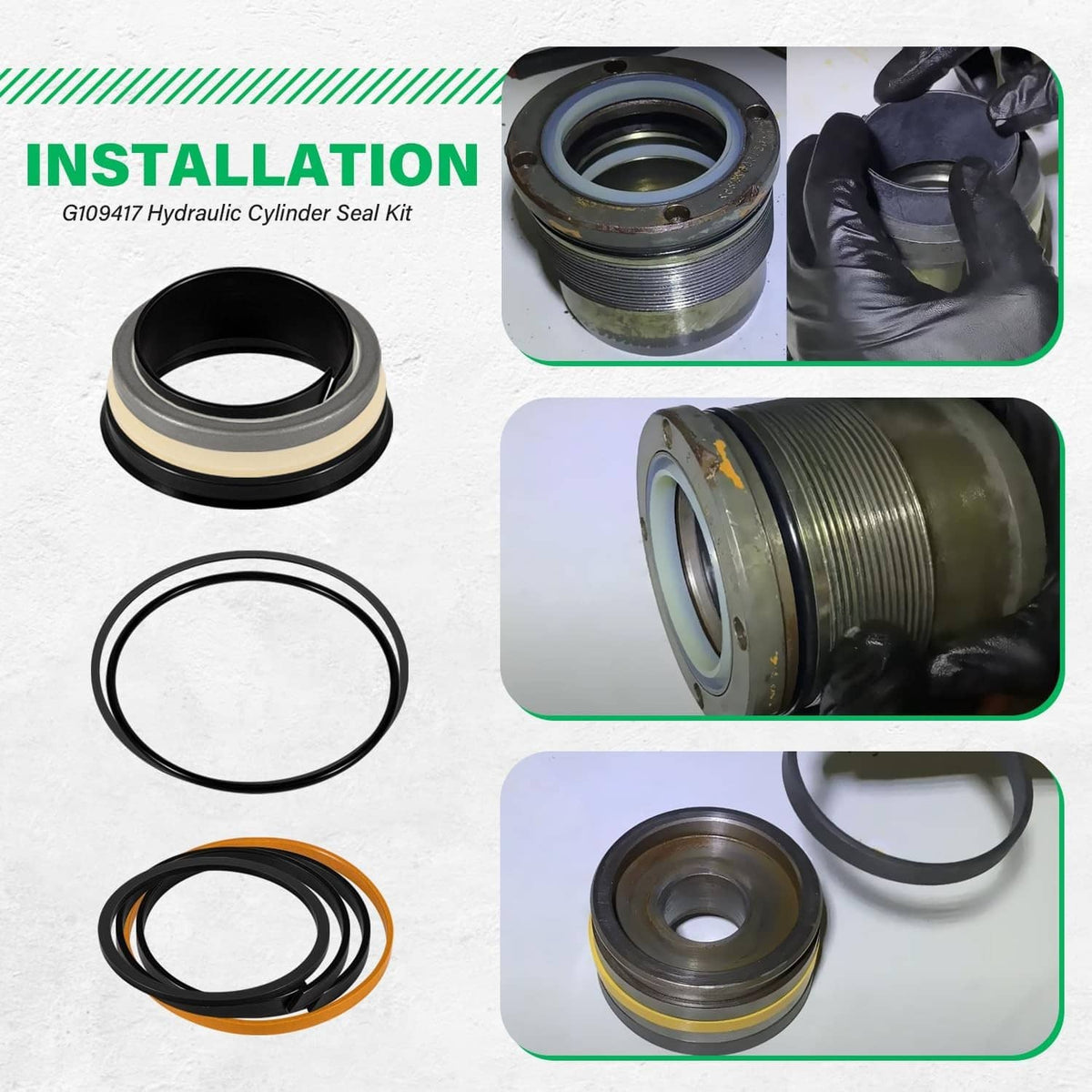

• Rebuilding lift and tilt cylinders on loaders
• Resealing boom and bucket cylinders on backhoes
• Routine hydraulic maintenance in fleet shops

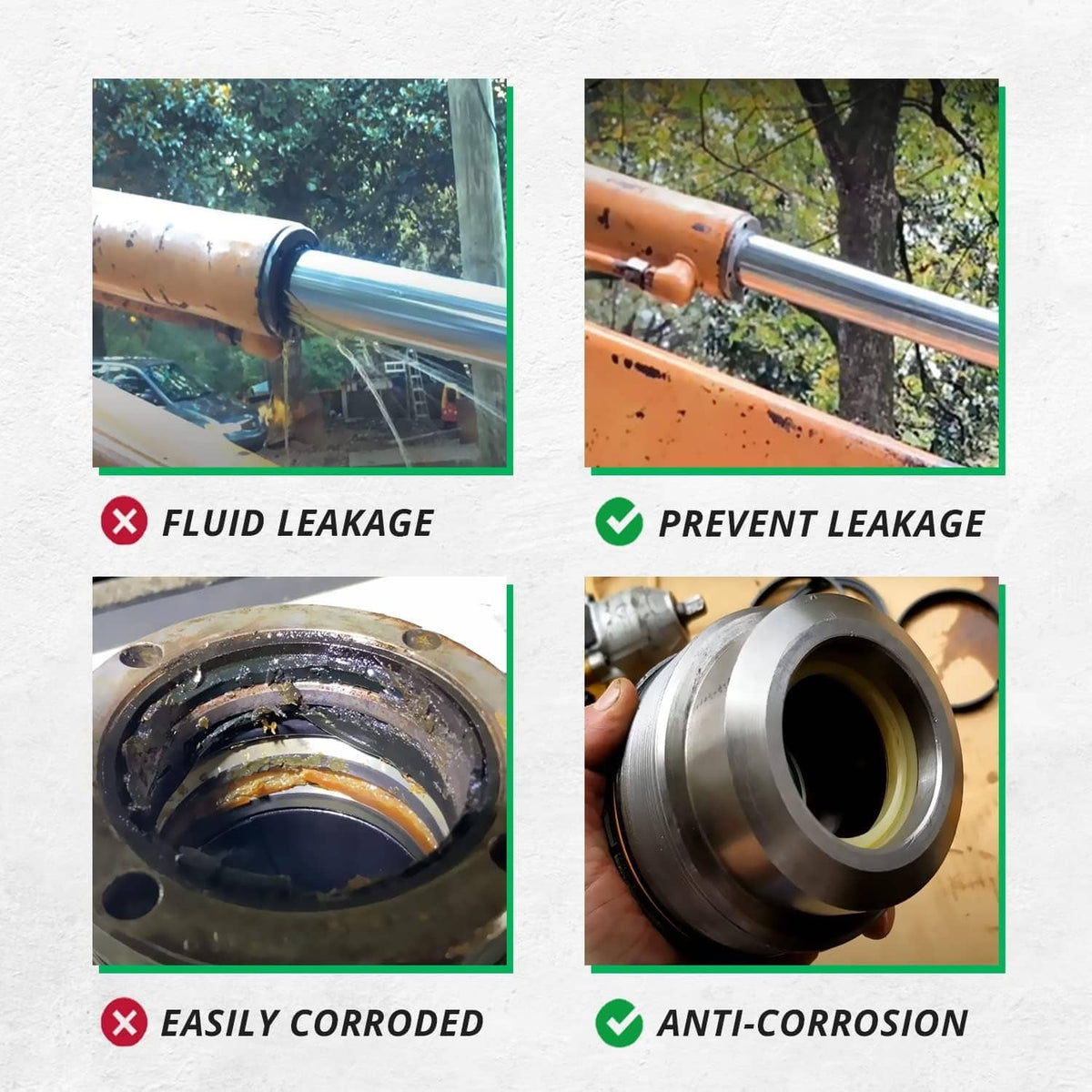

• Field repairs to stop hydraulic fluid leaks

Specs At A Glance

Good To Know

Q: How do I know this seal kit fits my cylinder? A: Confirm your cylinder runs a 1.75 inch rod and 3.25 inch bore with part number G109417 listed. Measure before ordering since similar models used different cylinder sizes.

Q: Is this an original Case part? A: This is an aftermarket seal kit built for Case equipment, not an original brand product. It is offered as a replacement for the listed part number.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
