GM Lifter Tray Guides 12595365 LS1 LS2 LS3 4.8 5.3 5.7 6.0 6.2 NON-DOD/AFM Trays

Lifter Tray Guides for GM LS Series Engines

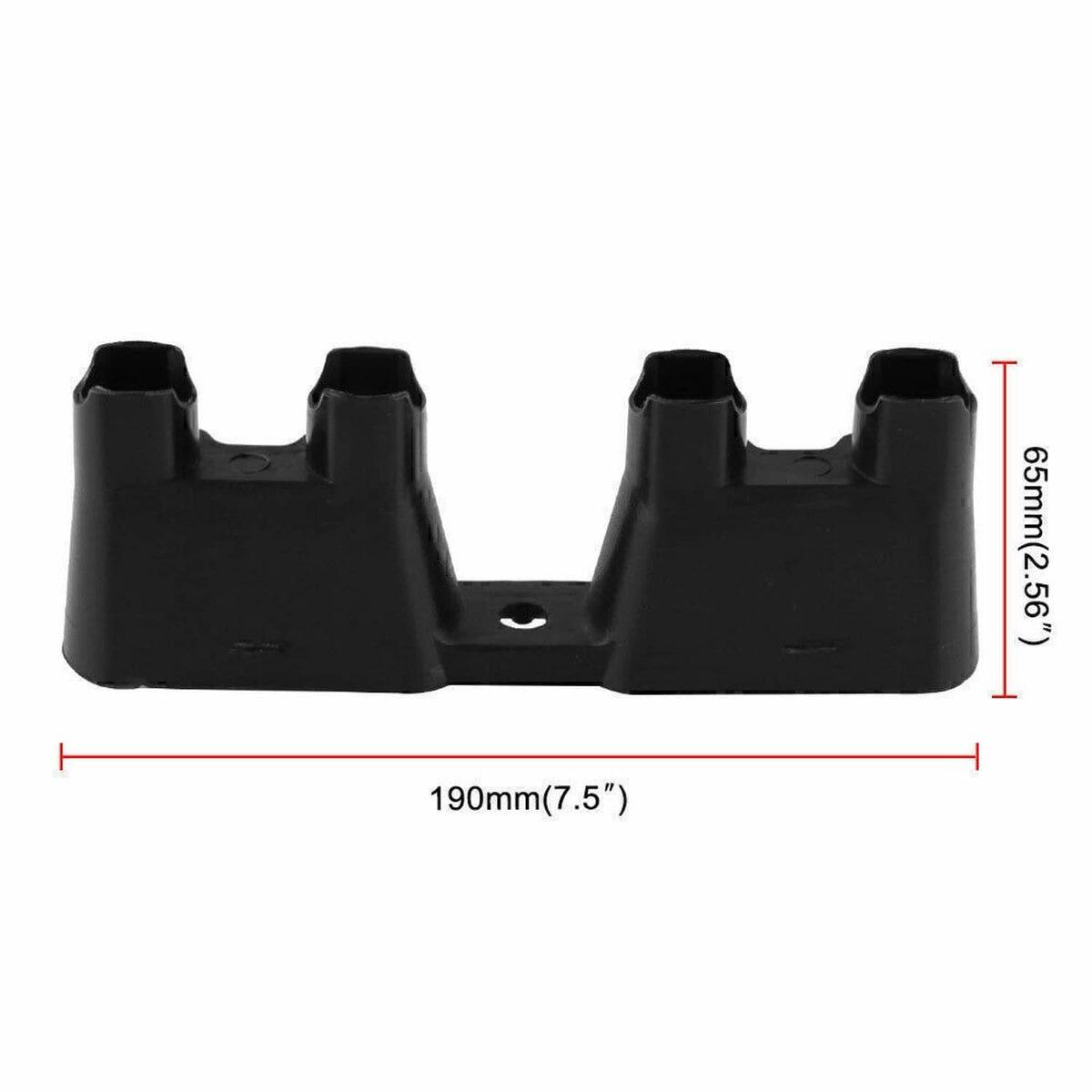

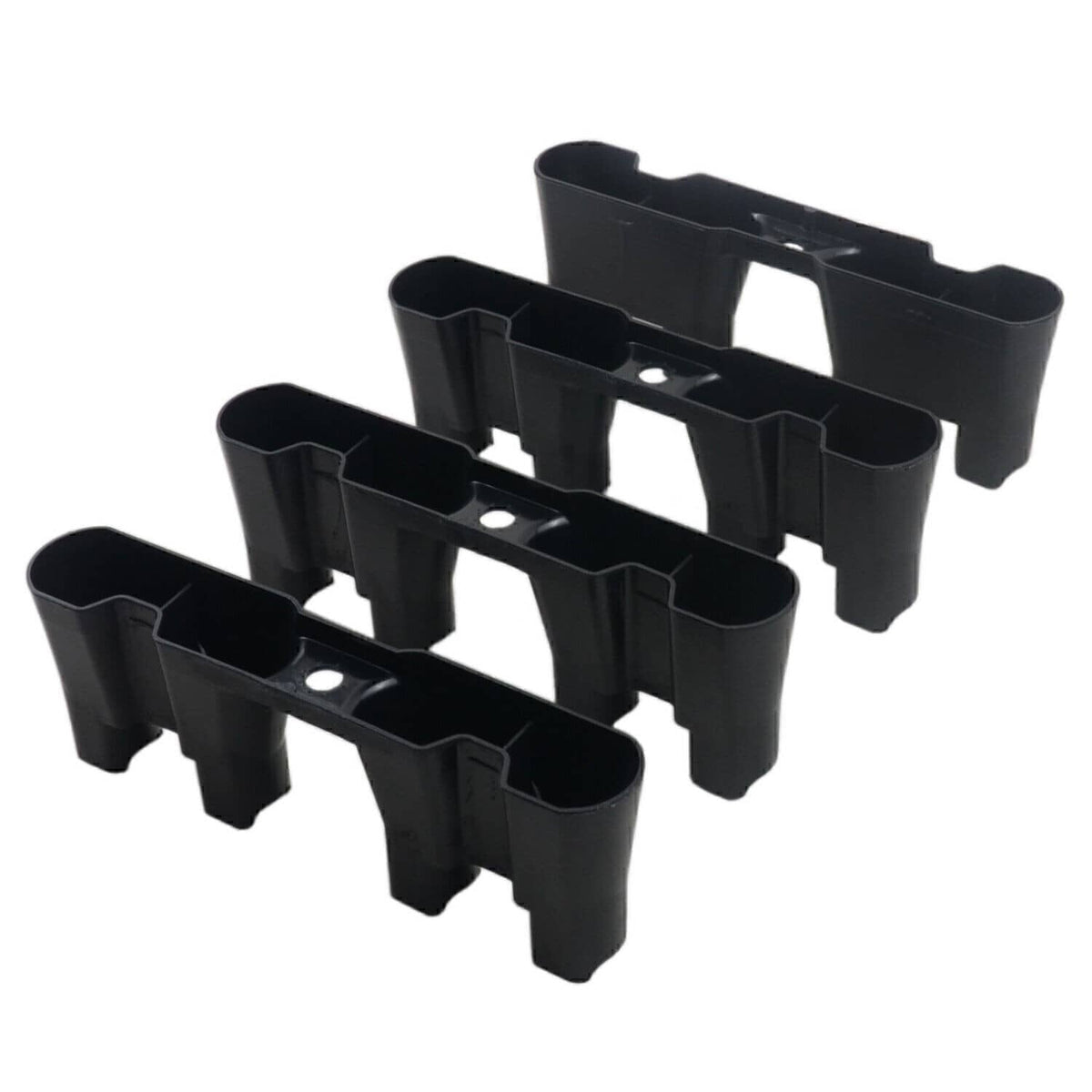

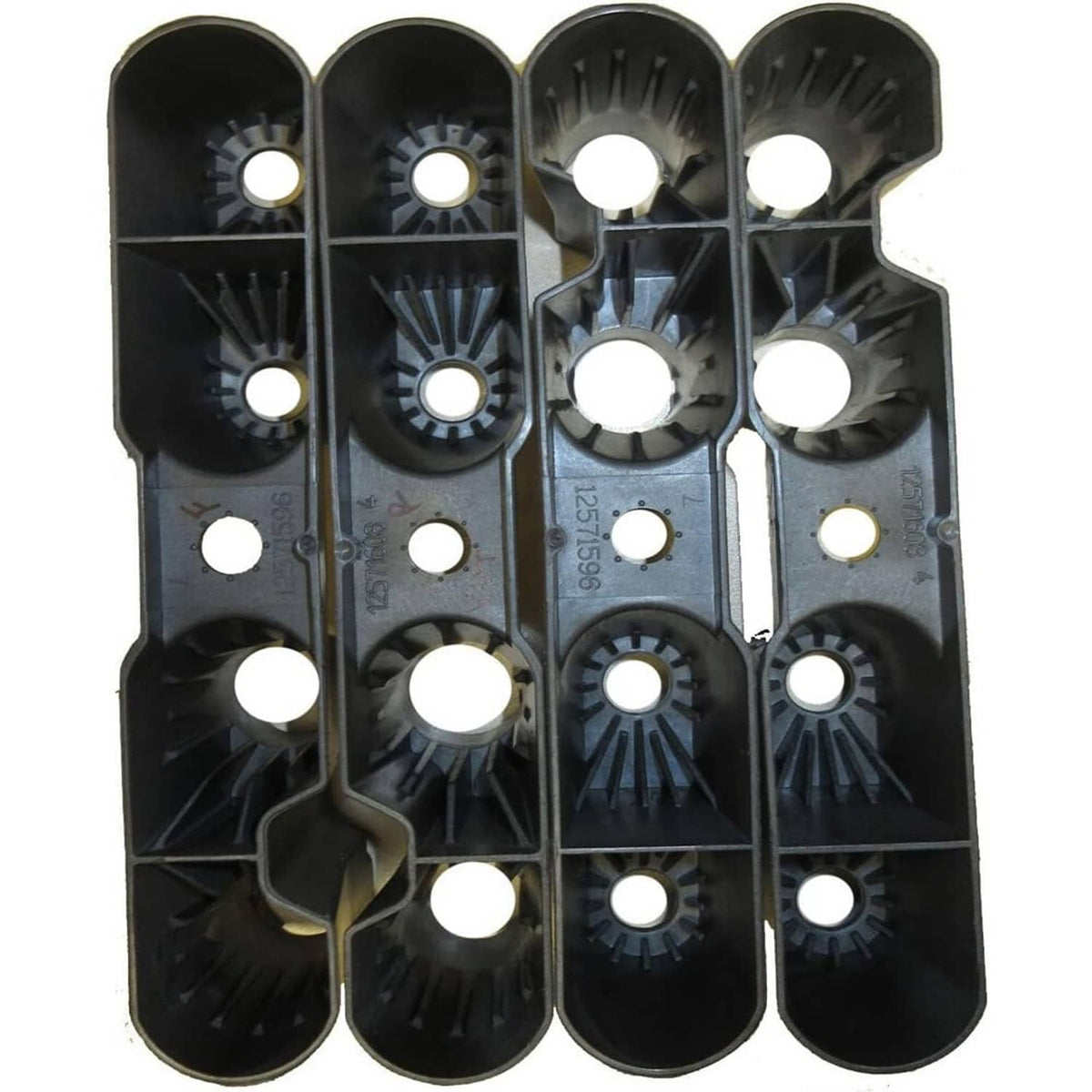

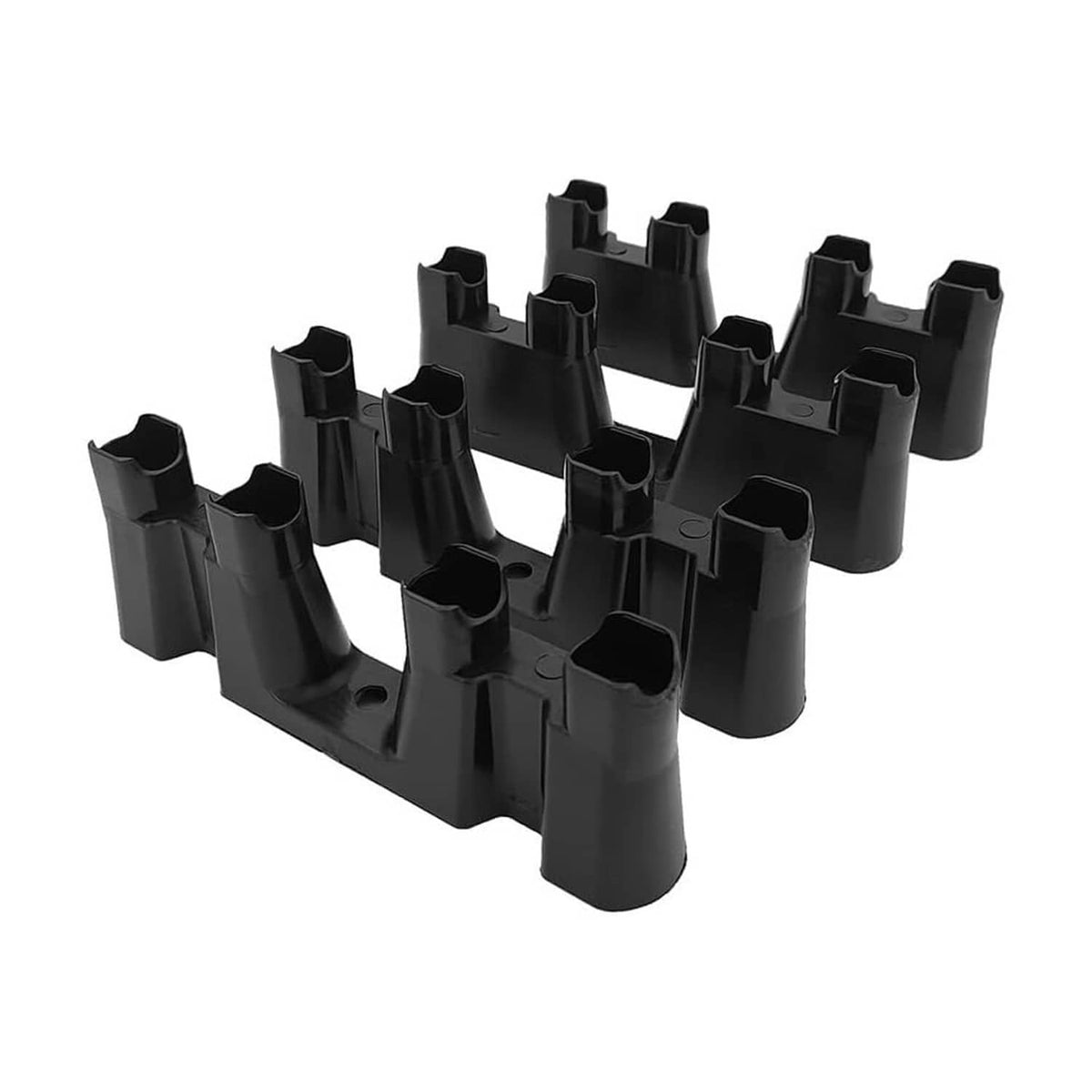

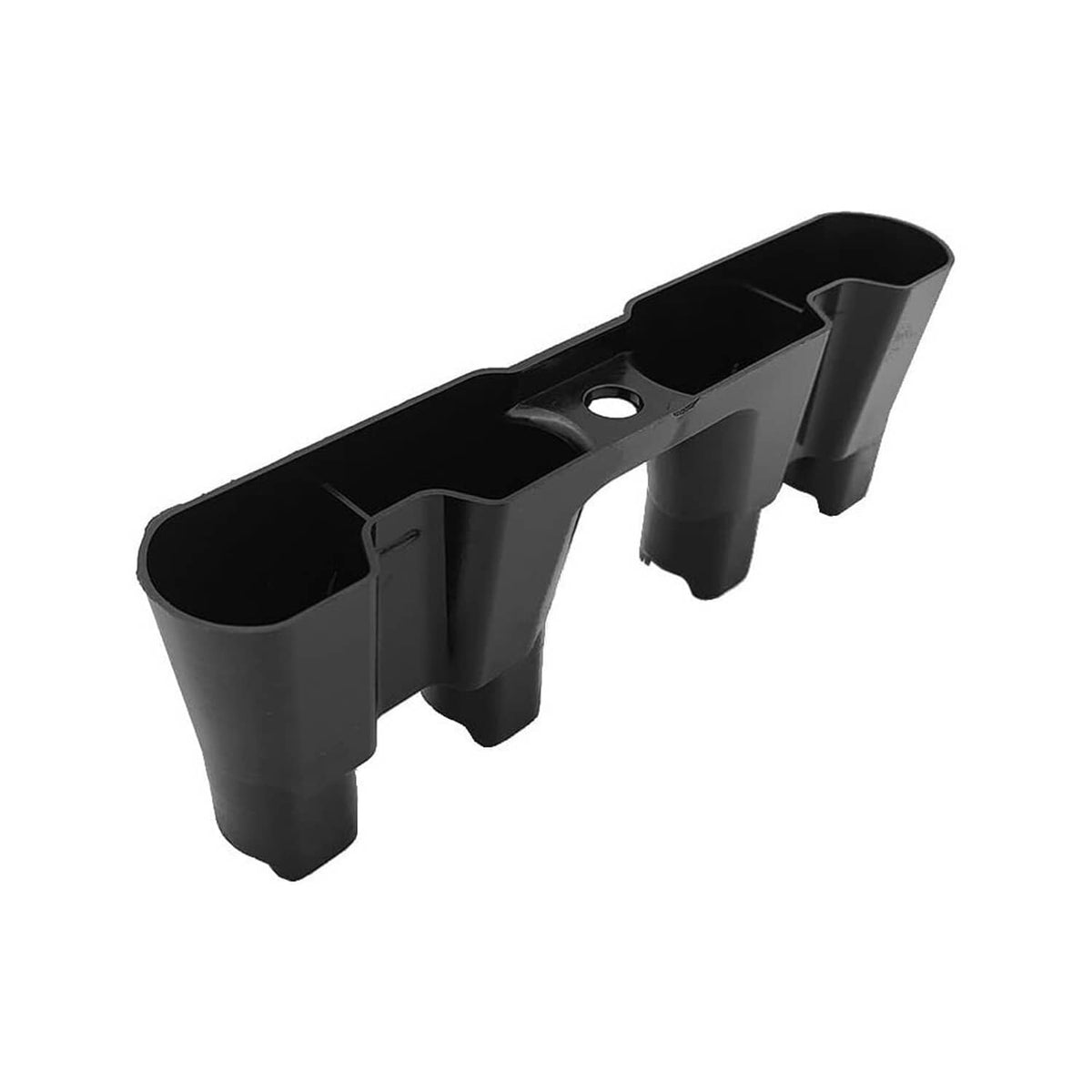

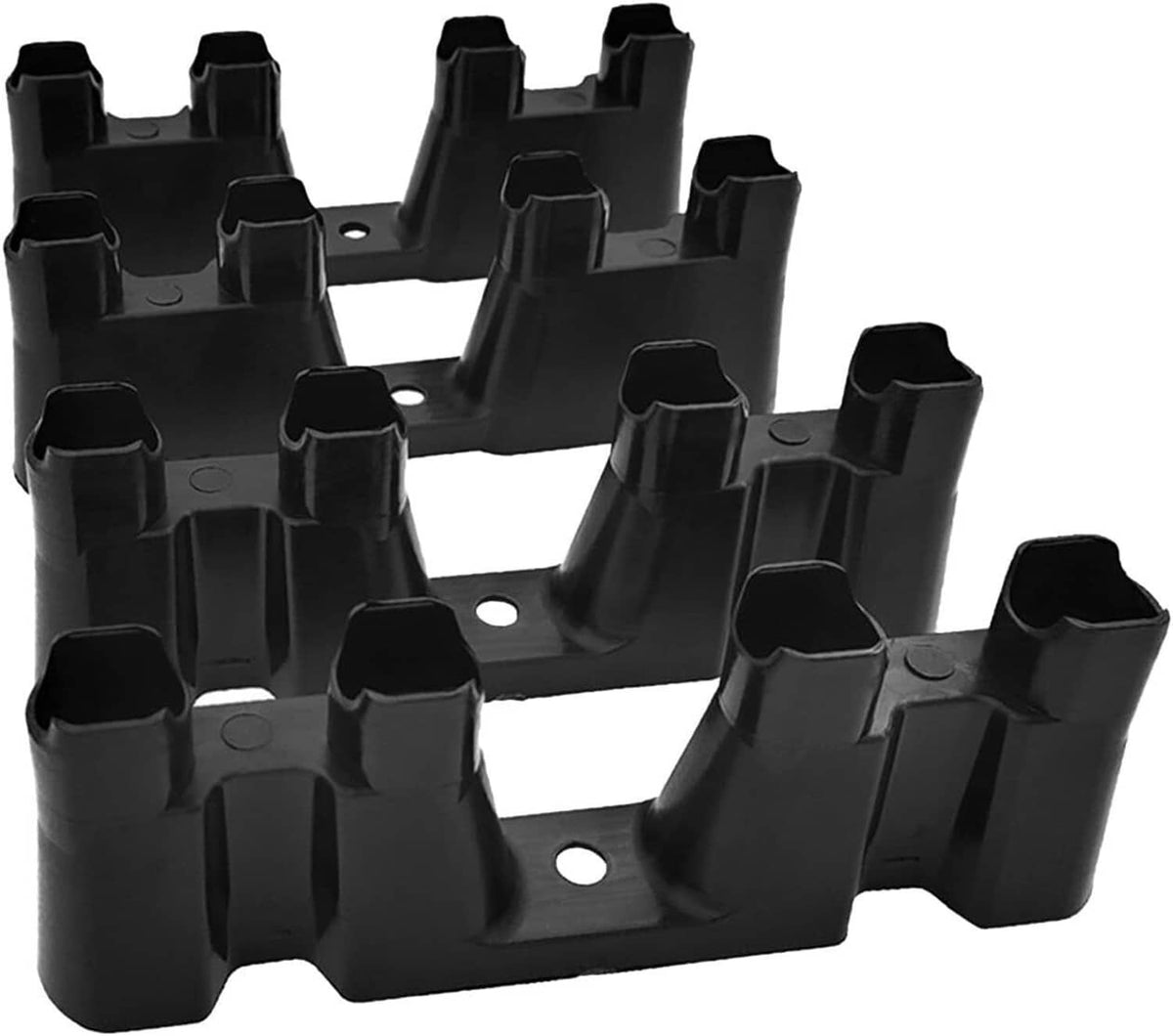

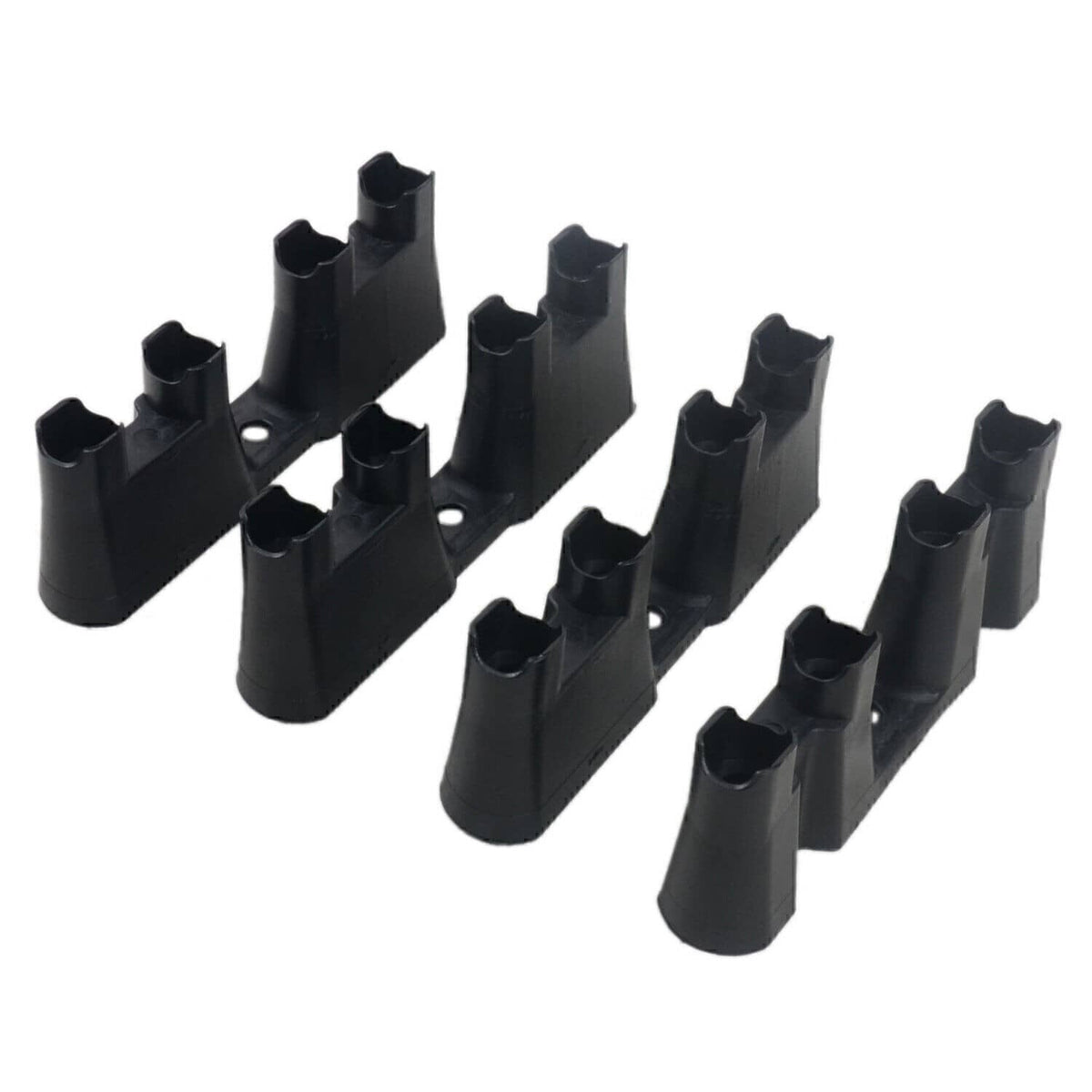

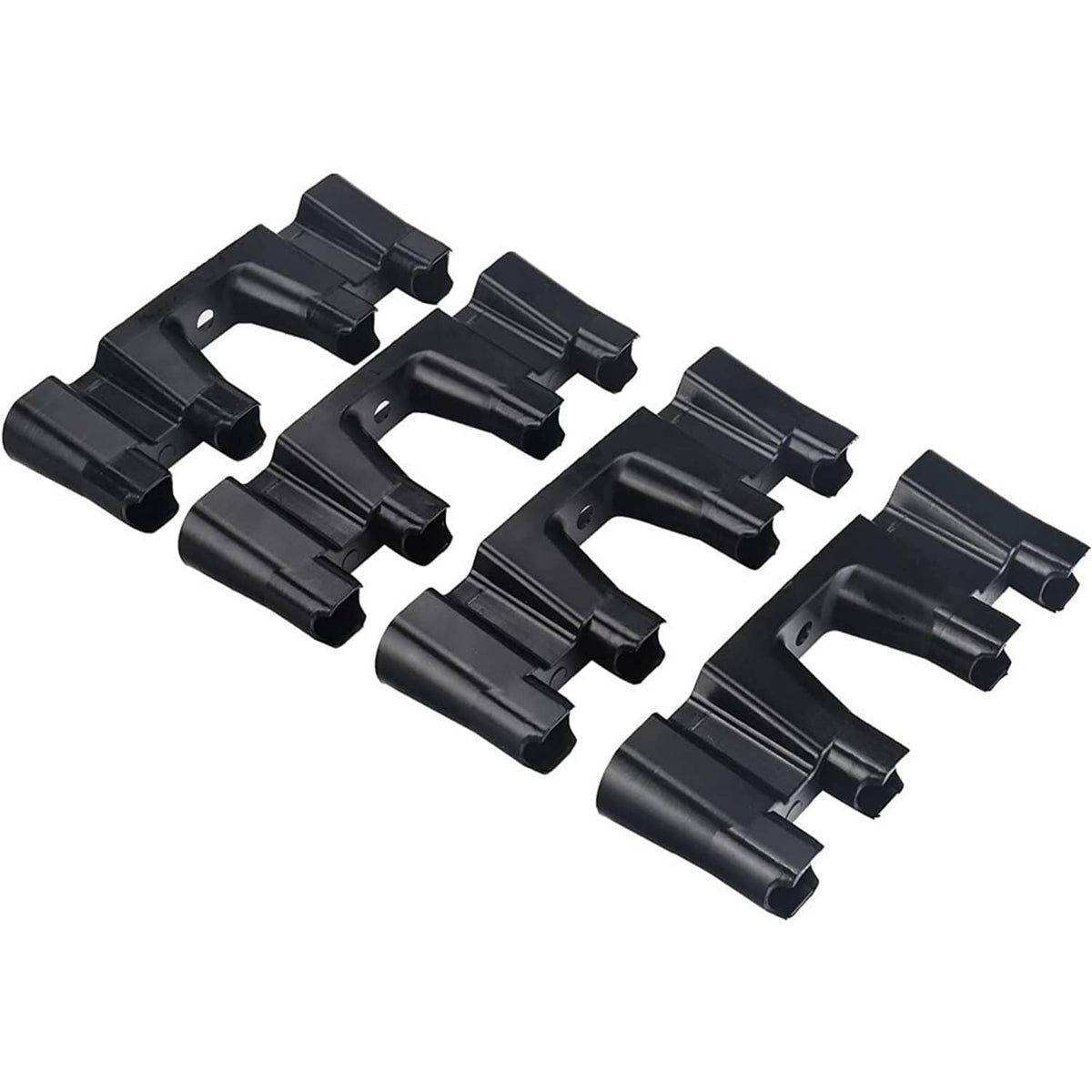

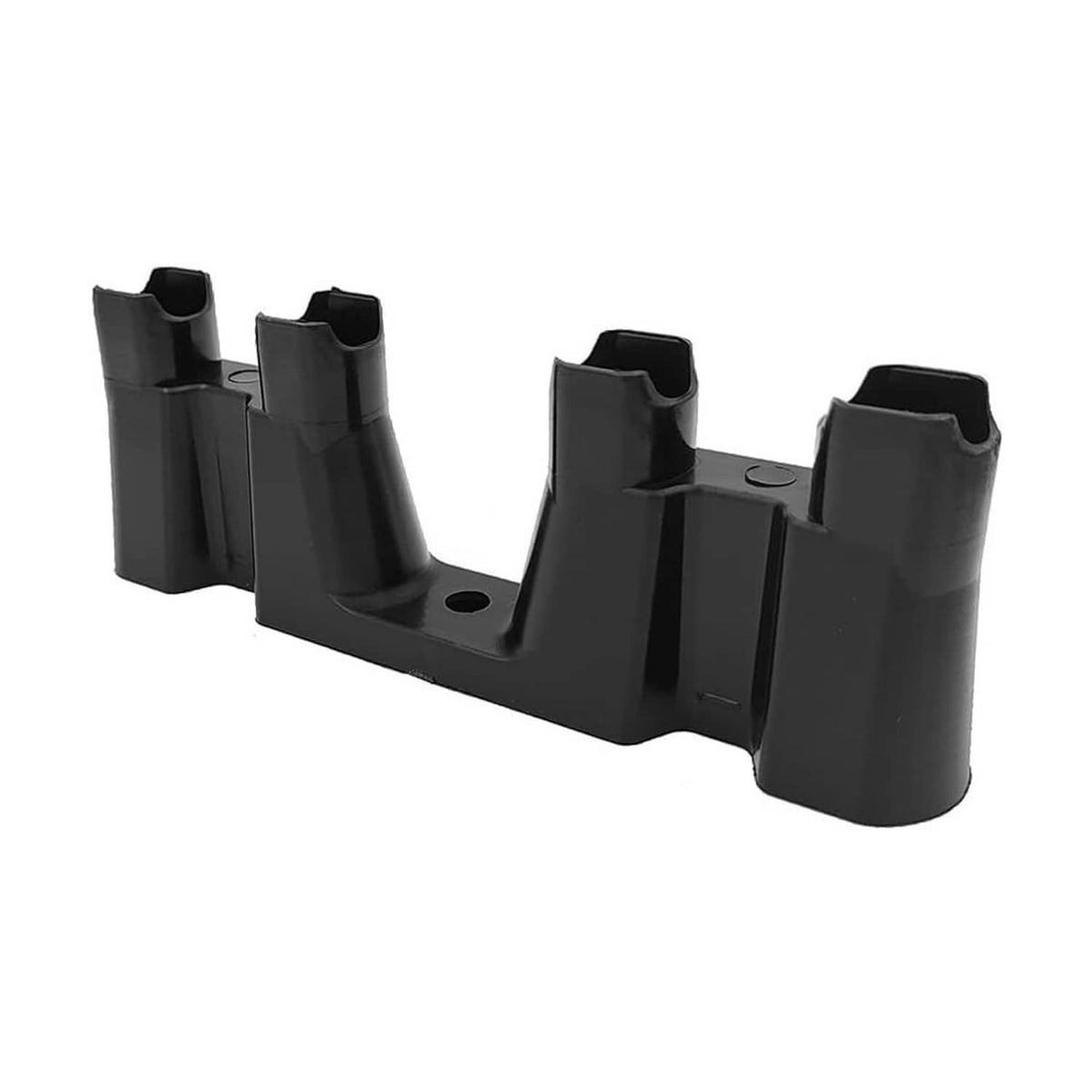

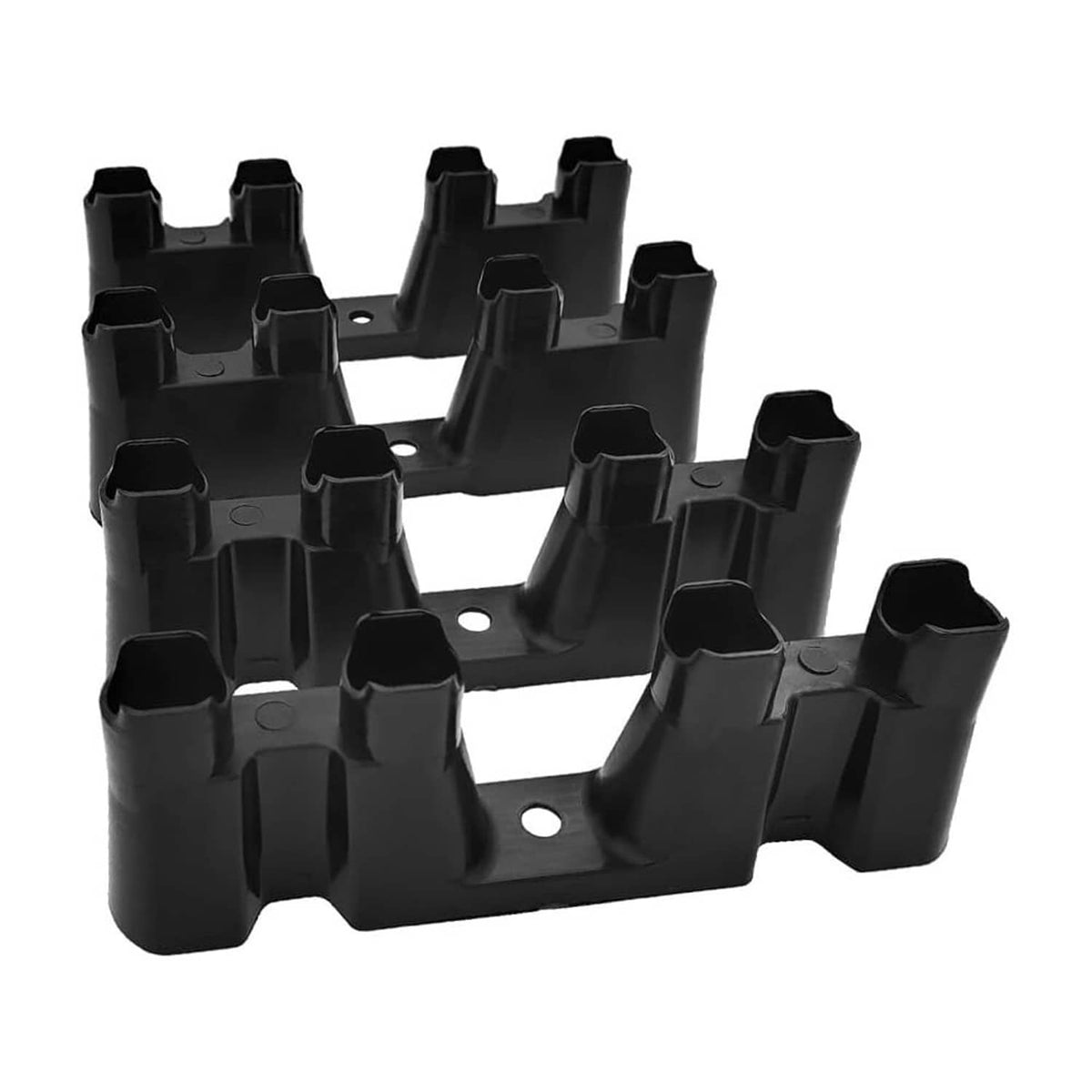

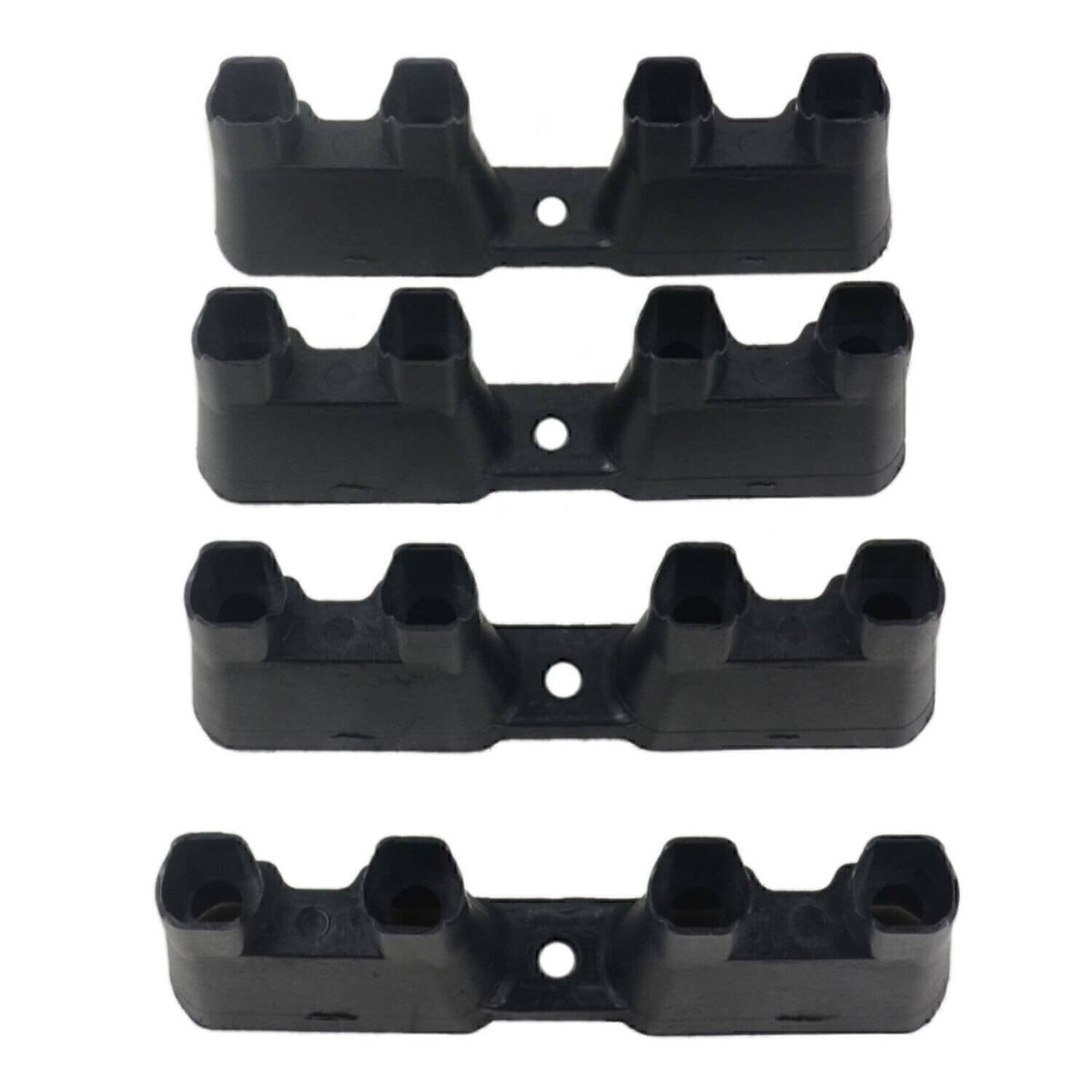

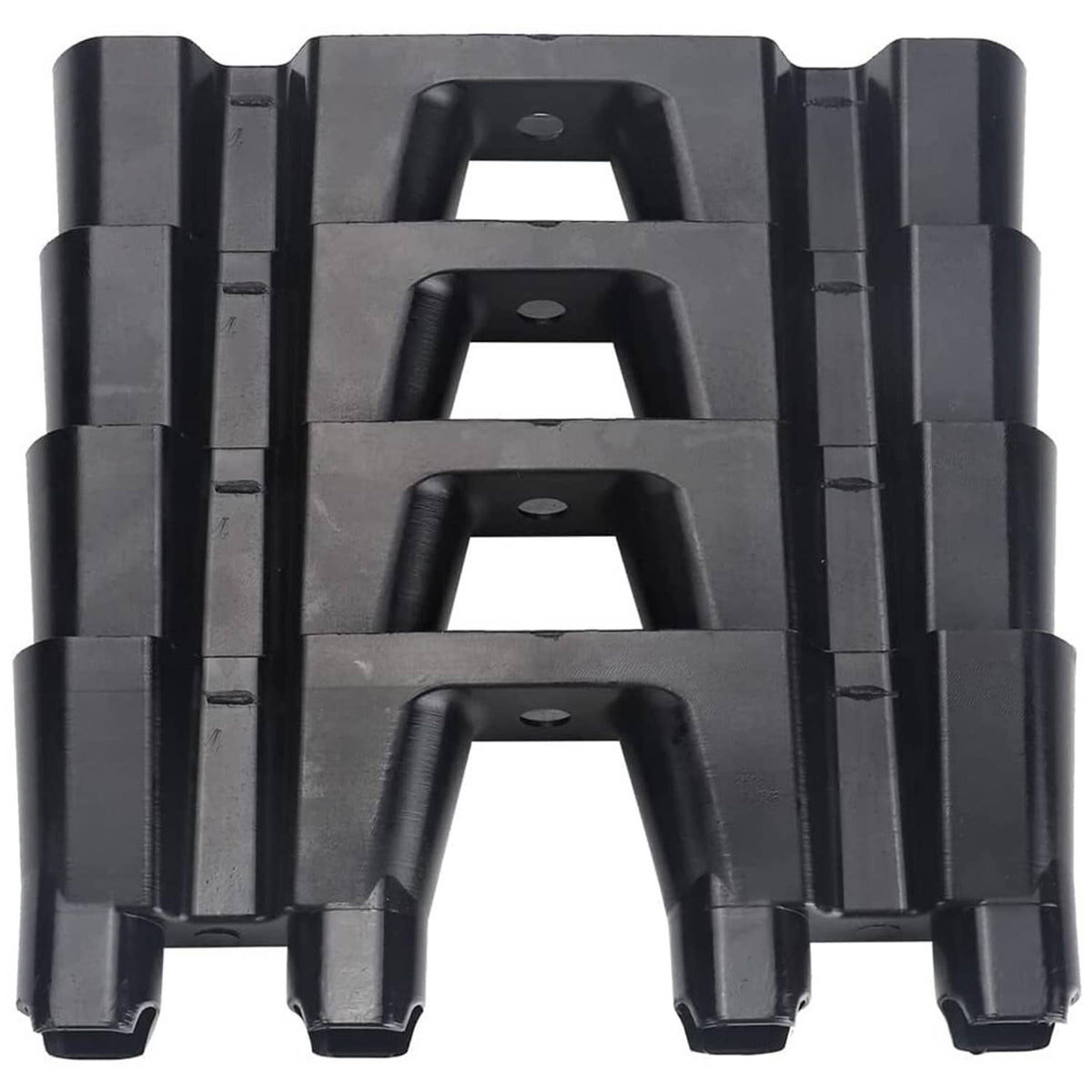

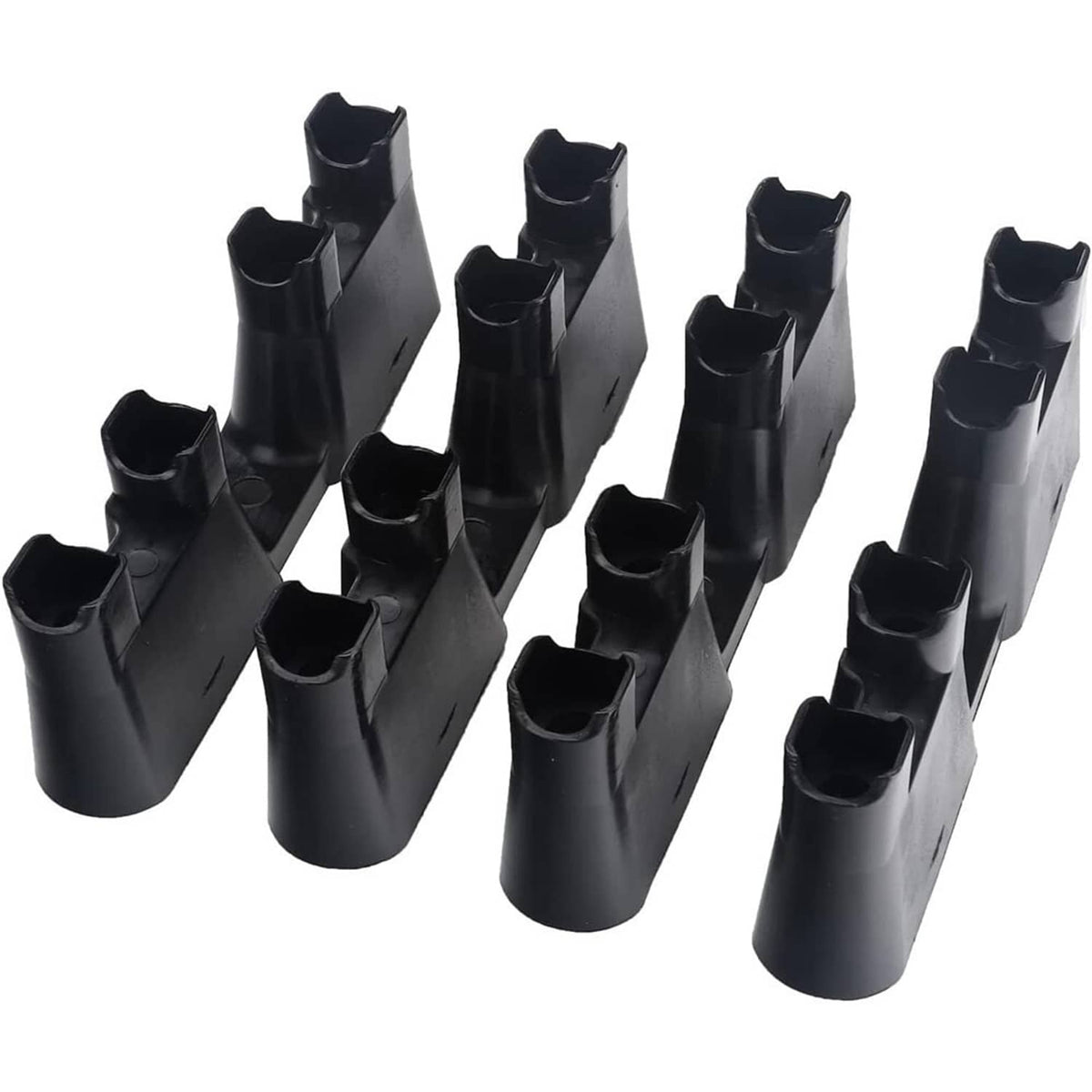

These lifter tray guides (OEM cross-reference 12595365) hold the hydraulic roller lifters in their correct orientation inside the engine block on GM LS series V8 engines.

Overview

These lifter tray guides keep the lifters aligned and prevented from rotating in the block of GM LS series engines. The trays are built for the NON-DOD/AFM 4.8, 5.3, 5.7, 6.0, and 6.2 platforms where standard lifter retention is required. They suit engine builders, rebuilders, and anyone replacing worn or cracked trays during a top-end service.

Built For Performance

• OEM cross-reference 12595365 for direct fitment verification
• Designed for NON-DOD/AFM LS engine configurations
• Holds lifter pairs in correct alignment inside the block
• Prevents lifter rotation that can damage cam lobes
• Stamped steel construction matching factory tray dimensions

Fits These Machines

• for GM LS1 5.7L engines
• for GM LS2 6.0L engines
• for GM LS3 6.2L engines
• for GM 4.8L LS series engines
• for GM 5.3L LS series engines

On-The-Job Use

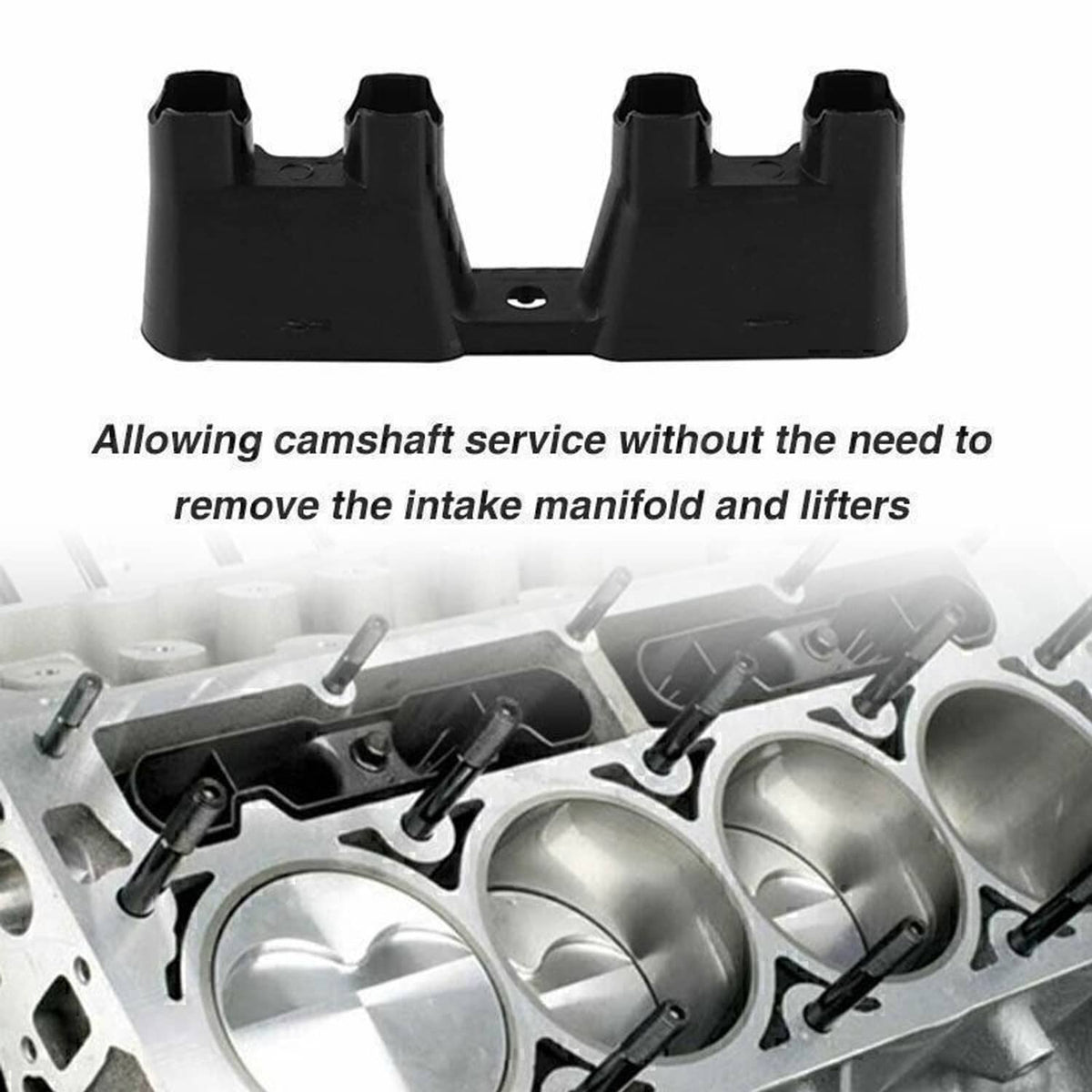

• Camshaft and lifter replacement jobs
• Engine rebuilds and top-end refreshes
• Cylinder head removal and reinstall work
• Lifter tick diagnosis and repair

Specs At A Glance

Good To Know

Q: Will these trays work on a DOD or AFM engine? A: No, these are listed for NON-DOD/AFM configurations only. Confirm your engine code before ordering.

Q: How many trays come in a set? A: Check the listing quantity and photos to confirm what is included. Most LS V8 engines use four trays total.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
