Regulator Rectifier Stator & Ignition Coil For Yamaha Raptor 660R YFM660R 01-05

Regulator Rectifier Stator & Ignition Coil for Yamaha Raptor 660R

This regulator rectifier stator and ignition coil set services the charging and ignition circuits on for Yamaha Raptor 660R YFM660R models, replacing worn electrical components with a matched trio built to keep spark and battery charge consistent.

Overview

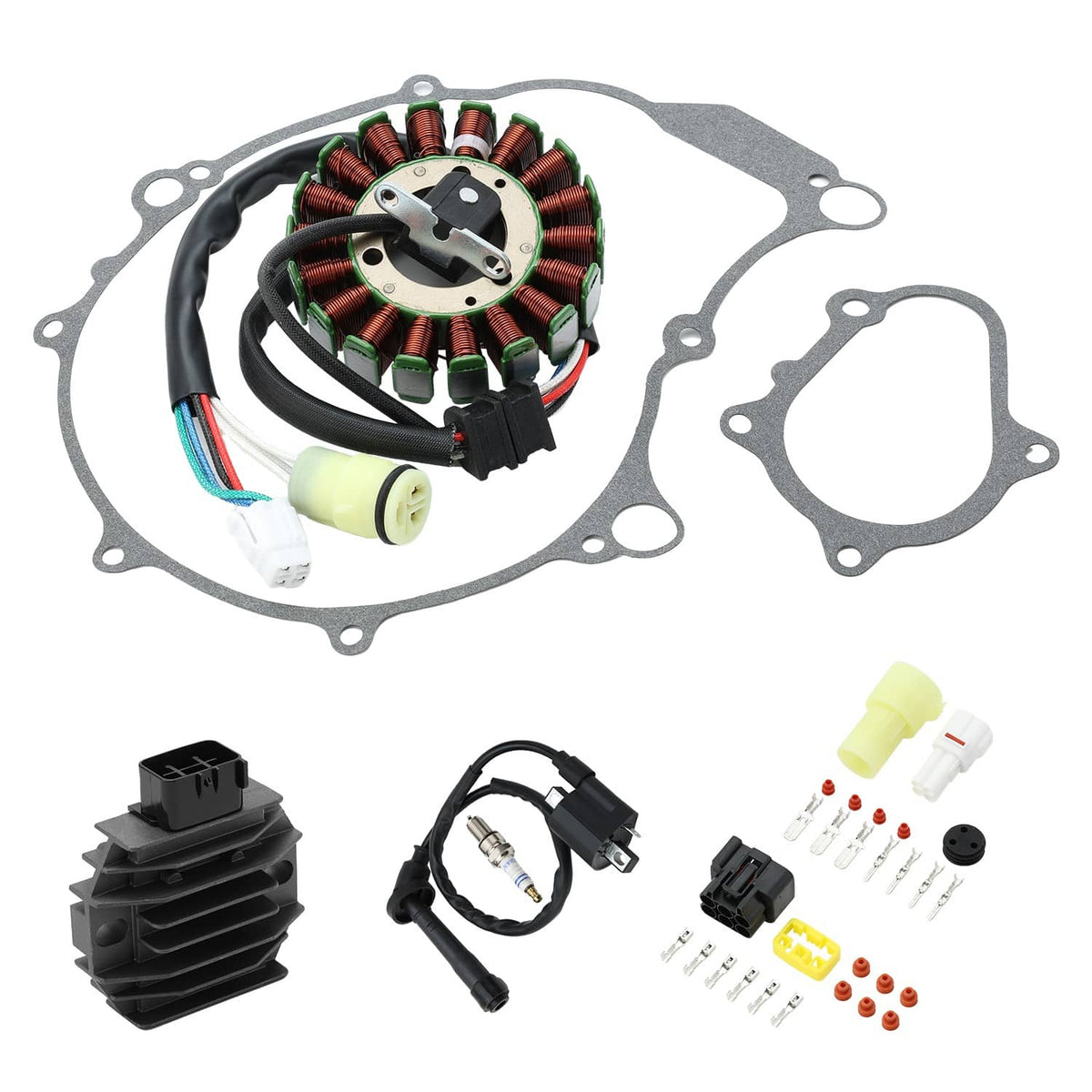

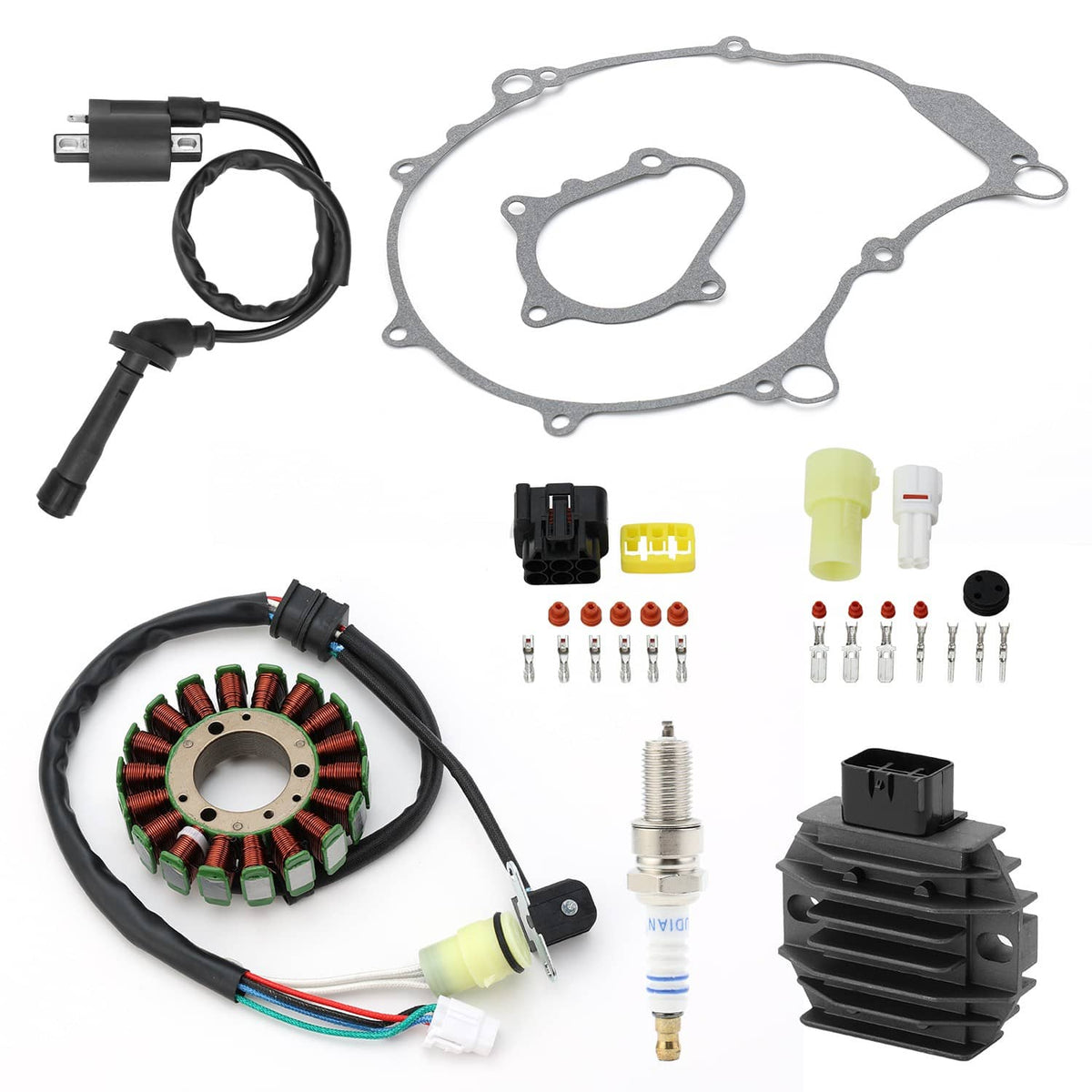

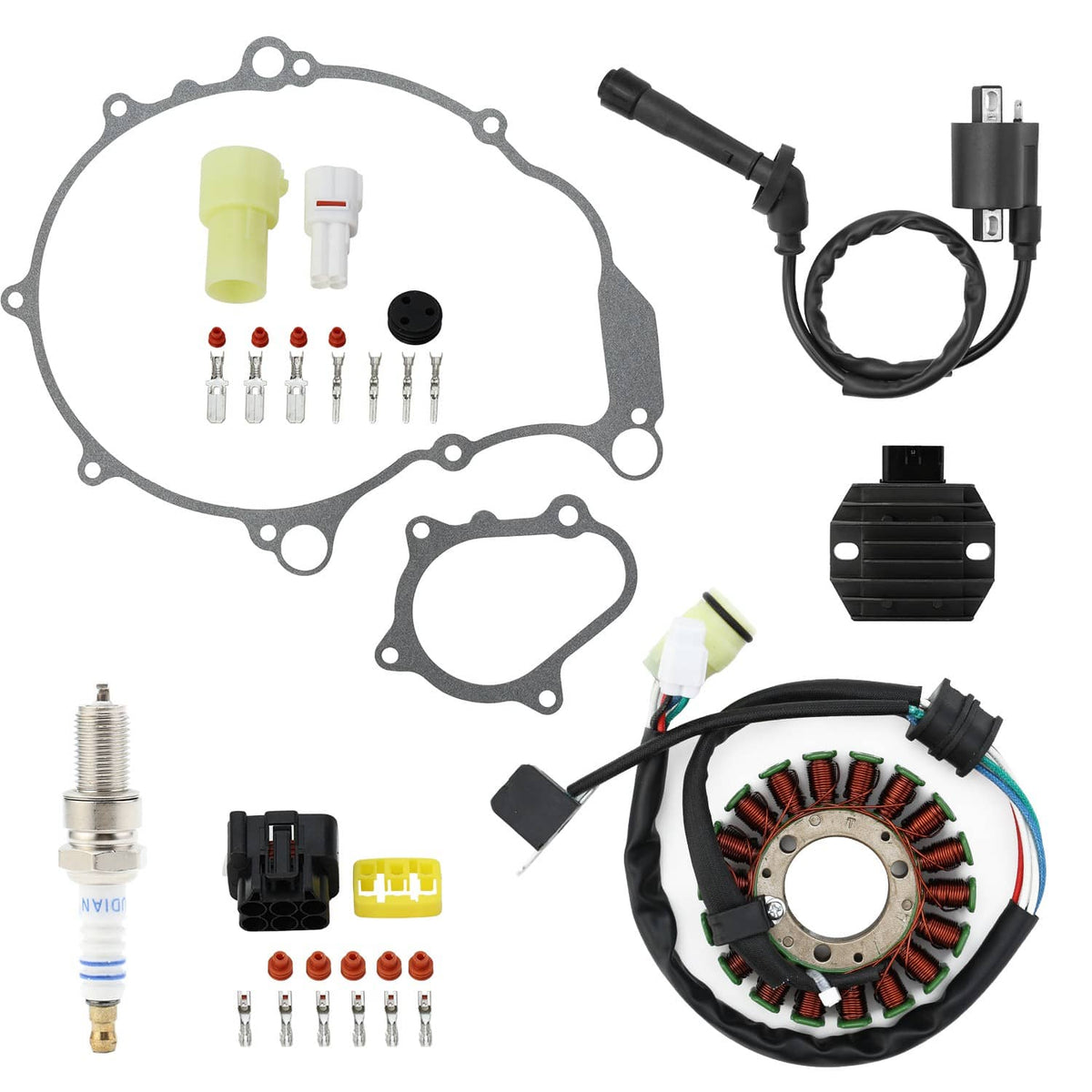

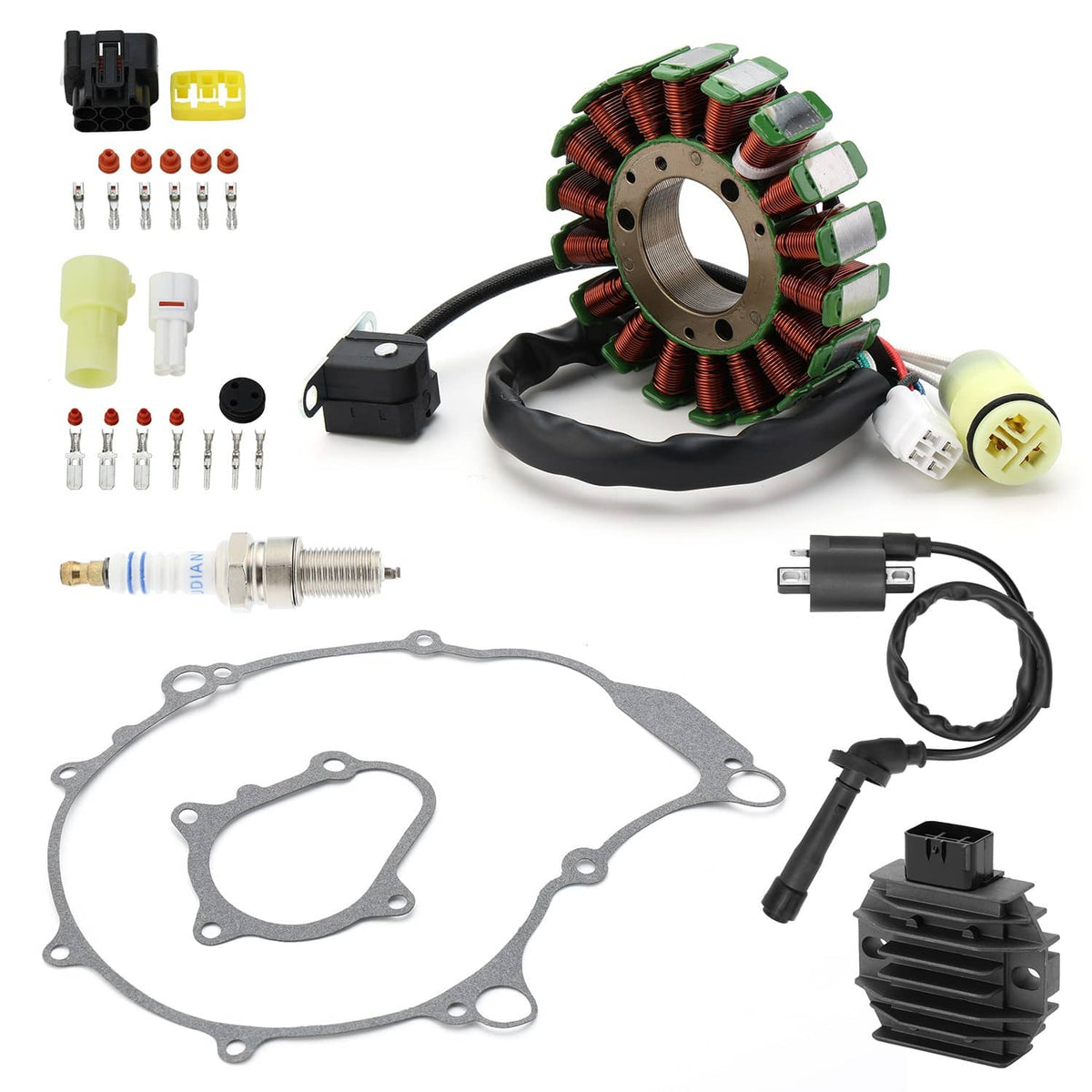

This regulator rectifier stator and ignition coil kit is a complete electrical refresh for the for Yamaha Raptor 660R YFM660R. The stator generates AC power, the regulator rectifier converts it to stable DC for the battery and lights, and the ignition coil delivers the spark the engine needs to fire. It suits riders and mechanics restoring charging output or chasing down a weak or intermittent spark on 2001 through 2005 machines.

Built For Performance

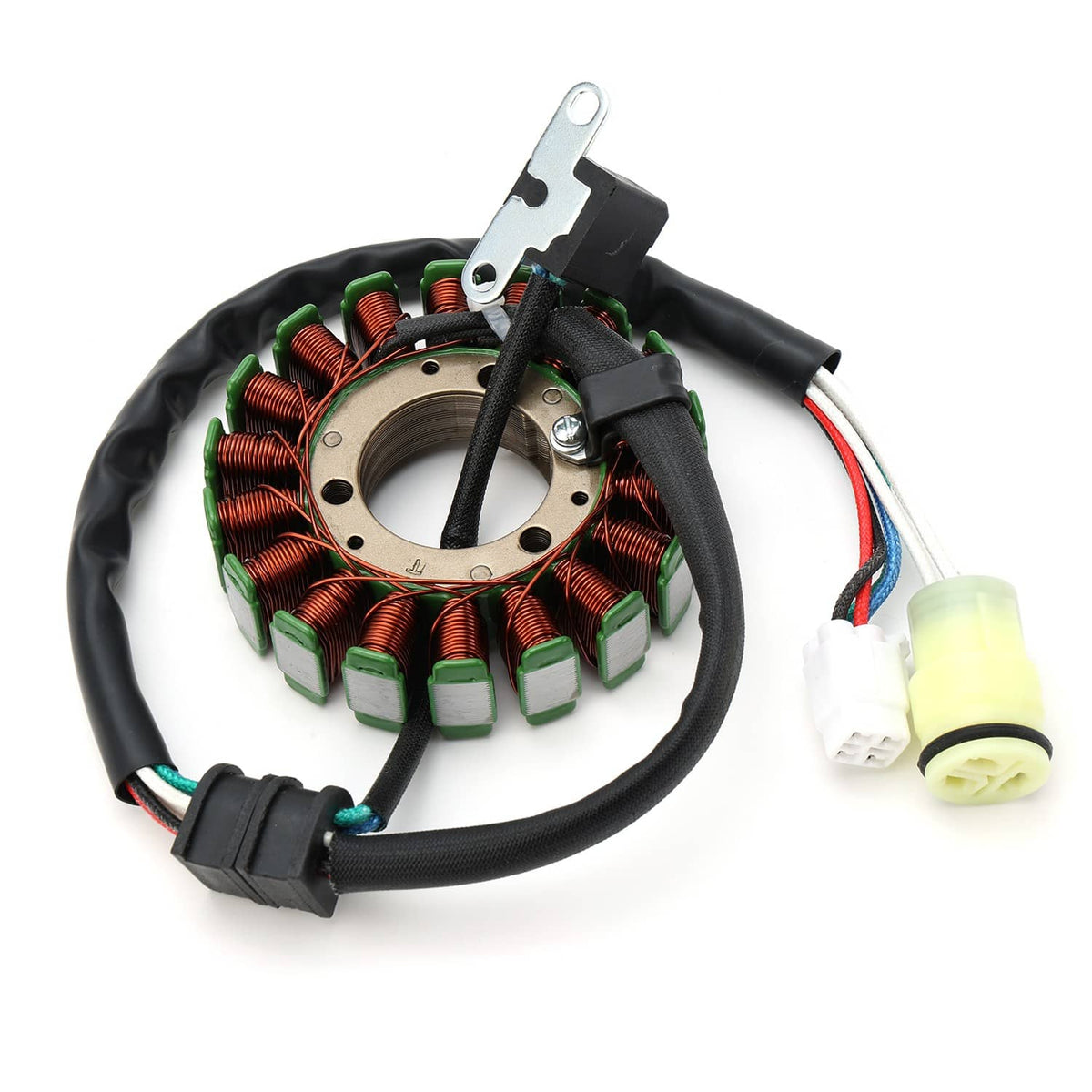

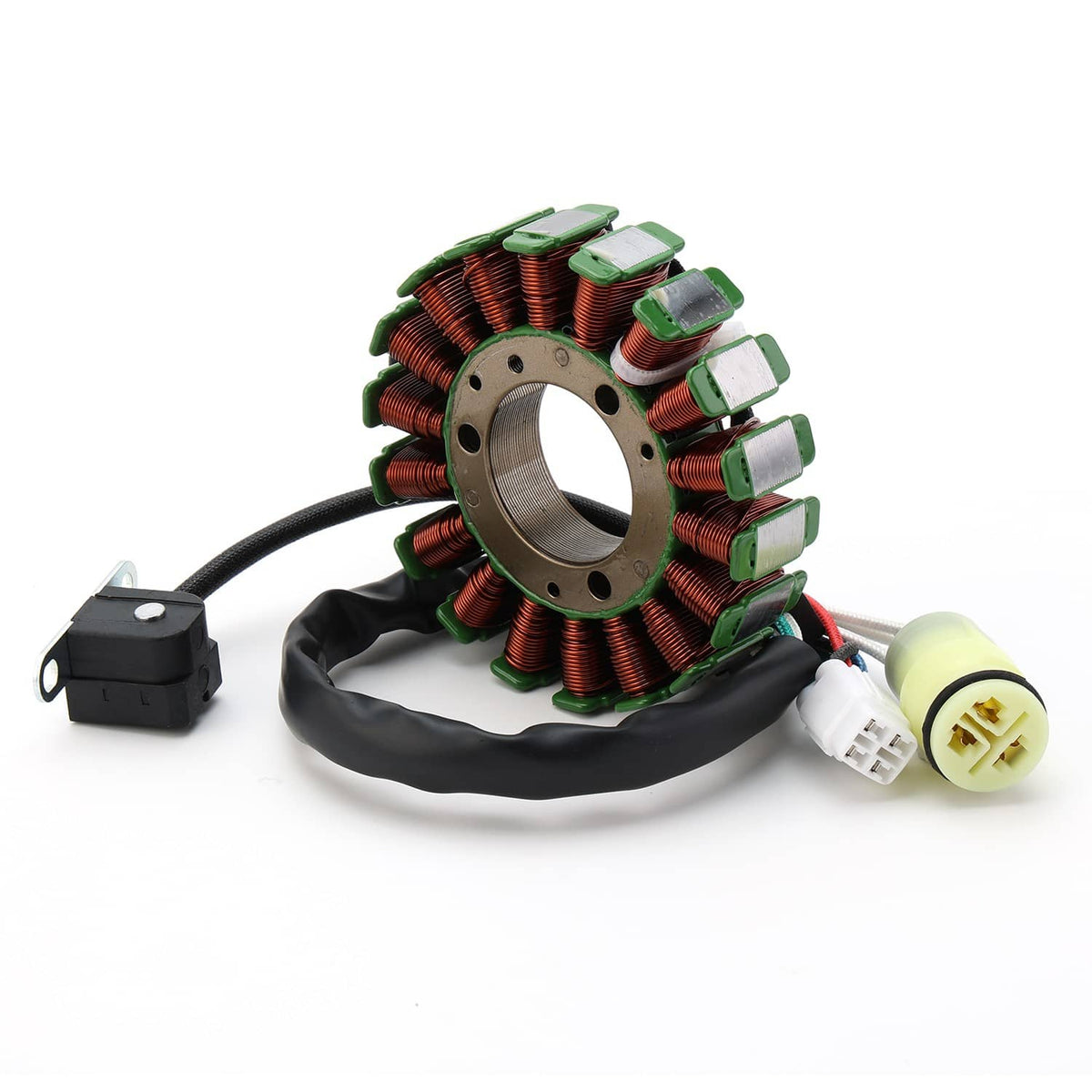

• Stator wound to deliver consistent AC output across the rev range

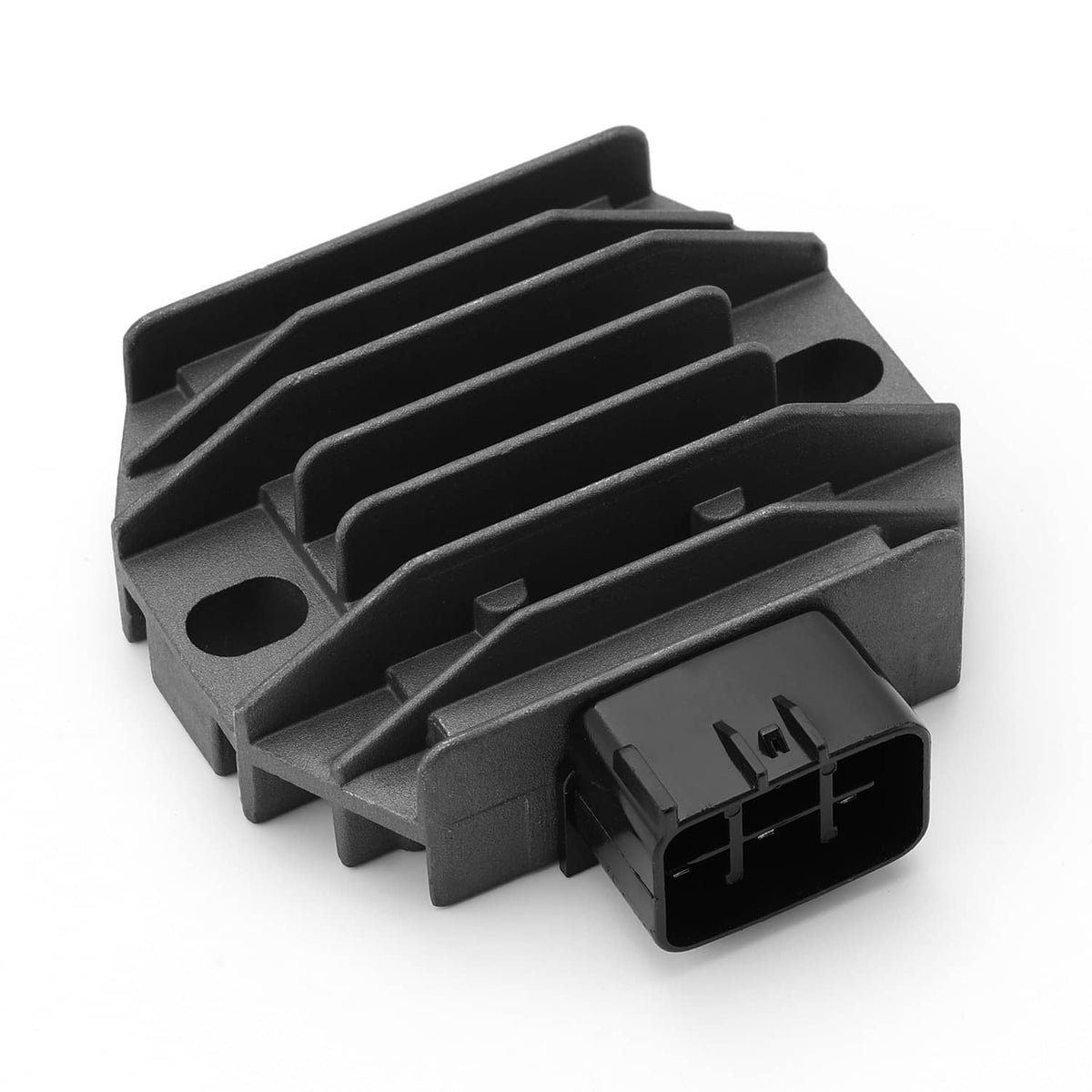

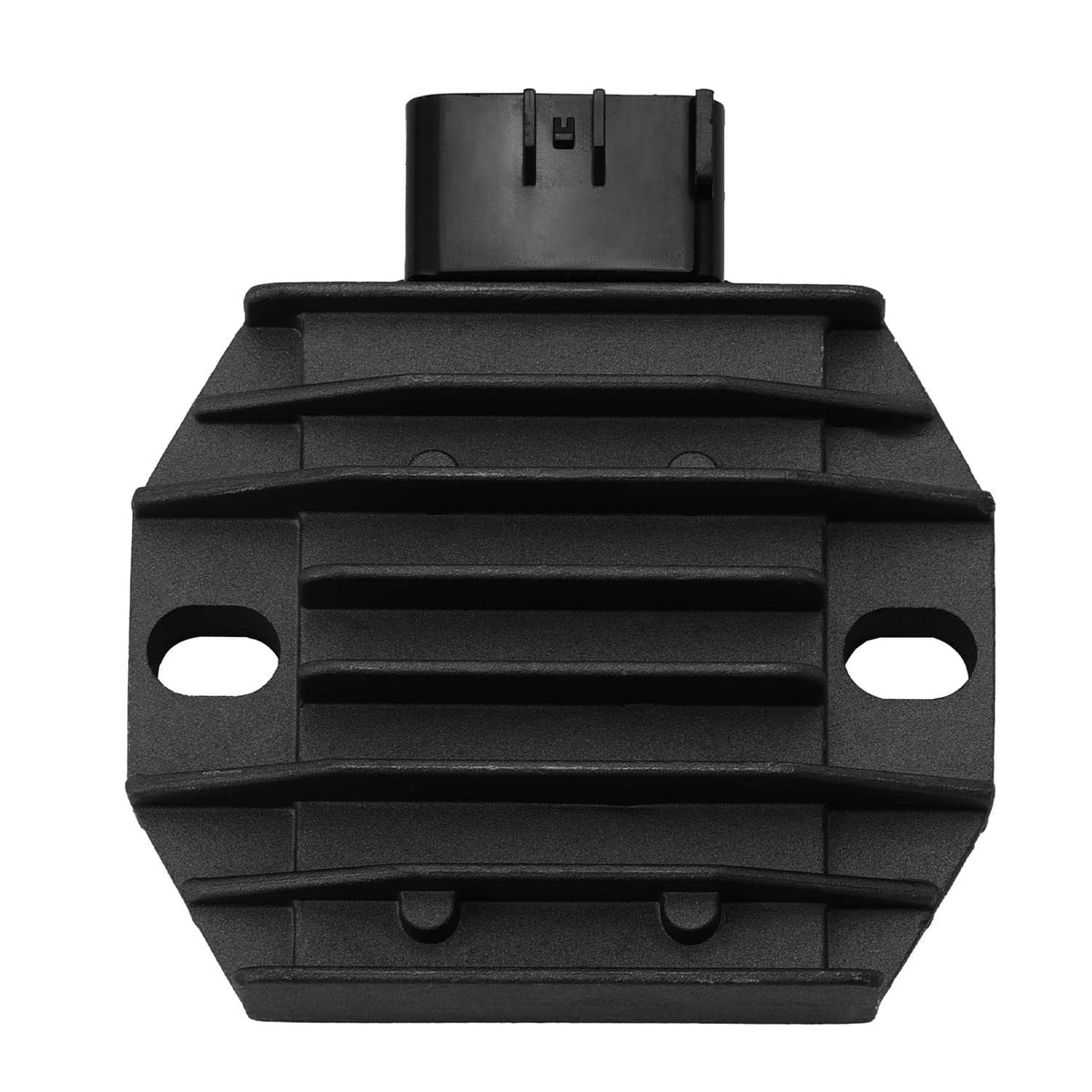

• Regulator rectifier converts AC to stable DC voltage for battery charging

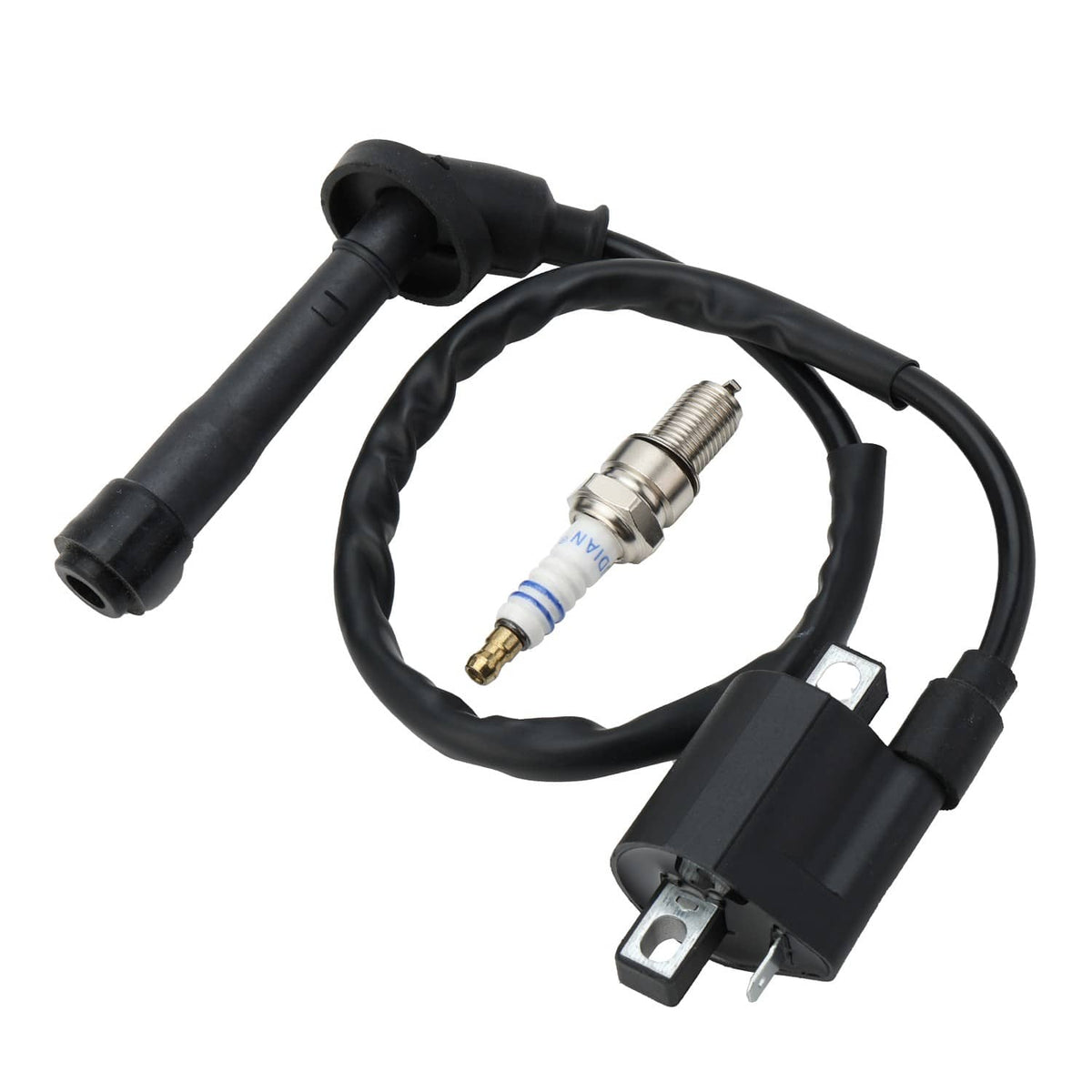

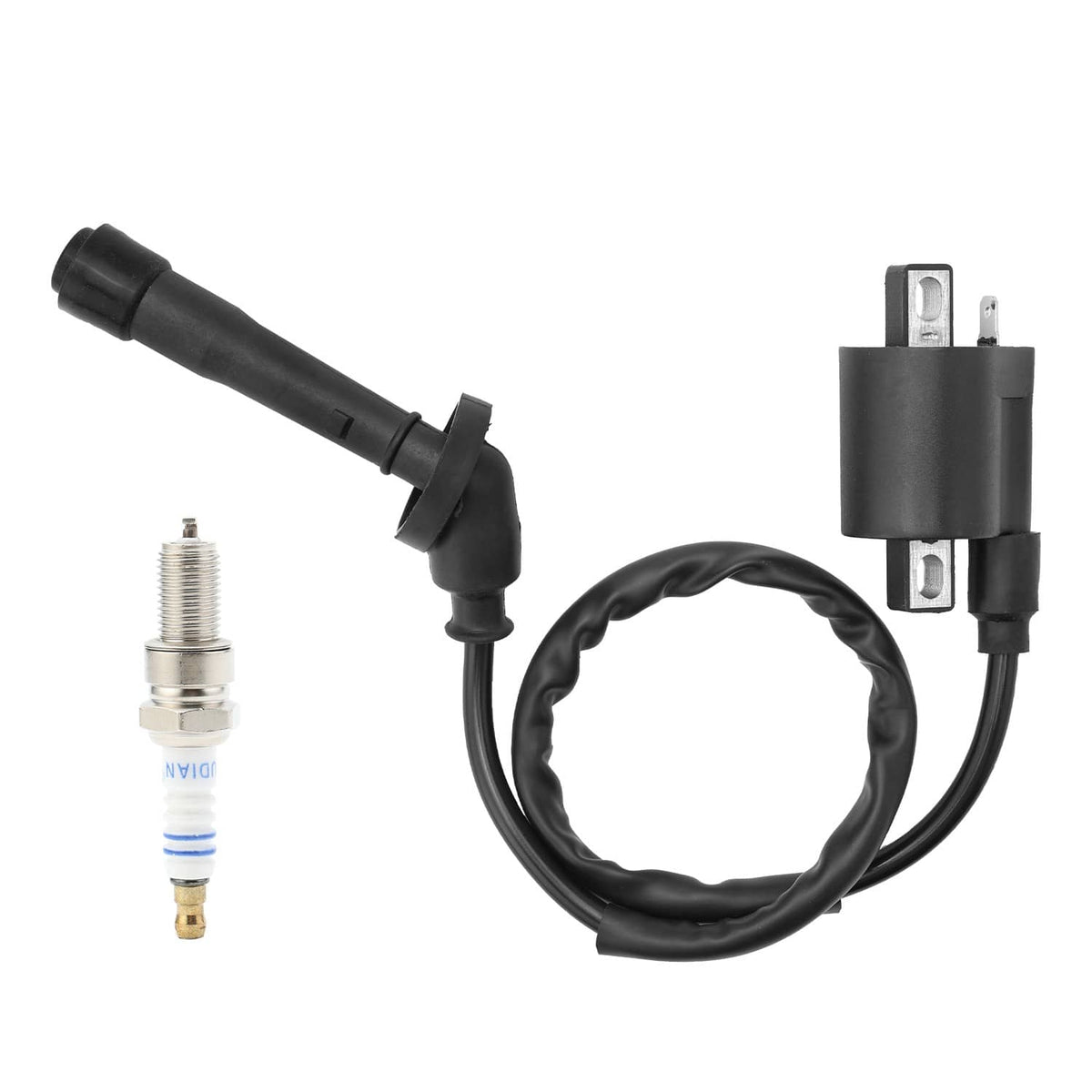

• Ignition coil built to supply reliable spark energy at high rpm
• Matched components designed to work together as one charging and ignition system
• Direct-fit connectors and mounting points for straightforward installation
• Construction suited to the heat and vibration of off-road use

Fits These Machines

• for Yamaha Raptor 660R YFM660R 2001
• for Yamaha Raptor 660R YFM660R 2002
• for Yamaha Raptor 660R YFM660R 2003
• for Yamaha Raptor 660R YFM660R 2004
• for Yamaha Raptor 660R YFM660R 2005

On-The-Job Use

• Replacing a failed stator that has stopped charging the battery
• Fixing a rectifier that has stopped regulating voltage, causing dim lights or a dead battery
• Restoring consistent spark when the ignition coil weakens
• Preventive electrical service before a riding season
• Trailside or shop rebuilds of the charging and ignition system

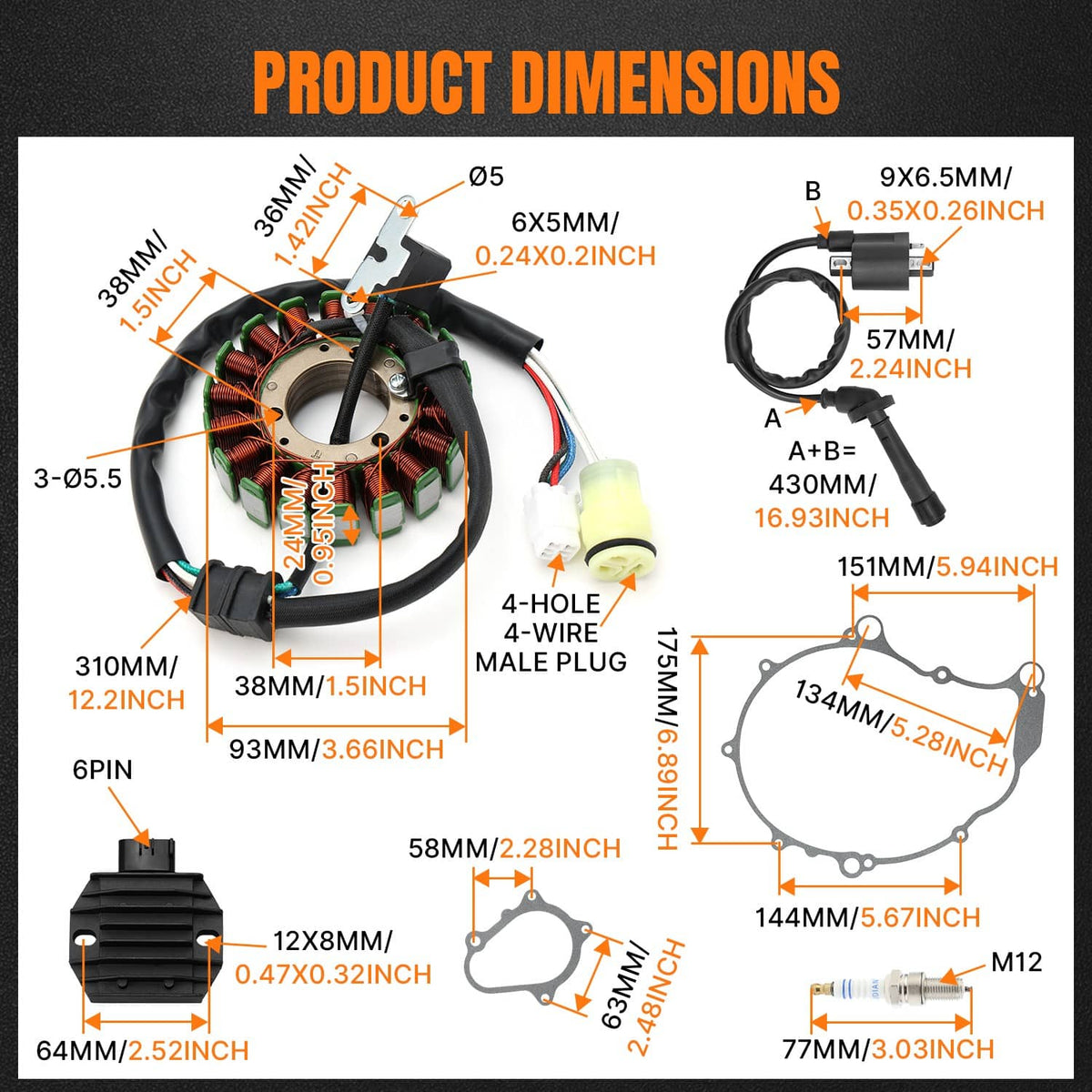

Specs At A Glance

Good To Know

Q: Do I need to replace all three parts at once? A: The stator, regulator rectifier and ignition coil work as a system, so replacing them together avoids a second teardown if another component fails soon after. Each part can also be installed individually if only one has failed.

Q: Will this fit my Raptor 660R? A: It is built for for Yamaha Raptor 660R YFM660R 2001 through 2005 models. Confirm your model year and serial number before ordering to be certain of compatibility.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
