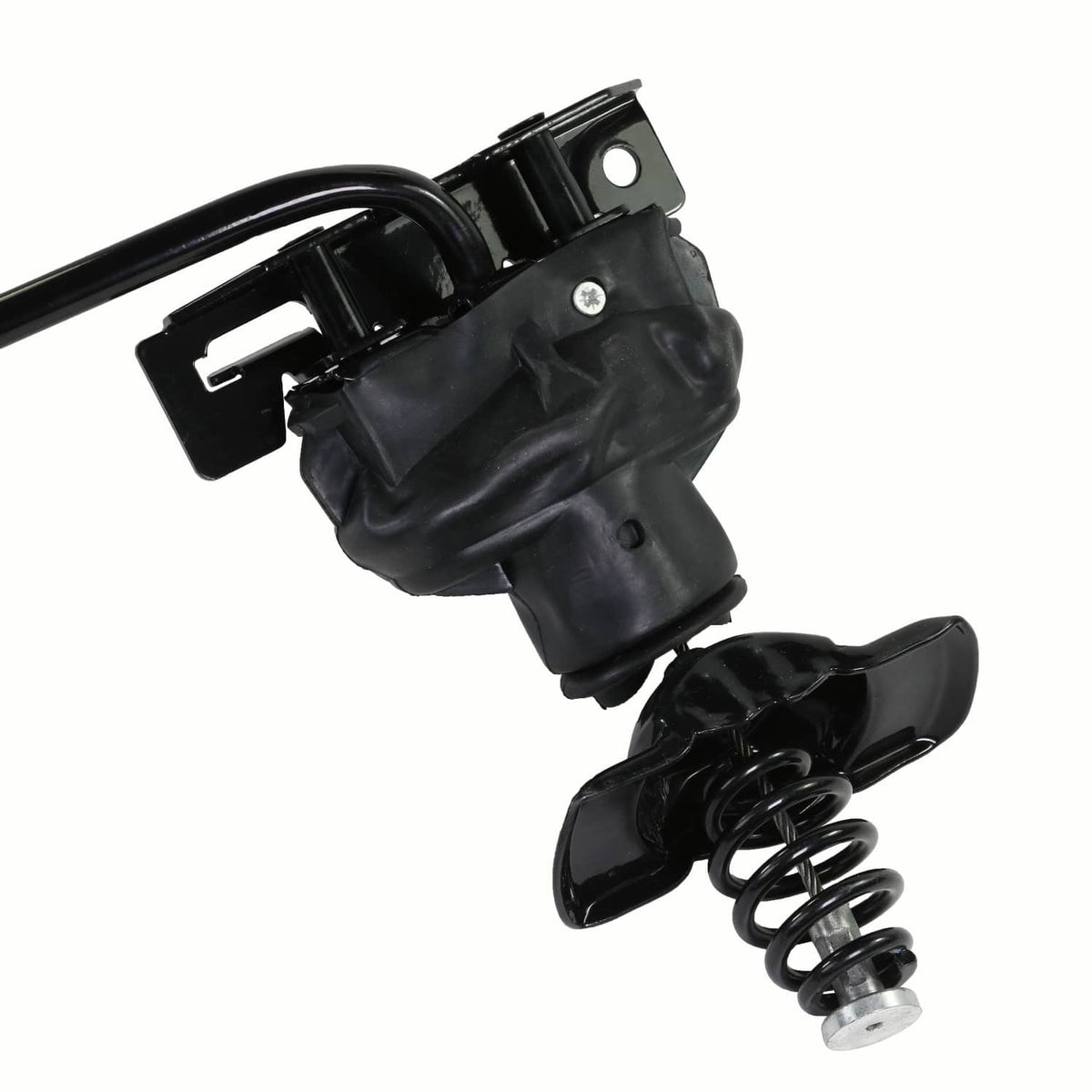

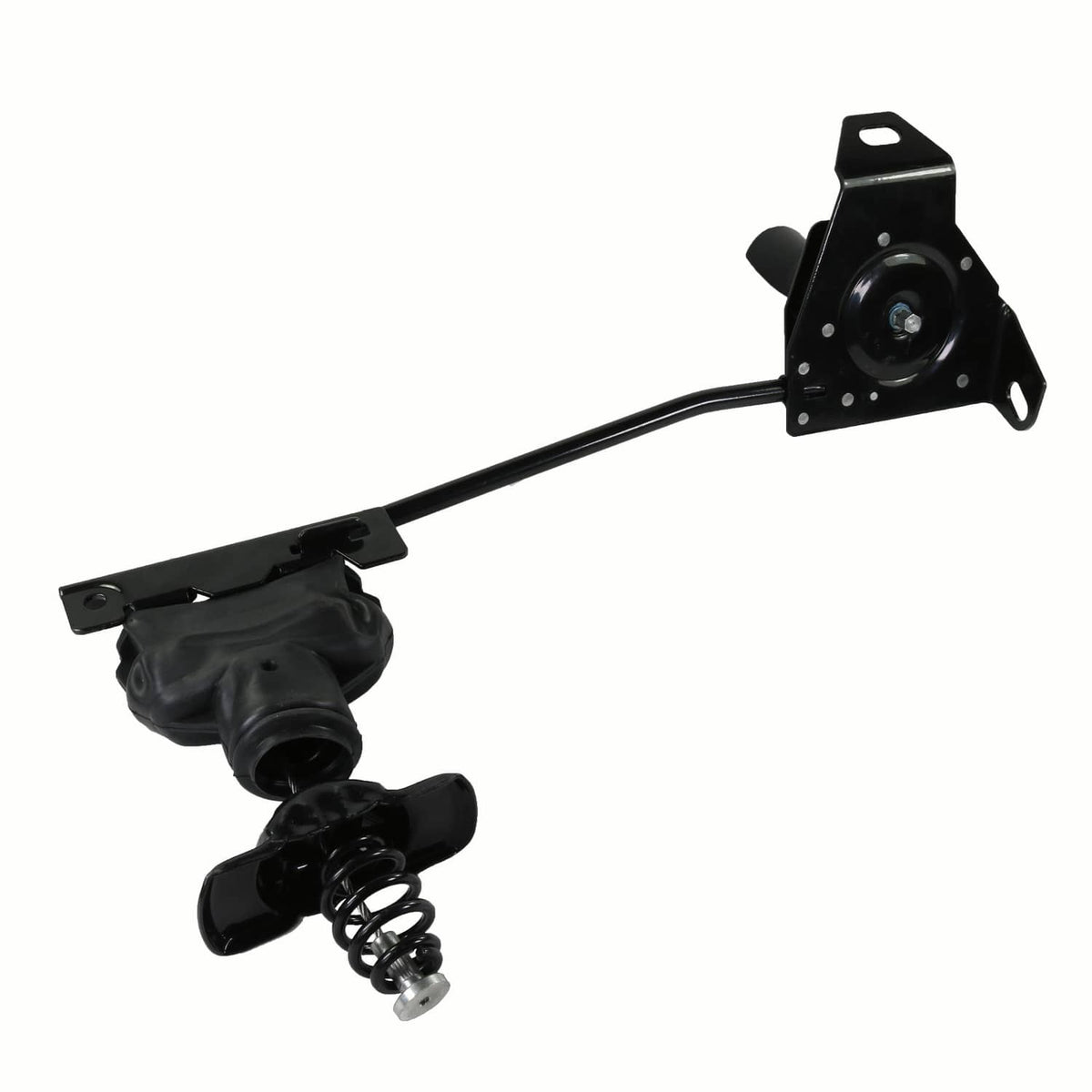

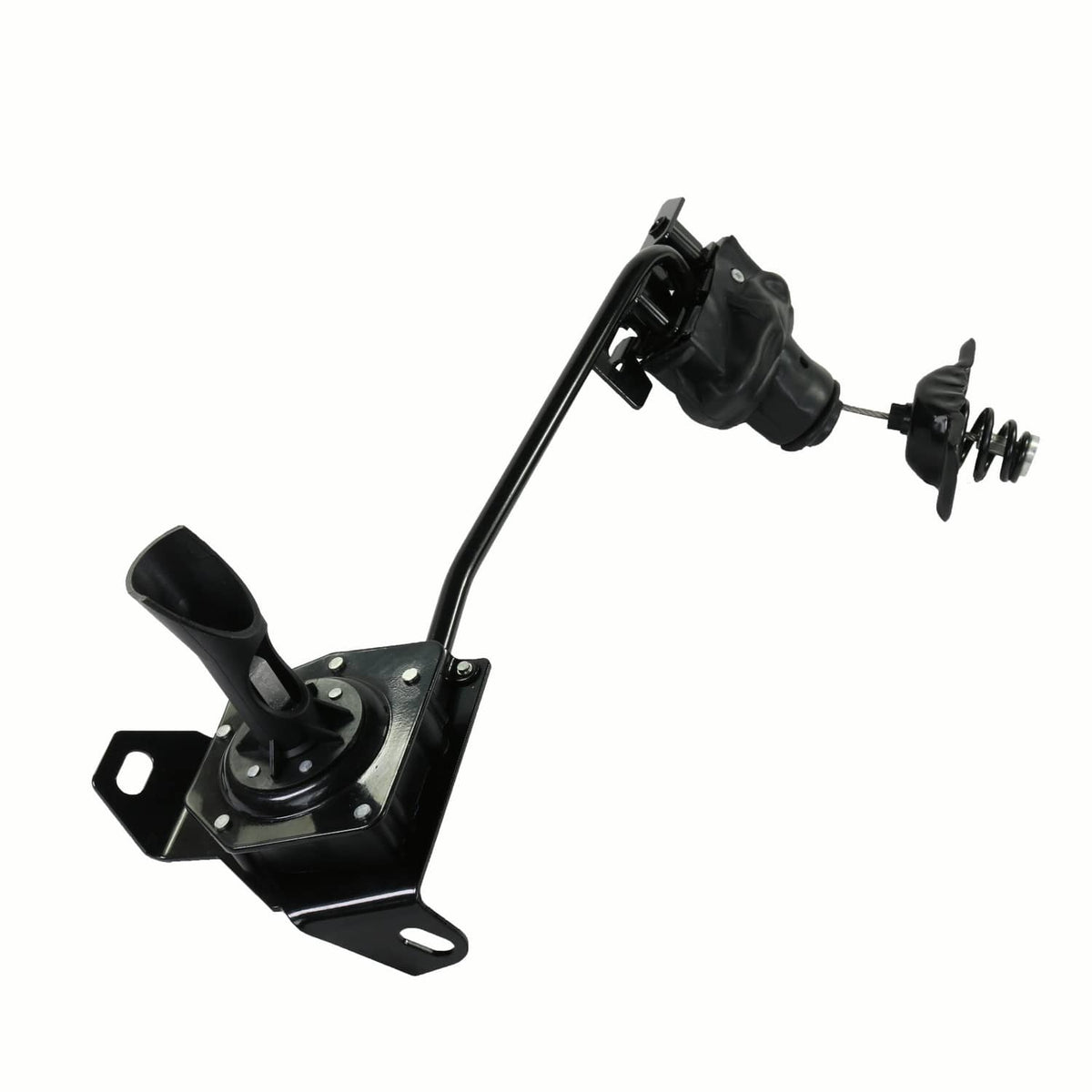

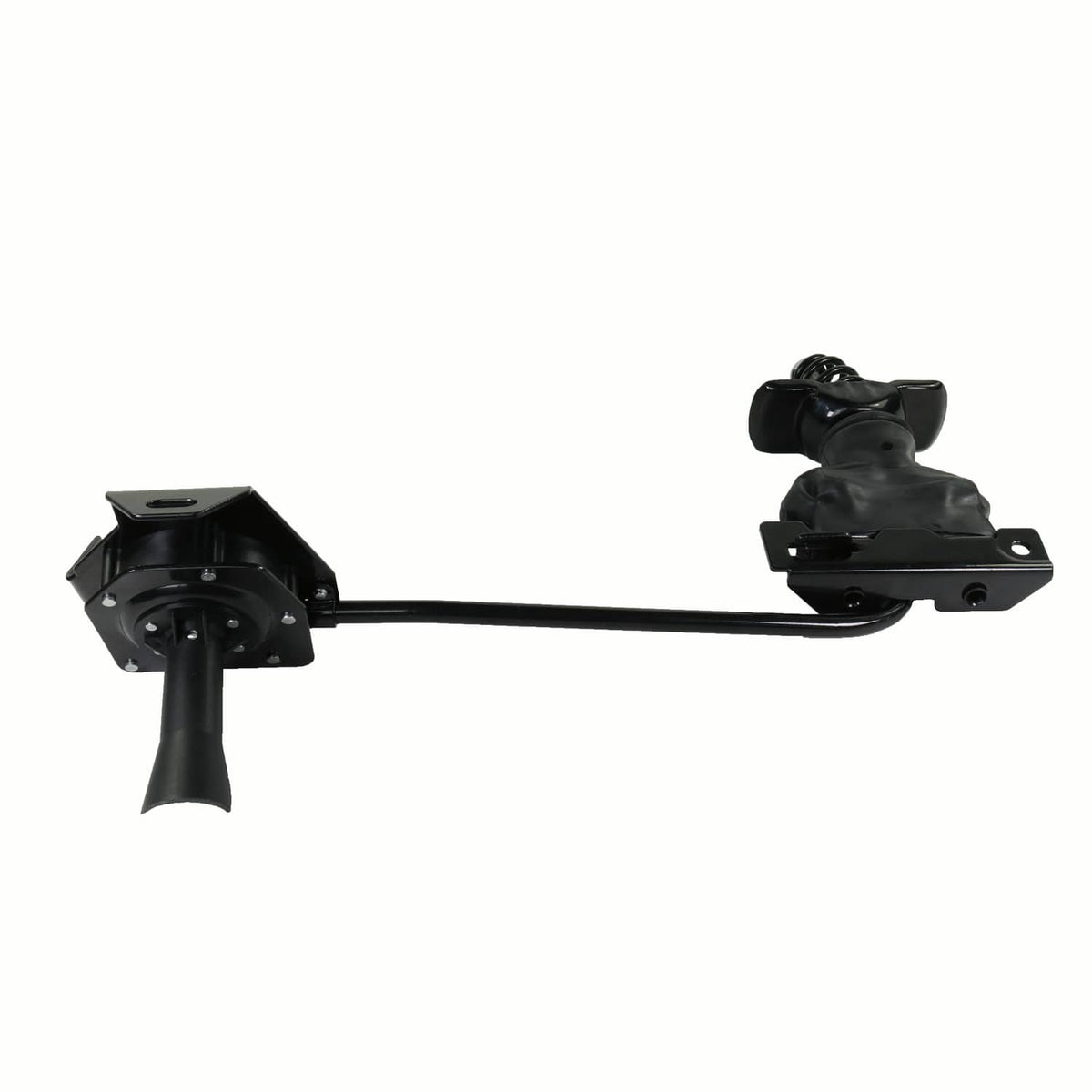

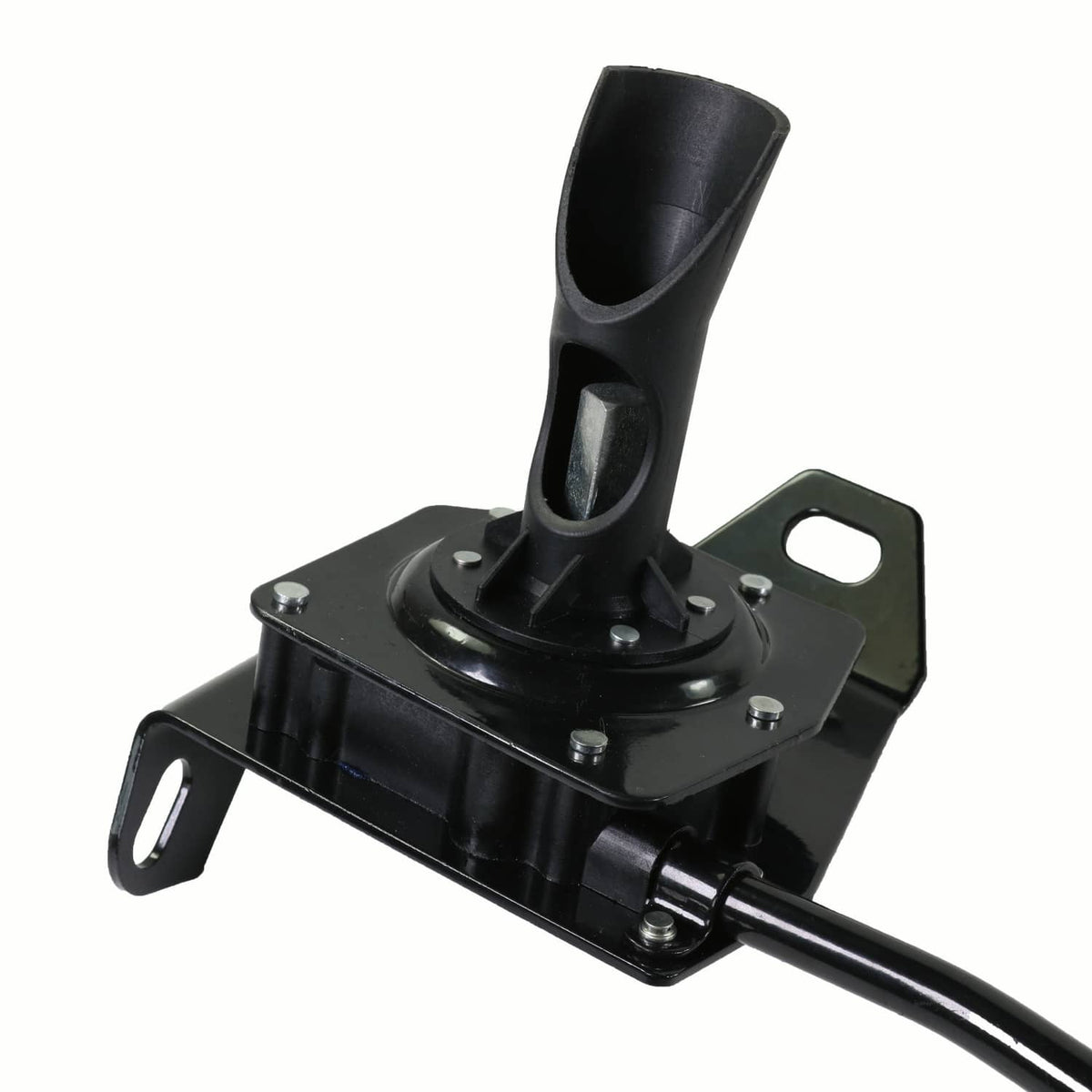

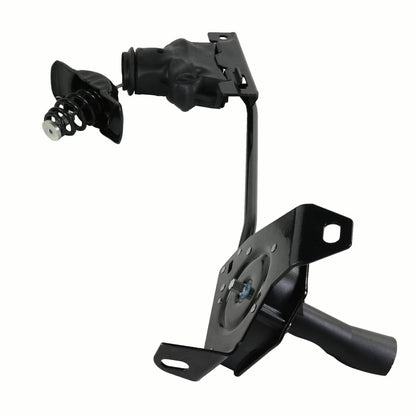

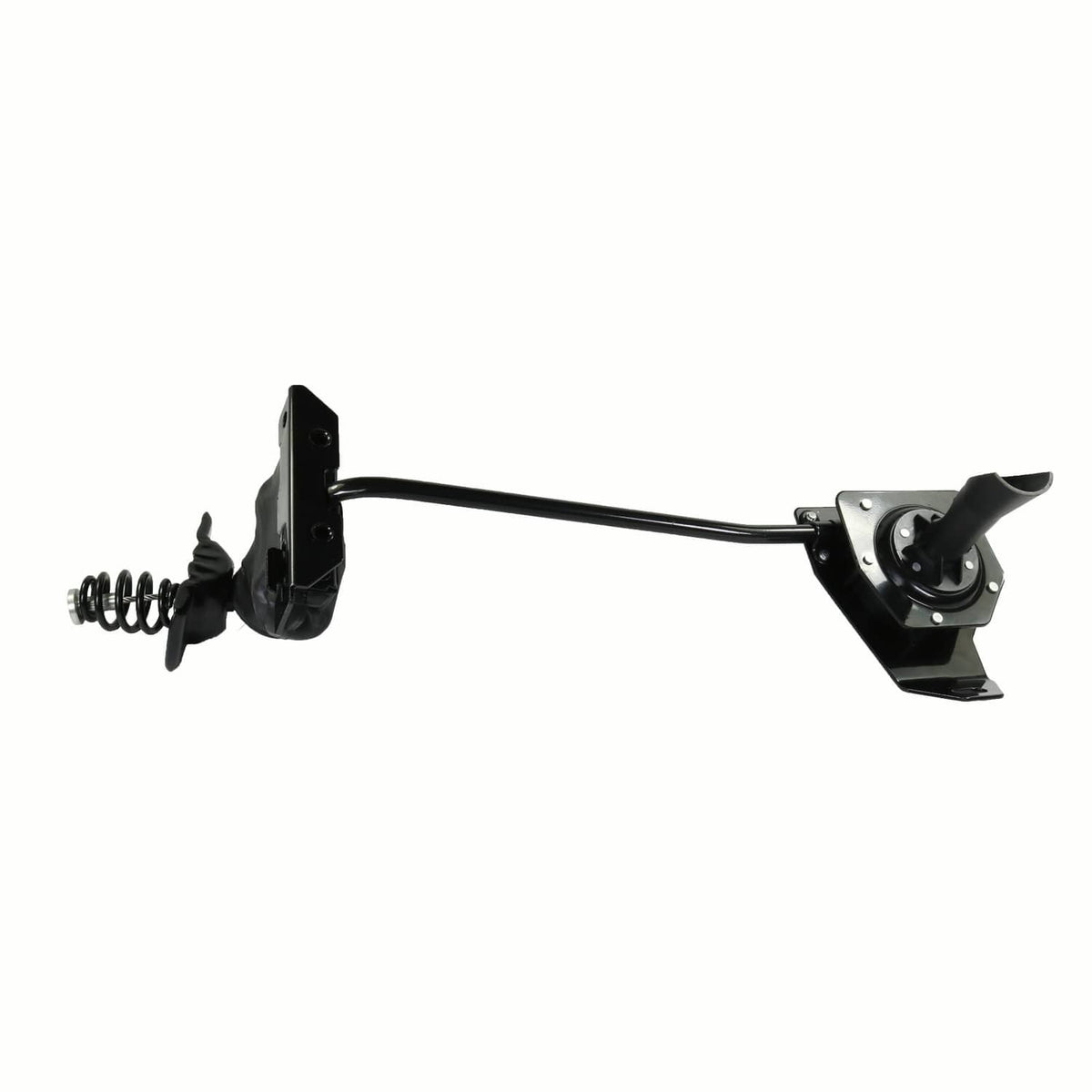

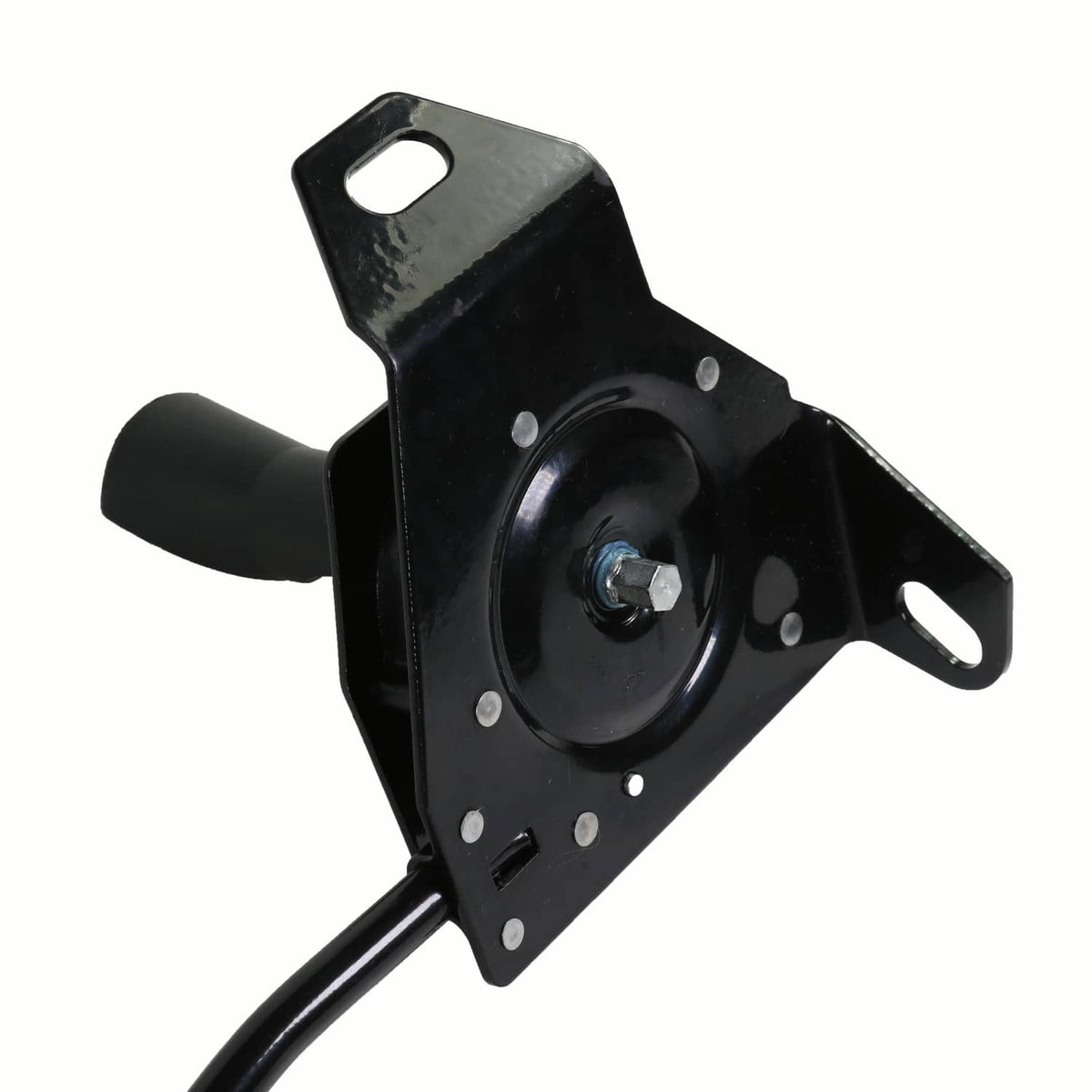

Spare Tire Carrier & Hoist Assembly 924-509 For GMC Envoy Trailblazer 2002-2009

Spare Tire Carrier & Hoist Assembly for GMC Envoy Trailblazer

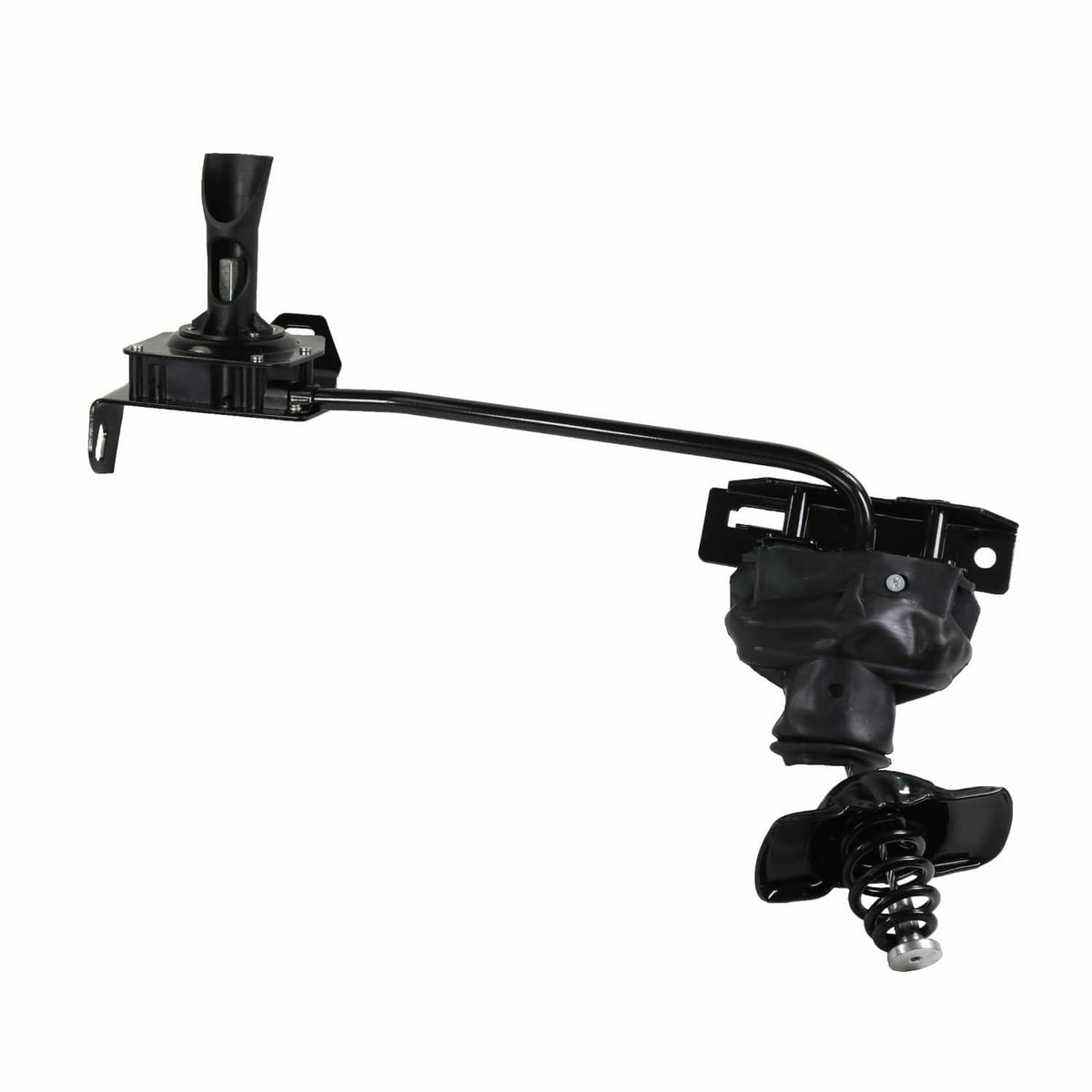

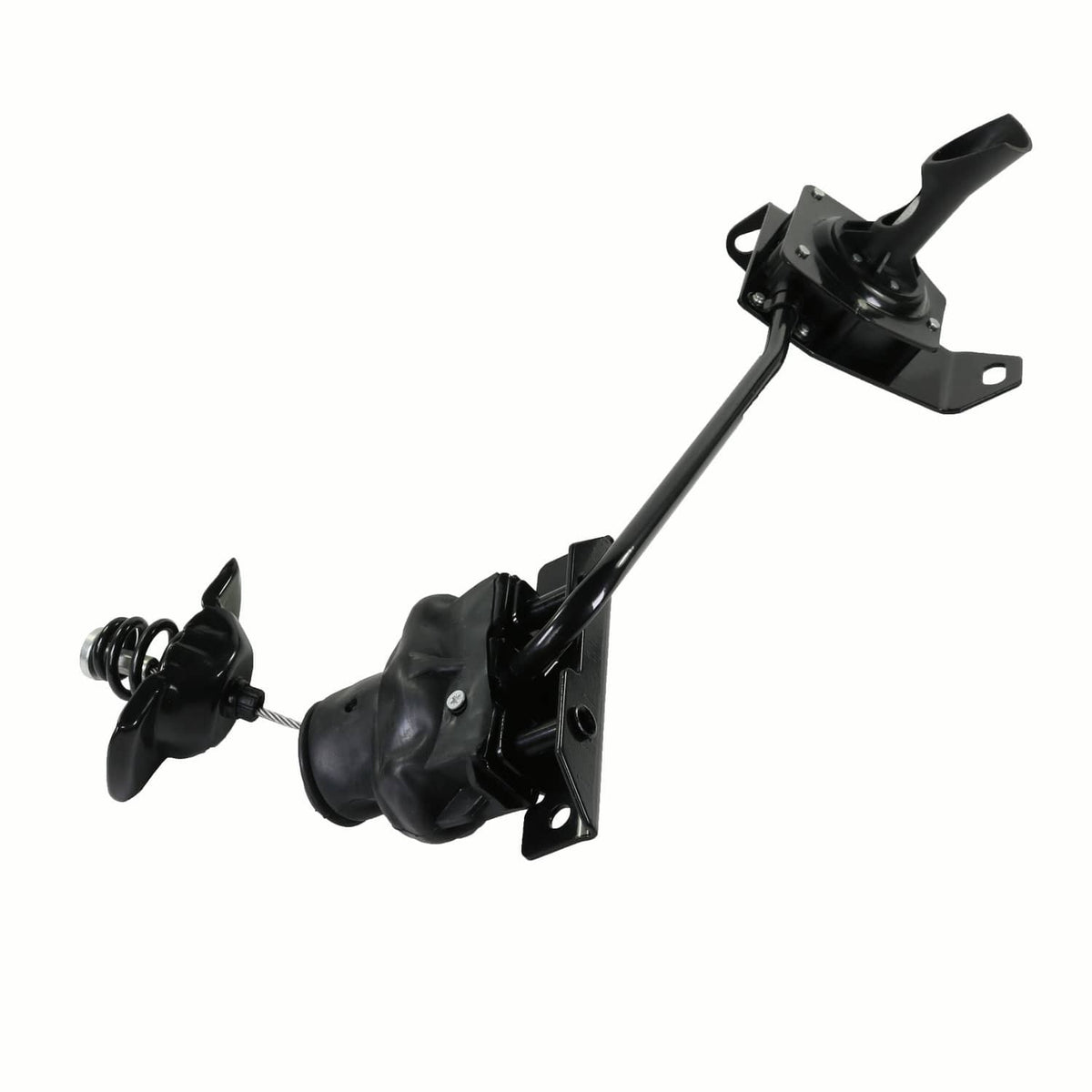

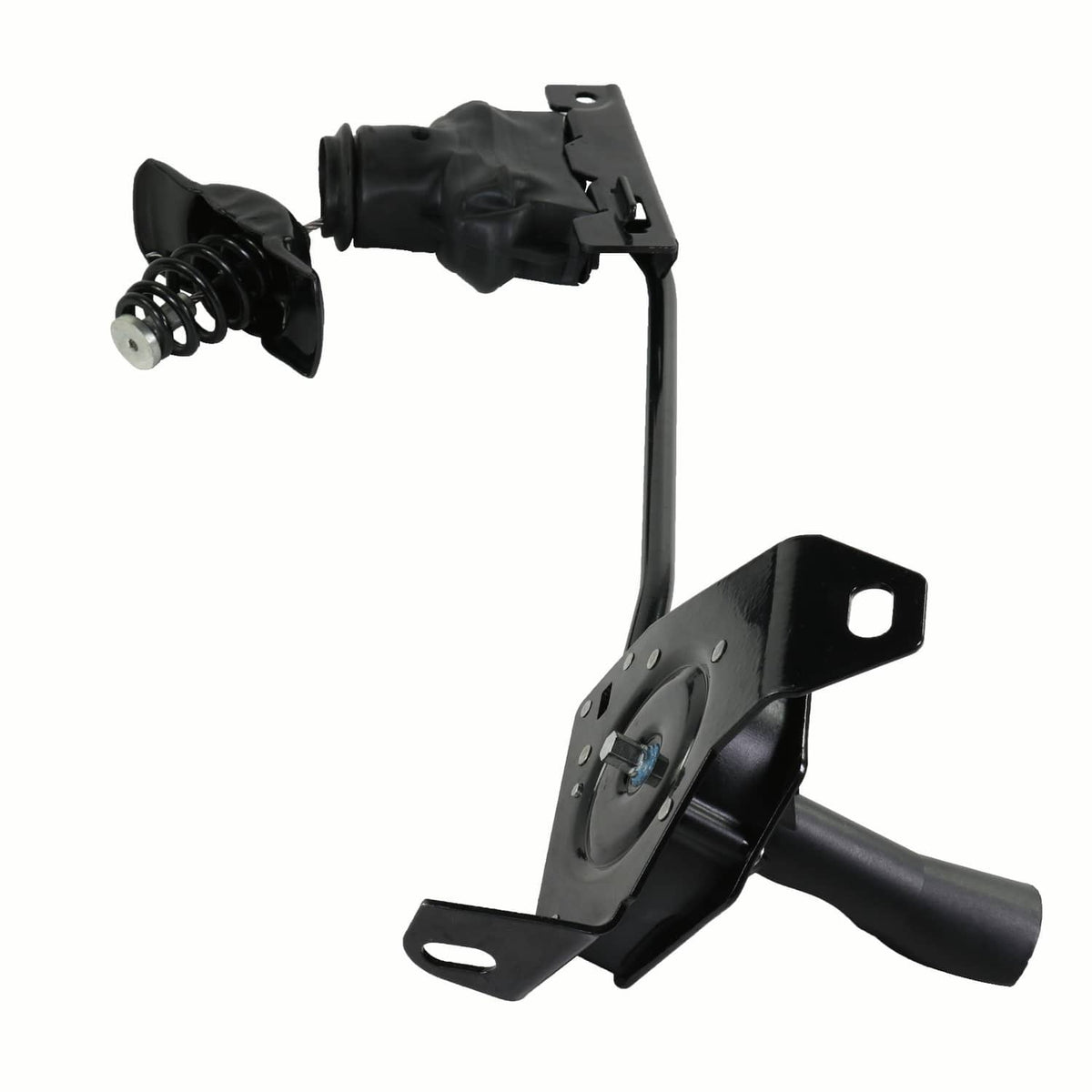

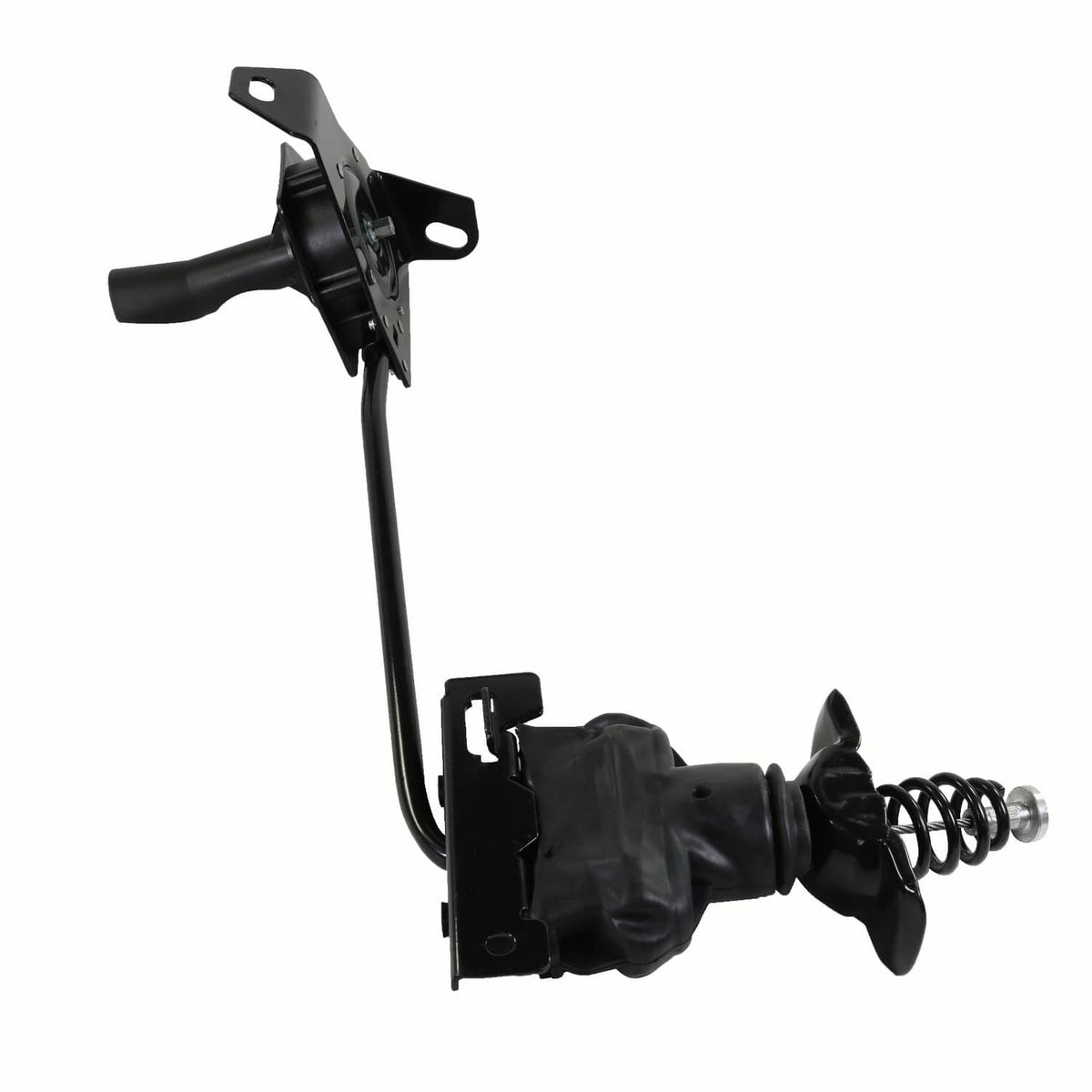

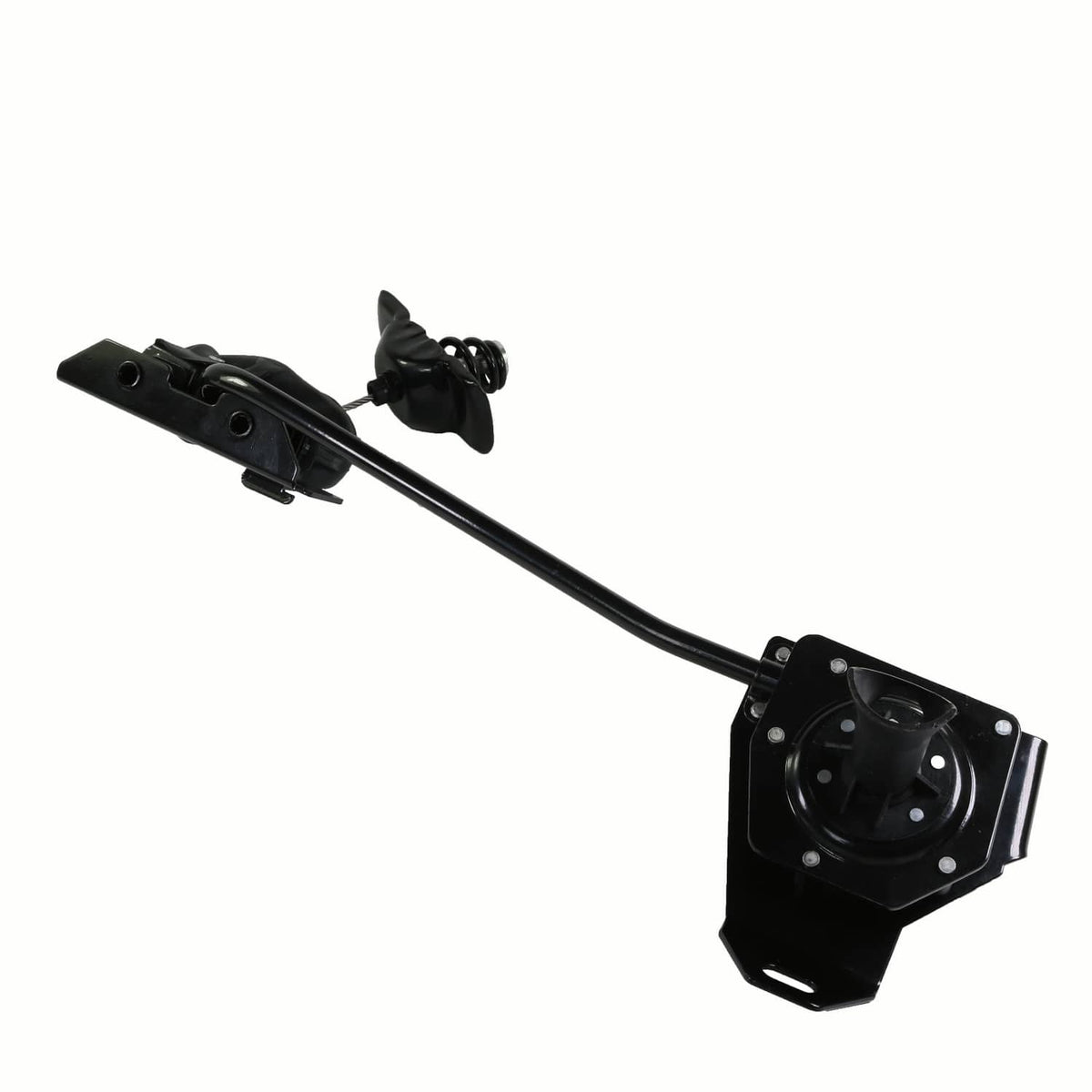

This spare tire carrier and hoist assembly, referenced as 924-509, mounts under the rear of the vehicle and raises or lowers the spare tire for secure storage and easy access.

Overview

This spare tire carrier and hoist assembly is a direct-fit underbody mounting solution for securing your spare tire. The 924-509 hoist mechanism lets you raise and lower the spare with the included tool, keeping it tucked safely beneath the rear of the vehicle. It is built for drivers of compatible GMC Envoy and Trailblazer models who need a dependable replacement for a worn or missing carrier.

Built For Performance

• Complete carrier and hoist assembly with mounting hardware
• Sturdy steel construction for reliable load support
• Direct-fit design matching the 924-509 reference
• Raises and lowers the spare with a crank tool from the rear access point
• Corrosion-resistant finish for underbody exposure
• Keeps the spare tire secure and out of the cabin

Fits These Machines

• for GMC Envoy
• for Chevrolet Trailblazer
• for GMC Envoy XL
• for Chevrolet Trailblazer EXT

On-The-Job Use

• Replacing a seized or broken spare tire hoist
• Restoring underbody spare tire mounting after rust repair
• Everyday driving where a secured spare is needed
• Off-road and trail use where quick spare access matters

Specs At A Glance

Good To Know

Q: Does this include the crank tool? A: This listing covers the carrier and hoist assembly itself; the crank tool is typically the factory piece already in the vehicle. Confirm what is included before ordering if you need the tool as well.

Q: Will this fit my specific model year? A: Fitment can vary across trim levels and model years within the listed range, so compare your vehicle details against the assembly reference before purchase.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
