STATOR COVER GASKET 5KM-15451-00 FOR YAMAHA 2002-2008 GRIZZLY RHINO 660 YFM YXR

Stator Cover Gasket for Yamaha

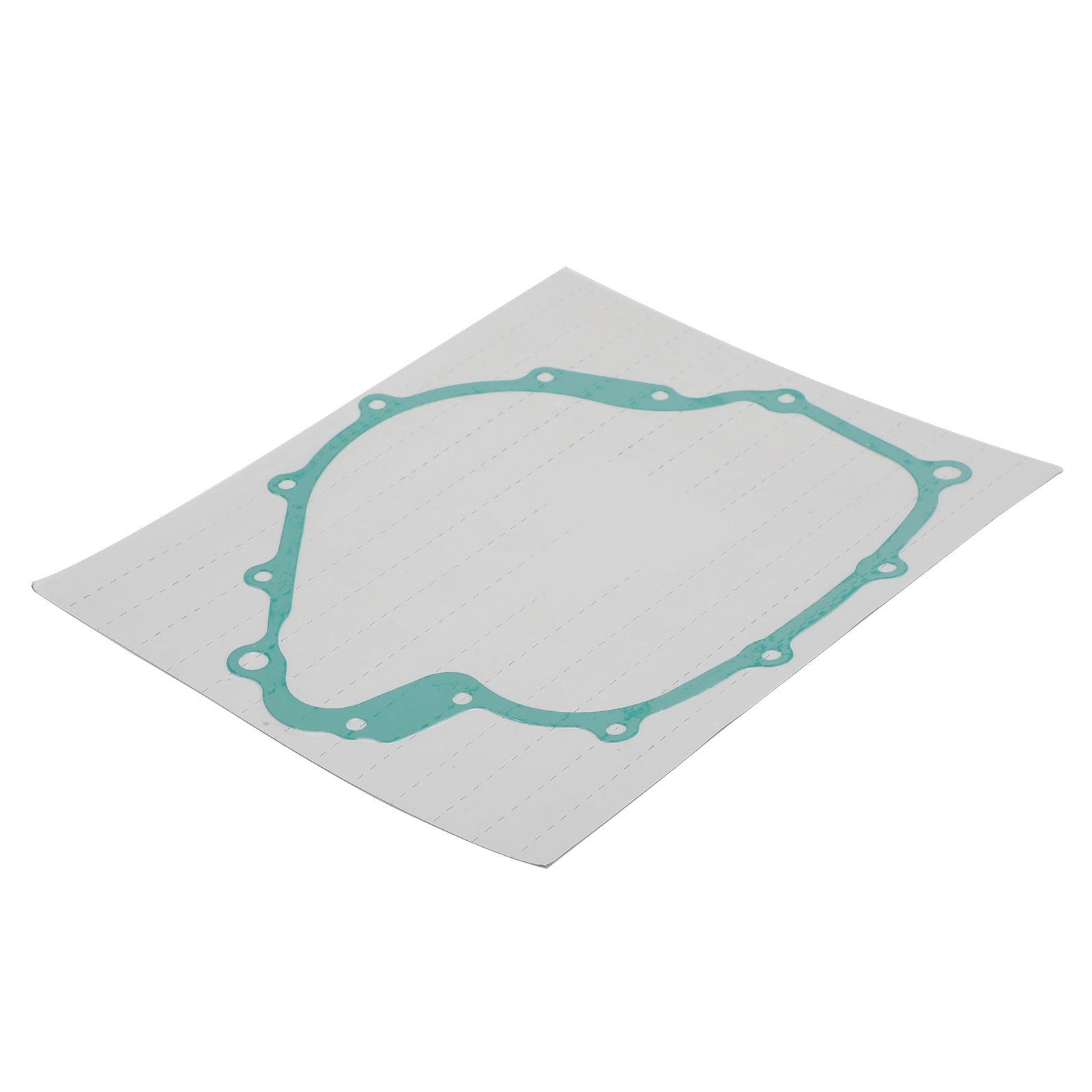

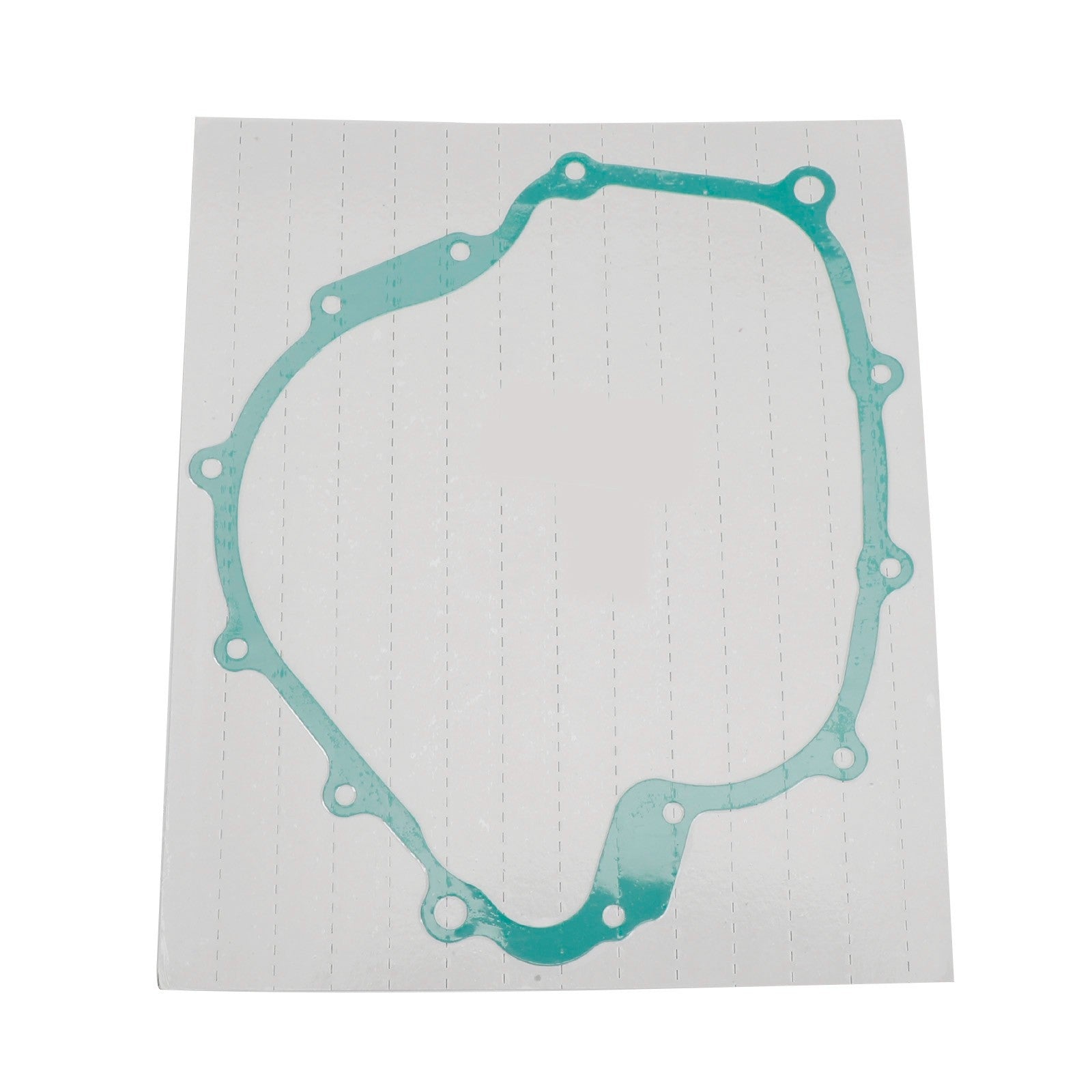

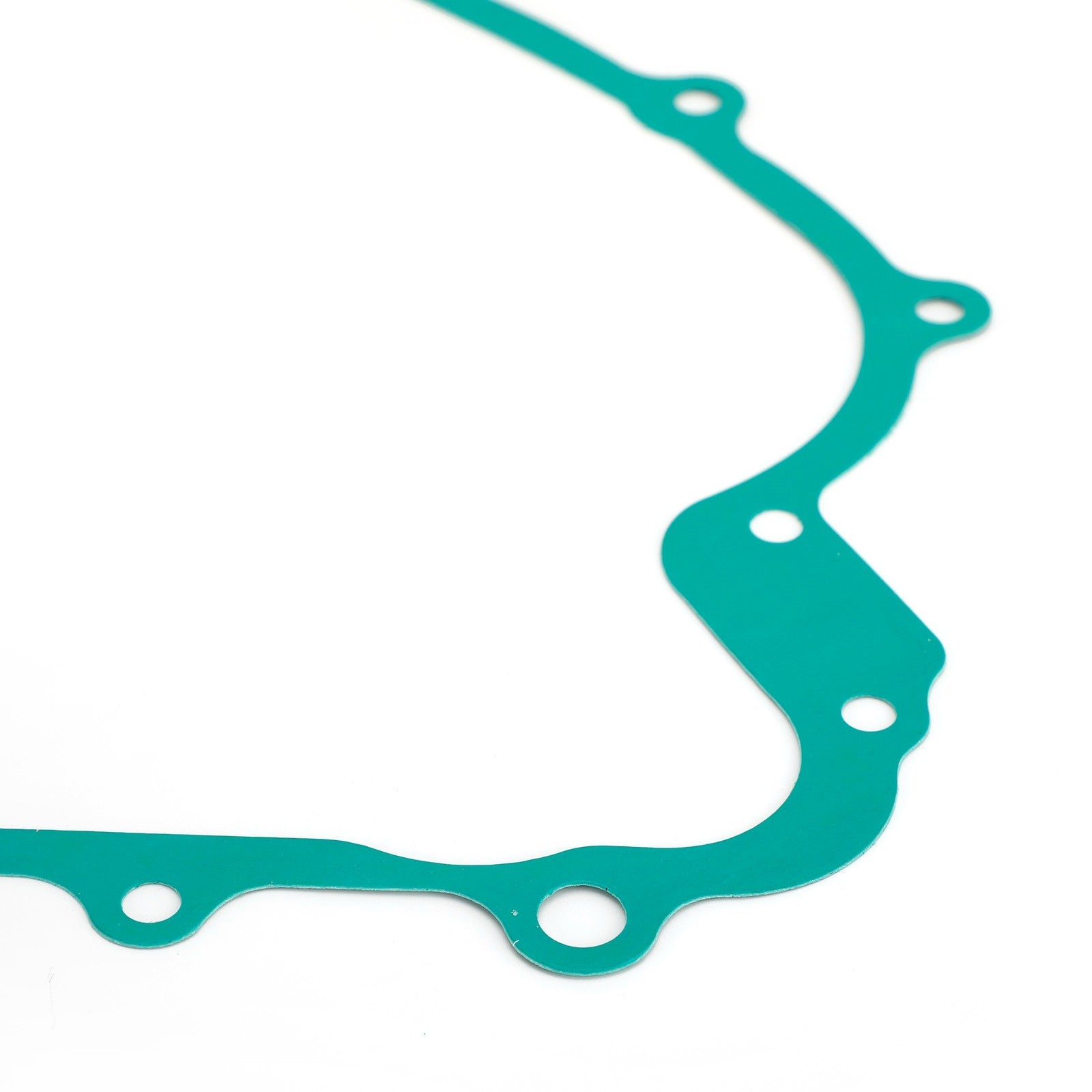

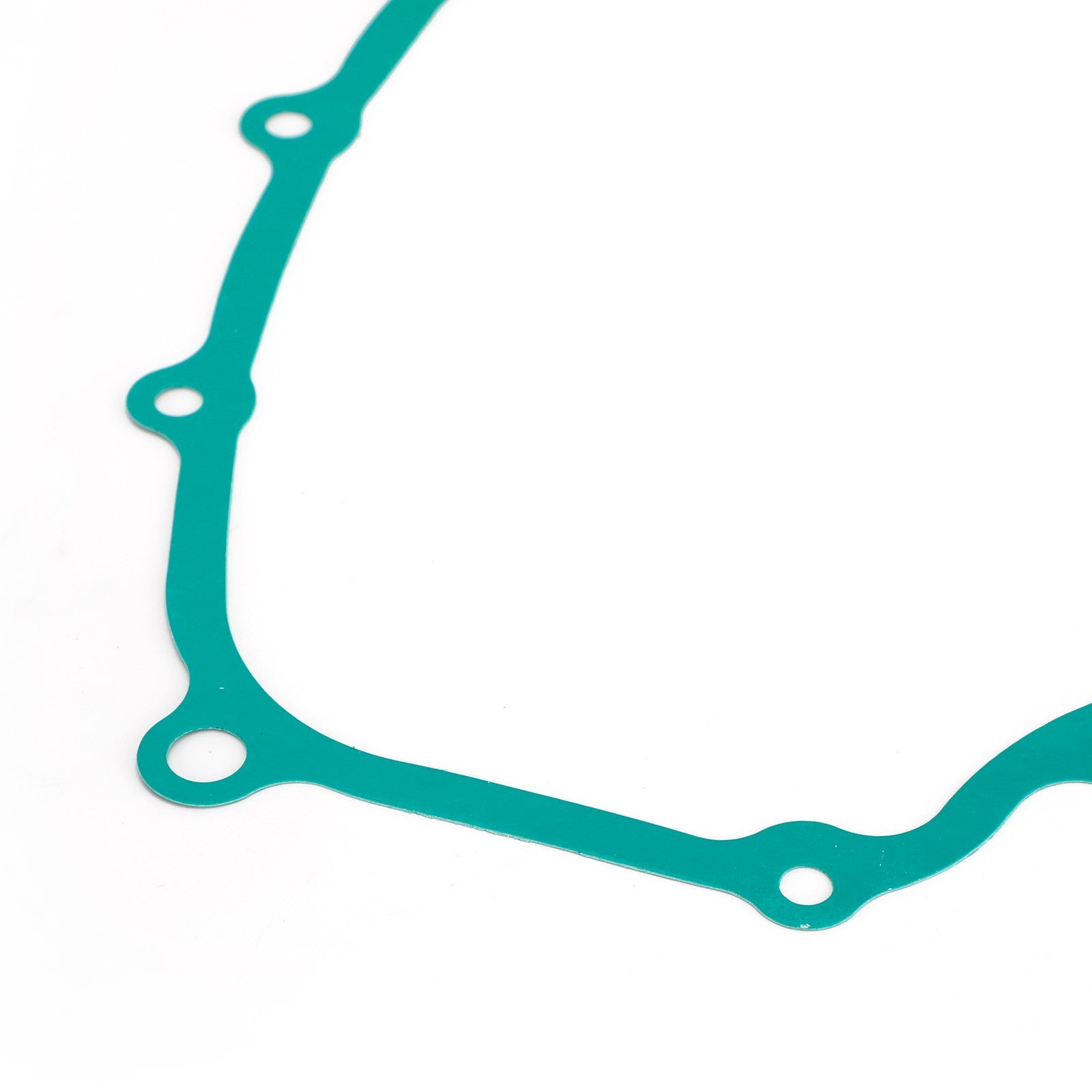

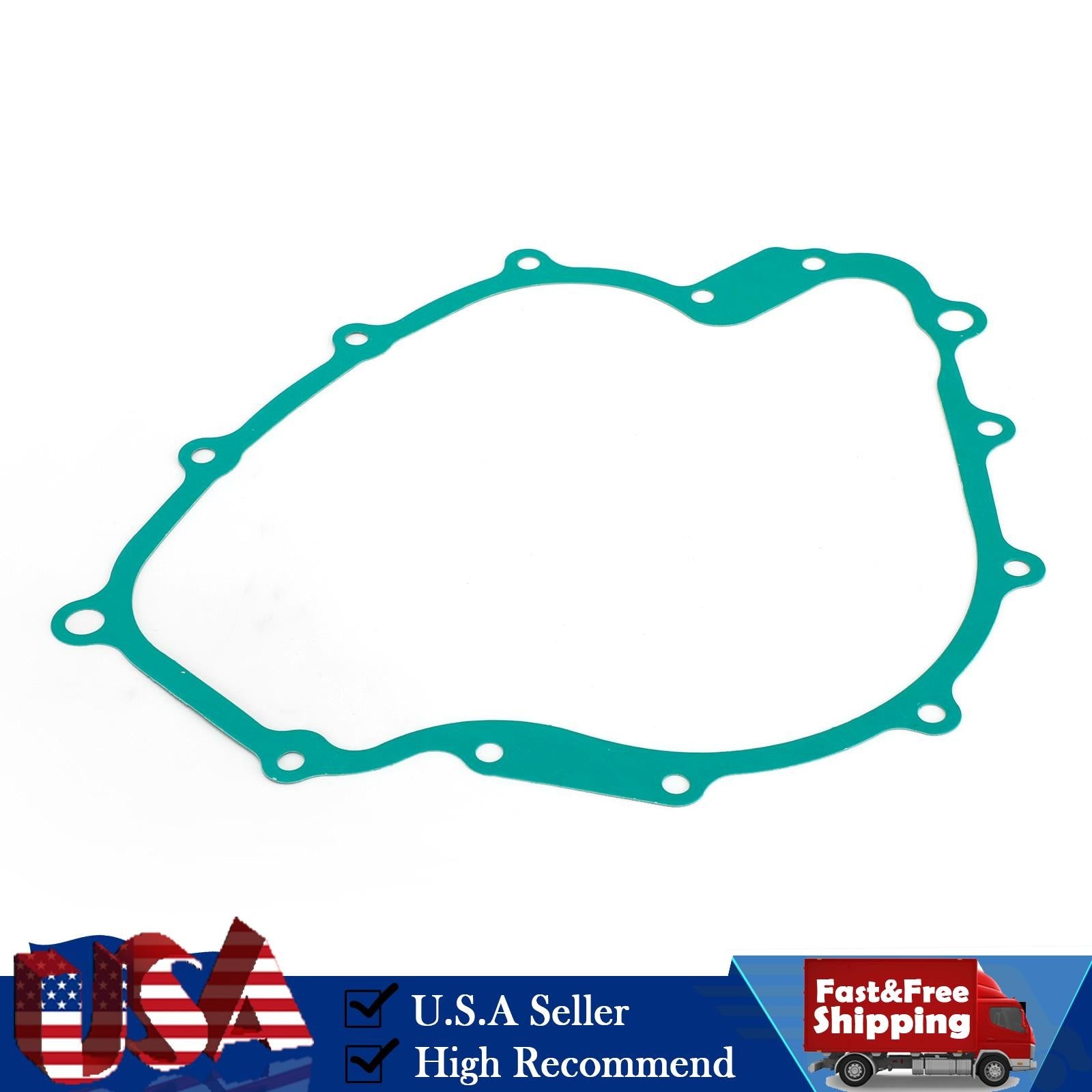

This stator cover gasket seals the engine crankcase and stator cover to prevent oil leaks, cross-referencing OEM part number 5KM-15451-00.

Overview

This stator cover gasket is designed to establish a tight, leak-proof barrier during stator or starter clutch maintenance. This stator cover gasket matches original equipment thickness to maintain critical internal clearances. Utility vehicle and ATV owners can perform reliable engine work knowing their seals will hold under pressure.

Built For Performance

• Manufactured from premium gasket material to resist high engine heat.
• Engineered to compress evenly to prevent oil seepage at the seams.
• Designed as a direct replacement matching original equipment dimensions.
• Resistant to degradation from motor oil and engine coolants.

Fits These Machines

• for Yamaha Grizzly 660 YFM660 2002-2008
• for Yamaha Rhino 660 YXR660 2004-2008

On-The-Job Use

• Replacing the old seal after installing a new stator or fly wheel.
• Fixing active engine oil leaks originating from the left-side engine case.
• Completing a routine top-end or bottom-end engine rebuild project.

Specs At A Glance

Good To Know

Q: Should I apply liquid gasket sealant along with this gasket? A: This gasket is designed to seal dry, but a very thin layer of sealant can be used around wire grommets.

Q: Is this gasket reusable after the stator cover is removed again? A: No, it is highly recommended to use a new gasket every time the cover is disassembled to prevent leaks.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
