Stator & Gasket Kit w/ Regulator Rectifier For Yamaha Raptor 660R YFM660R 01-05

Stator & Gasket Kit with Regulator Rectifier for Yamaha

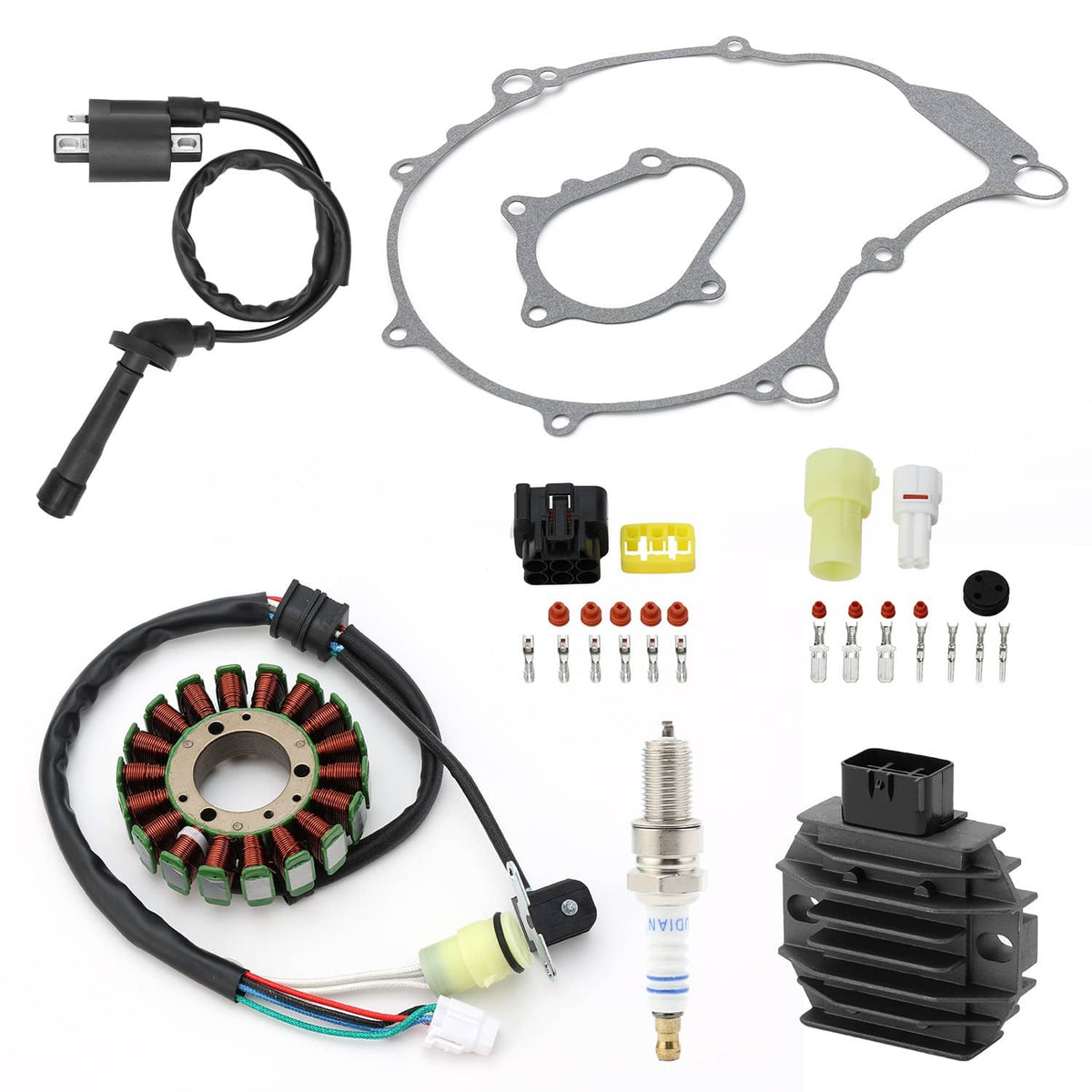

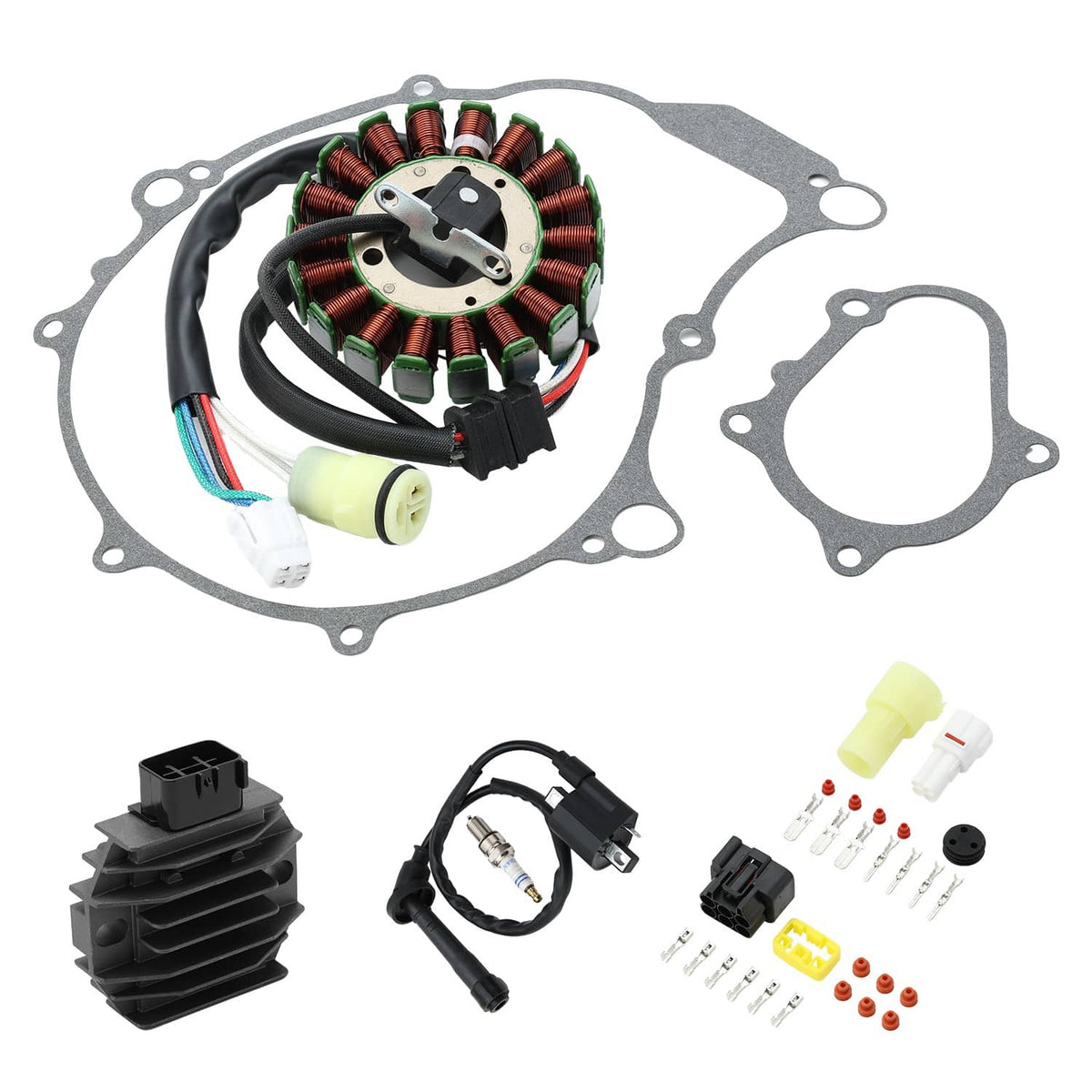

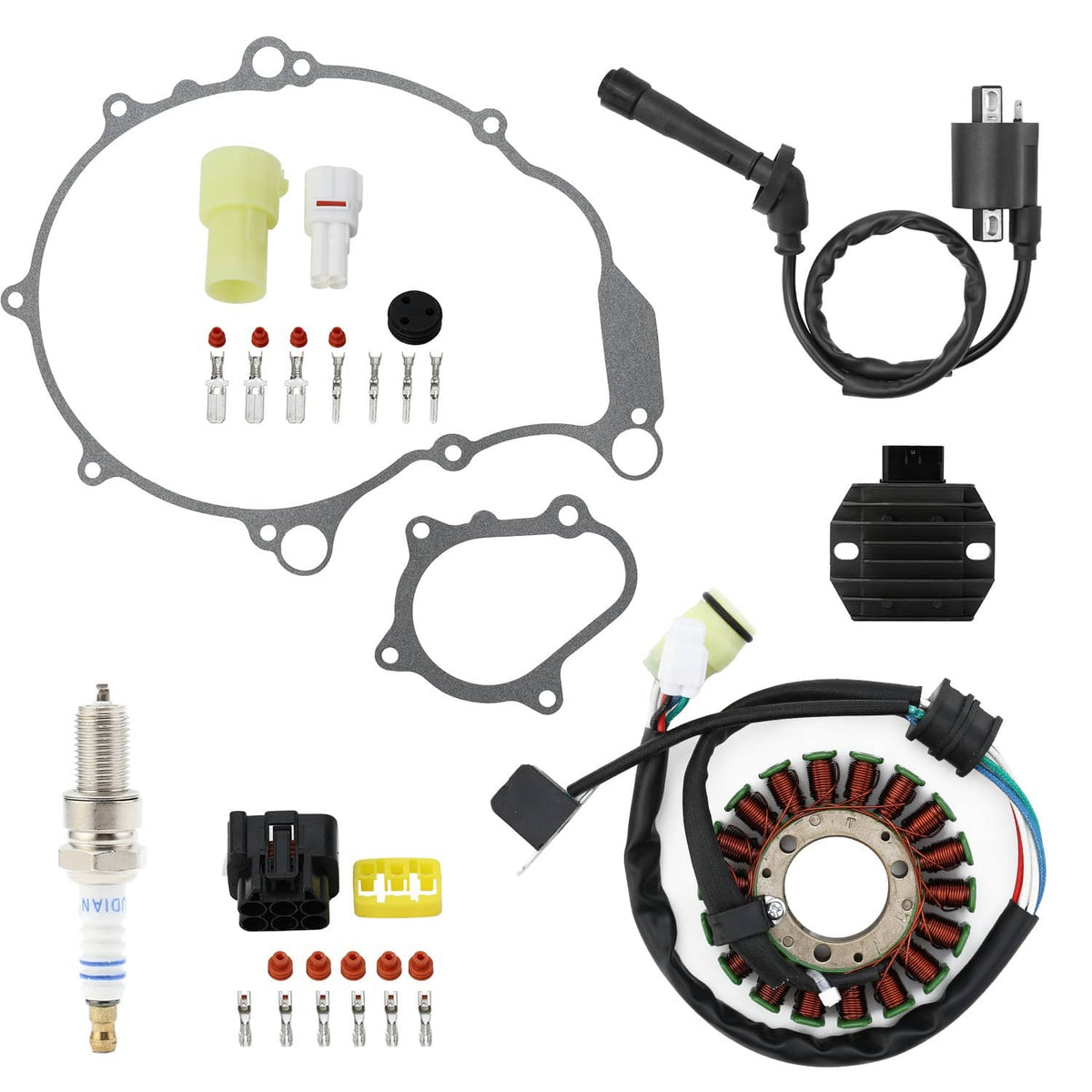

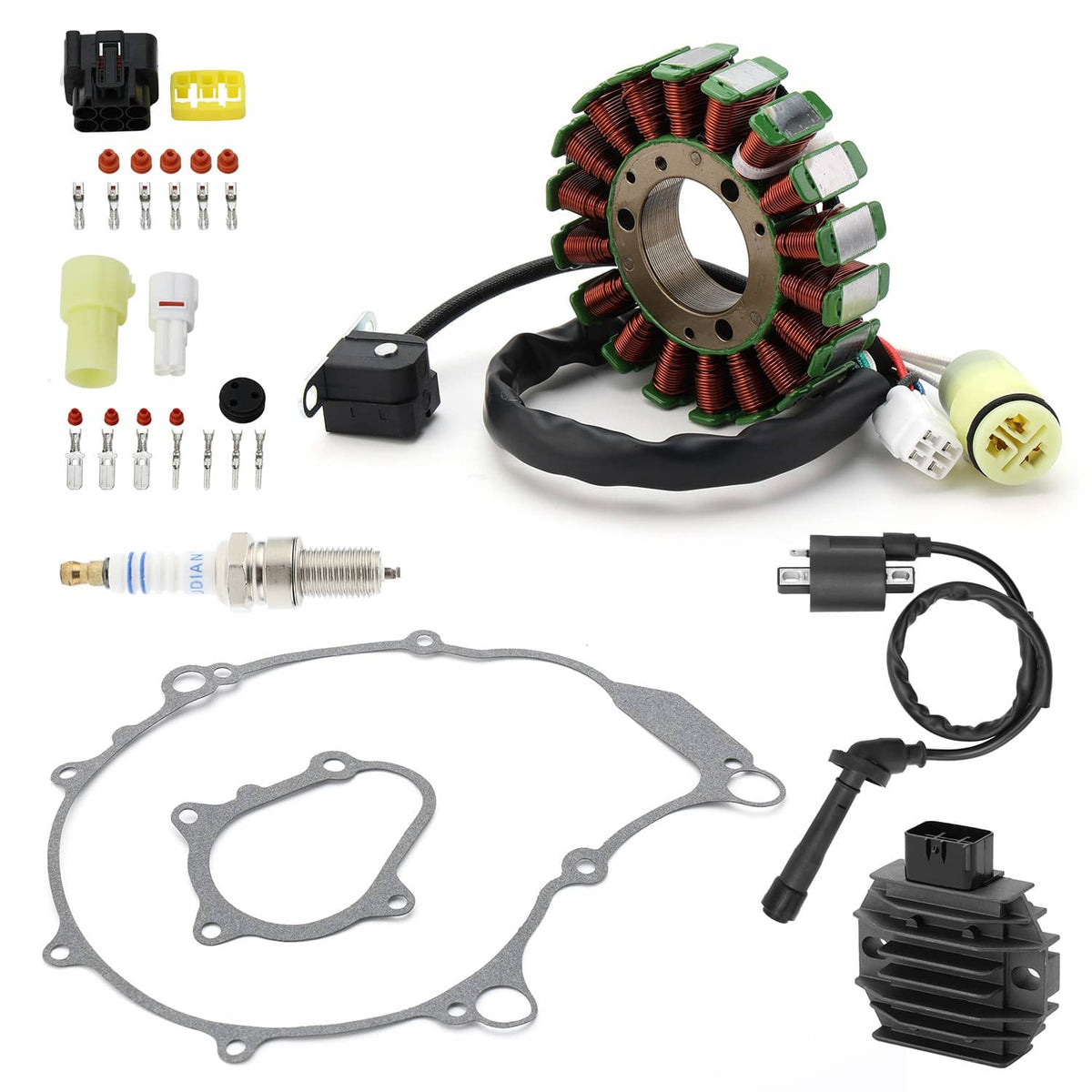

This stator and gasket kit with regulator rectifier restores charging output on the Yamaha Raptor 660R YFM660R, replacing the stator assembly, regulator rectifier, and cover gasket as a matched set.

Overview

This stator and gasket kit with regulator rectifier is a complete charging system refresh for the Yamaha Raptor 660R YFM660R. The stator generates AC power for the electrical system while the regulator rectifier converts it to stable DC voltage for the battery and lights. It suits riders and mechanics servicing a Raptor 660R that has lost charging performance or needs a full electrical tune-up.

Built For Performance

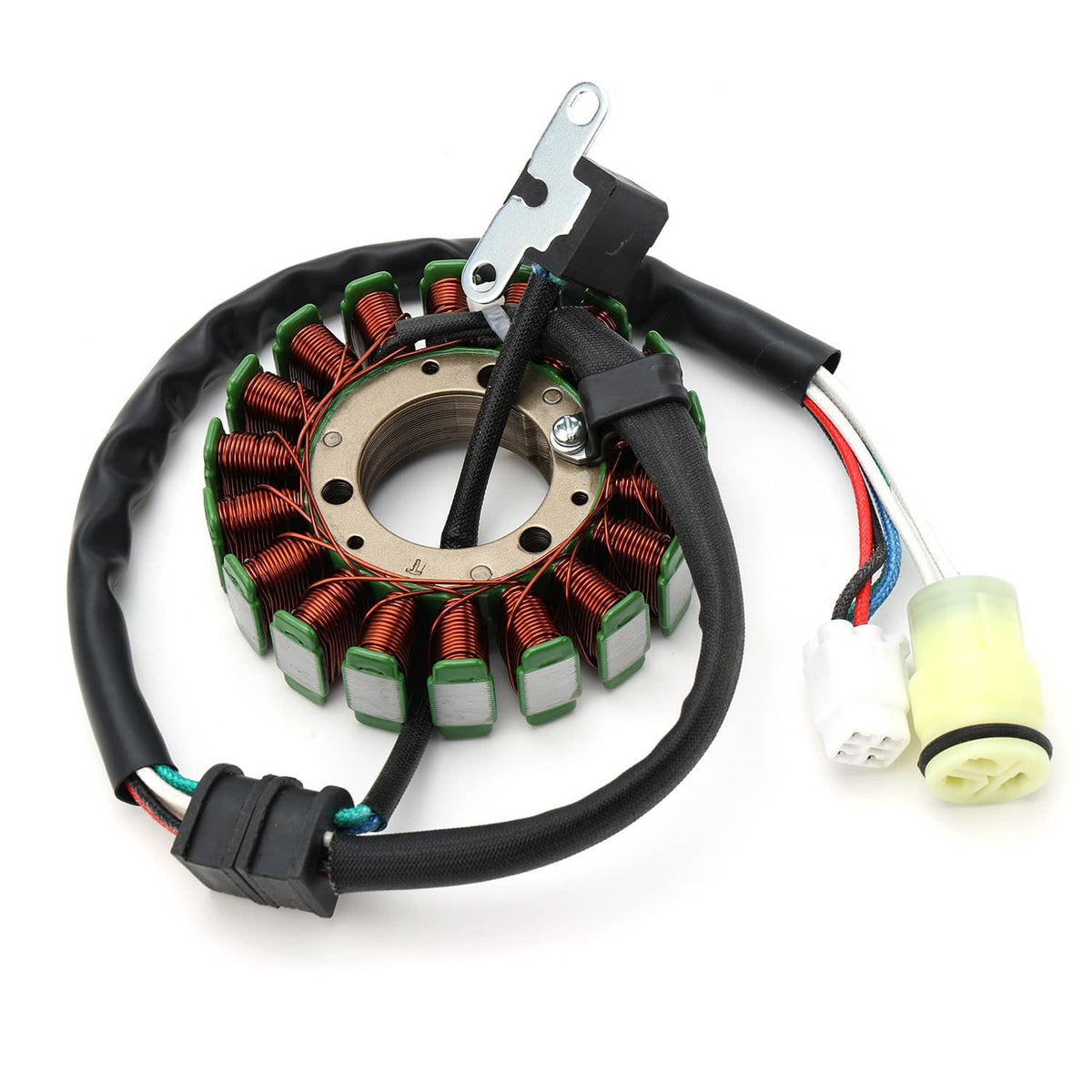

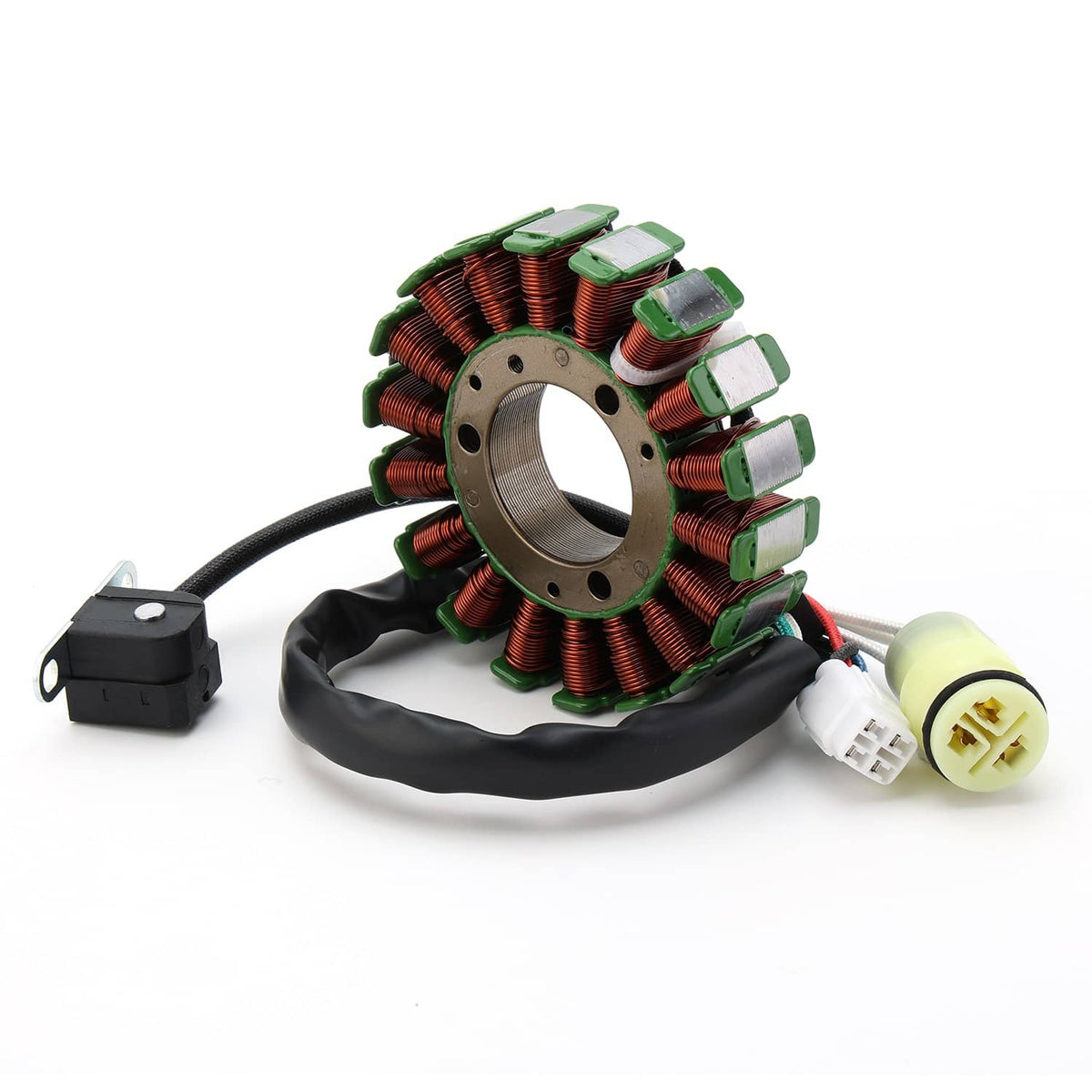

• Stator assembly wound to deliver consistent AC output across the rev range

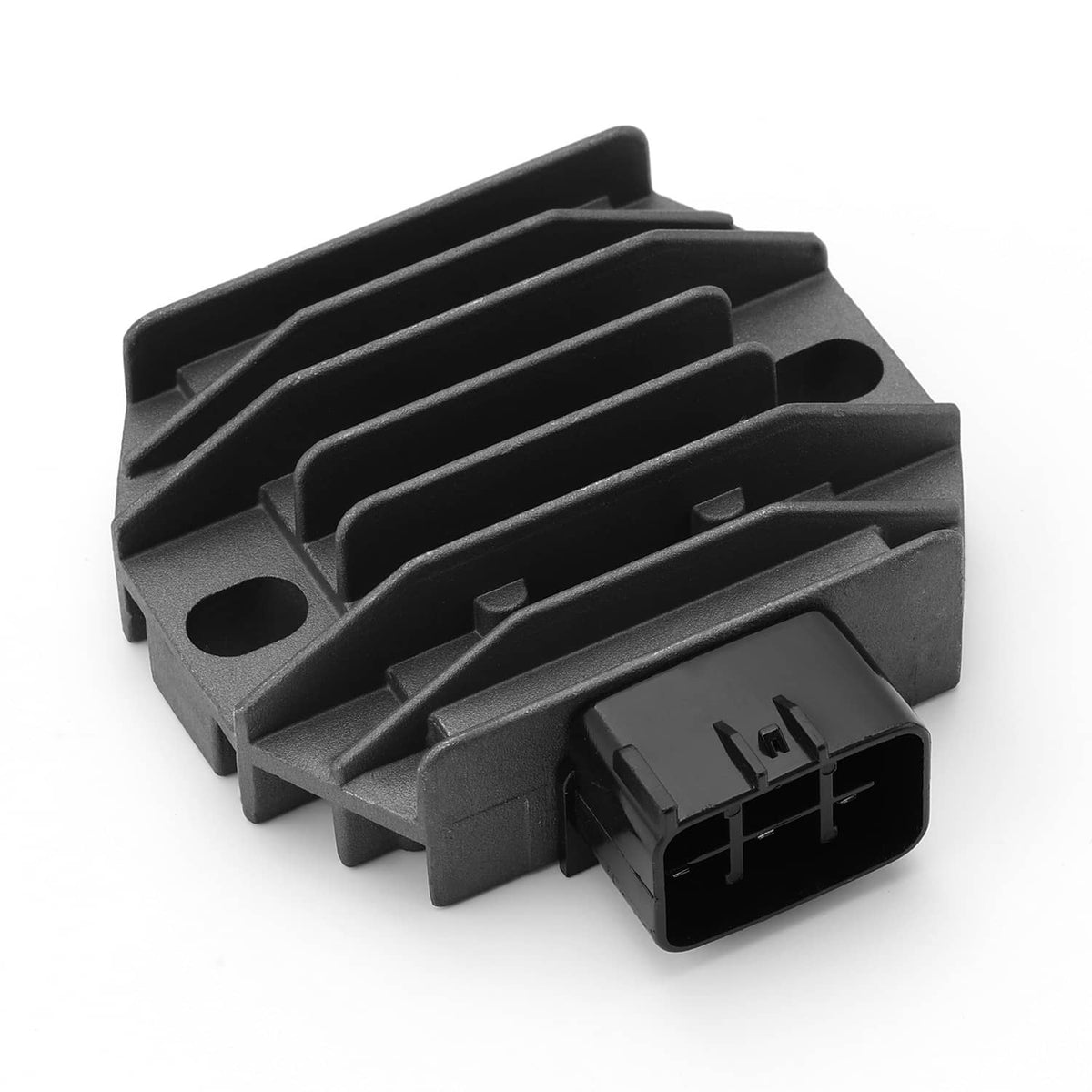

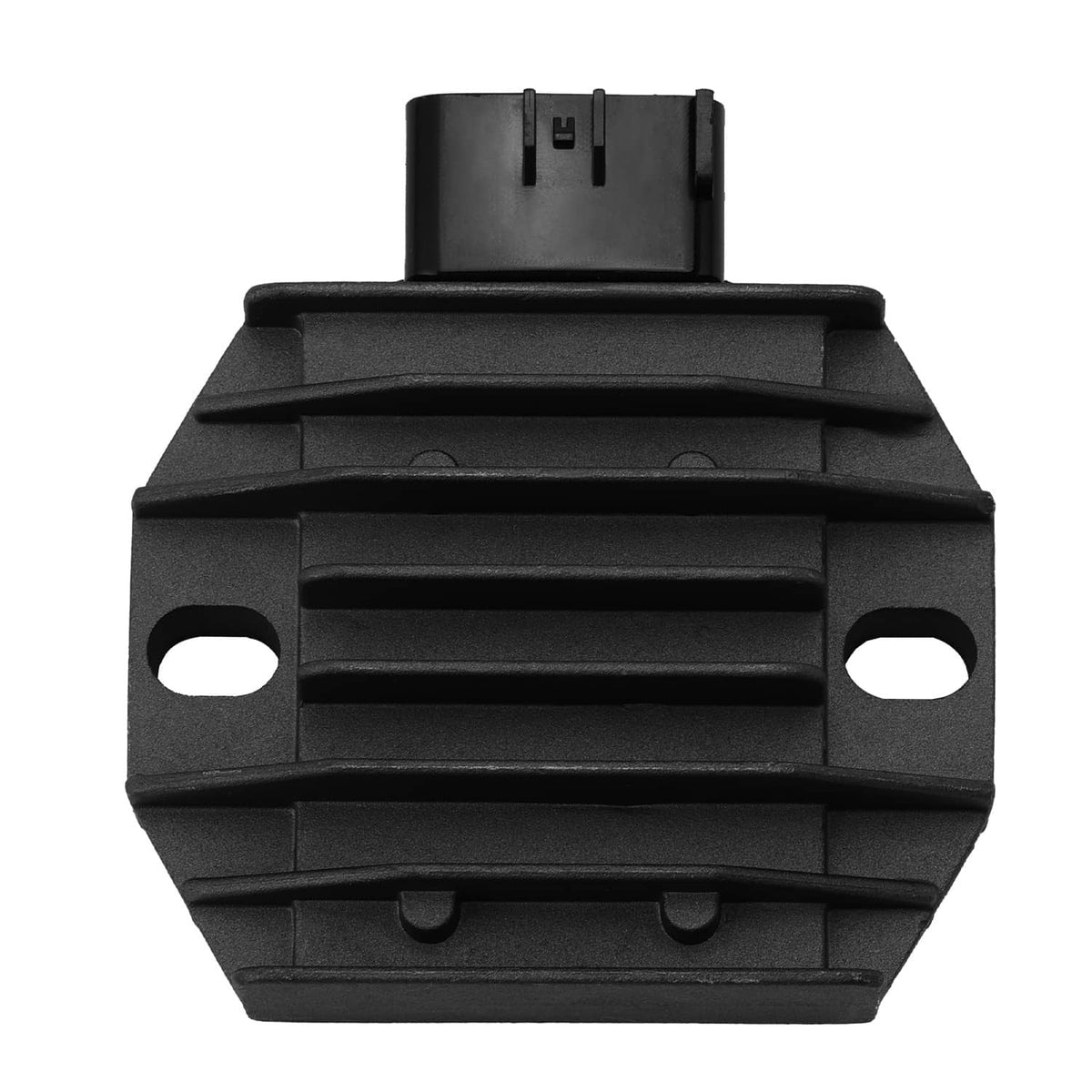

• Regulator rectifier converts AC to regulated DC to protect the battery

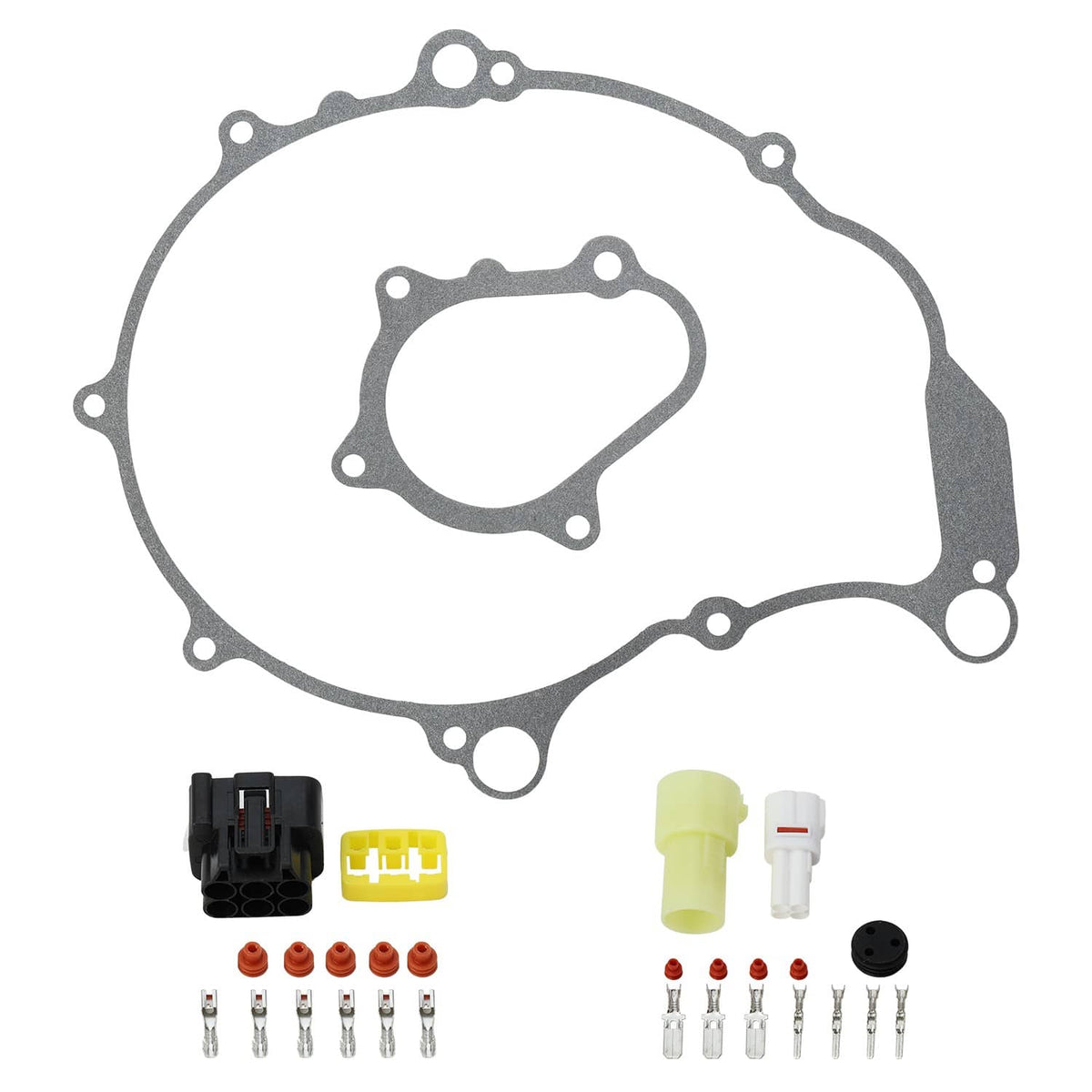

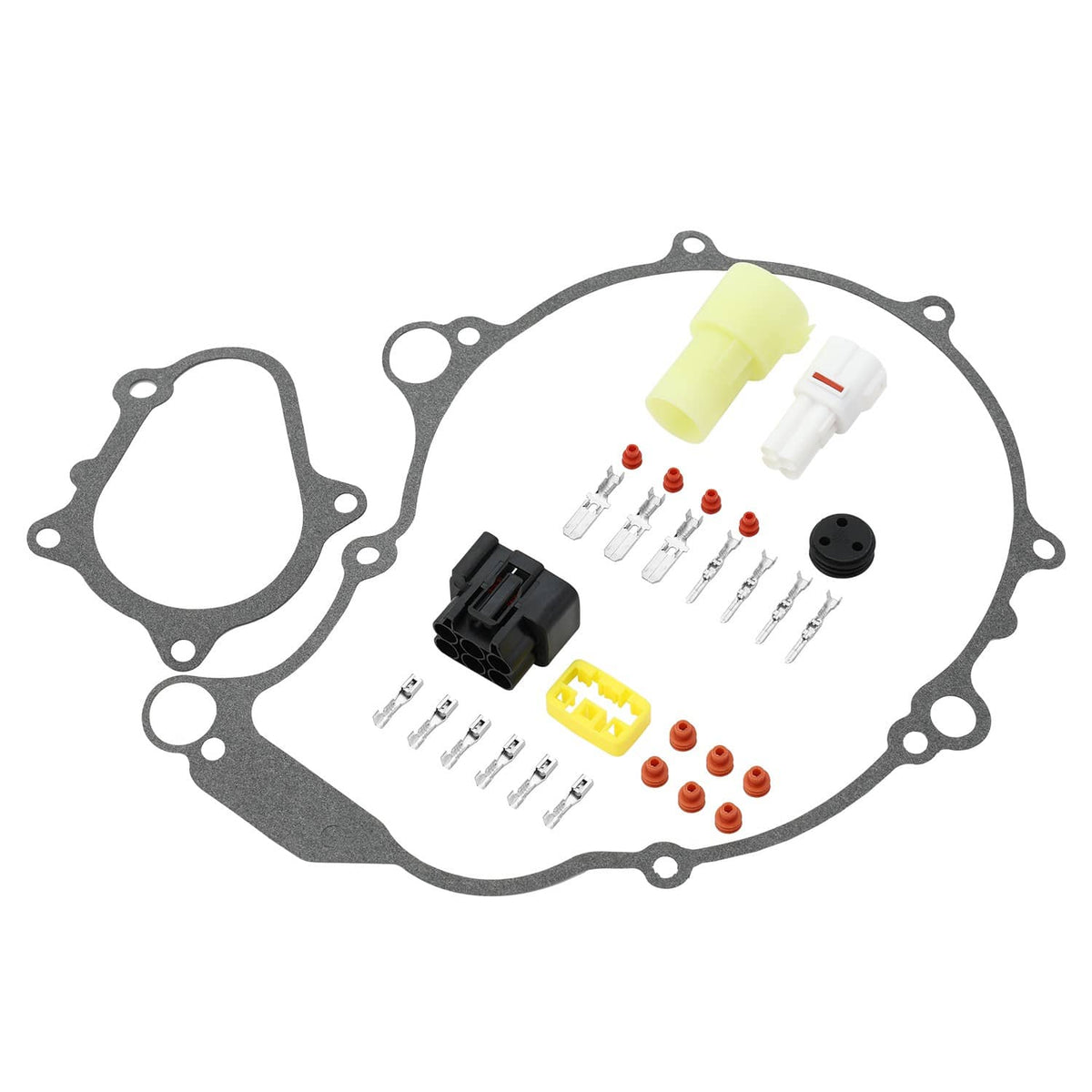

• Matched gasket included for a clean seal on the stator cover
• Kit format saves time by covering the full charging circuit in one order
• Direct-fit replacement dimensions for the Raptor 660R stator housing
• Connectors and mounting points configured for the YFM660R harness

Fits These Machines

• for Yamaha Raptor 660R YFM660R 2001
• for Yamaha Raptor 660R YFM660R 2002
• for Yamaha Raptor 660R YFM660R 2003
• for Yamaha Raptor 660R YFM660R 2004
• for Yamaha Raptor 660R YFM660R 2005

On-The-Job Use

• Restoring charging output on a Raptor 660R that drains its battery
• Replacing a burnt stator and failed regulator rectifier in one repair
• Scheduled electrical maintenance on high-hour trail and dune machines
• Getting lights and battery charging back to spec after a stator failure

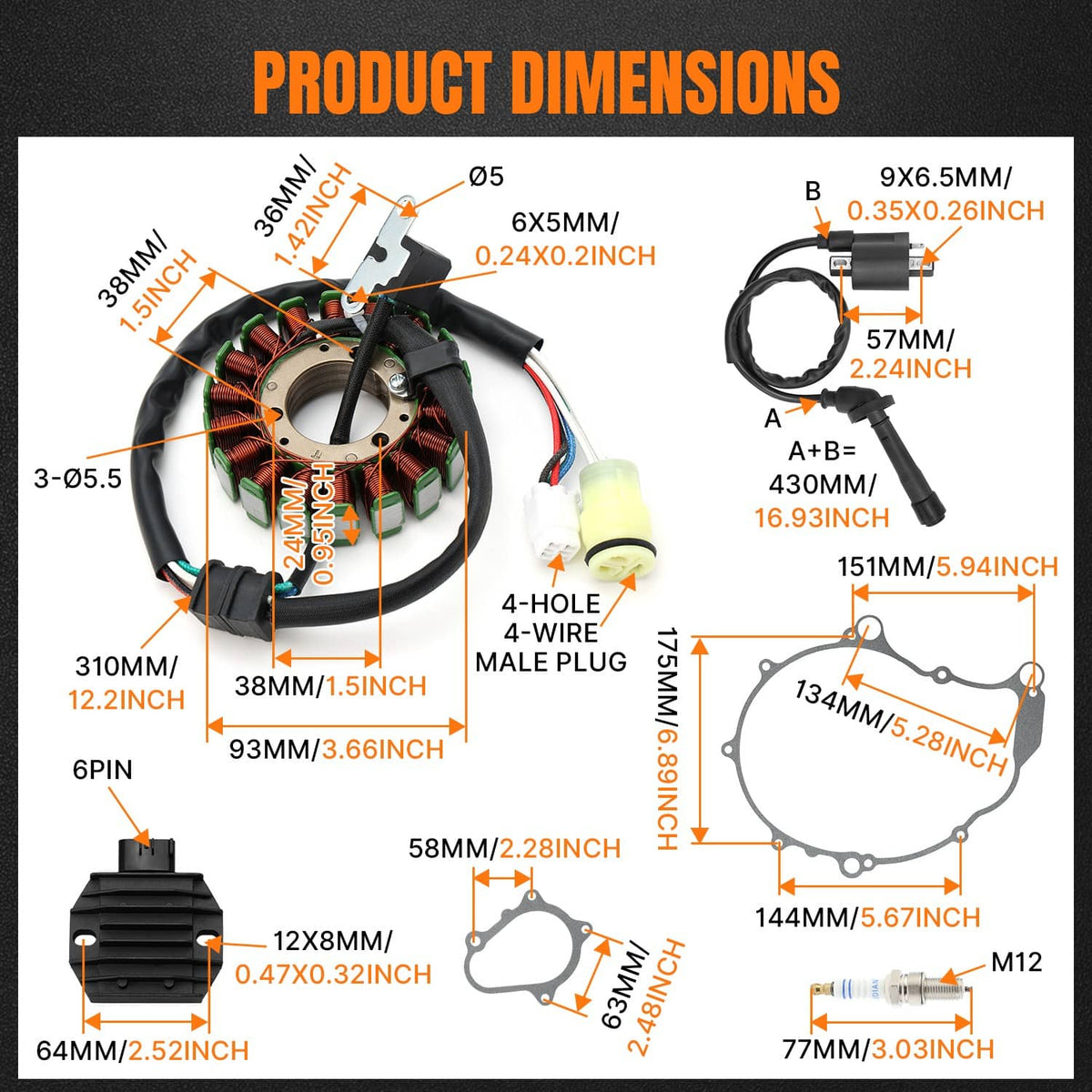

Specs At A Glance

Good To Know

Q: Do I need to replace all three parts at once? A: Replacing the stator, regulator rectifier, and gasket together is common practice because a failed regulator can stress a new stator and the gasket is disturbed during the job.

Q: Will this fit my model year? A: It is listed for the Yamaha Raptor 660R YFM660R from 2001 through 2005, so confirm your machine matches before ordering.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
