Stator Rectifier & Ignition Coil Gasket For Yamaha Raptor 660R YFM660R 2001-2005

Stator, Rectifier & Ignition Coil Gasket for Yamaha

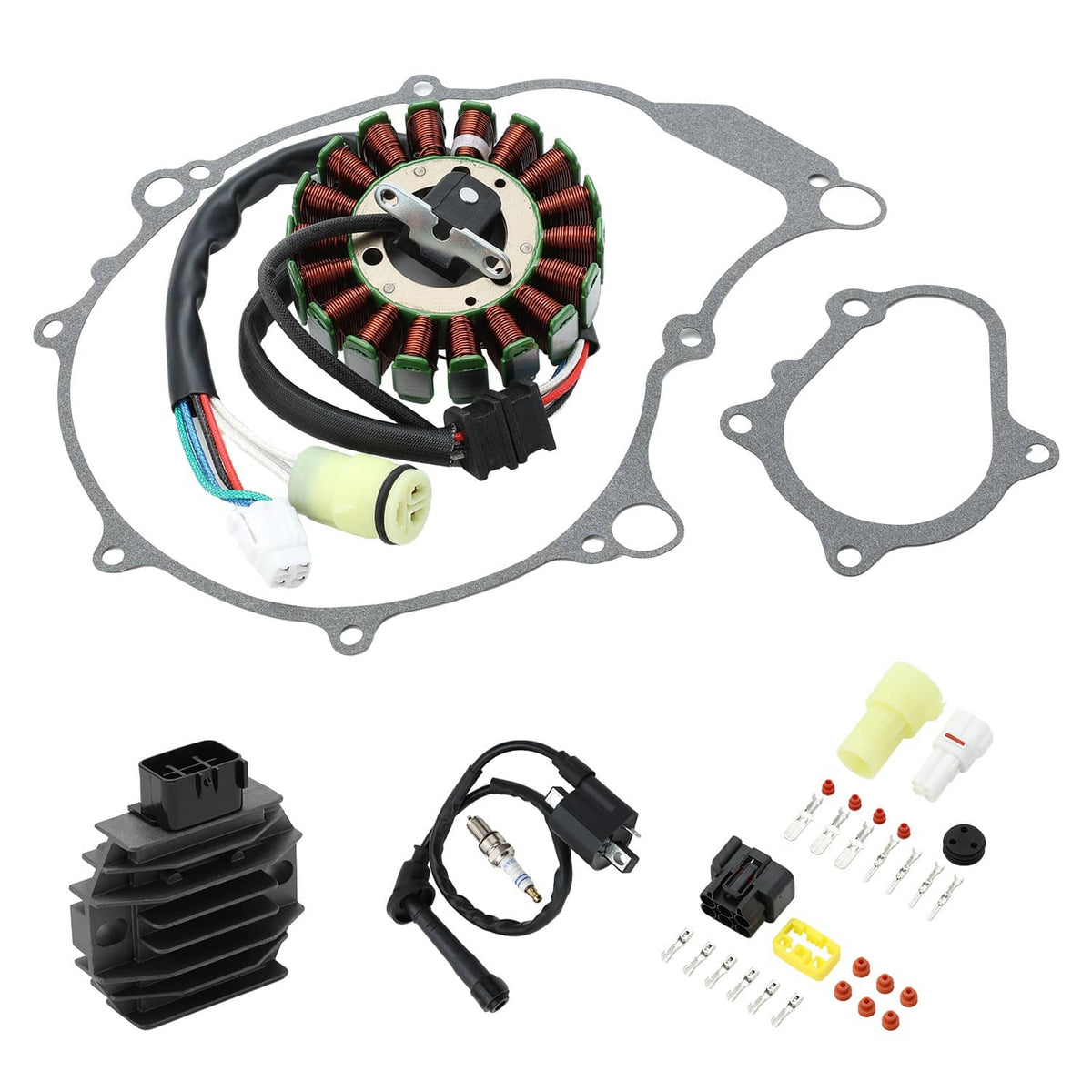

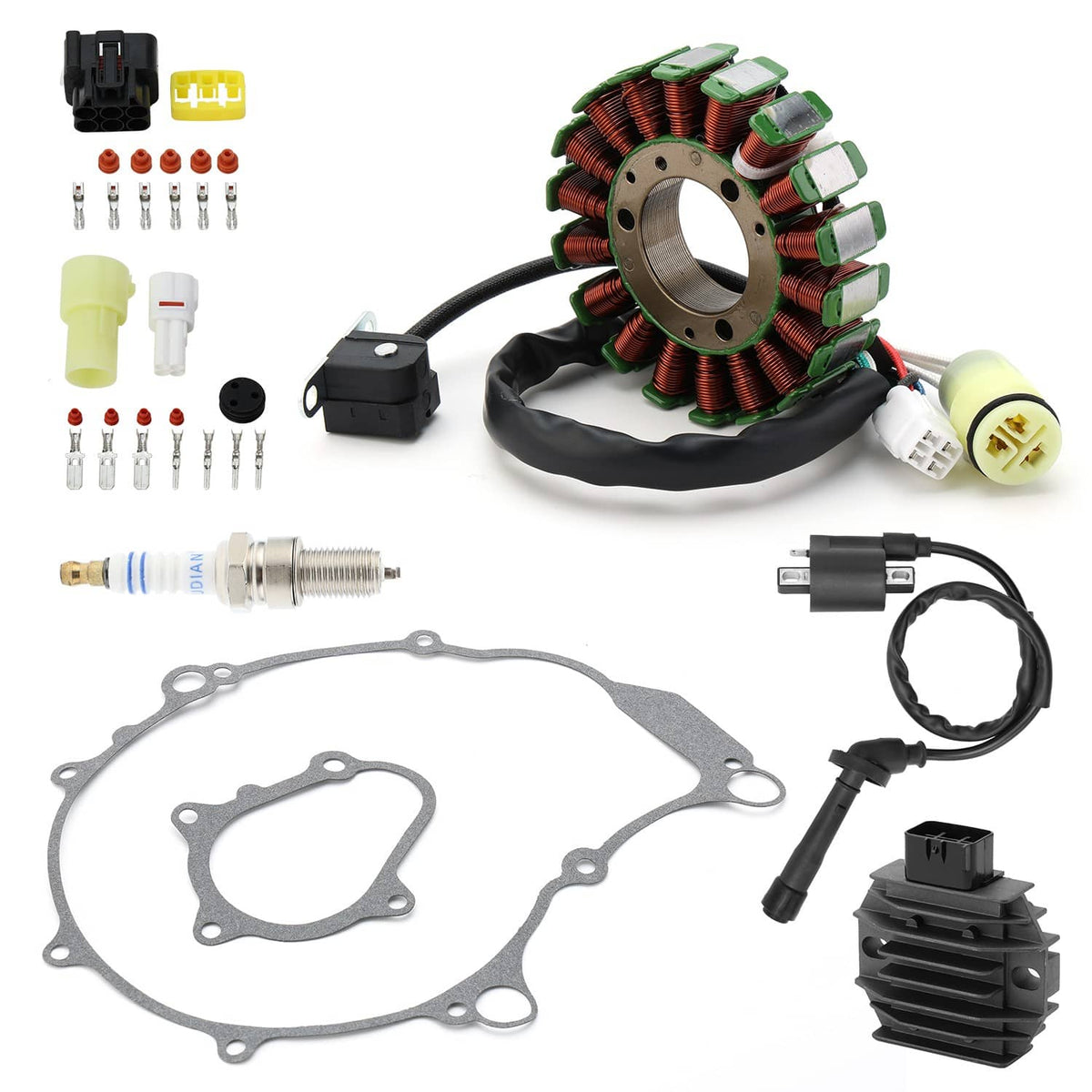

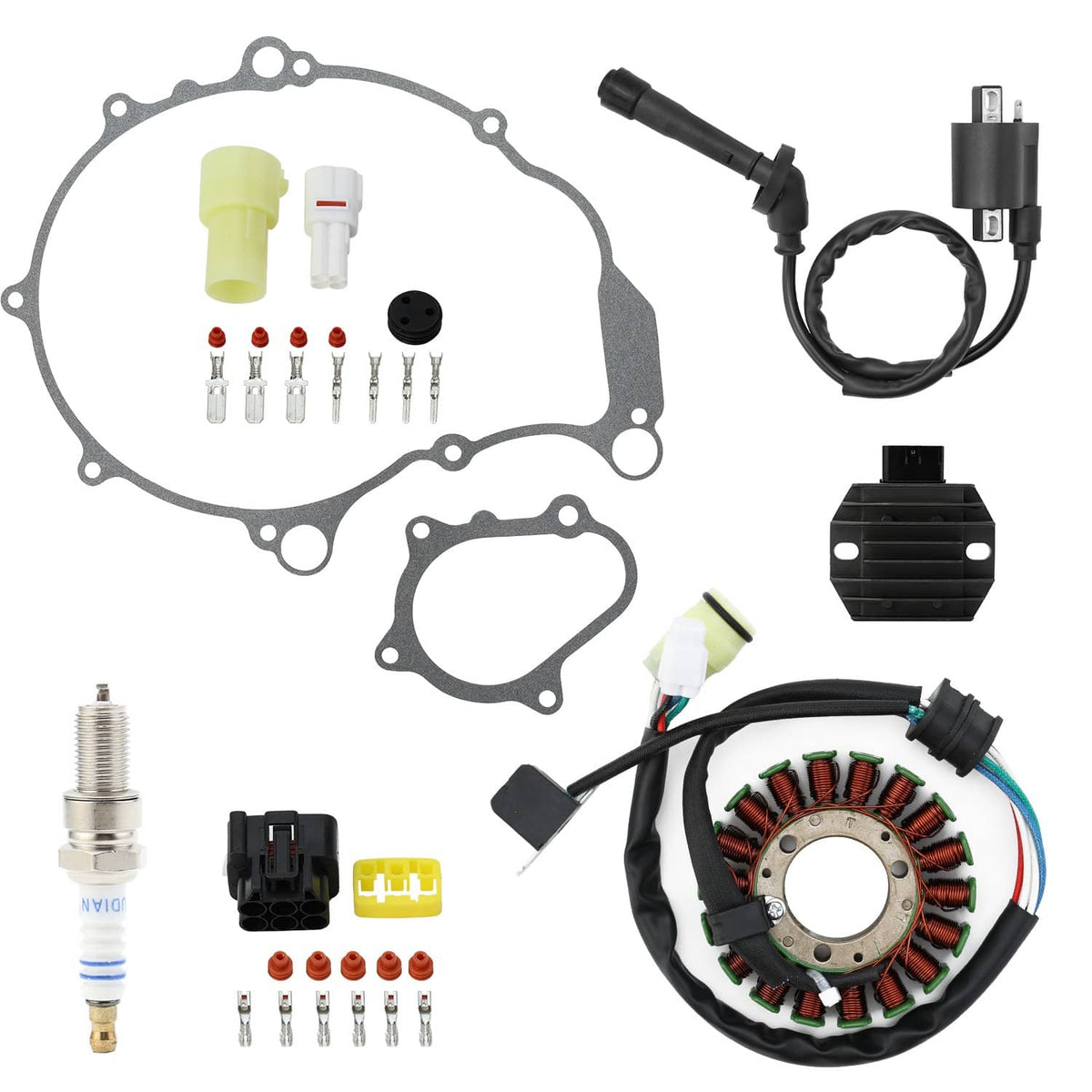

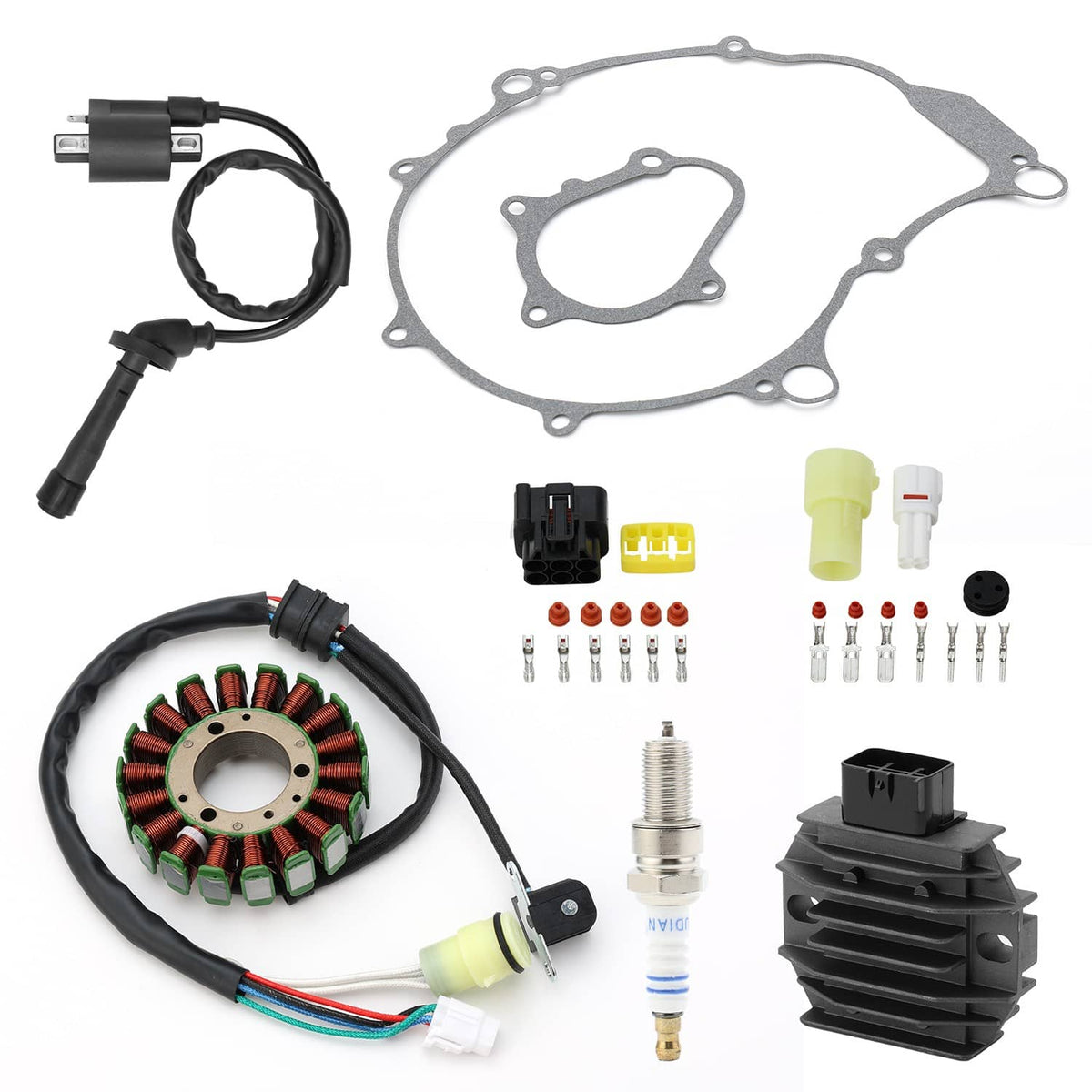

This stator, rectifier, and ignition coil gasket set services the charging and ignition circuits on the Yamaha Raptor 660R YFM660R, bundling the stator, regulator rectifier, ignition coil, and cover gasket in one kit.

Overview

This stator, rectifier, and ignition coil gasket set covers the electrical components most often renewed on the Yamaha Raptor 660R YFM660R. The stator feeds the charging system, the regulator rectifier stabilizes voltage, and the ignition coil delivers spark, while the gasket seals the stator cover. It is intended for riders and shops handling a full electrical refresh on a Raptor 660R.

Built For Performance

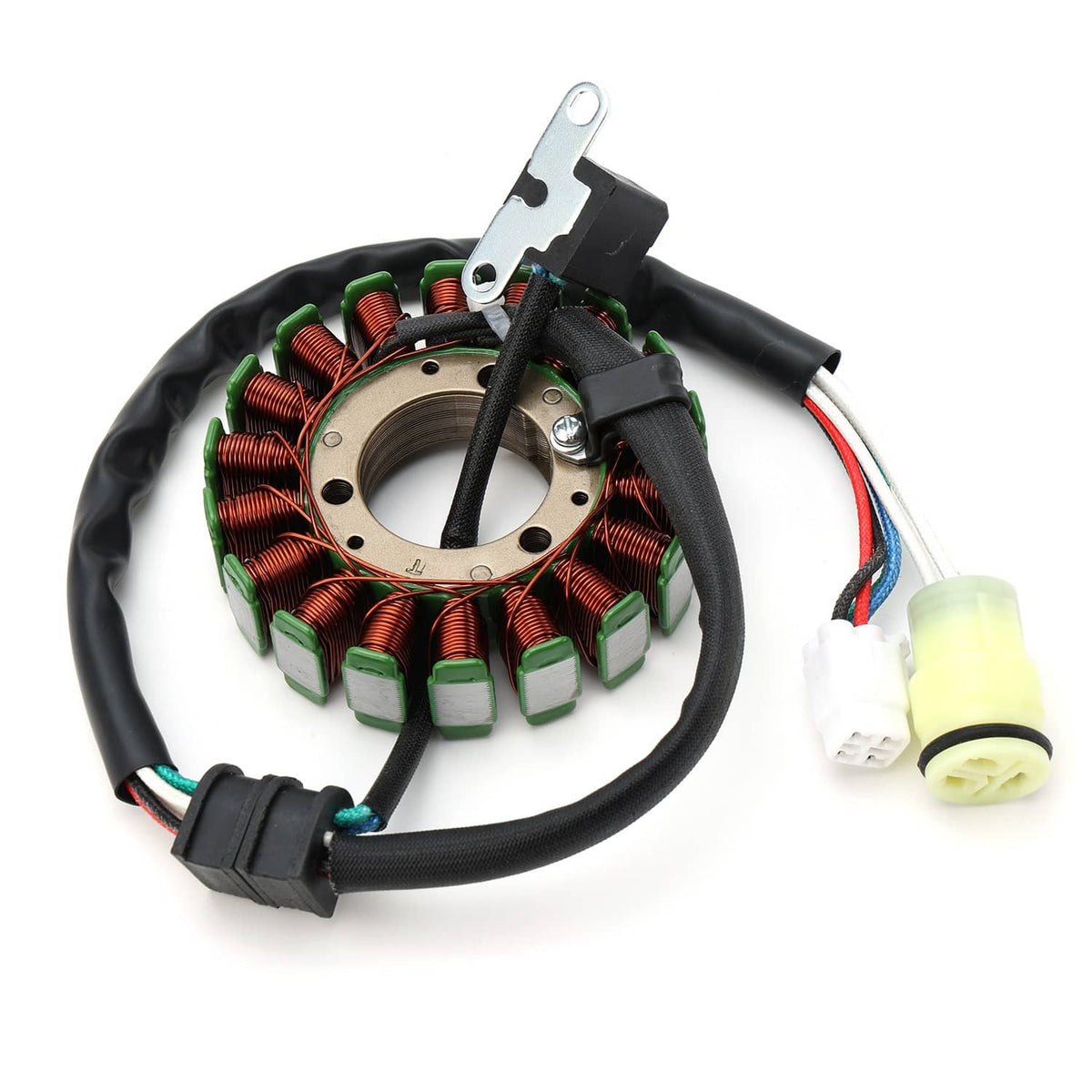

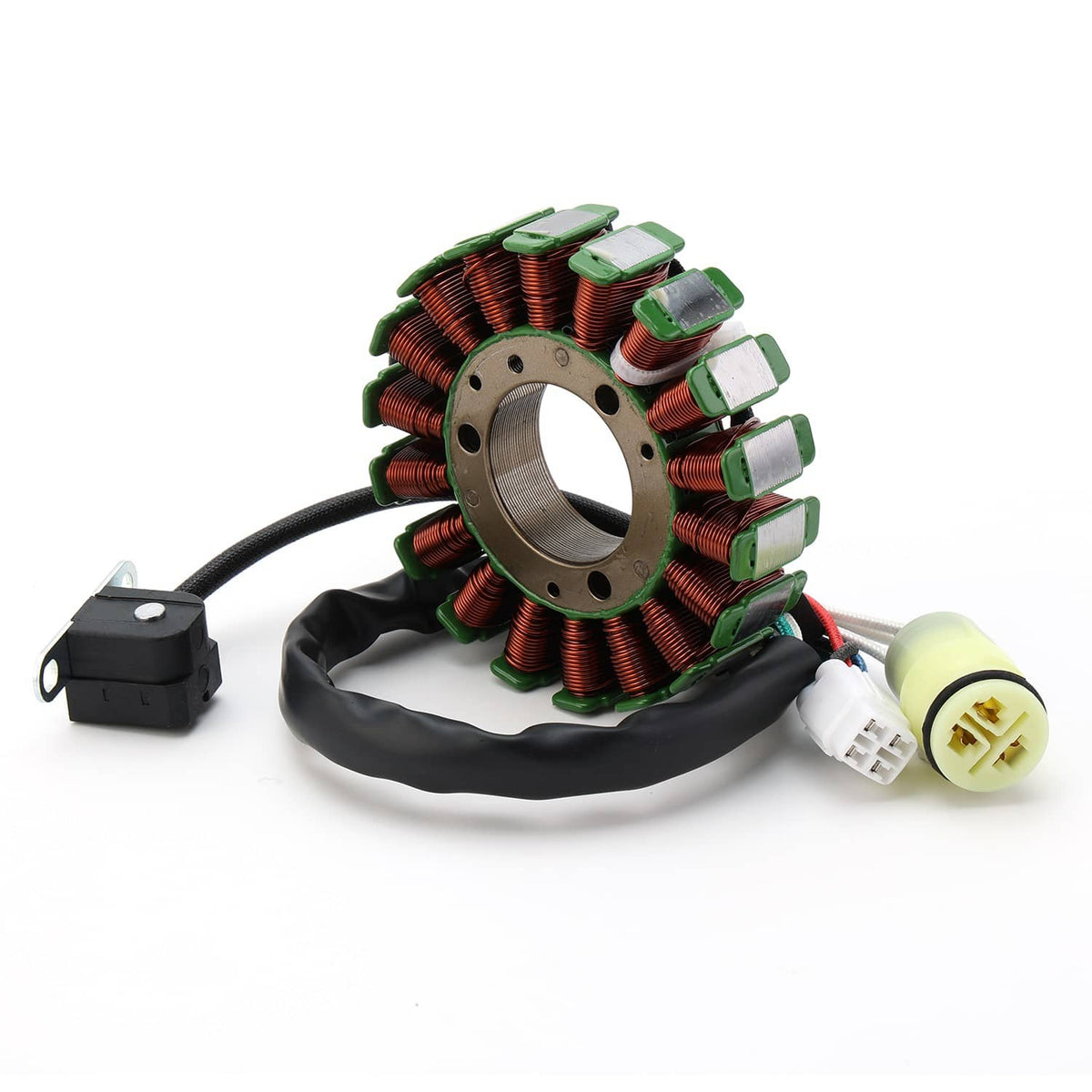

• Stator assembly built to supply steady AC output to the charging circuit

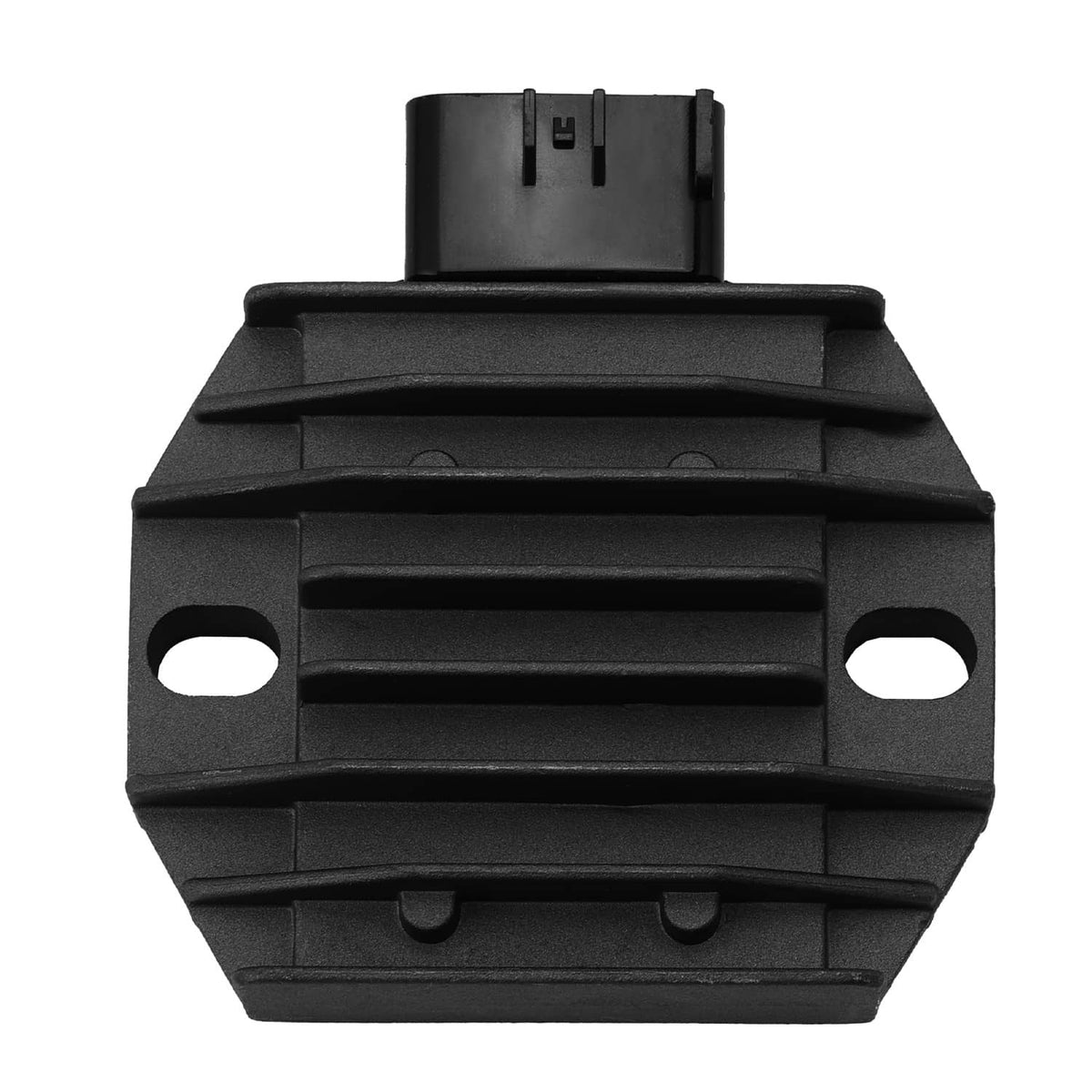

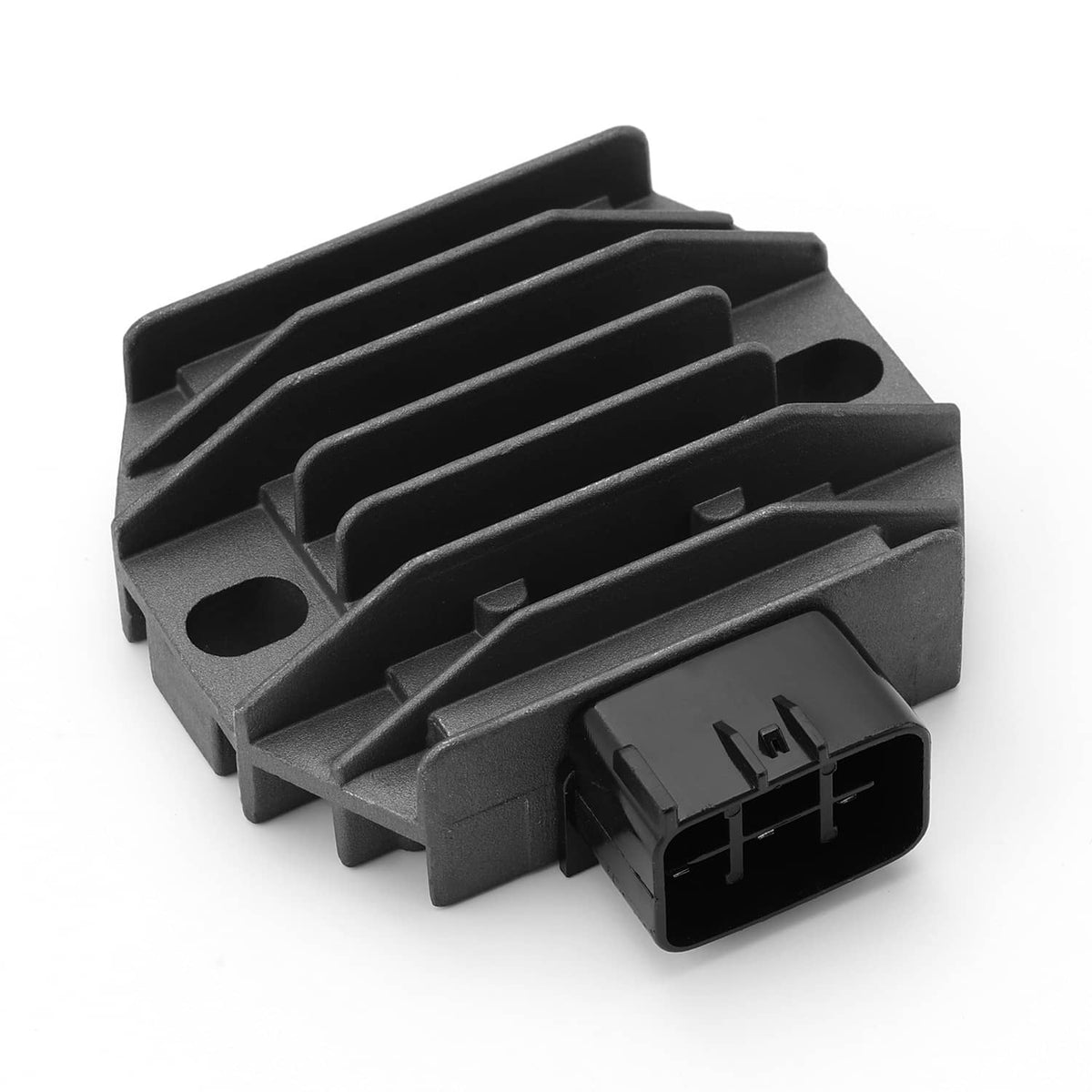

• Regulator rectifier regulates voltage to protect the battery

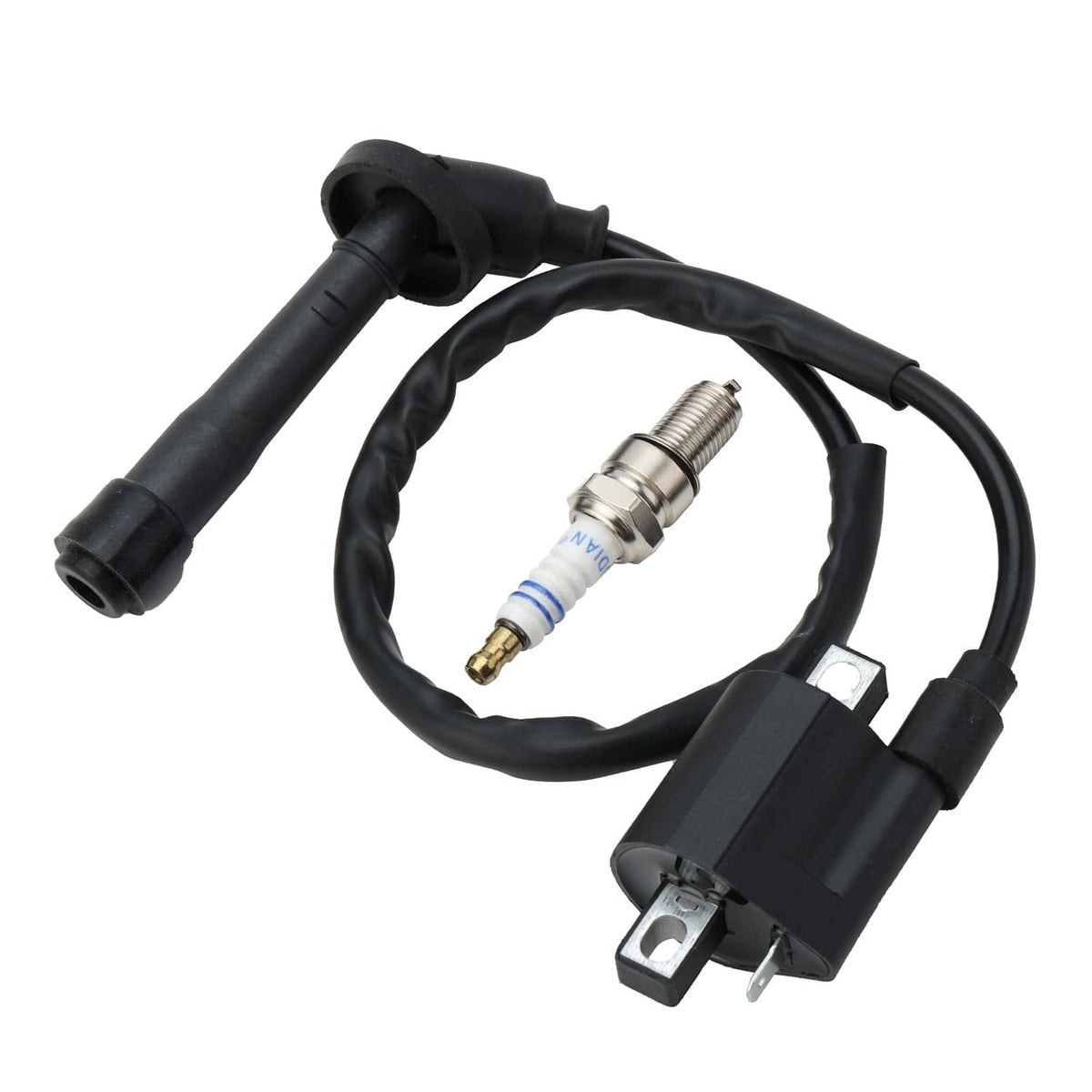

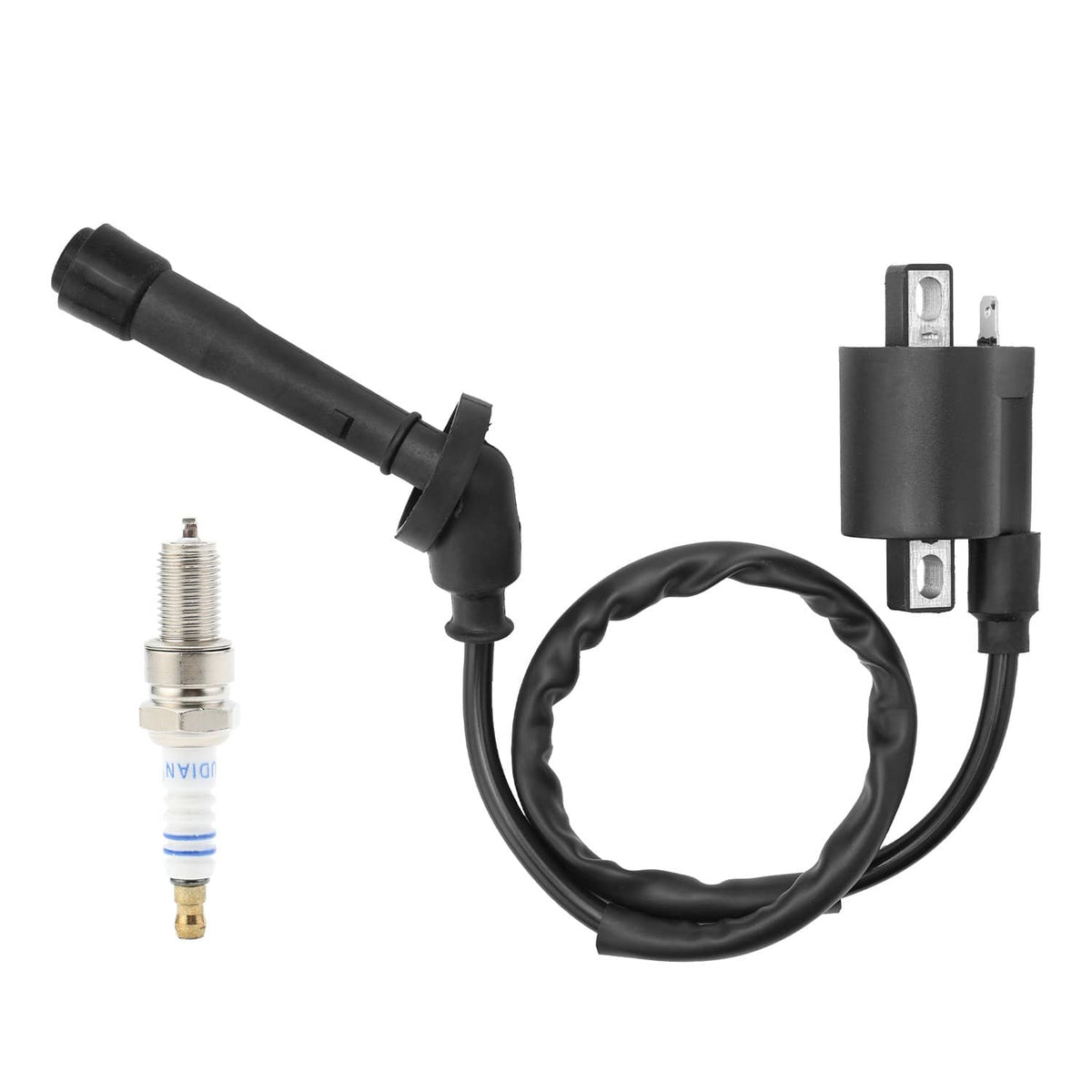

• Ignition coil delivers spark energy to the plug

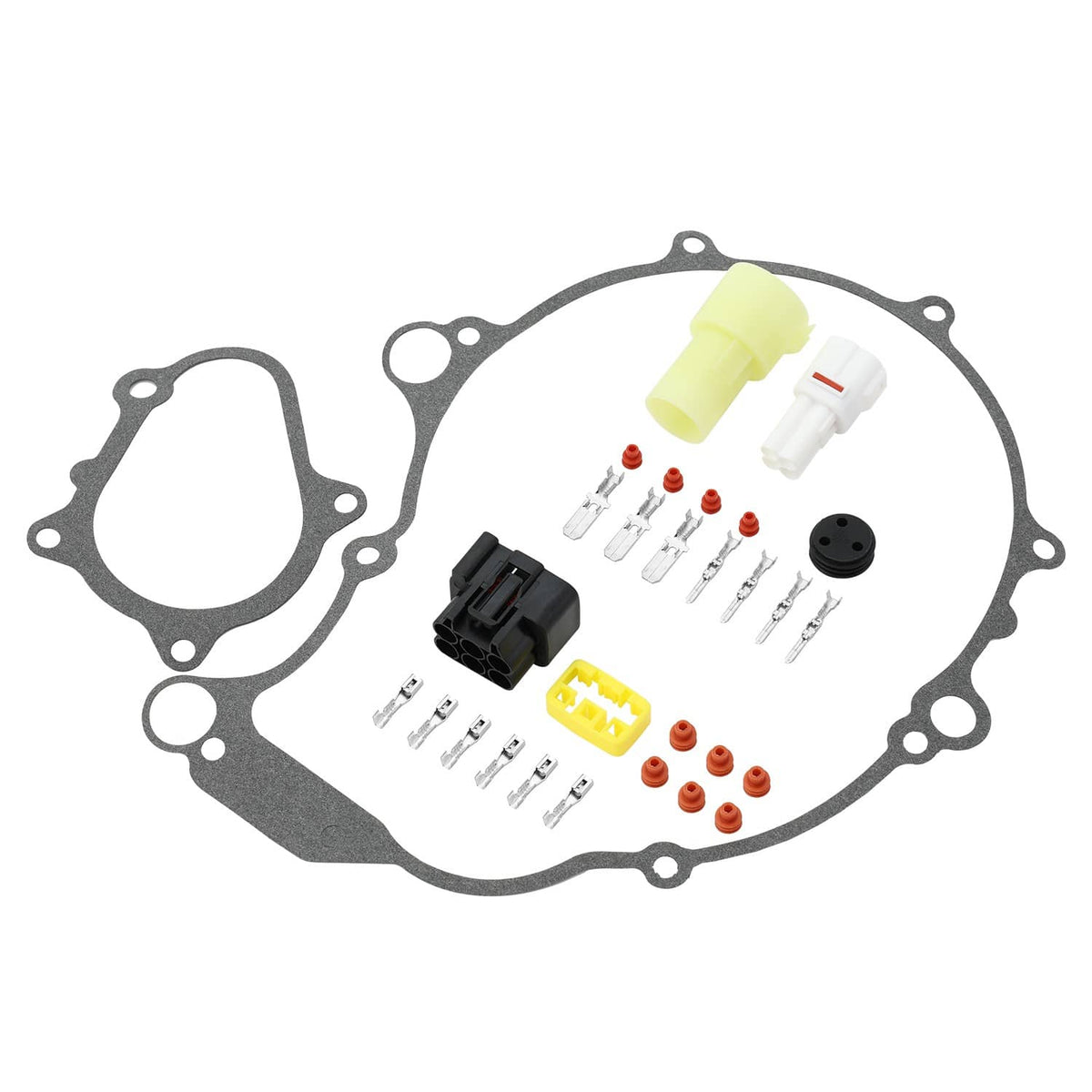

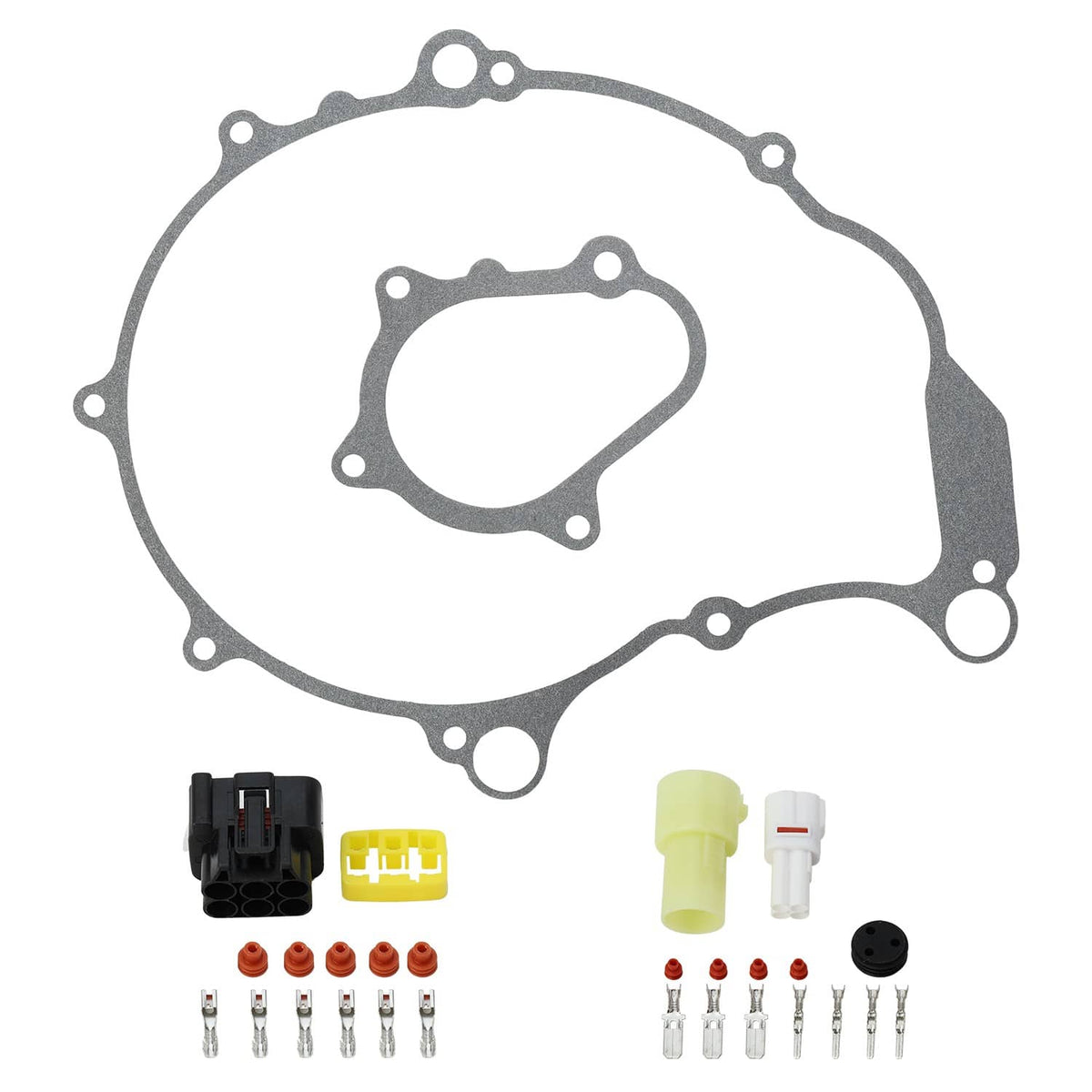

• Cover gasket included to seal the stator housing properly
• Combined kit simplifies ordering the whole electrical tune-up
• Mounting and connector layout matched to the YFM660R platform

Fits These Machines

• for Yamaha Raptor 660R YFM660R 2001
• for Yamaha Raptor 660R YFM660R 2002
• for Yamaha Raptor 660R YFM660R 2003
• for Yamaha Raptor 660R YFM660R 2004
• for Yamaha Raptor 660R YFM660R 2005

On-The-Job Use

• Refreshing charging and ignition components on a high-hour Raptor 660R
• Diagnosing no-spark or weak-charge faults with known-good parts
• Trail, dune, and track machines that need reliable electrical output
• Preventive replacement before a stator or coil failure strands the quad

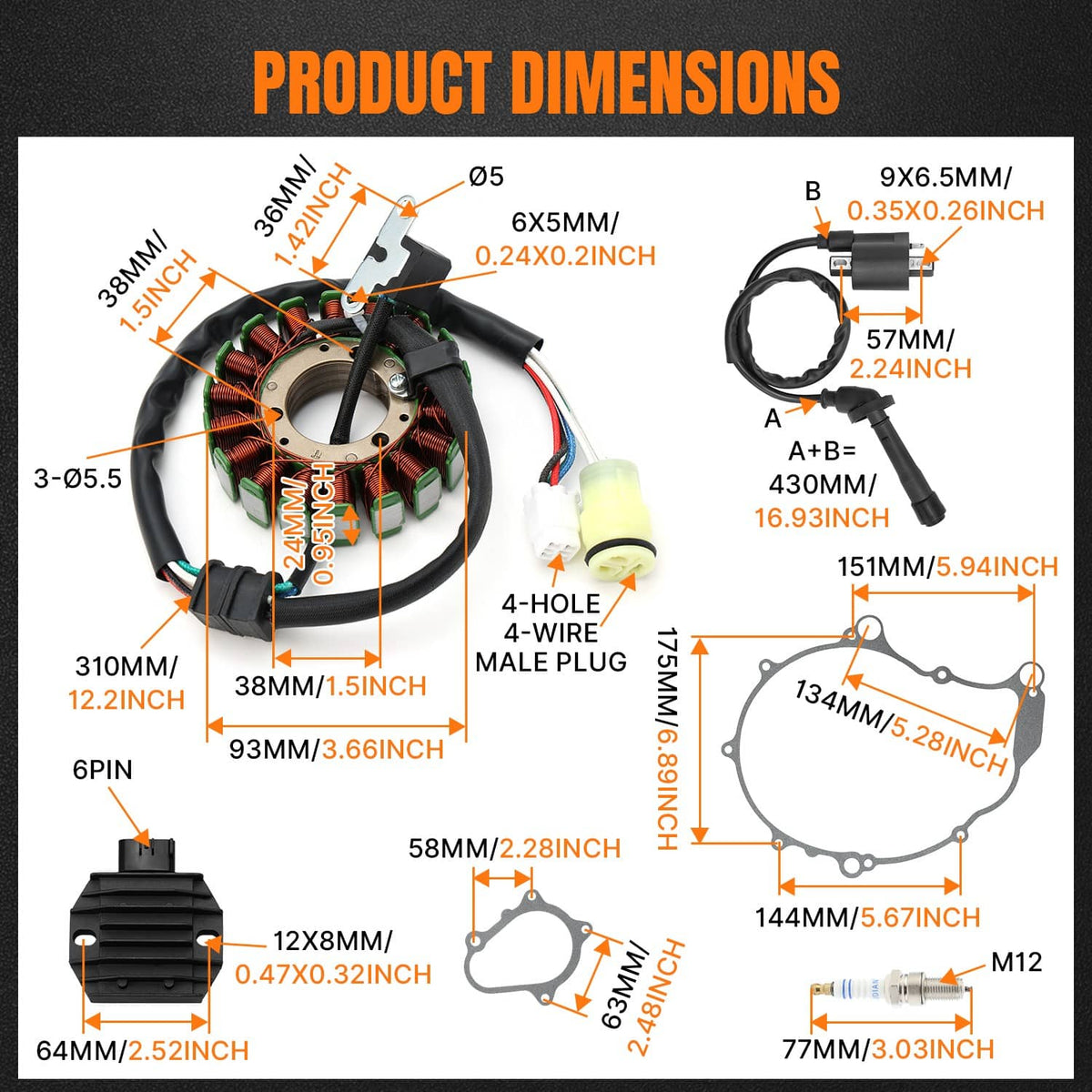

Specs At A Glance

Good To Know

Q: Can I install these parts without changing the wiring harness? A: Yes, the kit is configured for the Raptor 660R YFM660R harness, so it installs at the factory connection points on a standard replacement job.

Q: Is the ignition coil needed if only the stator failed? A: Replacing the coil alongside the stator and rectifier is common during a full electrical service, since age-related coil weakness can mimic charging faults.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
