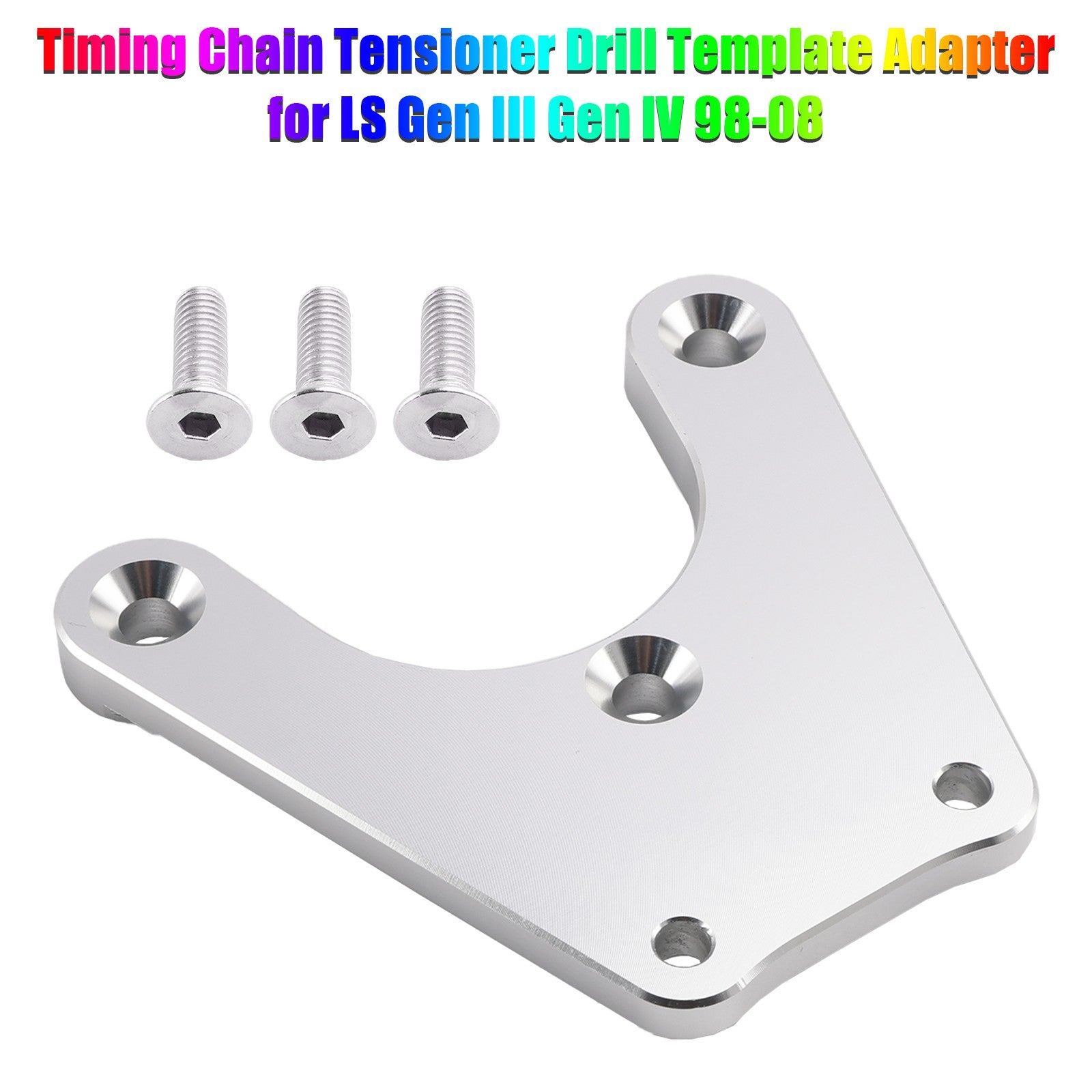

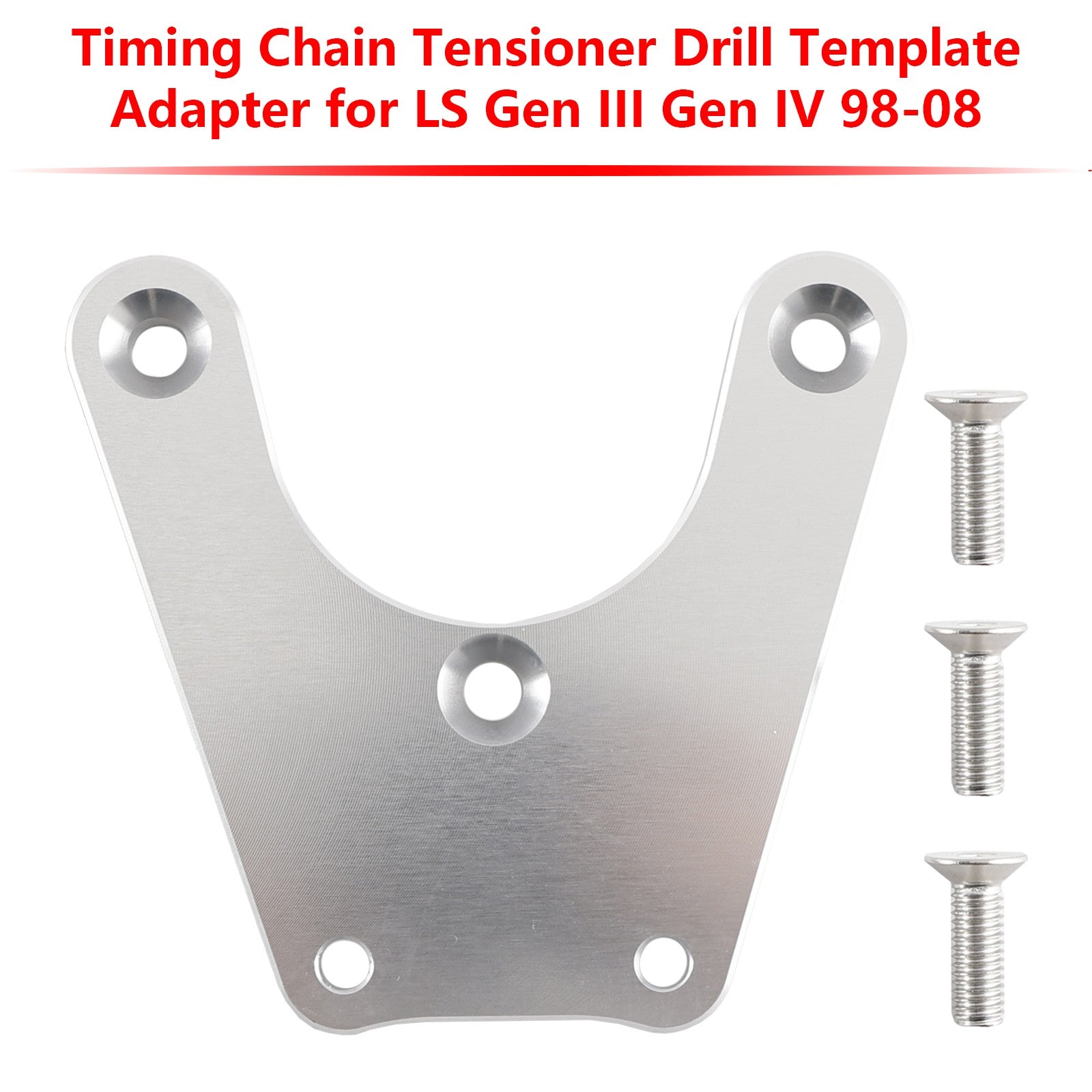

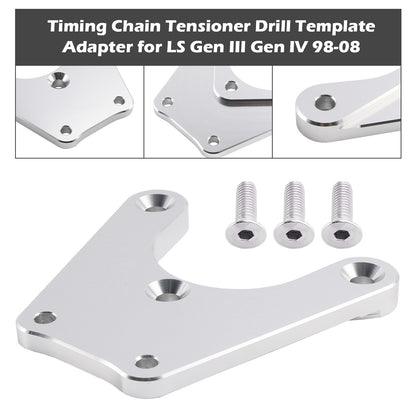

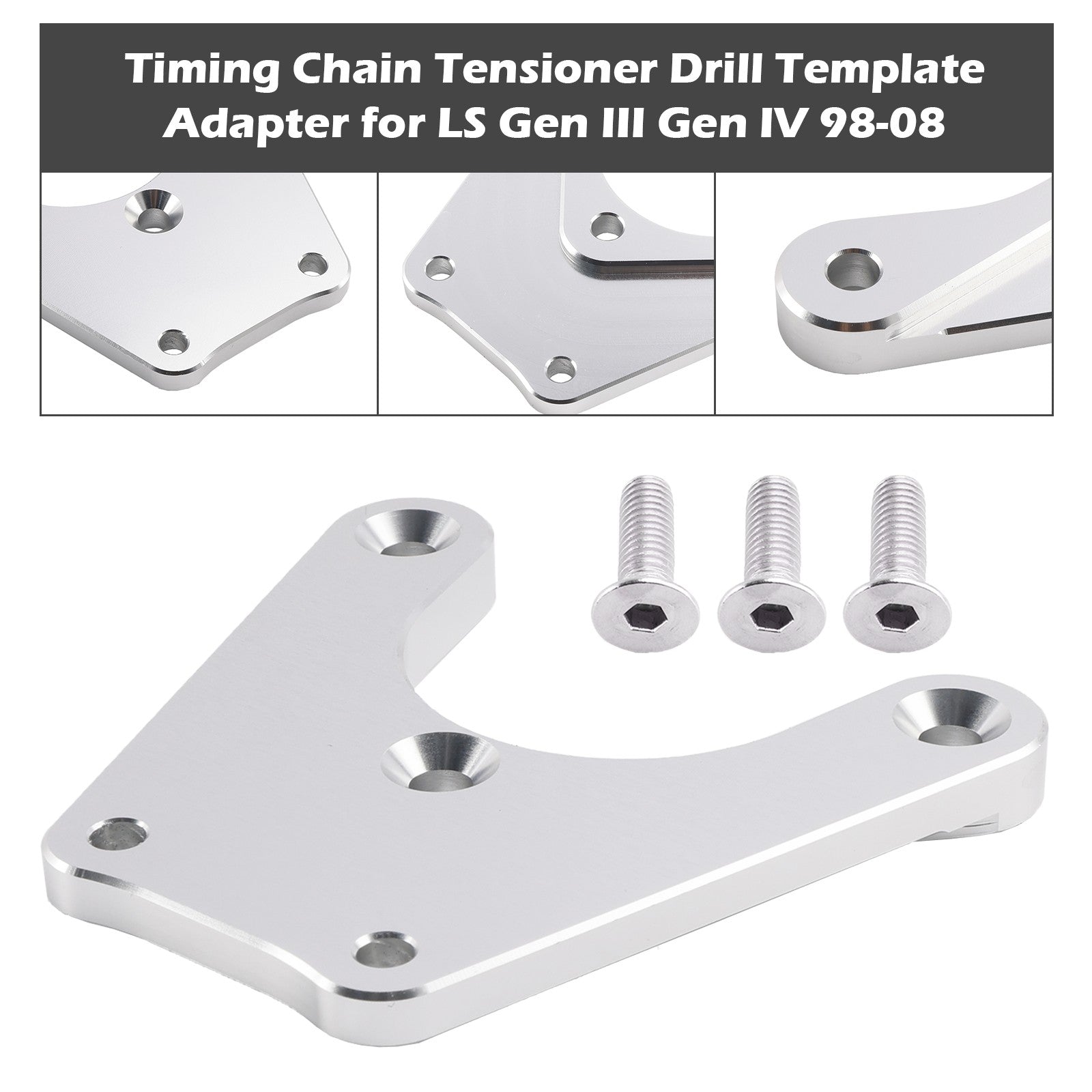

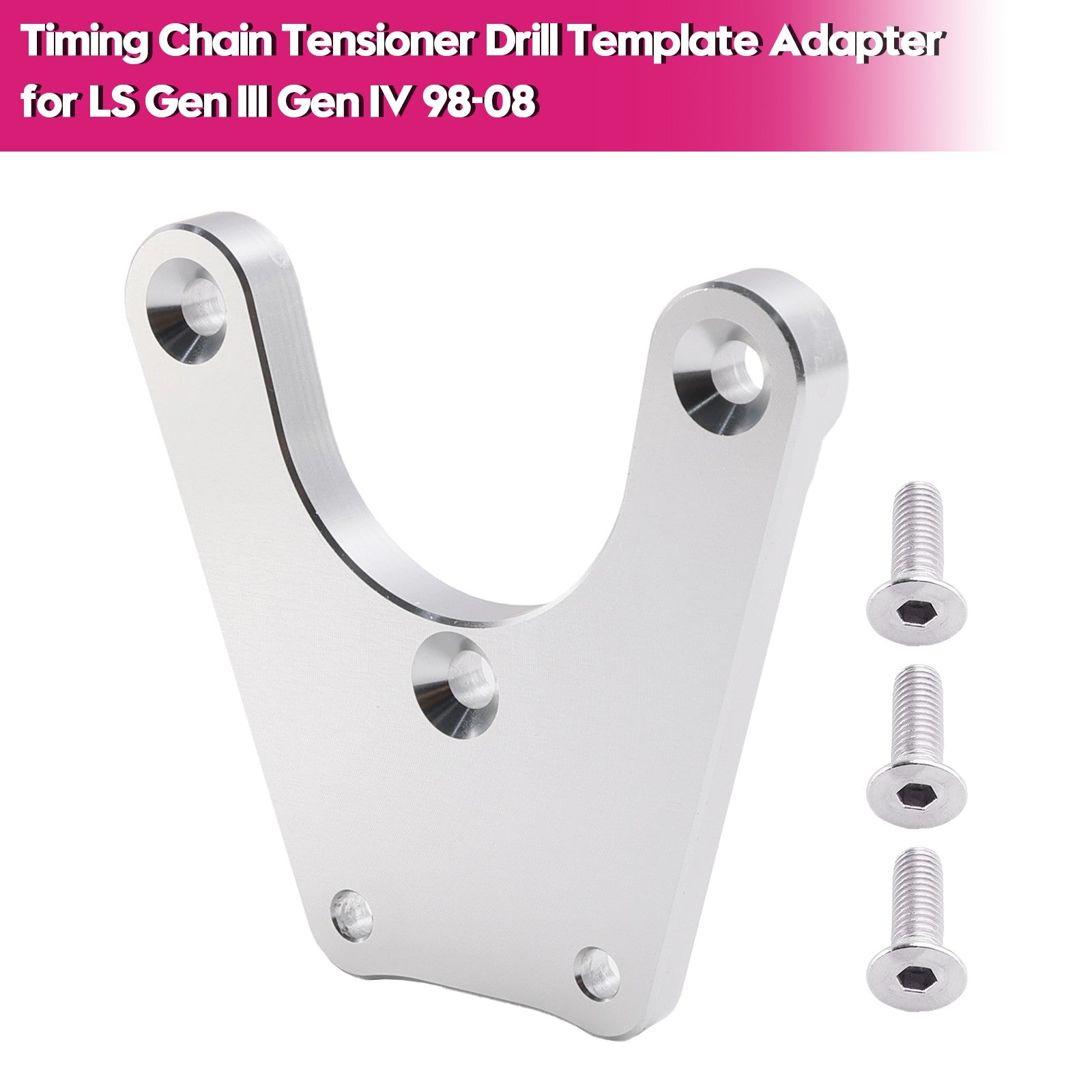

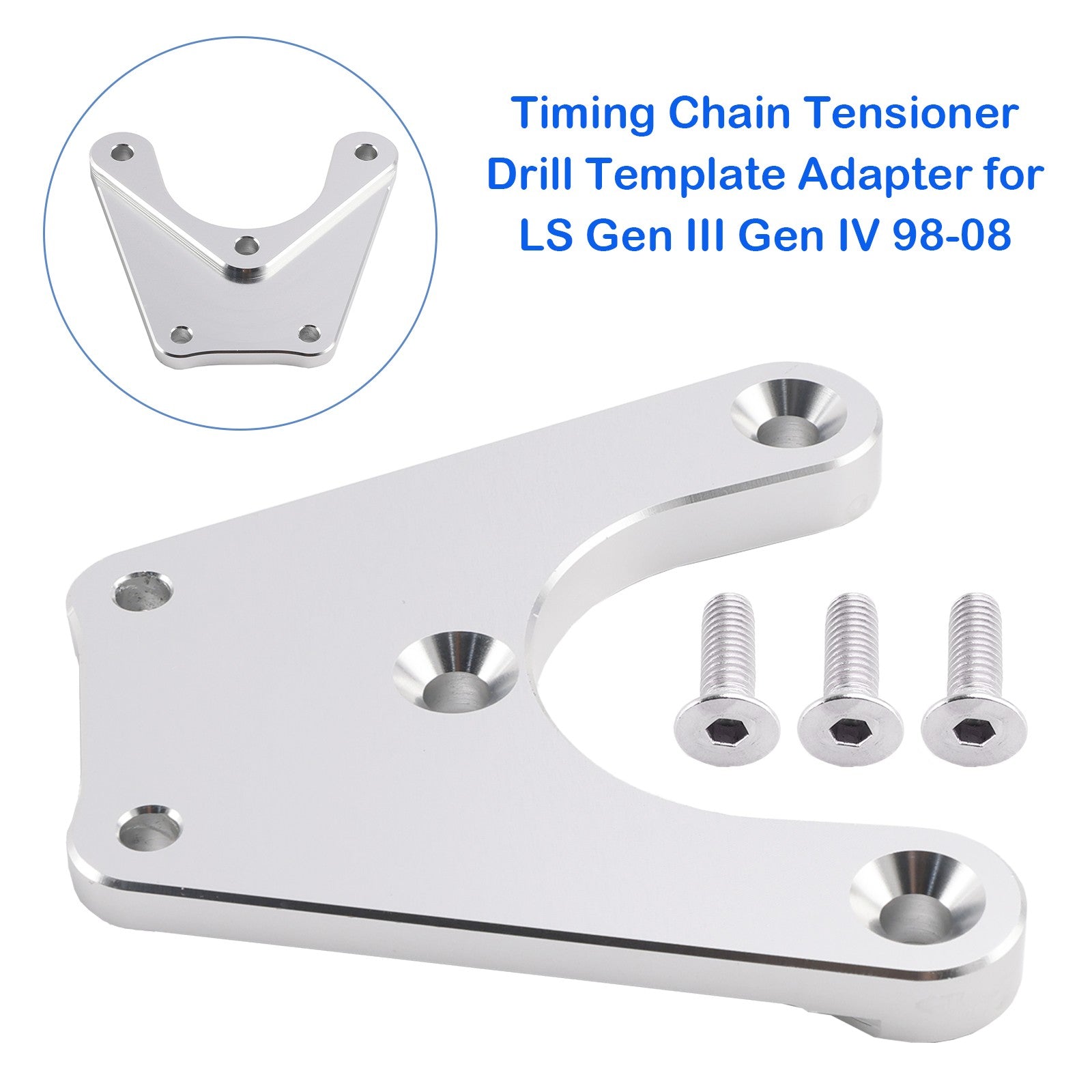

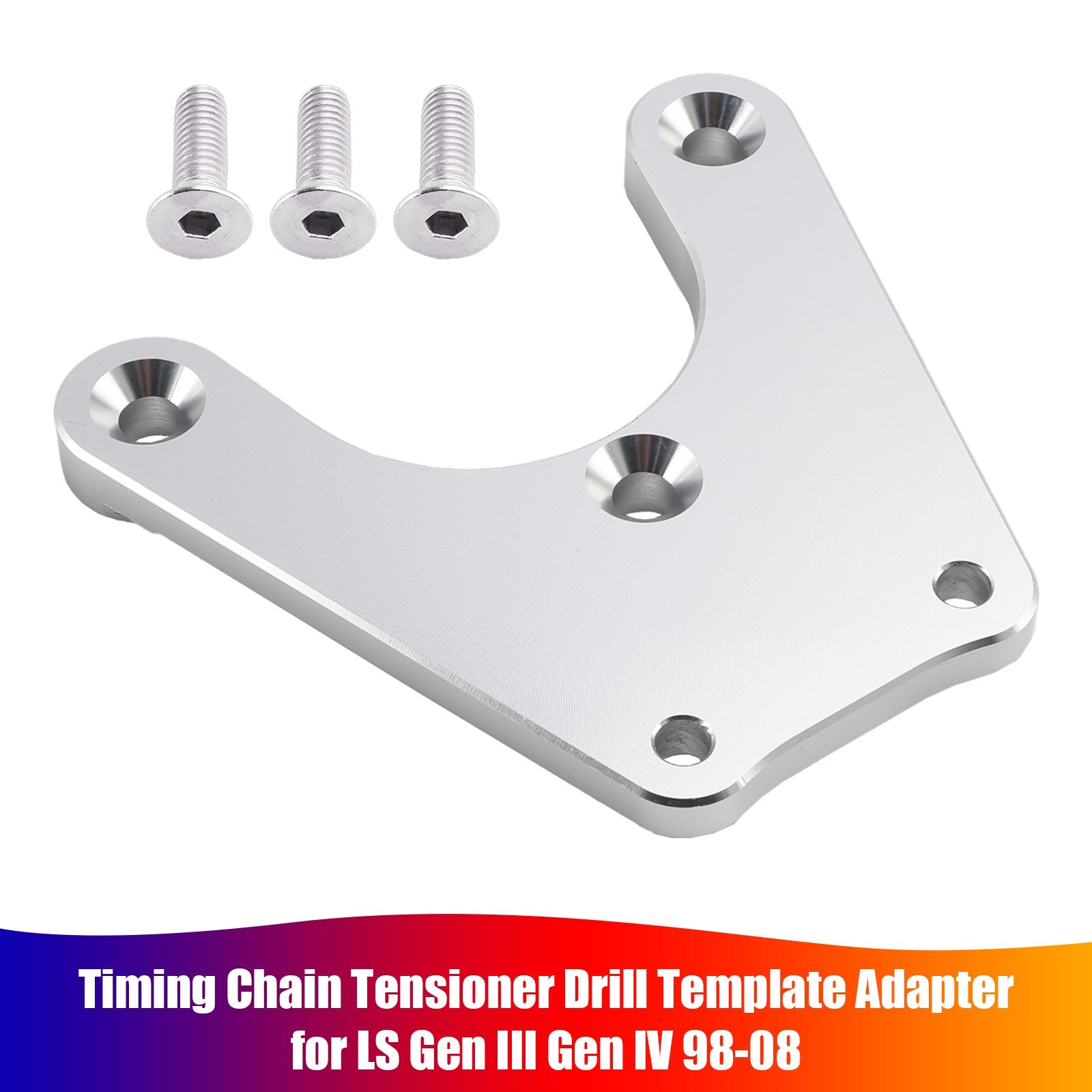

Timing Chain Tensioner Drill Template Adapter for LS Gen III Gen IV 98-08.

Timing Chain Tensioner Drill Template Adapter for LS Gen III Gen IV

This timing chain tensioner drill template adapter for LS Gen III Gen IV provides precise alignment for drilling block mount holes, suitable for models from 1998 to 2008.

Overview

This timing chain tensioner drill template adapter allows users to accurately drill and tap the engine block for a dampener installation. Designed to locate the exact center of the mounting holes, this timing chain tensioner drill template adapter eliminates the risk of off-center drilling. It is an indispensable tool for engine builders and performance mechanics modifying block components.

Built For Performance

• Heavy-duty steel construction ensures the guide holes will not wear over time.
• Precision alignment pins lock into existing oil gallery or cam holes.
• Clear markings provide easy orientation and positioning on the block.
• Saves time and prevents costly block damage during modifications.

Fits These Machines

• for LS Gen III Engines (1998-2008)
• for LS Gen IV Engines (1998-2008)

On-The-Job Use

• Drilling exact mounting holes for timing dampeners on blocks without factory holes.
• Installing a timing chain dampener on classic engine blocks during high-performance rebuilds.
• Ensuring perfect vertical alignment when tapping threads in engine blocks.

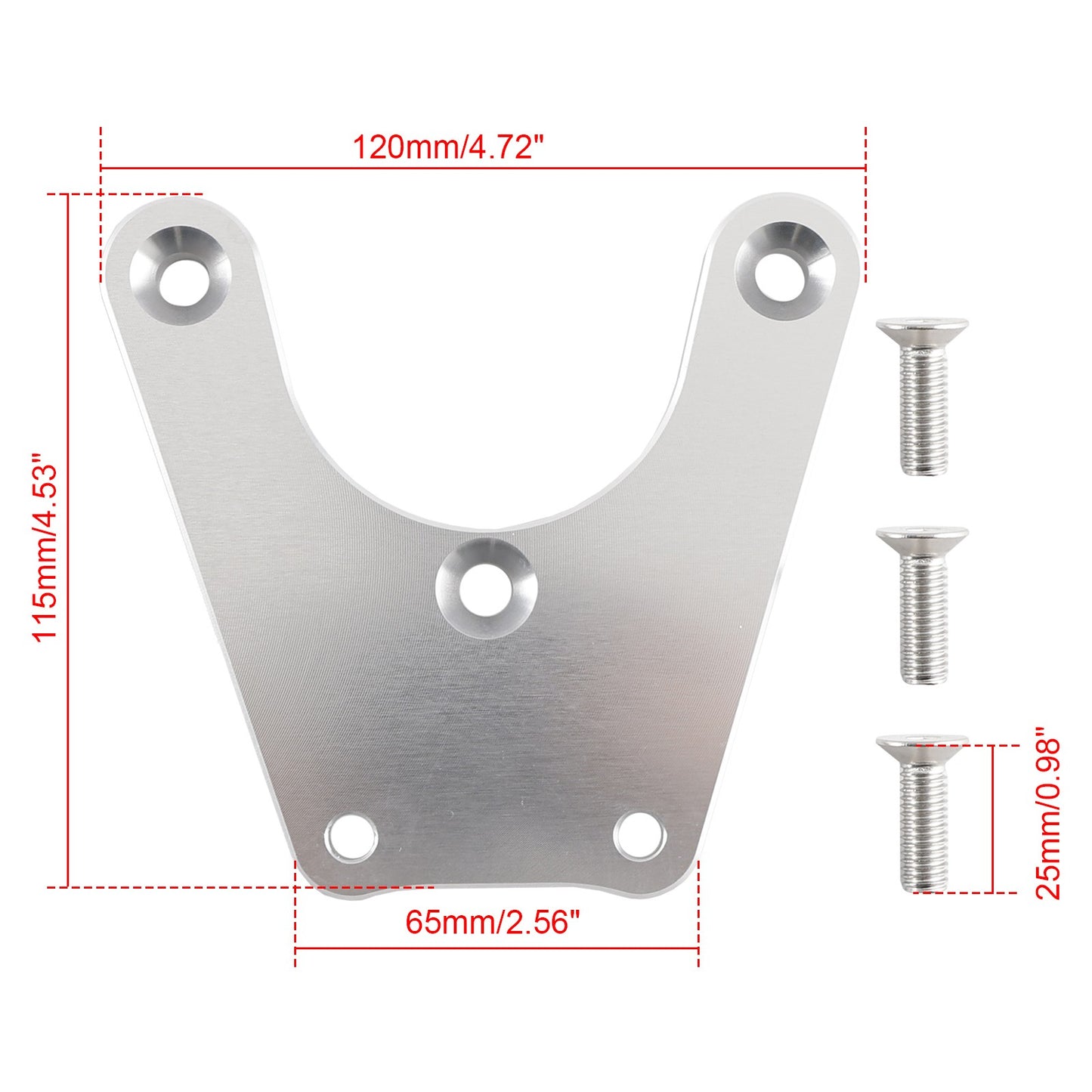

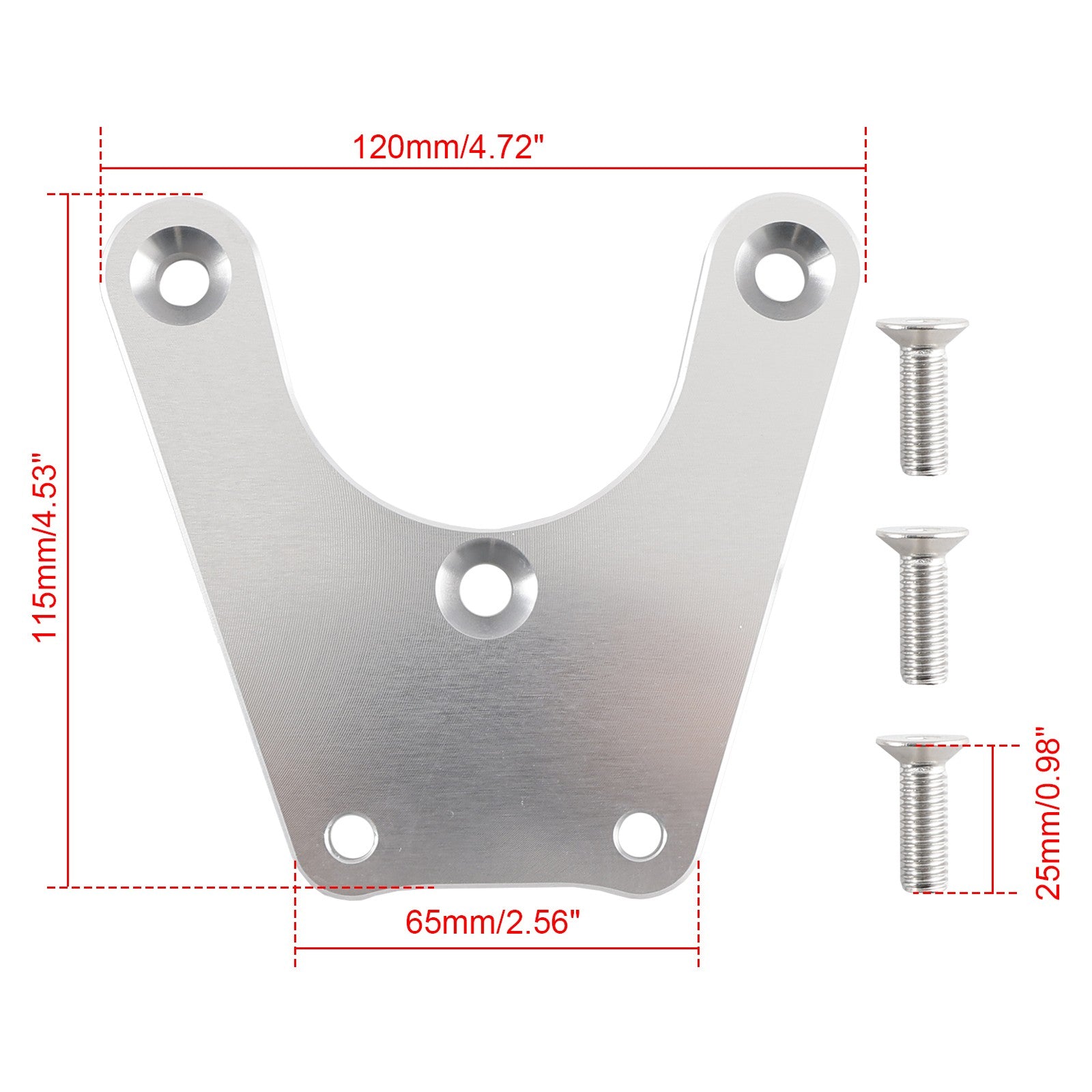

Specs At A Glance

Good To Know

Q: Why do some LS engine blocks require a drilling template for the tensioner? A: Many early Gen III blocks were not drilled or tapped from the factory for a timing chain dampener, requiring modification to add one.

Q: What drill bit size should be used with this template? A: You should use the drill bit size specified by your timing chain dampener manufacturer, typically matched to an M8 tap.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
