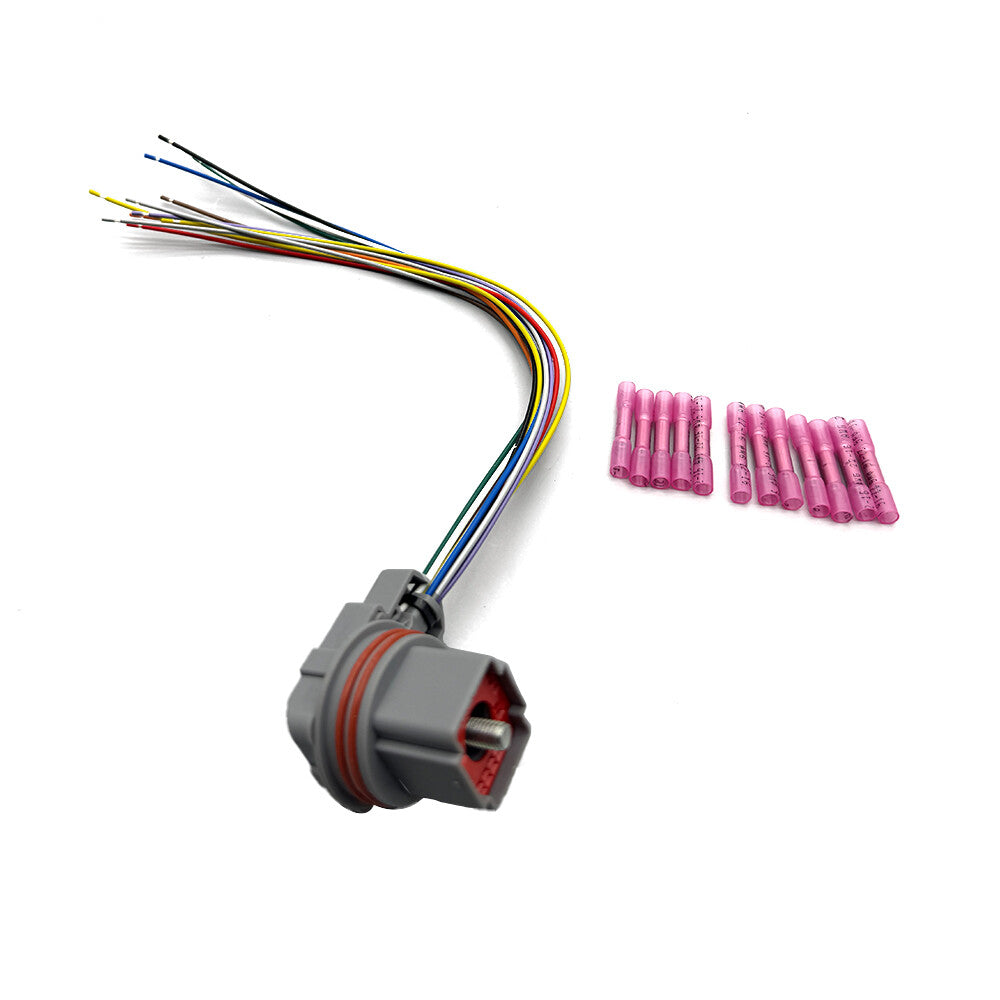

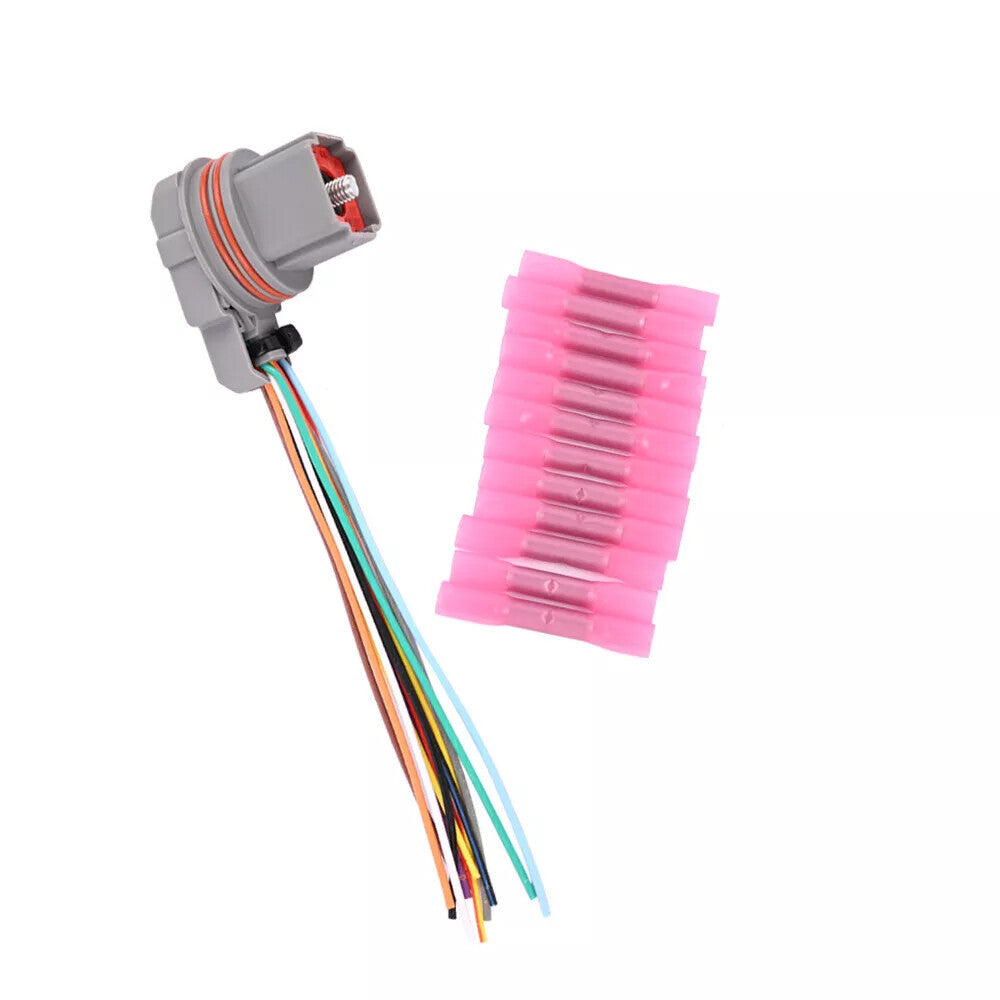

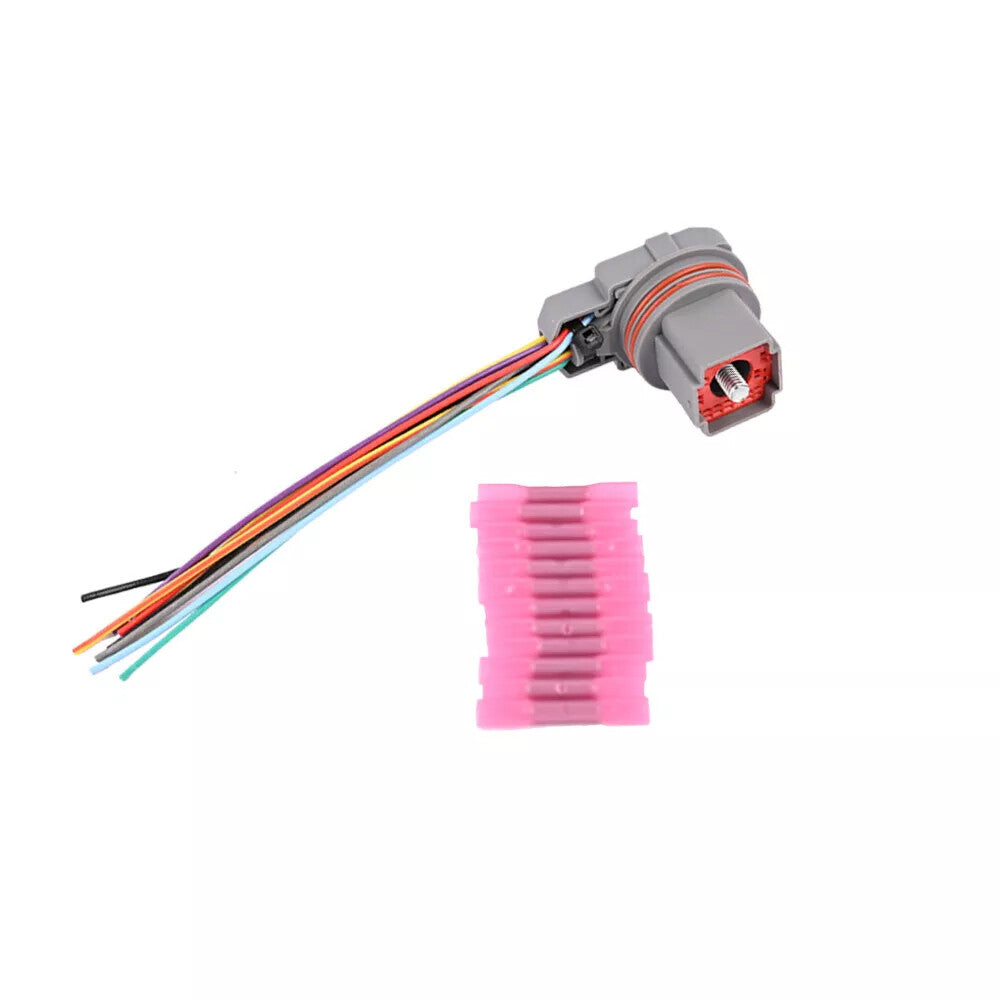

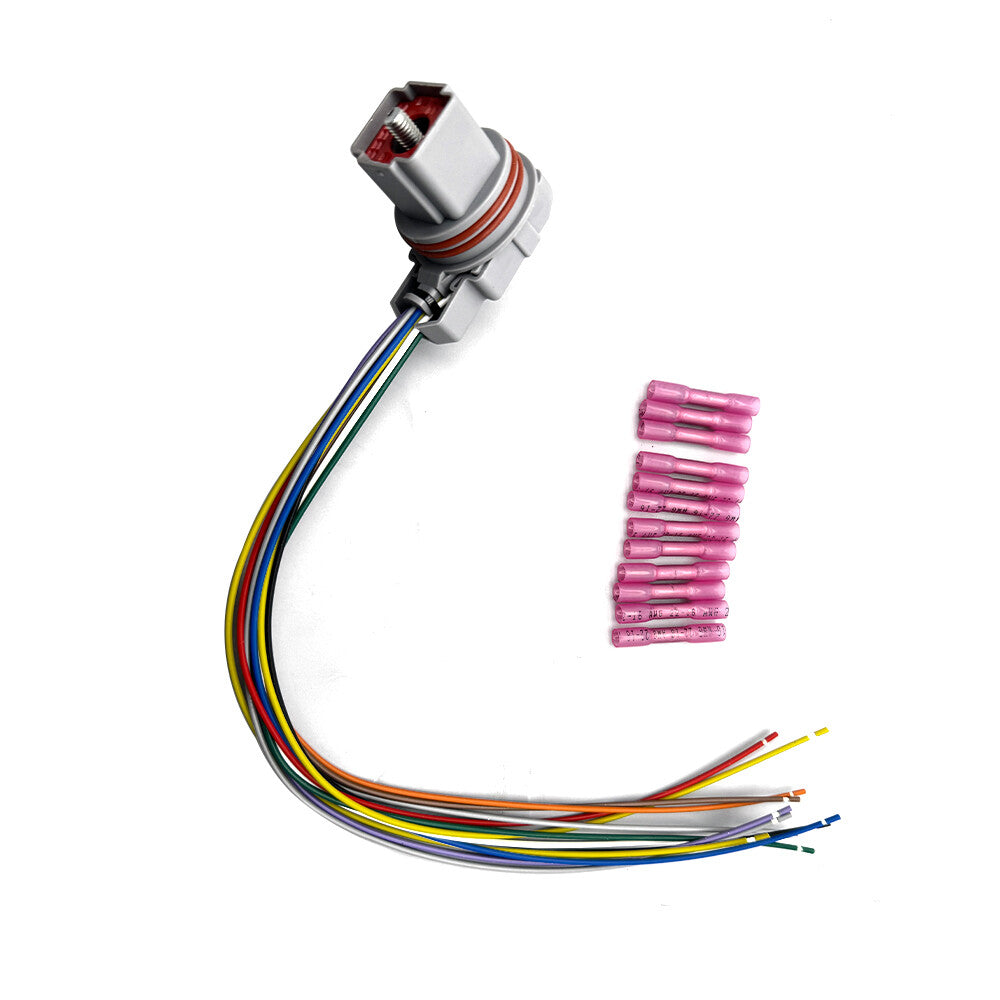

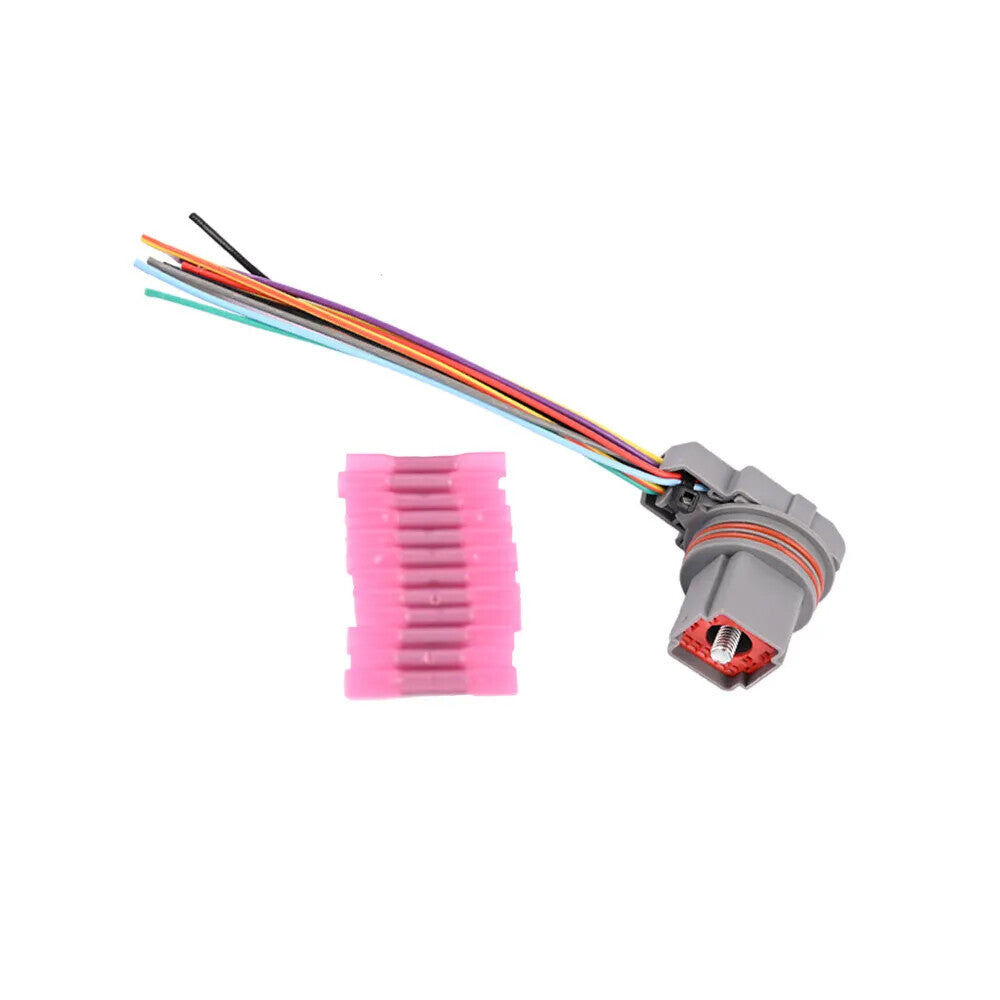

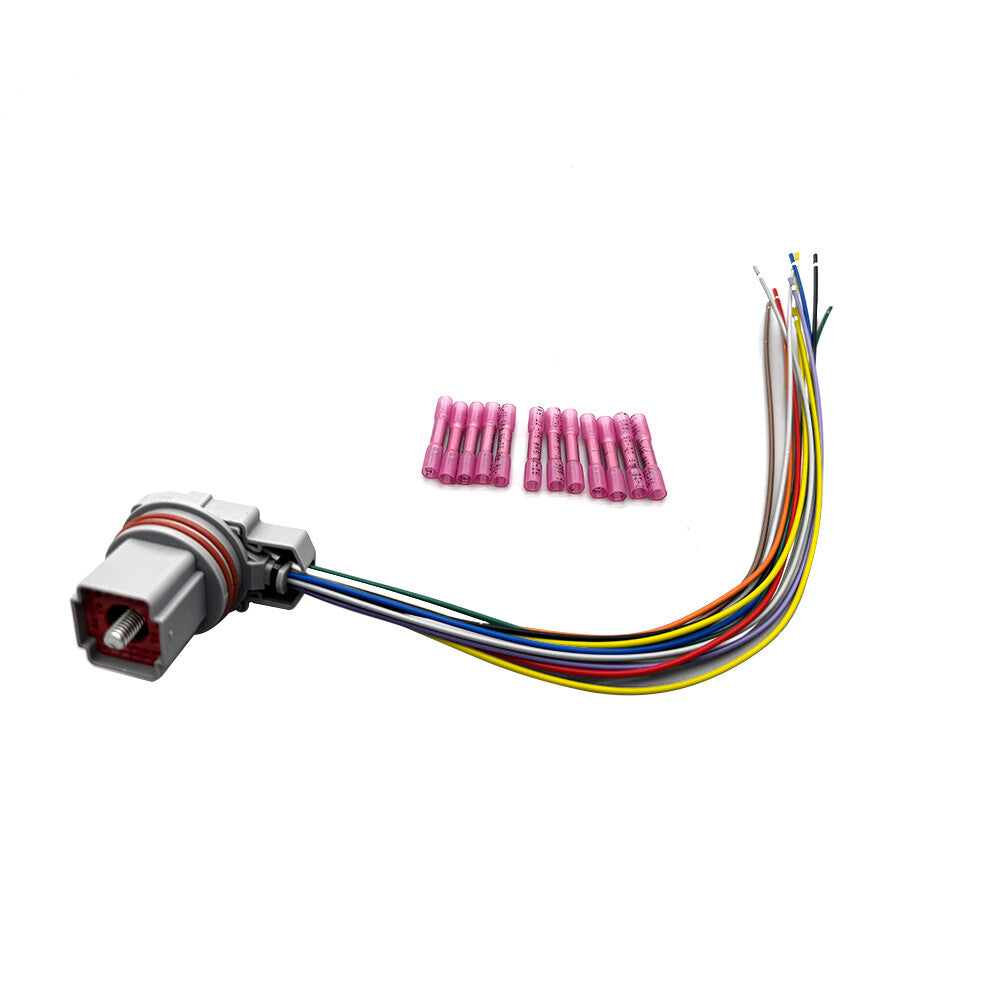

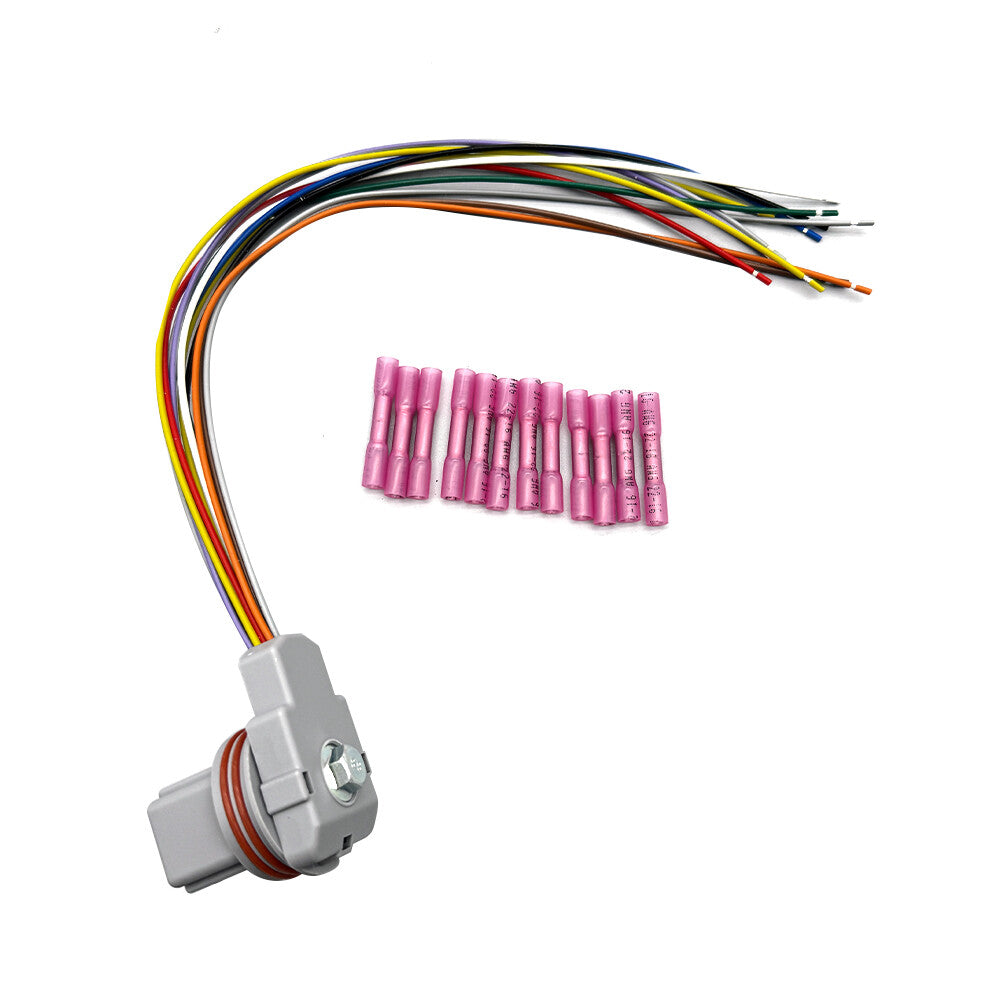

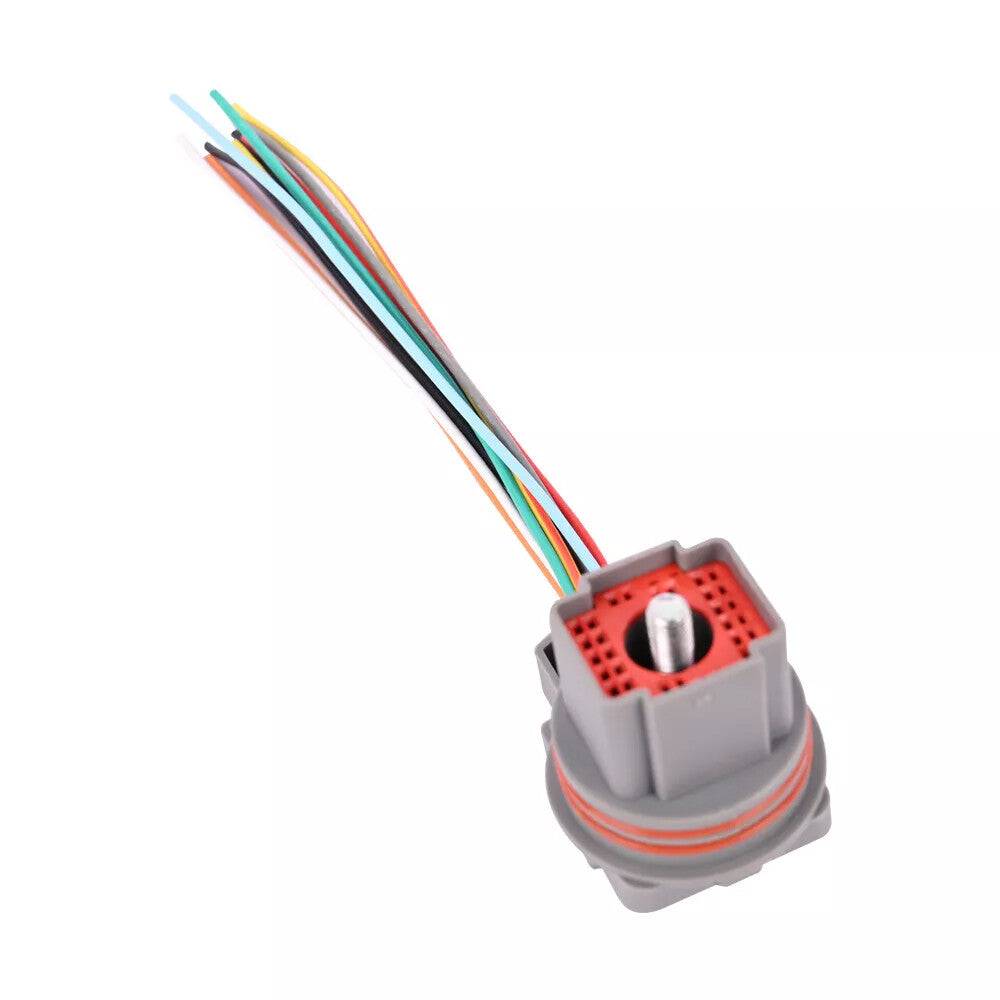

12 Wire Harness Pigtail Repair Kit For Ford 2003-2015 5R55W 5R55S Transmission

12 Wire Harness Pigtail Repair Kit for Ford

This 12 Wire Harness Pigtail Repair Kit for Ford restores critical electrical connections between the vehicle control system and the transmission assembly.

Overview

This 12 Wire Harness Pigtail Repair Kit for Ford allows for the direct replacement of a damaged or corroded transmission connector. The 12 Wire Harness Pigtail Repair Kit for Ford is engineered to restore proper communication between the internal solenoids and the powertrain control module. Professional mechanics use this 12 Wire Harness Pigtail Repair Kit for Ford to resolve shifting issues without needing to replace the entire internal or external wire assembly.

Built For Performance

• 12 independent wire leads provide a complete connection for the transmission pigtail.
• High-quality insulation prevents electrical shorts and resists fluid damage.
• Precision-molded connector ensures a tight fit with the transmission case plug.
• Durable copper terminals maintain strong signal integrity for shifting solenoids.
• Color-coded wiring assists in identifying and matching original circuit paths.

Fits These Machines

• for Ford 5R55W Transmissions 2003 to 2015
• for Ford 5R55S Transmissions 2003 to 2015

On-The-Job Use

• Restoring electronic control unit communication with the transmission valve body.
• Repairing melted or corroded pigtail connectors during transmission overhauls.
• Solving intermittent limp mode issues caused by faulty wiring connections.
• Replacing damaged harnesses following exposure to road debris or heat.

Specs At A Glance

Good To Know

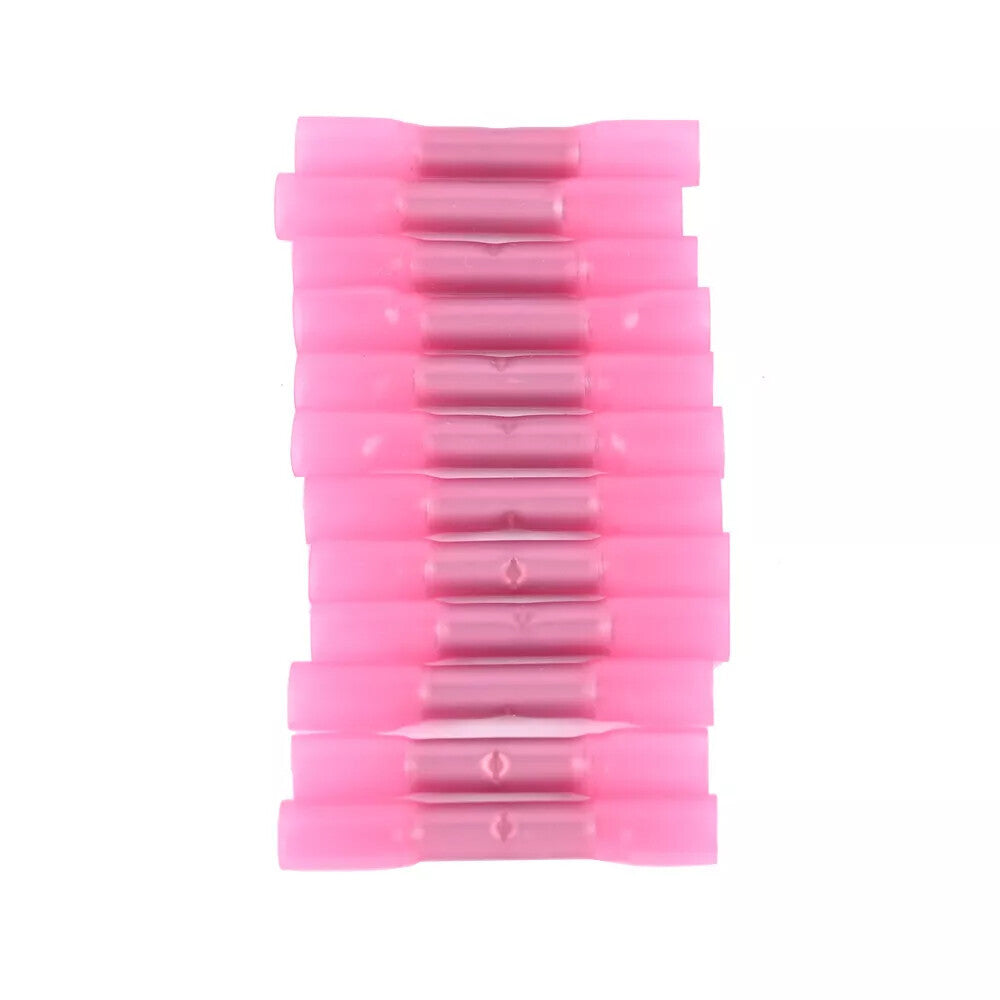

Q: Should the wires be soldered or crimped during installation? A: Soldering with heat-shrink tubing is generally recommended to ensure a permanent, vibration-resistant connection in automotive environments.

Q: Is this pigtail compatible with 4-wheel drive and 2-wheel drive models? A: This repair kit is compatible with both drive configurations as long as the vehicle is equipped with the 5R55W or 5R55S transmission.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
