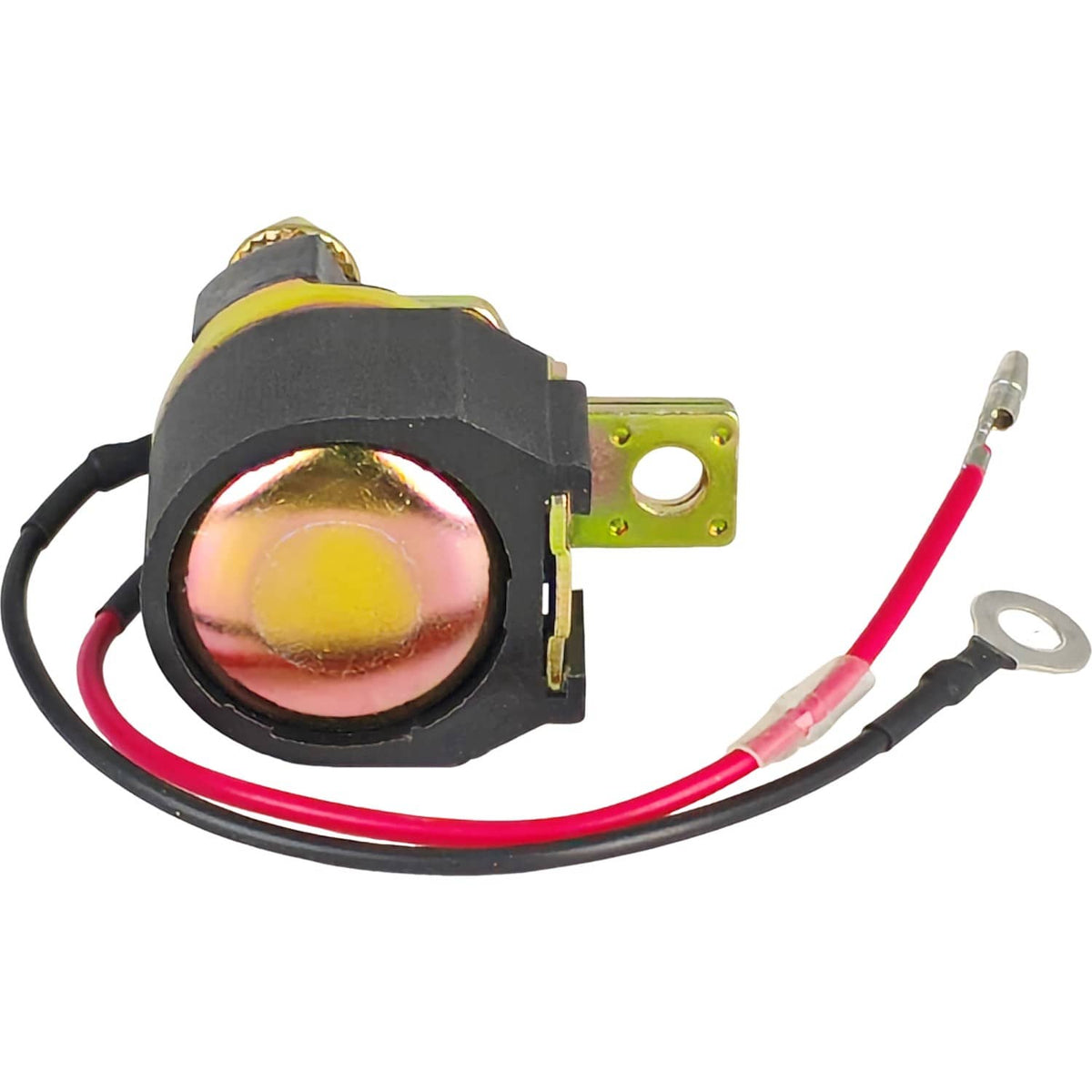

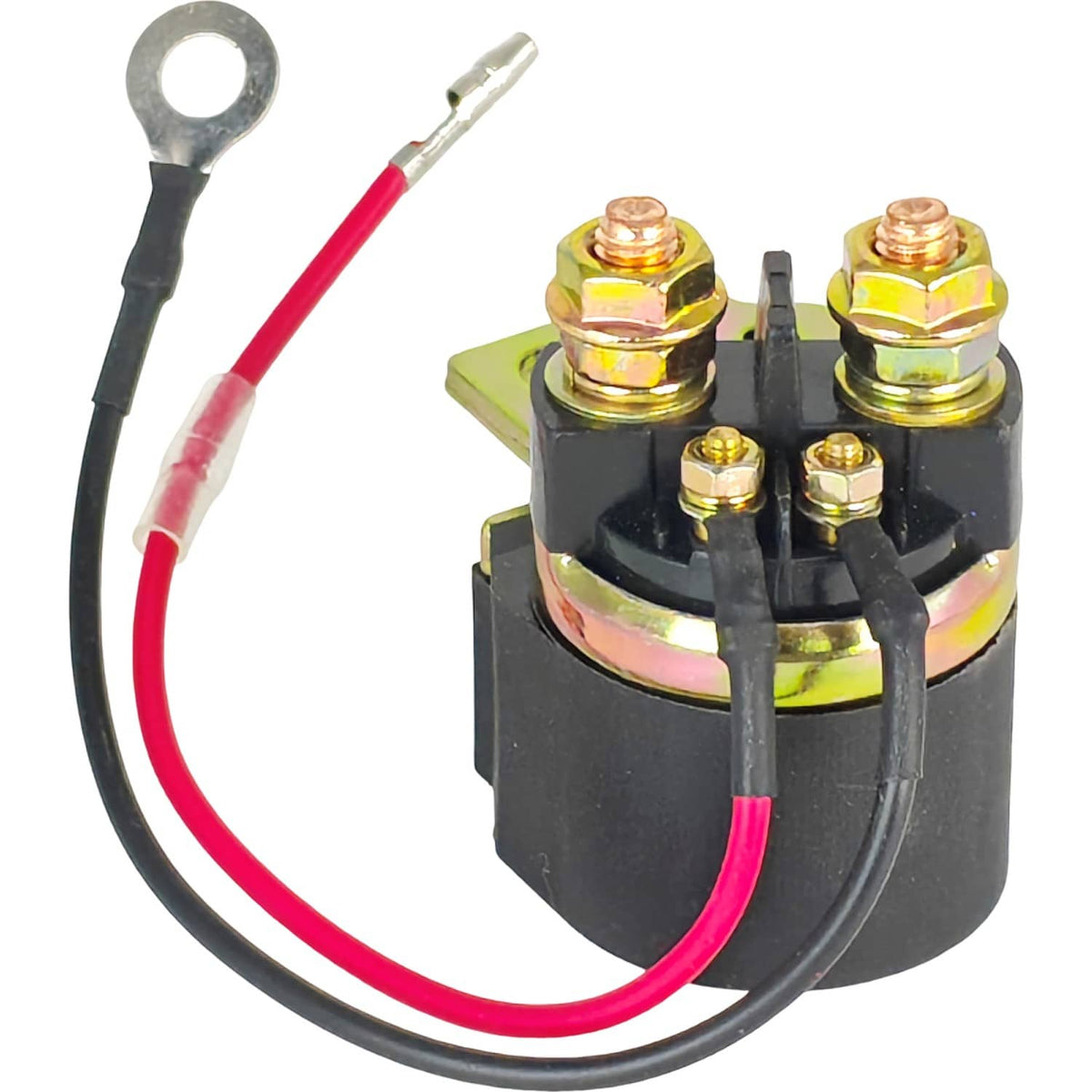

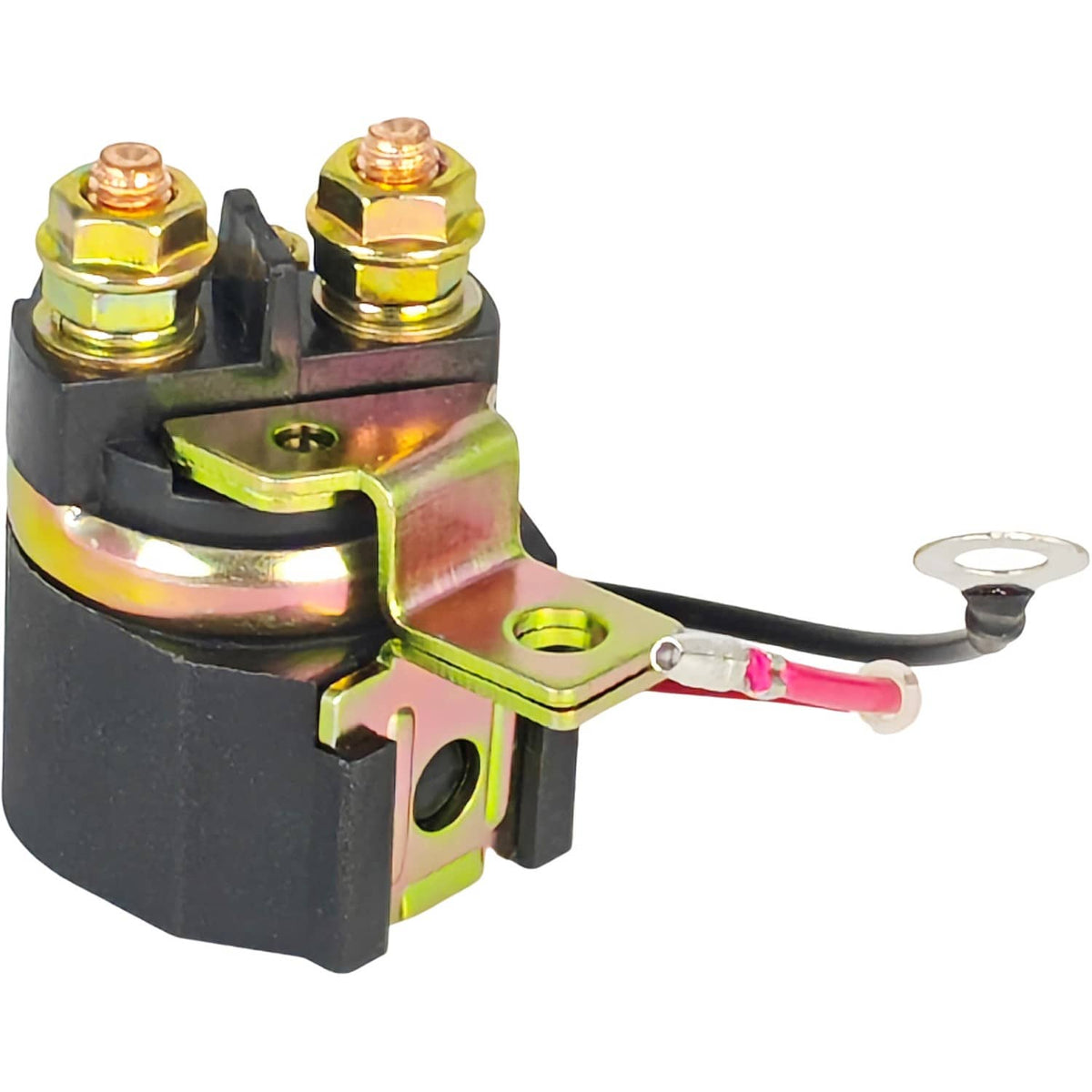

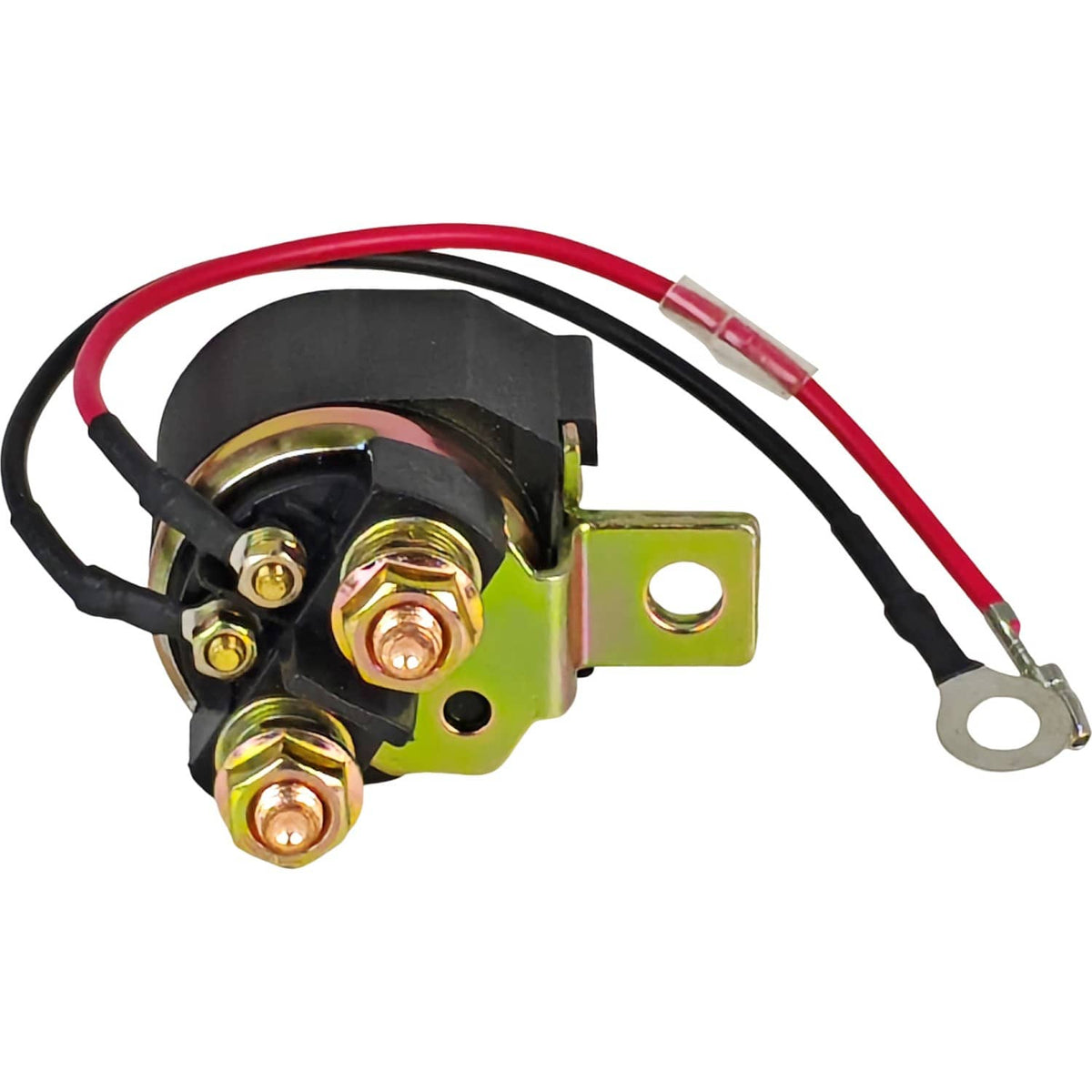

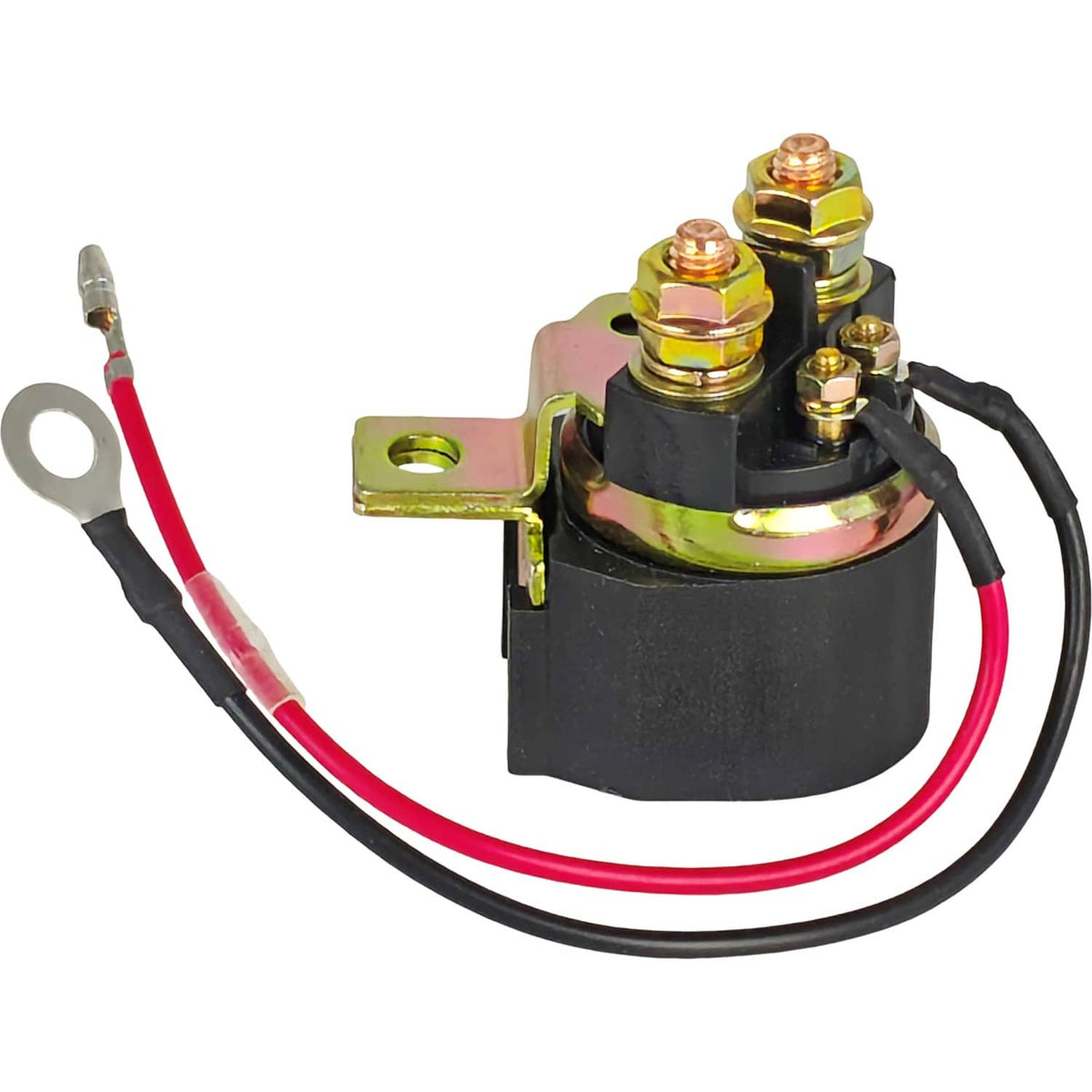

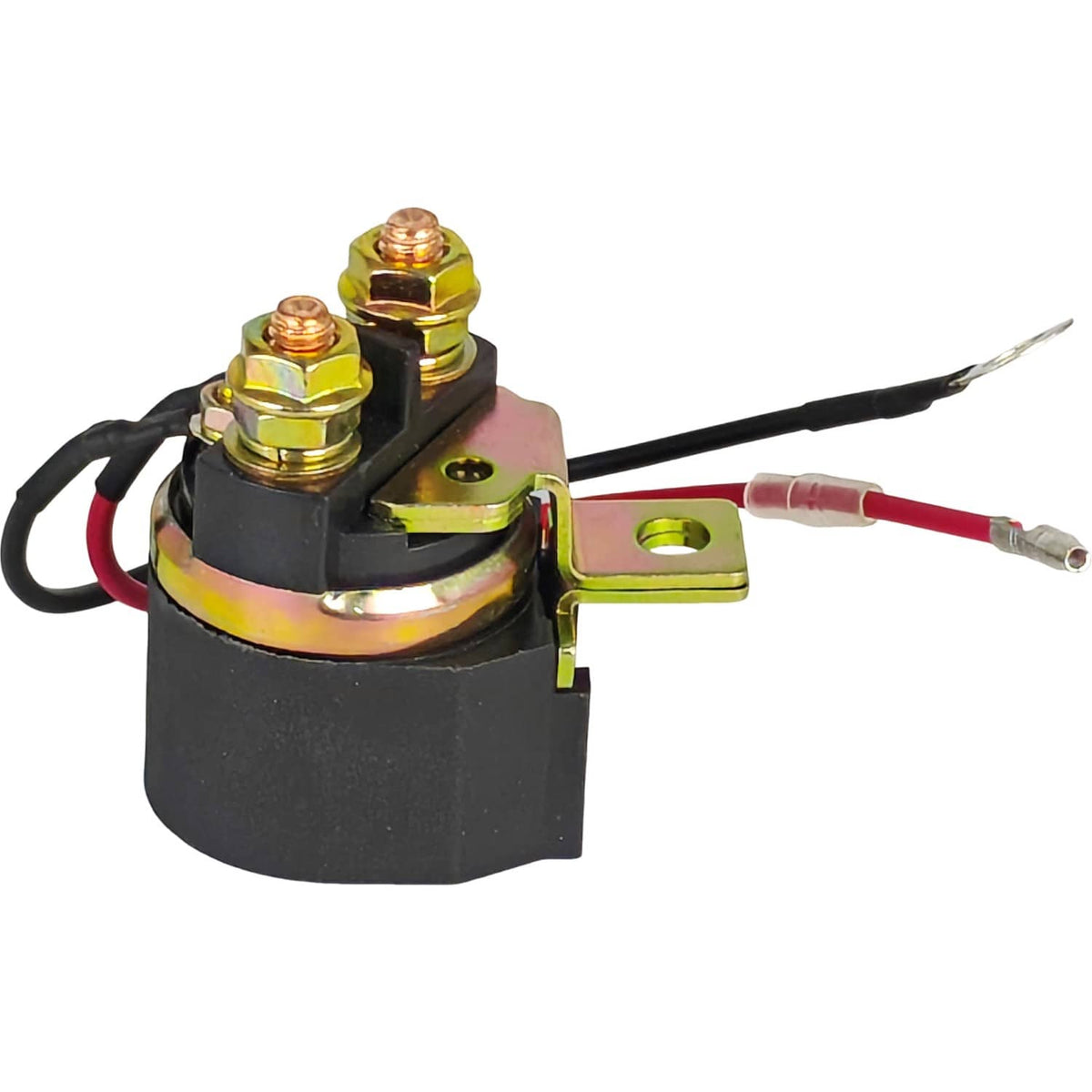

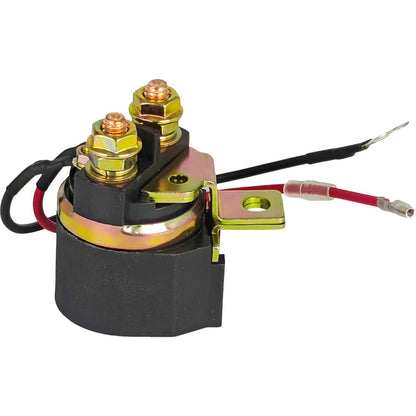

12V Electrical Solenoid Relay 688-81950-10-00 Fit for Yamaha 1986 50ESJ/50ELJ

12V Electrical Solenoid Relay for Yamaha

This 12V electrical solenoid relay, cross-referenced as 688-81950-10-00, is a direct-acting starter relay that routes battery power to the starter motor for reliable engine cranking. Designed for Yamaha outboard applications, this relay ensures a positive electrical connection every time you turn the key. It serves as a robust replacement for worn or failed relays on compatible Yamaha models.

Overview

This 12V electrical solenoid relay is a crucial component in the starting circuit of compatible Yamaha outboard motors, managing the high current flow needed to engage the starter. It operates by using a small control signal to close a heavy-duty internal contact, safely delivering full battery voltage to the starter. This relay is intended for boat owners and technicians maintaining specific Yamaha outboard models from the mid-1980s.

Built For Performance

• Rated for 12V DC electrical systems to match standard marine battery output
• Constructed with a sealed housing to resist moisture and corrosion in marine environments
• Features heavy-duty internal contacts for reliable current handling and long service life
• Utilizes standard blade or post terminals for straightforward wiring in the starting circuit
• Compact design allows for direct mounting in the original relay location

Fits These Machines

• for Yamaha 1986 50ESJ
• for Yamaha 1986 50ELJ

On-The-Job Use

• Replaces a faulty relay to restore reliable engine start-up on the water
• Provides consistent engagement for both cold starts and repeated starting cycles
• Ensures secure power delivery to the starter motor during ignition

Specs At A Glance

Good To Know

Q: How do I know this relay is faulty? A: Common signs include a clicking sound without the engine cranking or a completely silent starter when the key is turned, indicating the relay is not closing its internal contacts.

Q: Is this relay a direct replacement for my original part? A: Yes, it is designed as a direct replacement for the OEM part number 688-81950-10-00, matching its electrical specifications and mounting configuration.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
