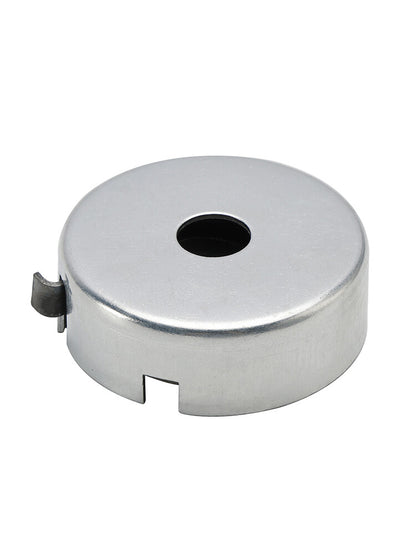

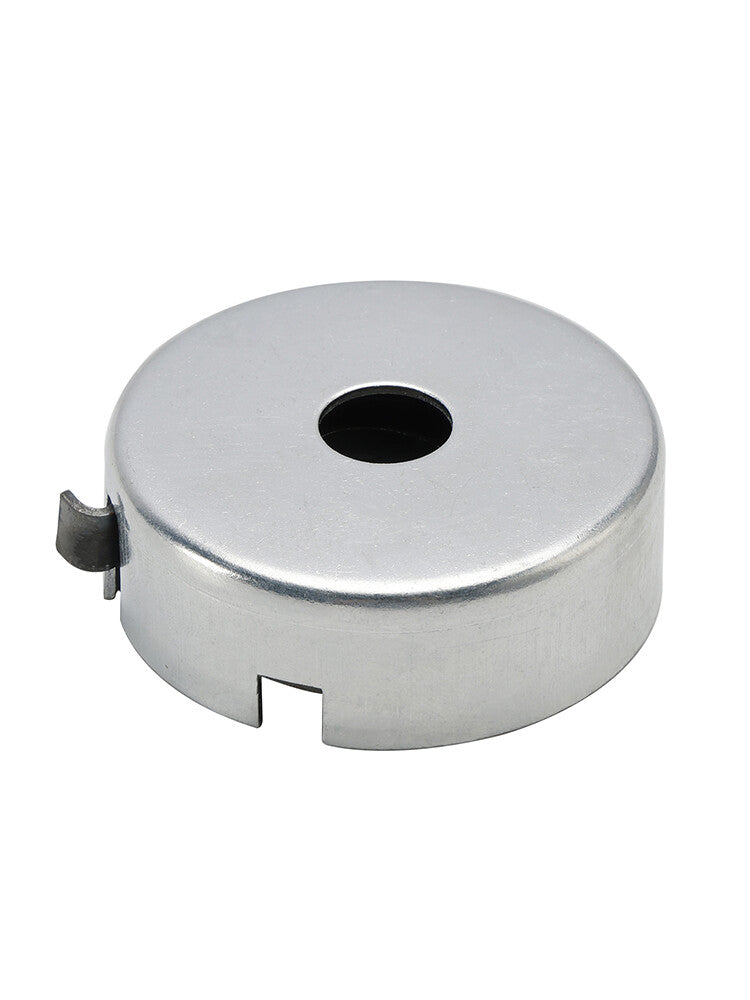

1310082 Pinion Return Spring Fits For Delta and Rockwell Drill Presses

1310082 Pinion Return Spring for Delta and Rockwell Drill Presses

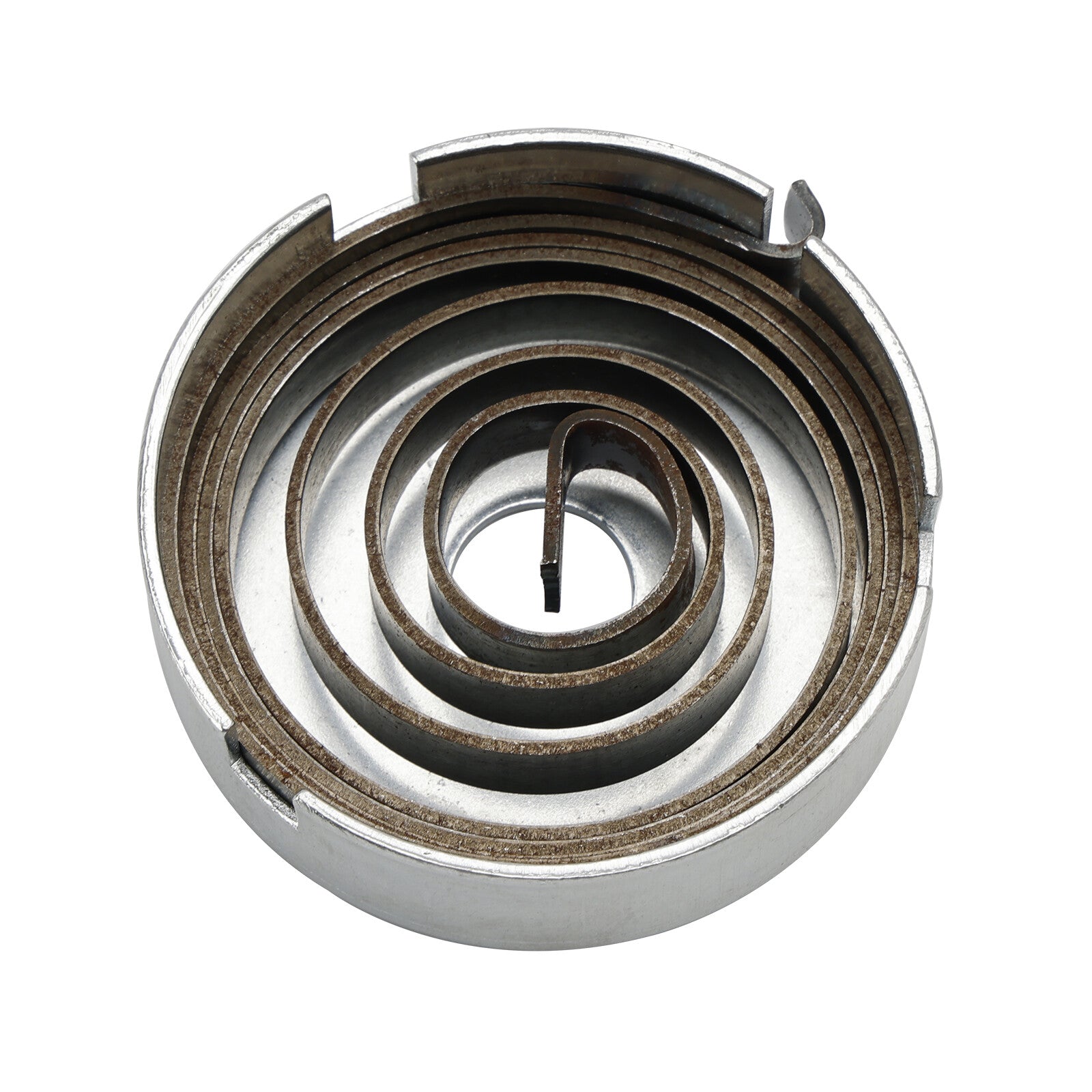

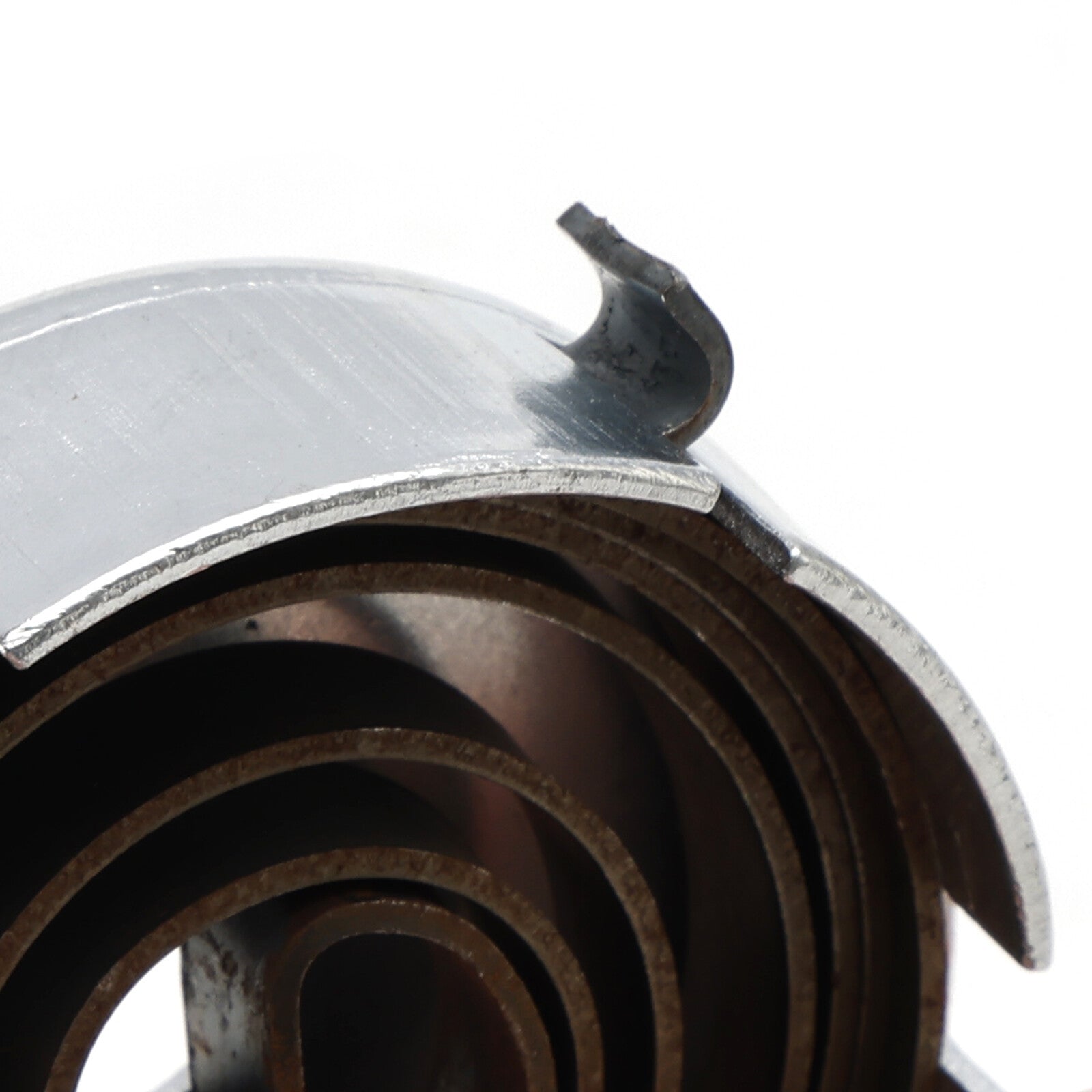

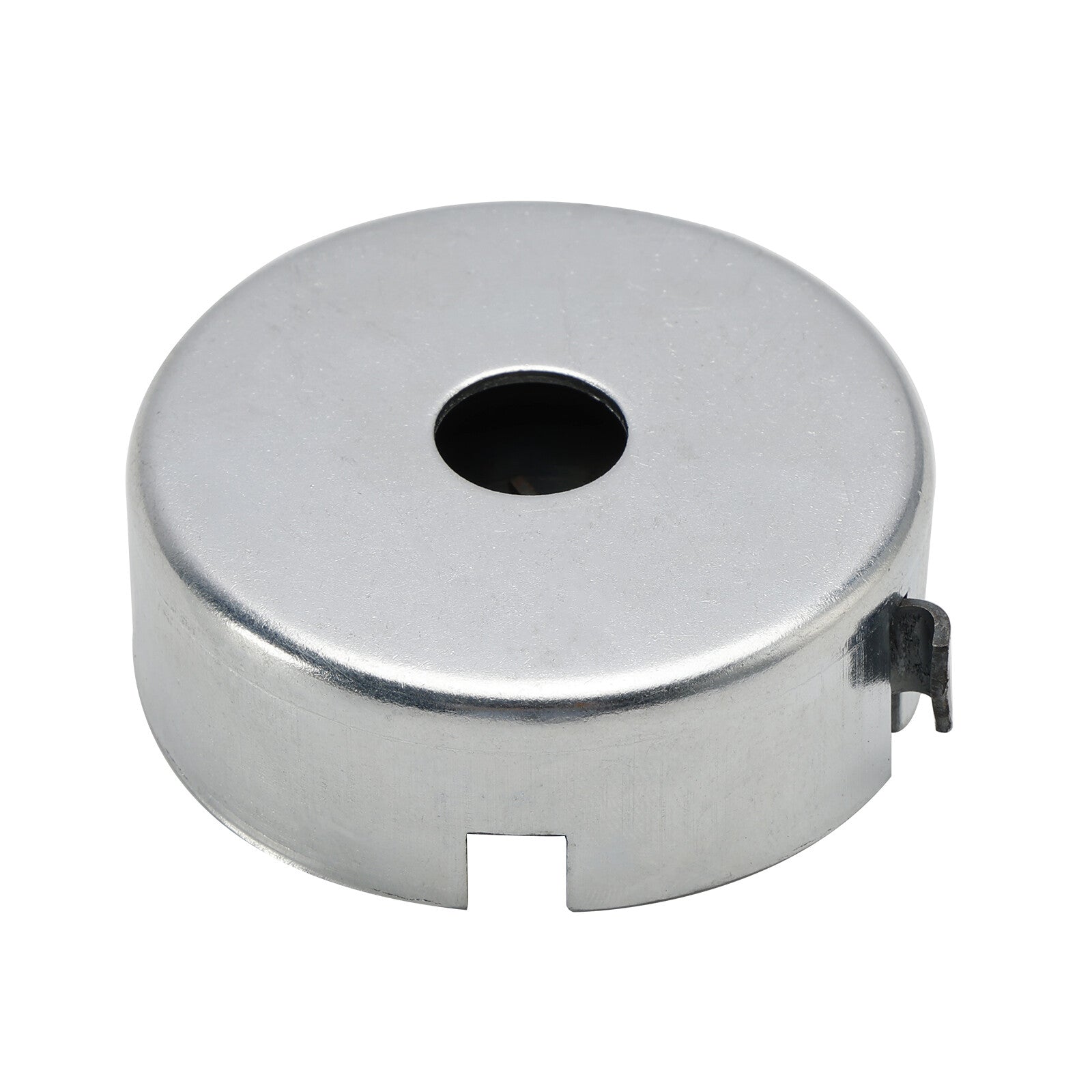

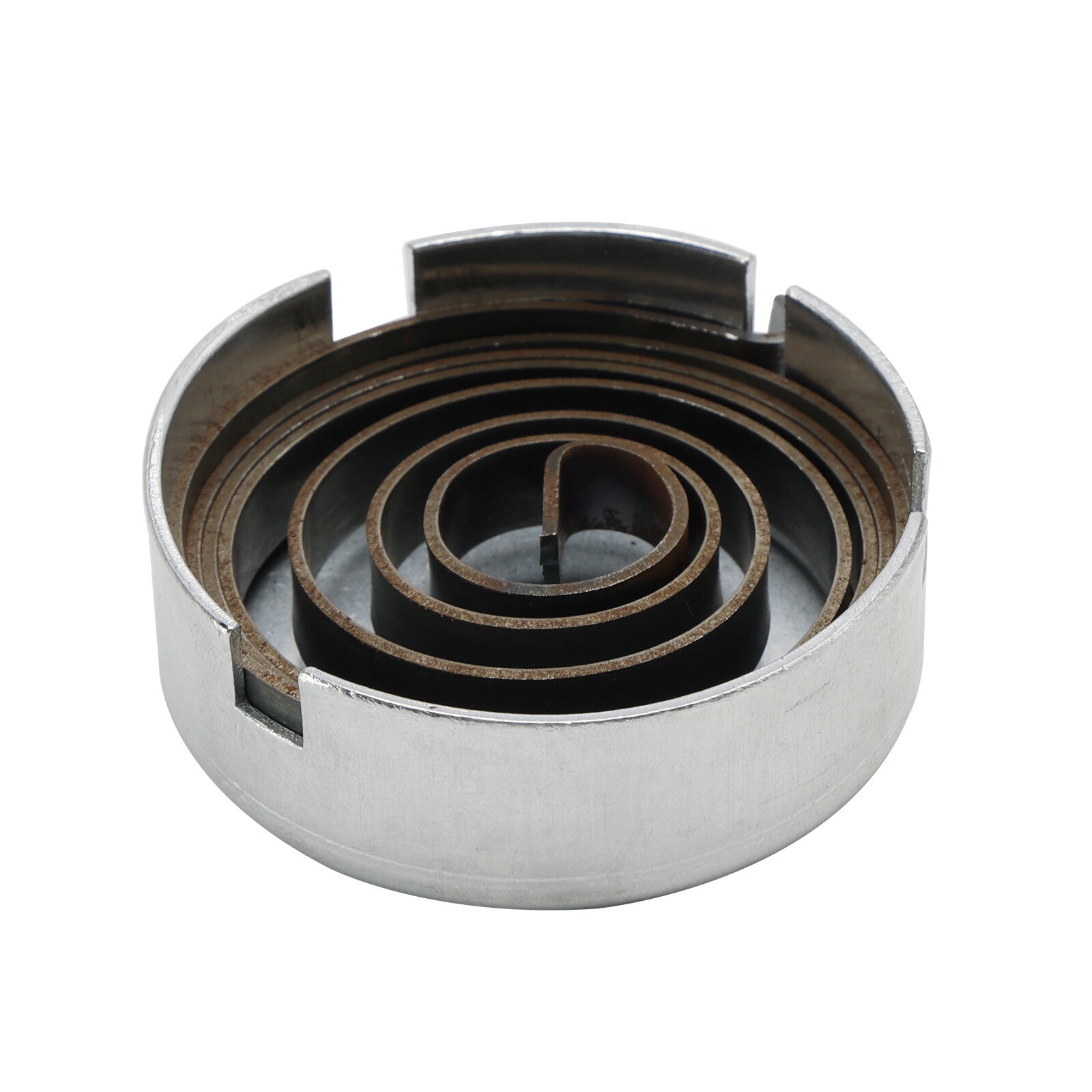

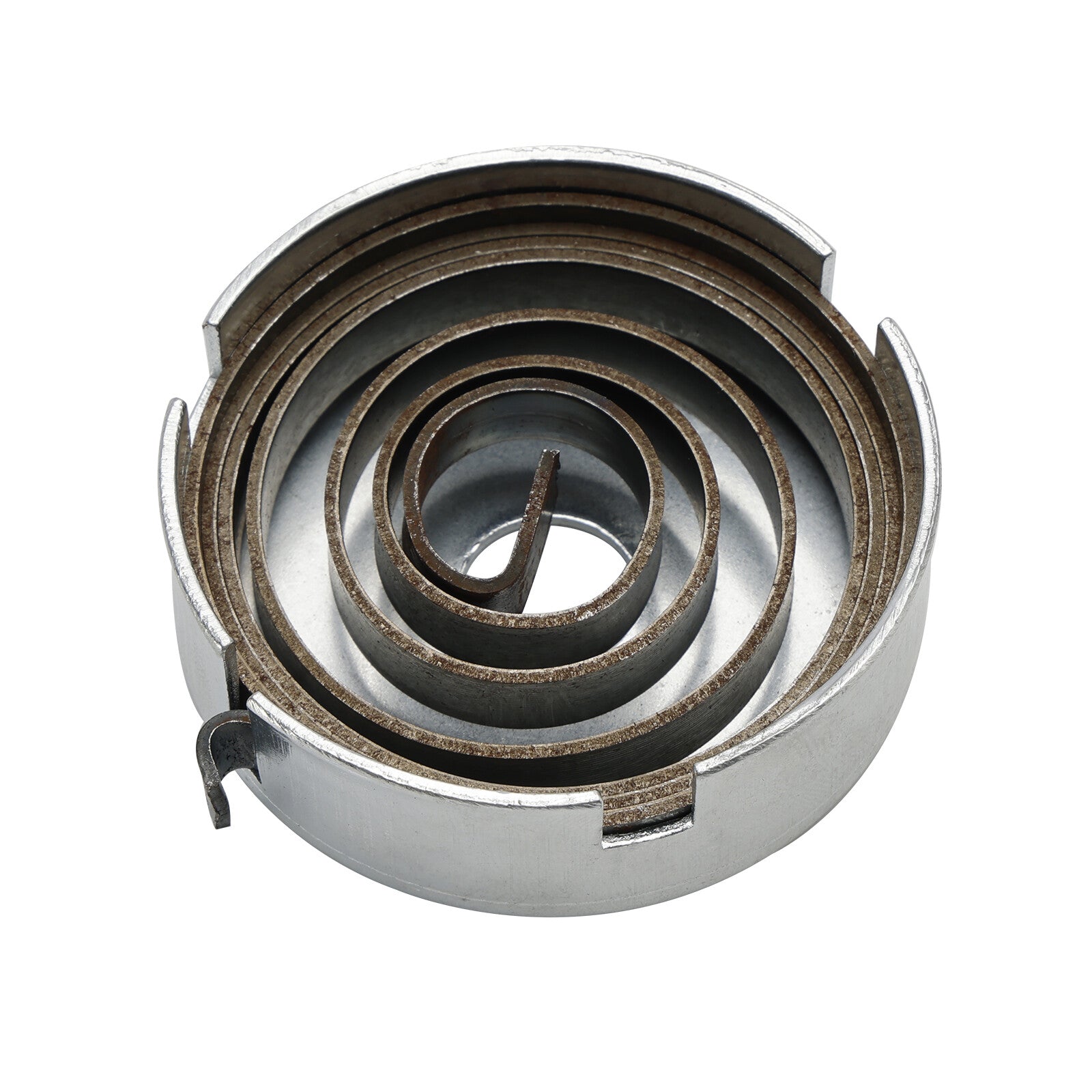

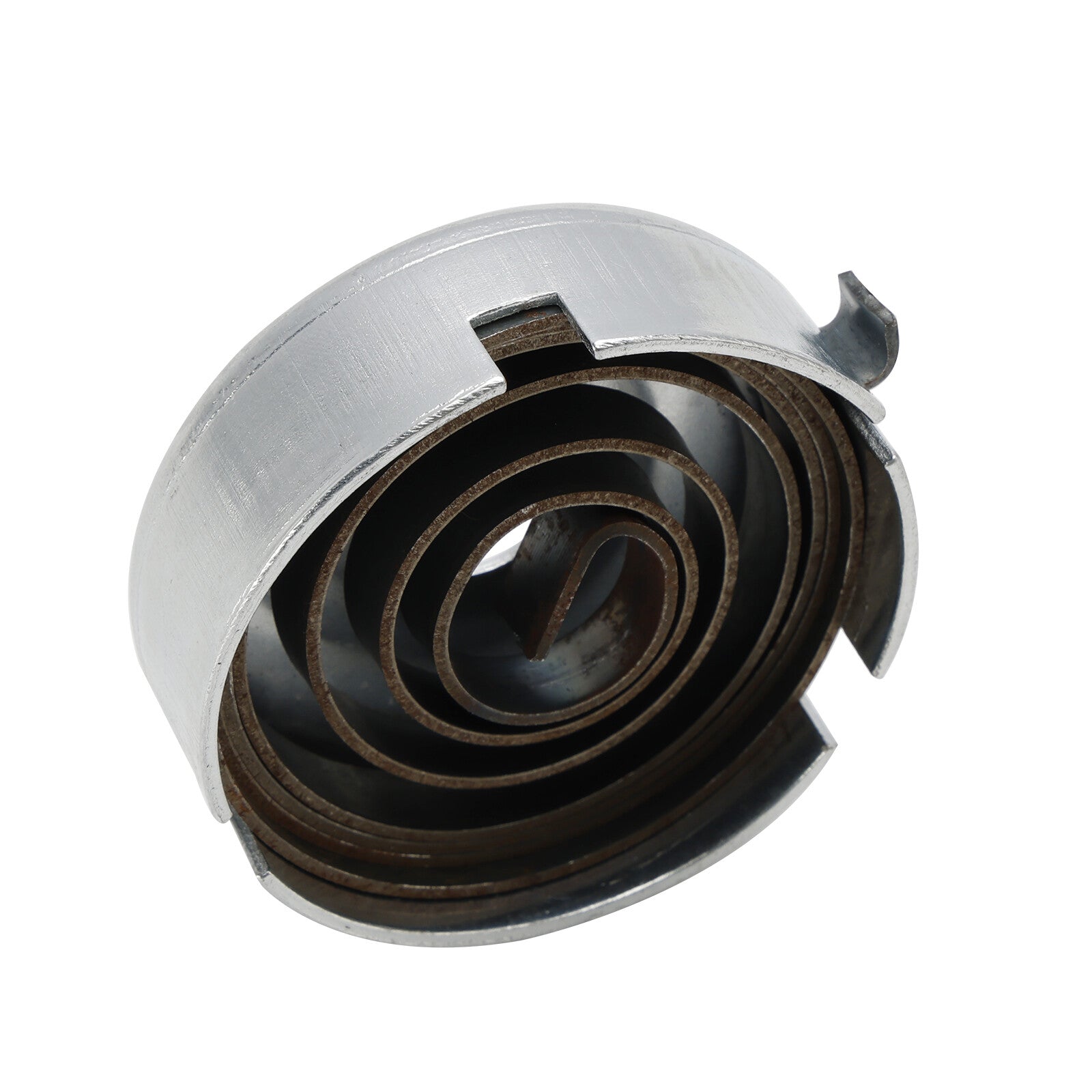

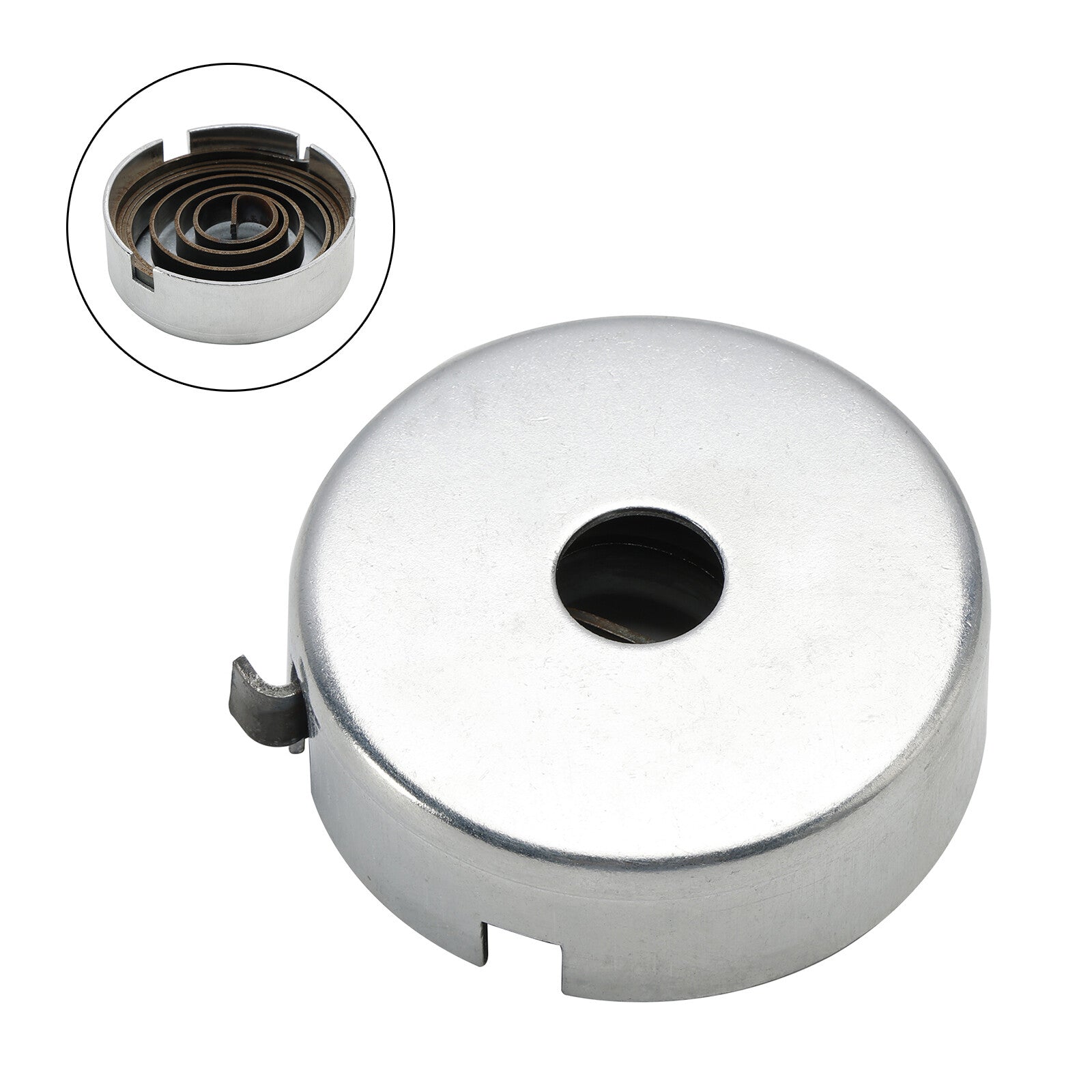

This heavy-duty steel torsion spring, cross-referencing part number 1310082, provides tension to automatically return the drill press quill to its raised position.

Overview

This pinion return spring for Delta and Rockwell drill presses restores the automatic upward movement of the drill press spindle. Utilizing this pinion return spring for Delta and Rockwell drill presses ensures safe operation by preventing the spindle from dropping unexpectedly after a cut is completed. It is a critical replacement part for machinists, woodworkers, and tool repair technicians.

Built For Performance

• High-tension carbon steel construction ensures durable, repeatable spring-back action
• Durable coil design resists metal fatigue over thousands of drilling cycles
• Sized accurately to lock securely into original factory housing slots
• Provides the exact resistance required for standard manual drill press quills

Fits These Machines

• for Delta Drill Presses
• for Rockwell Drill Presses

On-The-Job Use

• Replacing weak or broken quill return springs during drill press restoration
• Restoring precise tension to stop the spindle from dropping under its own weight
• Ensuring smooth and safe return strokes during repeated production drilling runs

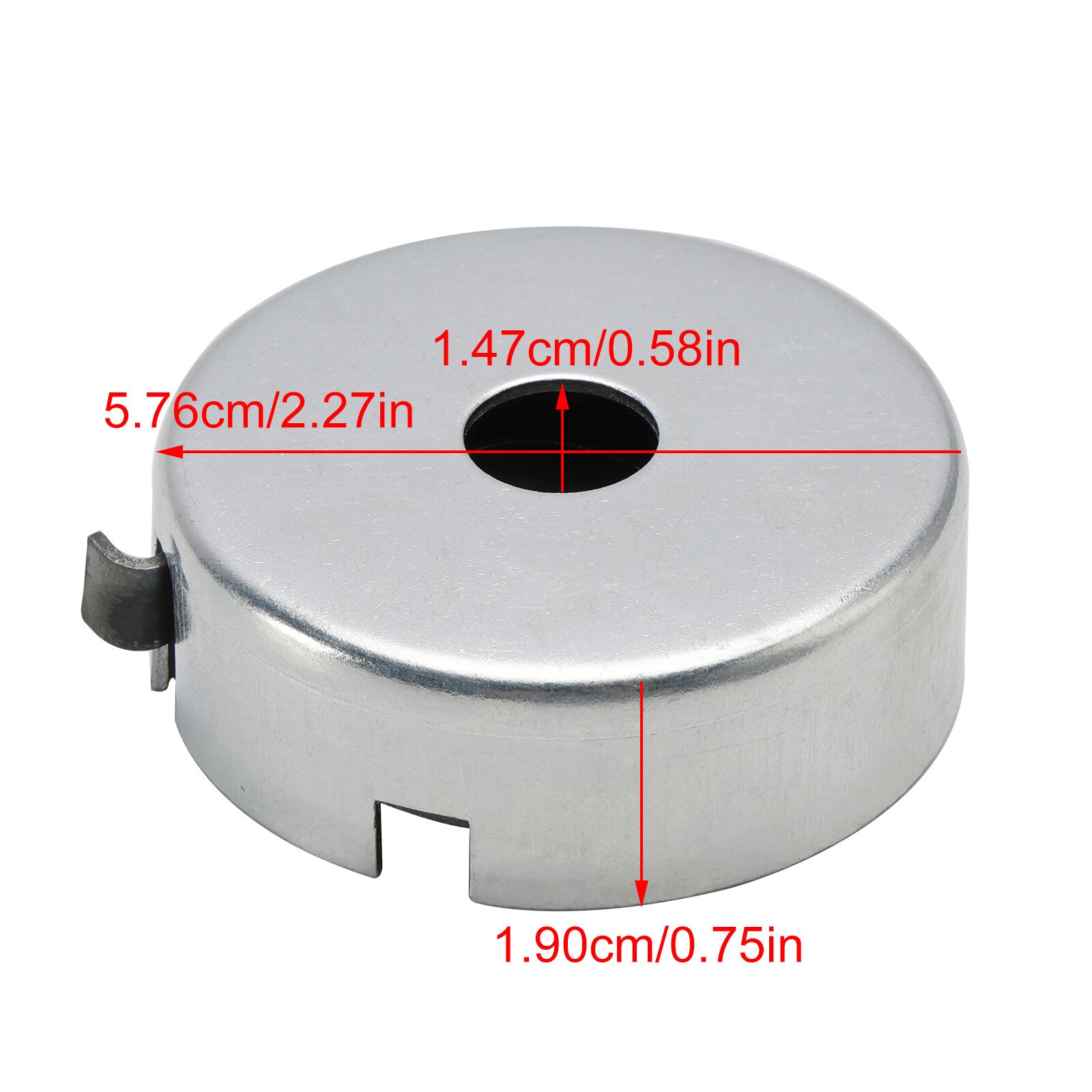

Specs At A Glance

Good To Know

Q: Is there a specific safety precaution I should take during installation? A: Quill return springs are under high tension inside their metal housings; always wear heavy work gloves and safety glasses during removal and installation.

Q: How can I adjust the tension on the newly installed spring? A: Tension is adjusted by turning the entire spring housing cap on the side of the drill press head before locking it securely in place.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
