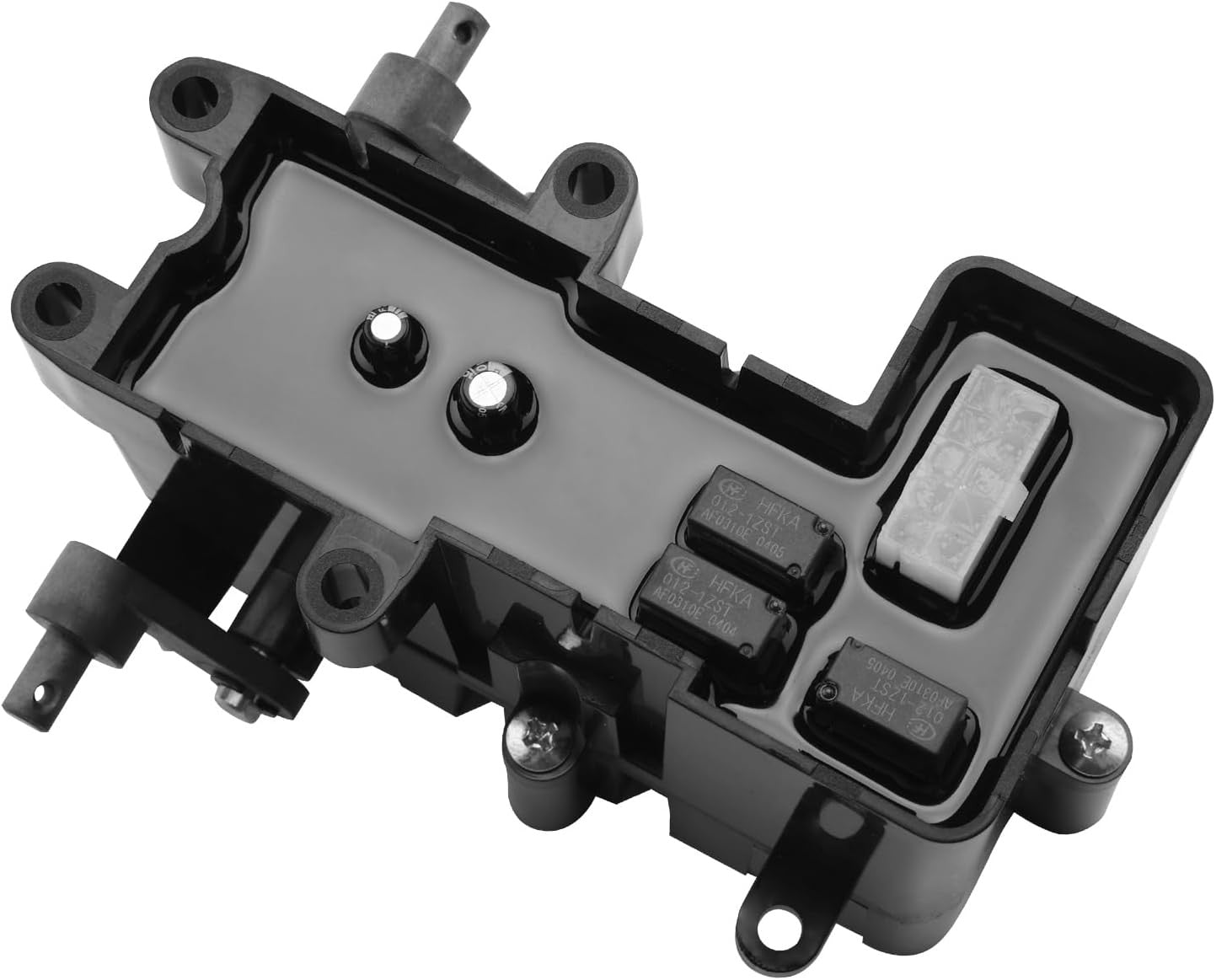

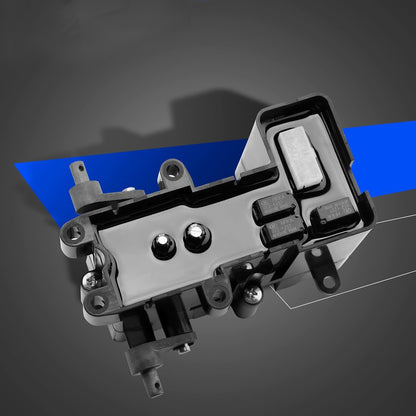

138-2514 Brake Box Assembly Brake Control Module For Toro Exmark Quest E Series
138-2514 Brake Box Assembly Brake Control Module For Toro Exmark Quest E Series
FREE, Fast Shipping on all orders!
Brake Box Assembly for Toro Exmark Quest E Series
The 138-2514 brake box assembly replaces the brake control module on Toro Exmark Quest E Series zero-turn mowers, managing parking brake engagement and safety interlock functions with OEM-matched plug-and-play wiring (part no. 138-2514).
Overview
The 138-2514 brake box assembly is a direct replacement brake control module for Toro Exmark Quest E Series zero-turn mowers, restoring the parking brake and safety interlock functions. This brake box assembly for Toro Exmark Quest E Series eliminates erratic brake engagement and warning light issues caused by a faulty module. Built with sealed connectors and solid-state circuitry, the brake box assembly for Toro Exmark Quest E Series withstands the vibration and moisture of daily mowing.

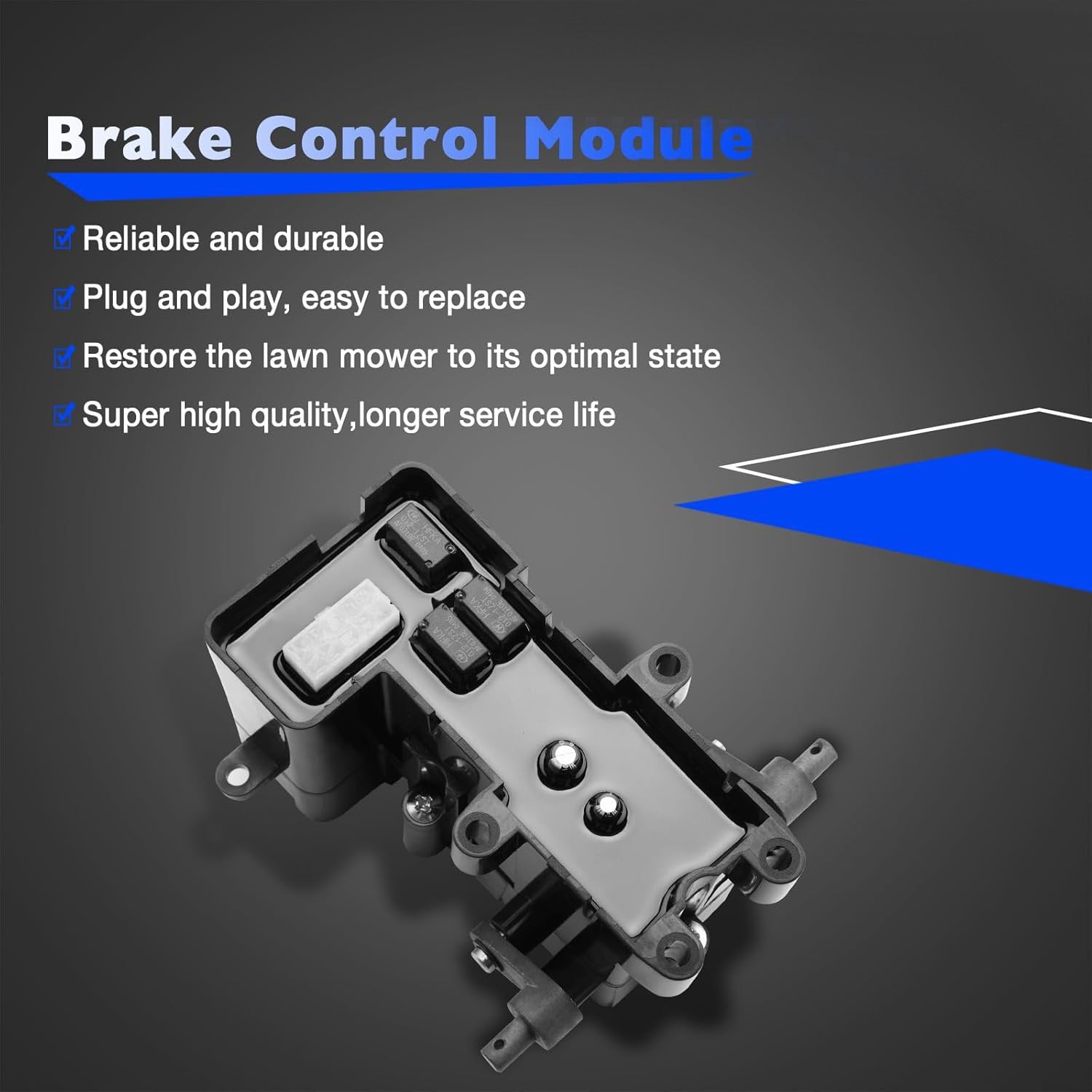

Built For Performance
- Plug-and-play wiring connectors match OEM harness without splicing
- Solid-state module ensures reliable brake engagement signal
- Sealed housing resists moisture, dust, and vibration
- Replaces part number 138-2514 with identical mounting bolt pattern
- Built-in diode protection prevents electrical feedback
- Tested for durability under repeated duty cycles

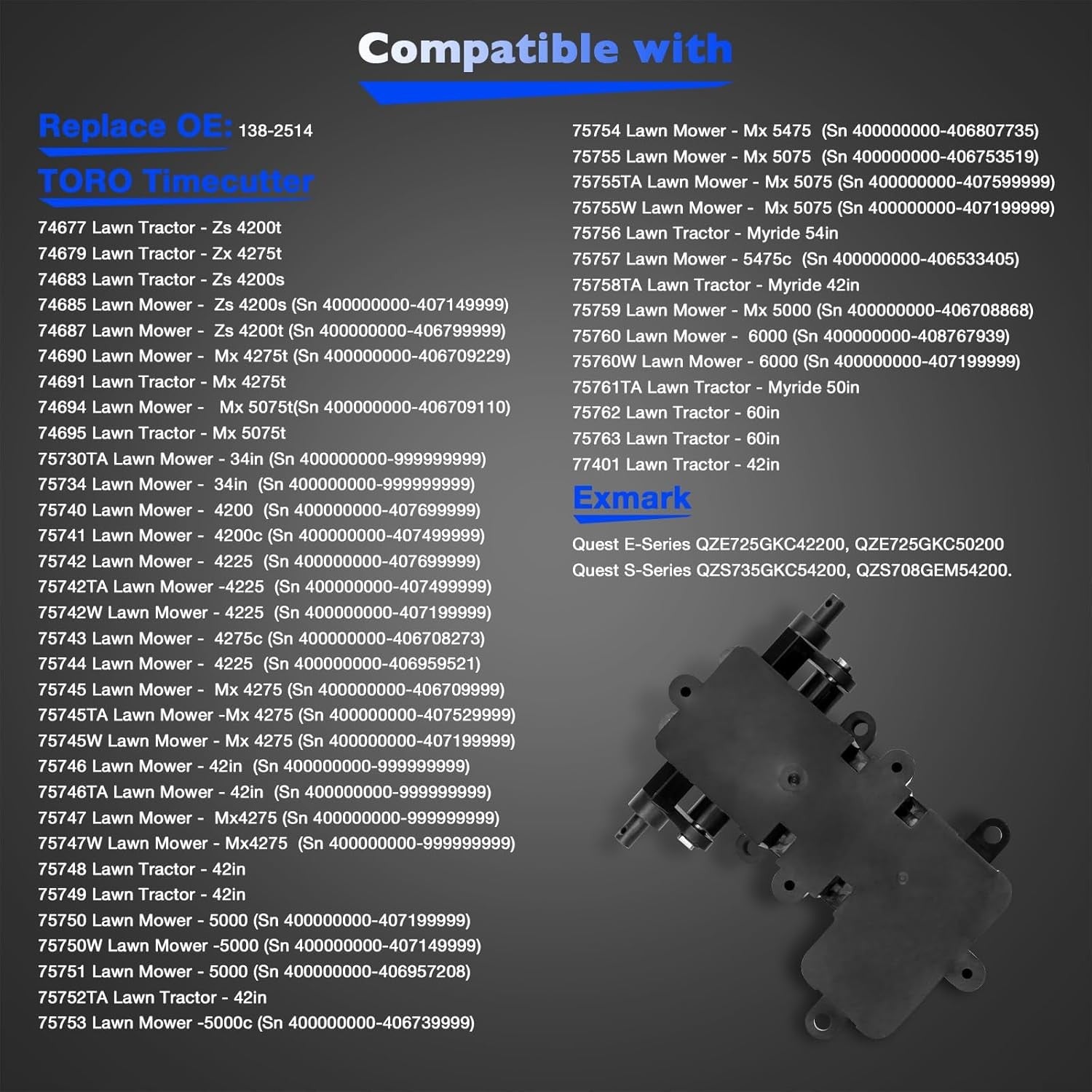

Fits These Machines
- for Exmark Quest E-Series 42" mowers
- for Exmark Quest E-Series 48" mowers
- for Exmark Quest E-Series 52" mowers
- for Exmark Quest E-Series 60" mowers
On-The-Job Use
- Engaging the parking brake during mower transport
- Safety interlock for seat switch and blade engagement
- Daily mowing operations on residential and commercial lawns
- Use during blade replacement and deck cleaning
- Locking wheels on sloped terrain
Specs At A Glance
| Part Number(s) | 138-2514 |
| Compatible Models | Exmark Quest E-Series |
| Function | Parking brake control module |
| Connector Type | Plug-and-play OEM-style |
| Housing Material | Weather-resistant polymer |
Good To Know
Q: How do I know if my brake control module is faulty? A: Symptoms include the parking brake not engaging, warning lights staying on, or the engine failing to start due to safety interlock sensor faults.
Q: Is this brake box assembly plug-and-play on my Exmark Quest E-Series? A: Yes, it features the exact factory connector and bolt pattern, requiring no wire cutting or modifications for standard Quest E-Series mowers with OEM harness.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
