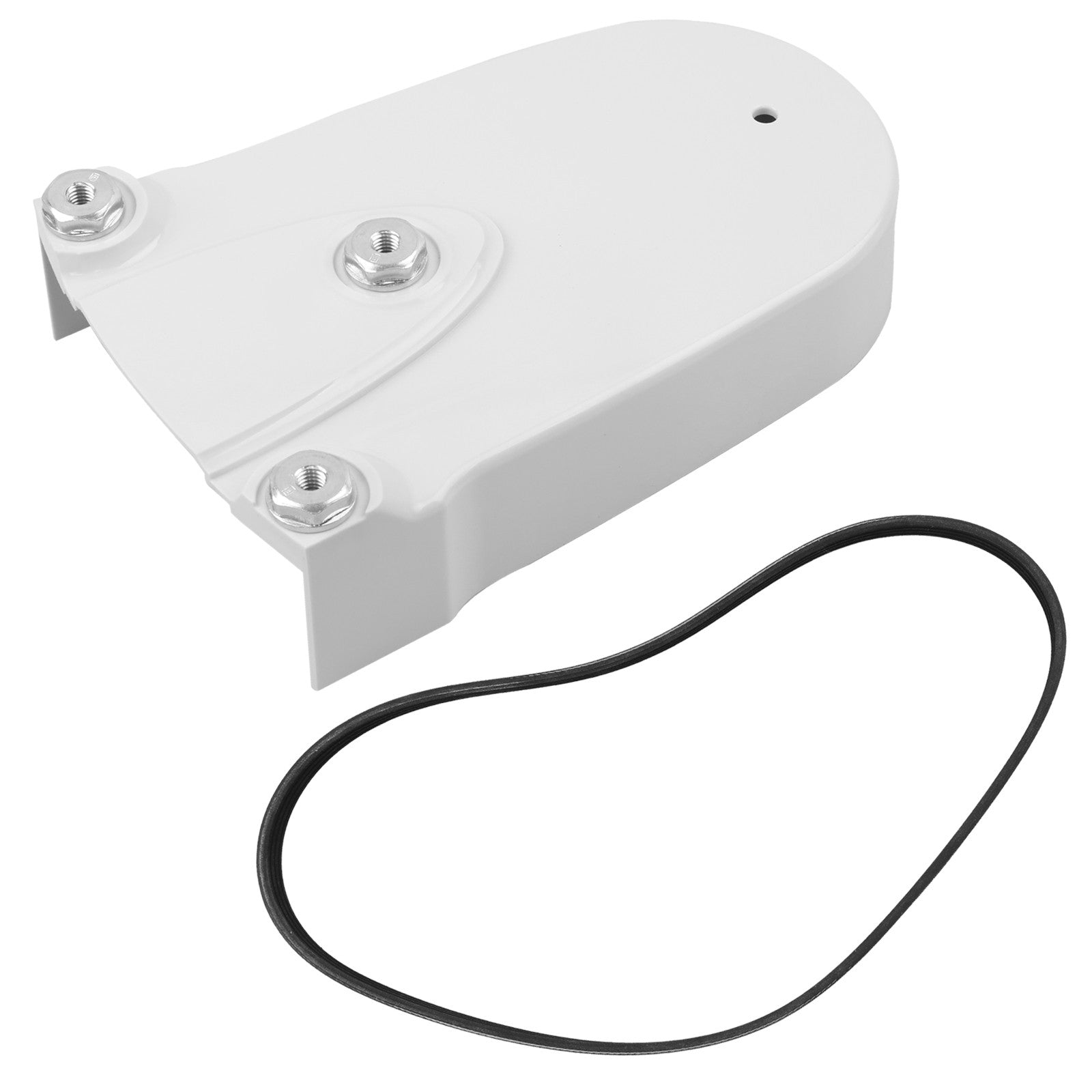

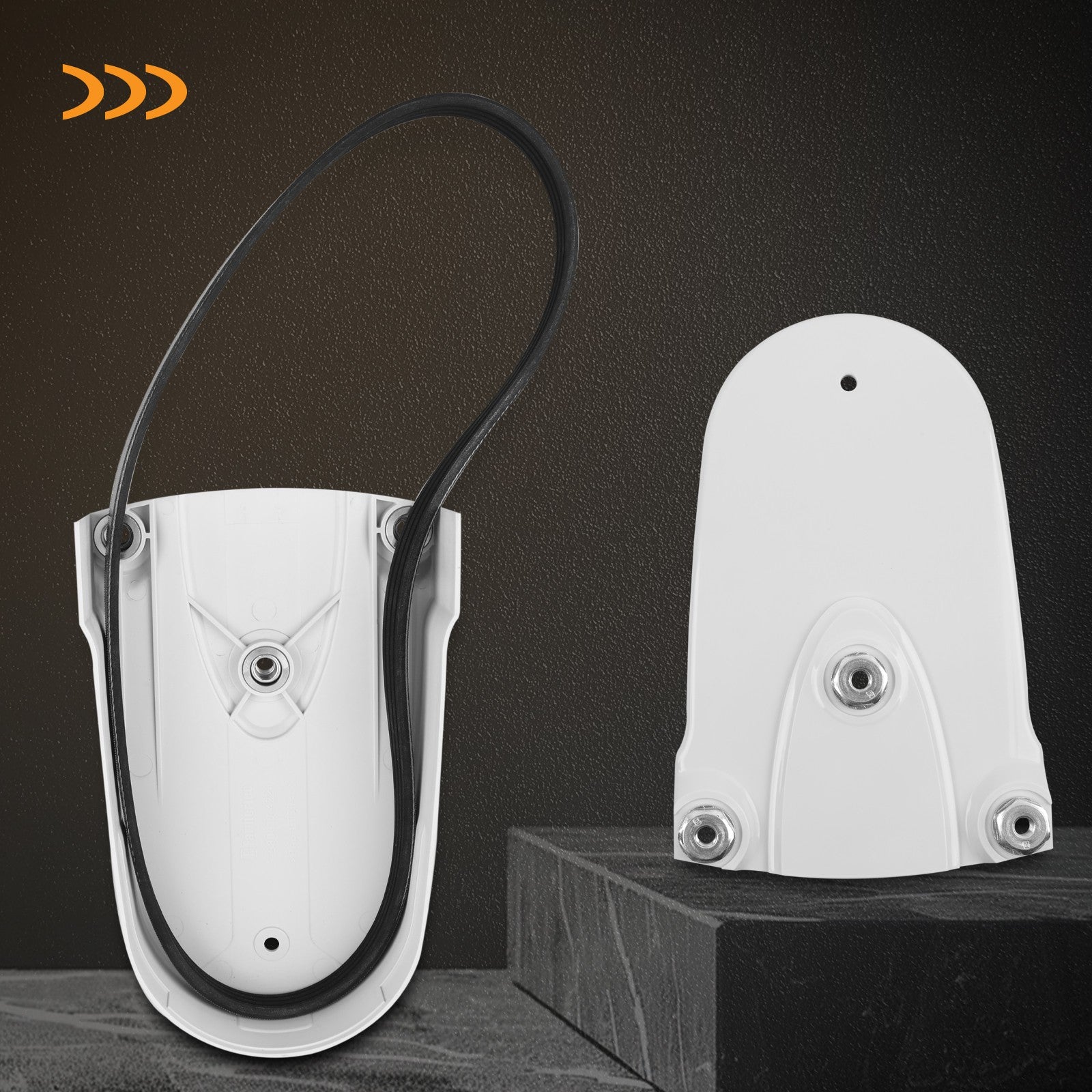

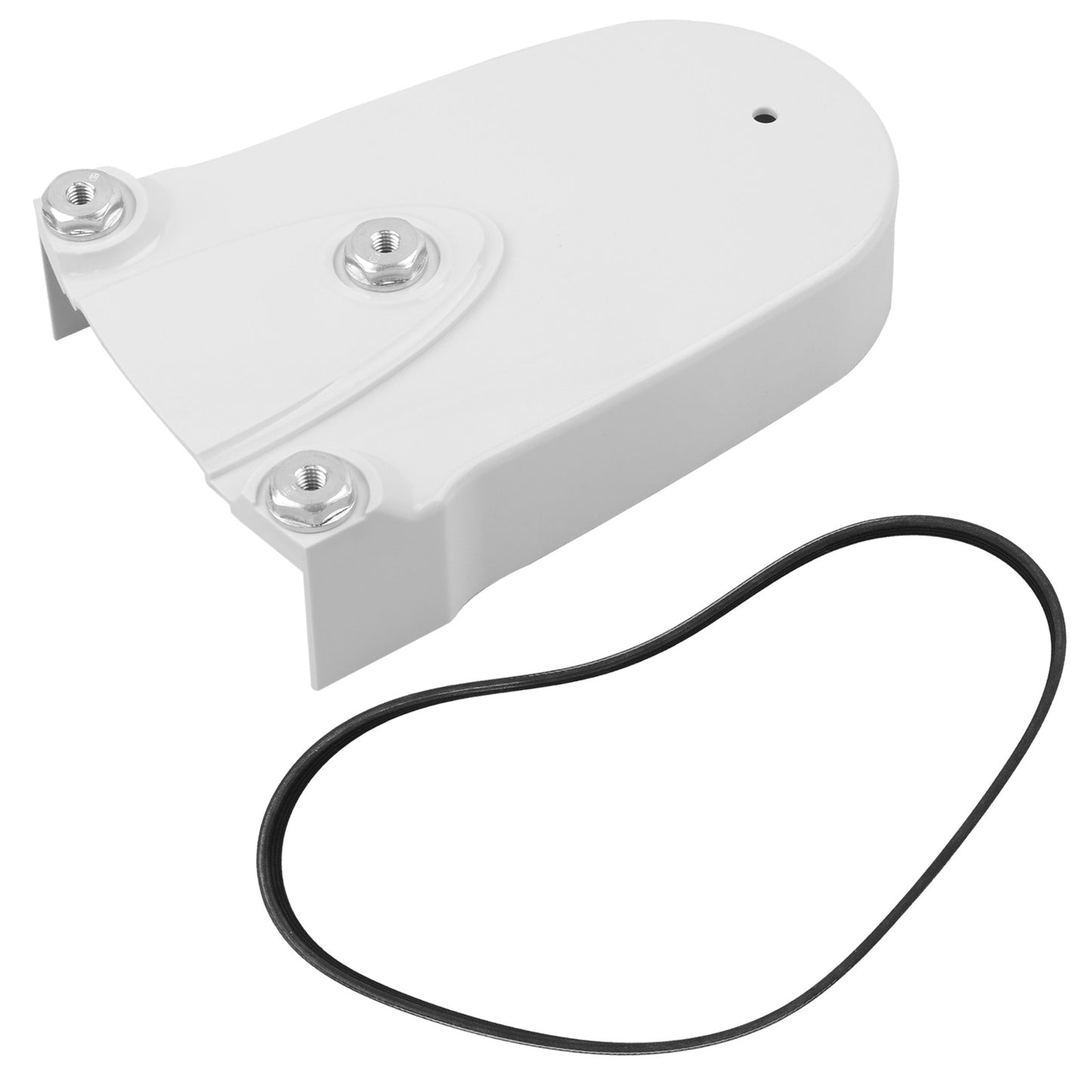

Front Belt Guard with Belt for Stihl TS700 Concrete Cut-Off Saws

This front belt guard assembly with drive belt shields the drivetrain on the Stihl TS700 concrete cut-off saw, cross-referencing OEM part number 4224-700-8115.

Overview

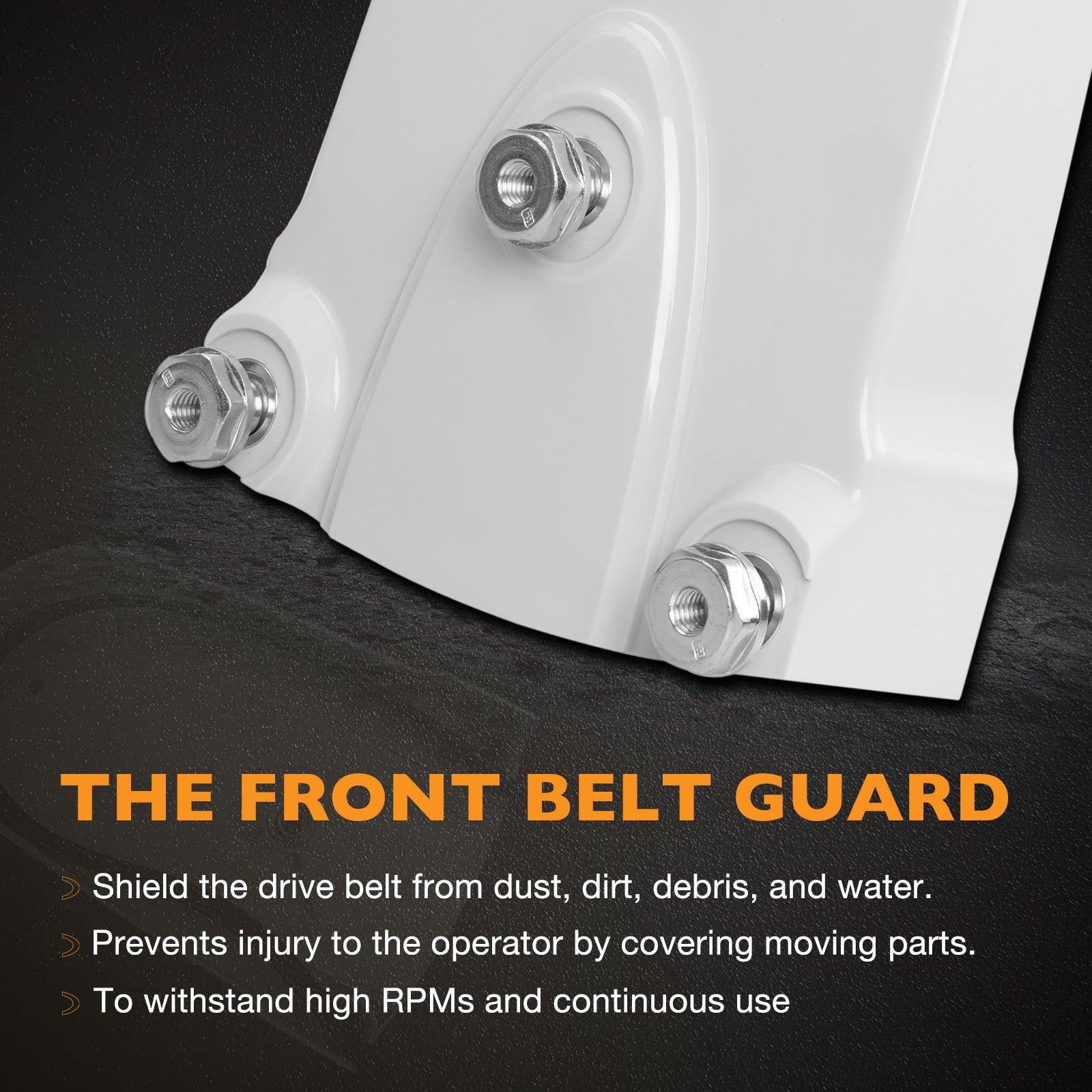

The front belt guard with belt encloses the drive belt and pulleys on a Stihl TS700 cut-off saw, preventing debris from jamming the power transmission. Concrete cutting crews and utility contractors replace this front belt guard with belt when the original shroud cracks or the belt stretches beyond tension adjustment. Molded from high-impact polymer, the front belt guard with belt keeps abrasive slurry away from the belt run, prolonging saw uptime on demanding jobsites.

Built For Performance

• Impact-resistant polymer shell withstands vibration and stray contact with cut material

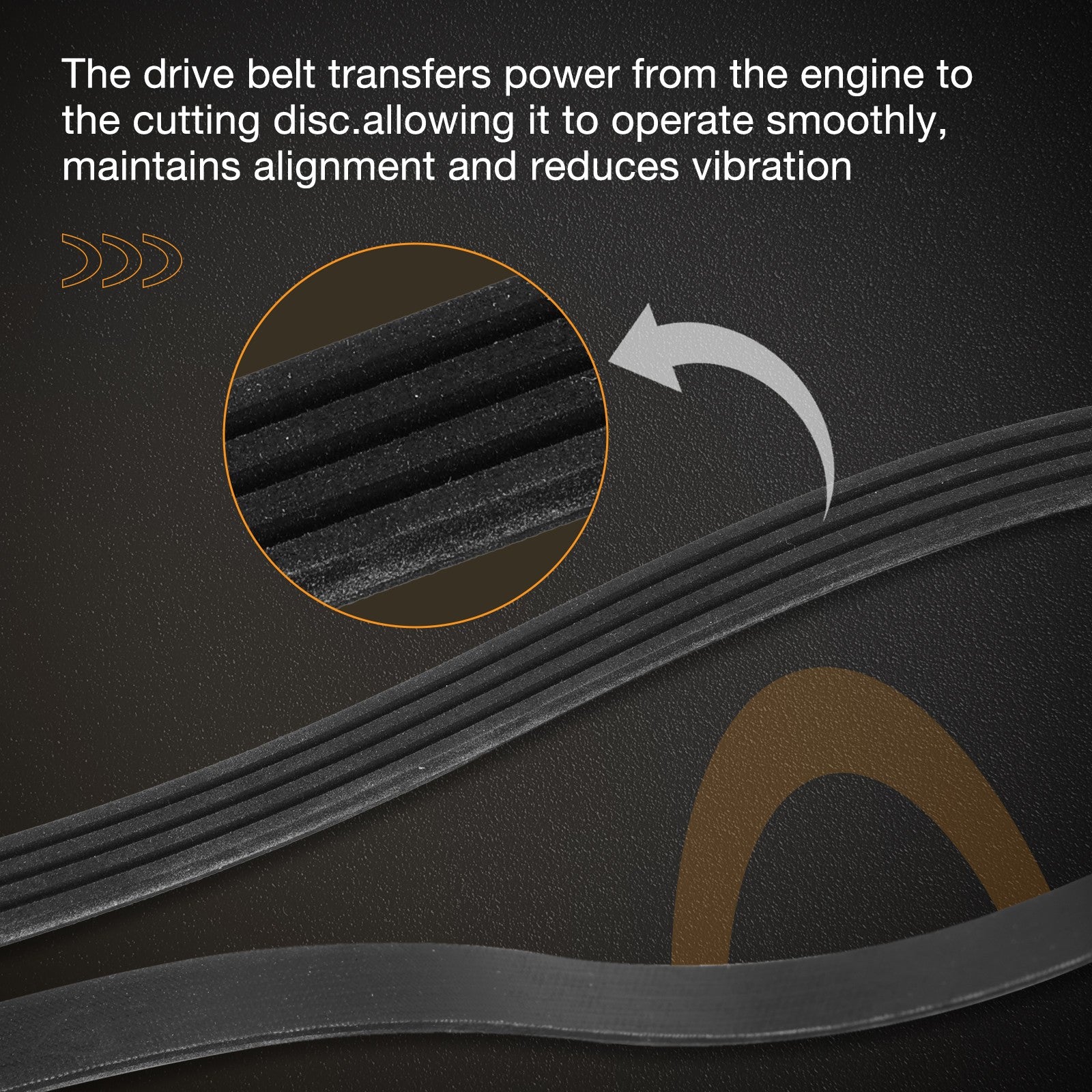

• Included belt is toothed to match the TS700 pulley profile for slip-free torque transfer
• Vented louvers in the guard body channel cooling airflow across the belt span
• Mounting bosses are reinforced with brass inserts to hold thread form under repeated removal
• Guard contour wraps tightly around the pulley flange to shed concrete dust and slurry
• Quick-access cover allows belt inspection without fully removing the guard

Fits These Machines

• for Stihl TS700 Concrete Cut-Off Saw

On-The-Job Use

• Replacing a cracked belt guard on a TS700 used for daily curb and gutter cutting
• Installing a fresh drive belt during routine saw maintenance between highway expansion joint jobs
• Protecting new pulleys after a complete driveline rebuild in a municipal repair shop
• Keeping quarry block trimming saws operational after guard damage from falling aggregate

Specs At A Glance

Good To Know

Q: Does this guard come with the drive belt already installed? A: The belt is packaged loose with the guard, so you will need to loop it over the pulleys and set proper tension using the TS700 tensioner bolt during installation.

Q: Will this front belt guard fit a TS700 that also runs a diamond chain attachment? A: The guard mounts to the same saw chassis as the standard blade setup, but you must verify clearance with the chain bar clamp because accessory brackets can slightly alter the belt plane alignment.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
