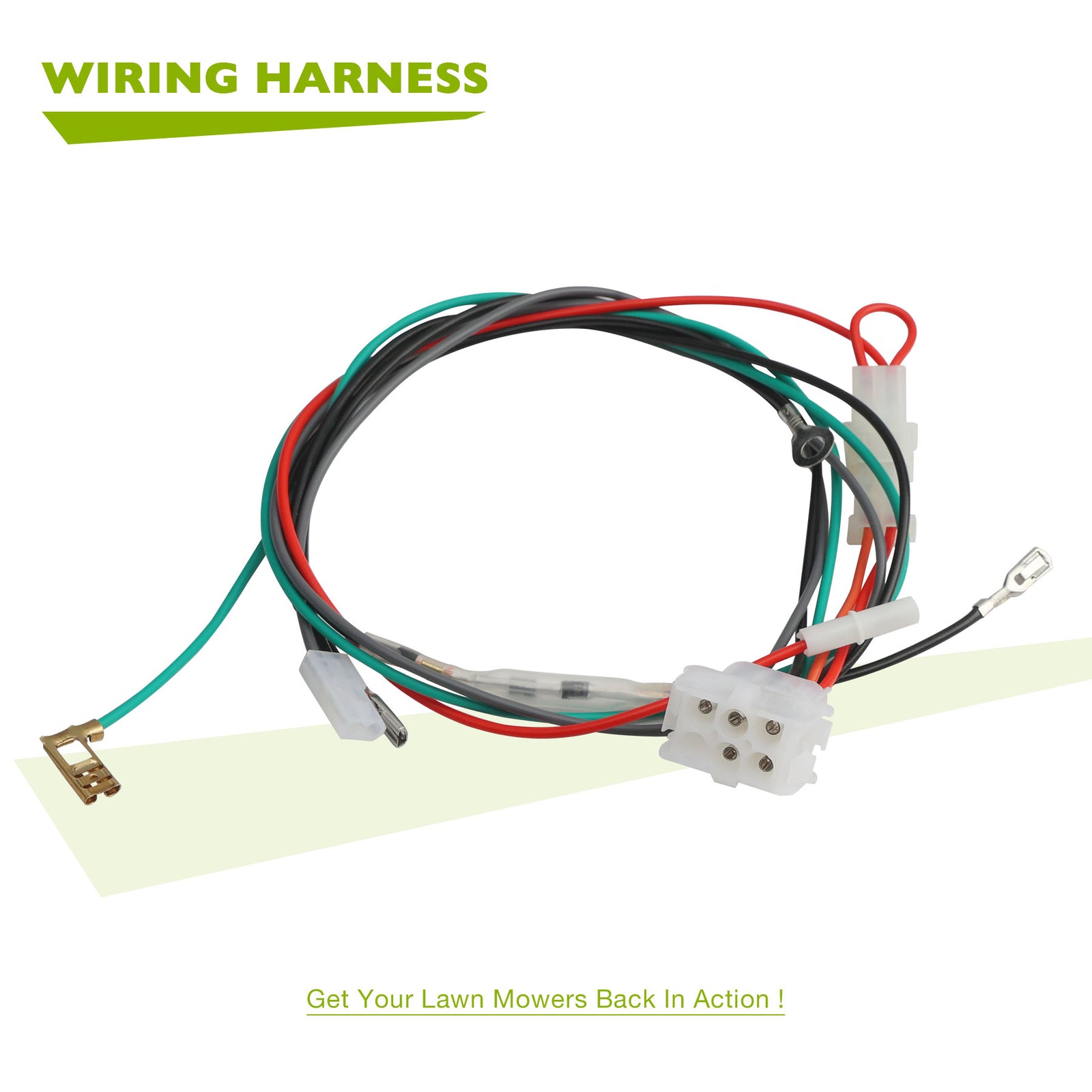

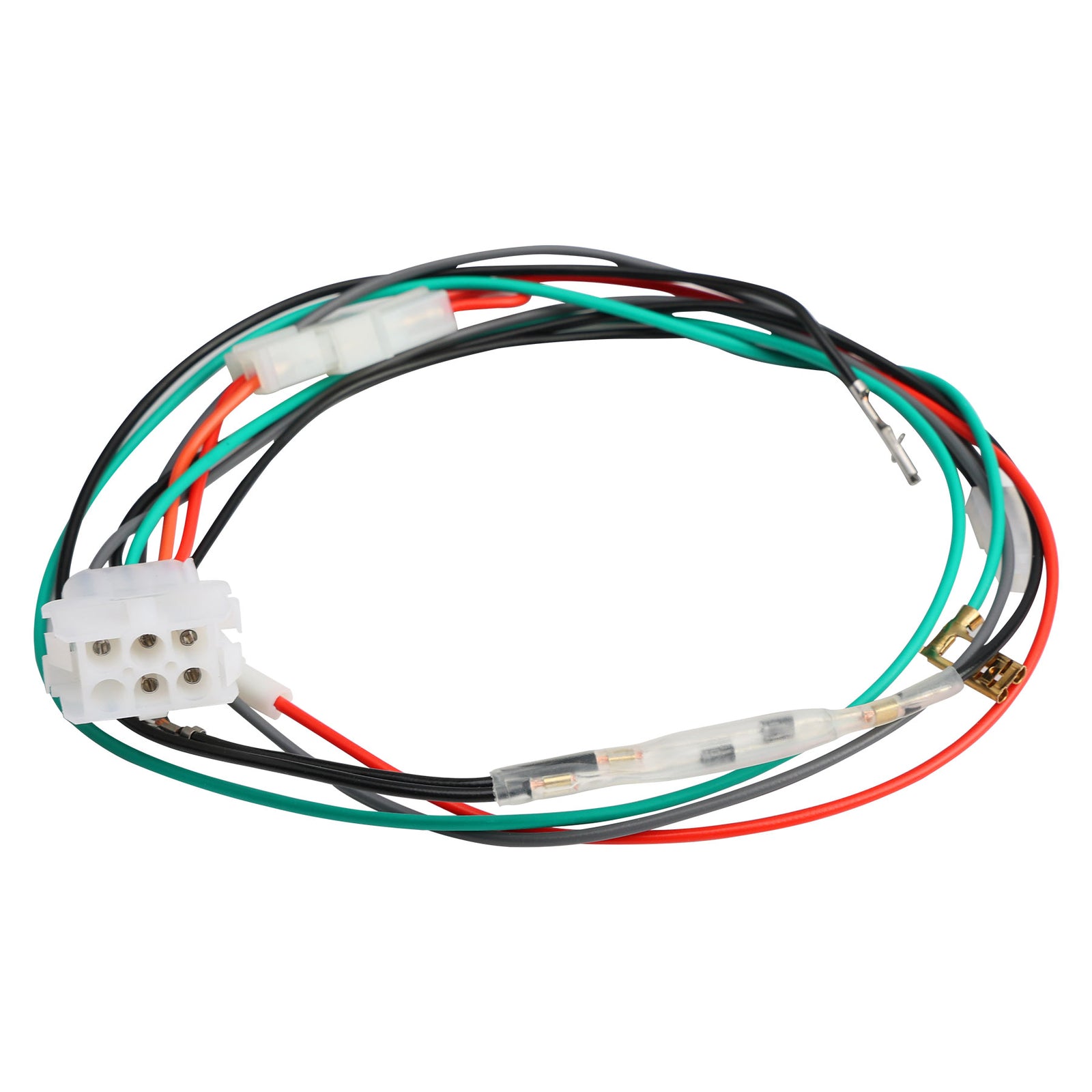

698330 Lawn Tractor Wire Harness for Briggs & Stratton

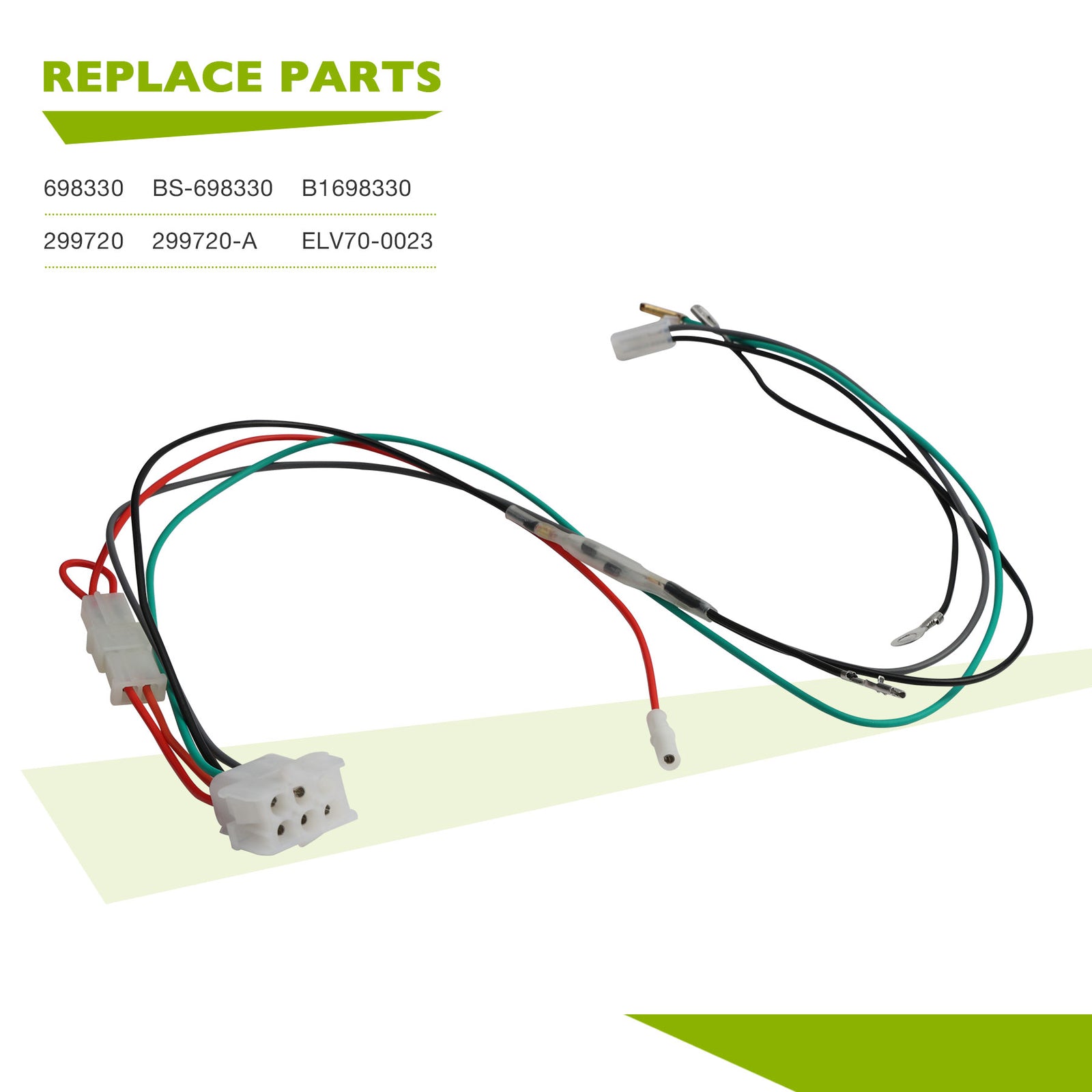

This wiring harness connects ignition, safety, and accessory circuits on select Briggs & Stratton lawn tractors, replacing OEM part 698330.

Overview

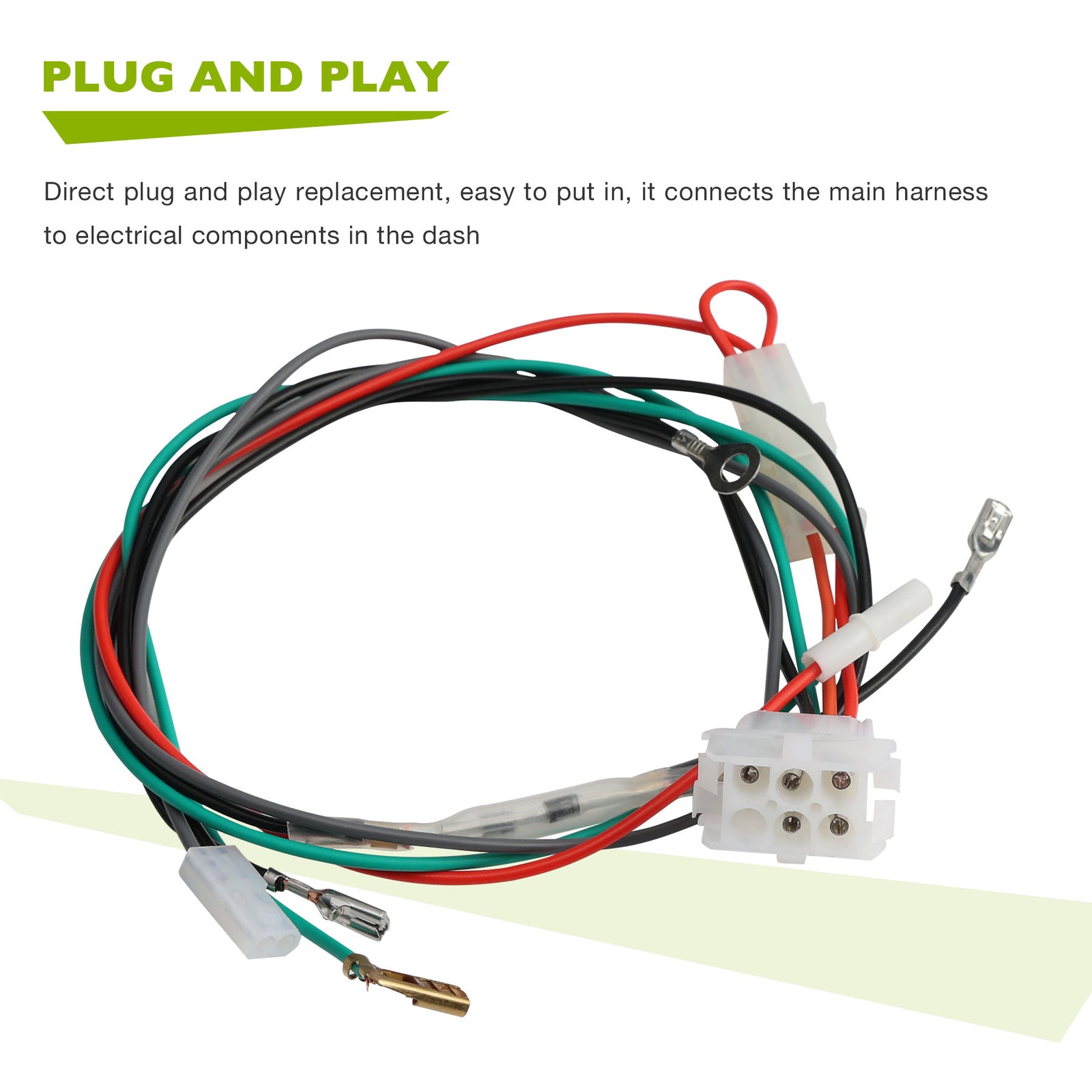

This lawn tractor wire harness restores reliable electrical function on Briggs & Stratton-powered mowers, replacing cracked or corroded original wiring. Its plug-and-play design matches factory connector pin-outs, making it a direct swap for the 698330 lawn tractor wire harness on models like RZT50, 48, 44, LTX1046, and RZT22. Ideal for owners and technicians servicing zero-turn and lawn tractors, this harness ensures consistent starting and safe operation.

Built For Performance

• Heavy-gauge copper conductors reduce voltage drop and overheating
• Weather-resistant PVC jacket resists moisture, oil, and abrasion

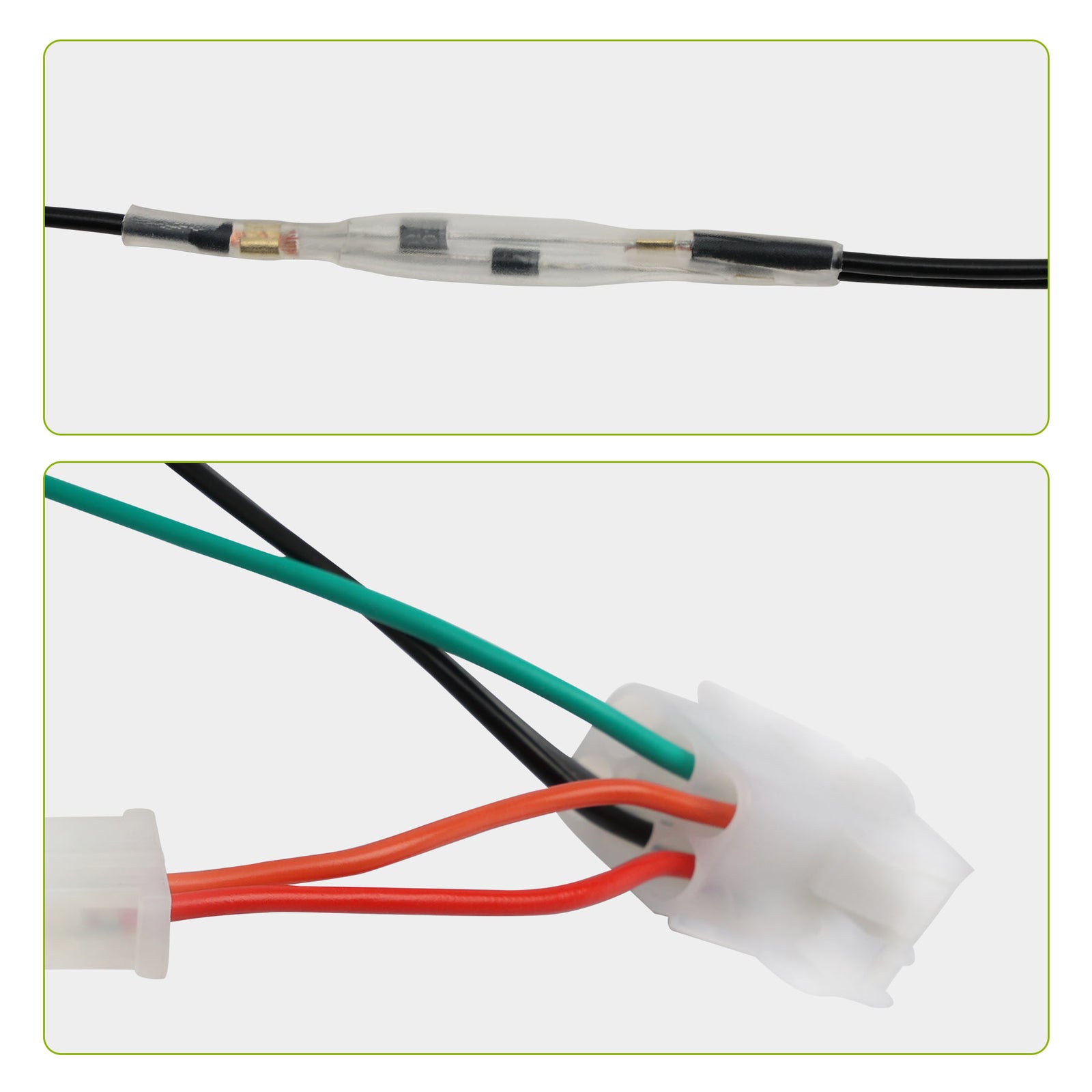

• Factory-crimped, tinned terminals maintain solid connections against vibration
• Color-matched wiring follows original Briggs & Stratton diagram for easy tracing
• Integrated strain relief where the harness exits the dash prevents chafing

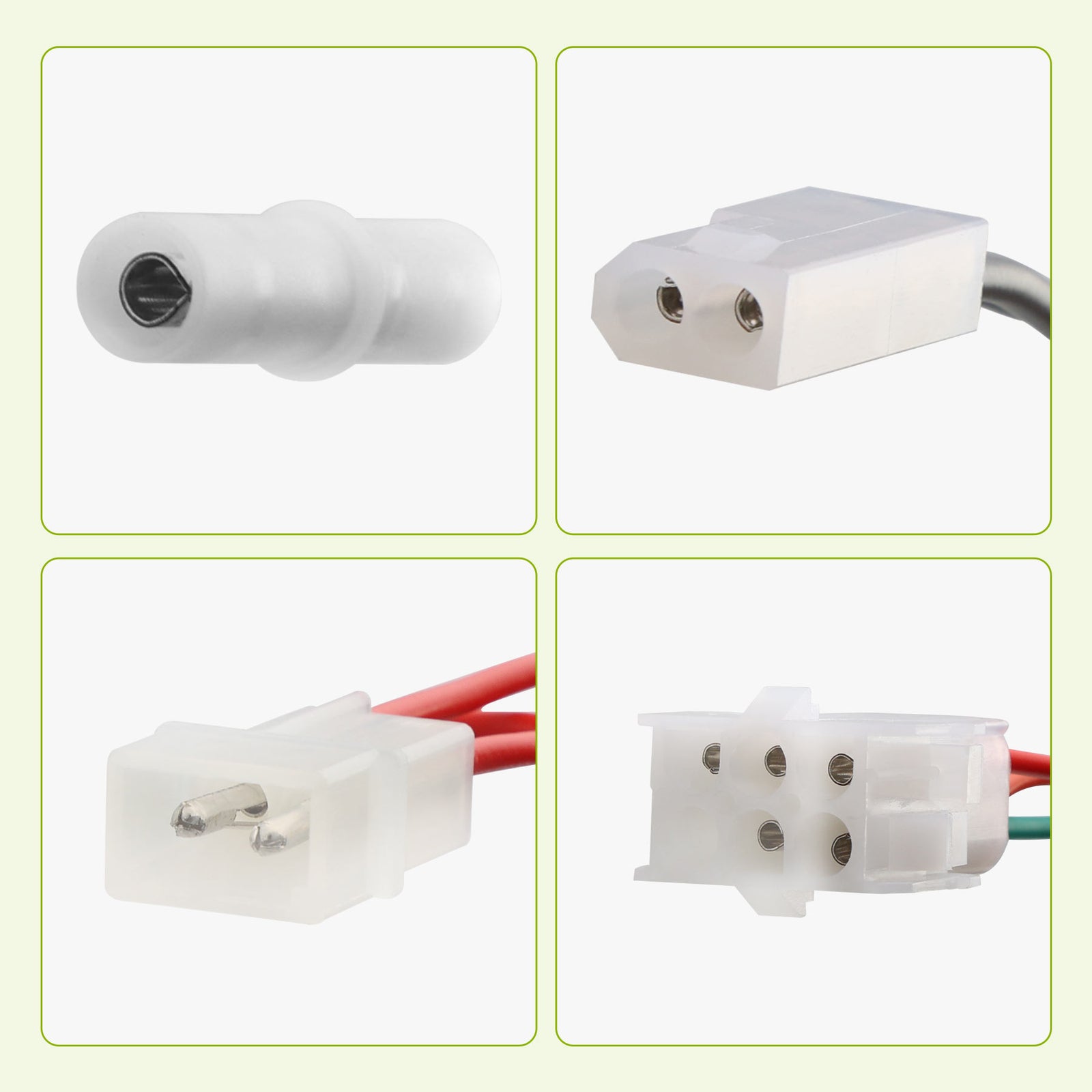

• Direct-fit connectors plug into the ignition switch, solenoid, PTO, and safety switches without cutting

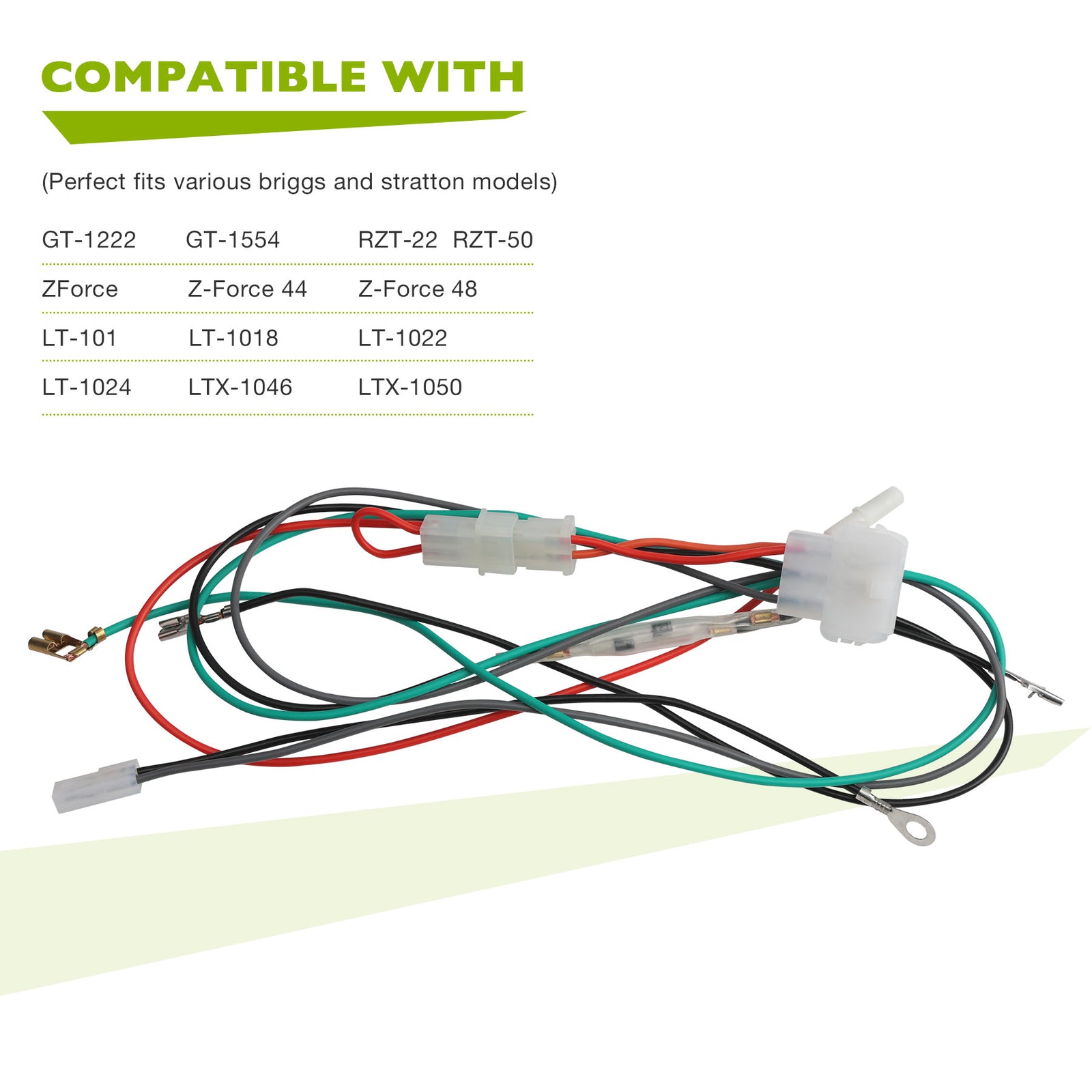

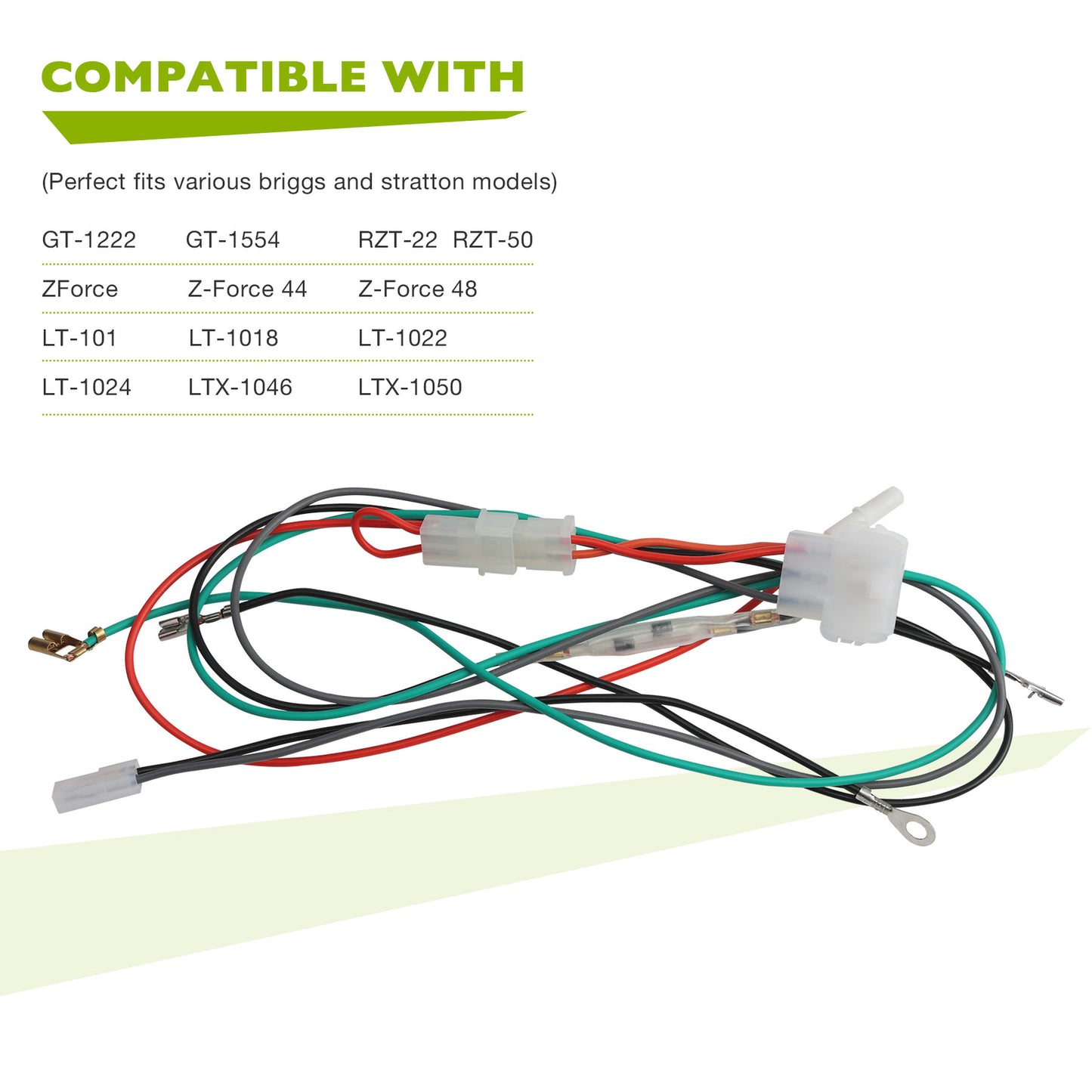

Fits These Machines

• for Briggs & Stratton RZT50
• for Briggs & Stratton 48
• for Briggs & Stratton 44
• for Briggs & Stratton LTX1046
• for Briggs & Stratton RZT22

On-The-Job Use

• Replacing a burnt or broken harness on zero-turn mowers
• Restoring starting circuitry on lawn tractors that crank but won't fire
• Rewiring during engine swaps or frame-off restorations
• Fixing intermittent electrical faults caused by rodent damage
• Routine preventive maintenance when restoring an older machine

Specs At A Glance

Good To Know

Q: How can I confirm this harness fits my mower? A: Match your tractor model to the RZT50, 48, 44, LTX1046, or RZT22 series and verify the OEM part number 698330 against your parts diagram before ordering.

Q: Do I need any special tools to install the wire harness? A: Basic hand tools and the ability to follow a wiring schematic are sufficient; disconnect the battery and route each branch carefully to avoid pinch points.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
