6V 12V 24V PWM DC Motor Speed Controller Reversible Switch Adjustable Governor

PWM DC Motor Speed Controller

This PWM DC motor speed controller regulates the rotational speed and direction of DC motors operating between 6V and 24V.

Overview

This PWM DC motor speed controller offers precise control over small DC motor systems by varying the duty cycle of the output voltage. Utilizing pulse-width modulation, this PWM DC motor speed controller maintains high torque even at lower operating speeds. This governor is ideal for electronics hobbyists, industrial maintenance technicians, and automation designers.

Built For Performance

• Wide input voltage compatibility supporting 6V, 12V, and 24V DC systems.

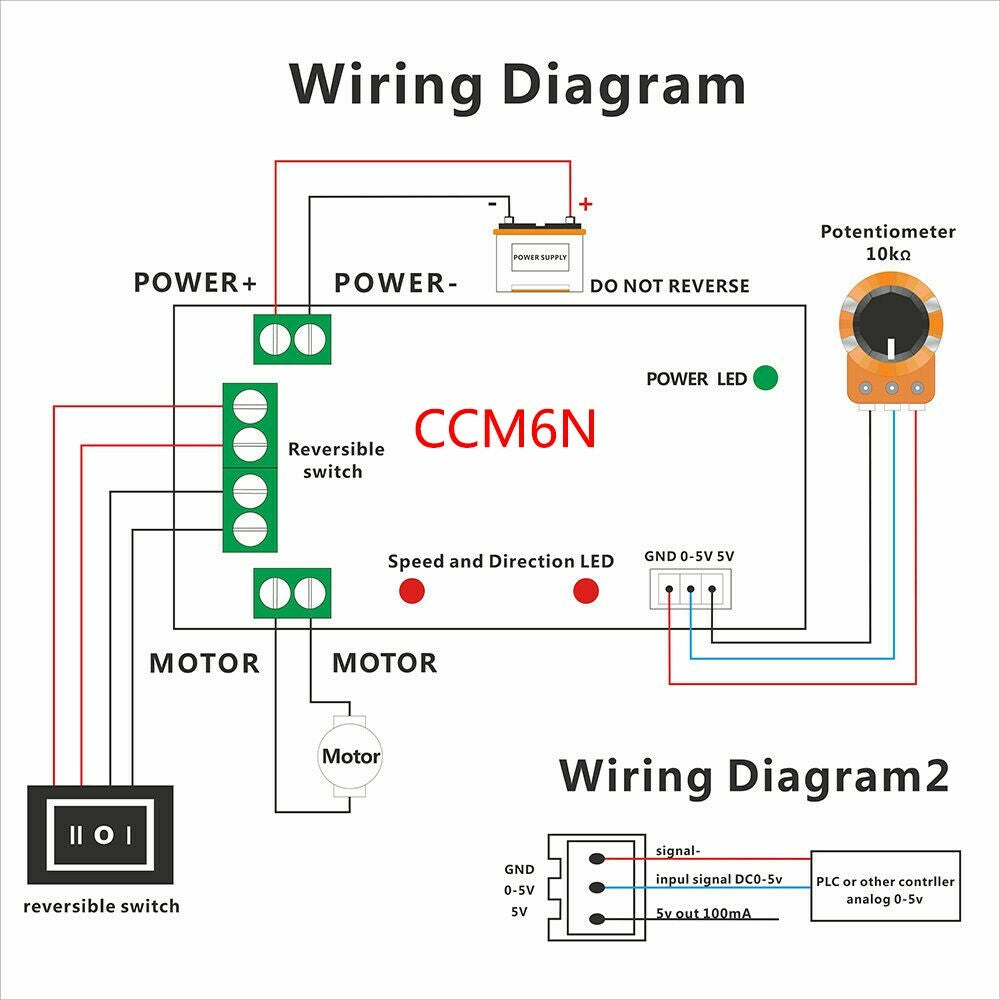

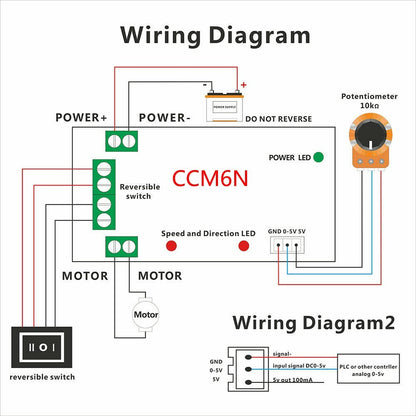

• Integrated reversible switch for easy forward, reverse, and stop control.
• High-efficiency pulse-width modulation duty cycle adjustment.
• Built-in potentiometer with knob for smooth, step-less speed regulation.
• Protective heavy-duty barrier terminals for secure wiring connections.

On-The-Job Use

• Adjusting the speed of small conveyor belts in automated systems.
• Controlling custom-built robotics drives and actuator mechanisms.
• Regulating ventilation fans and cooling systems in electrical enclosures.

Specs At A Glance

Good To Know

Q: Can this controller be used with brushless motors? A: No, this speed controller is designed specifically for brushed DC motors.

Q: What happens if the input polarity is reversed? A: Reversing the input polarity can damage the controller, so ensure positive and negative leads are correctly aligned during installation.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
