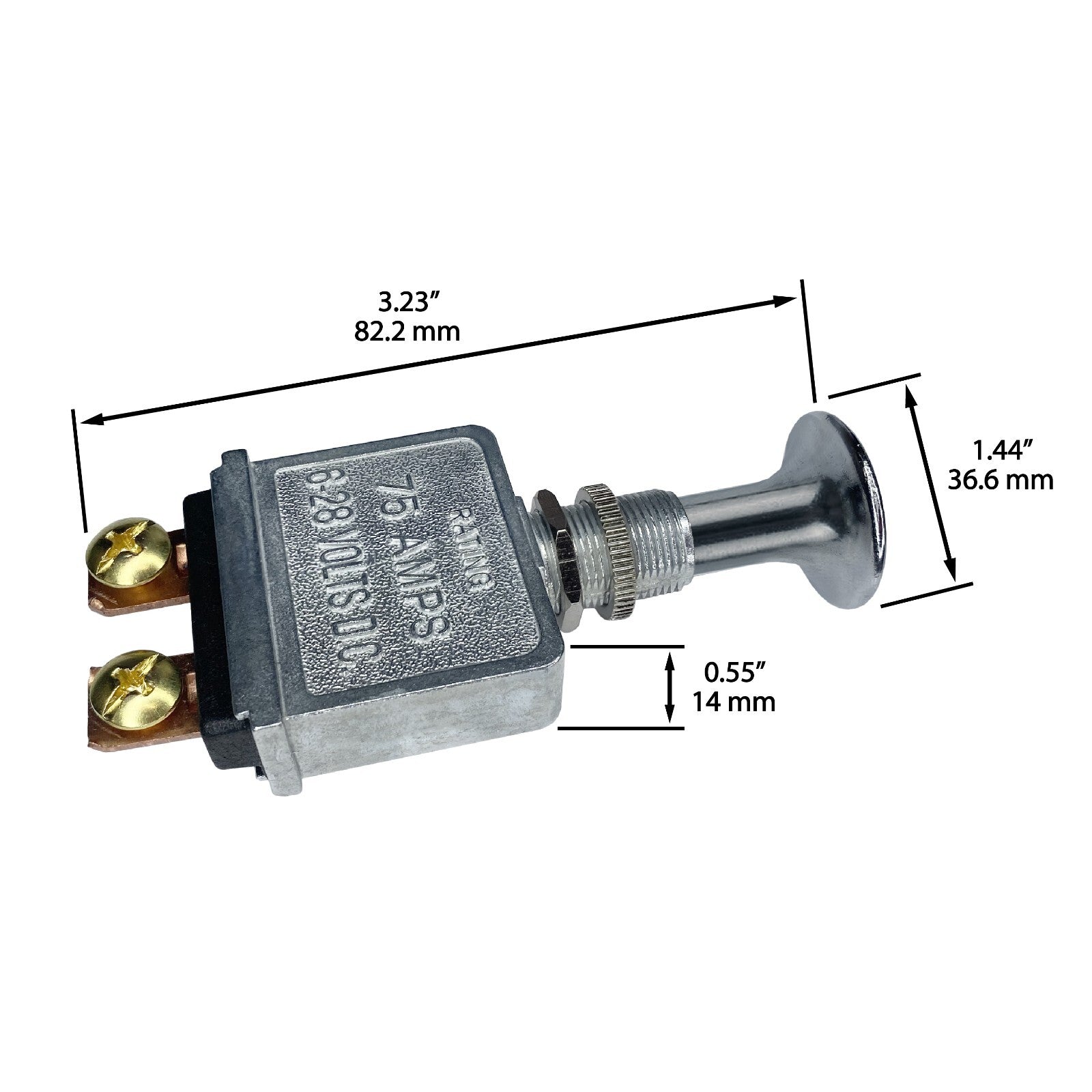

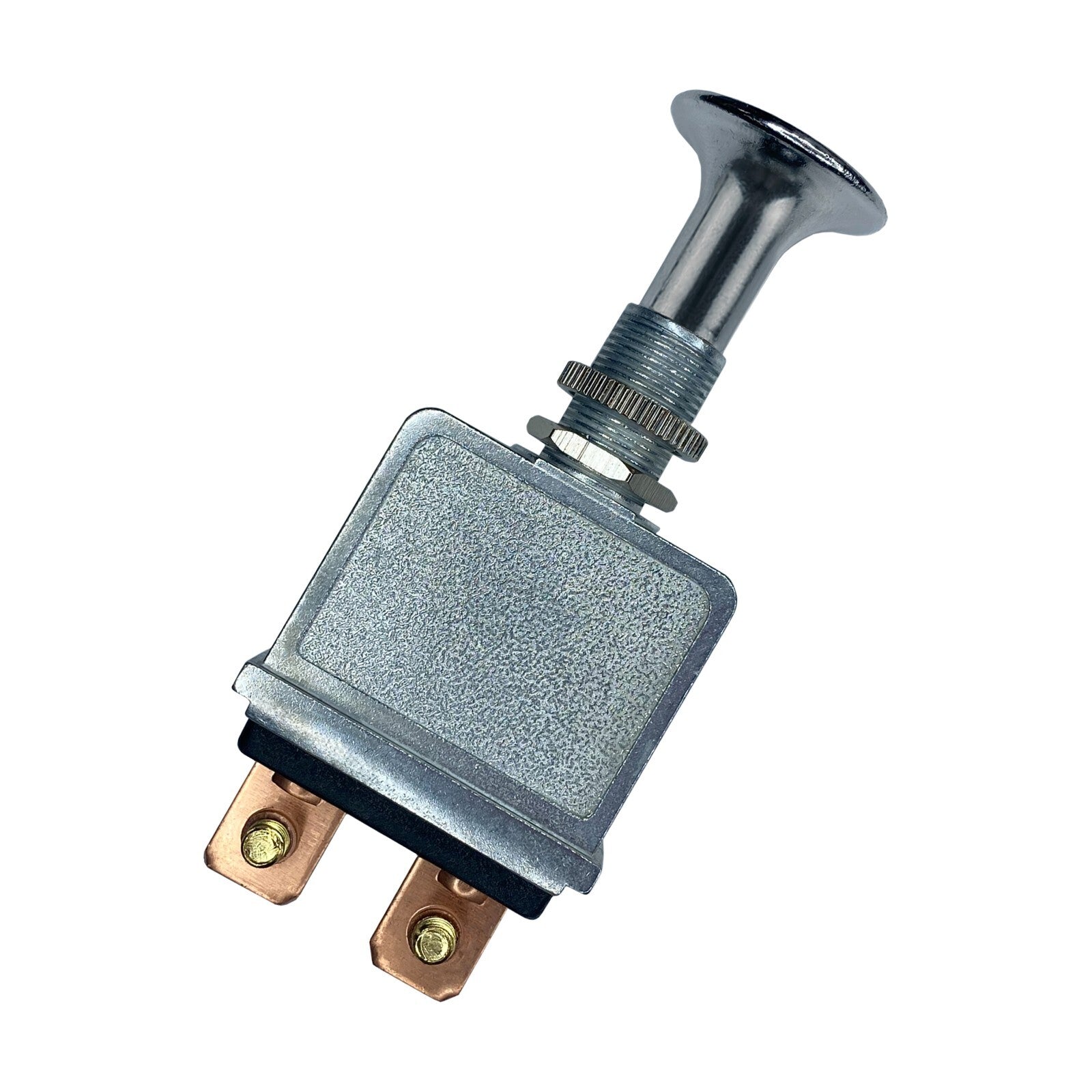

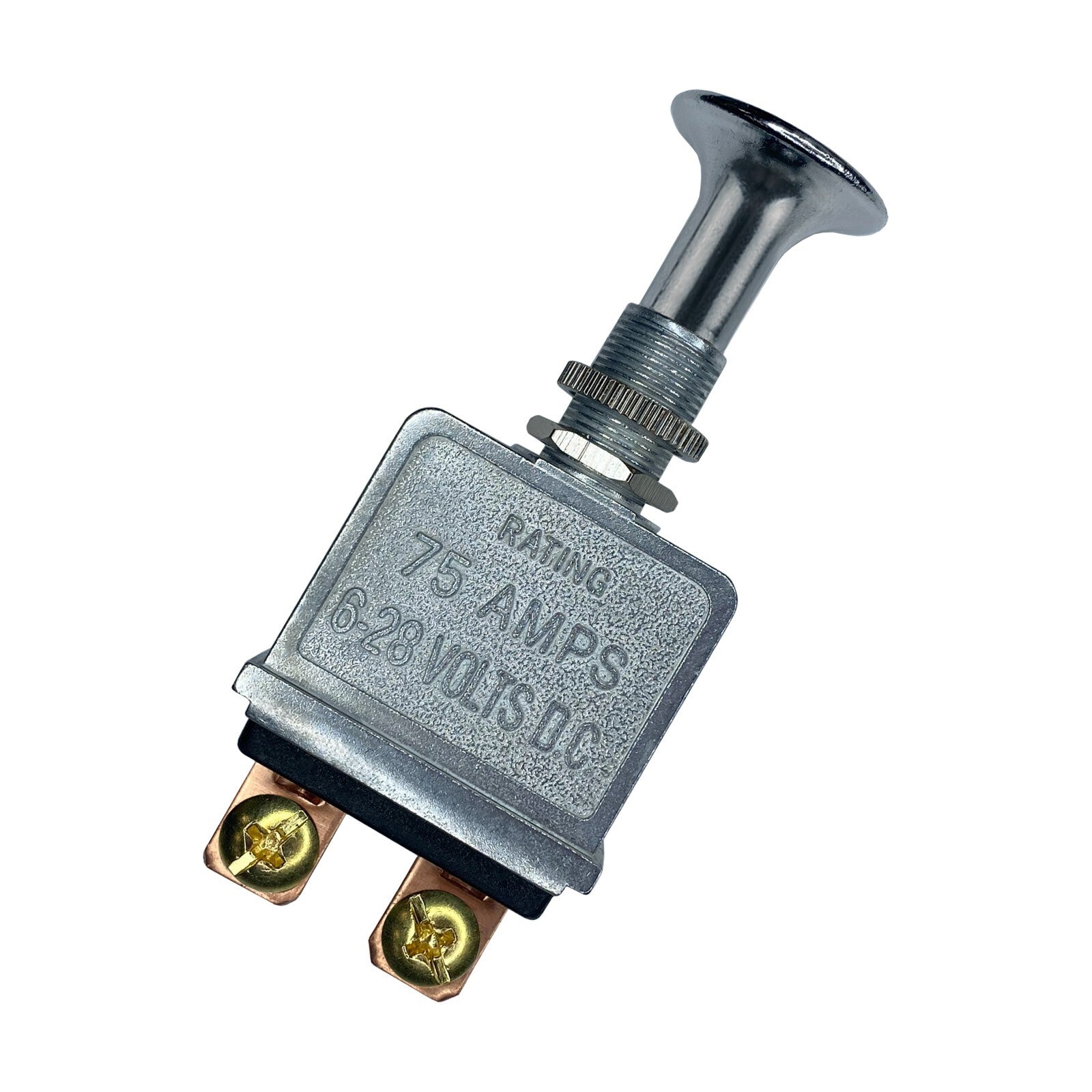

75 Amps Heavy Duty Push Pull On-Off Switch 2 Terminal 6-28 Volts DC

75 Amps Heavy Duty Push Pull On-Off Switch

This heavy-duty push-pull on-off switch handles up to 75 amps at 6-28 volts DC, featuring a 2-terminal design for simple power control in high-current applications.

Overview

This 75-amp push-pull on-off switch is built for high-current circuits, offering reliable switching for battery, winch, or auxiliary power systems. Its 2-terminal design simplifies installation while the heavy-duty construction ensures long-lasting performance in demanding environments.

Built For Performance

• 75-amp continuous rating handles substantial electrical loads
• Wide voltage range from 6 to 28 volts DC covers many common systems
• Push-pull actuator provides positive engagement and disengagement
• Heavy-duty housing and contacts resist wear and corrosion

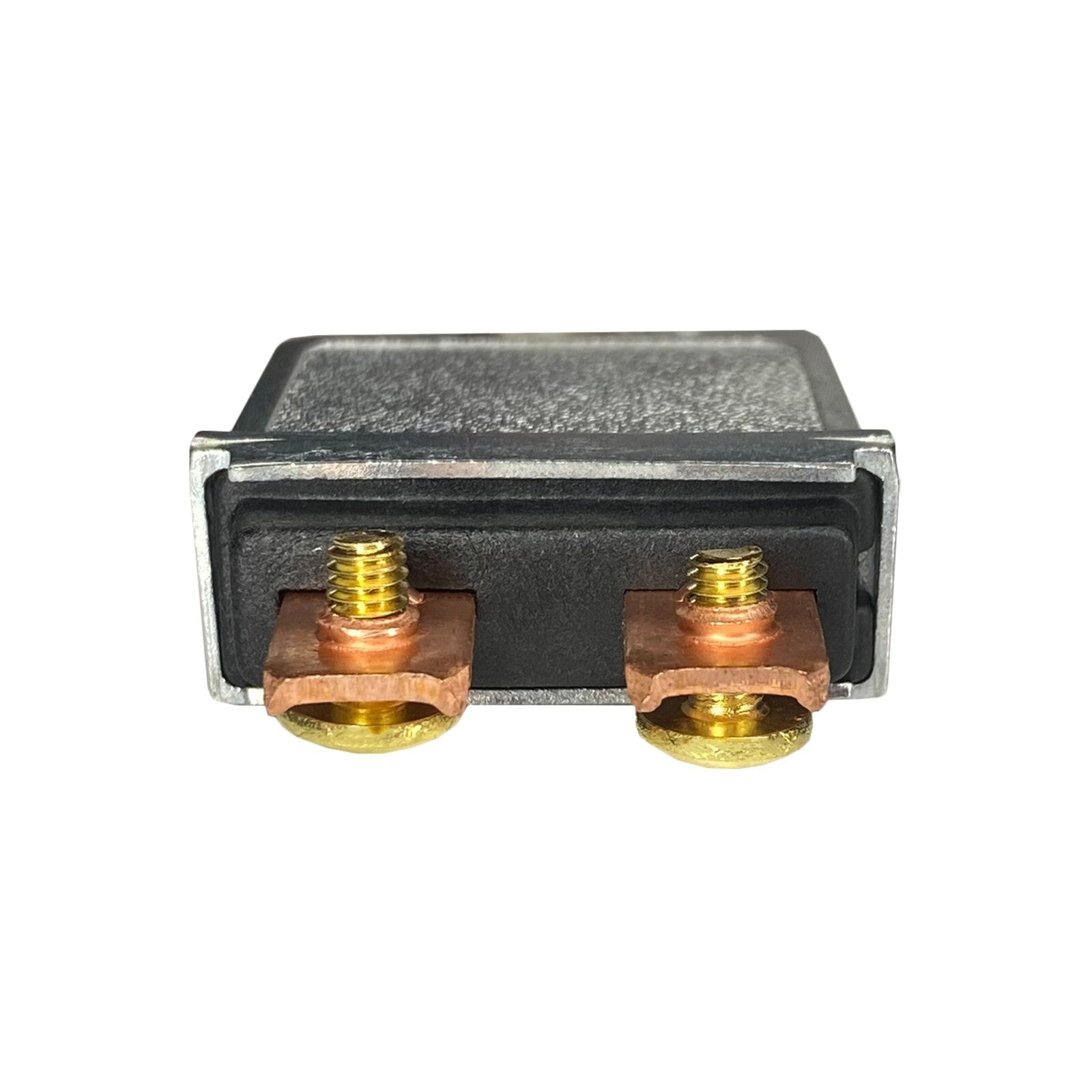

• 2-terminal configuration simplifies wiring and reduces connection points

Specs At A Glance

Good To Know

Q: Can this switch be used as a battery disconnect? A: Yes, its 75-amp rating makes it suitable for battery isolation in vehicles, boats, and off-grid systems.

Q: What wire size is recommended for this switch? A: Use at least 4 AWG wire to safely handle the 75-amp current; ensure connections are tight to minimize resistance.

Slight variation in finish or dimensions may occur between production runs, and confirm compatibility before ordering.
