904-229 FICM 6.0 Powerstroke Fuel Module Board Fit 2003-10 Ford F250 F350 F450

FICM 6.0 Powerstroke Fuel Module Board for Ford

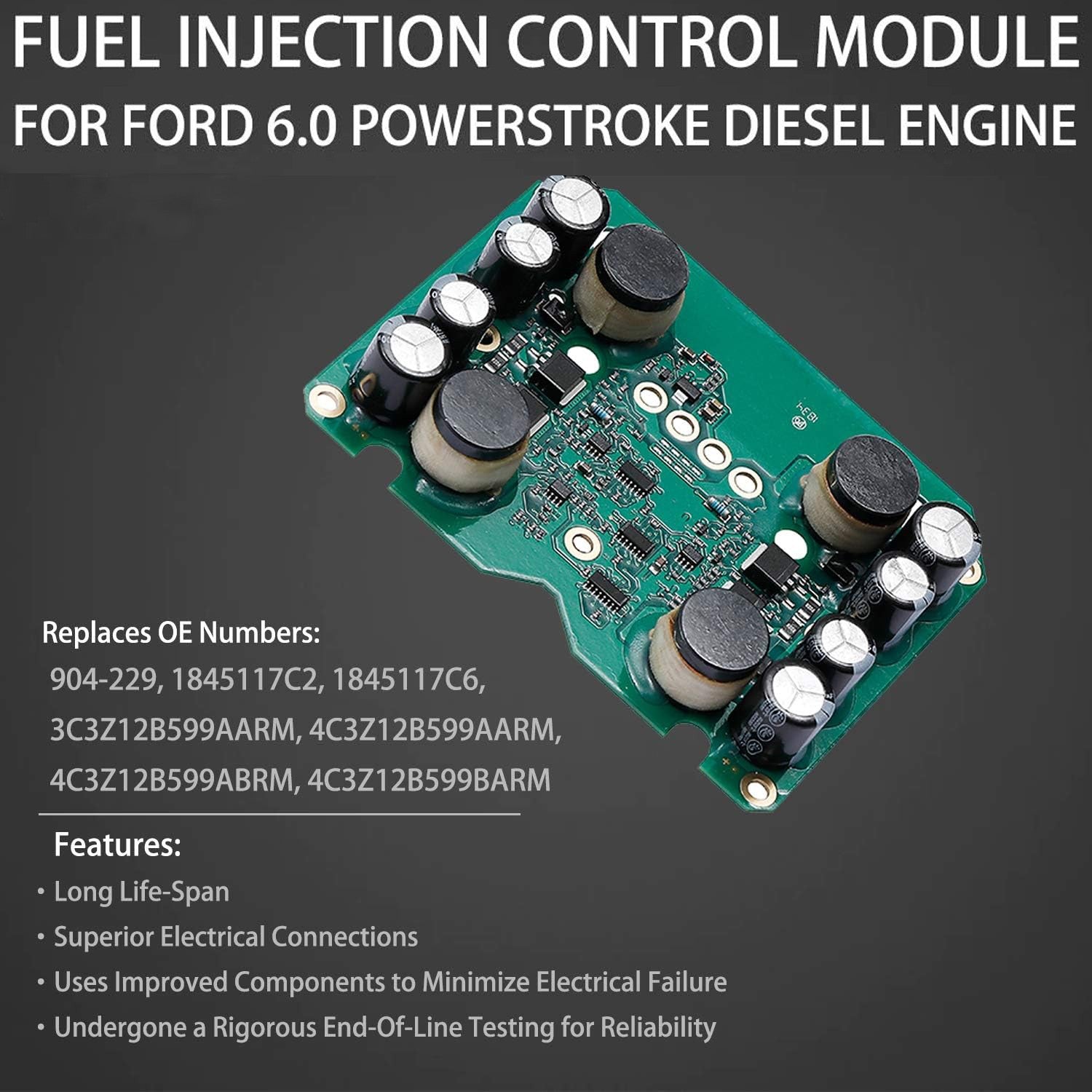

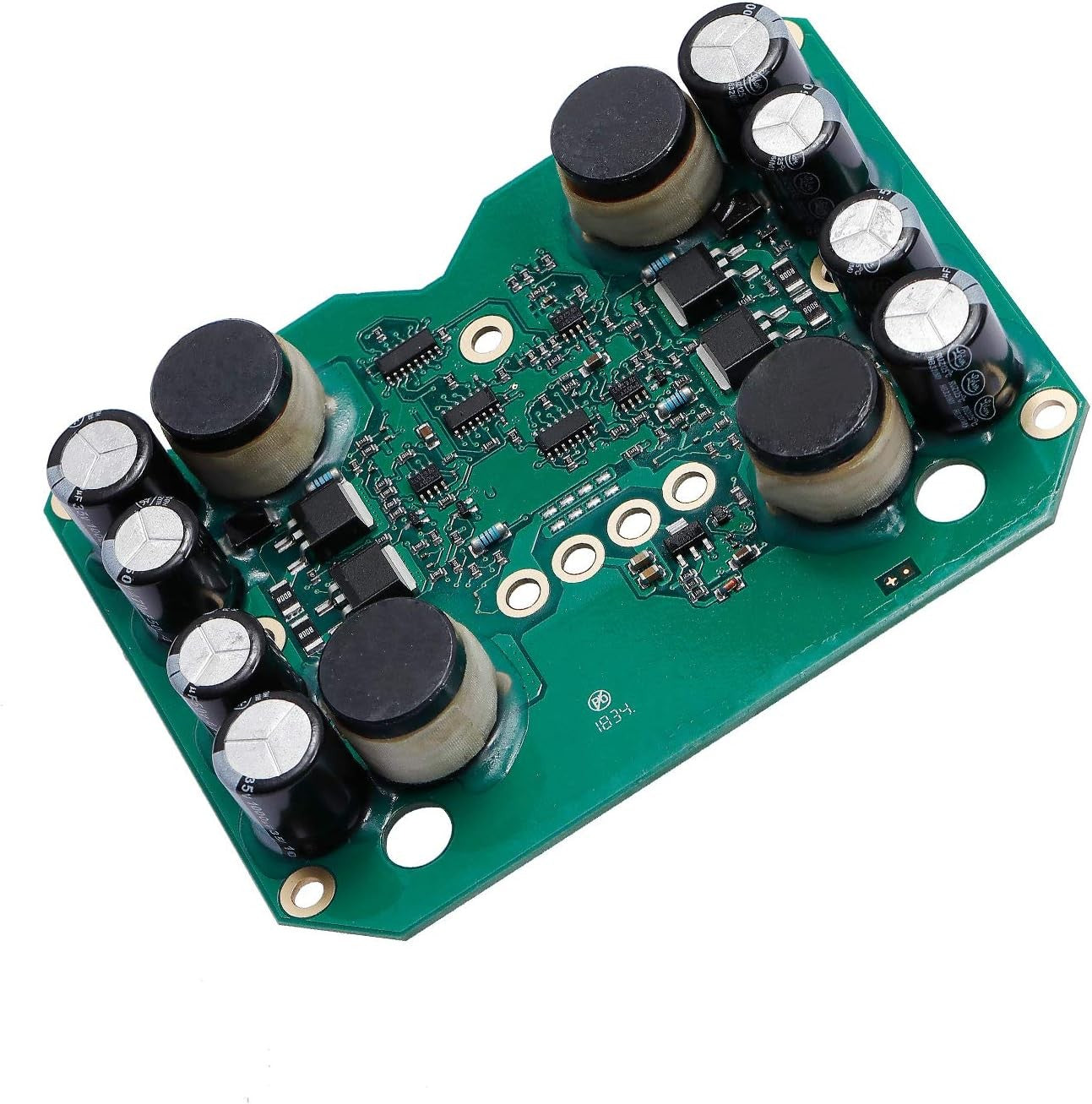

This fuel injection control module board, part number 904-229, restores proper injector operation on 6.0L Powerstroke engines and replaces failed Ford OEM FICM circuitry.

Overview

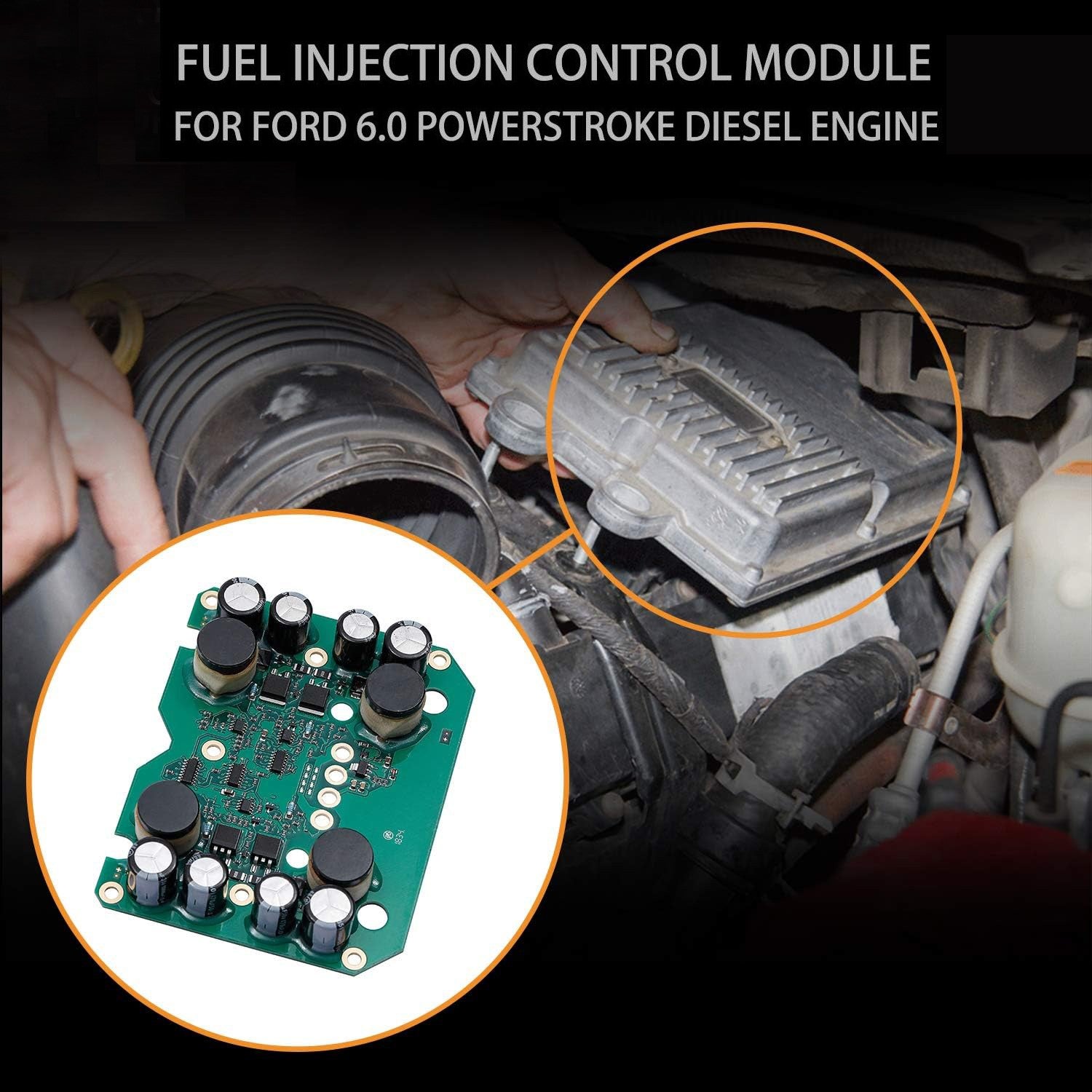

The 904-229 FICM 6.0 Powerstroke fuel module board is a precision electronic replacement that directly addresses no-start conditions, rough idle, and injector misfire caused by voltage drop inside the factory module. By rebuilding the FICM logic and power supply side with upgraded components, this board returns consistent 48-volt output to the injectors on 2003–2010 Ford F-250, F-350, and F-450 diesel trucks. It is intended for professional rebuilders, independent shops, and experienced DIY owners who service 6.0L Powerstroke fuel systems.

Built For Performance

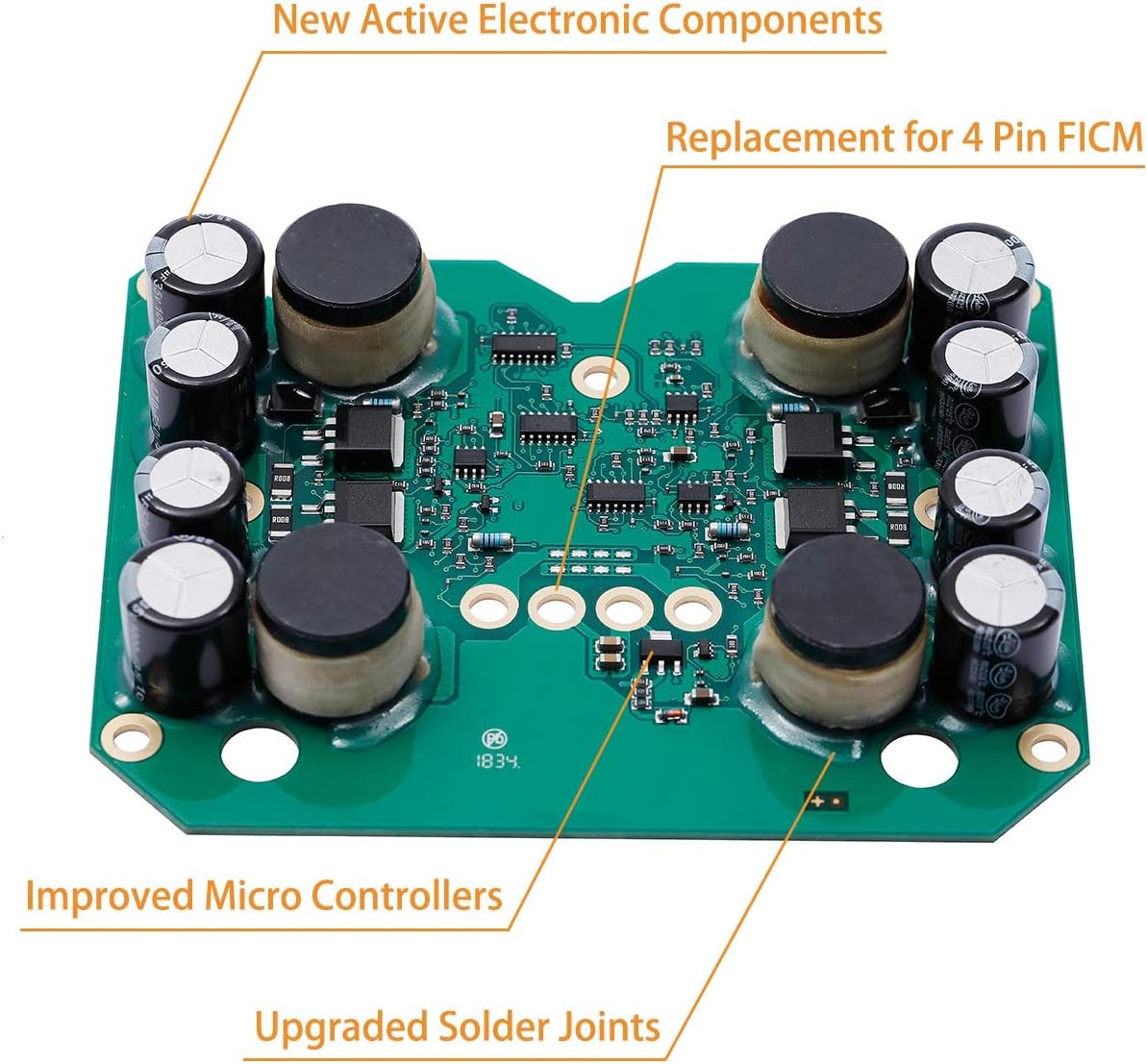

• Upgraded voltage regulator and MOSFET drivers maintain steady 48V output under heat and vibration
• Thicker copper traces and improved solder mask resist thermal cycling fatigue
• Pre-programmed logic chip eliminates the need for dealer reflash after installation
• Gold-plated connector pads prevent oxidation and signal loss at the harness interface

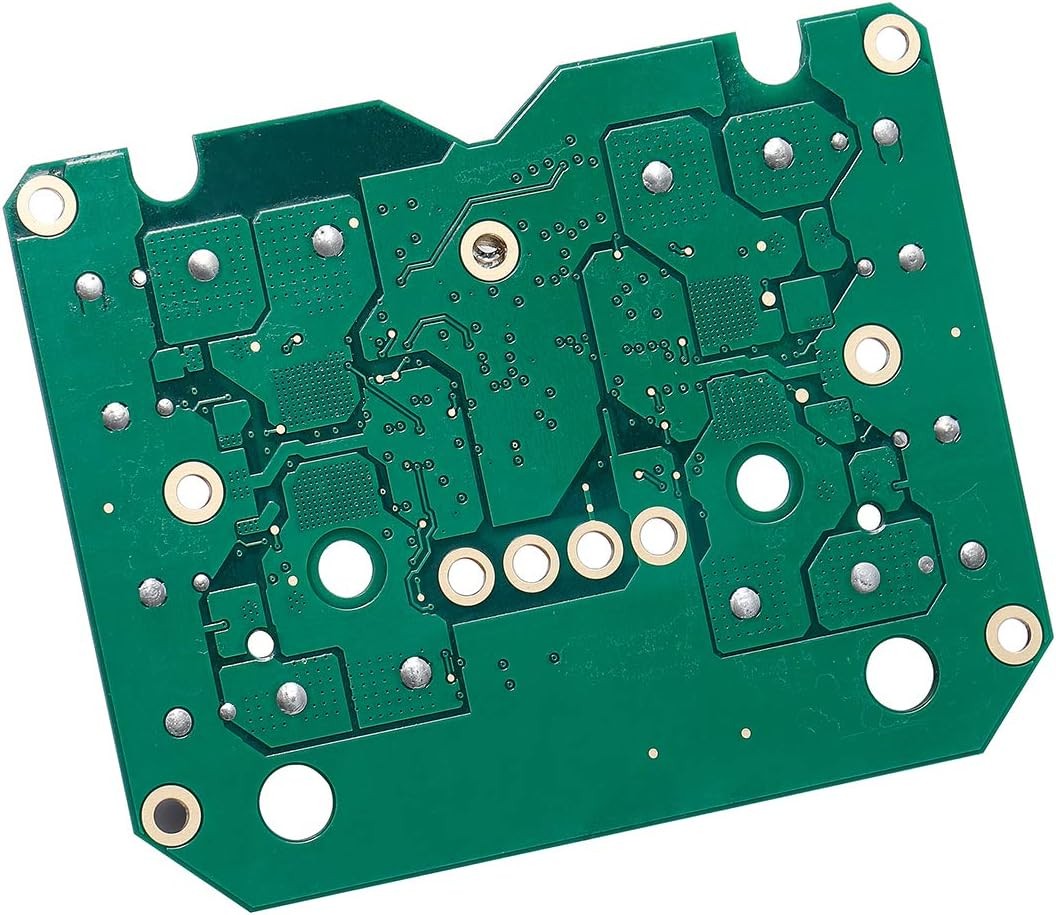

• Multi-layer board design reduces electromagnetic interference that can corrupt injector timing
• Components rated for extended temperature range typical of underhood diesel environments

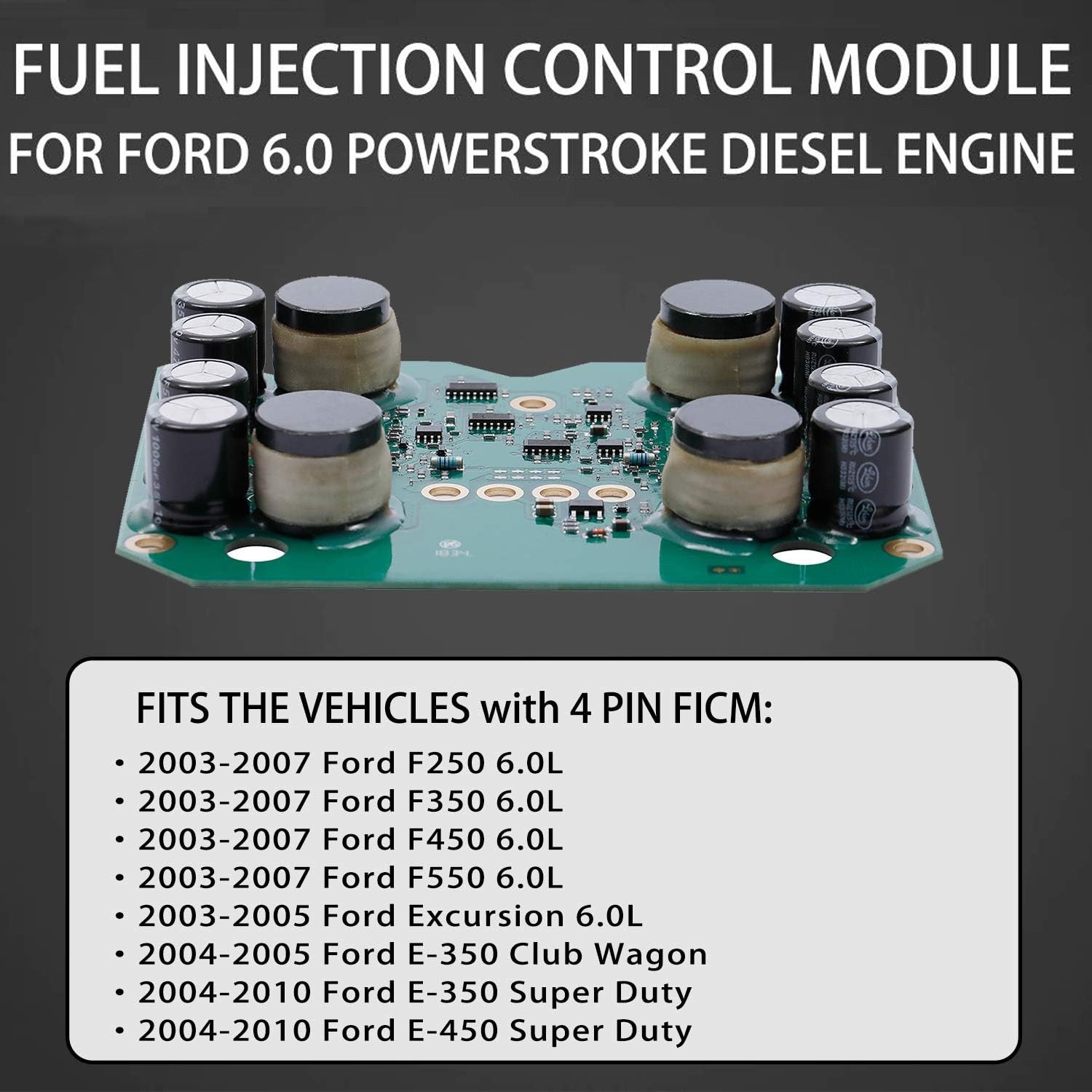

Fits These Machines

• for Ford F-250 (2003–2010) 6.0L Powerstroke
• for Ford F-350 (2003–2010) 6.0L Powerstroke
• for Ford F-450 (2003–2010) 6.0L Powerstroke

On-The-Job Use

• Restores cold-start reliability for work trucks that sit overnight on job sites
• Eliminates injector stiction-related misfires during heavy towing and hauling
• Used in remanufactured FICM assemblies supplied to fleet maintenance operations
• Corrects intermittent power loss in ambulances and service bodies that idle for extended periods

Specs At A Glance

Good To Know

Q: Do I need to solder this board into my FICM housing?

A: Yes, installation requires desoldering the original board and soldering this replacement; professional electronics repair skill is recommended.

Q: Will this board fix a no-communication code from the PCM?

A: It corrects internal FICM voltage and logic faults, but a no-communication error may also stem from harness or PCM issues that should be diagnosed separately.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
