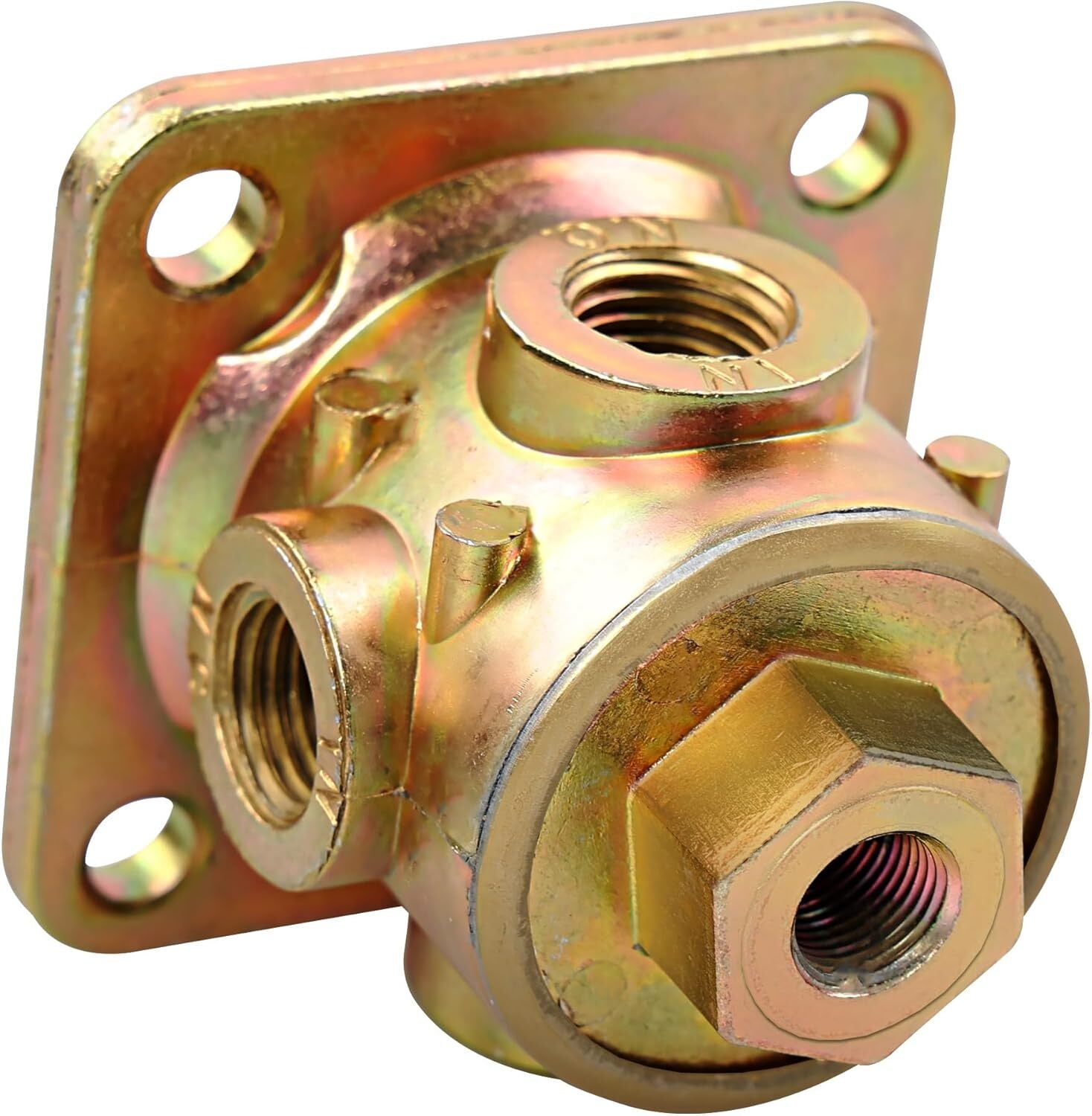

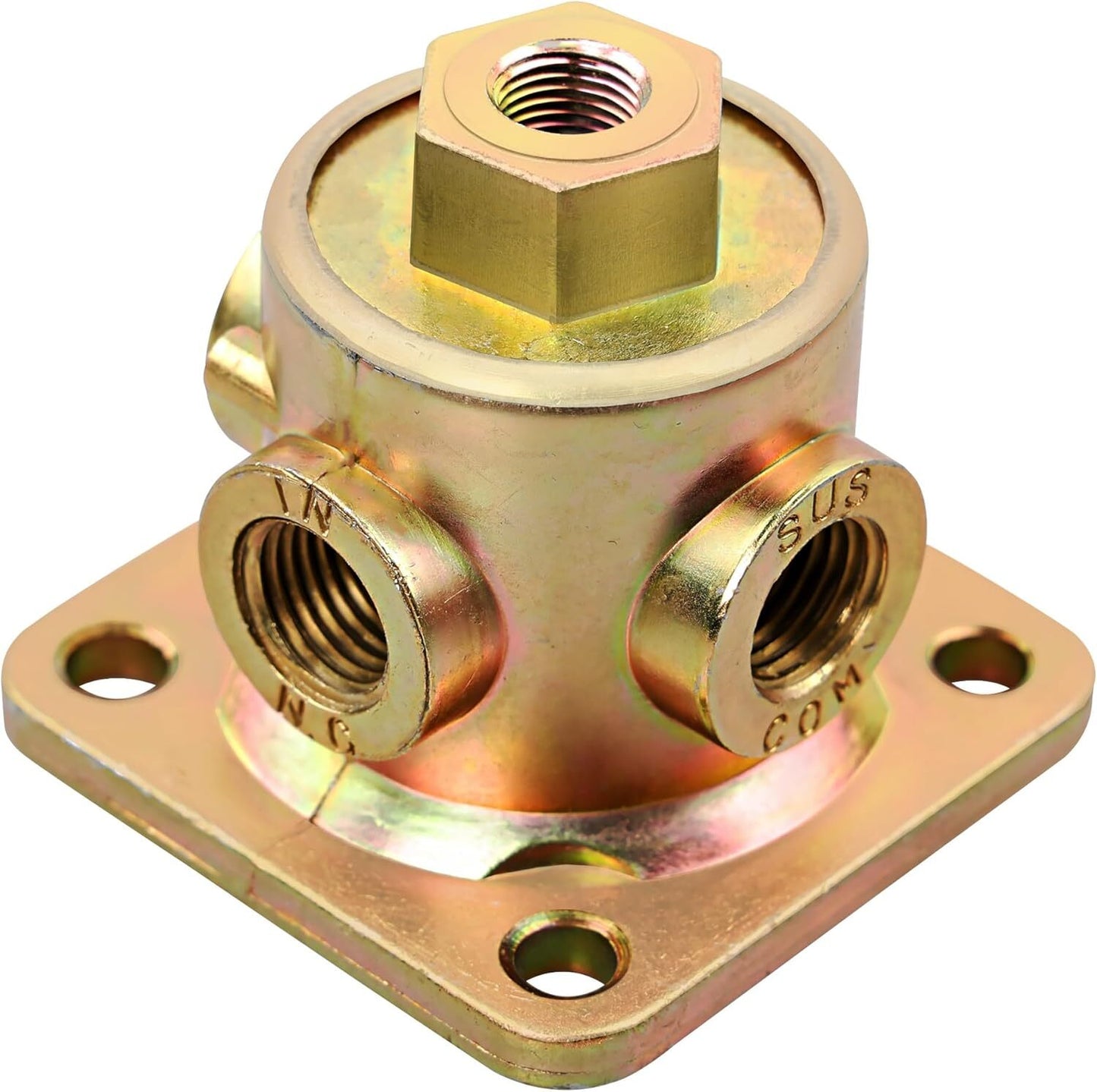

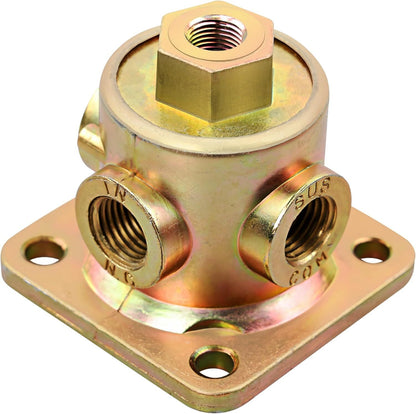

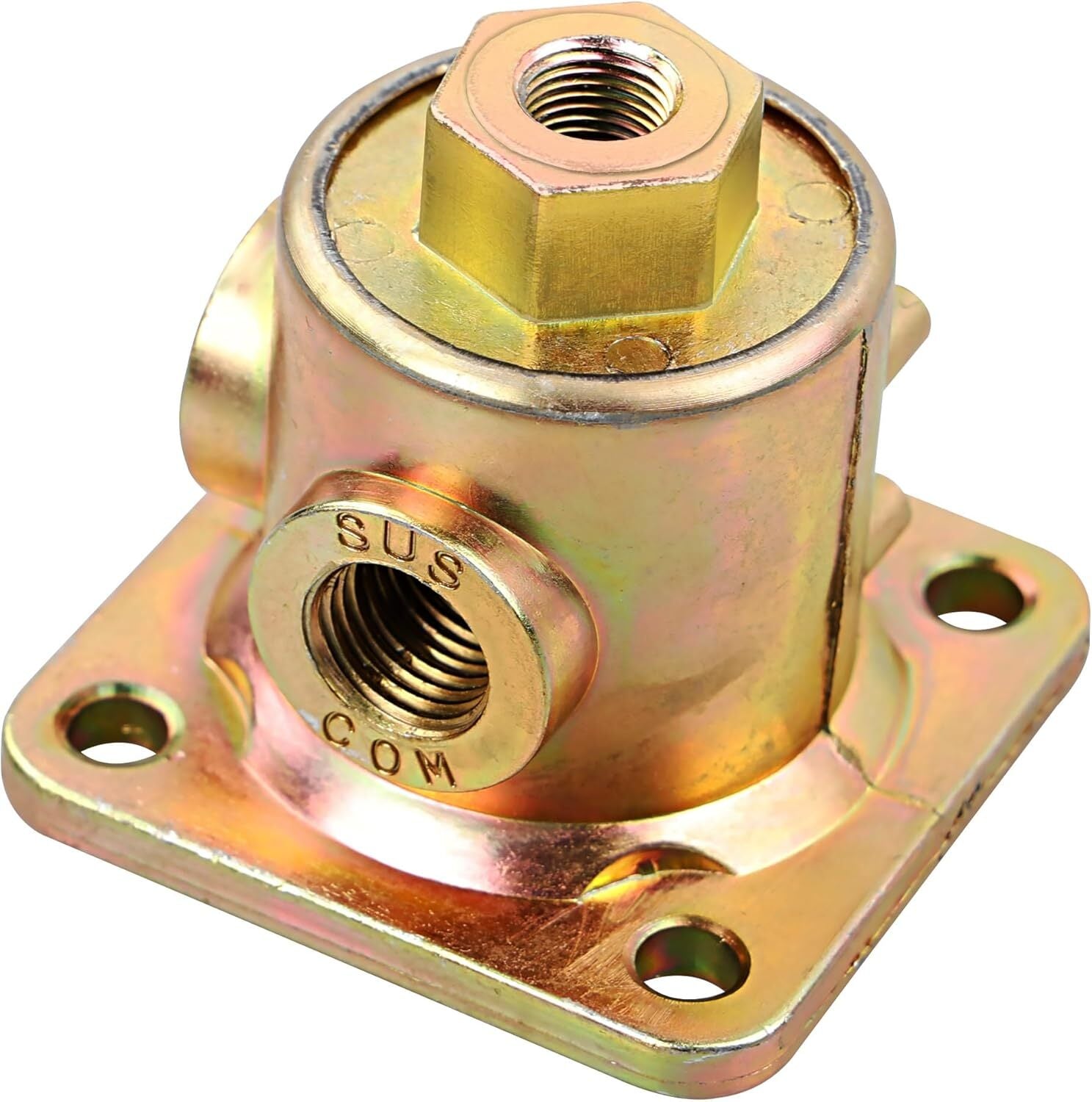

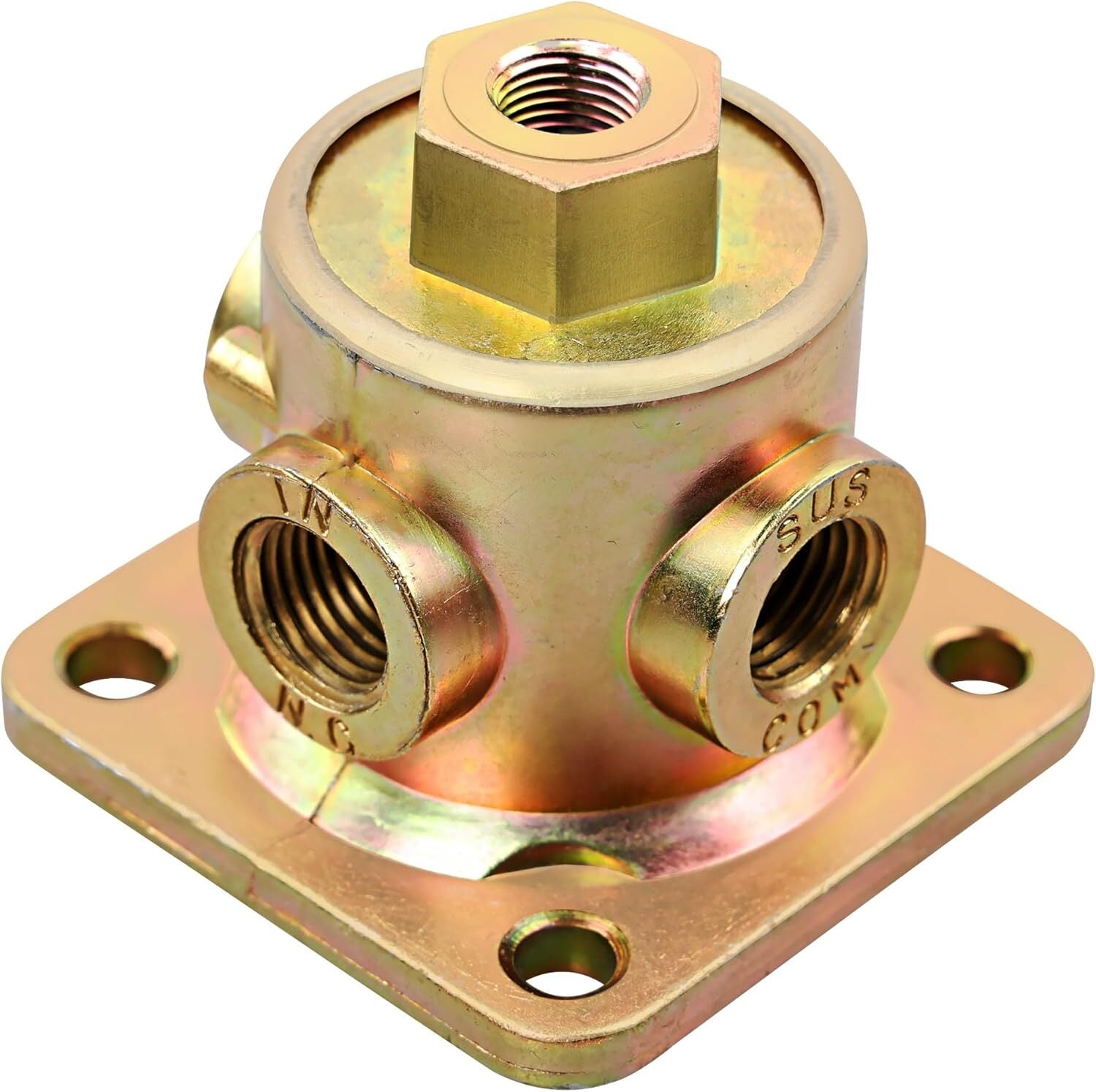

3-Way Pilot Valve Port for Haldex 90554615
This 3-way pilot valve port controls air flow direction in pneumatic brake and suspension systems for trailers and trucks, replacing Haldex part number 90554615.
Overview
The 3-way pilot valve port is a direct replacement for the Haldex 90554615 valve used in air systems. This 3-way pilot valve port manages air distribution, ensuring proper function of brakes and suspension. Suitable for heavy-duty trailers and trucks requiring reliable air control.
Built For Performance
- Precision-machined brass body resists corrosion and wear

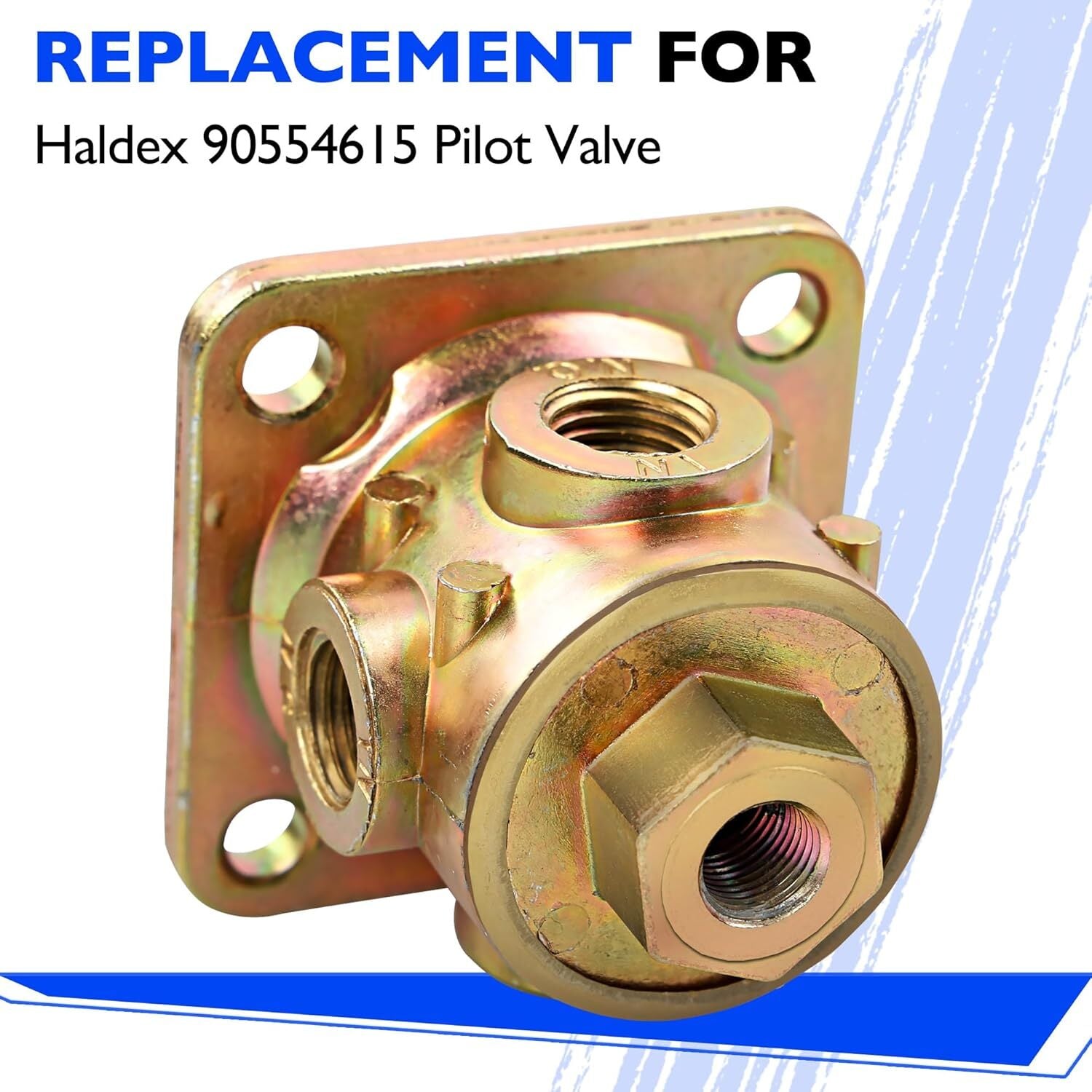

- Direct interchange with Haldex 90554615, no modifications needed
- 3-way switching controls supply, exhaust, and delivery ports
- NPTF threaded ports ensure leak-free connections
- Operates reliably in temperature extremes from -40°F to 200°F
- Tested to 1 million cycles for long service life
On-The-Job Use
- Pneumatic brake valve control on semi-trailers

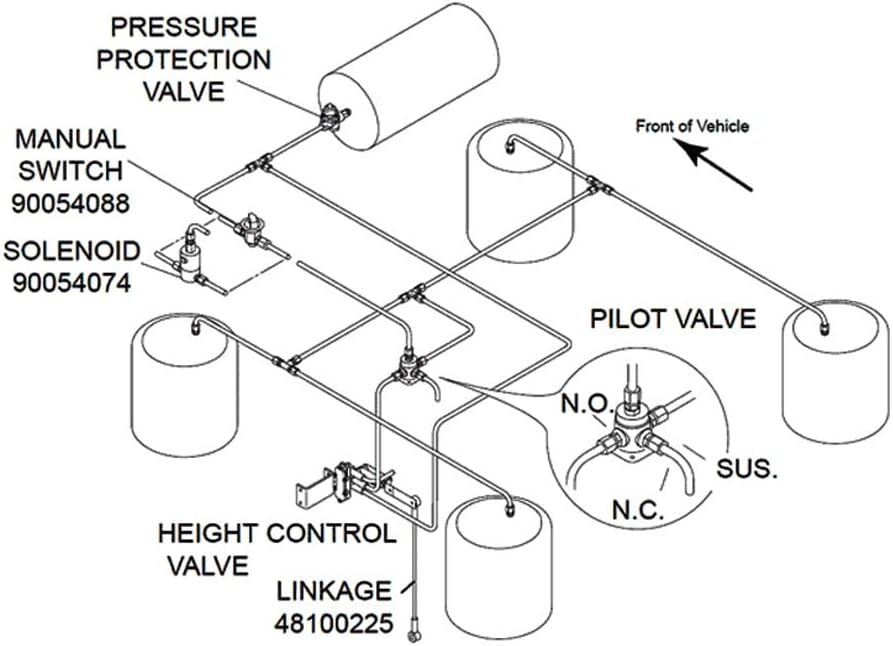

- Air suspension leveling valve switching
- Replacement for failed pilot valves in truck air systems
- Used in fleet maintenance and roadside repair
- Air control for lift axles and dump trailers

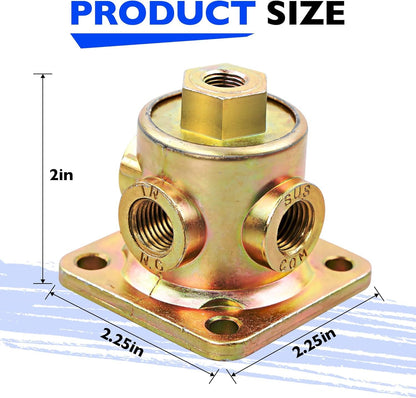

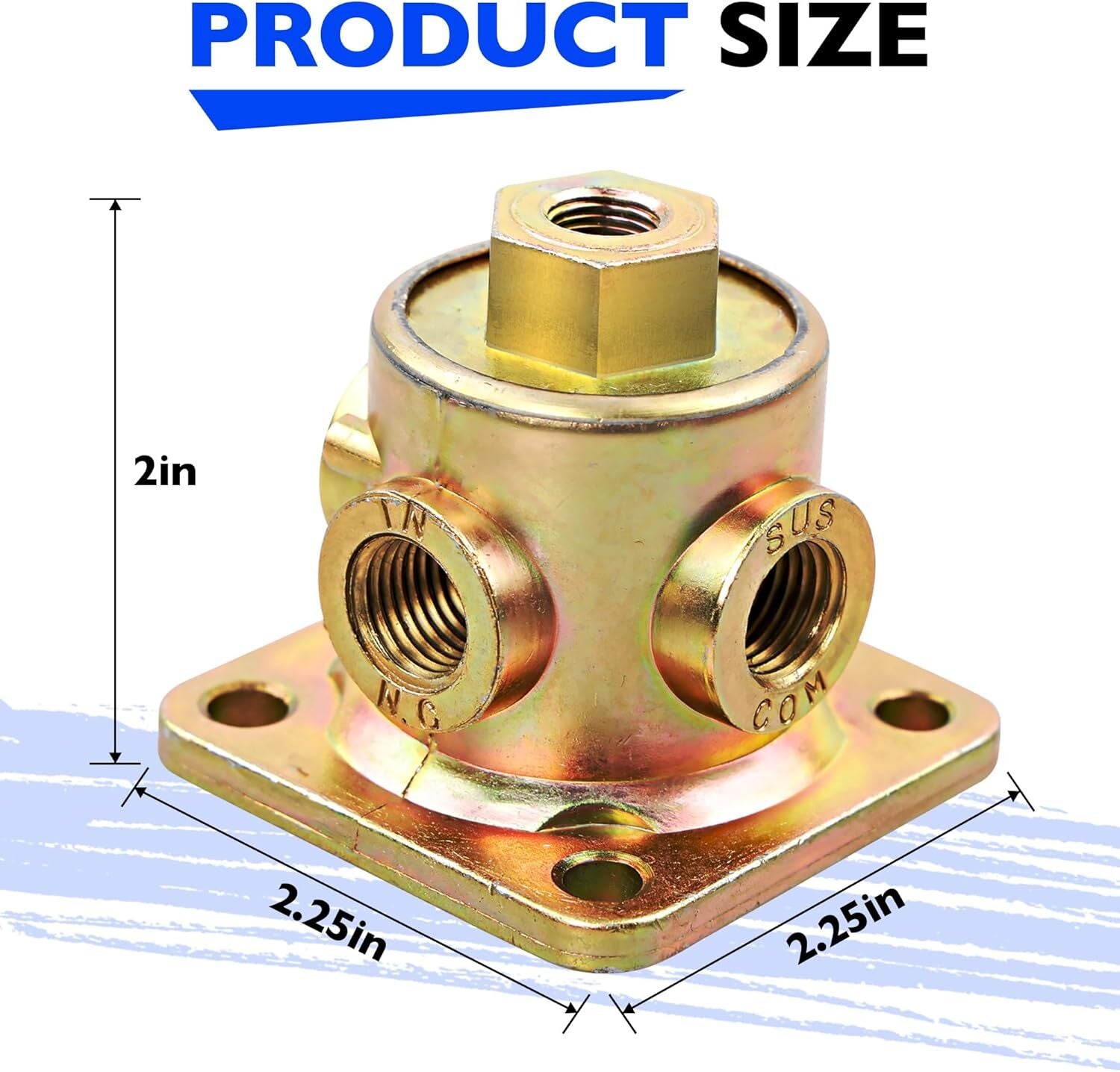

Specs At A Glance
| Part Number(s) | 90554615 |
| Valve Type | 3-Way Pilot Valve |
| Body Material | Brass |
| Thread Type | NPTF |
| Replaces | Haldex 90554615 |
Good To Know
Q: Is this pilot valve compatible with Haldex air dryer systems? A: Yes, it directly replaces Haldex 90554615 in air dryer and control circuits, matching port layout and flow specs.
Q: What torque is required for installation? A: Hand-tighten plus 1-1.5 turns with thread sealant; over-torquing can crack the brass body.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
