AHJRELAYKIT-2-DP Hydraulic Jack Plate Relay Wiring Harness Kit For Atlas Series

Hydraulic Jack Plate Relay Wiring Harness Kit for Atlas

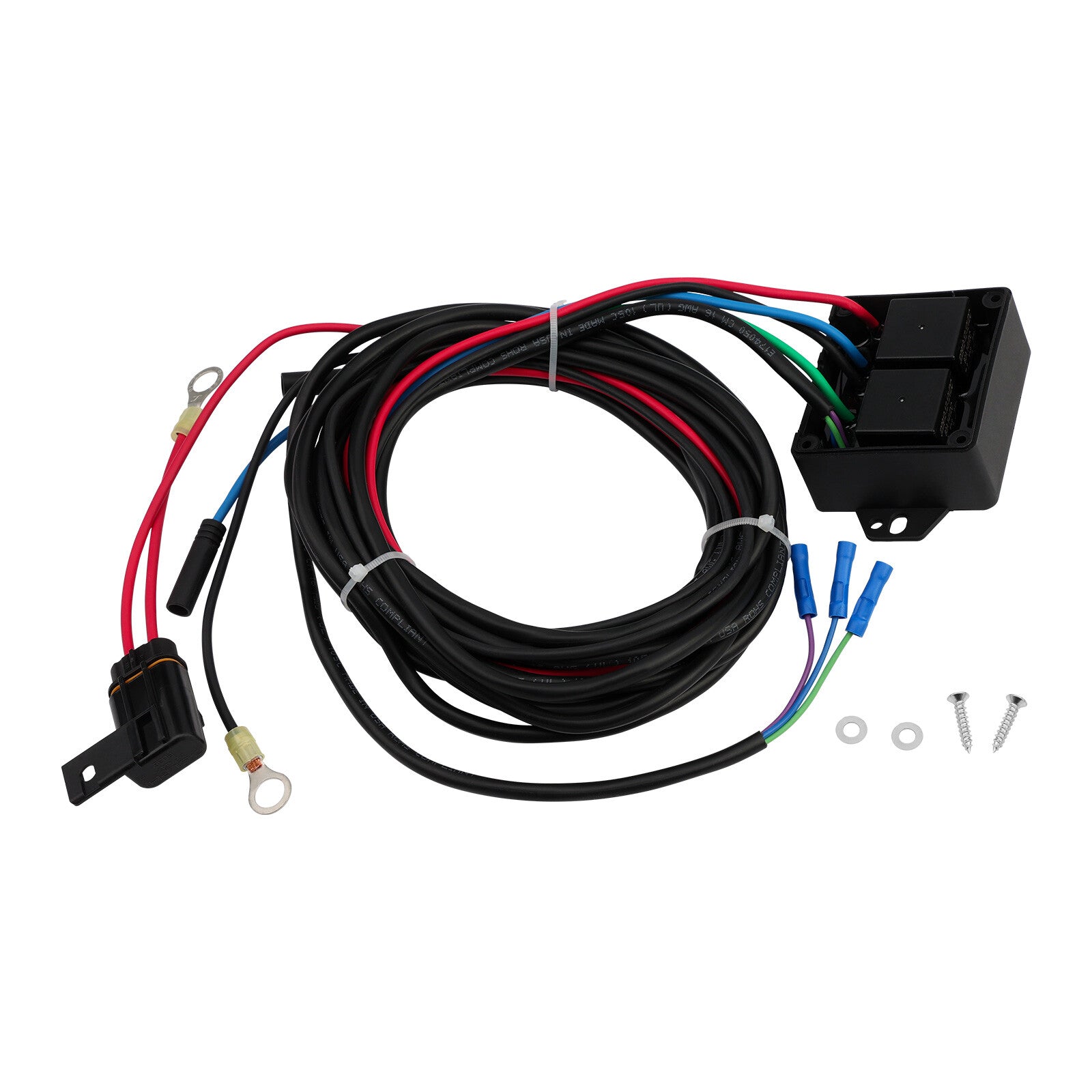

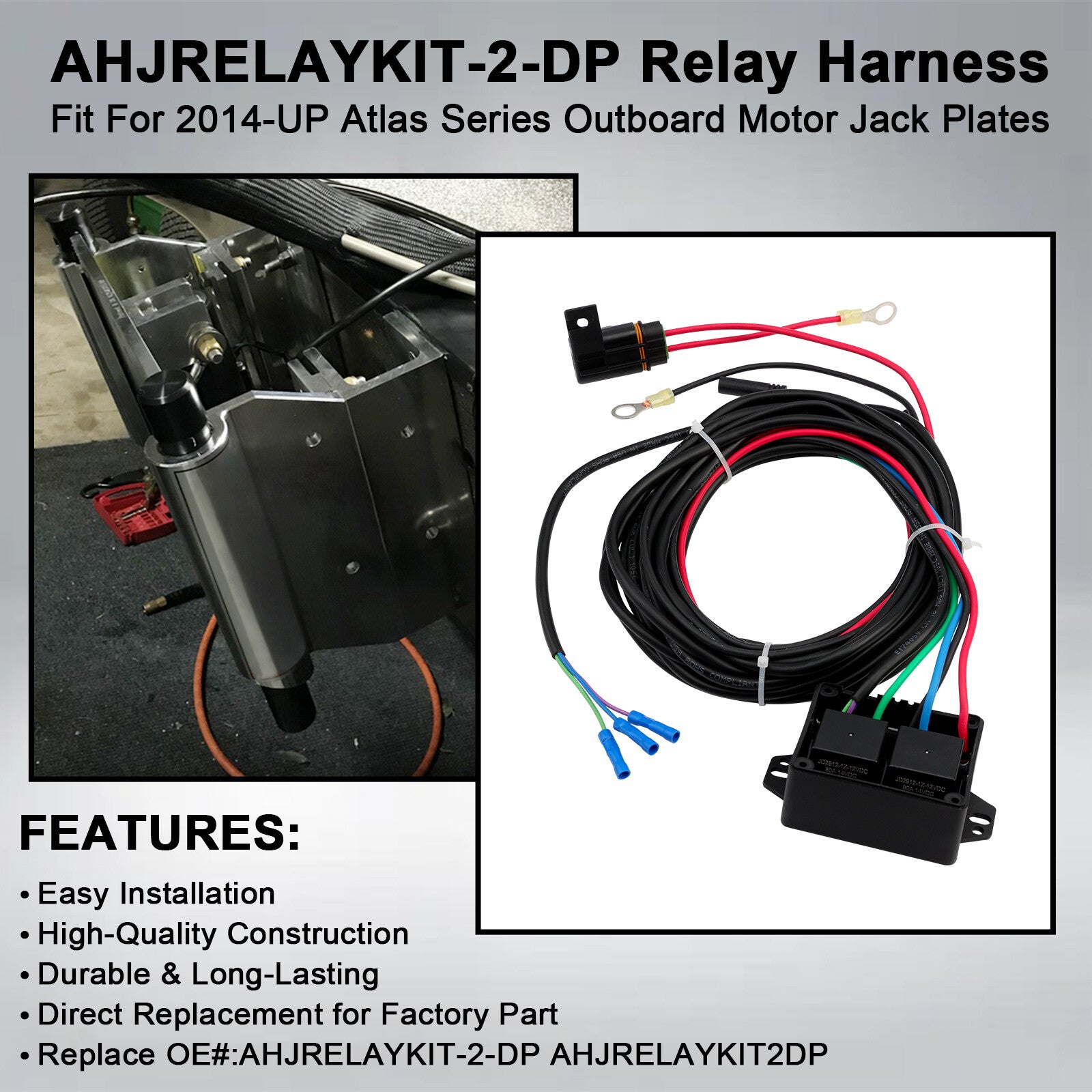

The AHJRELAYKIT-2-DP hydraulic jack plate relay wiring harness kit provides a plug-and-play electrical connection for Atlas series jack plates, eliminating guesswork and ensuring reliable up/down control.

Overview

This hydraulic jack plate relay wiring harness kit simplifies installation of Atlas series jack plates by providing a fused relay and pre-terminated wiring. It replaces a mess of spliced connections with a single harness that plugs directly into the jack plate motor and your control switch. Designed for marine technicians and DIY boat owners, the hydraulic jack plate relay wiring harness kit cuts troubleshooting time and protects sensitive electronics.

Built For Performance

• Pre-assembled relay and socket rated for the jack plate motor’s current draw

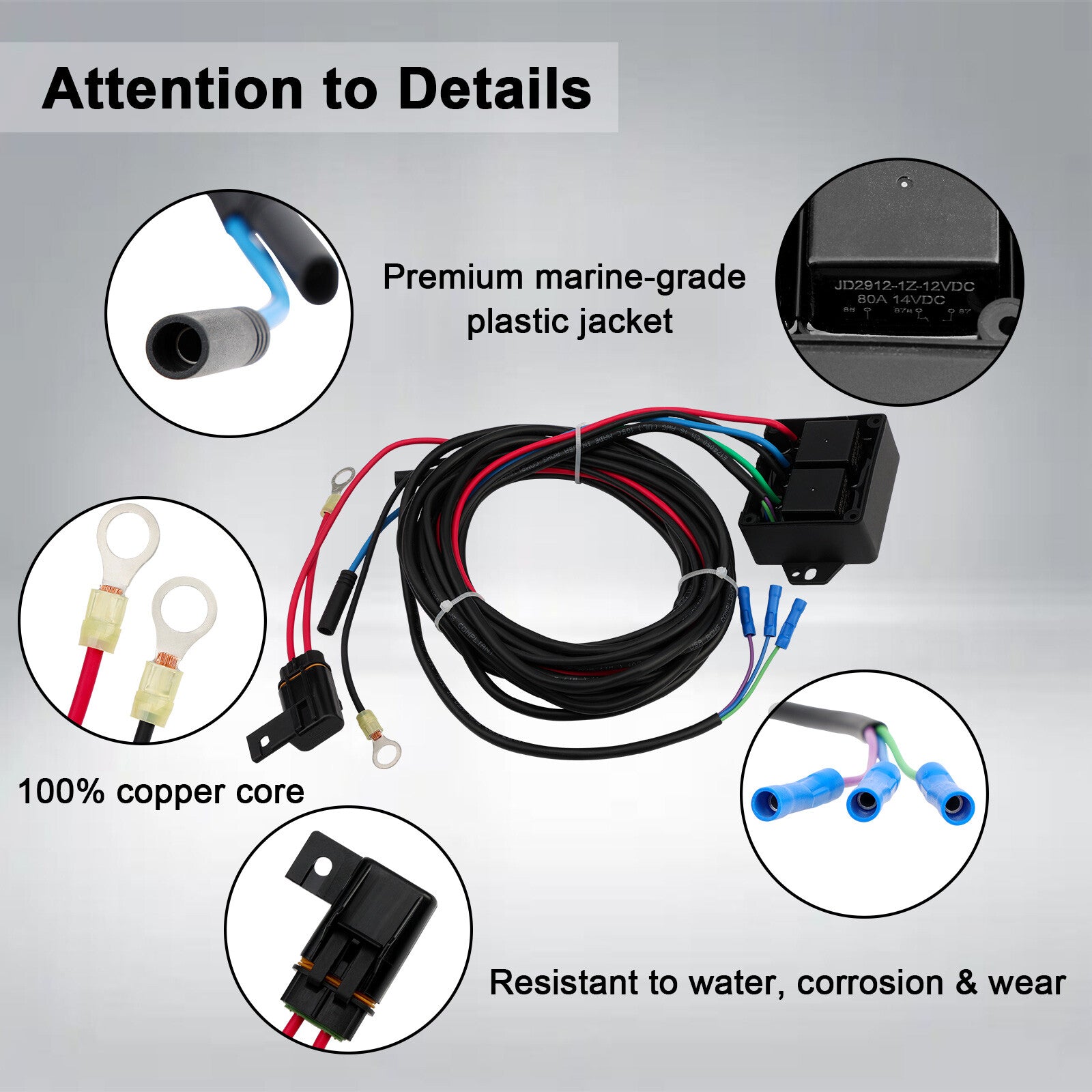

• Weatherproof sealed connectors resist salt spray and moisture
• Fused power lead with in-line blade fuse protects against overload
• Color-coded wires match standard marine wiring for fast hookup
• Flexible, oil-resistant insulation holds up in wet bilge areas
• Compatible with standard toggle and rocker switch inputs

Fits These Machines

• for Atlas AHJ series hydraulic jack plates

On-The-Job Use

• Outboard motor height adjustment on flats boats and bay boats
• Engine trim control on offshore fishing boats
• Boat lift and pontoon jack plate wiring
• Ski boat jack plate relay replacement
• Commercial marine equipment requiring reliable up/down switching

Specs At A Glance

Good To Know

Q: Does this harness work with older Atlas jack plates without a relay? A: Yes, it provides the relay and fused power supply needed for smooth operation, but you must verify your jack plate’s wiring diagram matches the harness pinout.

Q: Is this kit waterproof for saltwater use? A: The relay and connections are weather-resistant but not submersible; mount in a protected location and apply dielectric grease for saltwater environments.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
