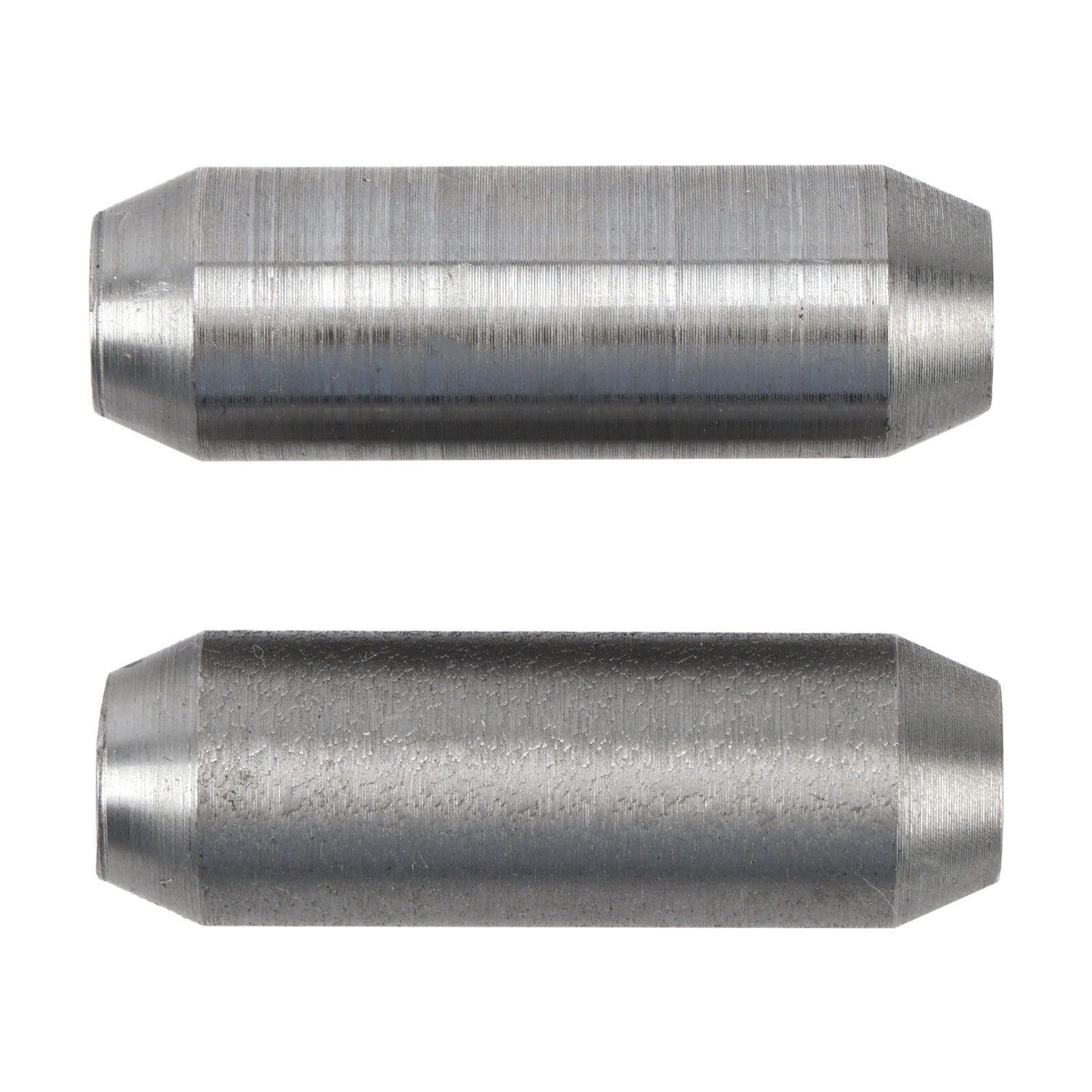

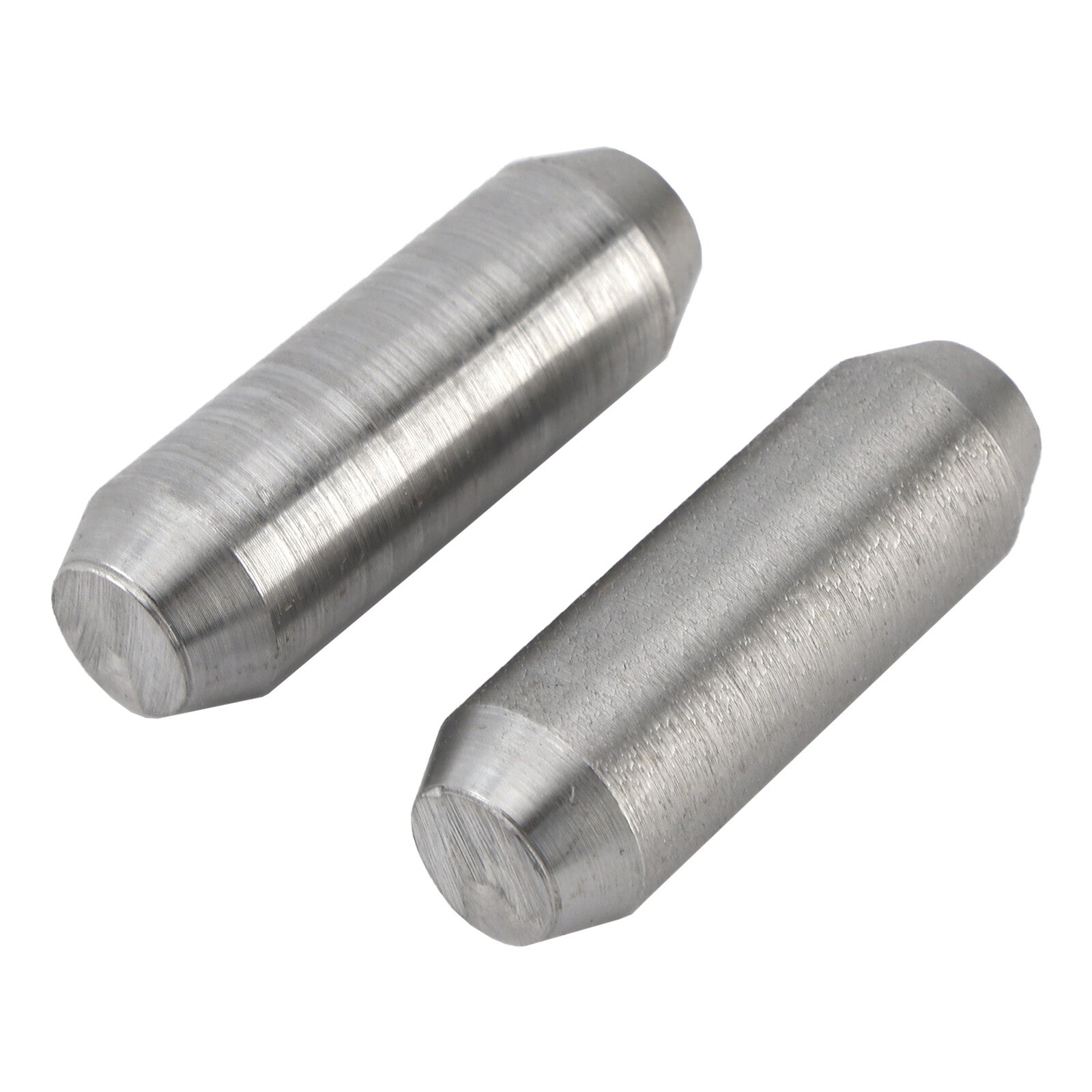

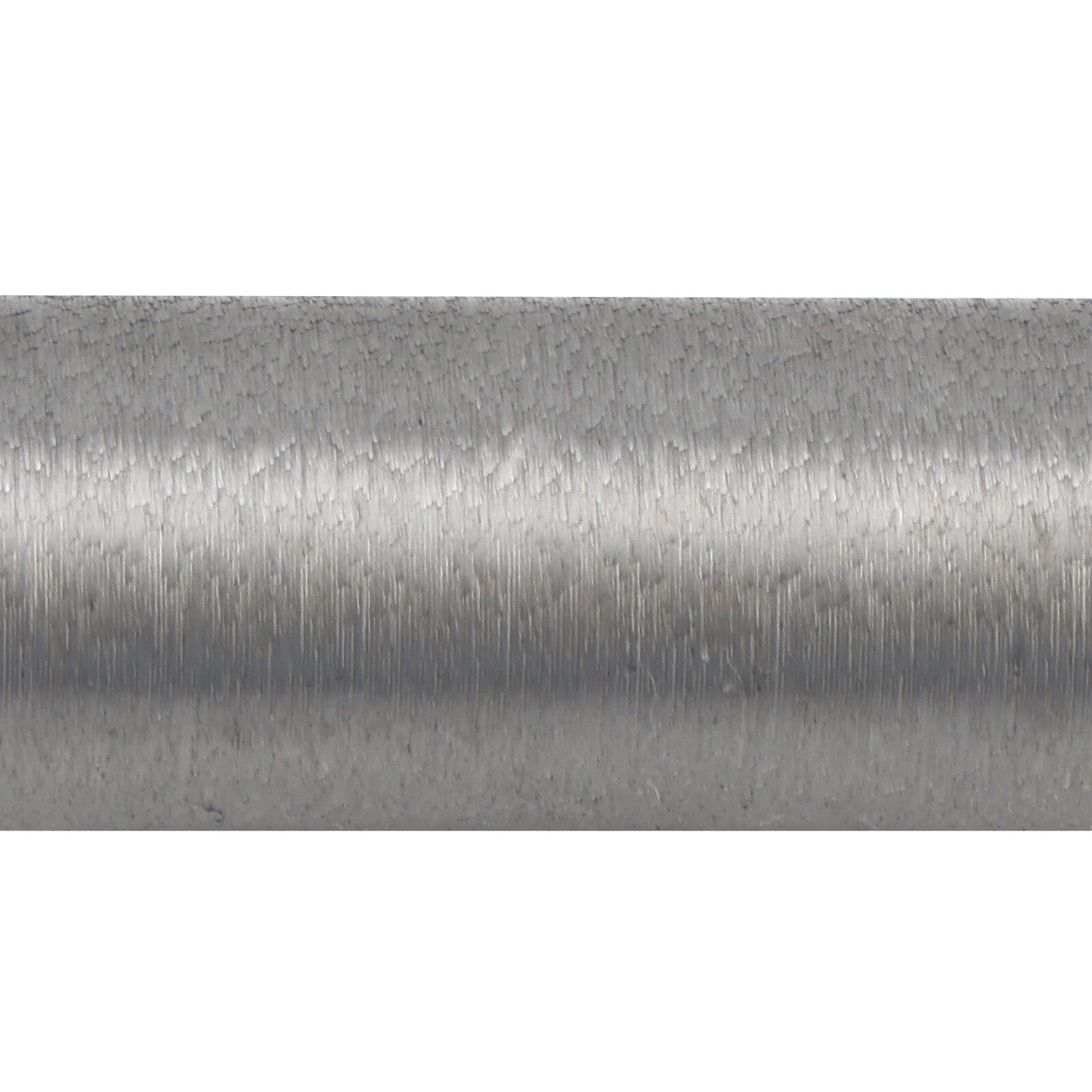

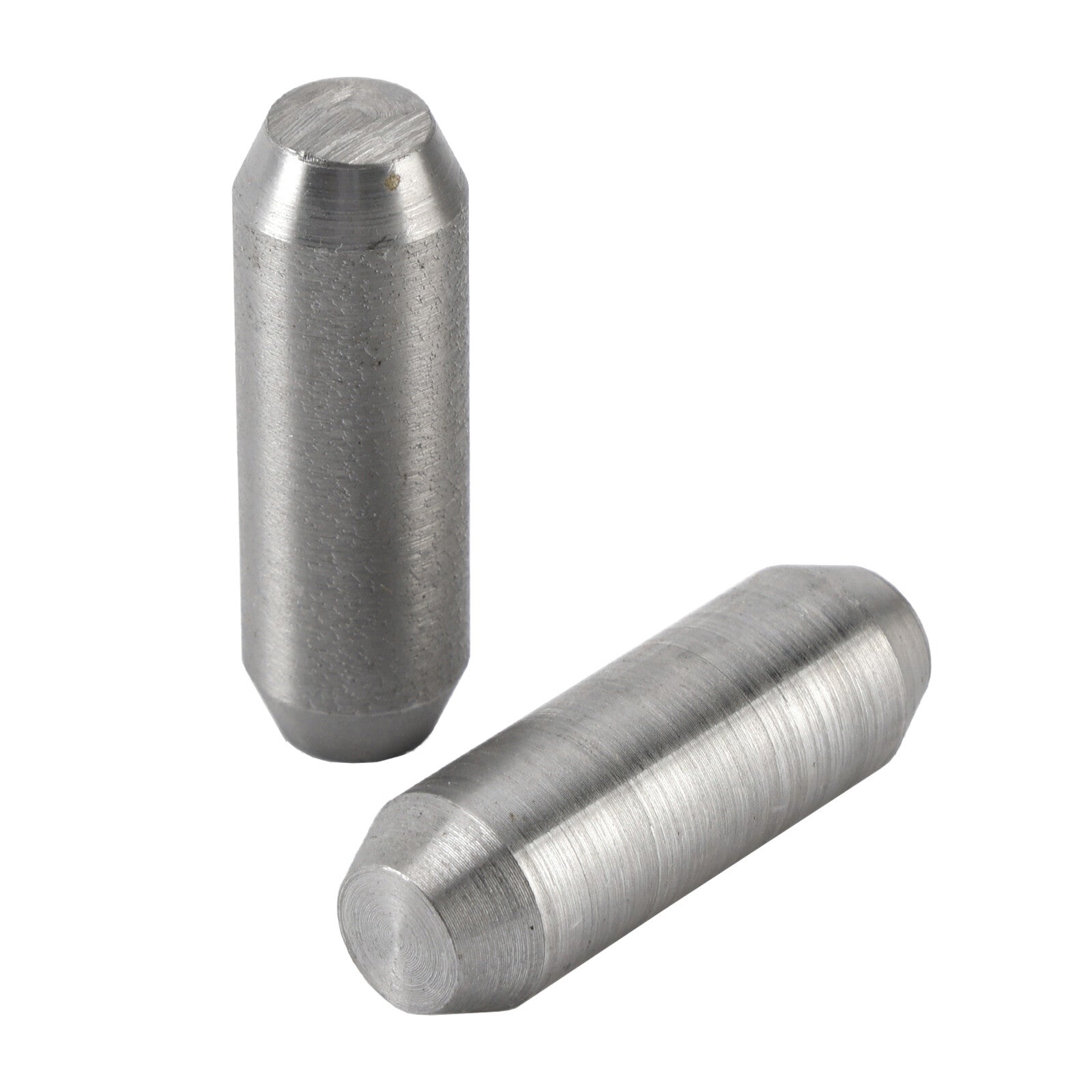

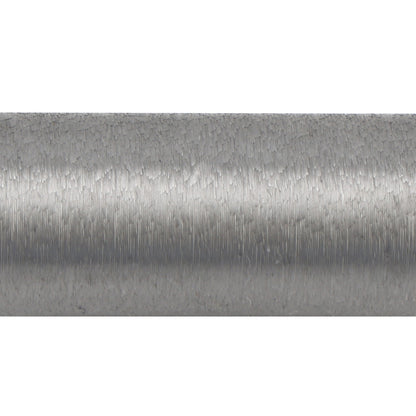

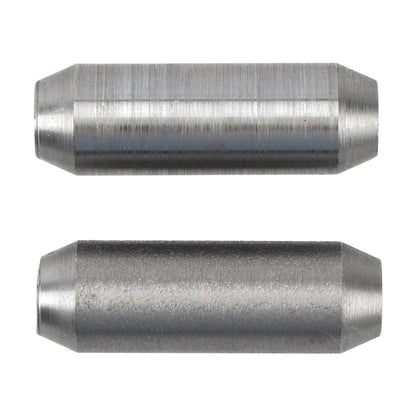

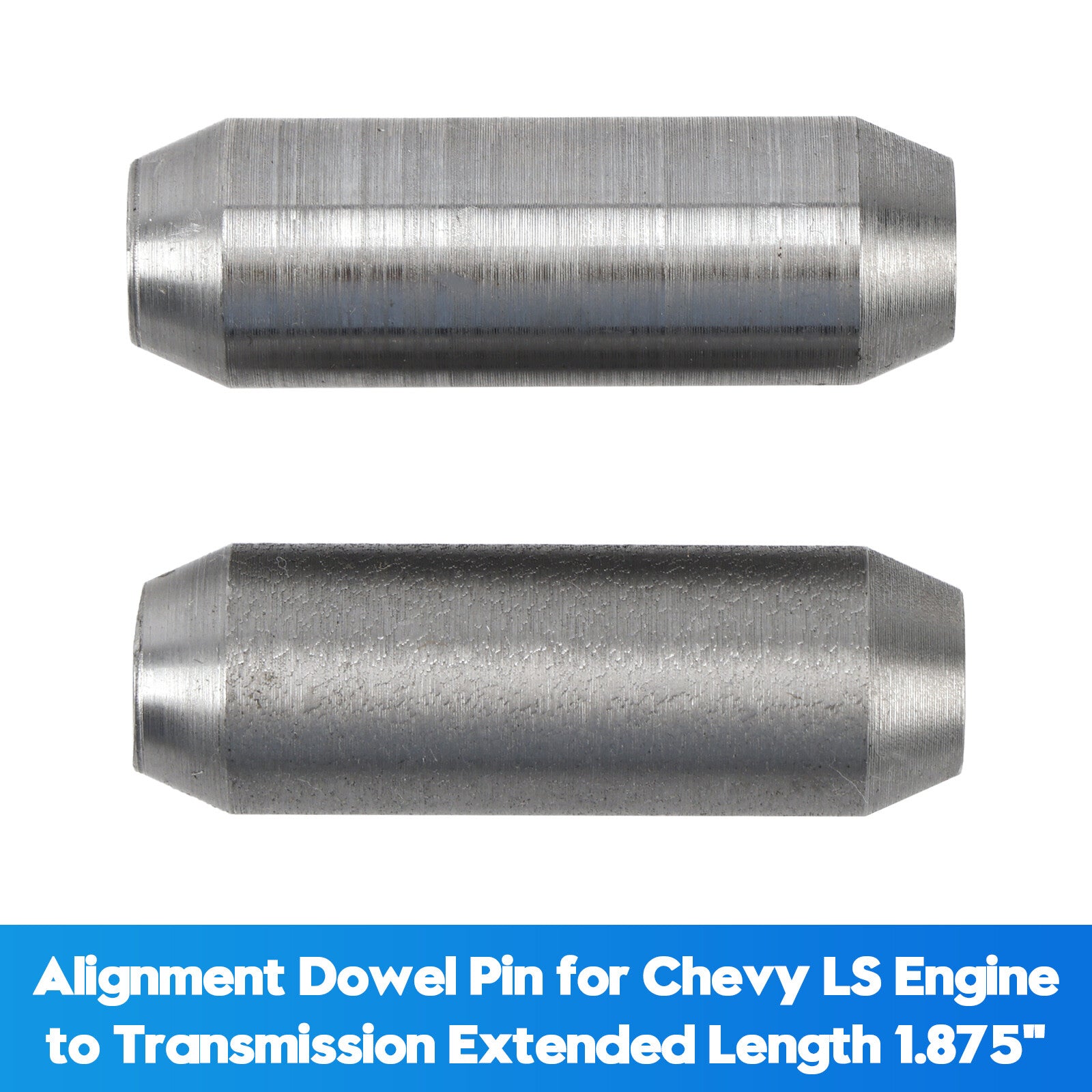

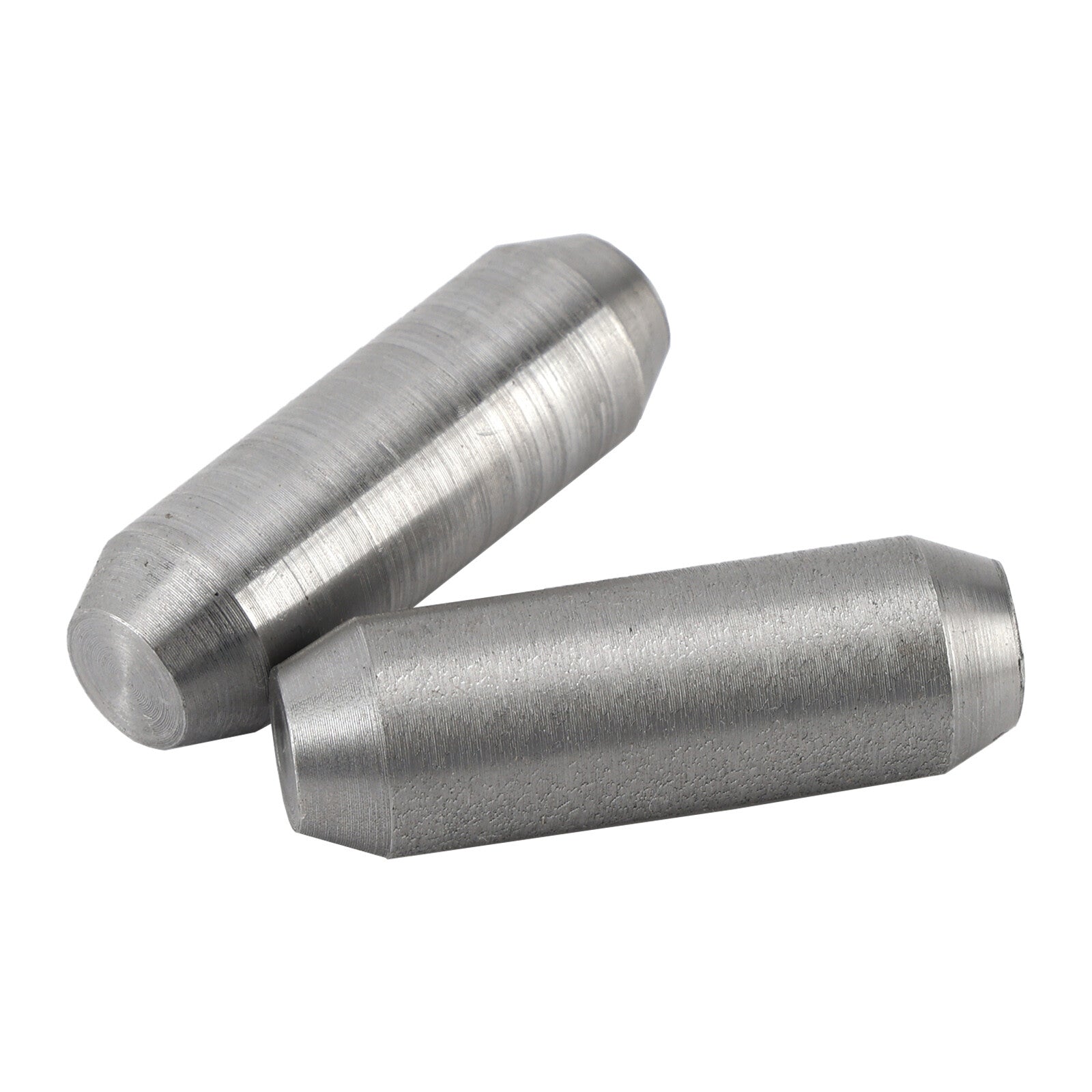

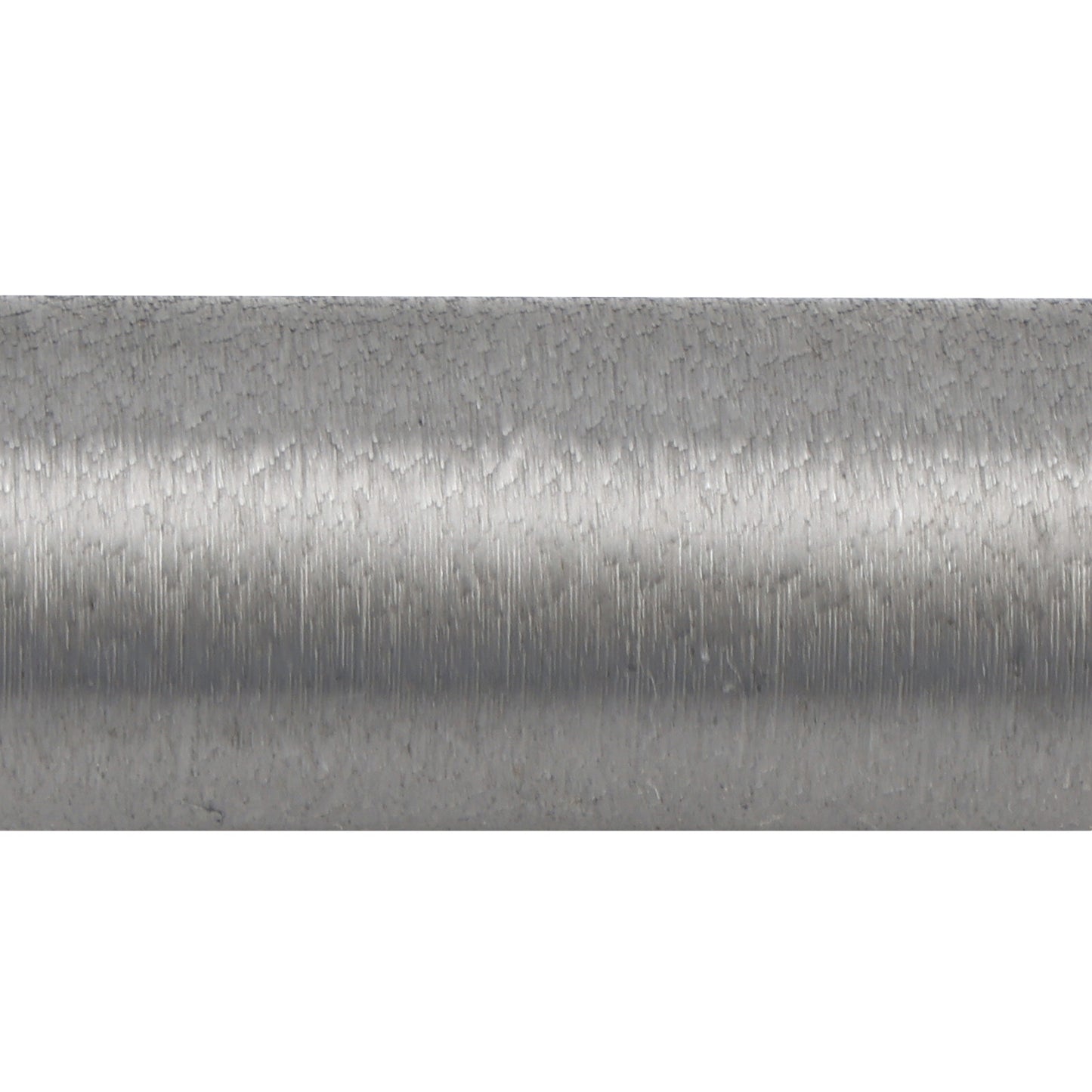

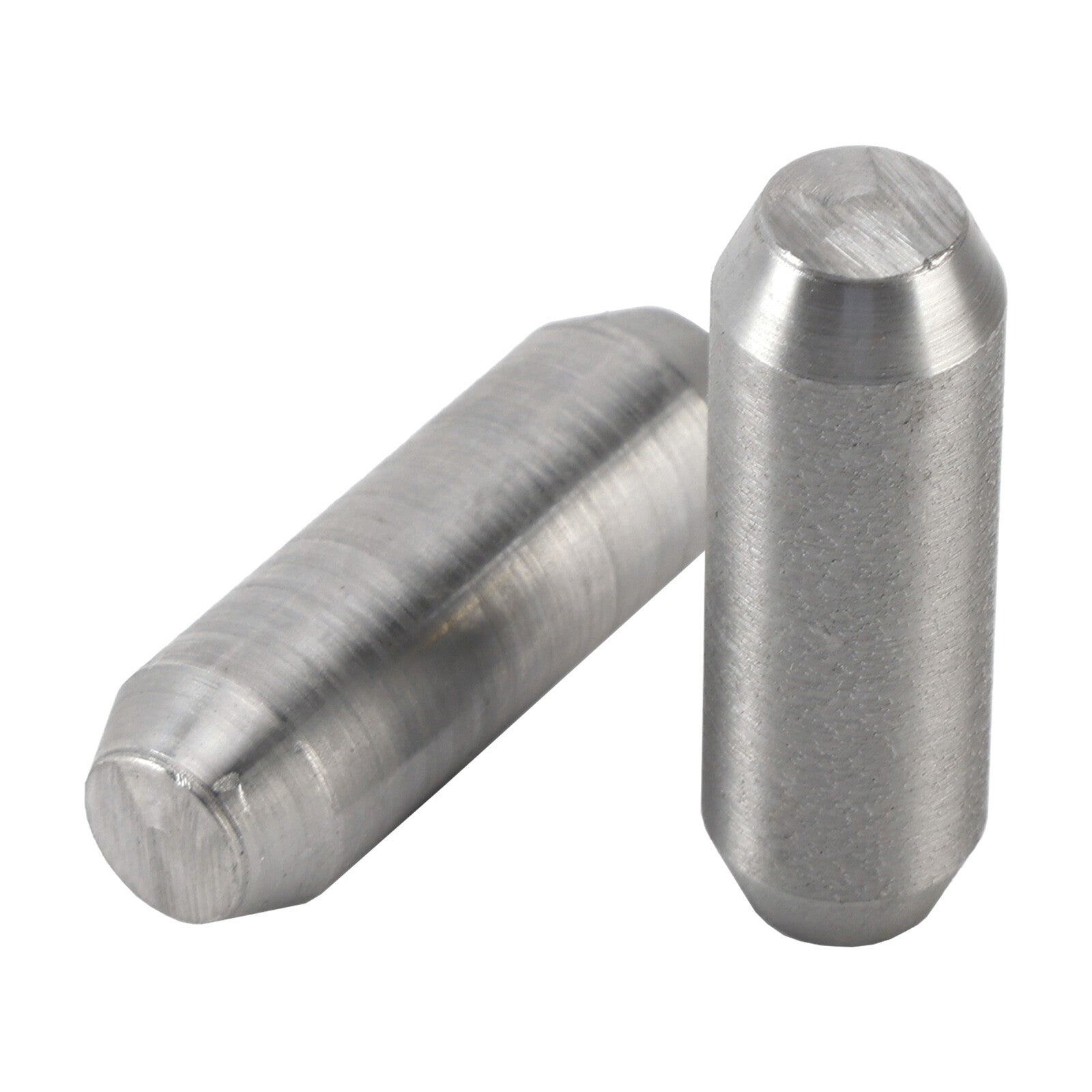

Alignment Dowel Pin for Chevy LS Engine to Transmission Extended Length 1.875"

Alignment Dowel Pin for Chevy

This extended-length alignment dowel pin for Chevy ensures precise alignment between the LS engine block and the transmission bellhousing.

Overview

Proper drivetrain alignment is achieved with this heavy-duty alignment dowel pin. Featuring an extended length of 1.875 inches, this alignment dowel pin is designed for aftermarket bellhousings and mid-plates that require additional reach. It is a crucial component for custom engine swaps and high-performance racing builds.

Built For Performance

• Precision machined from high-strength steel for structural rigidity
• Extended length accommodates thick mid-plates and aftermarket bellhousings
• Provides exact radial alignment to prevent transmission input shaft wear

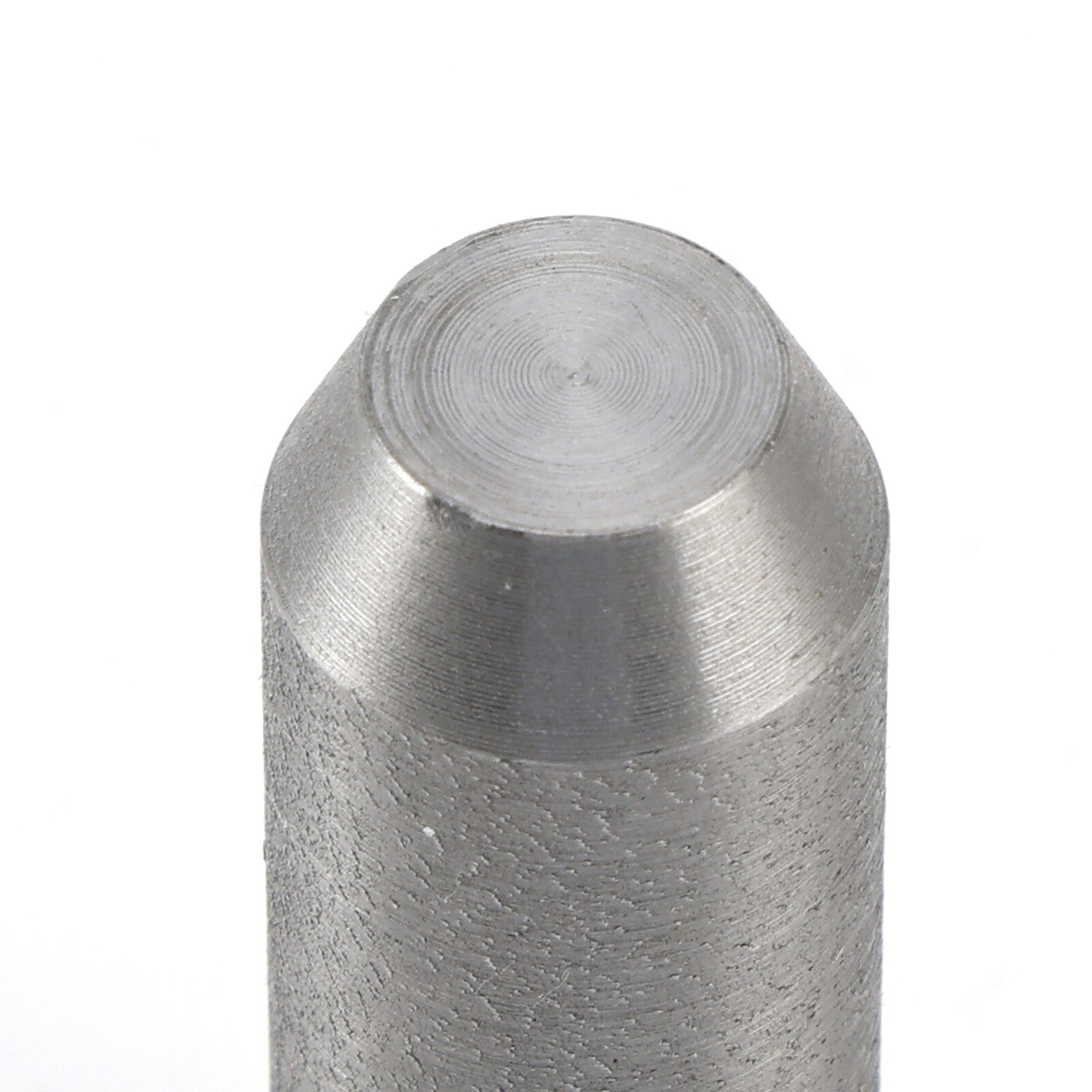

• Chamfered ends allow for easy insertion during engine mating

Fits These Machines

• for Chevy LS Engines

On-The-Job Use

• Aligning aftermarket transmissions to LS engine blocks
• Installing thick mid-plates or engine adapter plates
• Ensuring correct torque converter and clutch shaft centering

Specs At A Glance

Good To Know

Q: Why do I need an extended dowel pin? A: When using thicker aftermarket bellhousings or mid-plates, standard-length dowels may not protrude far enough to locate the transmission securely.

Q: How many dowel pins are typically required for an installation? A: Most LS engine-to-transmission connections utilize two alignment dowel pins placed on opposite sides of the block.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
