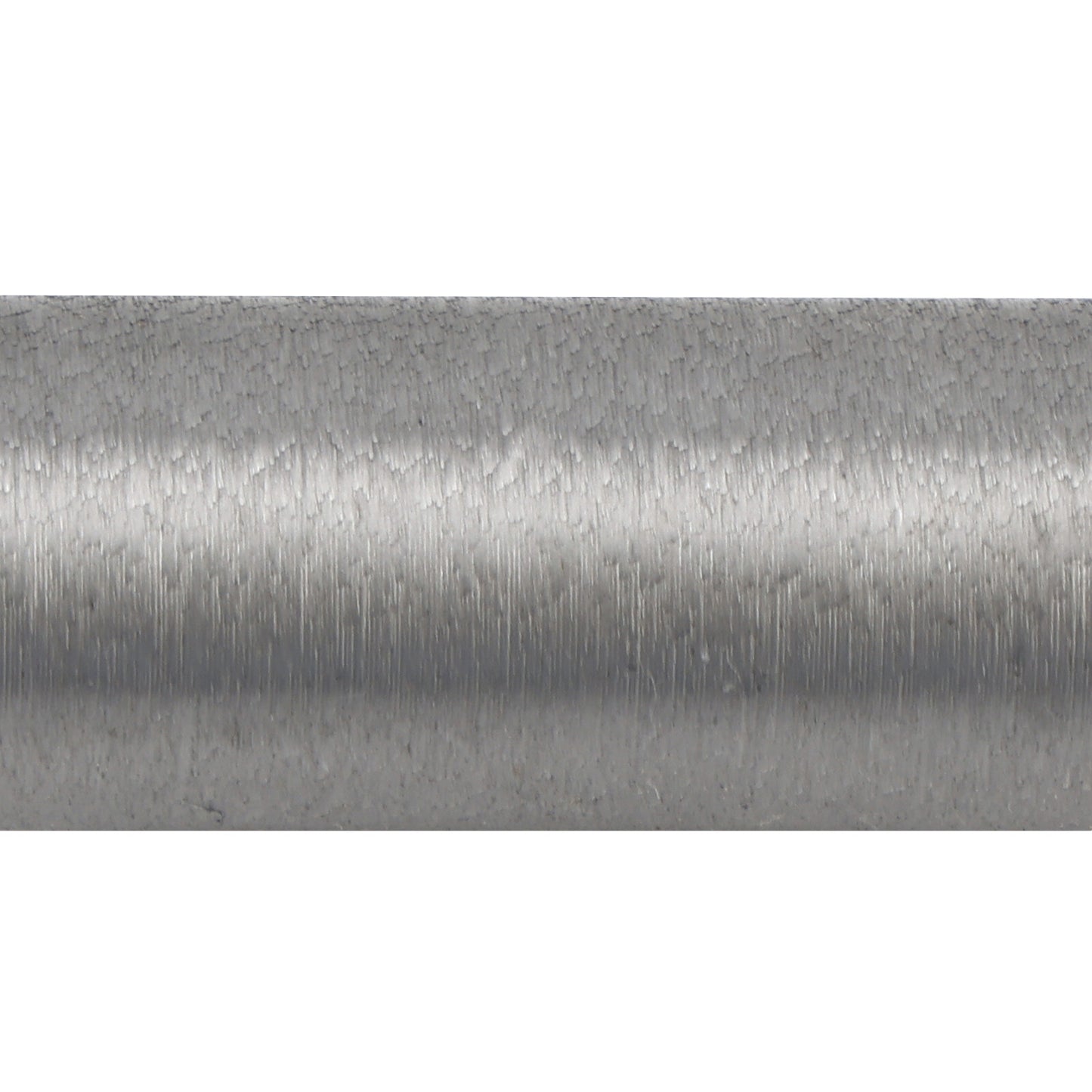

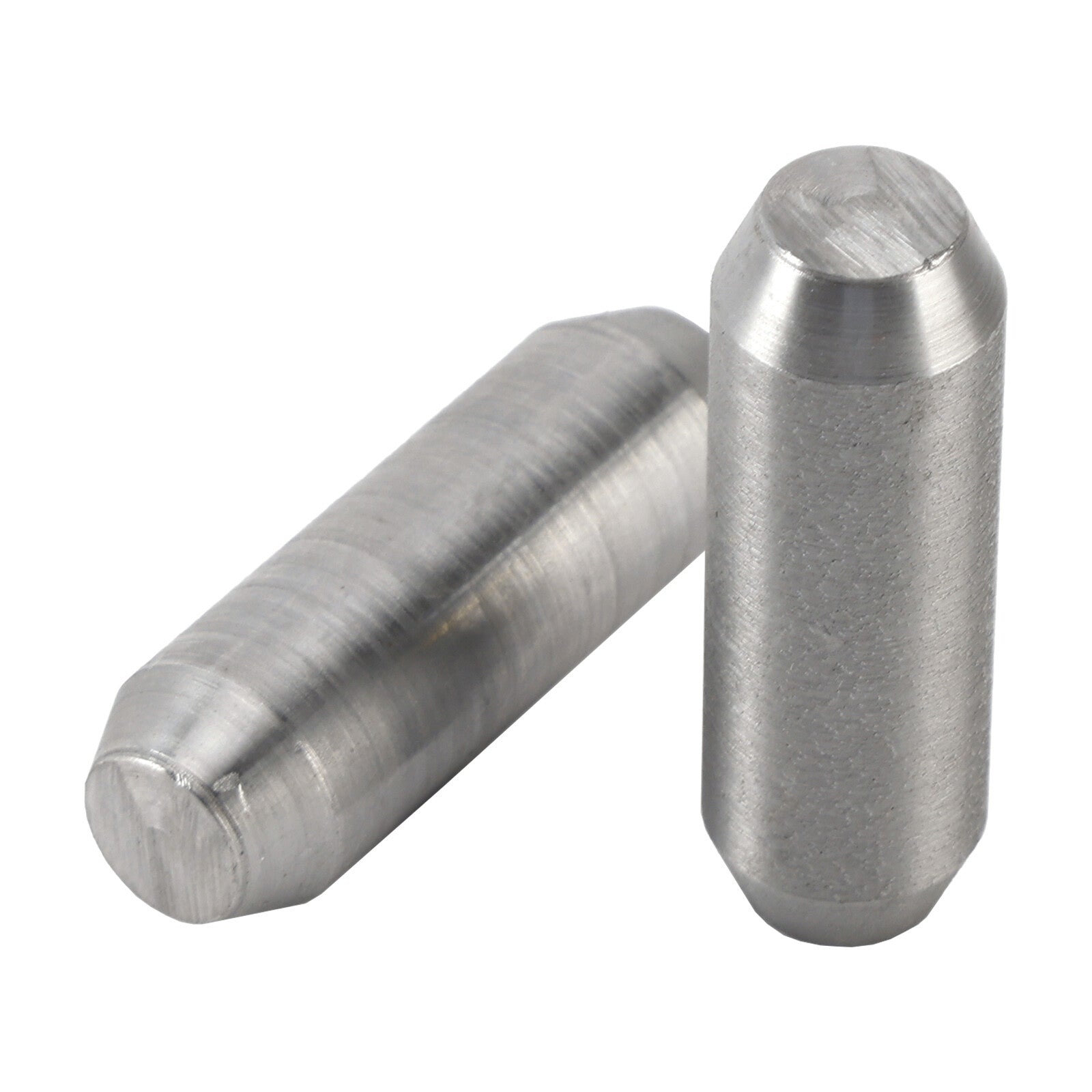

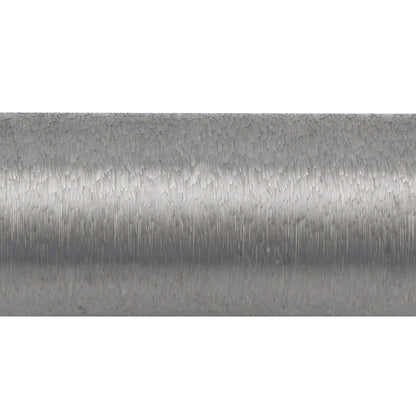

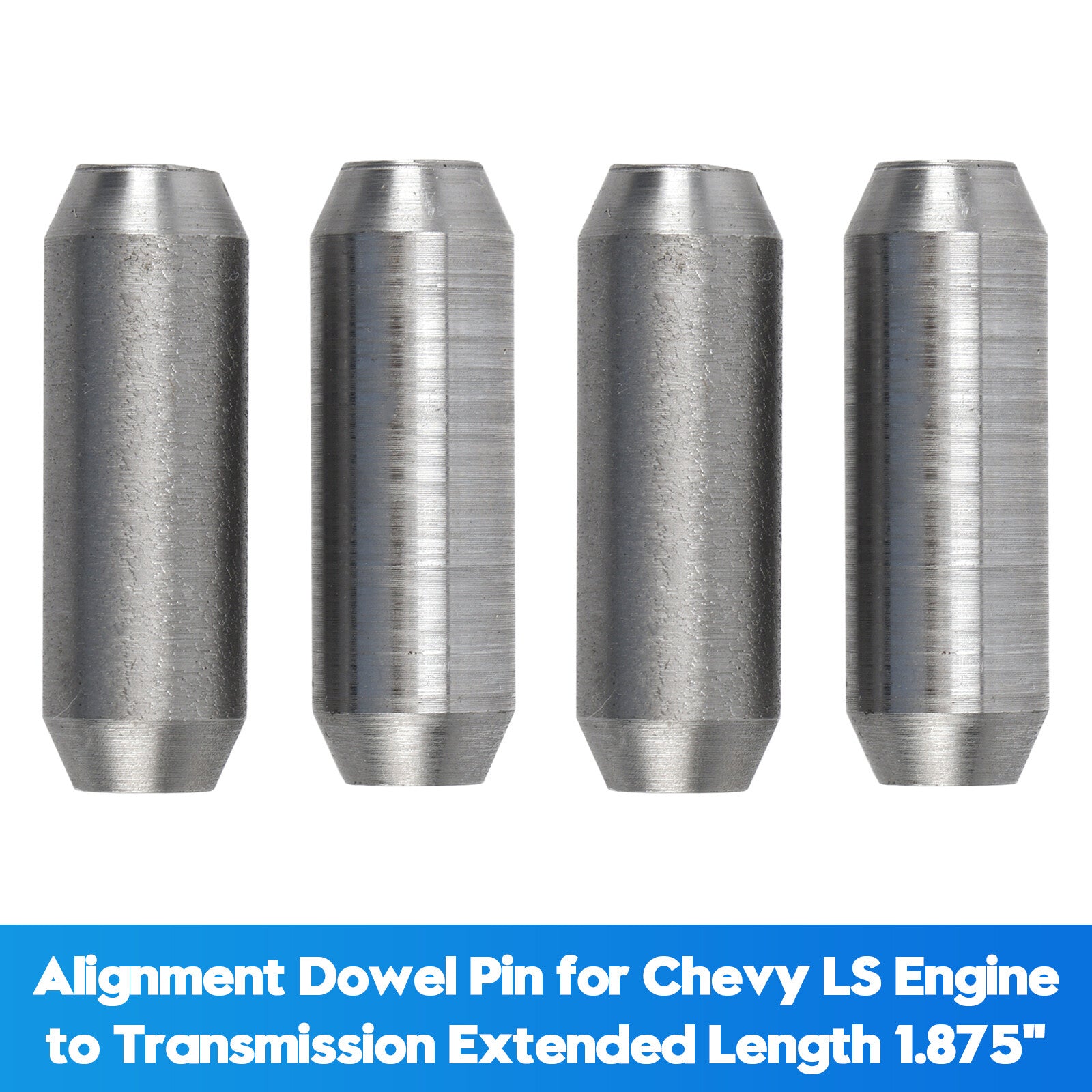

Alignment Dowel Pin for Chevy LS Engine to Transmission Extended Length 1.875"`

Alignment Dowel Pin for Chevy

This extended length alignment dowel pin for Chevy ensures precise mating of the LS engine block to the transmission bellhousing during installation.

Overview

This heavy-duty alignment dowel pin for Chevy provides the extra length needed to align the engine and transmission on custom builds or when using thick midplates. It guarantees proper concentric alignment of the input shaft to prevent clutch or converter wear. Automotive builders and mechanics can rely on this alignment dowel pin for Chevy for precise drivetrain mockups.

Built For Performance

• Extended length of 1.875 inches accommodates midplates and custom bellhousings
• Precision machined from high-tensile steel for maximum strength and shear resistance

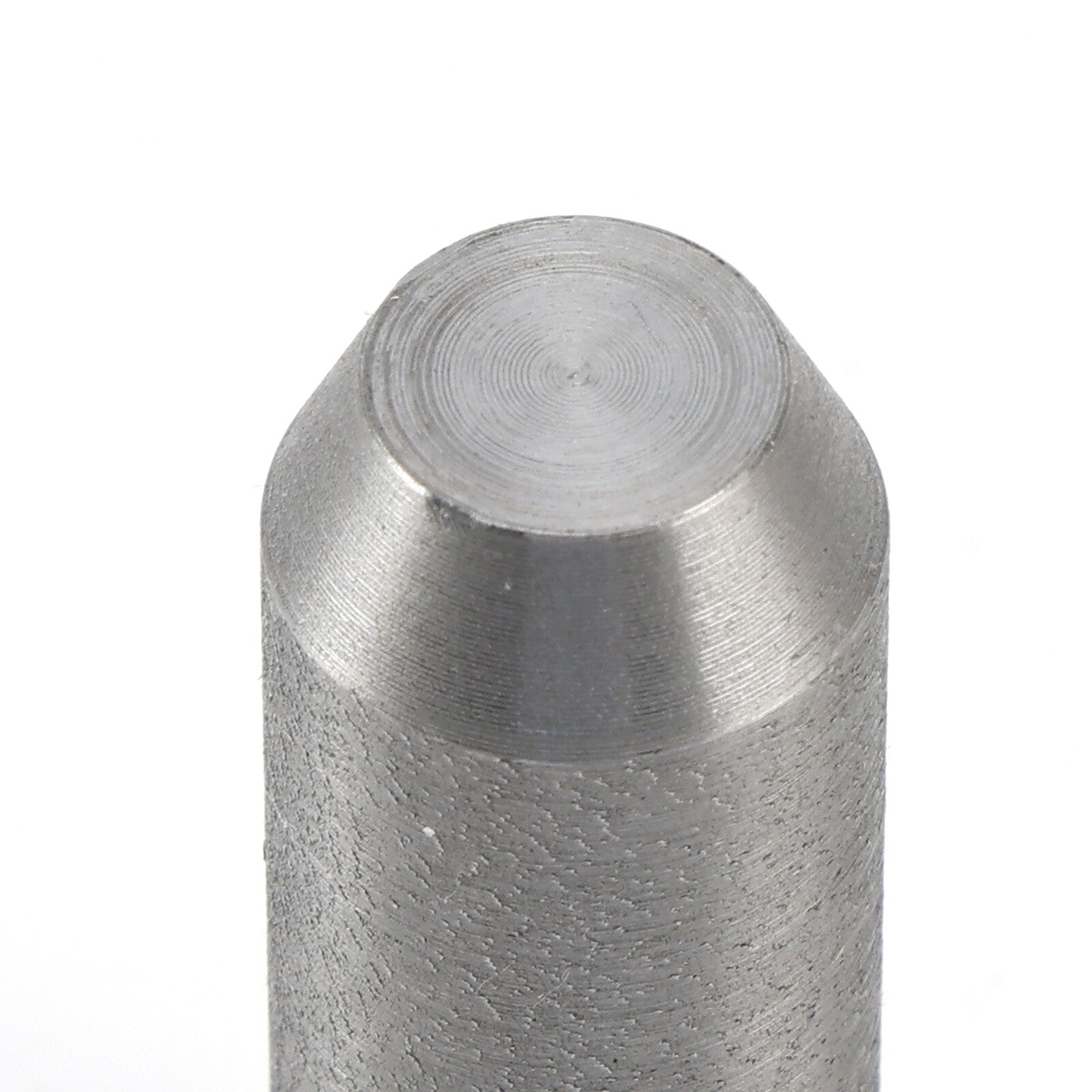

• Chamfered ends allow for easy insertion and smooth mating of components
• Corrosion-resistant coating protects against rust and binding over time

Fits These Machines

• for Chevy LS Engines

On-The-Job Use

• Aligning the transmission bellhousing with the engine block on LS swaps
• Accommodating thicker aftermarket midplates and engine plates in race cars
• Ensuring concentric alignment during engine mockups and drivetrain builds

Specs At A Glance

Good To Know

Q: Why would I need extended dowel pins instead of standard ones? A: Extended pins are required when utilizing thick aftermarket mid-plates, custom scatter shields, or thick adapter plates to ensure adequate dowel engagement.

Q: How many dowel pins are needed for a typical transmission install? A: Two alignment dowels are standard on the engine block to properly align and secure the transmission bellhousing.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
