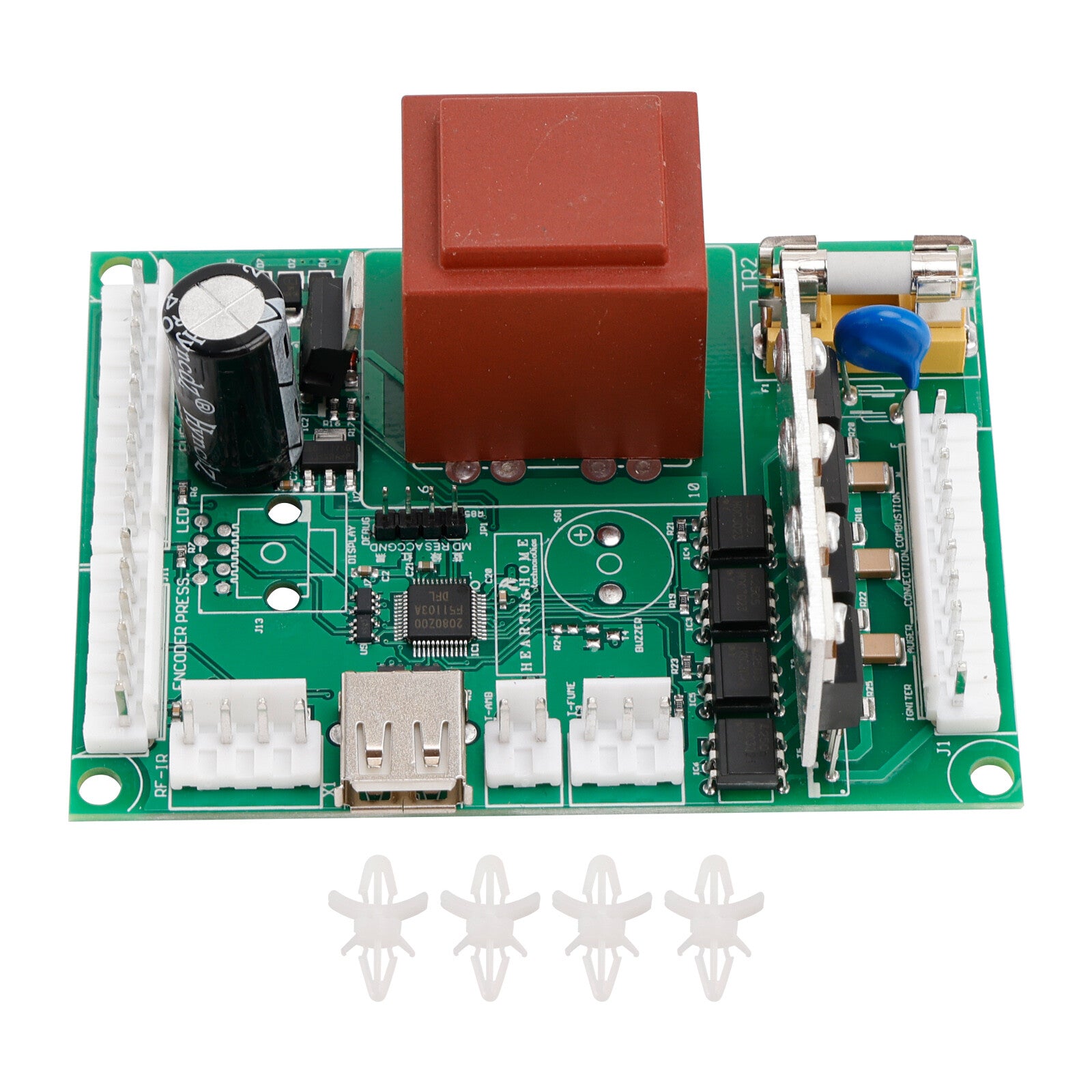

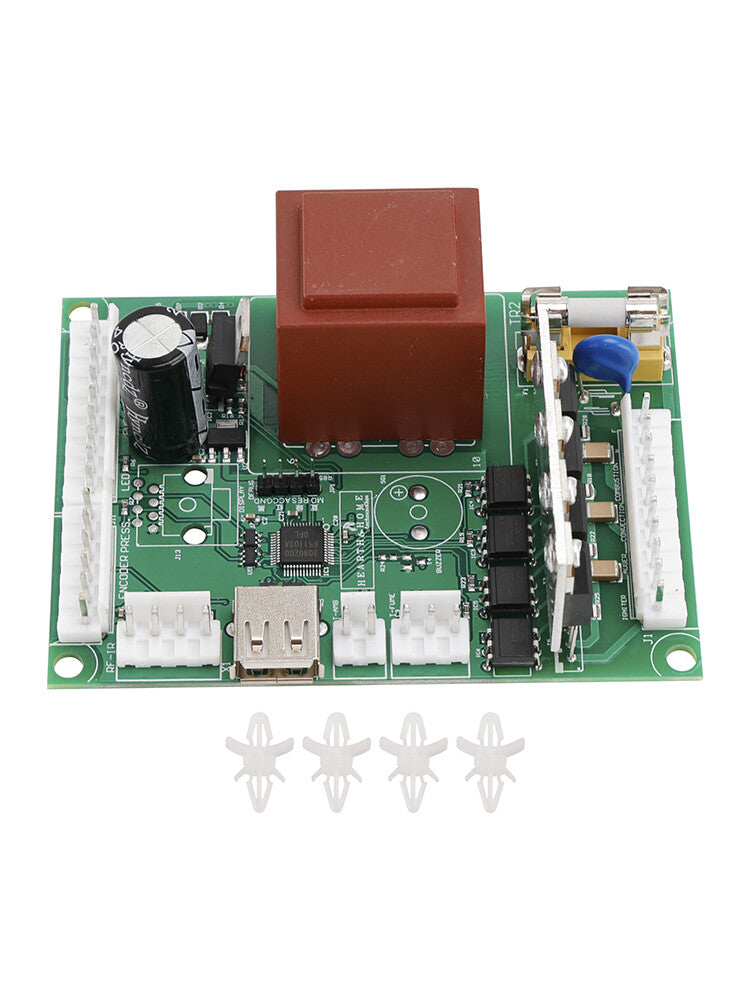

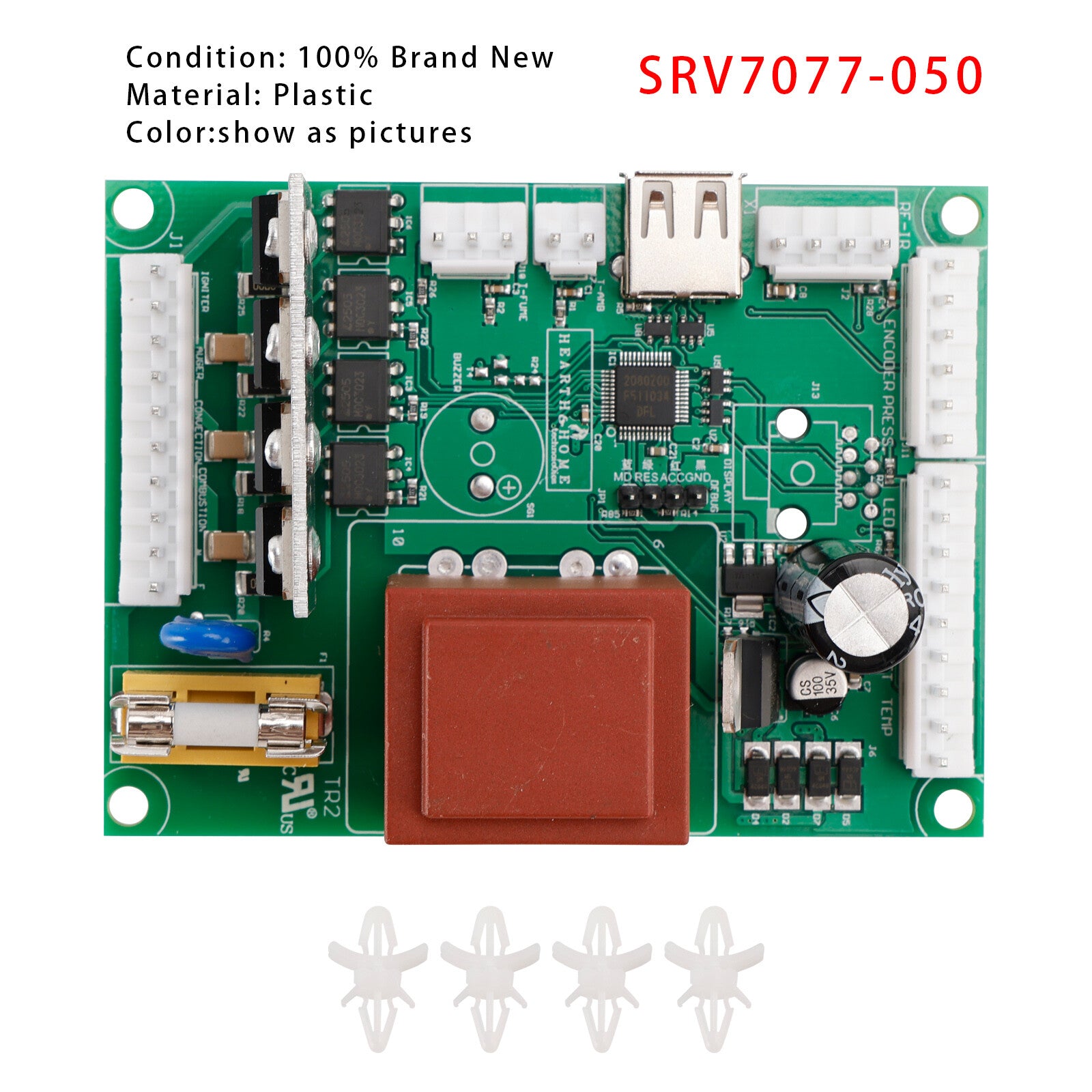

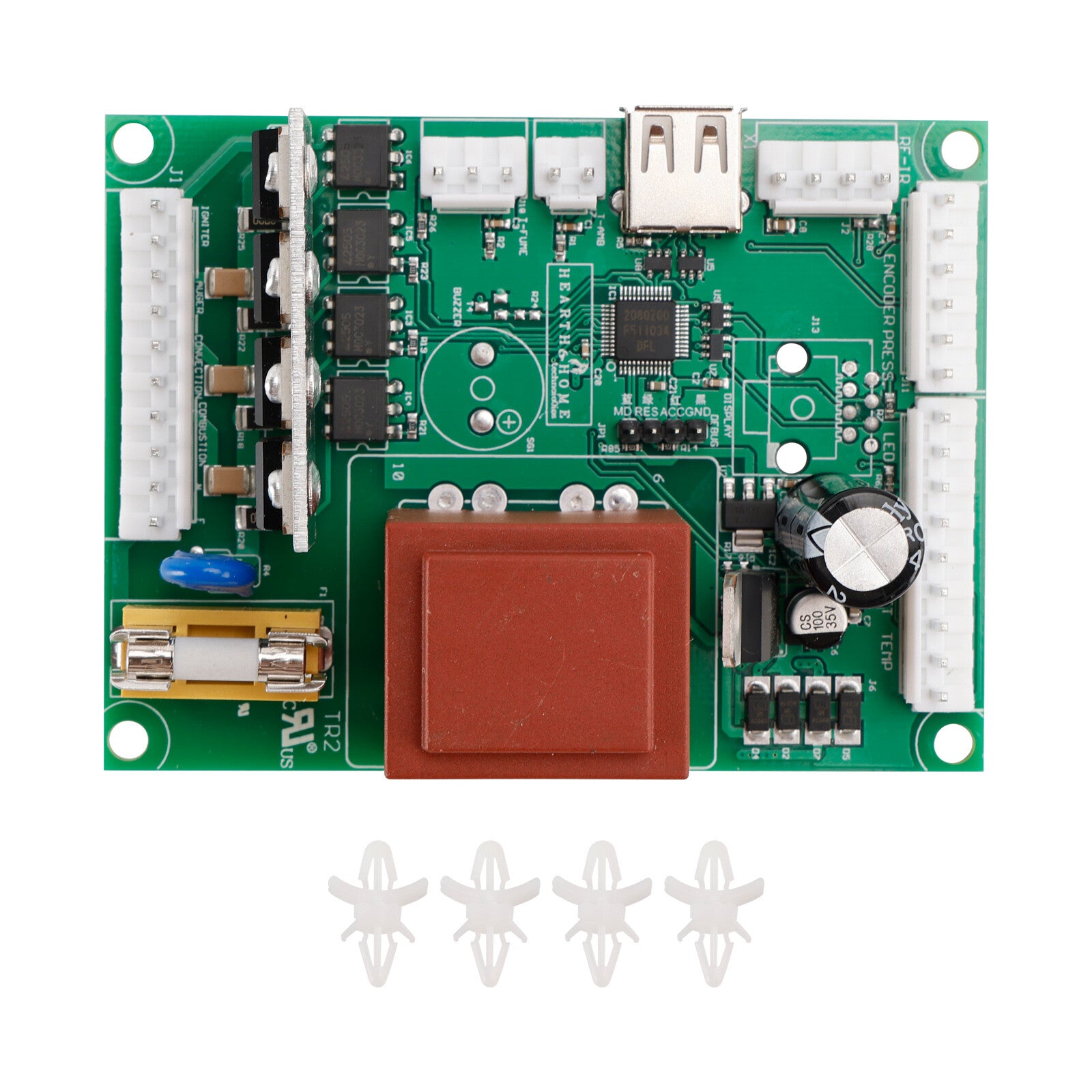

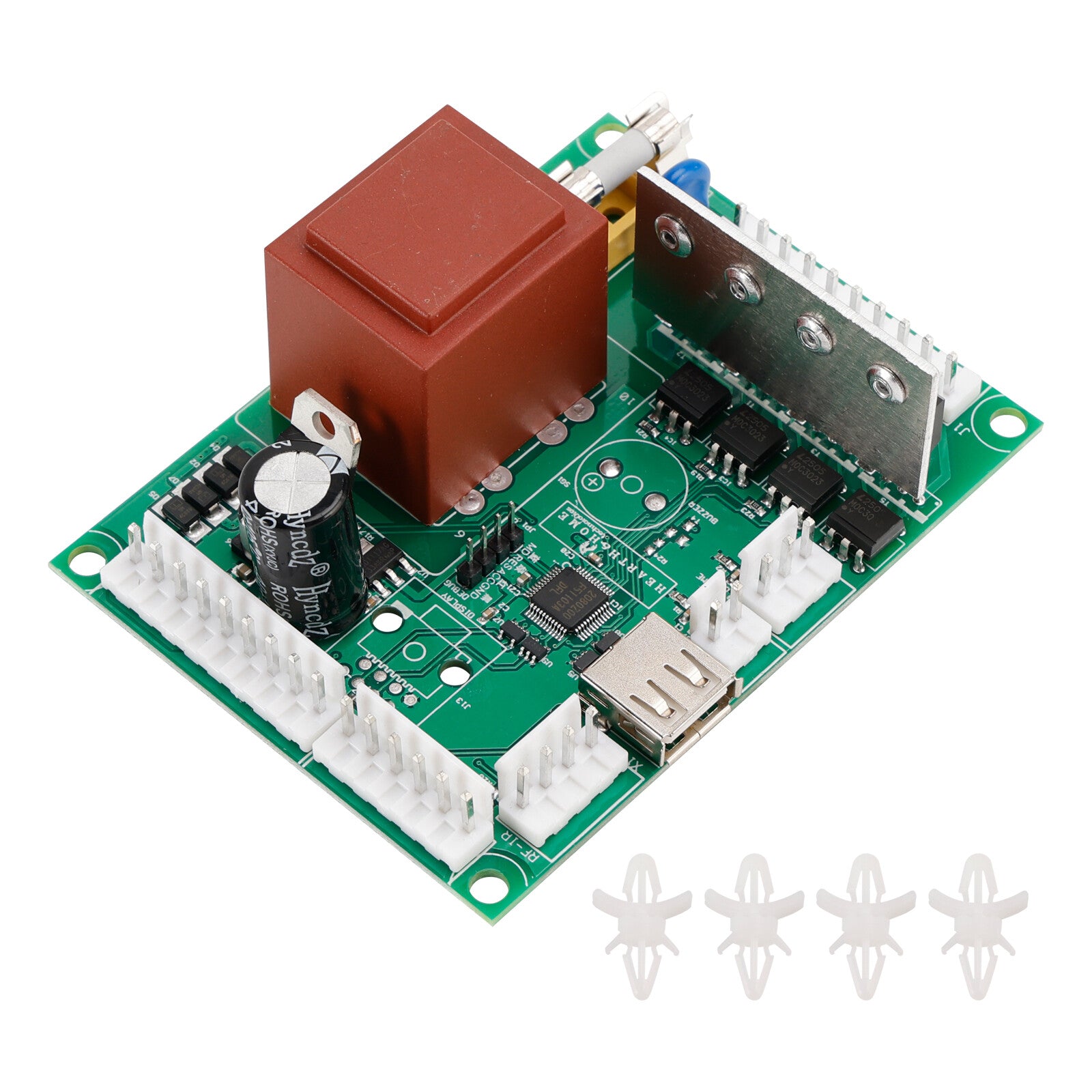

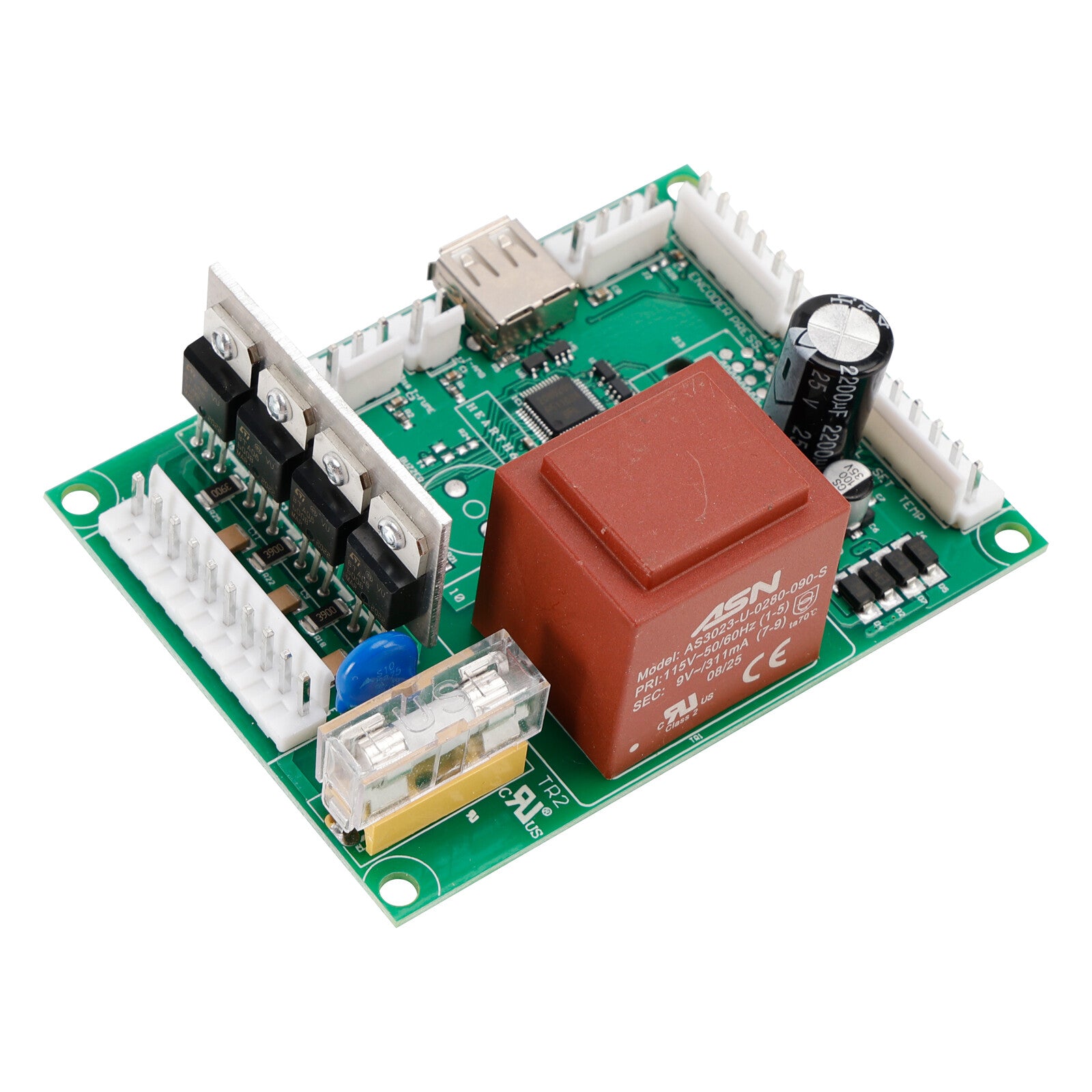

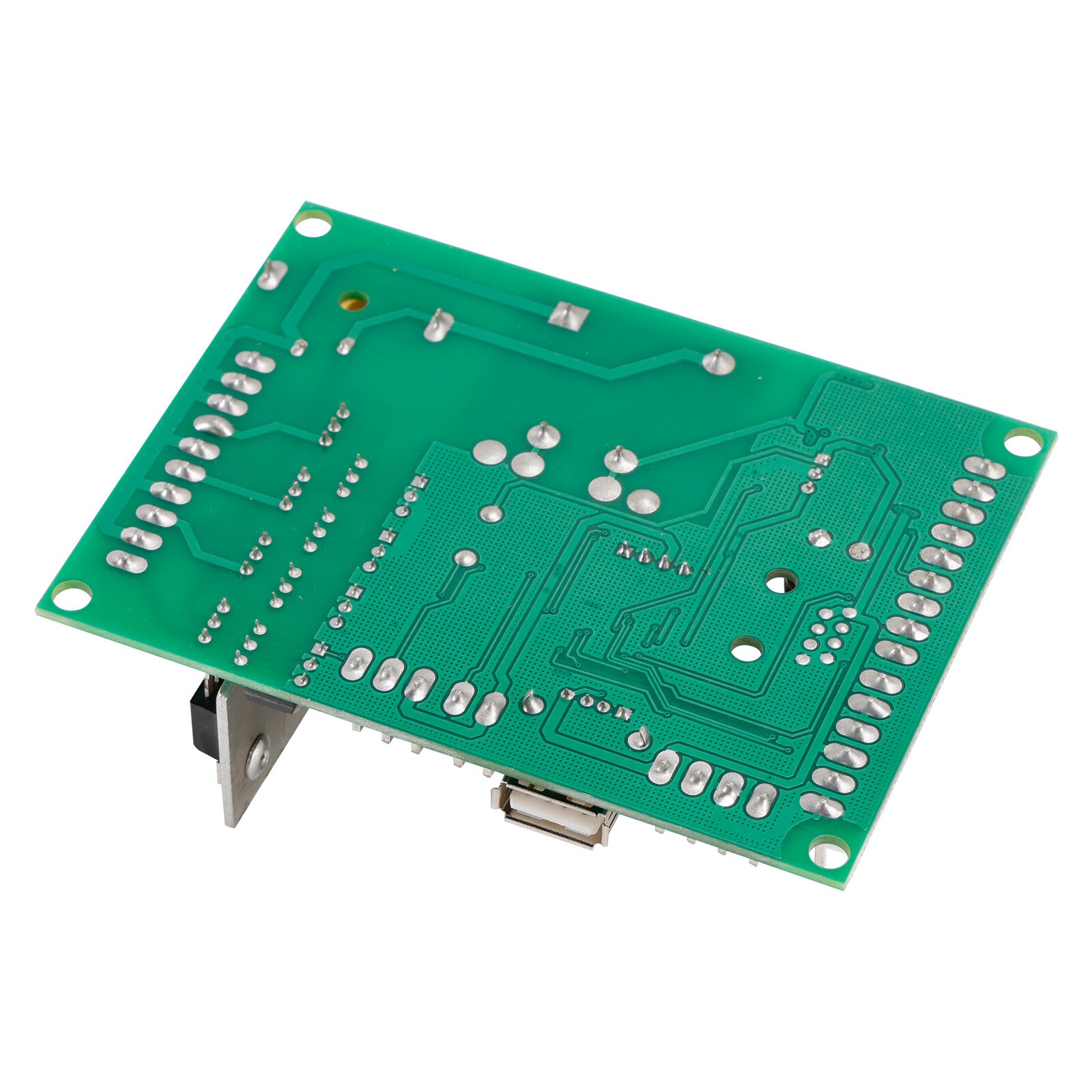

Circuit Control Board SRV7077-050 For PP130,Pleasant Hearth PH50PS PH50CABPS

Circuit Control Board for Pleasant Hearth

This circuit control board manages heating cycles, blower speeds, and safety sensors on pellet stoves, cross-referencing part number SRV7077-050.

Overview

This circuit control board acts as the central processor to regulate the automated functions of your pellet heating unit. Replacing a failed circuit control board restores reliable ignition, temperature modulation, and safe shut-off sequences. It is an essential component for HVAC technicians and homeowners repairing their primary winter heating source.

Built For Performance

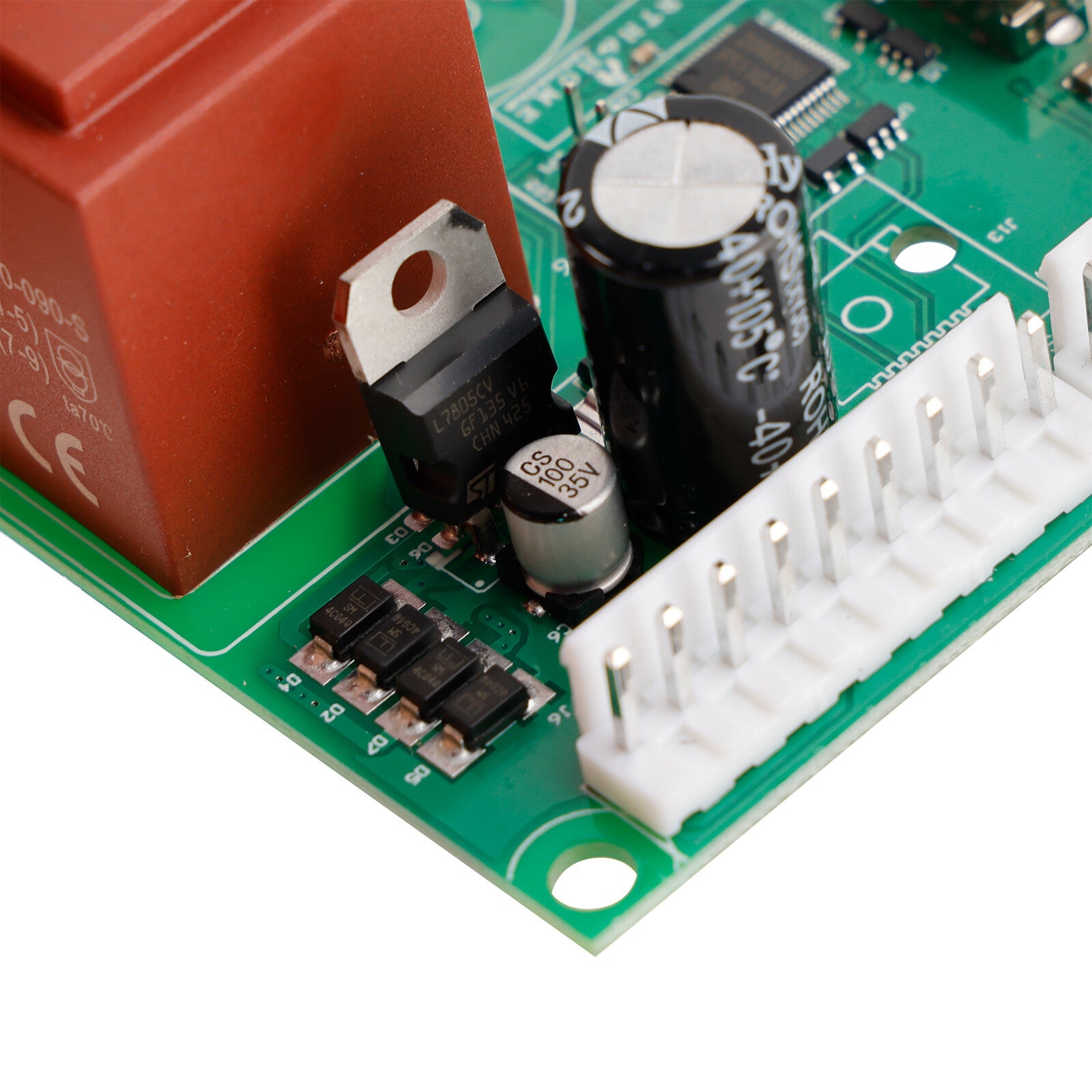

• High-grade solid-state electronic components ensure reliable operation.
• Multi-pin connections allow simple plug-and-play wiring installation.
• Engineered to withstand high operational temperatures inside stove cabinets.
• Pre-programmed firmware provides steady automatic control settings.

Fits These Machines

• for Pleasant Hearth PH50PS
• for Pleasant Hearth PH50CABPS
• for PP130 Pellet Stoves

On-The-Job Use

• Restoring electrical power and control inputs to pellet stoves.
• Troubleshooting feed motor, igniter, or exhaust blower failures.
• Replacing unresponsive or physically damaged appliance control modules.

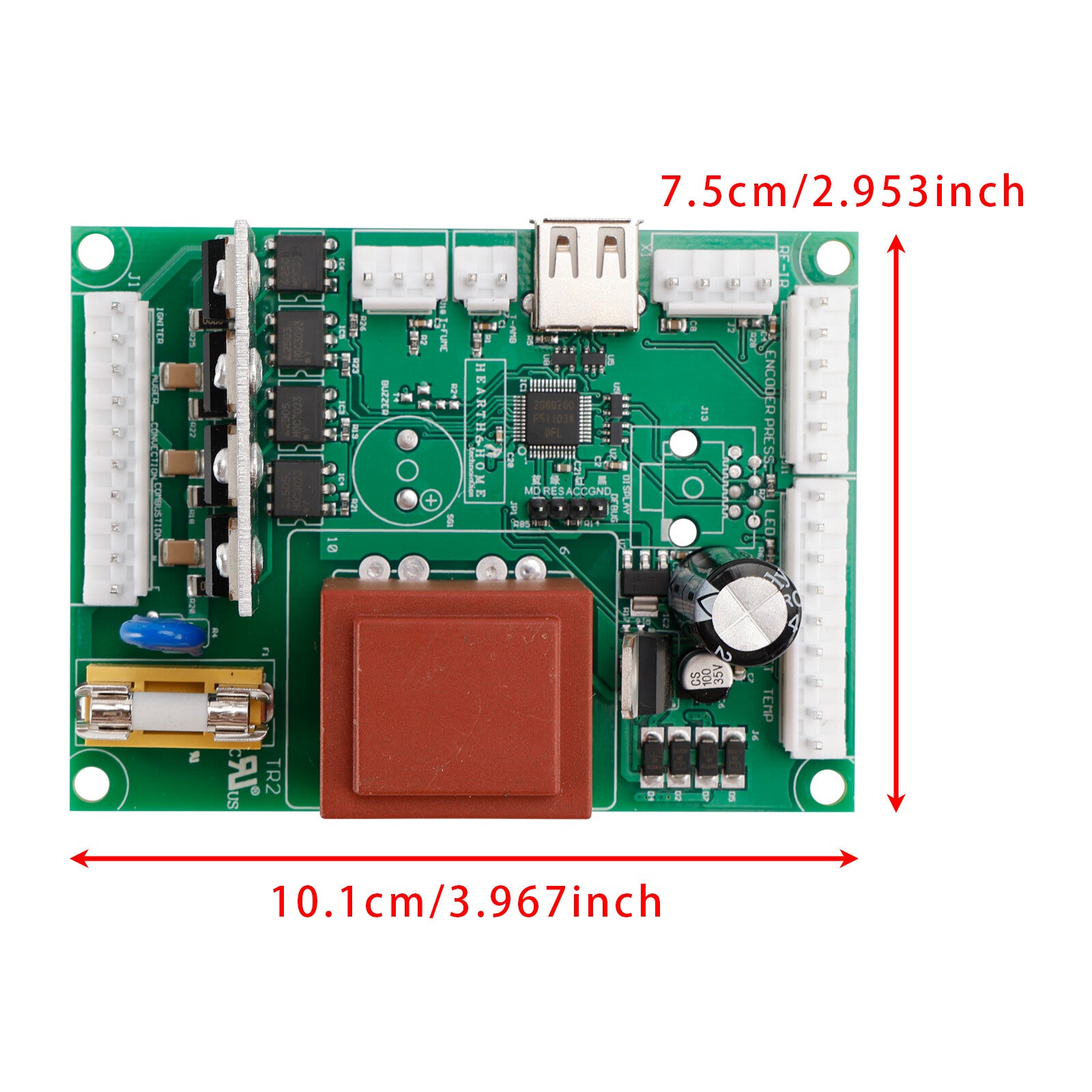

Specs At A Glance

Good To Know

Q: Can power surges damage this circuit control board? A: Yes, electronic control boards are sensitive to electrical spikes, so using a high-quality surge protector is recommended.

Q: How do I know if my pellet stove needs a new control board? A: Signs include complete loss of power, erratic blower speeds, or the auger motor failing to feed pellets when other components test fine.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
