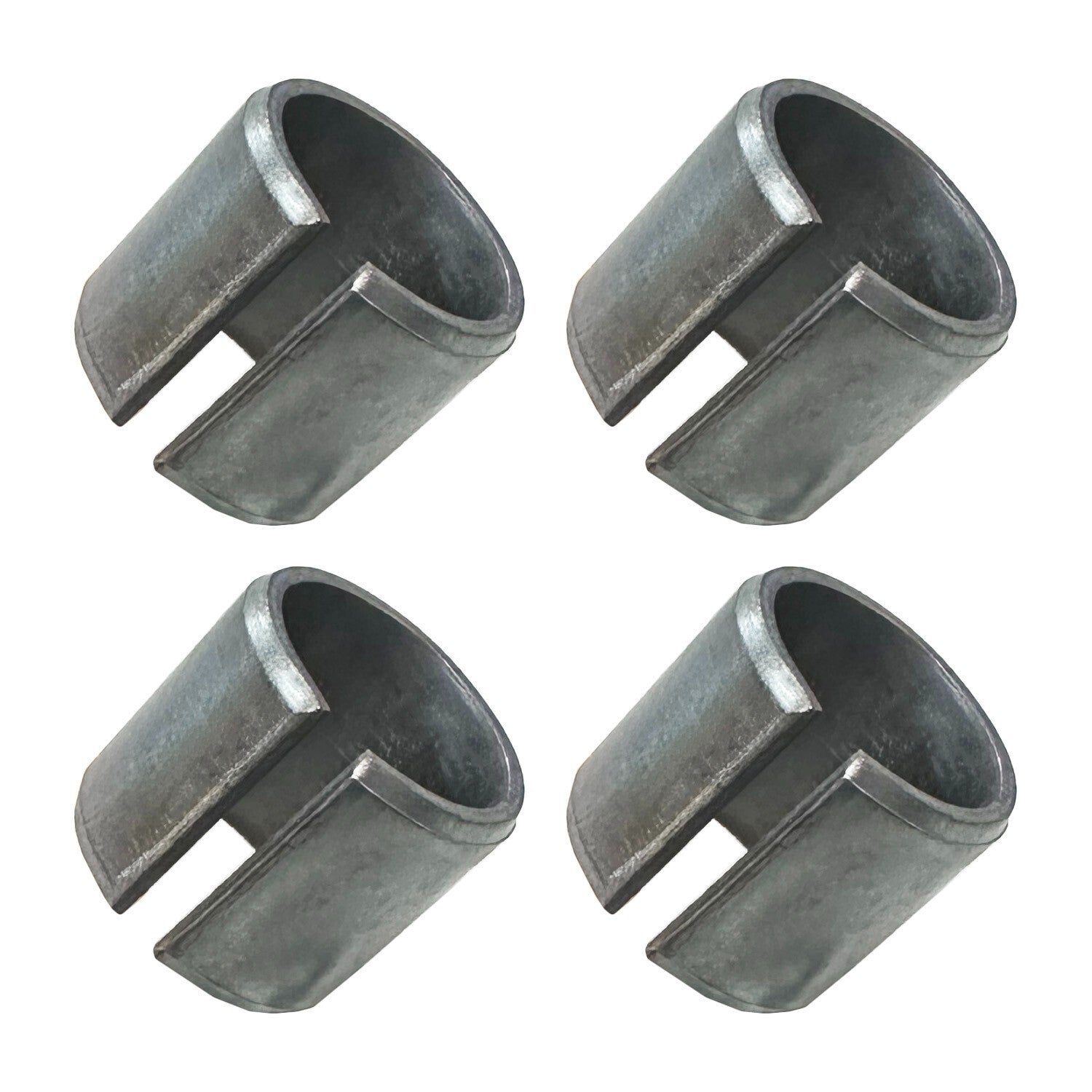

Cylinder Head Dowel Alignment Pin for Gen 3, 4 and 5 - LS/LT Series Engines

Cylinder Head Dowel Alignment Pin for LS/LT Series Engines

This cylinder head dowel alignment pin ensures precise alignment during cylinder head installation on LS and LT series engines, providing accurate dowel pin placement for Gen 3, 4, and 5 blocks. It is essential for engine builders and mechanics working on GM-based performance builds.

Overview

The cylinder head dowel alignment pin is a small but critical component used to align the cylinder head to the engine block during assembly. Designed for Gen 3, 4, and 5 LS/LT series engines, this dowel pin prevents misalignment that can lead to head gasket failure or improper torque sequences. It is a must-have for any engine rebuild or cylinder head replacement job involving these popular engine families.

Built For Performance

• Precision-machined from hardened steel for long-lasting durability
• Ensures accurate cylinder head placement for proper gasket sealing
• Compatible with Gen 3, 4, and 5 LS/LT engine blocks
• Direct replacement for factory dowel pin
• Easy to install with standard hand tools
• Helps maintain consistent torque sequences during head installation

Fits These Machines

• for Gen 3 LS/LT Engines
• for Gen 4 LS/LT Engines
• for Gen 5 LS/LT Engines

On-The-Job Use

• Engine rebuilding and assembly
• Cylinder head gasket replacement
• Performance engine builds
• Garage and shop use by professional mechanics

Good To Know

Q: Will this pin fit my 2001 LS1 engine? A: Yes, Gen 3 LS engines (including LS1) use this same dowel alignment pin. Confirm your block year and serial number for absolute fitment.

Q: Is this pin made of stainless steel? A: No, it is constructed from hardened steel for strength and corrosion resistance, not stainless steel.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
