Cylinder Piston Top End Kit For Polaris Sportsman 500 1996-13 Ranger 500 1999-12

Cylinder Piston Top End Kit for Polaris Sportsman 500 and Ranger 500

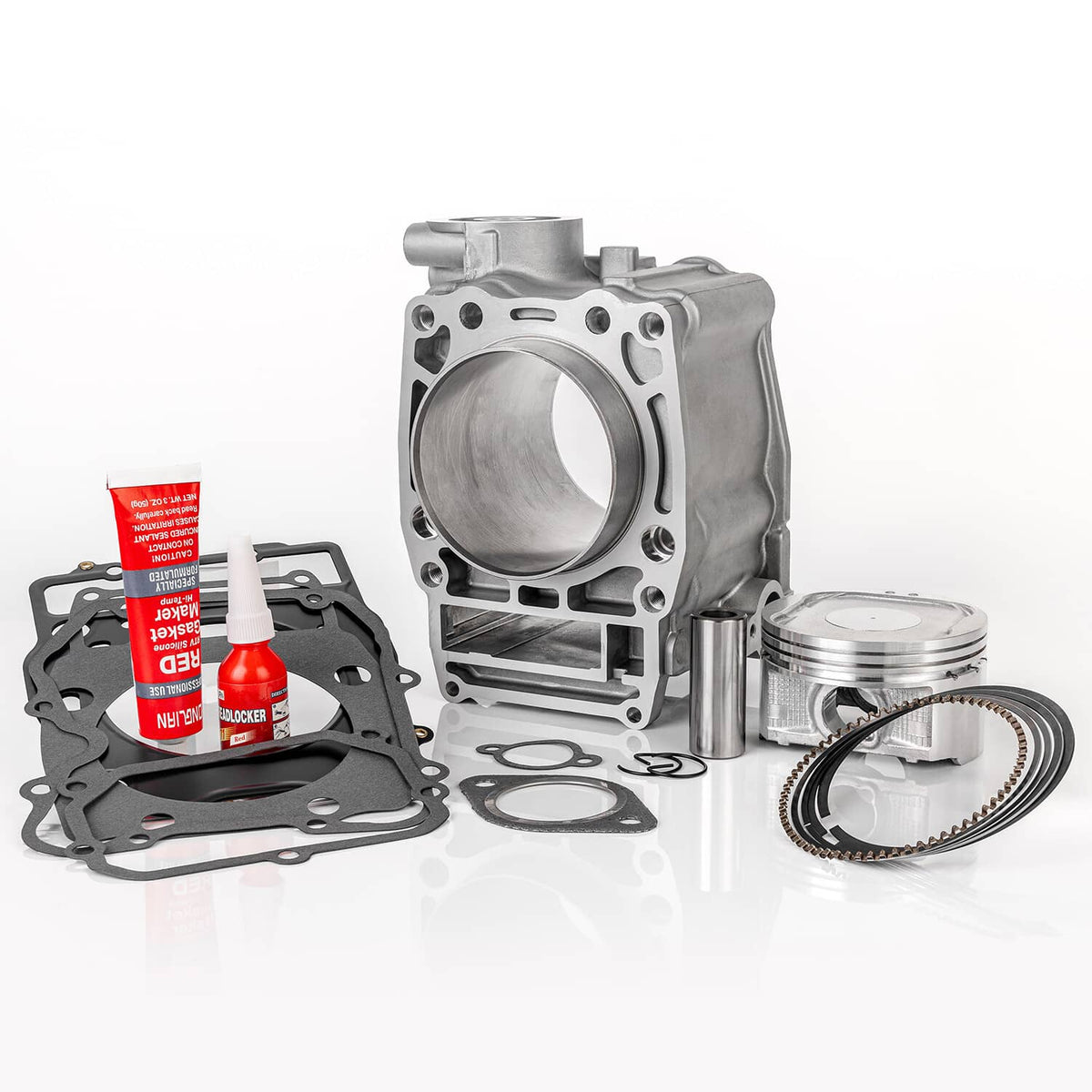

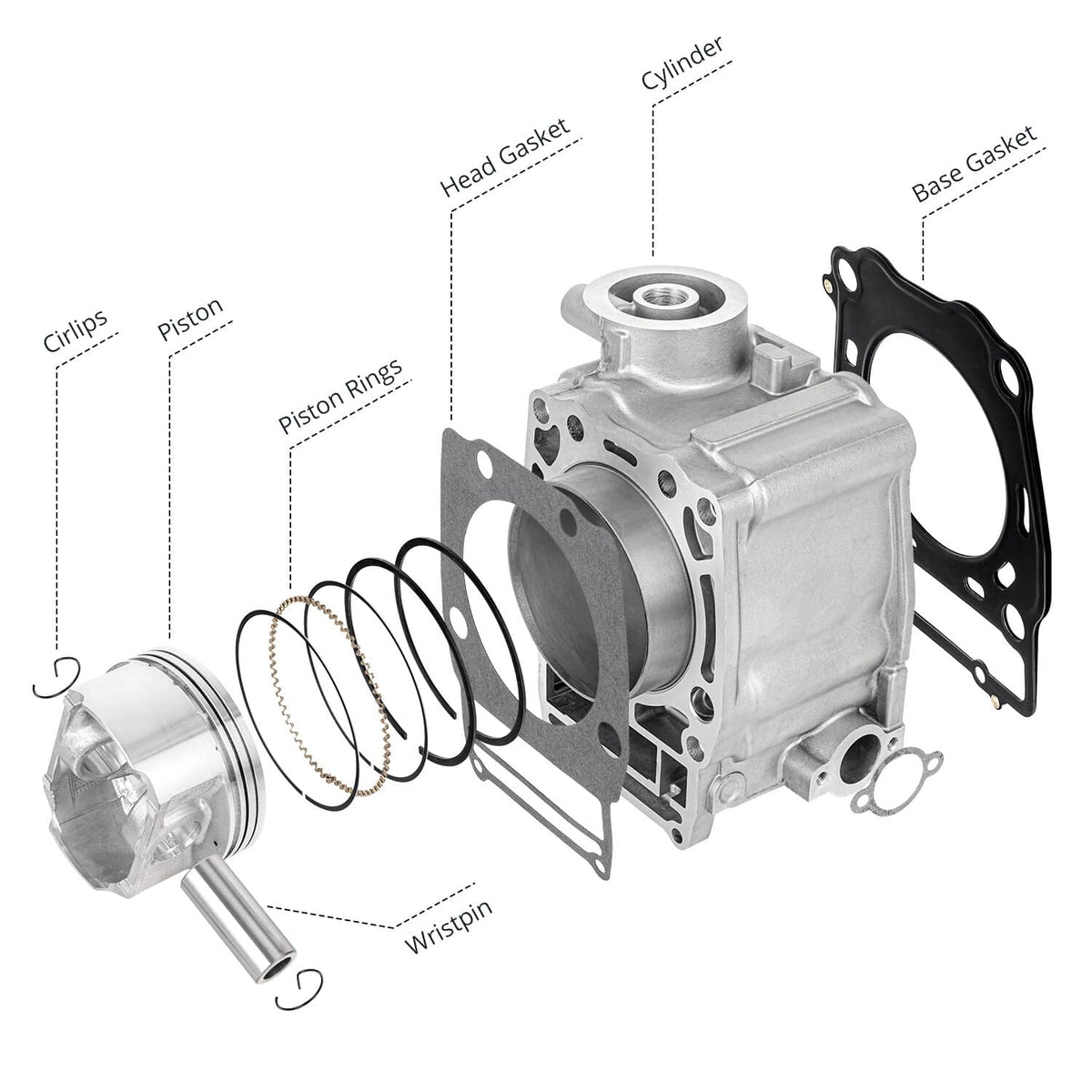

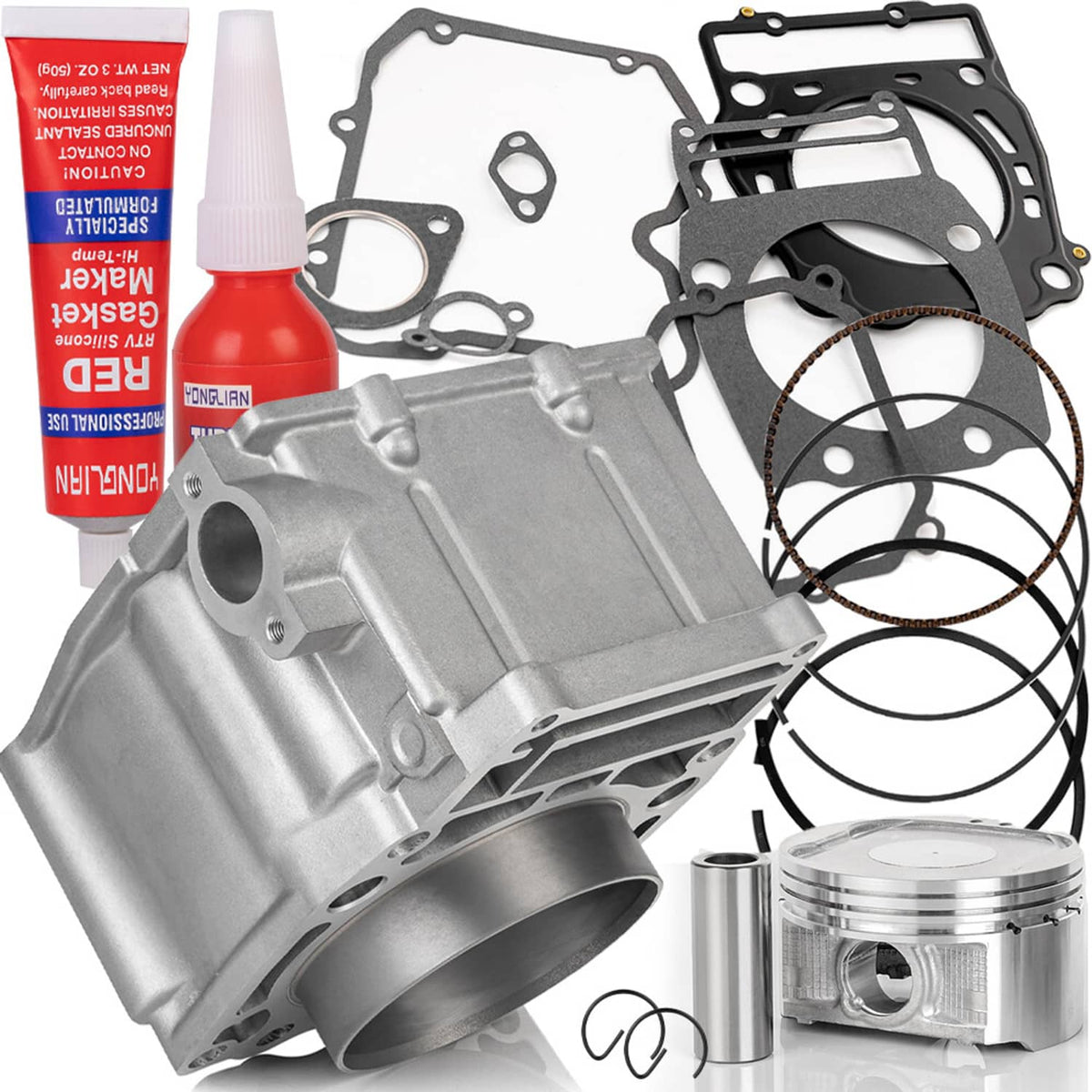

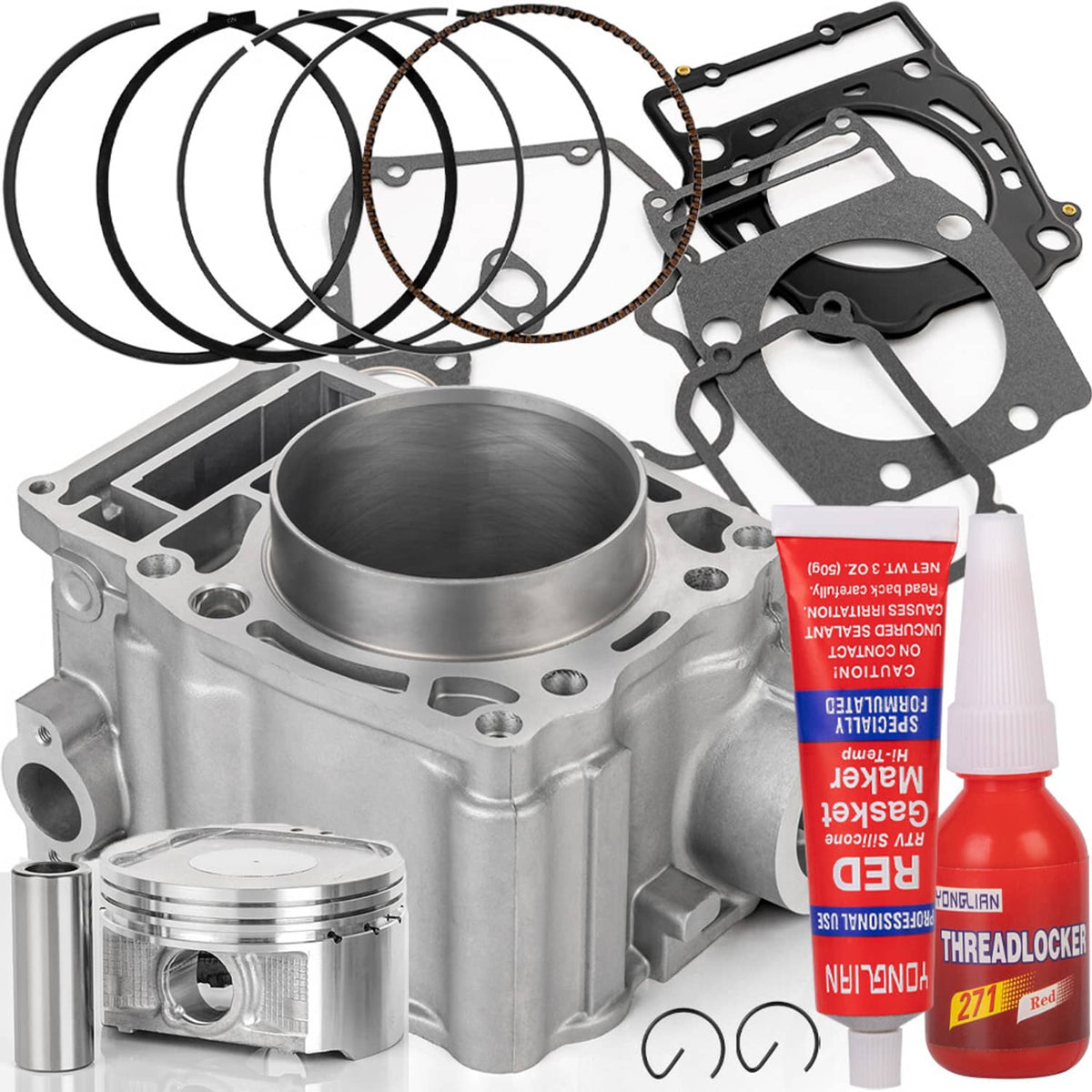

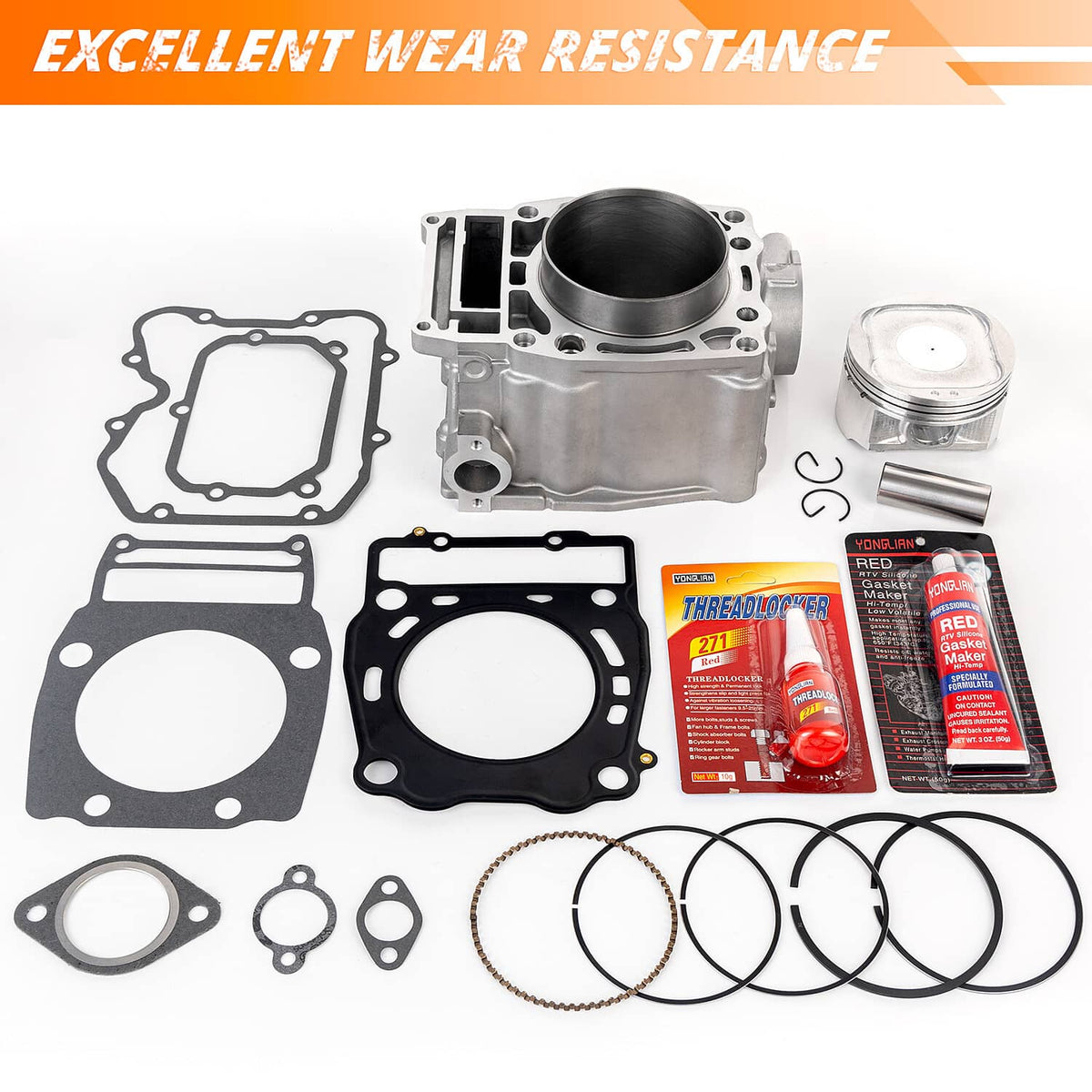

This cylinder piston top end kit rebuilds the upper engine on Polaris Sportsman 500 and Ranger 500 machines, supplying the cylinder, piston, and sealing components required to restore compression and reliability.

Overview

This top end kit is built for Polaris Sportsman 500 and Ranger 500 owners facing worn rings, low compression, or a scored cylinder. The kit delivers the cylinder, piston, and gasket components needed to complete the rebuild in one purchase. It suits 1996-2013 Sportsman 500 and 1999-2012 Ranger 500 machines used for work and recreation.

Built For Performance

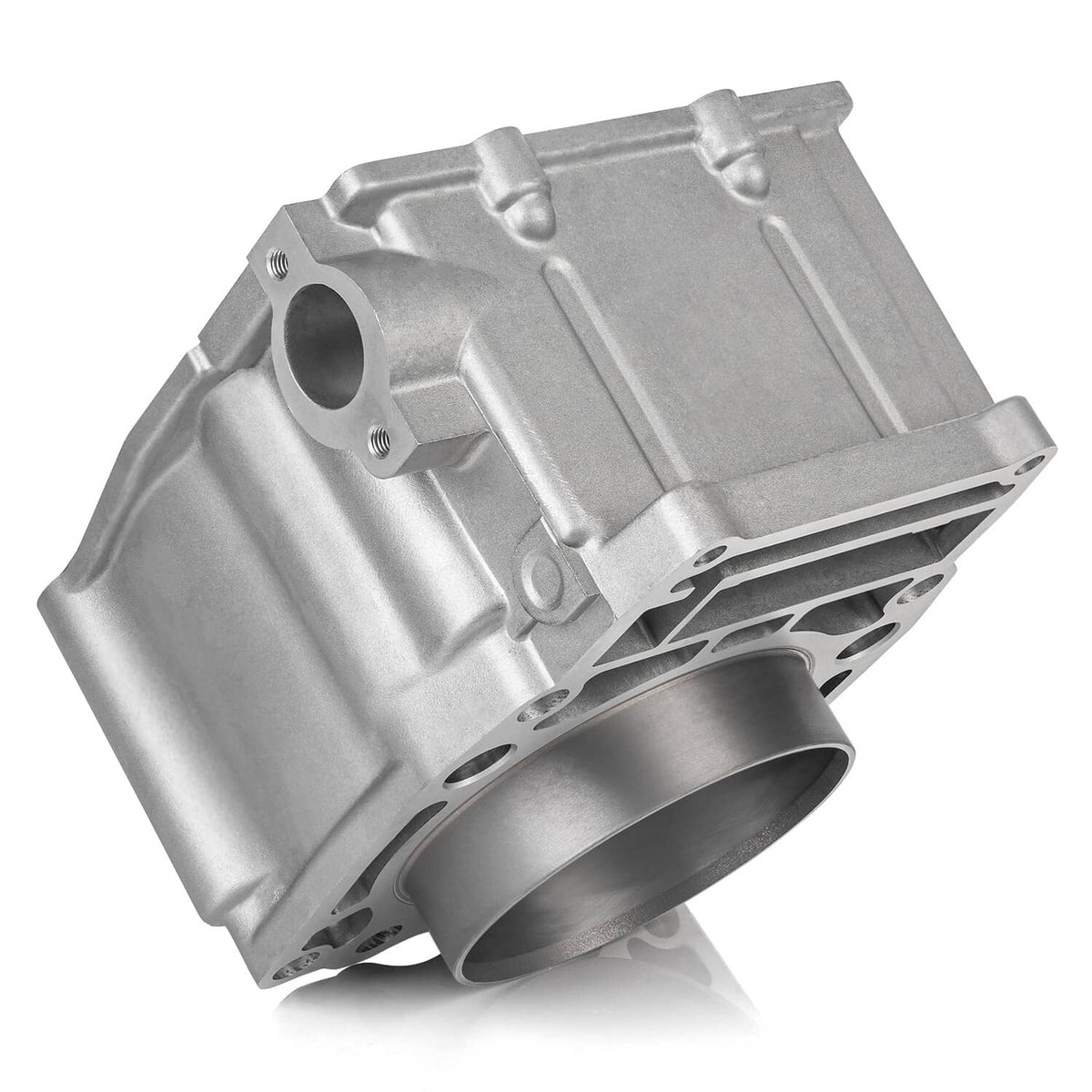

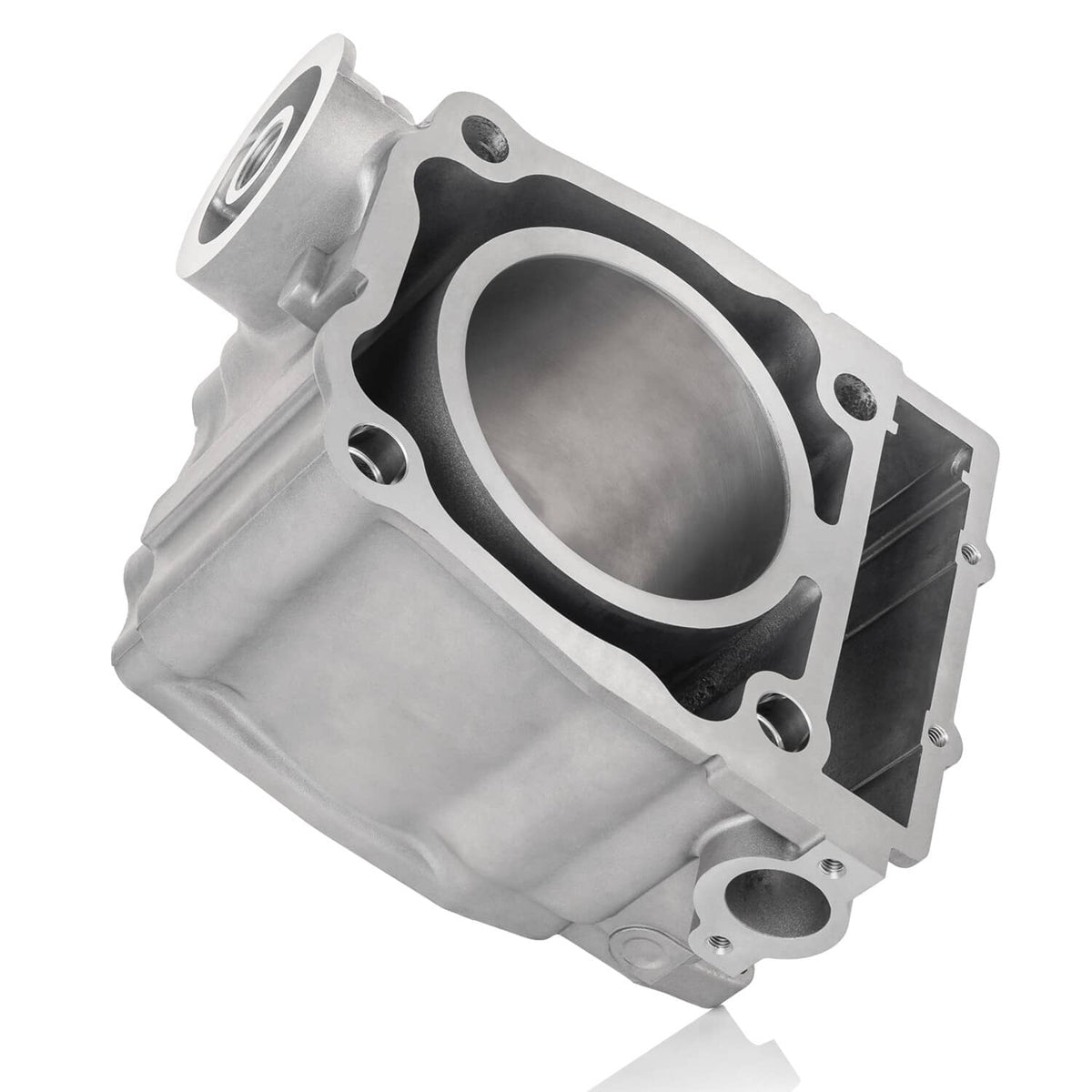

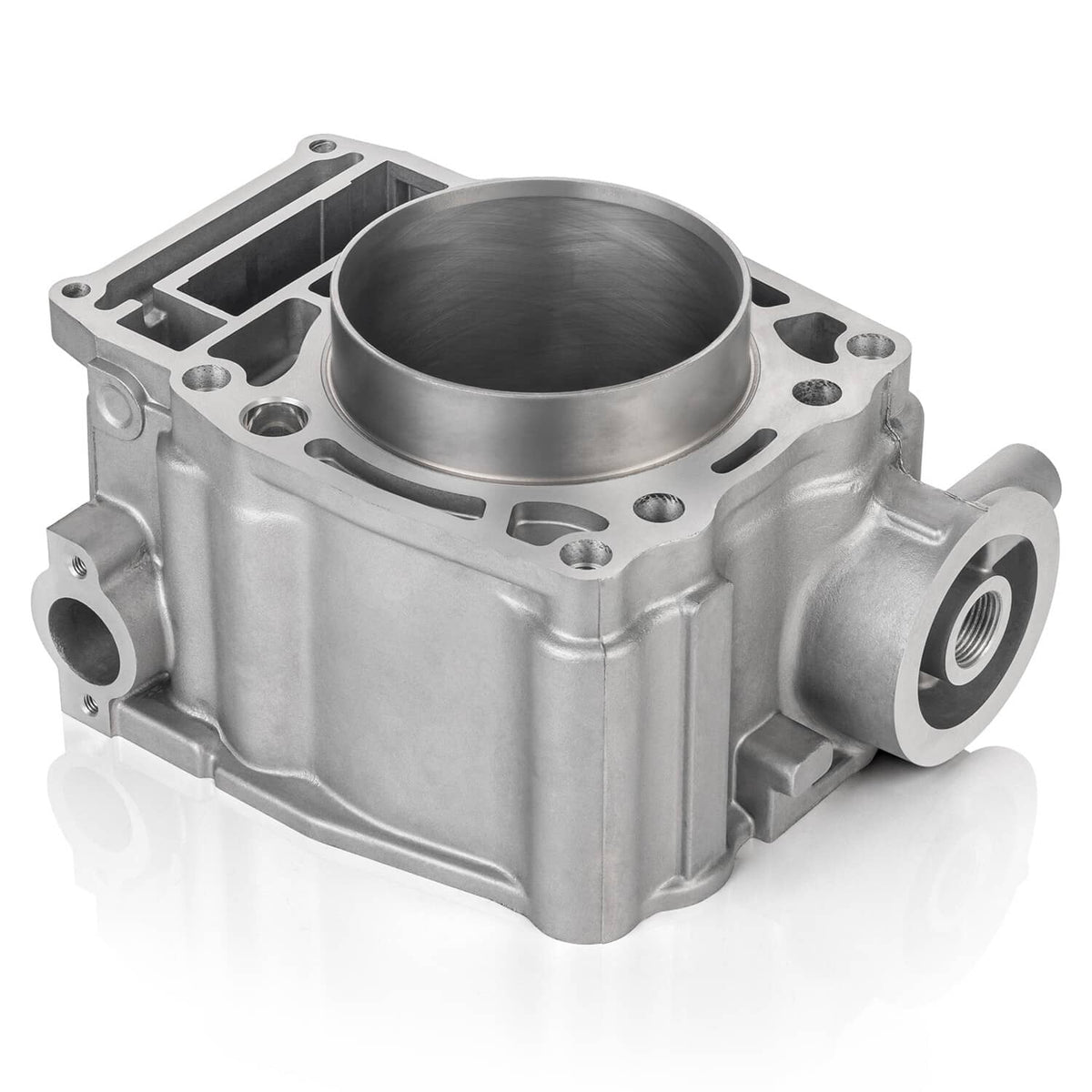

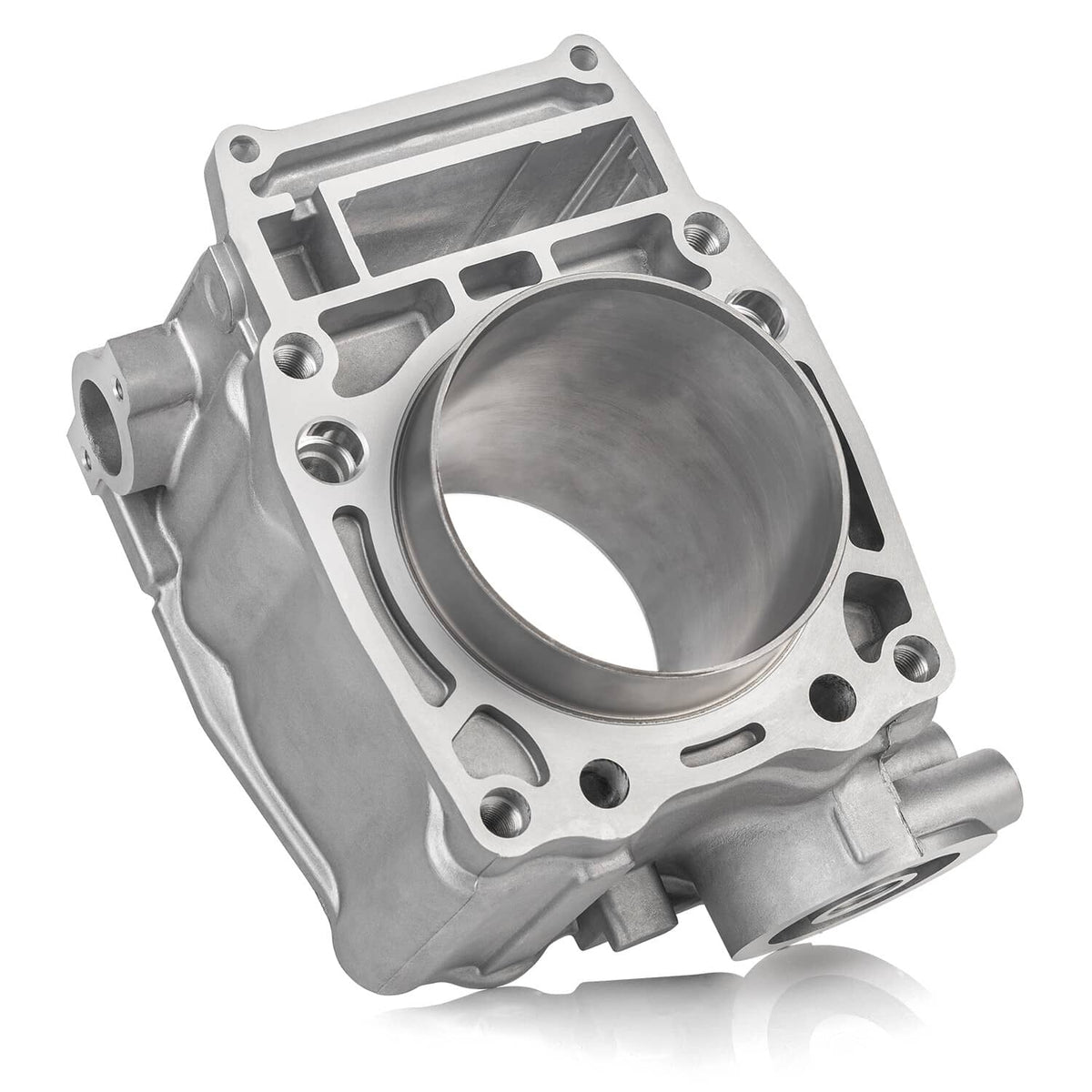

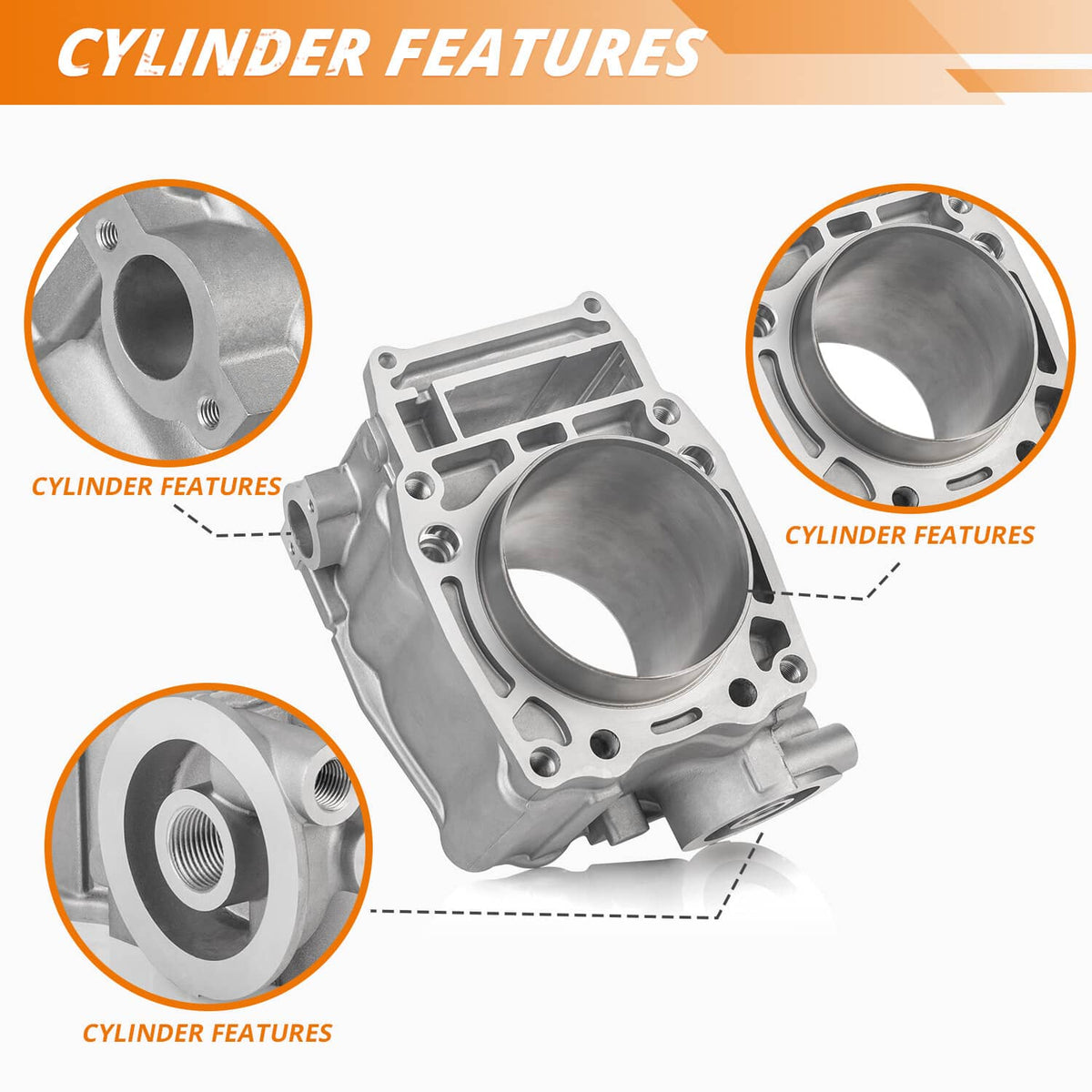

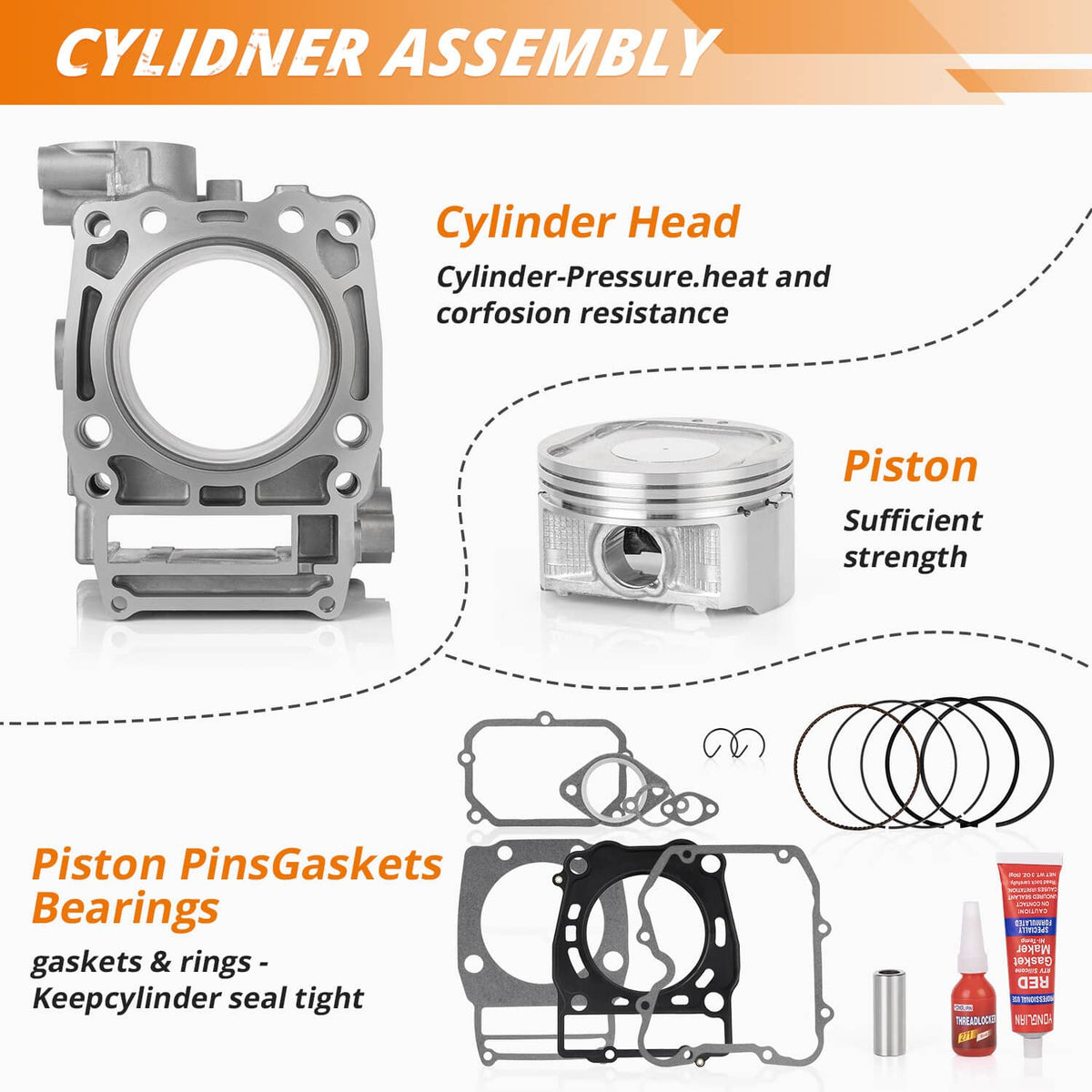

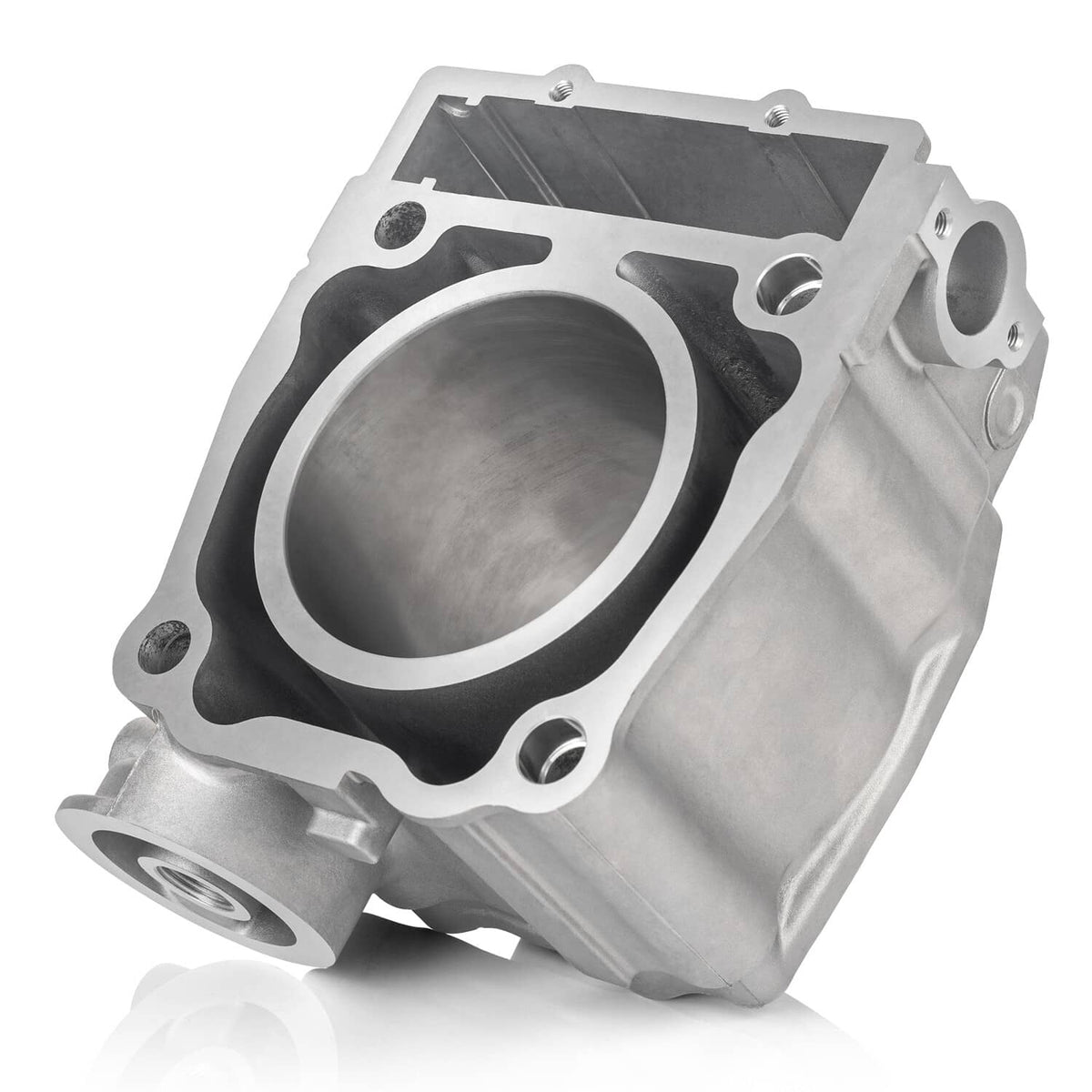

• Cylinder and piston supplied as a matched set for correct clearance

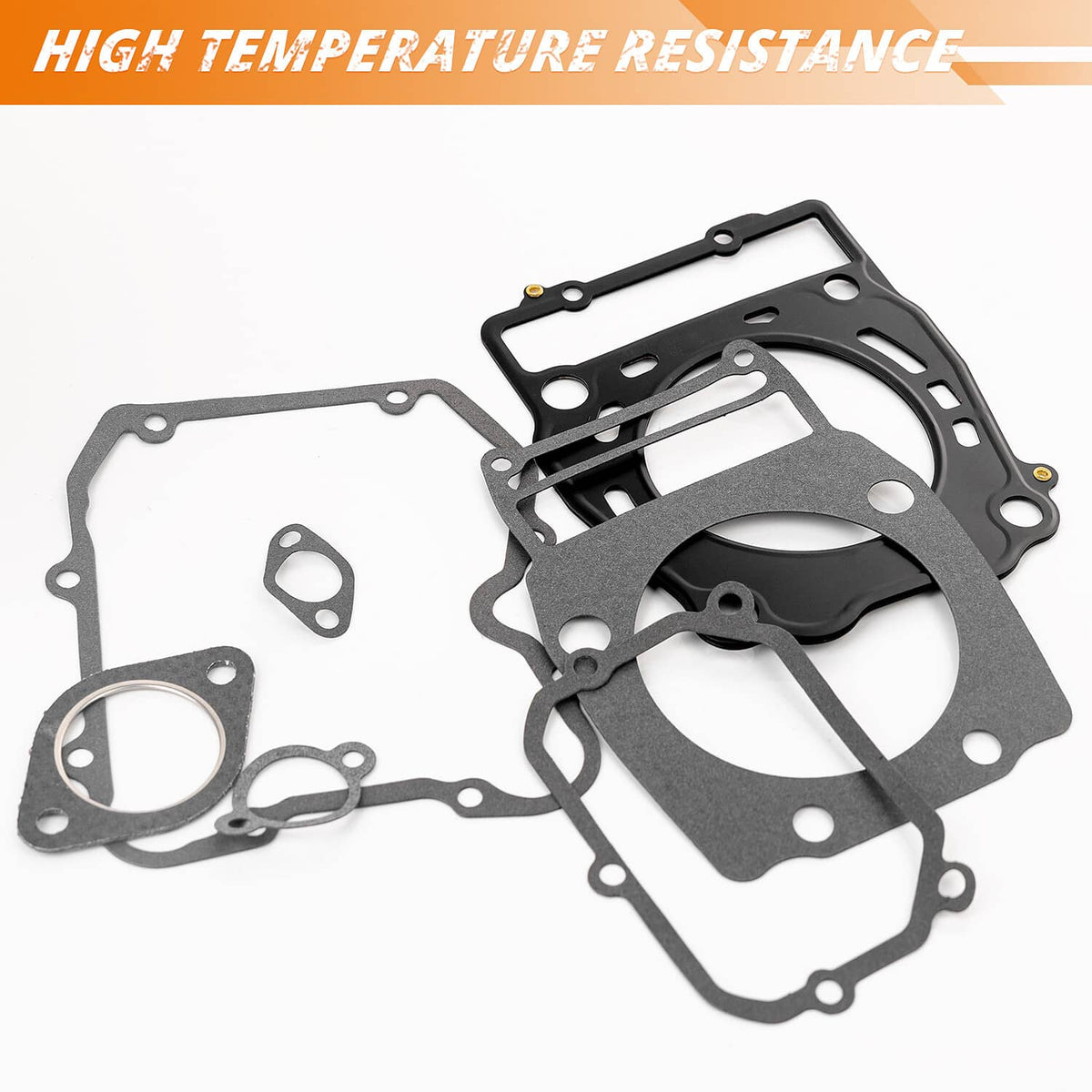

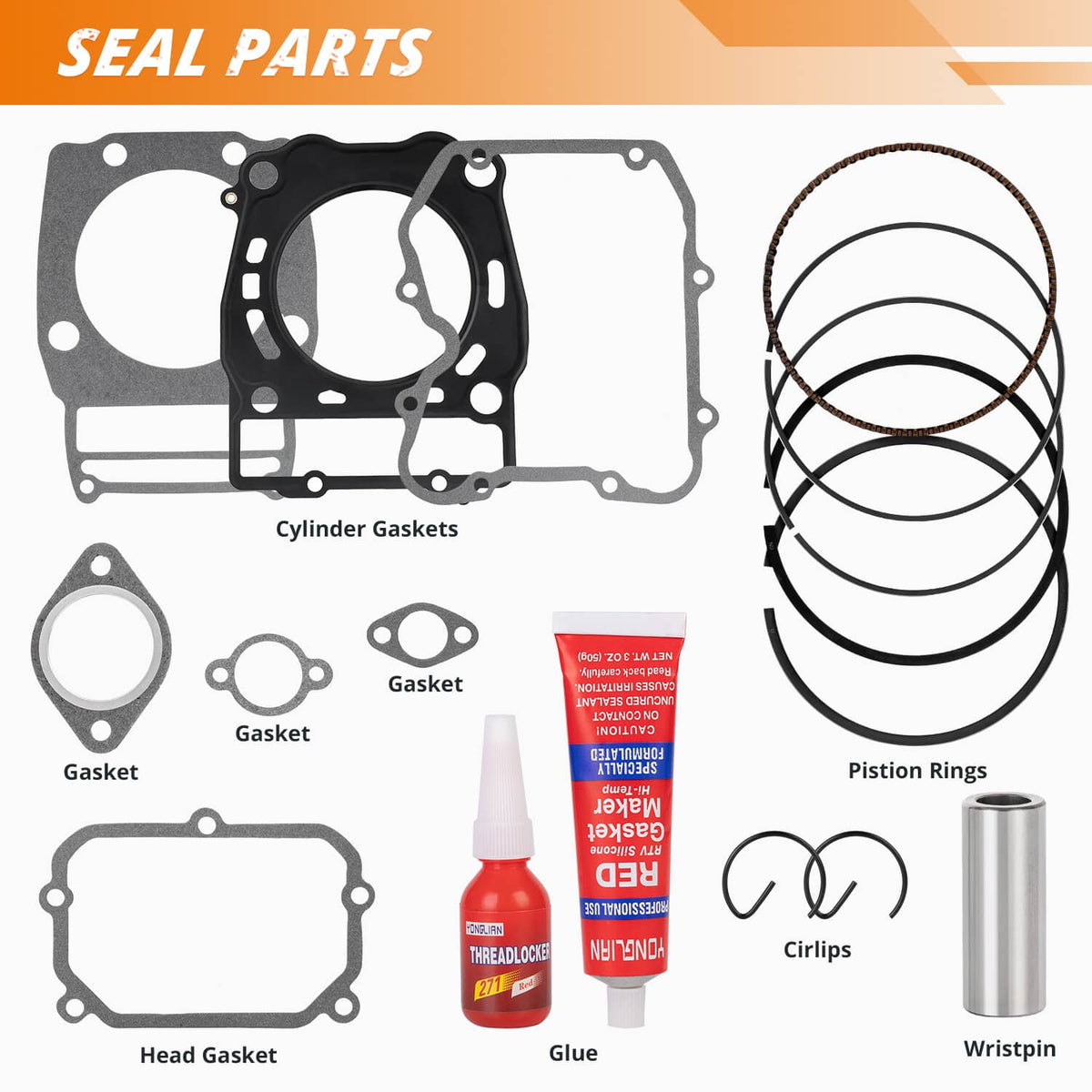

• Gasket components included for proper top end sealing
• Fits the Polaris Sportsman 500 and Ranger 500 engine family
• Restores compression lost to worn rings or bore damage
• Direct replacement layout for the factory top end

Fits These Machines

• for Polaris Sportsman 500 1996-2013
• for Polaris Ranger 500 1999-2012

On-The-Job Use

• Top end rebuilds on high-hour utility ATVs
• Repairing engines that seized or overheated
• Restoring compression for hauling and towing duties
• Routine maintenance on farm and ranch machines

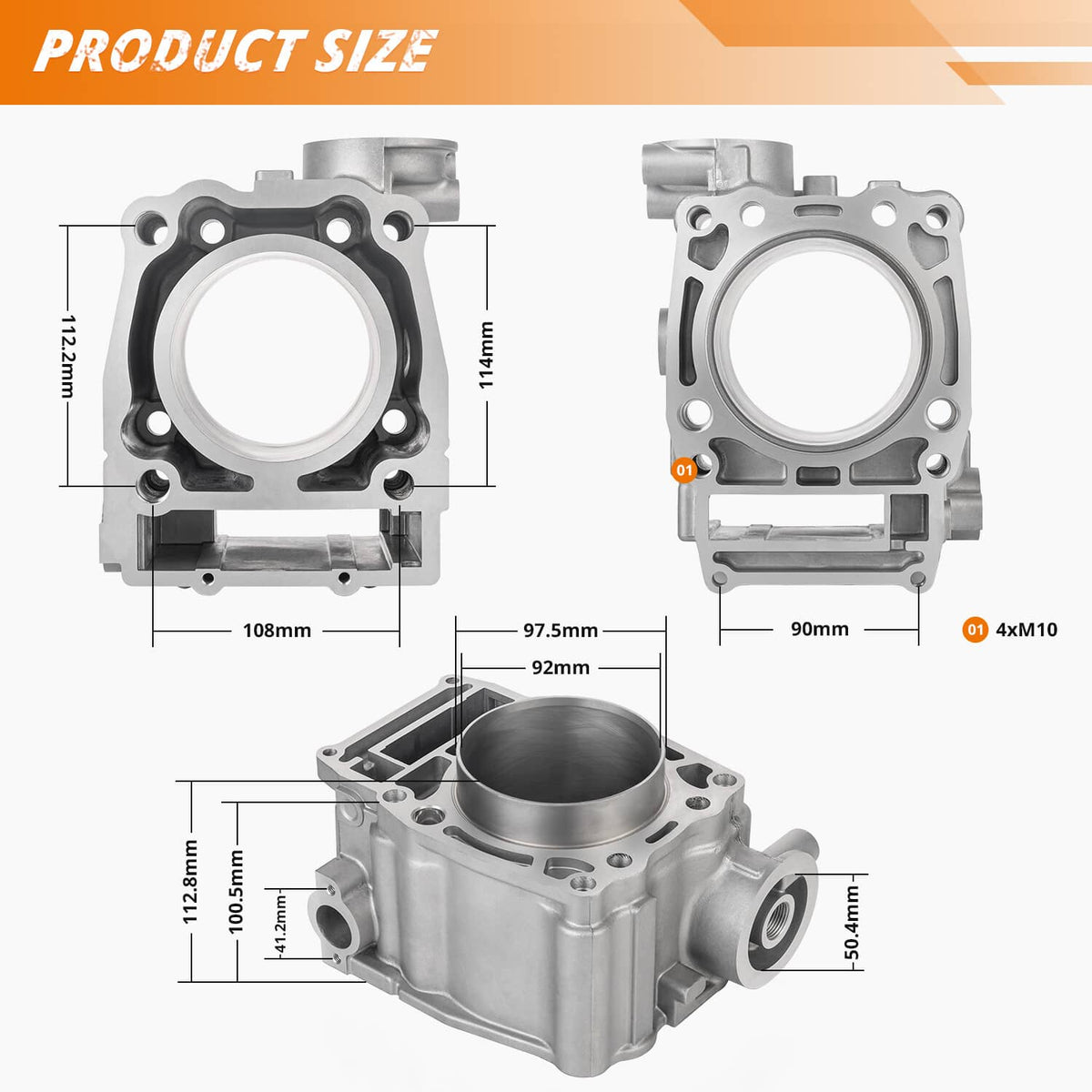

Specs At A Glance

Good To Know

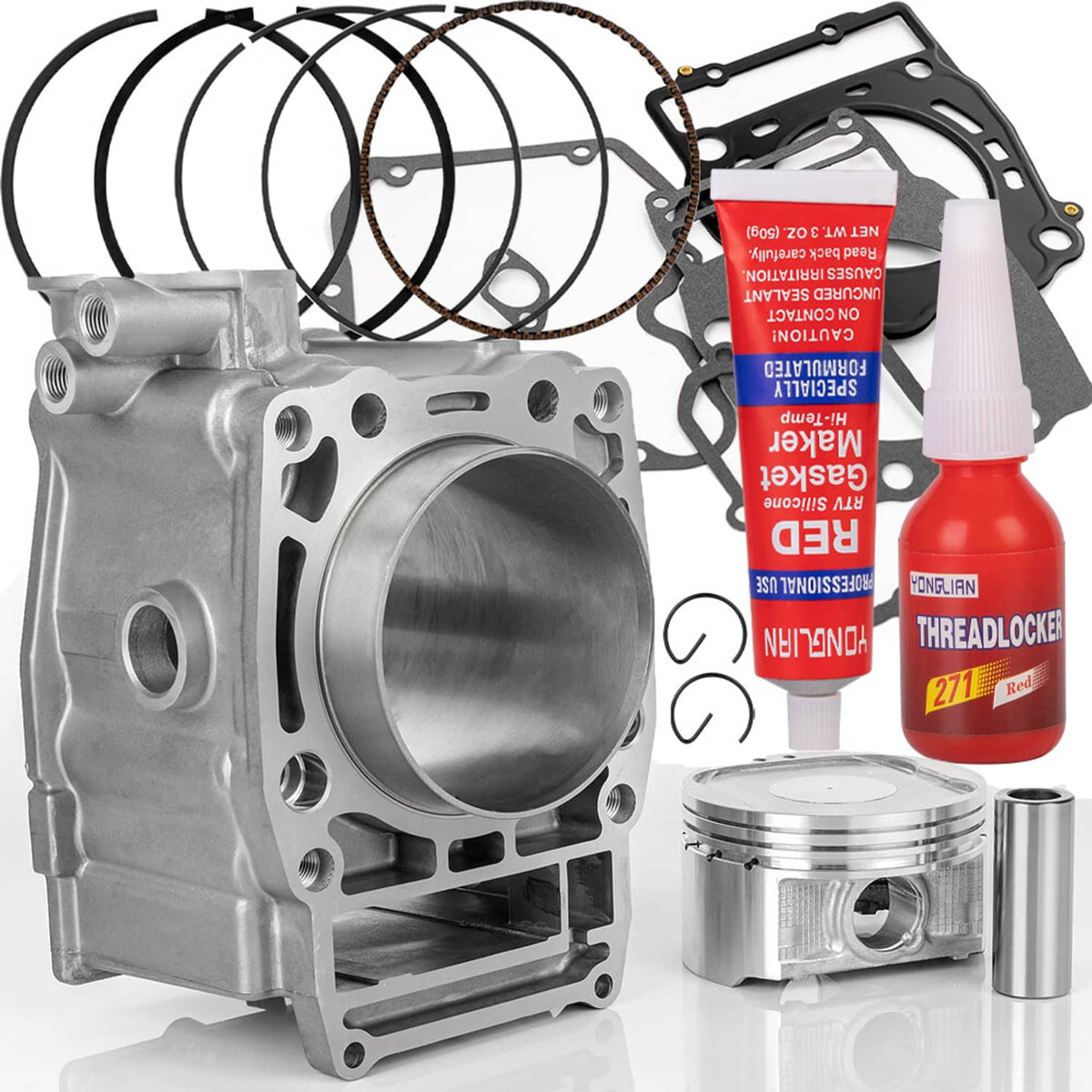

Q: What does a top end kit include? A: A top end kit generally includes the cylinder, piston, rings, wrist pin, and gasket components for the upper engine. Confirm the exact contents listed before ordering.

Q: Can I install a top end kit myself? A: A top end rebuild is a moderate job that requires basic engine tools and attention to torque specs and ring end gap. If you are unsure about clearances, having a shop handle the install is a good option.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
