Dash Wire Harness for Cub Cadet XT1 and XT2 Series Mowers

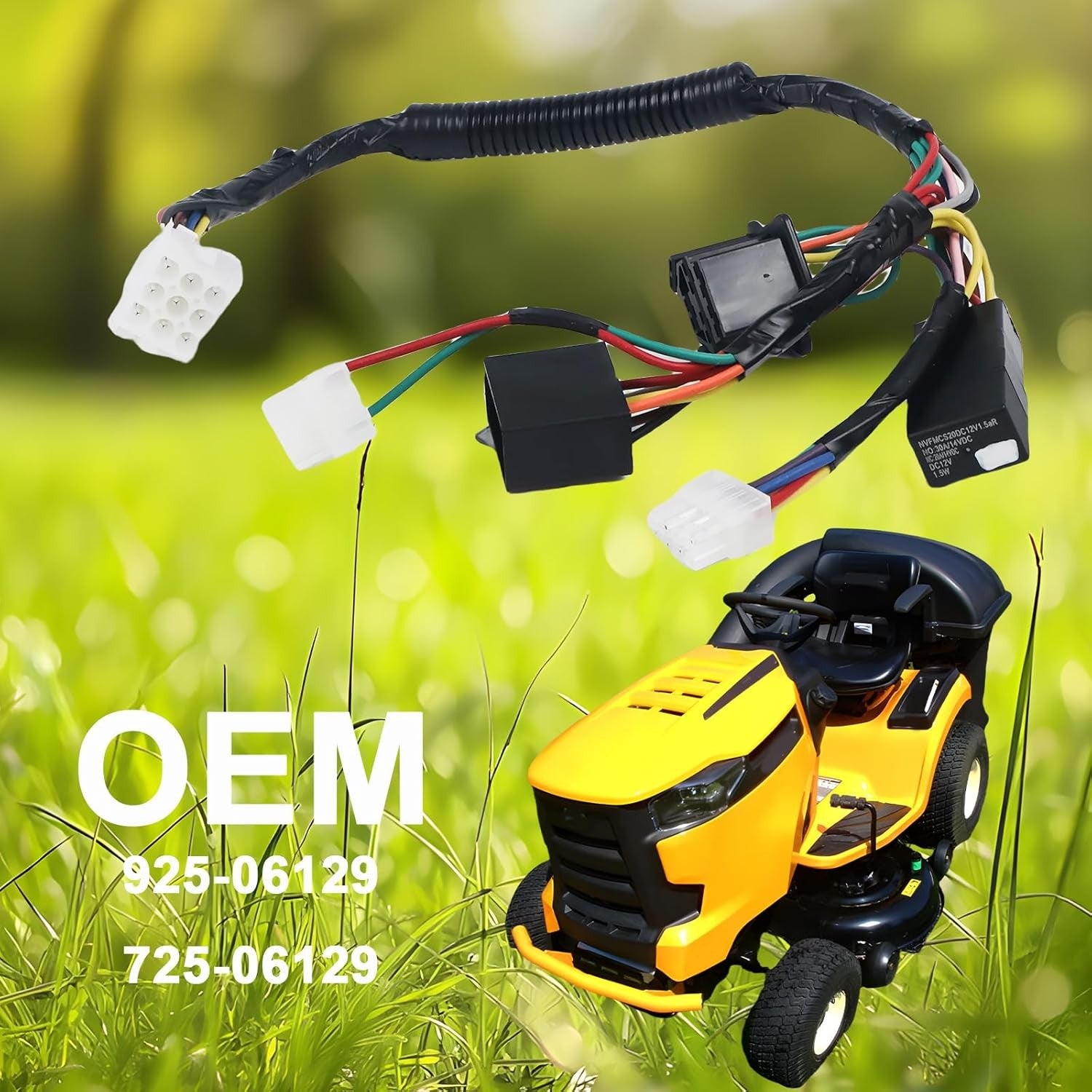

This dash wire harness 925-06129 connects the instrument panel, ignition, and safety circuits on Cub Cadet XT1 and XT2 series lawn tractors built between 2015 and 2020, serving as a direct electrical replacement for factory part number 925-06129.
Overview

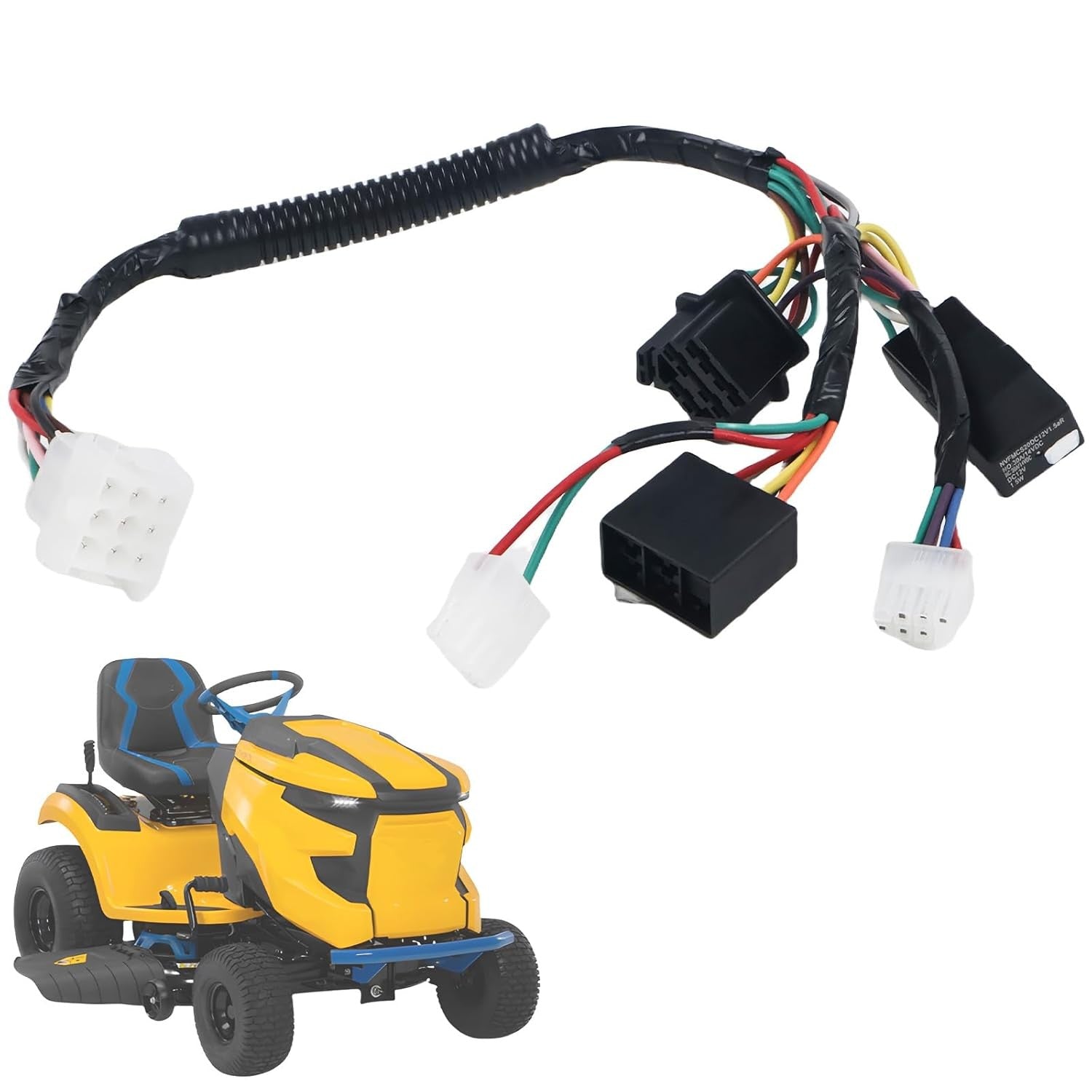

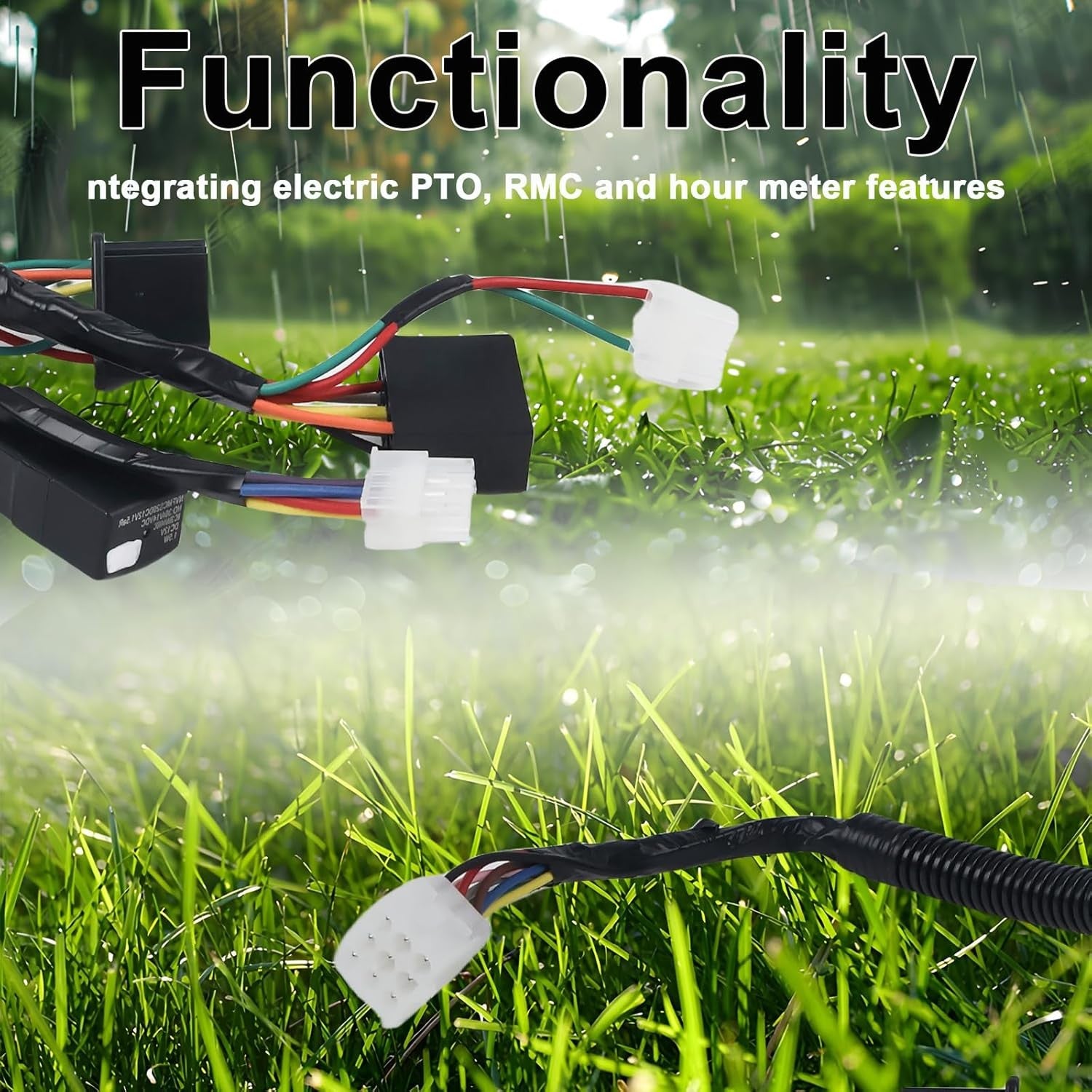

The dash wire harness 925-06129 is a complete pre-terminated wiring assembly that restores gauge, switch, and starting functionality to Cub Cadet XT1 and XT2 lawn tractors. This dash wire harness 925-06129 routes power from the ignition switch through the hour meter, PTO, and safety interlock circuits using color-coded, factory-length leads. Built for equipment owners and small-engine technicians performing electrical diagnostics or full harness swaps on 2015 through 2020 model-year machines, the harness 925-06129 plugs directly into existing dash connectors without cutting or splicing.
Built For Performance
- Each wire is color-matched to the original Cub Cadet schematic for fast, traceable circuit identification during troubleshooting
- Pre-crimped and sealed terminals resist oxidation and vibration-induced looseness at every connection point
- Protective nylon loom wraps the entire run, shielding conductors from heat, chafing, and debris intrusion behind the dash panel

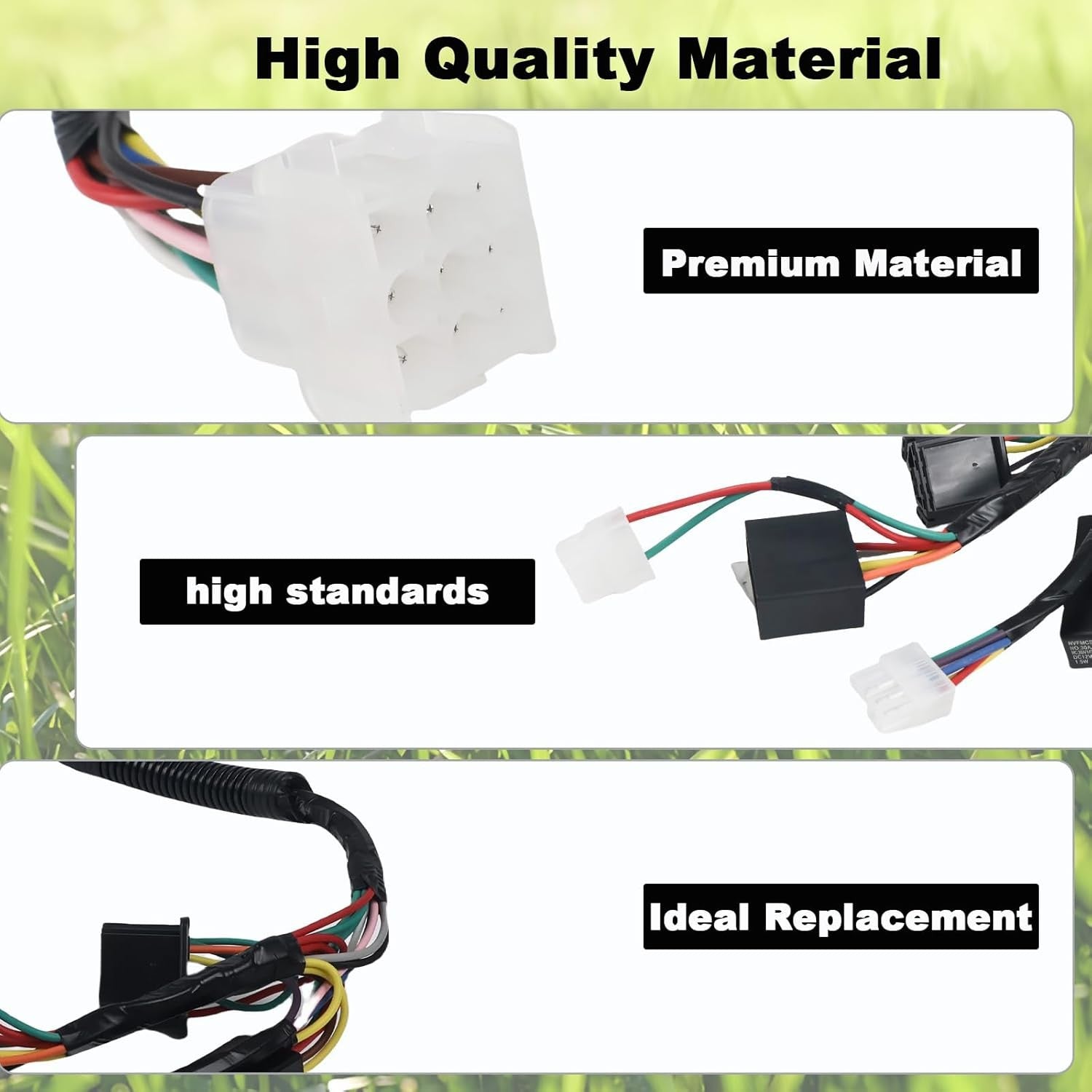

- Molded multi-pin connectors lock into the factory sockets with an audible click, preventing intermittent gauge dropouts
- Full-length coverage from the dash plate to the main chassis tie-in point eliminates extension or adapter links

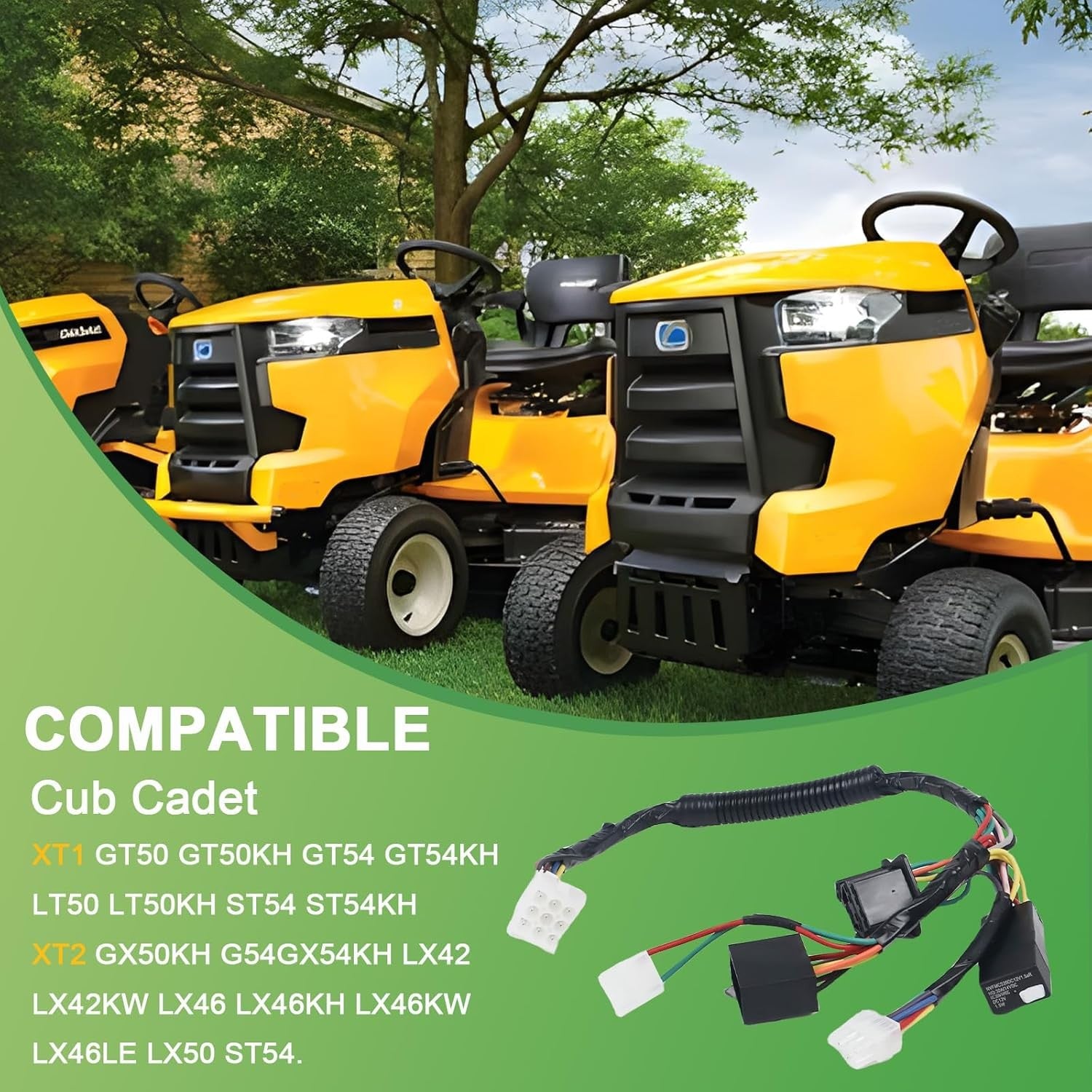

Fits These Machines
- for Cub Cadet XT1 LT42 and LT46 models 2015-2020
- for Cub Cadet XT1 ST54 and STX models within the same year range
- for Cub Cadet XT2 LX42 and LX46 series 2015-2020
- for Cub Cadet XT2 SLX50 and SLX54 tractors
- for Cub Cadet XT2 GX and GSX garden tractor variants
- for Cub Cadet Enduro XT1 and XT2 series sharing the 925-06129 harness layout
On-The-Job Use
- Diagnosing a dead dash panel when the hour meter, fuel gauge, or PTO indicator fails to light during pre-start checks
- Replacing a harness that has rodent damage or corroded terminals after off-season storage
- Restoring safety-interlock logic so the engine cranks only when the brake is set and blades are disengaged
- Shop-level electrical overhauls where a known-good 925-06129 harness is swapped in to rule out intermittent opens
- Fleet maintenance for landscape crews running multiple XT1 and XT2 units on tight service schedules
Specs At A Glance
| Part Number(s) | 925-06129 |
| Application | Dash and instrument panel circuitry |
| Model Year Coverage | 2015 through 2020 |
| Connector Type | Molded multi-pin factory-style plugs |
| Conductor Protection | Full-length nylon split loom and wrap |
Good To Know
Q: Will this harness also carry the headlight and accessory circuits on an XT2? A: The 925-06129 harness is primarily the dash and ignition backbone; some headlight and auxiliary circuits may route through separate chassis harnesses, so compare the connector pin count against your specific tractor schematics before ordering.

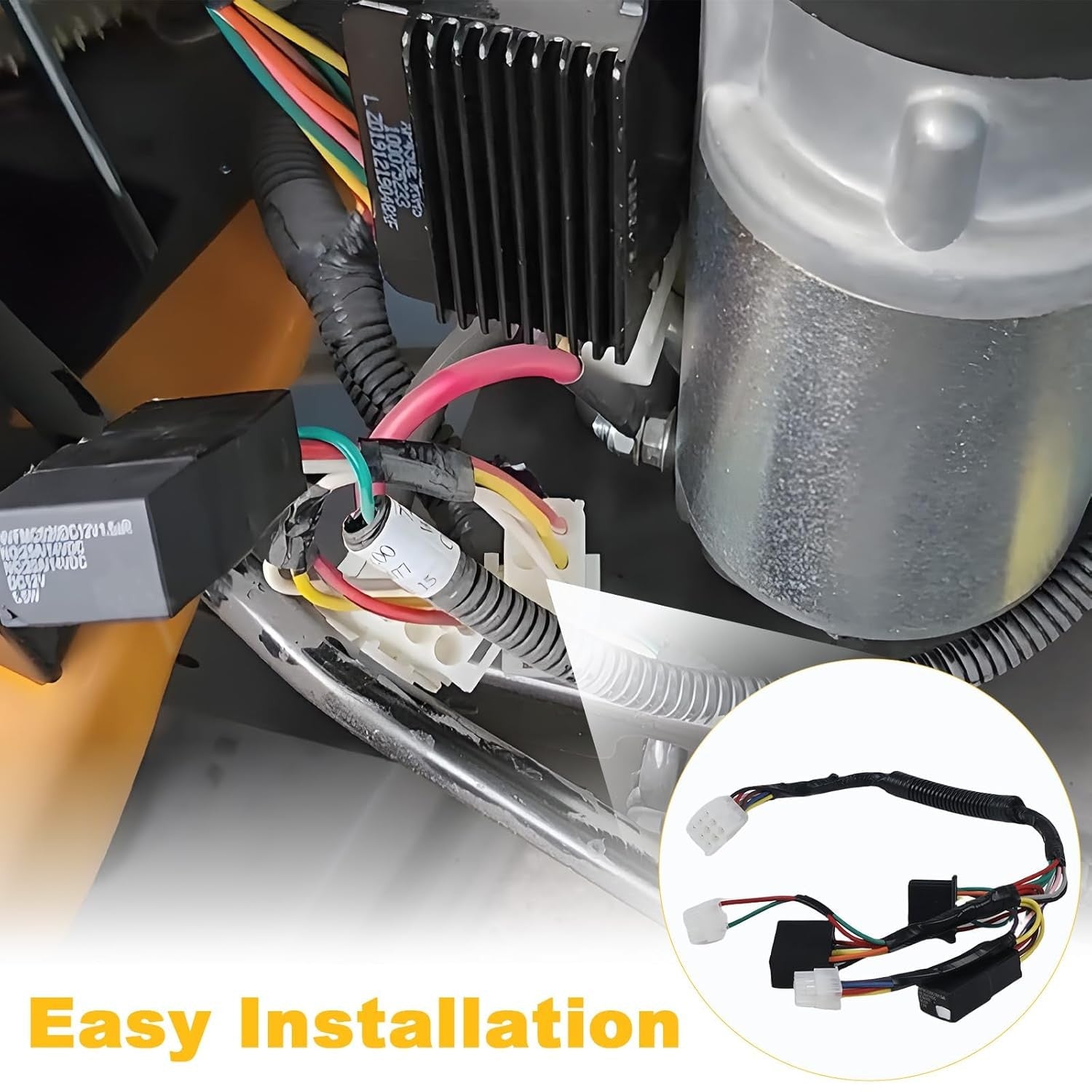

Q: Do I need any special tools to install this harness assembly? A: The connections are plug-and-play with factory connectors, but a plastic trim tool helps release dash clips without cracking the panel, and a zip-tie kit secures the loom to existing routing points for a clean, shop-grade finish.
Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
