For 6.0L/6.4L Ford Powerstroke Fuel Injector Sleeve/Cup Remove & Install Kits

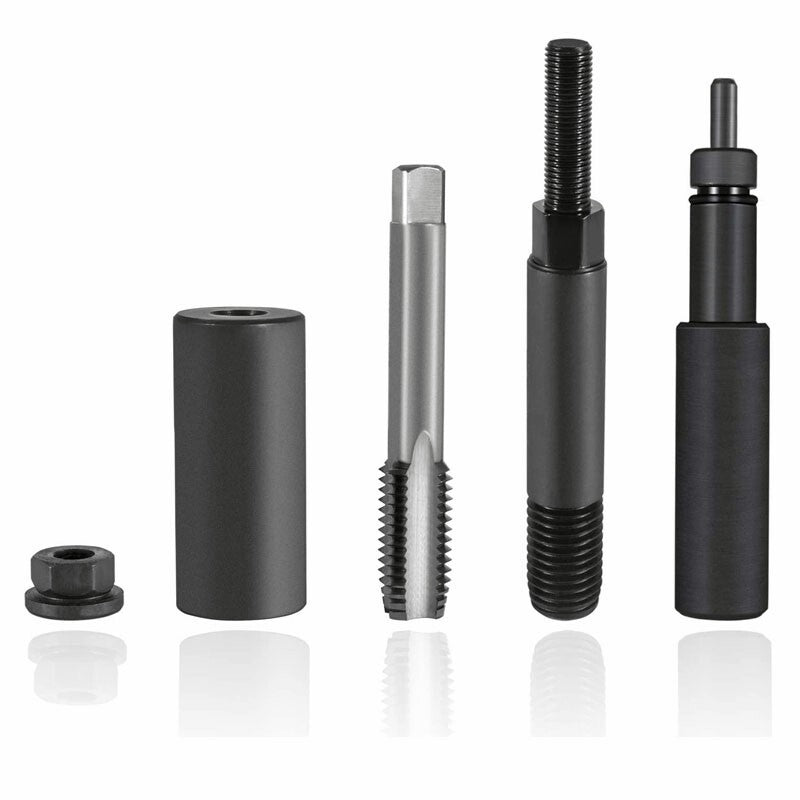

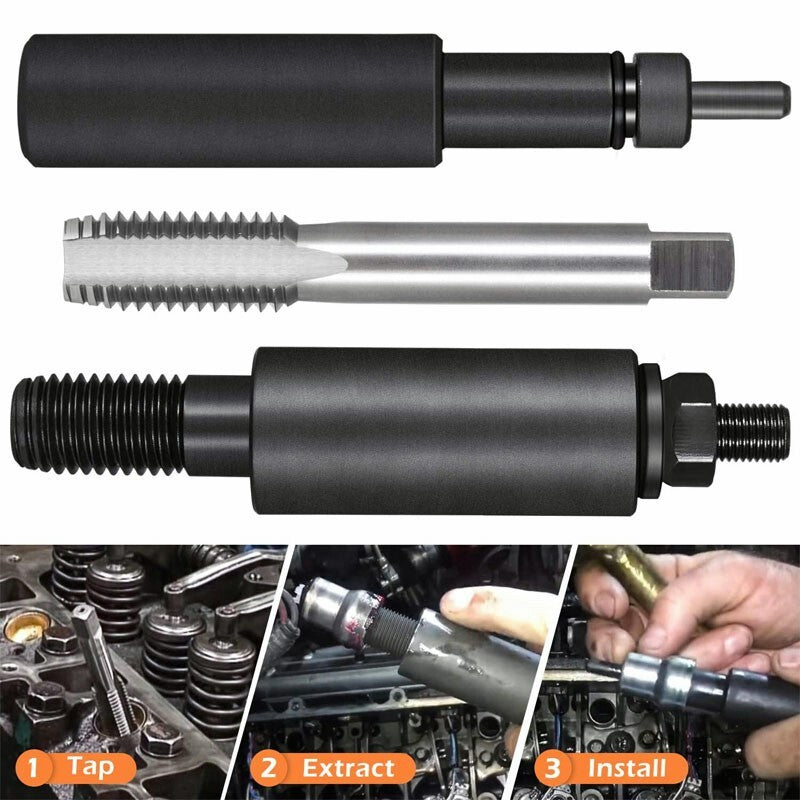

Fuel Injector Sleeve Cup Remove and Install Tool Kit for Ford

This fuel injector sleeve cup remove and install tool kit is designed to safely extract and install injector sleeves on 6.0L and 6.4L Powerstroke diesel engines.

Overview

The fuel injector sleeve cup remove and install tool kit offers a professional-grade solution for servicing diesel engines. Designed specifically for heavy-duty applications, this fuel injector sleeve cup remove and install tool kit prevents cylinder head damage by utilizing a precise mechanical design. It is an essential addition for mechanics and fleet maintenance technicians working on diesel fuel systems.

Built For Performance

• Forged from high-strength structural steel to ensure maximum durability.
• Coated with a black oxide finish to prevent rust and corrosion.

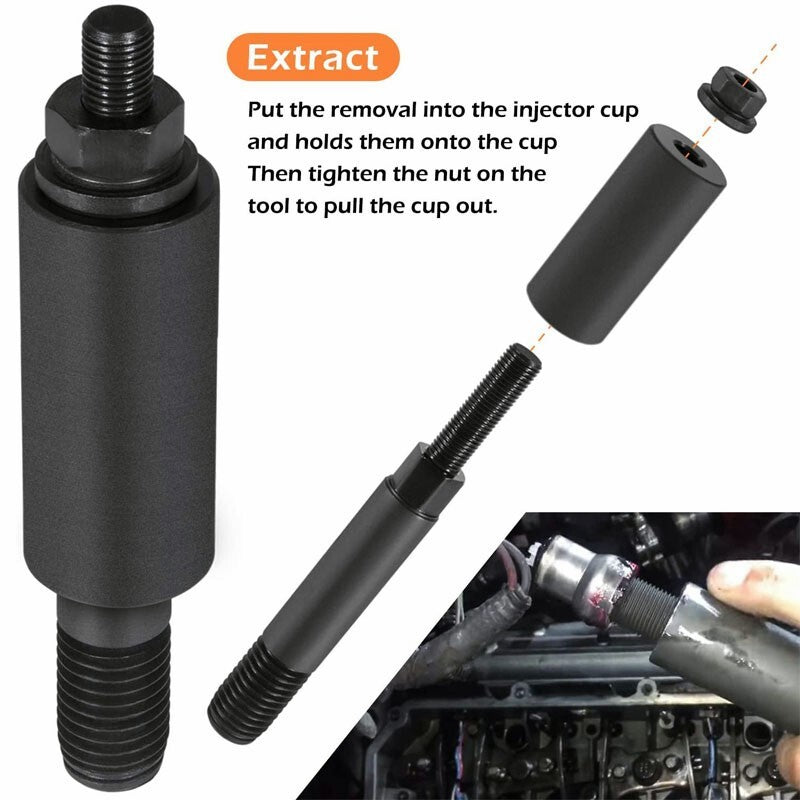

• Engineered to remove sleeves without dropping shavings into the cylinder.

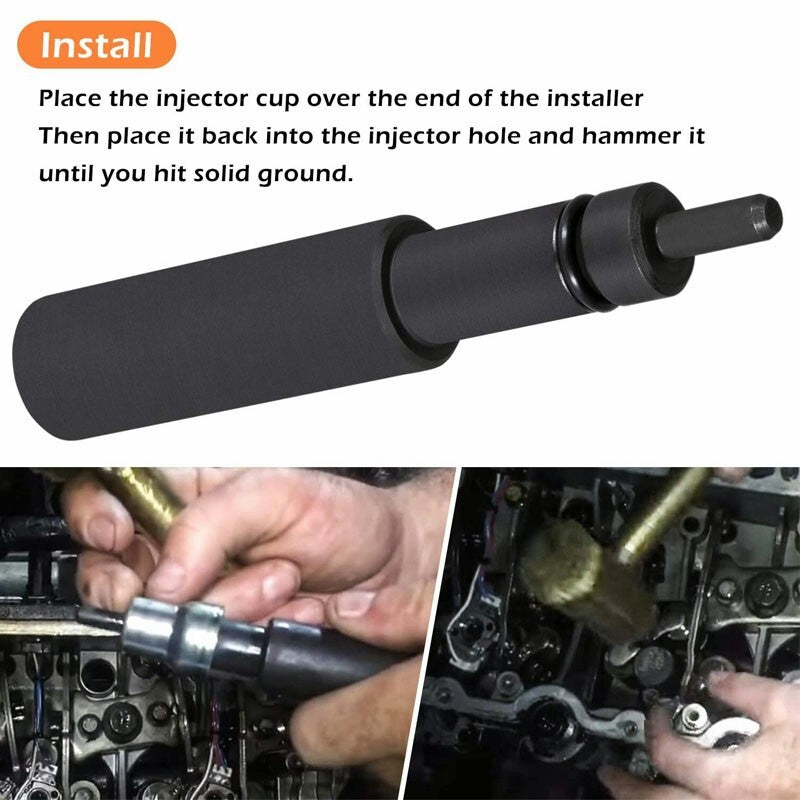

• Includes dedicated install tools to ensure precise seating depth.

Fits These Machines

• for Ford 6.0L Powerstroke Diesel Engines
• for Ford 6.4L Powerstroke Diesel Engines

On-The-Job Use

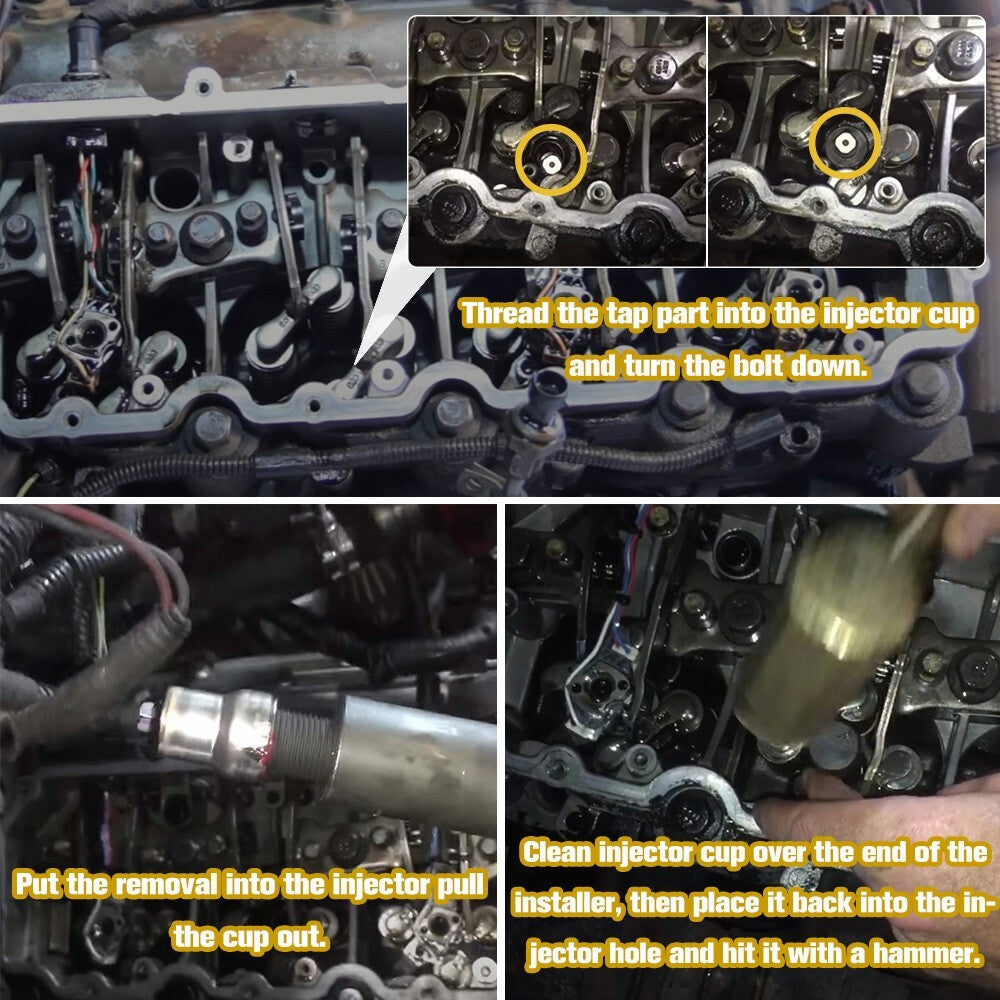

• Removing cracked or leaking injector sleeves during cylinder head service.
• Installing replacement injector cups securely to prevent coolant contamination.
• Servicing commercial diesel trucks in fleet maintenance shops.

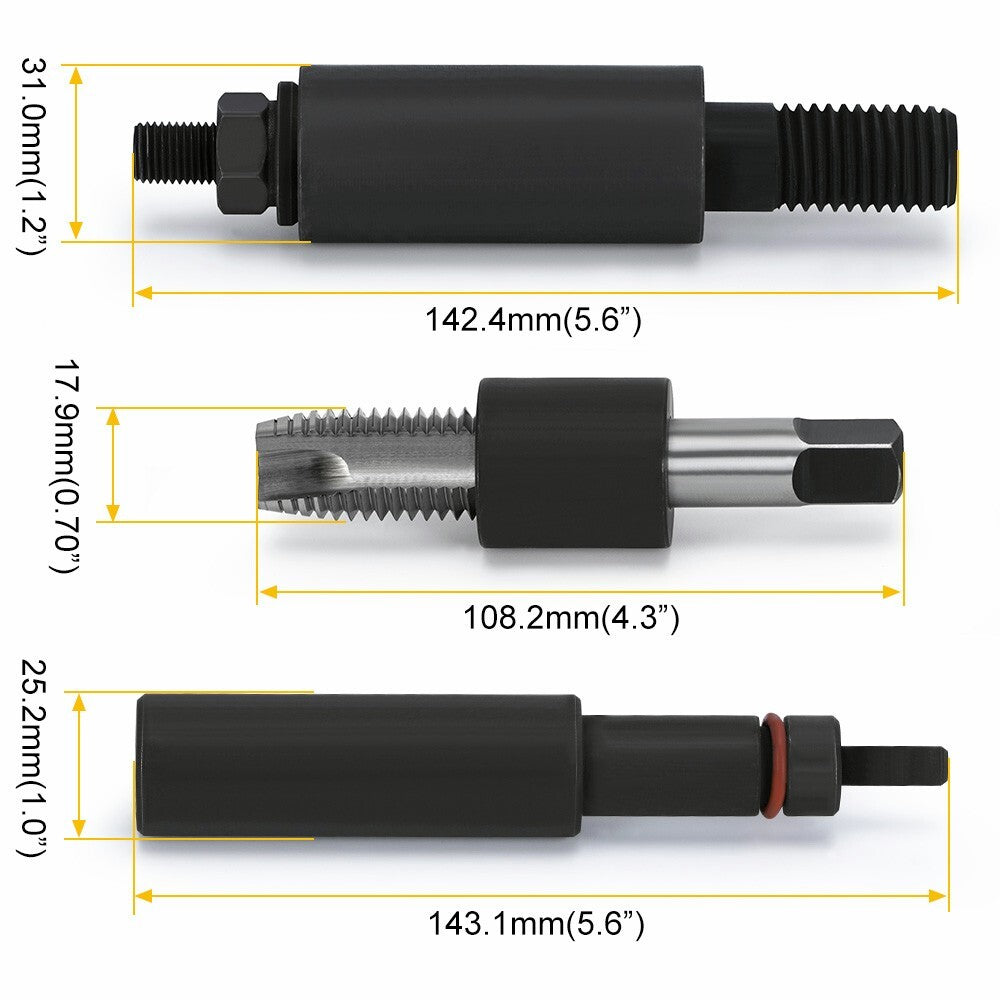

Specs At A Glance

Good To Know

Q: Does this kit require removing the cylinder heads? A: No, this tool set is specifically designed to perform the removal and installation while the cylinder heads remain on the engine block.

Q: Do I need adhesive for the new injector cups? A: Yes, a high-temperature retaining compound is typically recommended when installing new sleeves to ensure a leak-free seal.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
