For Polaris Sportsman 500 4x4 1996-2004 Starter Relay Solenoid 3085521 3087196

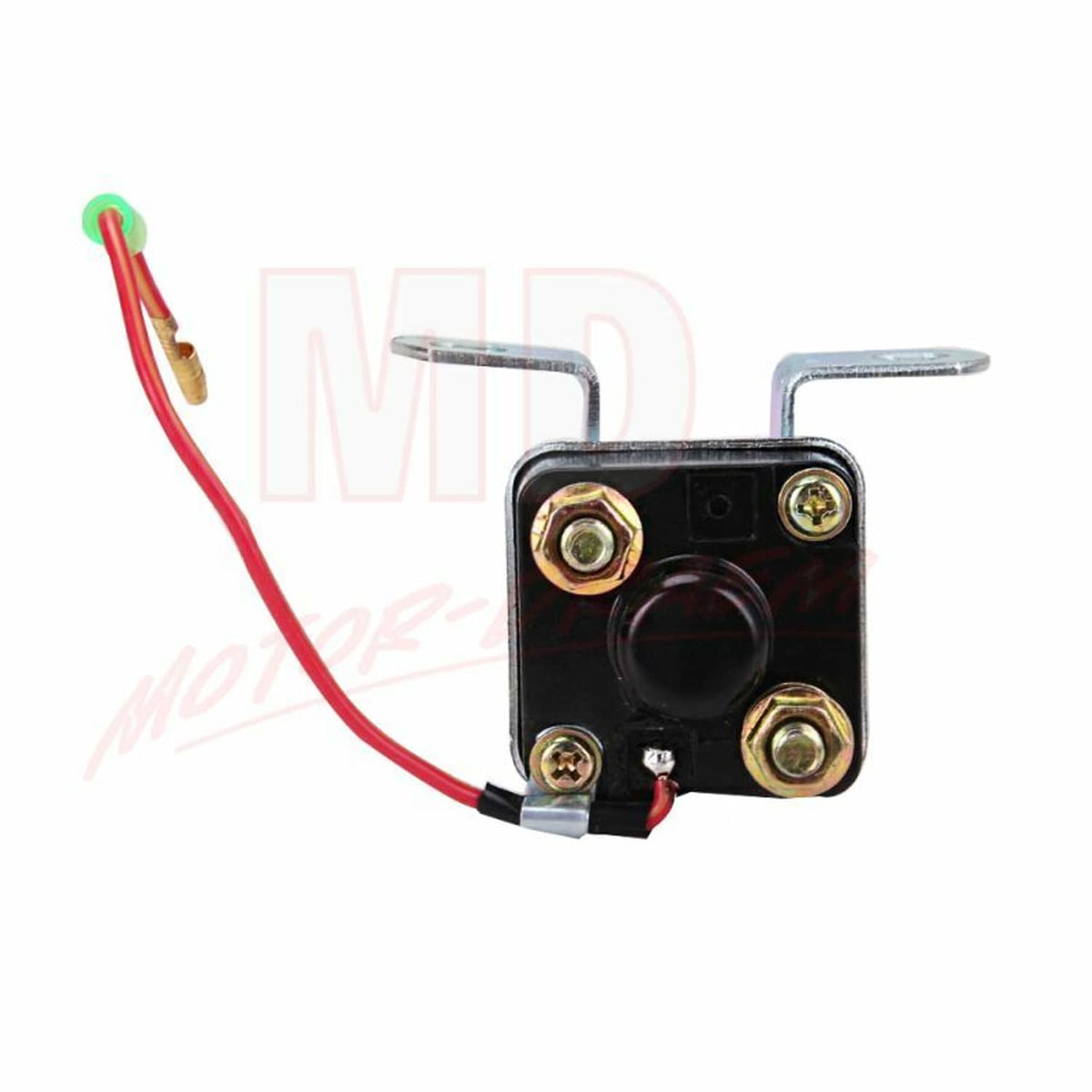

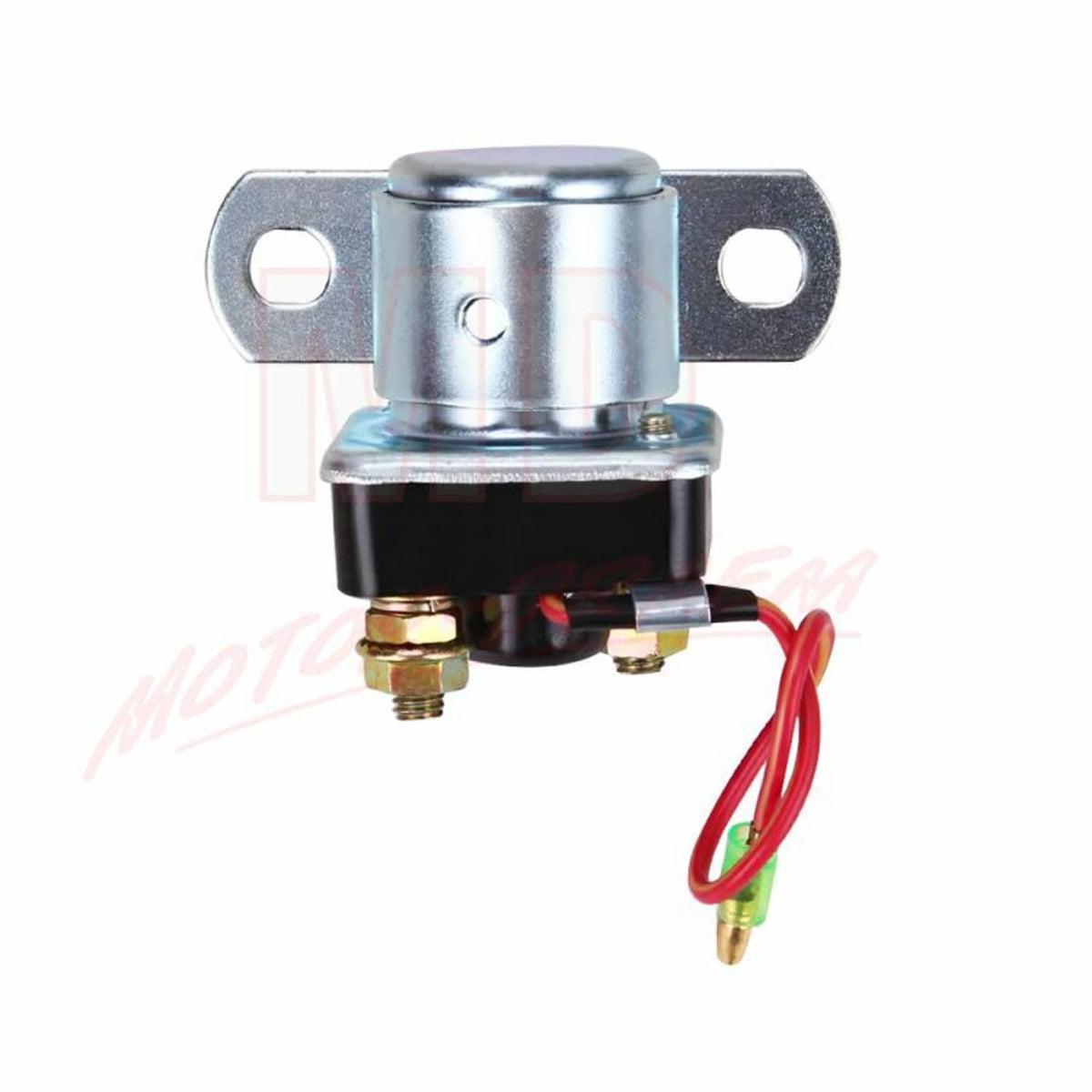

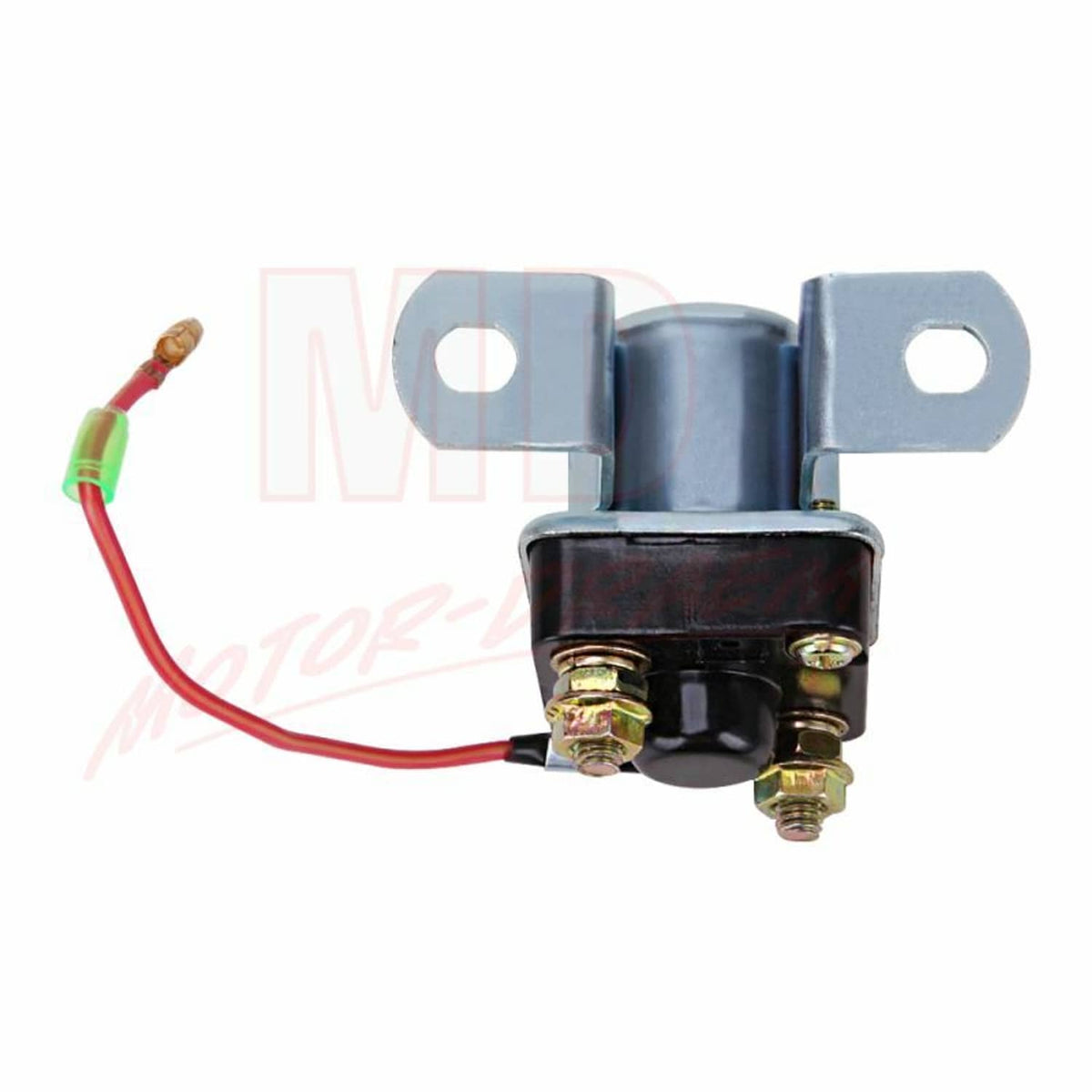

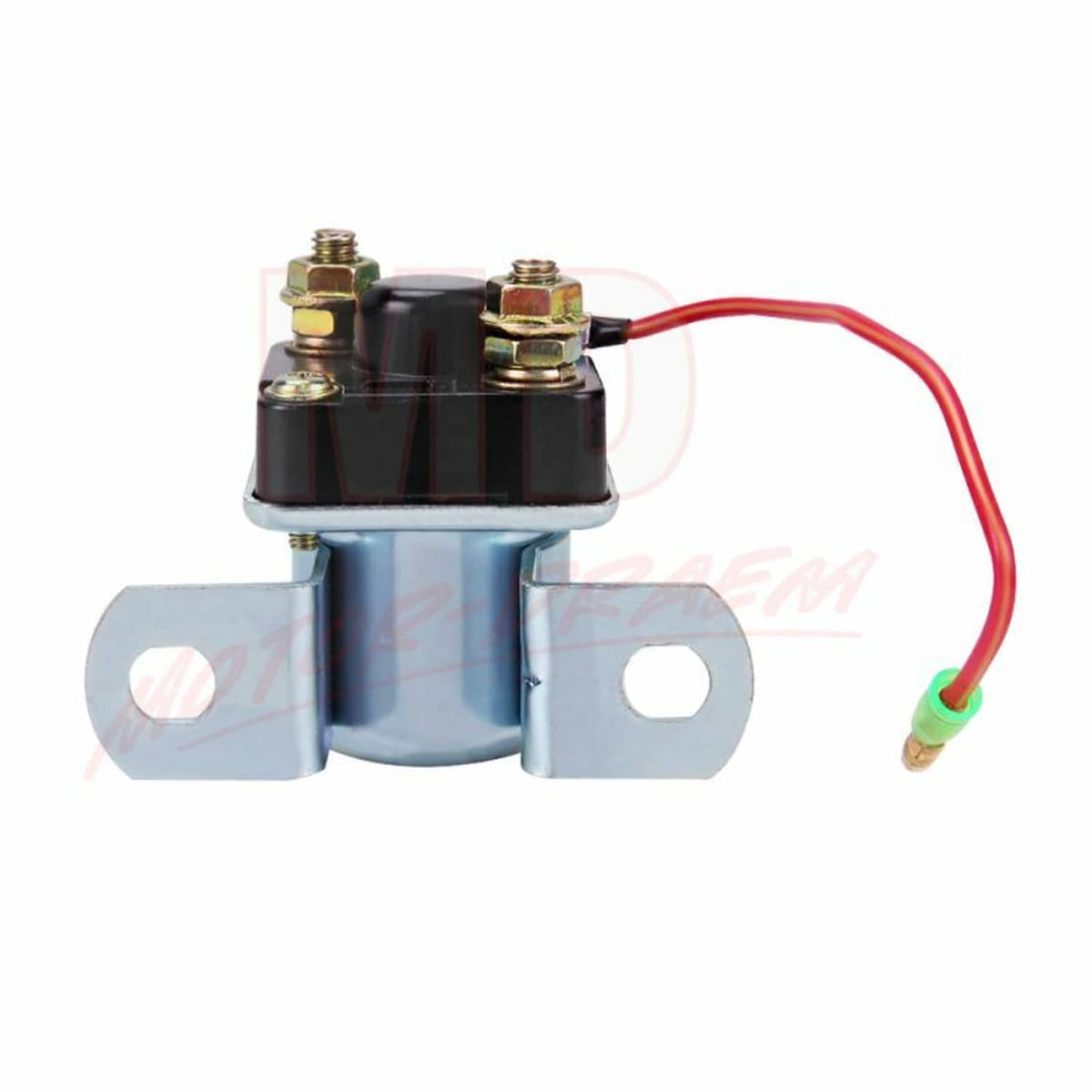

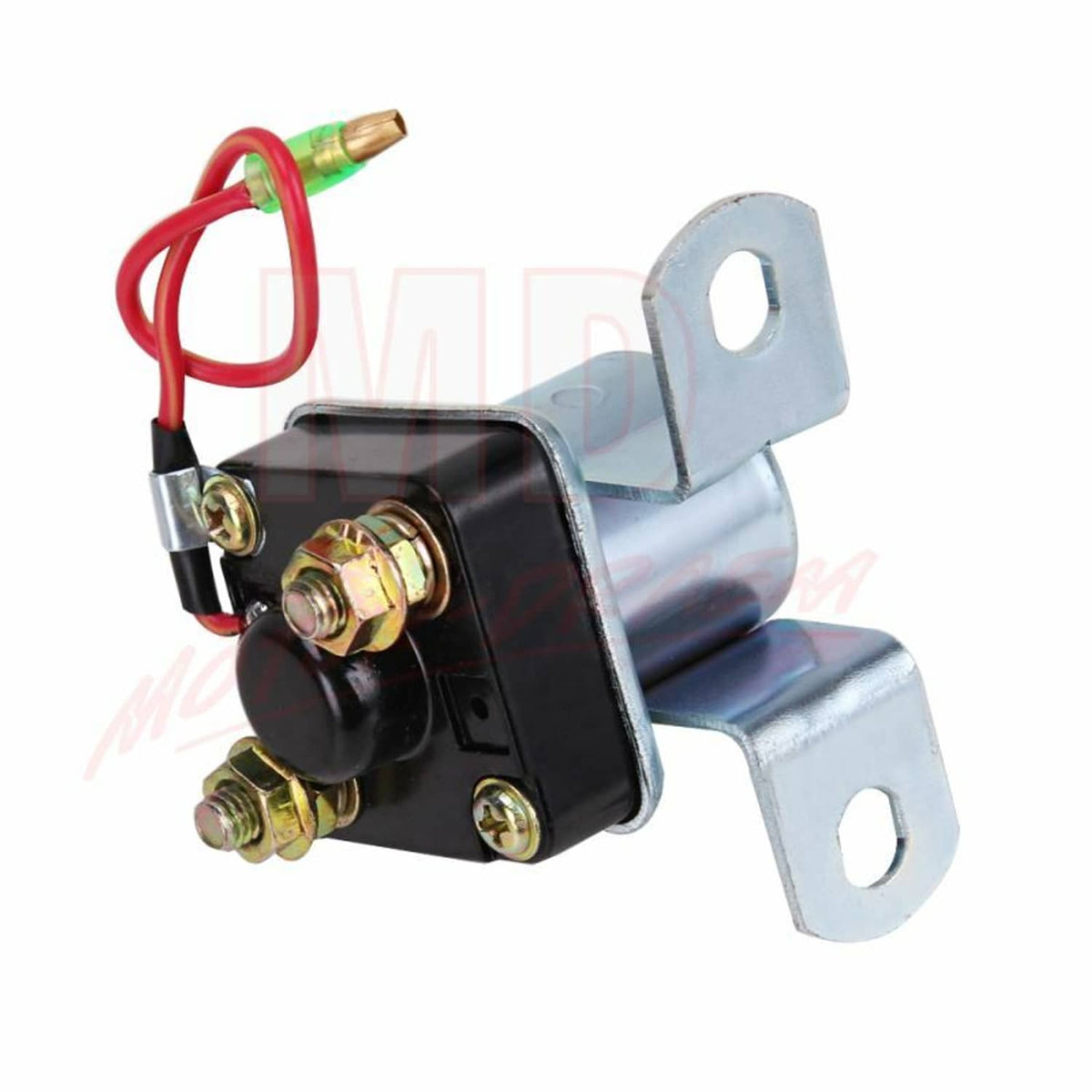

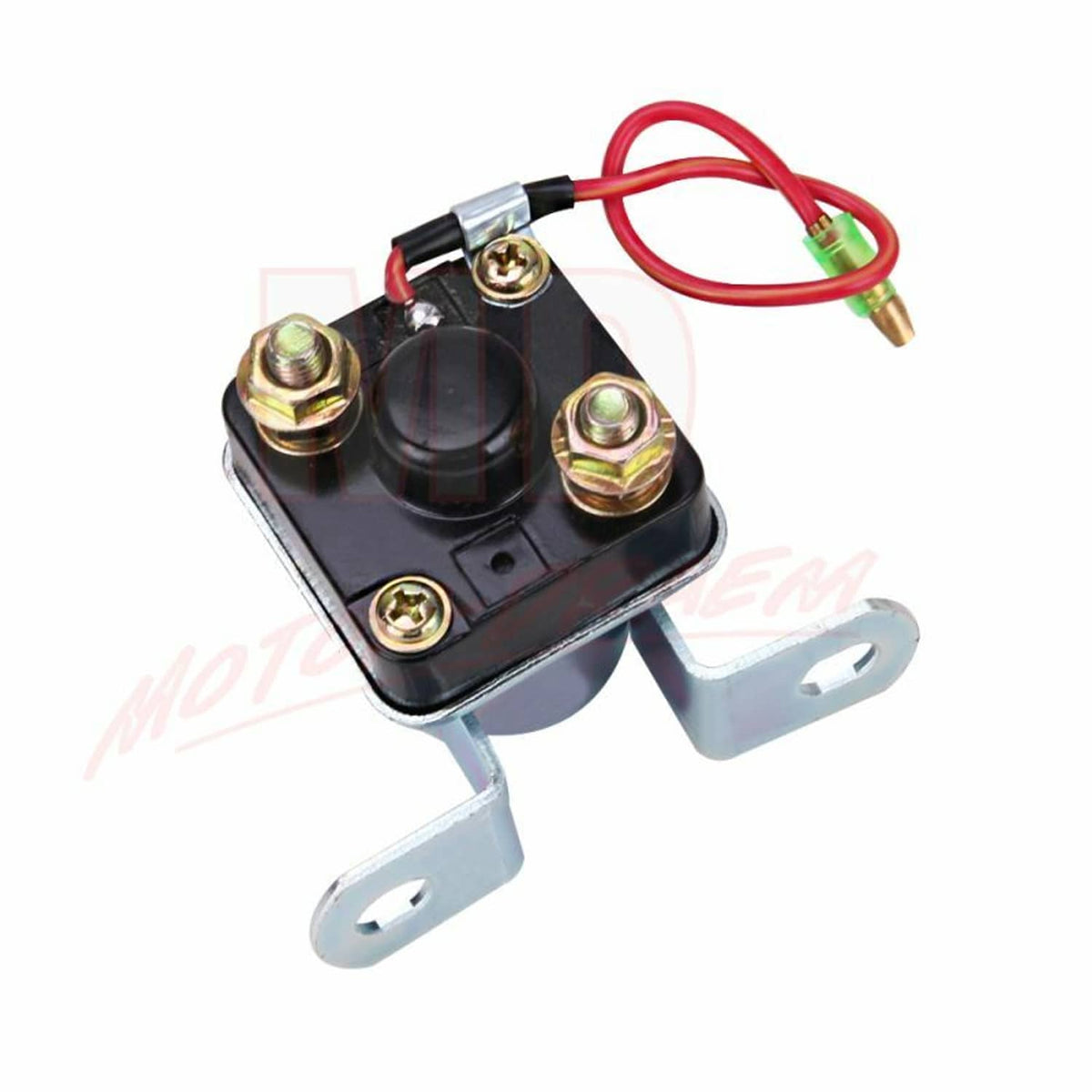

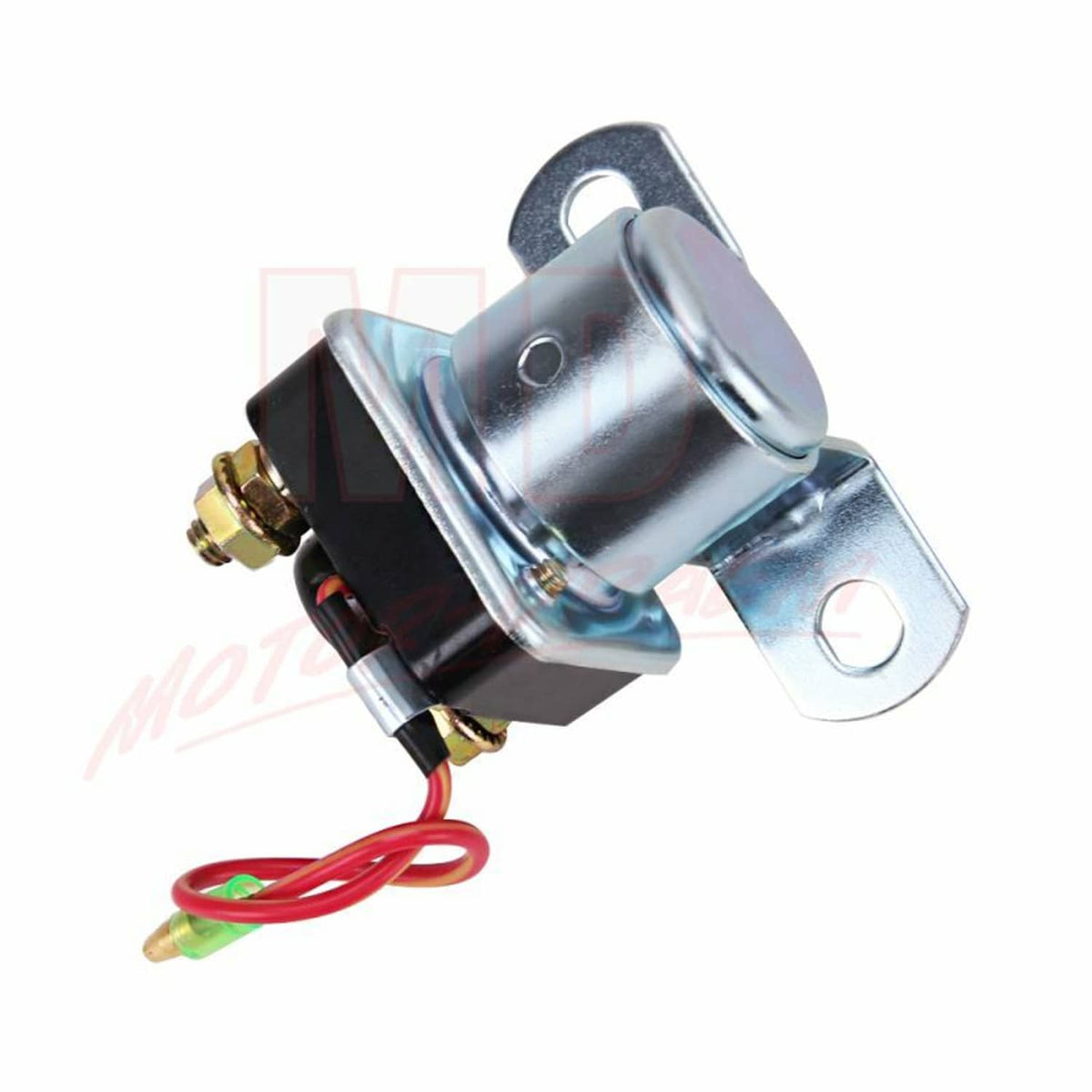

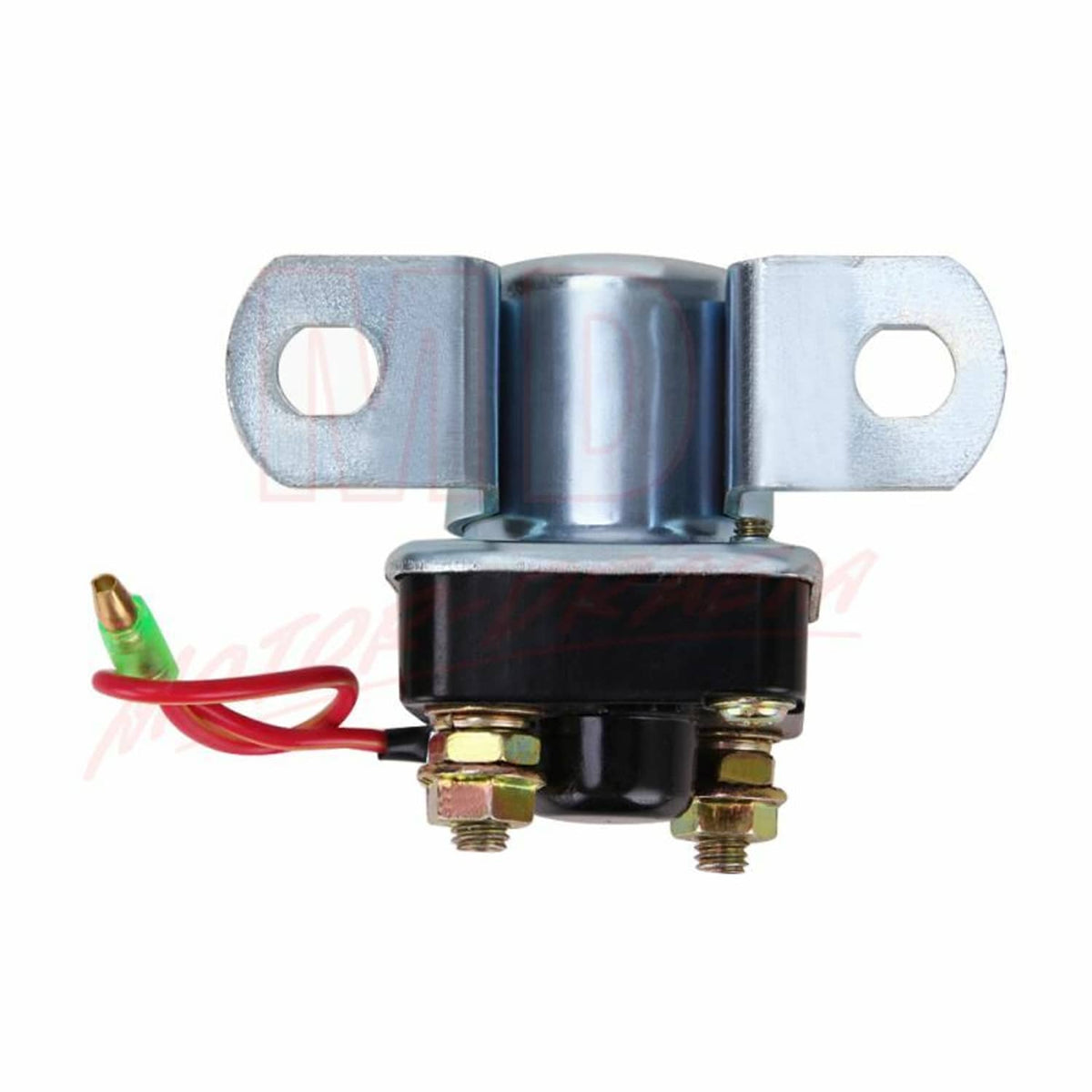

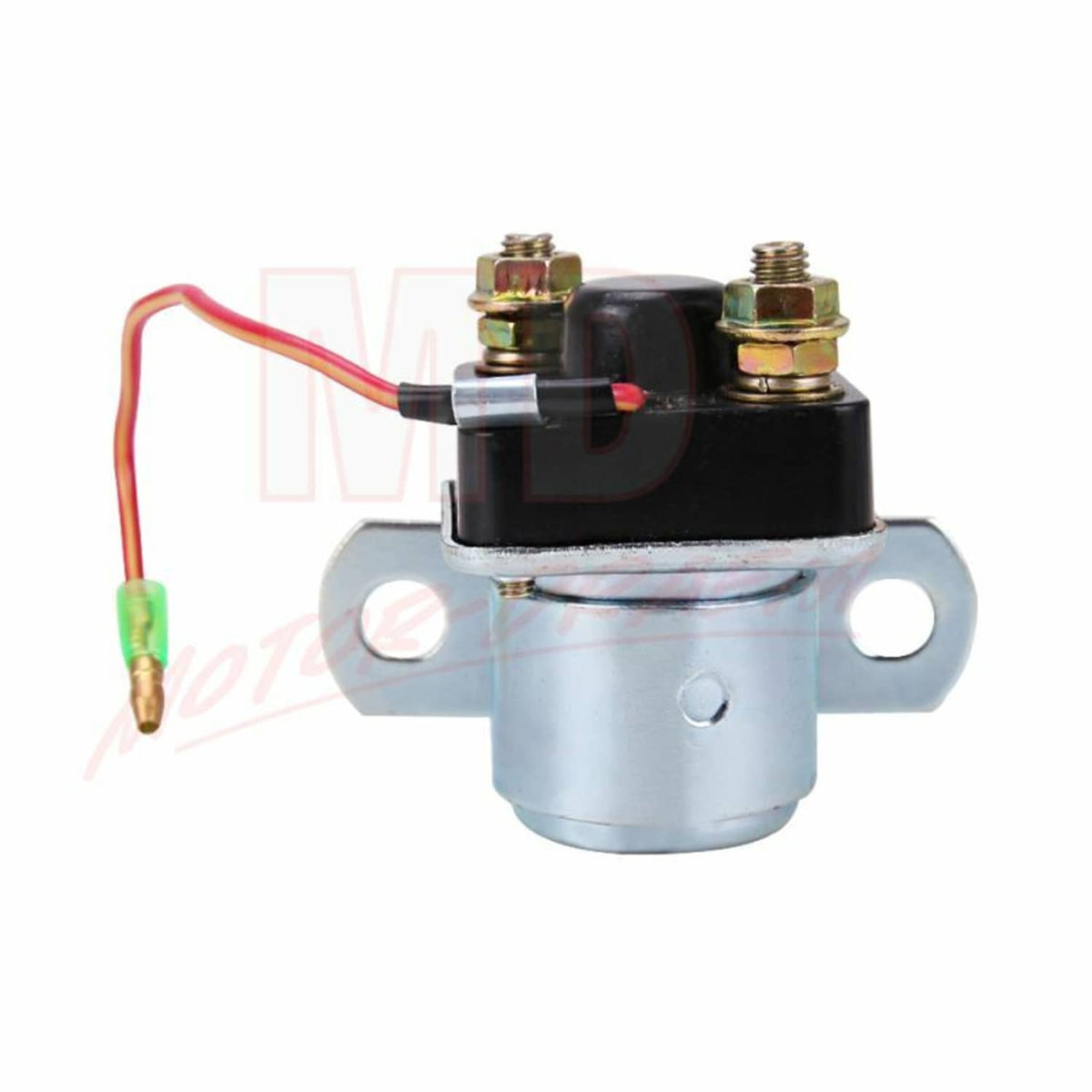

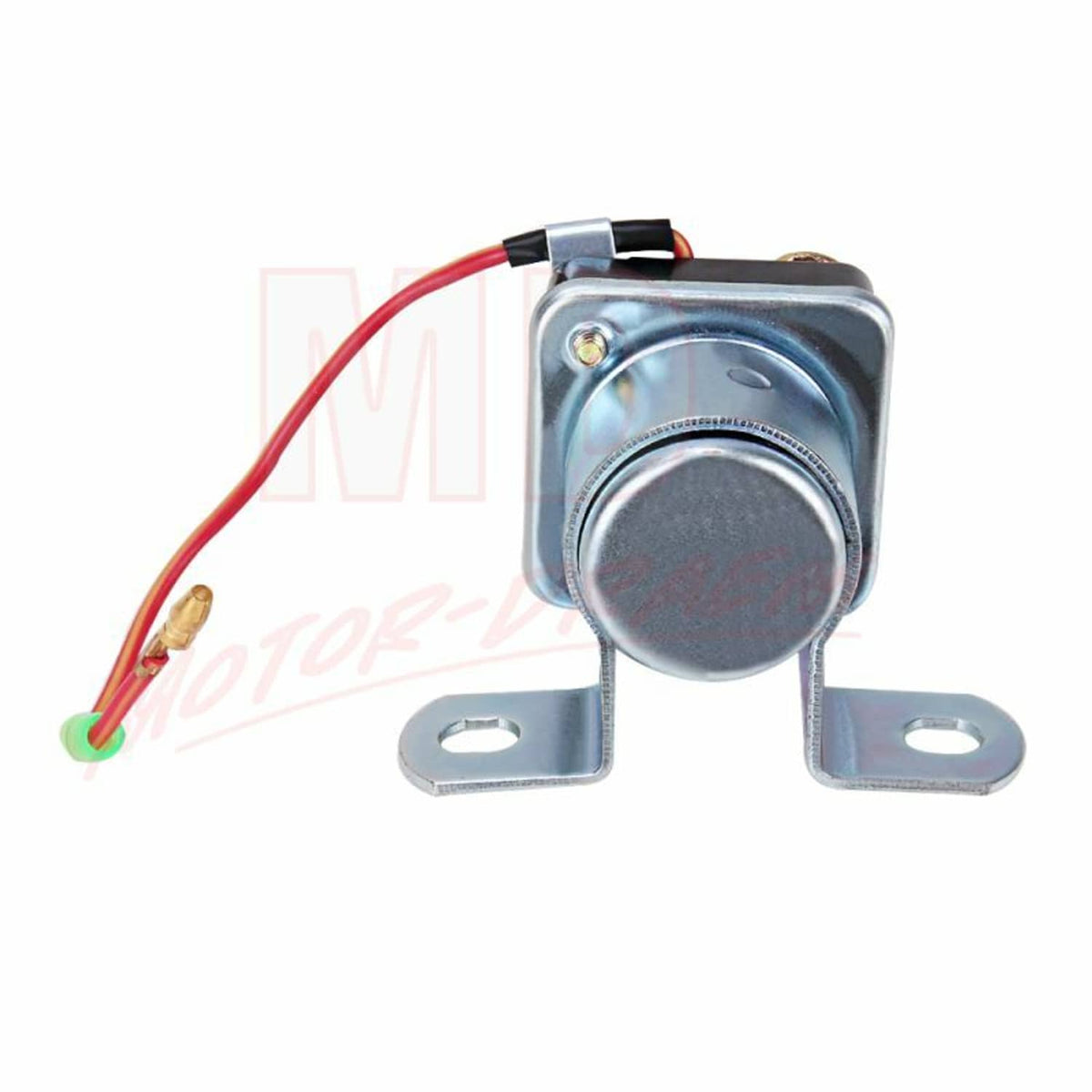

Starter Relay Solenoid for Polaris Sportsman 500 4x4

This starter relay solenoid replaces OEM cross-reference numbers 3085521 and 3087196, delivering the switching current needed to crank the engine on Polaris Sportsman 500 4x4 models built from 1996 through 2004.

Overview

This starter relay solenoid for Polaris Sportsman 500 4x4 machines handles the high-current connection between battery and starter motor. It is a direct-fit replacement for worn or failed relays on 1996-2004 models, letting the starter engage cleanly every time the key is turned. Riders and mechanics working on these classic Polaris 4x4 quads get a dependable, cost-effective solution.

Built For Performance

• Direct replacement for OEM part numbers 3085521 and 3087196
• Heavy-duty contact construction handles repeated high-current starting cycles
• Sealed housing resists mud, moisture, and trail debris
• Mounting pattern matches the original relay location for straightforward installation
• Rated for 12-volt ATV electrical systems
• Consistent switching action for reliable starter engagement

Fits These Machines

• for Polaris Sportsman 500 4x4 1996
• for Polaris Sportsman 500 4x4 1997
• for Polaris Sportsman 500 4x4 1998
• for Polaris Sportsman 500 4x4 1999
• for Polaris Sportsman 500 4x4 2000
• for Polaris Sportsman 500 4x4 2001
• for Polaris Sportsman 500 4x4 2002
• for Polaris Sportsman 500 4x4 2003
• for Polaris Sportsman 500 4x4 2004

On-The-Job Use

• Replacing a relay that clicks but will not crank the engine
• Restoring reliable cold-start performance on older Sportsman 500 4x4 quads
• Routine electrical maintenance on farm, hunting, and trail machines
• Fixing intermittent starting caused by corroded or pitted relay contacts

Specs At A Glance

Good To Know

Q: How do I know the relay is failing? A: Common signs include a single loud click with no crank, no click at all, or intermittent starting that worsens over time. Testing the relay terminals with a multimeter confirms whether replacement is needed.

Q: Is this an original Polaris part? A: No, this is an aftermarket starter relay solenoid built to match the function of OEM numbers 3085521 and 3087196. It installs in the factory location on compatible 1996-2004 Sportsman 500 4x4 machines.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
