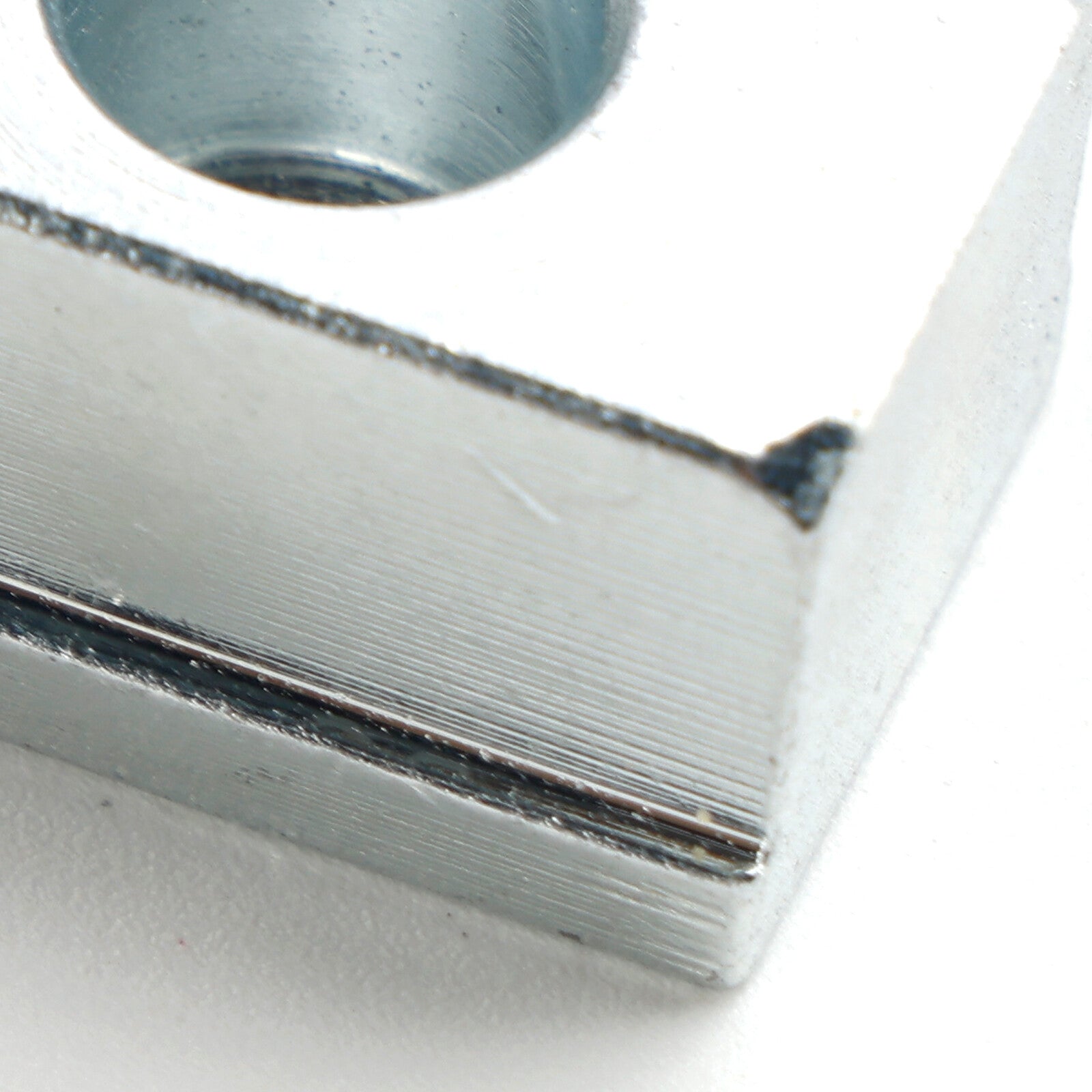

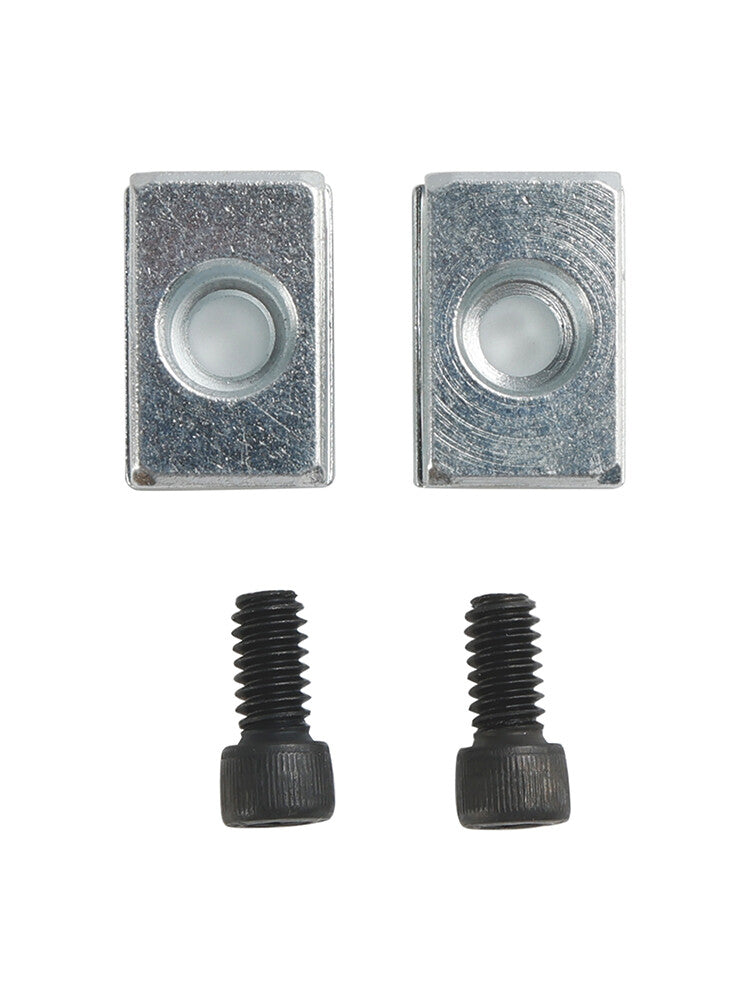

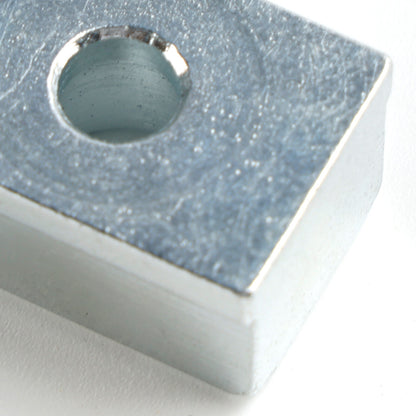

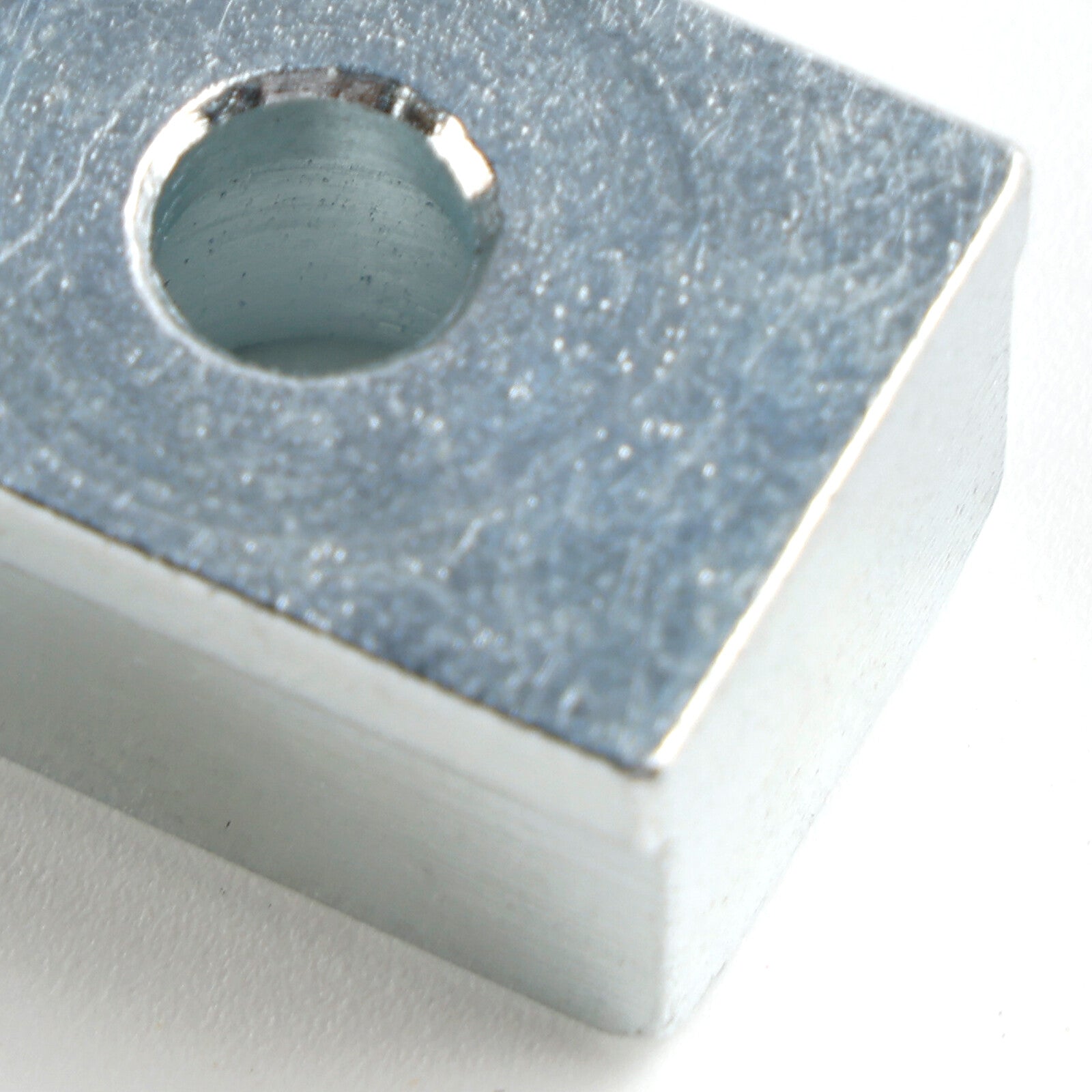

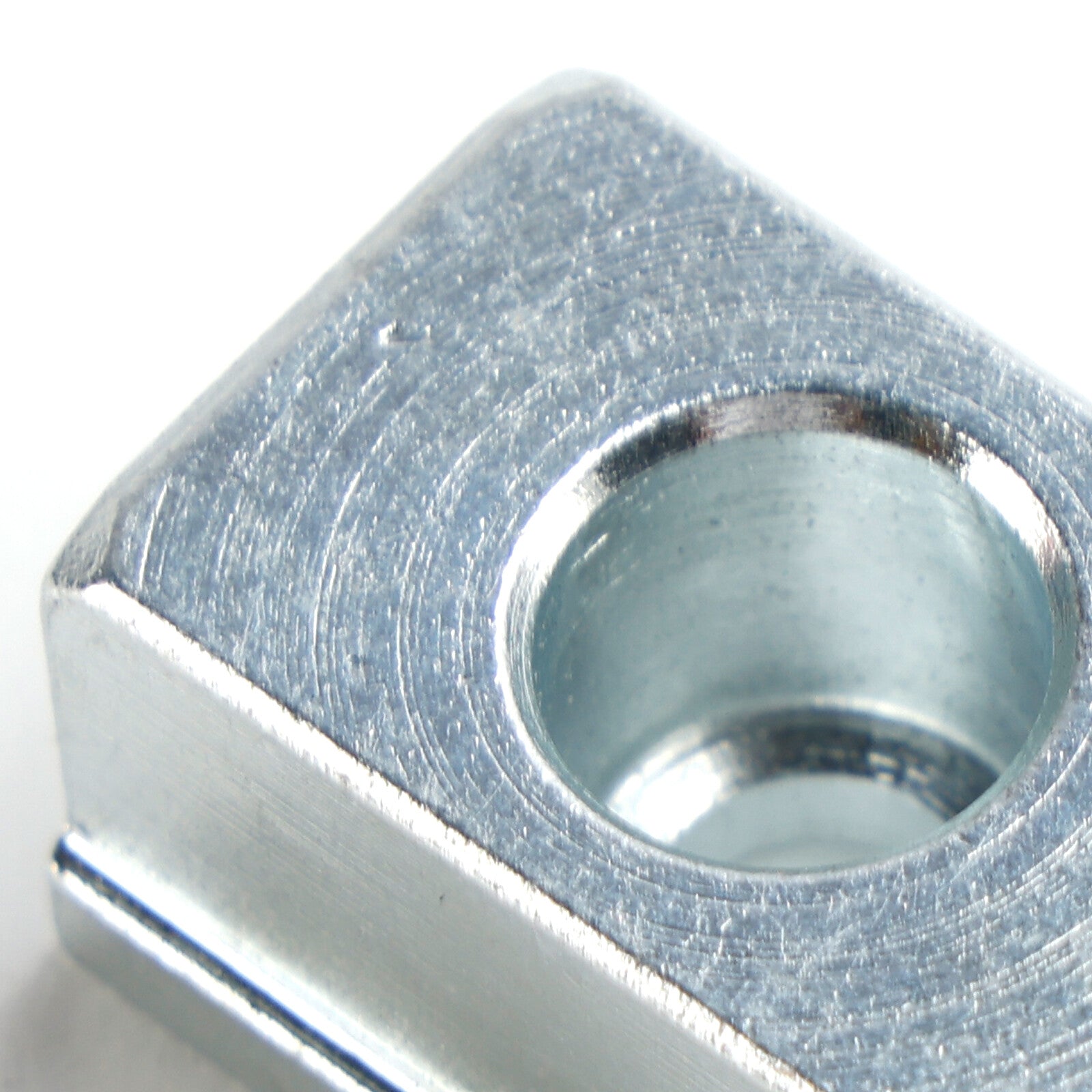

Kurt Style Vise Step Keys 4140 Steel 11/16 X 5/8 inch

Vise Step Keys for Kurt Style Vises

These precision-machined step keys align milling machine vises quickly and accurately to the table T-slots.

Overview

These vise step keys for Kurt style vises ensure accurate alignment between the machine table and the workholding setup. Tailored for machinists and toolmakers, these vise step keys for Kurt style vises eliminate the need to dial-in a vise every time it is mounted. Utilizing hardened vise step keys for Kurt style vises speeds up setup times while maintaining repeatable machining accuracy.

Built For Performance

• Machined from heavy-duty 4140 alloy steel for maximum durability

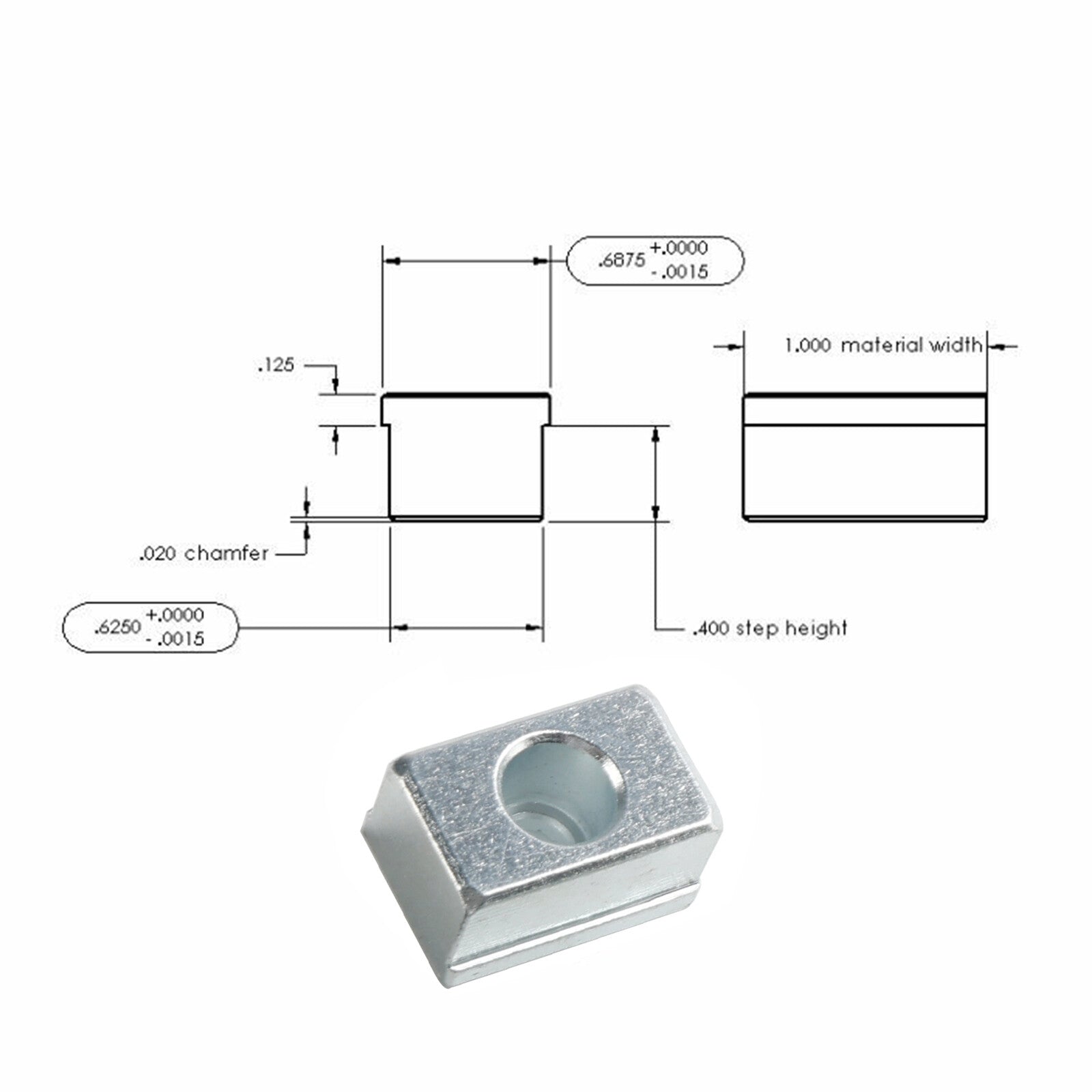

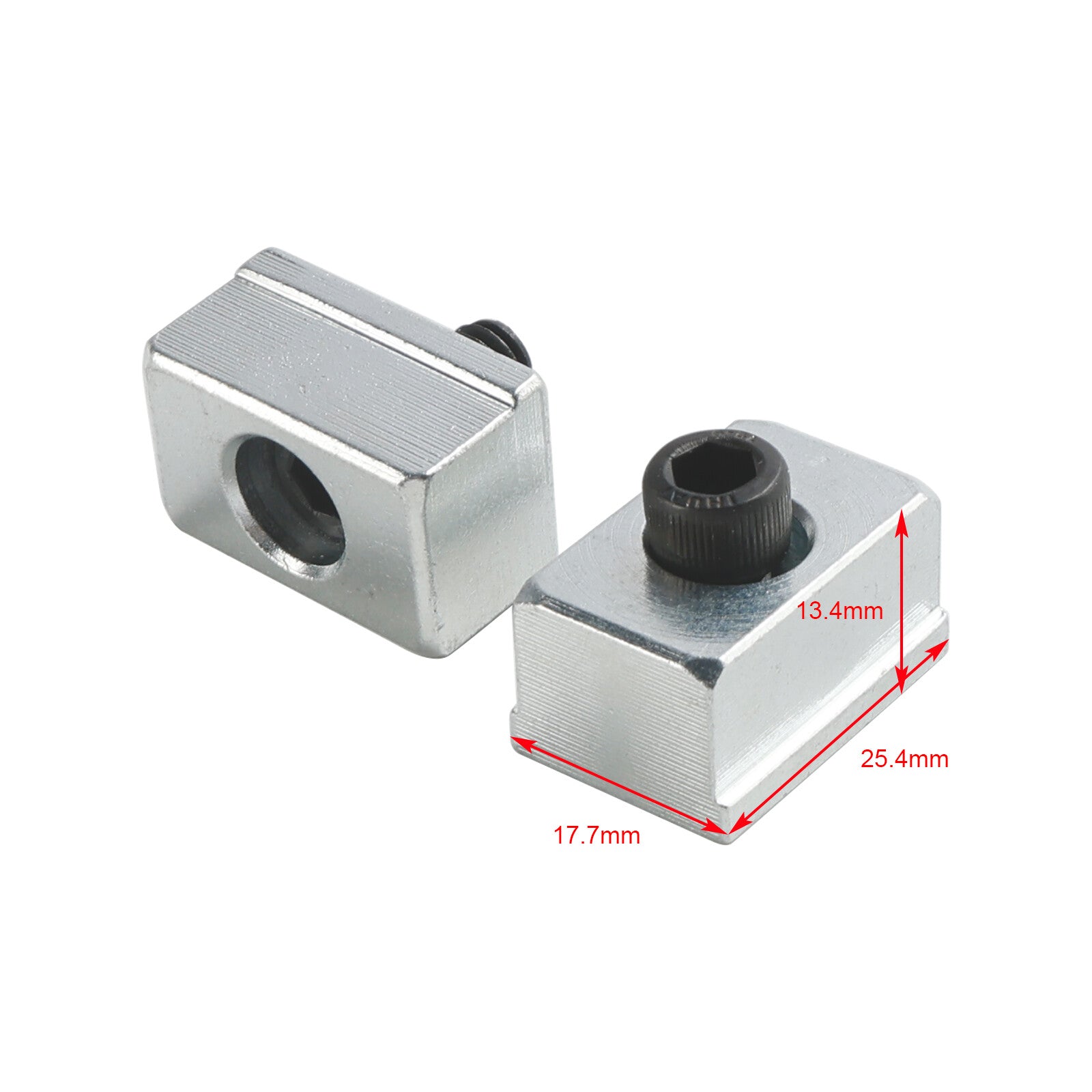

• Precision-ground dimensions of 11/16 inch by 5/8 inch for tight-tolerance fit
• Black oxide finish provides corrosion resistance and extends service life
• Pre-drilled mounting holes allow for direct attachment to the vise base

Fits These Machines

• for Kurt Style milling vises with standard keyways

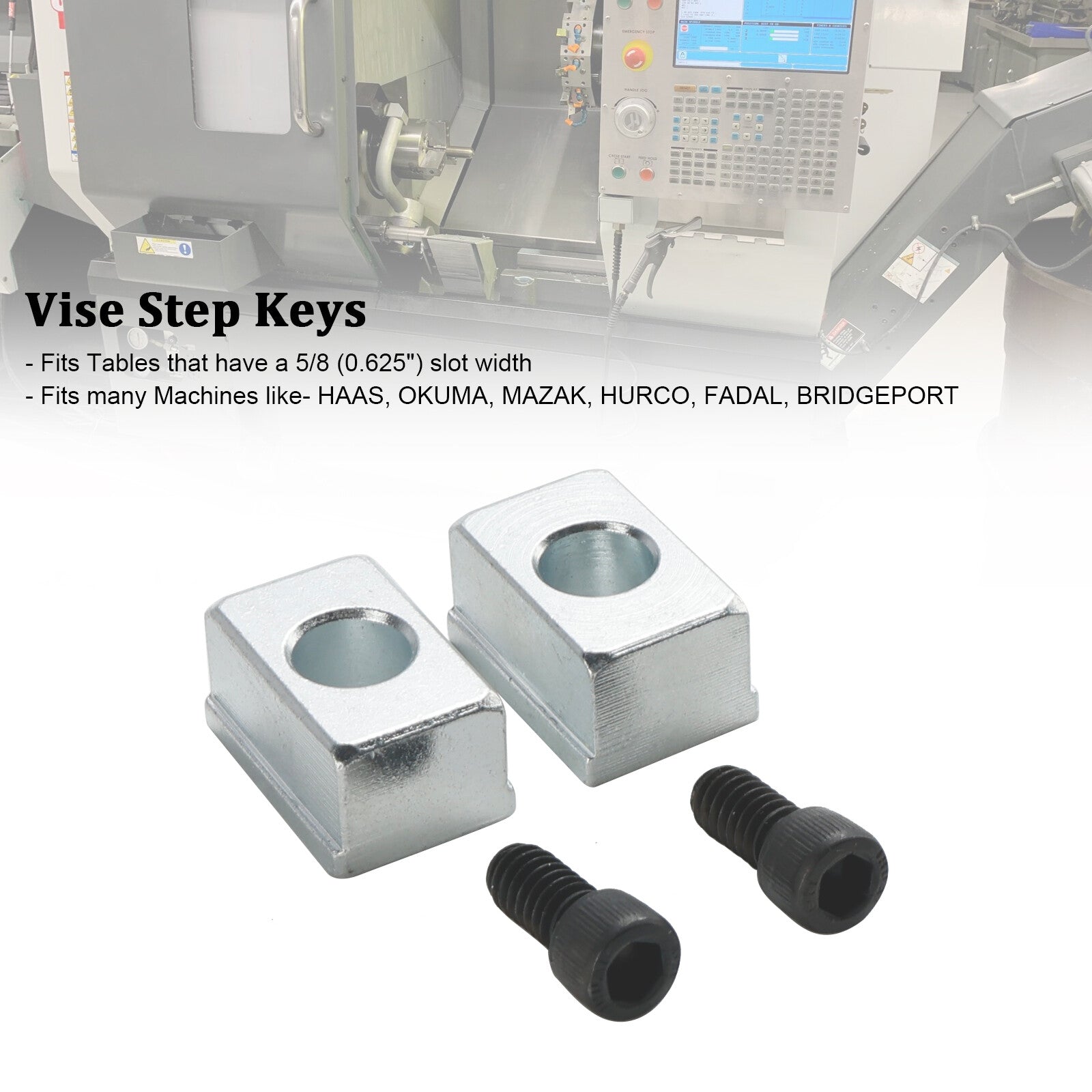

• for CNC mills and manual milling machines with matching T-slots

On-The-Job Use

• Aligning heavy machine vises square to the mill table axis
• Securing workholding setups rapidly during high-production runs
• Reducing machine downtime when swapping out tooling setups

Specs At A Glance

Good To Know

Q: What is the purpose of step keys instead of standard straight keys? A: Step keys allow a vise with a larger keyway width to align with a machine table that has smaller T-slots, bridging different sizing standards securely. This avoids having to modify the vise or table.

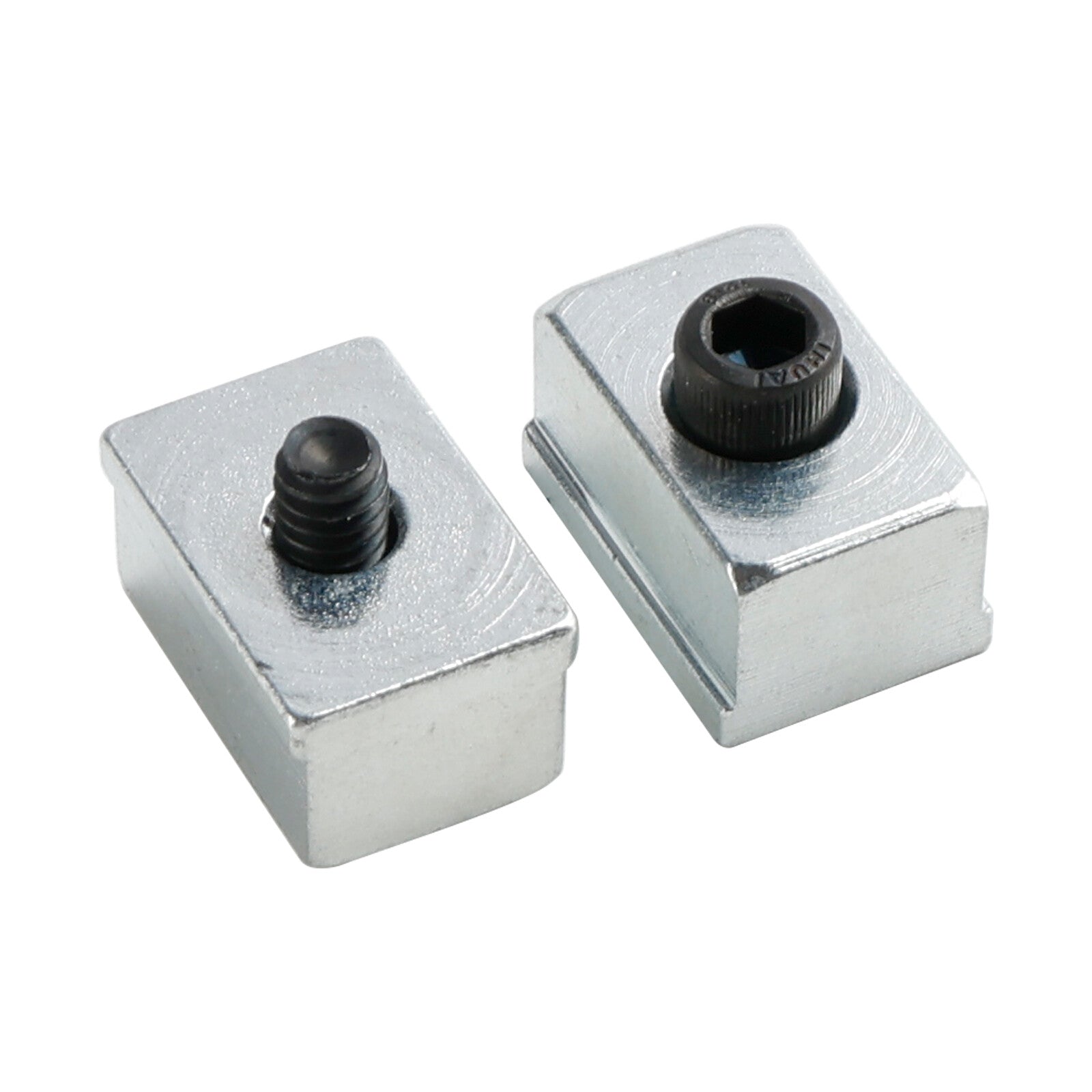

Q: How are these keys secured to the vise? A: These keys attach to the bottom of the vise base using socket head cap screws, locking them into the vise keyway so they remain aligned during repositioning. Always clean the slot thoroughly before mounting.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
