MEGA/AMG 298 Series Time Delay Bolt Down Fuse 250 Amp 32V for LittleFuse

This MEGA/AMG 298 Series time delay bolt down fuse rated at 250 Amp and 32V provides reliable overcurrent protection for high-power electrical systems, serving as a direct replacement for LittleFuse 298 series fuses.

Overview

The MEGA/AMG 298 Series time delay bolt down fuse is a high-current fuse designed for battery, alternator, and distribution applications. Rated at 250 Amp and 32V, it offers a time delay characteristic to handle inrush currents without nuisance tripping. This bolt-down fuse is ideal for heavy-duty automotive, marine, and industrial systems requiring robust circuit protection.

Built For Performance

• Rated 250 Amp at 32V DC for high-current circuits
• Time delay design allows momentary overloads without blowing
• Bolt-down connection ensures secure, low-resistance mounting
• MEGA/AMG form factor for high-amp fuse holders
• 298 Series construction for reliable, consistent performance

On-The-Job Use

• Protecting main battery feeds in trucks, RVs, and off-road vehicles
• Isolating alternator outputs and secondary battery banks
• Securing power distribution in marine electrical panels
• Overcurrent protection for inverters and high-power accessories

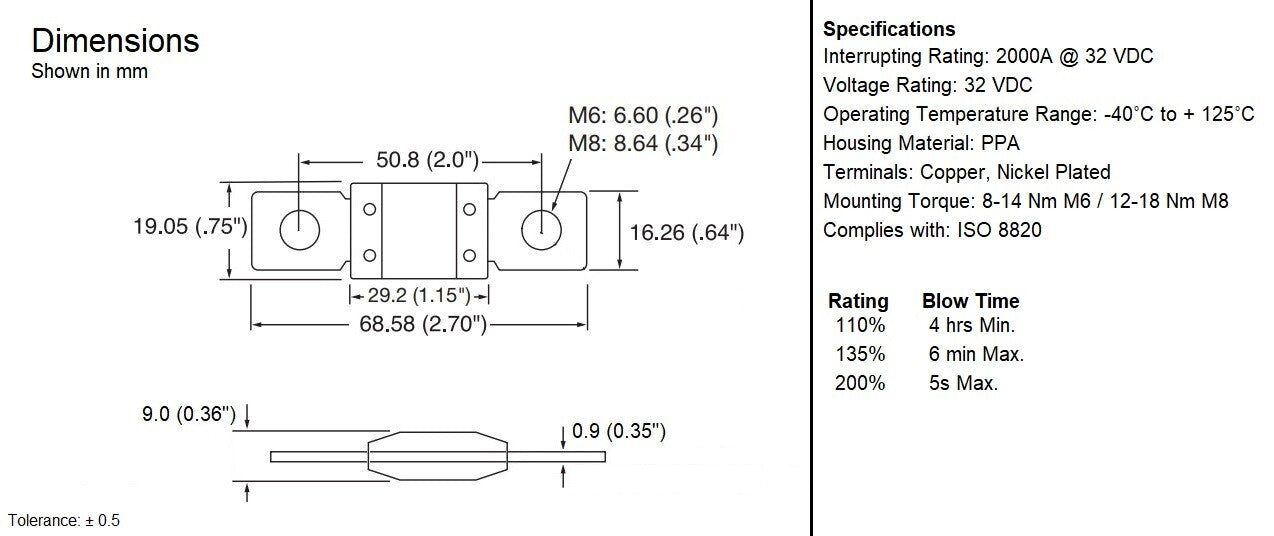

Specs At A Glance

Good To Know

Q: What is the difference between a standard fuse and a time delay fuse? A: A time delay fuse can handle short inrush currents (like starting a motor) without opening, whereas a standard fast-blow fuse would blow instantly under the same surge.

Q: Can this fuse be used in a 24V system? A: Yes, the 32V rating covers both 12V and 24V nominal systems, but always verify that the maximum system voltage does not exceed 32V.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
