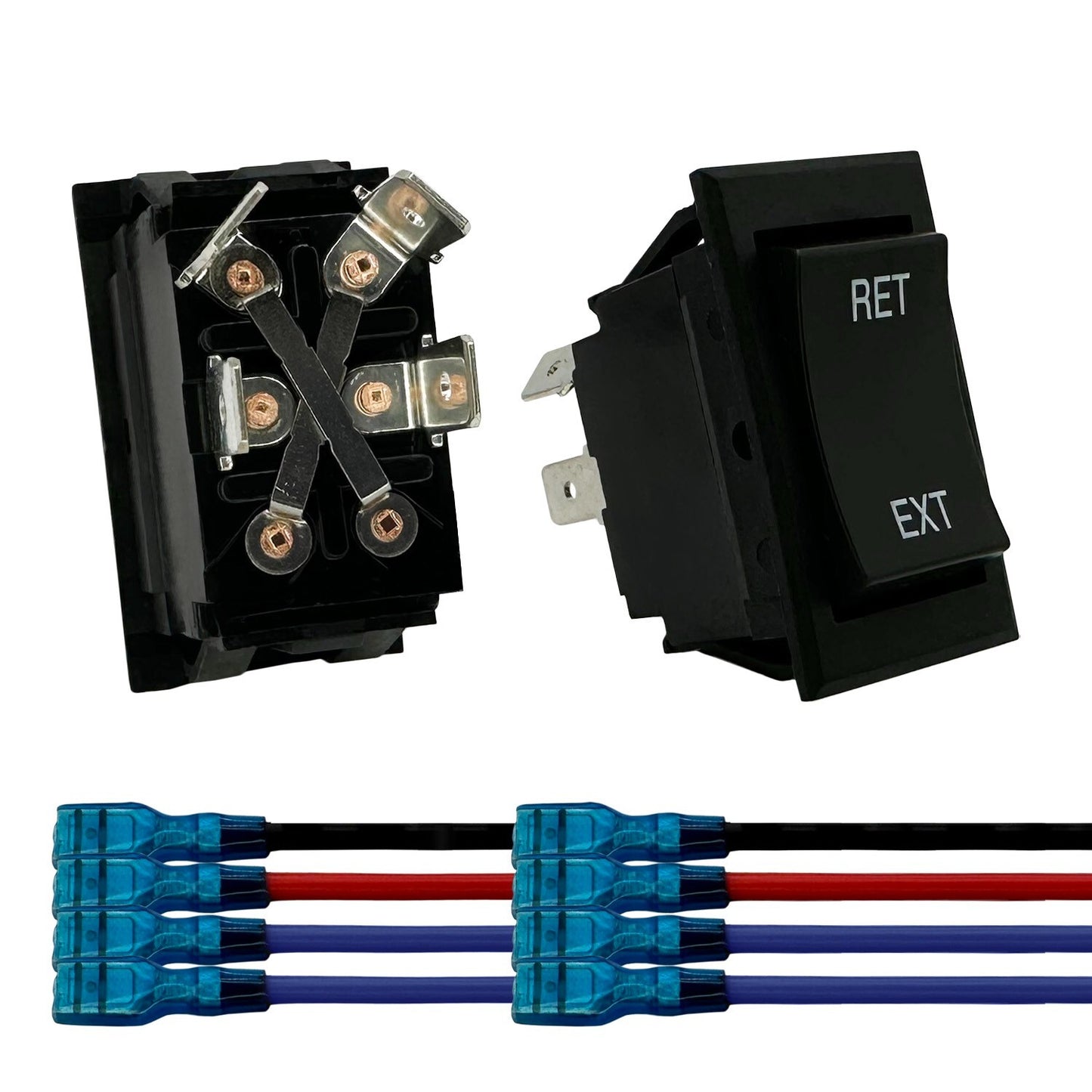

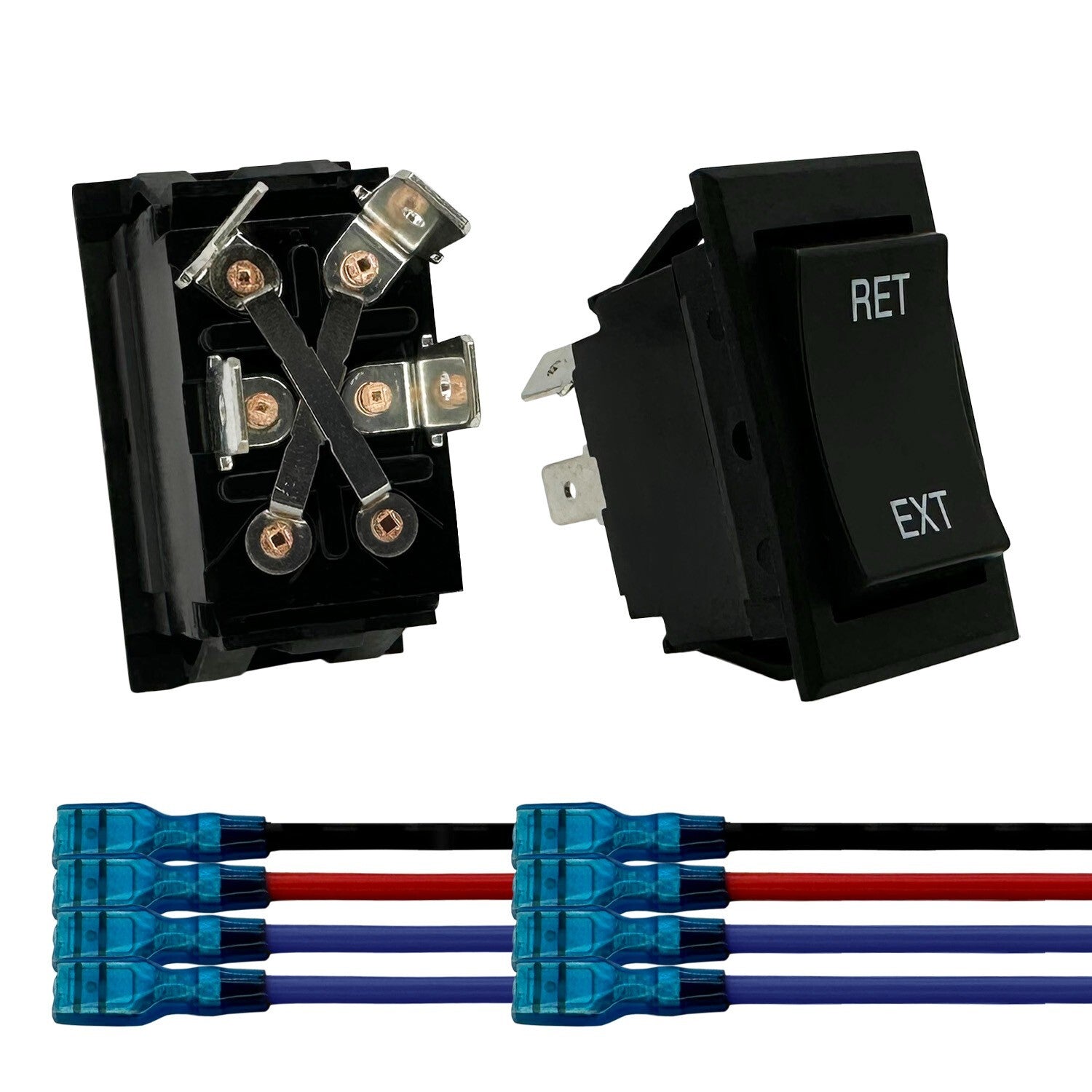

Momentary Reverse Polarity Rocker Switch 20A, 12V DC On-Off DPDT - 4 Pin (2 pk)

Momentary Reverse Polarity Rocker Switch 20A 12V DC DPDT 4 Pin

This momentary reverse polarity rocker switch is a DPDT (double-pole double-throw) switch rated at 20A at 12V DC, with 4 pin connectors, designed for on-off control and reverse polarity applications.

Overview

This momentary reverse polarity rocker switch allows forward and reverse operation of DC motors with a spring-return to center-off. It is commonly used in automotive, marine, and industrial equipment where momentary polarity reversal is needed. The momentary reverse polarity rocker switch provides reliable switching and easy snap-in panel mounting.

Built For Performance

• 20A continuous current rating at 12V DC
• DPDT contact configuration for polarity reversal

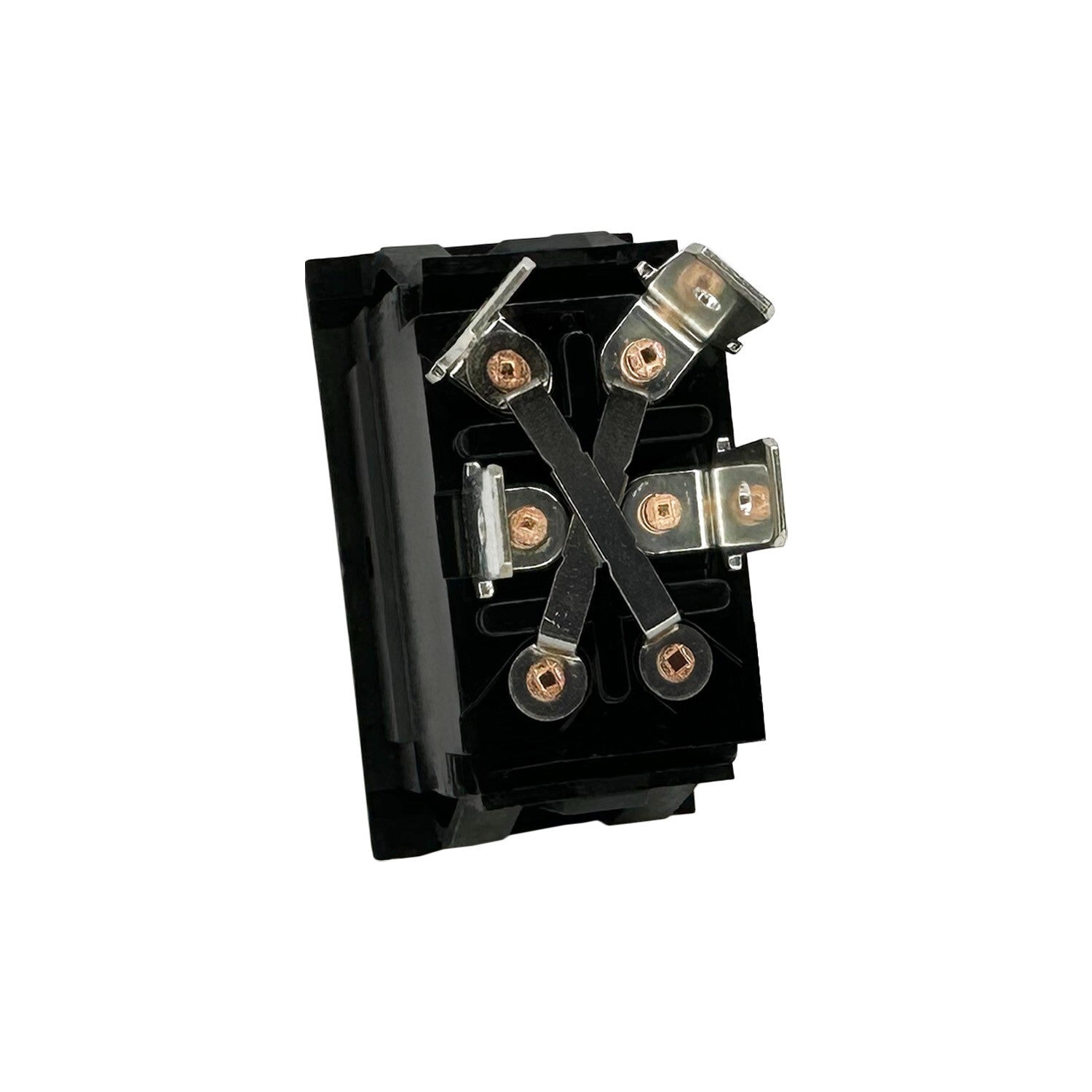

• 4 pin connectors for straightforward wiring
• Momentary action with automatic return to off
• Snap-in mounting for standard panel cutouts
• Heavy-duty terminals resist vibration

On-The-Job Use

• Winch control on off-road vehicles
• Lift gate operation on trucks
• Trolling motor direction on boats
• Actuator control for solar trackers
• Linear motion systems requiring reversal

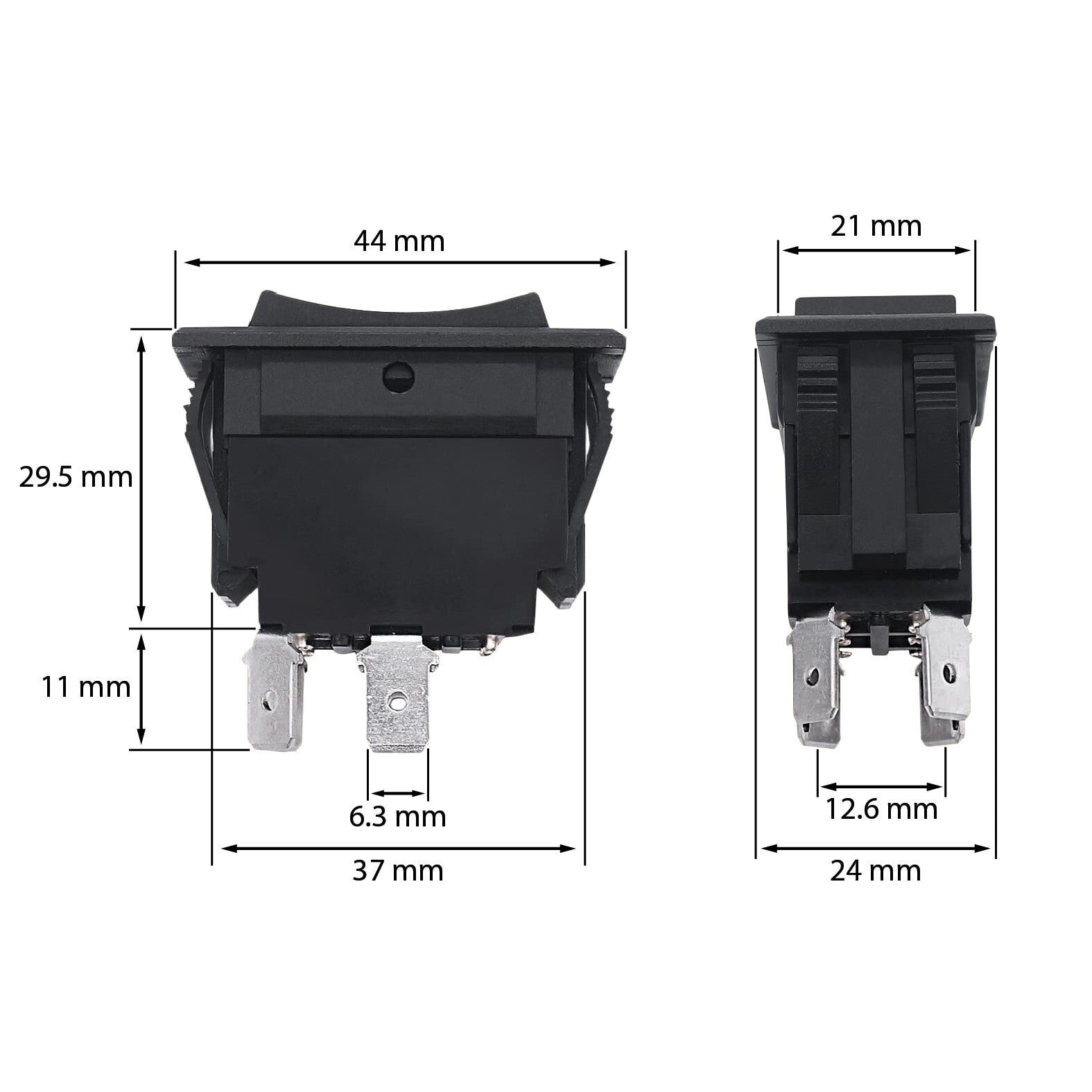

Specs At A Glance

Good To Know

Q: Can this switch handle higher voltages like 24V DC? A: The switch is rated for 12V DC at 20A; using it at 24V DC requires derating the current, and we recommend verifying with the manufacturer's specifications.

Q: Does the 4 pin configuration include a ground connection? A: The 4 pins are for the two independent poles; no dedicated ground pin is provided, so grounding must be handled separately.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
