New 6-Wire Pull Coil Timer Module replace for Woodward SA-4092-12 12V

6-Wire Pull Coil Timer Module for Woodward

This 6-wire pull coil timer module, cross-referenced as OEM SA-4092-12, is a replacement unit for Woodward engine control systems, providing precise timing for pull-coil actuation in 12V applications.

Overview

This 6-wire pull coil timer module for Woodward is a direct replacement component designed to control the pull-coil sequence in Woodward engine governors and actuators. It operates on 12V and matches the OEM SA-4092-12 specification, making it suitable for use in industrial engines, generators, and off-highway equipment. The module integrates seamlessly into existing Woodward systems to restore proper timing functionality.

Built For Performance

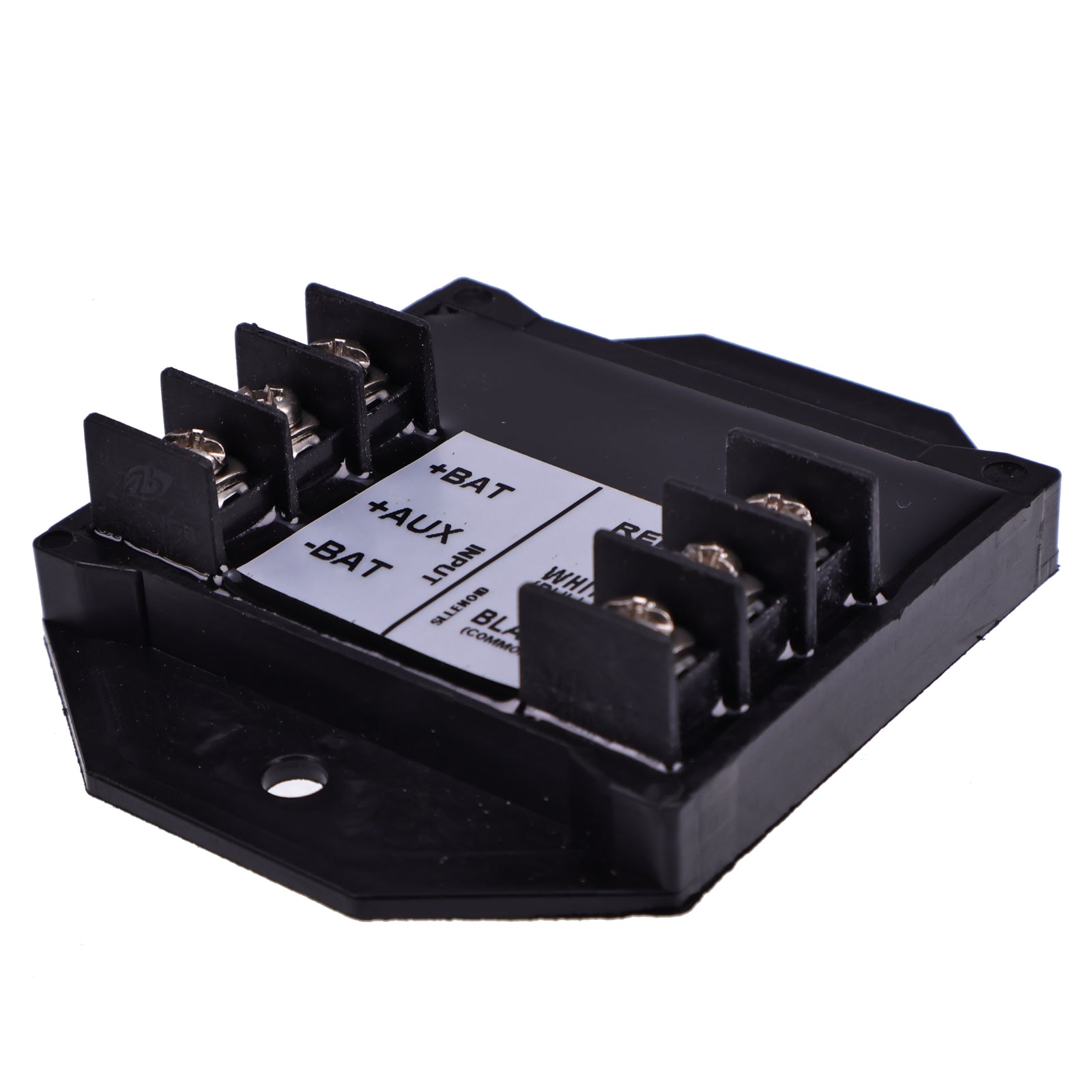

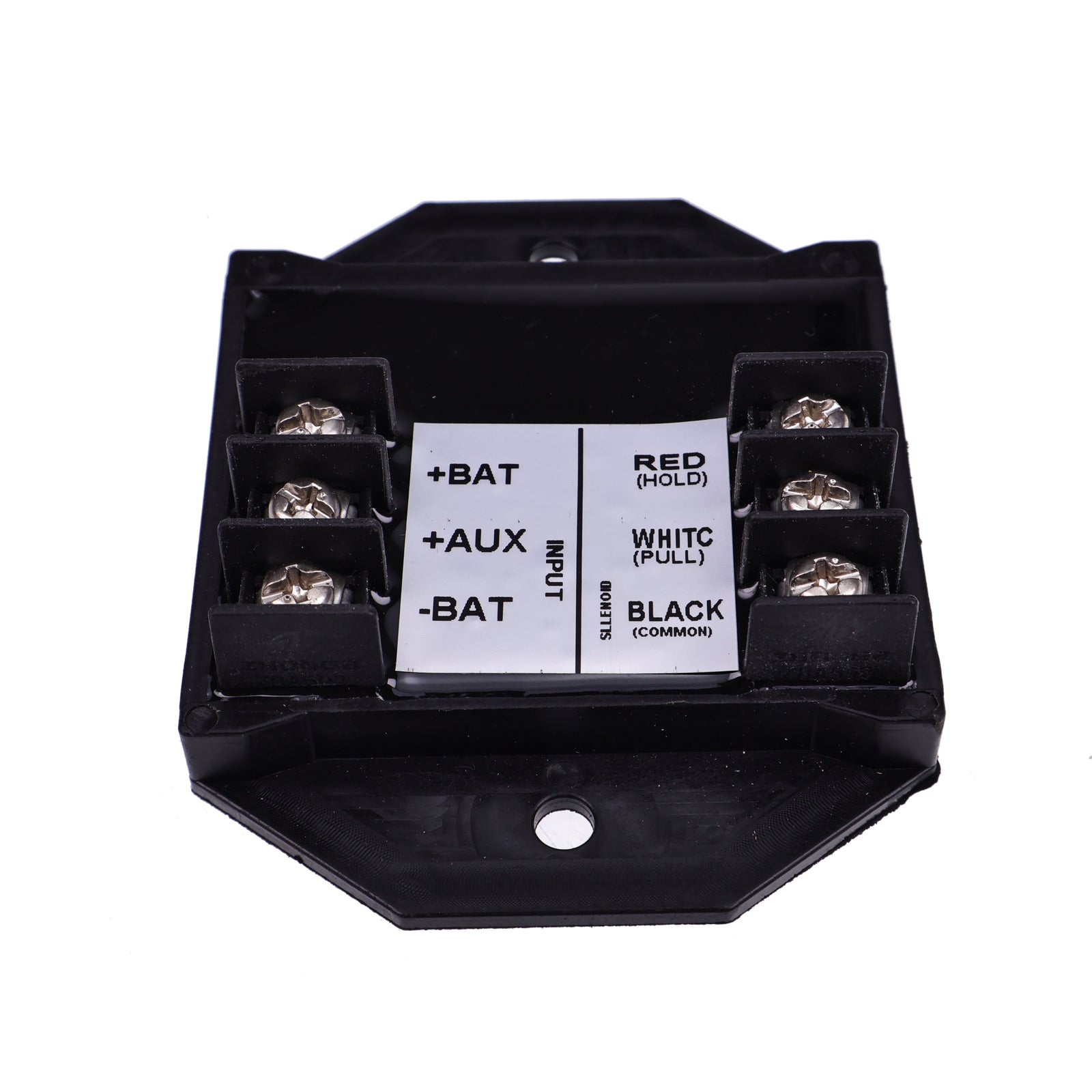

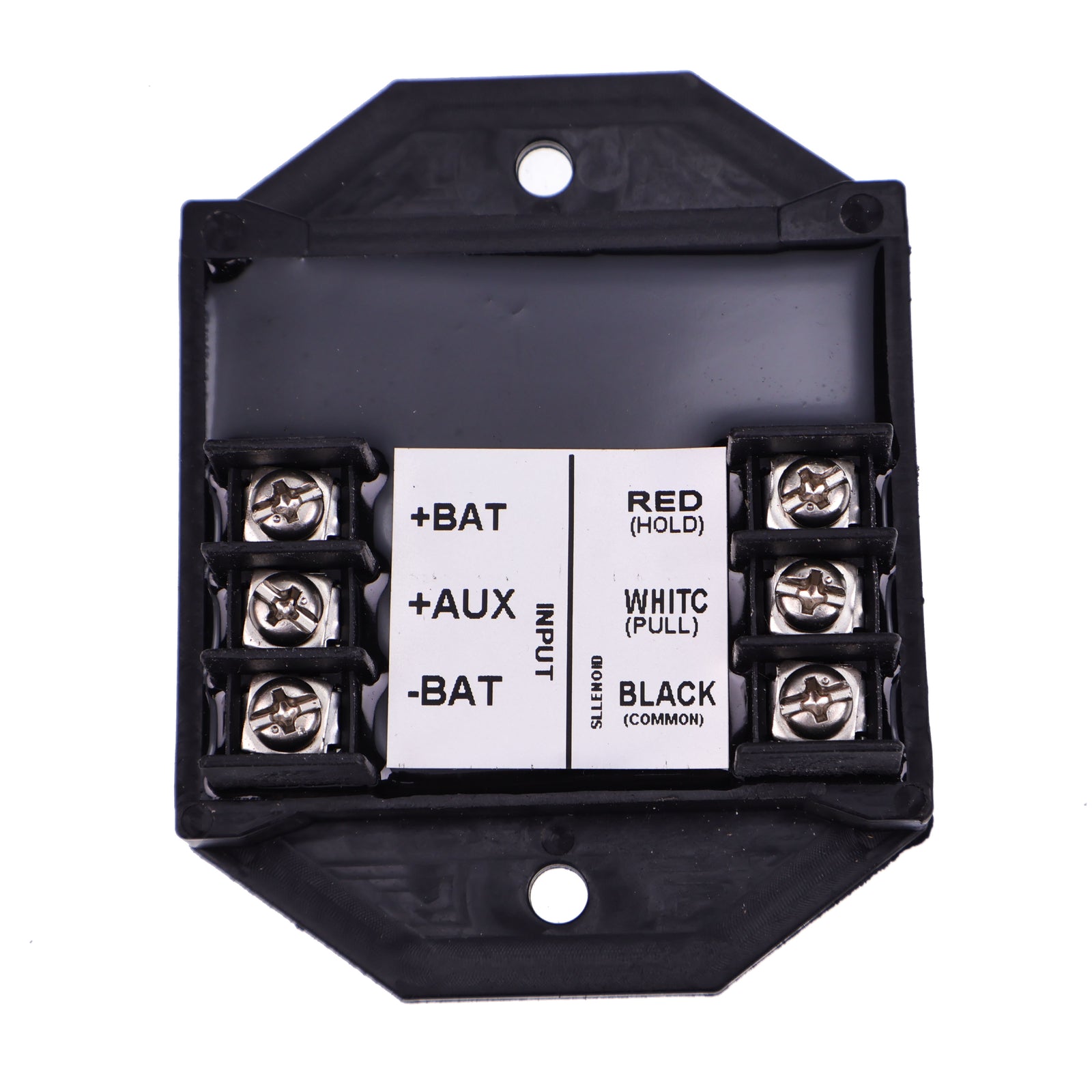

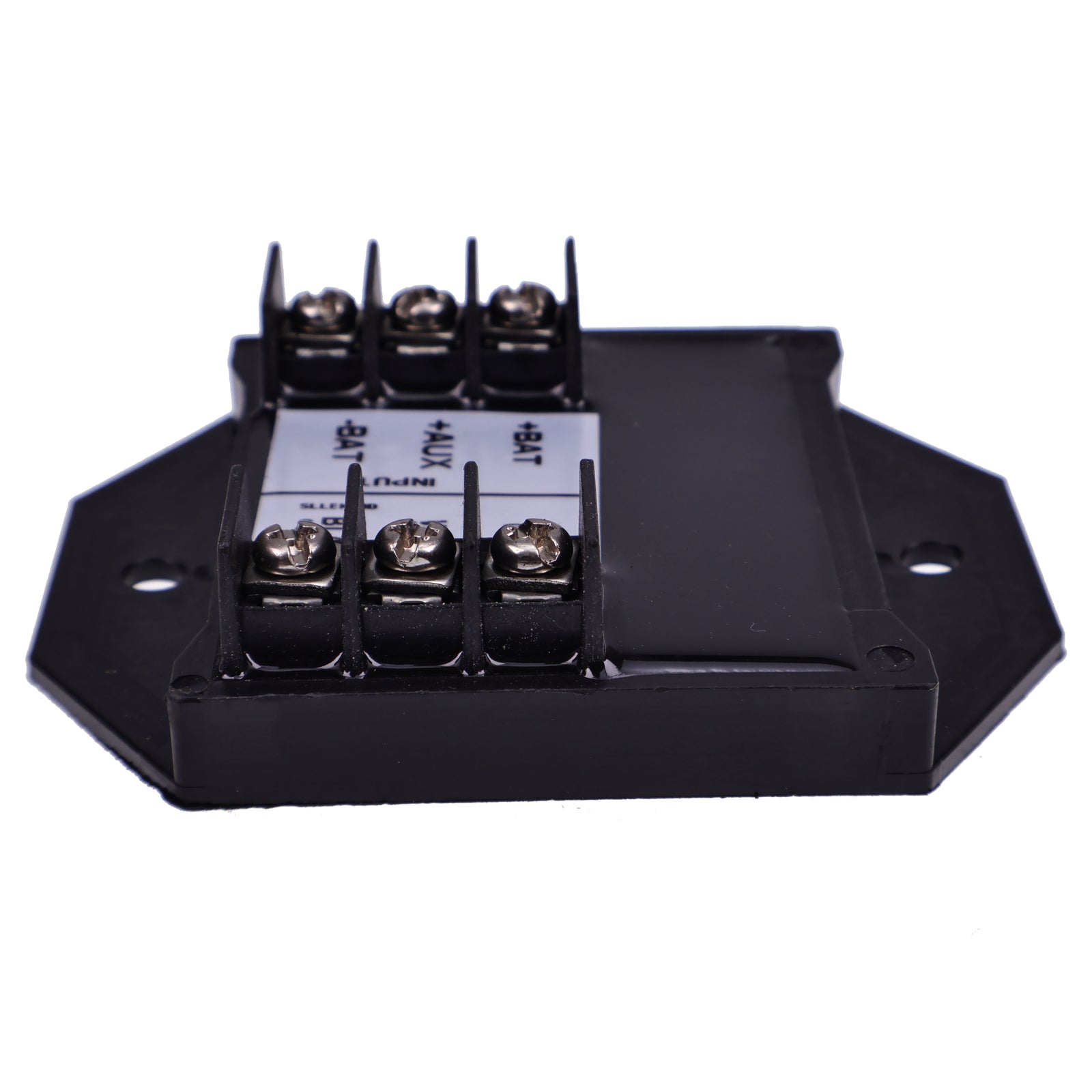

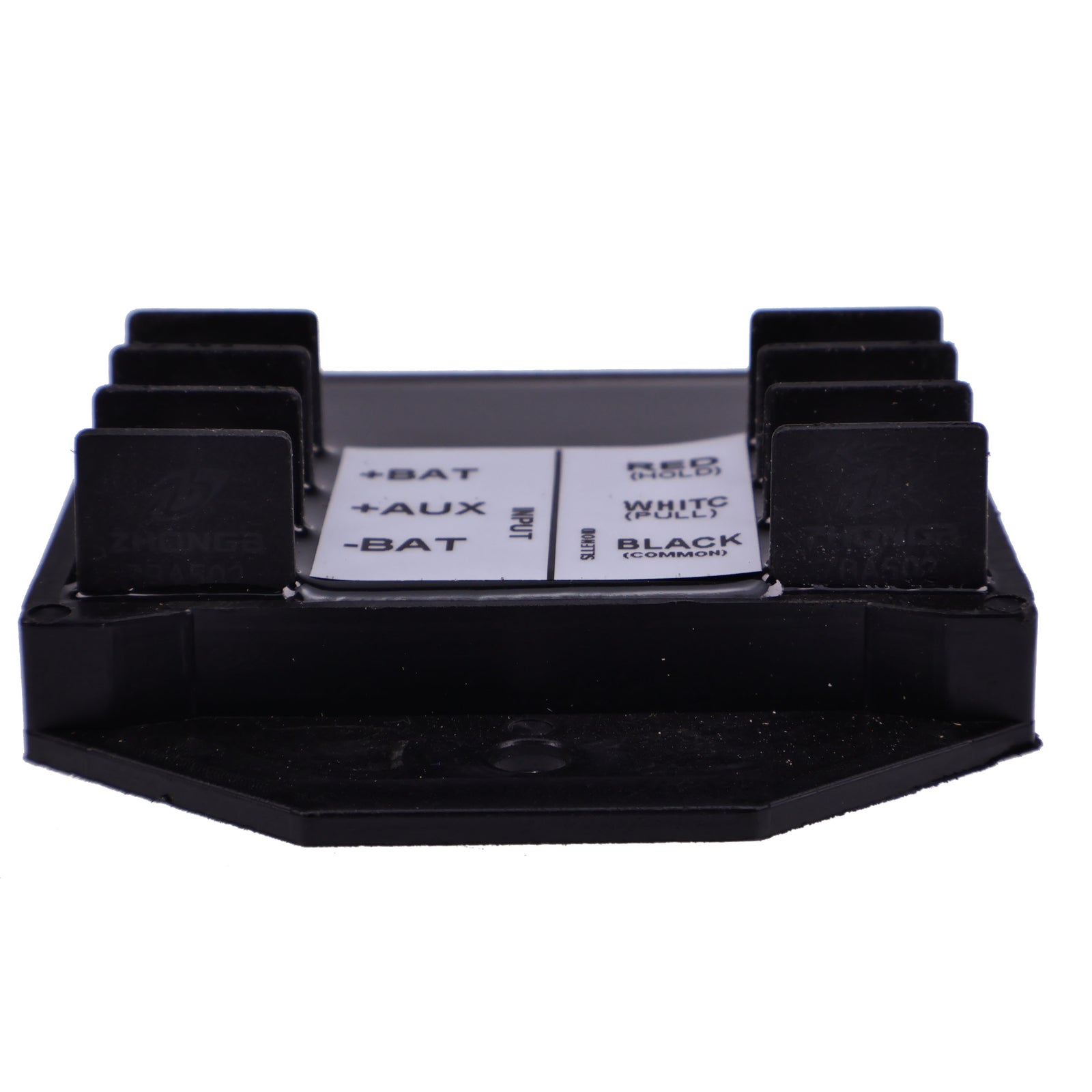

• Six-wire configuration ensures compatibility with standard Woodward harness connections
• Solid-state timer circuitry provides accurate and repeatable pull-coil activation
• Rugged housing protects internal components from vibration and moisture
• Direct replacement for SA-4092-12 eliminates need for wiring modifications
• 12V rated for use in common battery-powered engine systems

Specs At A Glance

Good To Know

Q: Can this timer module be used with other Woodward controllers? A: It is specifically designed for Woodward systems using a 6-wire pull coil connection, but cross-reference your existing part number to confirm compatibility.

Q: Is installation plug-and-play? A: Yes, the module is a direct replacement for the SA-4092-12 and plugs into the existing harness without rewiring.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
