Oil Pump Installation Alignment Guide Kit Tool for GM Gen V LT Series Engines

Oil Pump Installation Alignment Guide Kit Tool for GM Gen V LT Engines

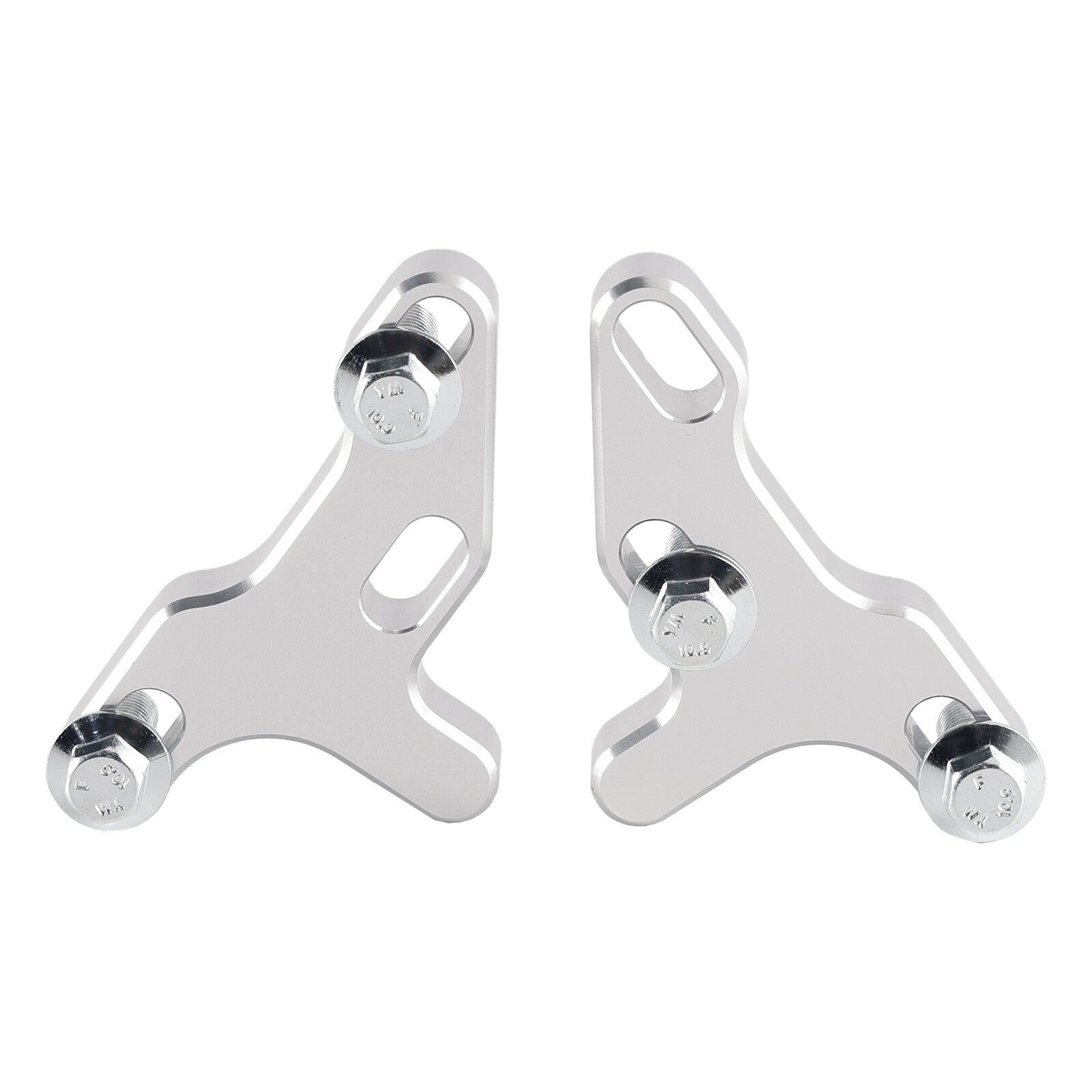

This oil pump installation alignment guide kit tool for GM Gen V LT series engines aligns the oil pump to the crankshaft during engine assembly to prevent oil starvation.

Overview

This oil pump installation alignment guide kit tool for GM engines is a critical specialty tool for engine builders and mechanics. Proper alignment is crucial to prevent premature pump wear, and this oil pump installation alignment guide kit tool ensures the pump is perfectly centered on the crankshaft. By using this oil pump installation alignment guide kit tool, you eliminate the guesswork and protect your engine investment from costly oil pressure failures.

Built For Performance

• Precision machined from high-grade aluminum to ensure exact tolerances
• Designed specifically to clear the crankshaft snout on Gen V LT engines
• Durable anodized finish resists corrosion and shop chemicals
• Engineered for repeated professional use in demanding garage environments

Fits These Machines

• for GM Gen V LT1 Engines
• for GM Gen V LT4 Engines
• for GM Gen V L83 Engines
• for GM Gen V L86 Engines

On-The-Job Use

• Centers the oil pump body precisely onto the crankshaft during timing chain swaps
• Reduces assembly time and prevents alignment errors during professional engine rebuilds
• Protects the oil pump gears from binding due to eccentric mounting offsets

Specs At A Glance

Good To Know

Q: Why is an alignment tool required for the oil pump on these engines? A: The oil pump is driven directly by the crankshaft snout and has no factory locating dowels, requiring manual alignment.

Q: Does this tool work on older LS series engines? A: No, this alignment tool is engineered specifically for Gen V LT series engines and will not fit LS motors.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
