PTO Dump Pump Hydraulic Cylinder C102 Air Shift Direct Mount 7/8" 13-T Spline

PTO Dump Pump Hydraulic Cylinder

PTO dump pump hydraulic cylinder with C102 air shift, direct mount, 7/8" 13-tooth spline for reliable dump bed operation.

Overview

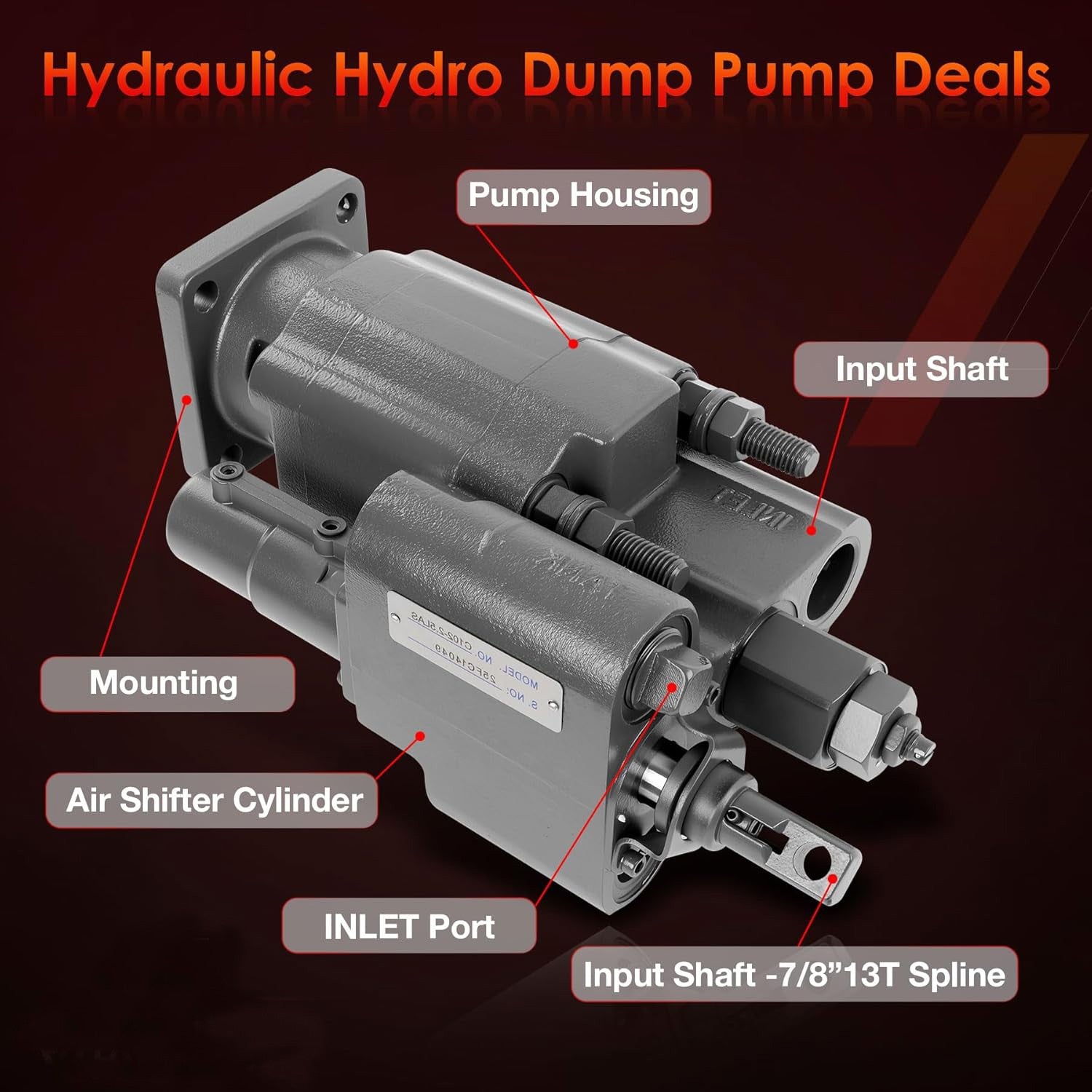

This PTO dump pump hydraulic cylinder is a direct-acting, air-shifted component for raising and lowering dump bodies on trucks and trailers. The C102 model uses a direct mount flange and a 7/8" 13-tooth splined shaft for solid coupling to the PTO drive. It suits single- and tandem-axle dump trucks, grain trailers, and construction bodies.

Built For Performance

• Air-shift mechanism for smooth, remote engagement
• Direct mount design simplifies installation without adapter plates
• 7/8" 13-tooth splined shaft for high torque transfer
• Ductile iron housing resists pressure spikes and vibration
• Precision-ground cylinder bore for consistent lift speed
• Integral relief valve protects against over-pressurization

On-The-Job Use

• Dump truck and dump trailer hoist systems
• Agricultural grain and silage trailers
• Landscaping and construction debris bodies
• Snow removal dump spreaders
• Scrap and recycling haulers

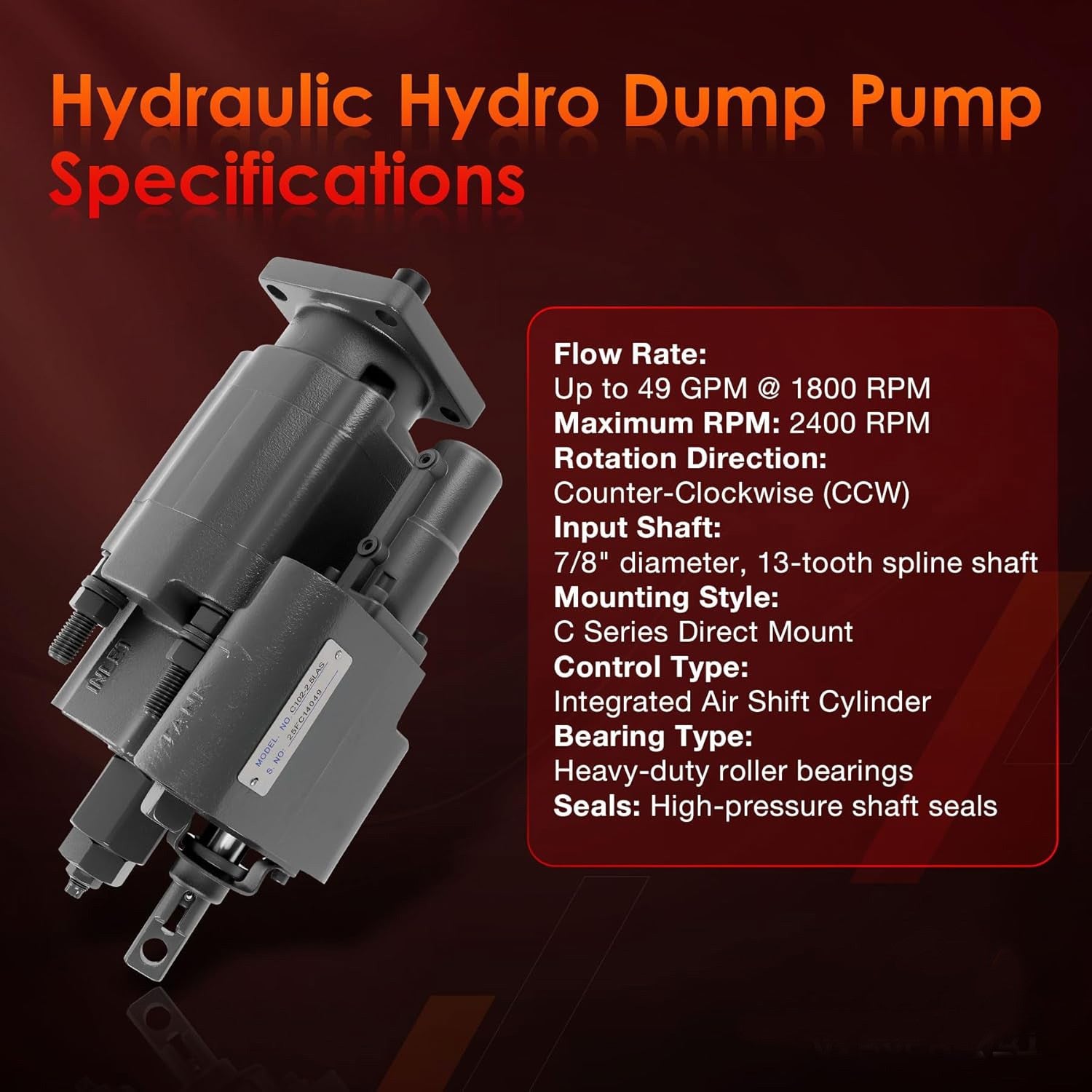

Specs At A Glance

Good To Know

Q: What PSI range does this PTO dump pump hydraulic cylinder operate within? A: Typical working pressure is 1,500 to 2,500 PSI; always match the relief valve setting to the system specifications.

Q: Can this cylinder replace models with a cable shift? A: Yes, if the mount and shaft dimensions are identical, the air shift design can replace cable-operated cylinders for more reliable remote control.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
