Relay For John Deere CS CX RSX850i RSX860i TX Turf TX 4X2 Turf Gator

Relay for John Deere

This relay is a compatible replacement for John Deere CS, CX, RSX850i, RSX860i, TX Turf, and TX 4X2 Turf Gator models, ensuring reliable electrical switching for ignition, lighting, or accessory circuits.

Overview

The relay for John Deere equipment controls high-current circuits using a low-current signal, preventing switch overload. Designed for multiple John Deere utility vehicles and turf machines, this relay supports dependable operation of key electrical components. It is a common replacement part for maintaining electrical system reliability.

Built For Performance

• Standard 12V relay with 30/40 amp rating

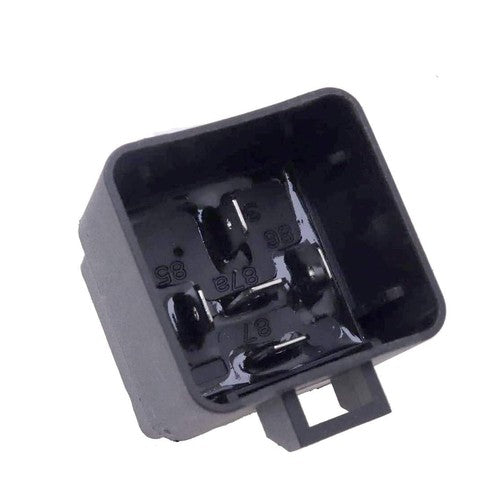

• Four-pin SPST design (87, 87a, 30, 85, 86)
• Sealed construction resists moisture and dust
• Direct plug-in replacement for factory relays
• Reliable switching for high-current loads

Fits These Machines

• for John Deere CS
• for John Deere CX
• for John Deere RSX850i
• for John Deere RSX860i
• for John Deere TX Turf
• for John Deere TX 4X2 Turf Gator

On-The-Job Use

• Replacing a failed relay in the fuse box or power distribution center
• Used in John Deere utility vehicles for headlights, fuel pump, or horn circuits
• Essential for troubleshooting electrical no-start or accessory failures

Good To Know

Q: Does this relay work for the John Deere RSX860i? A: Yes, it is compatible with the RSX860i as listed. Confirm your original relay's pin configuration if unsure.

Q: Is this a normally open or normally closed relay? A: This is a standard SPST normally open relay, which closes when power is applied to the coil.

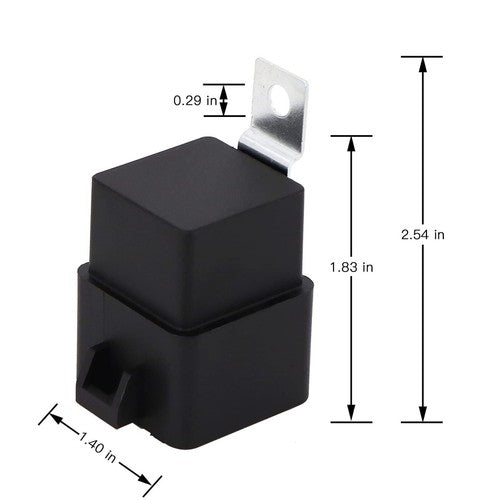

Slight variation in finish or dimensions may occur between production runs, and confirm compatibility before ordering.
