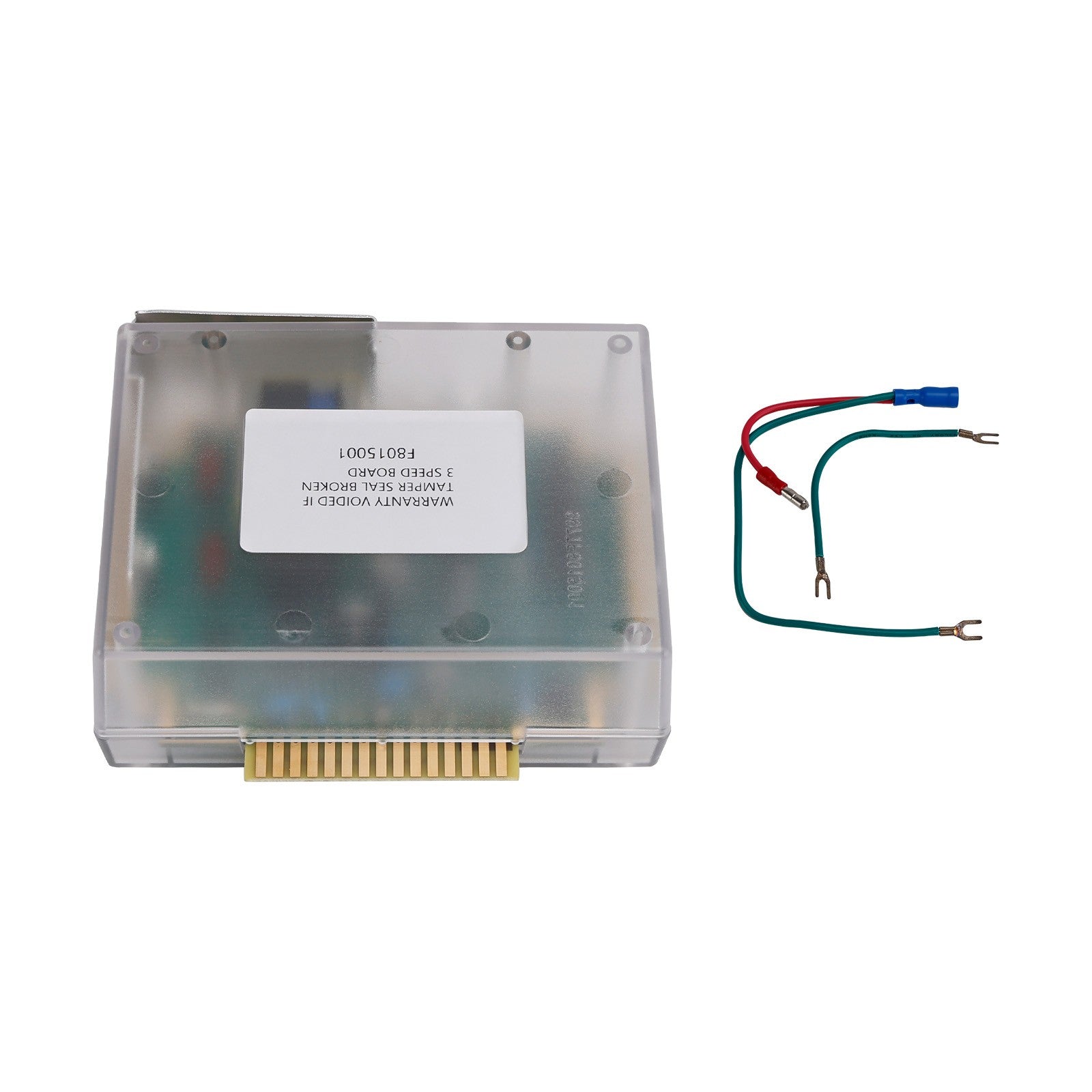

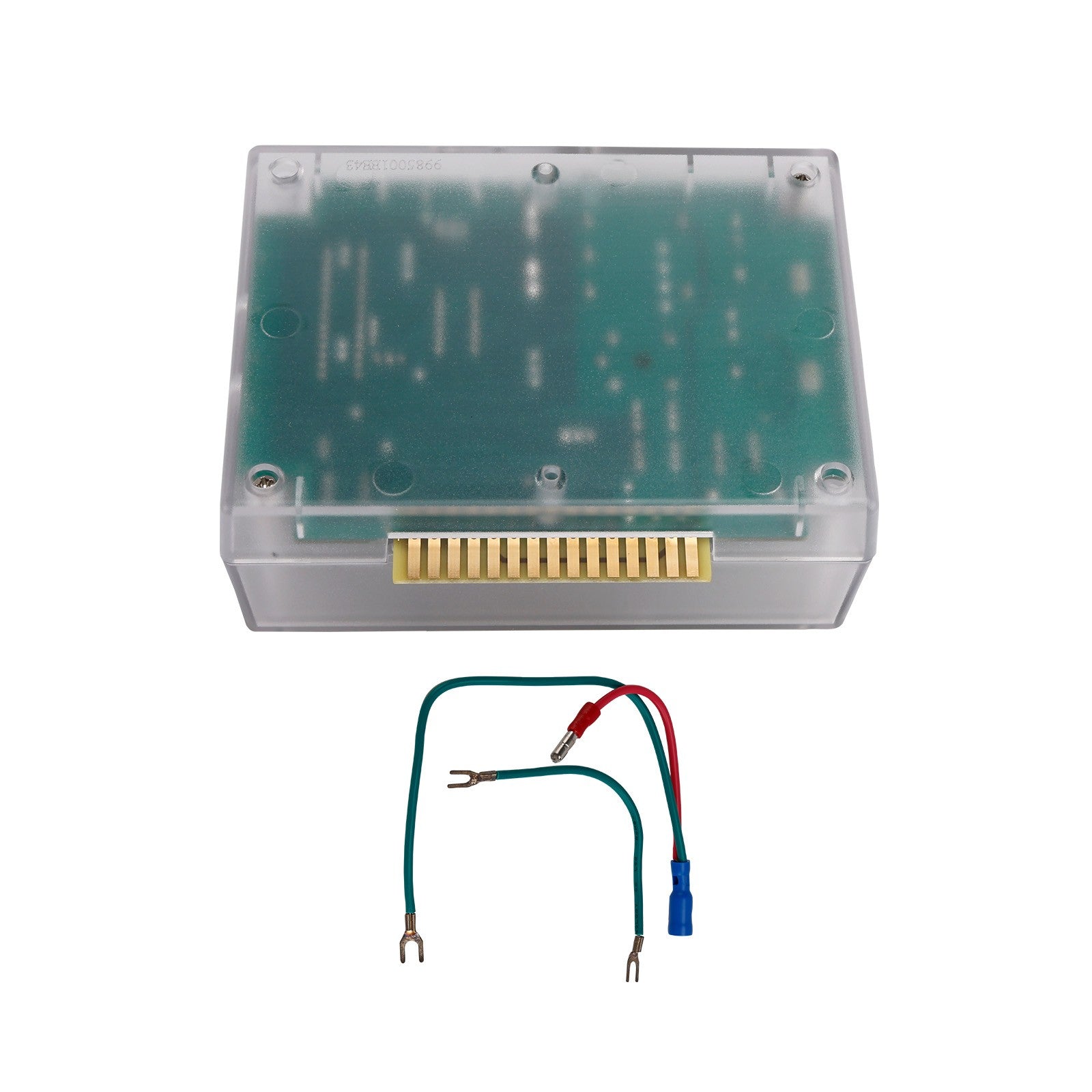

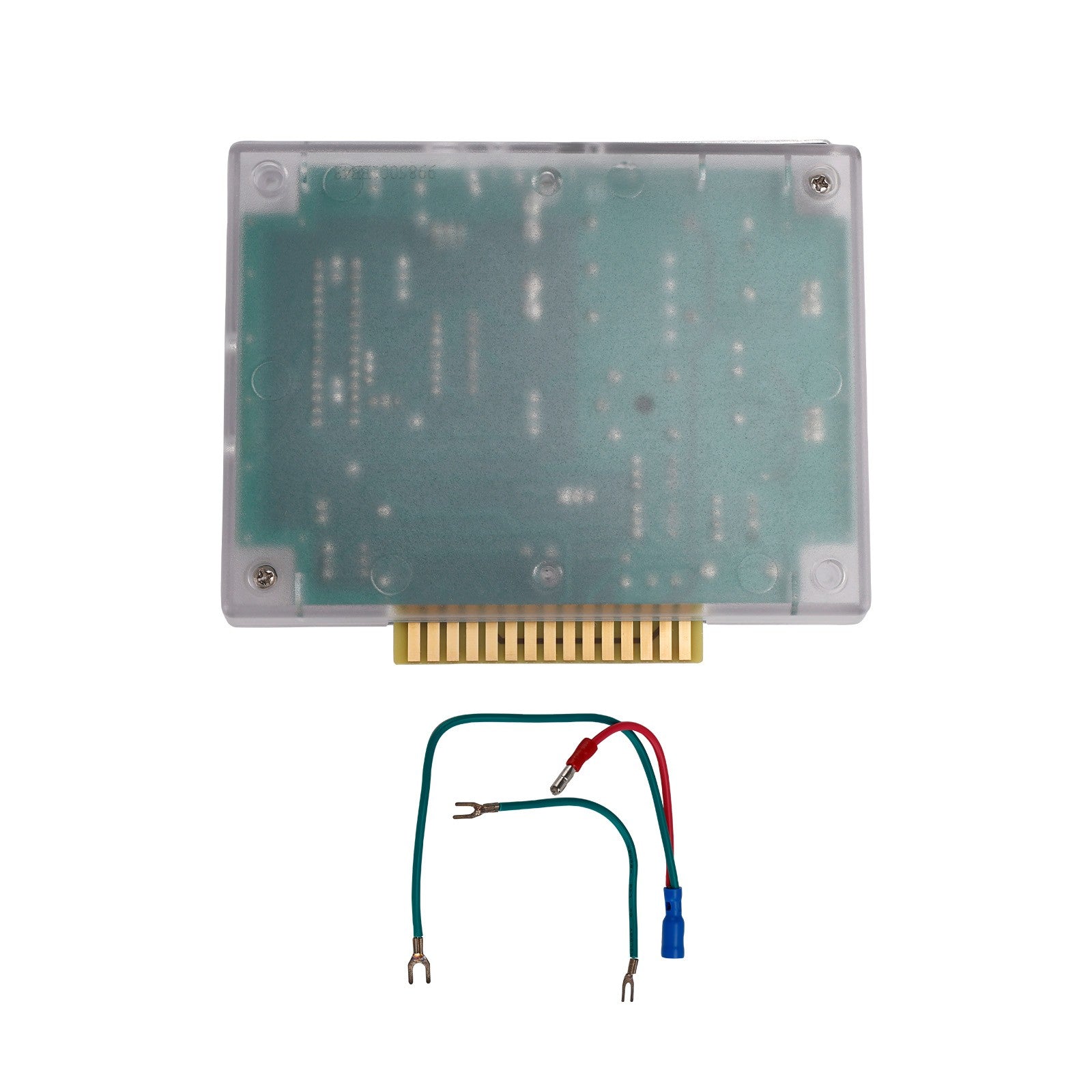

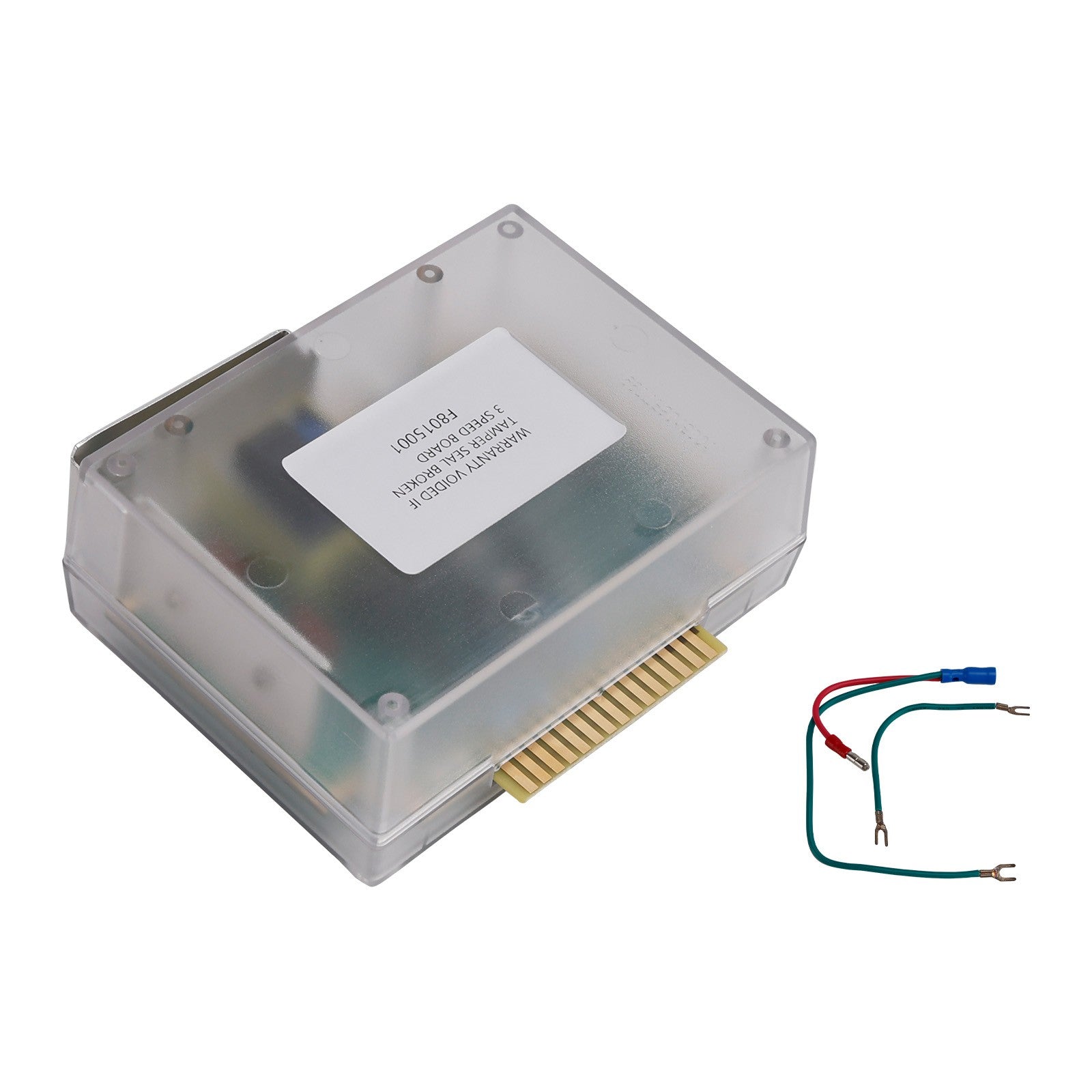

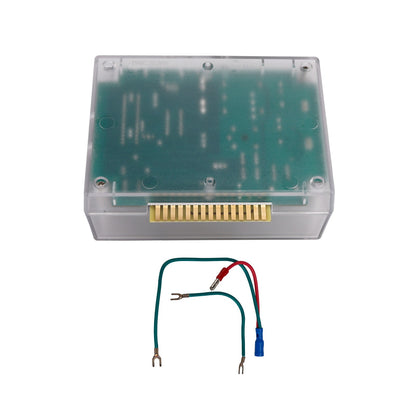

SRV7000-205/SRV7000-704 For Quadra-Fire Pellet 3 Speed Control Box Circuit Board

3 Speed Control Box Circuit Board for Quadra-Fire

This pellet stove replacement control board manages heating operations and blower speeds, referencing OEM part numbers SRV7000-205 and SRV7000-704.

Overview

This replacement 3 Speed Control Box Circuit Board for Quadra-Fire pellet stoves restores complete electronic control over your heating appliance. Designed to replace worn out or damaged circuit boards, this 3 Speed Control Box Circuit Board regulates fuel feed rates, combustion fan speed, and convection blower speeds. Homeowners can restore efficient automated operation to their heating equipment with this 3 Speed Control Box Circuit Board.

Built For Performance

• Configured for three-speed blower speed regulation to maintain consistent warmth
• Includes integrated safety timing to prevent stove overheating during operation

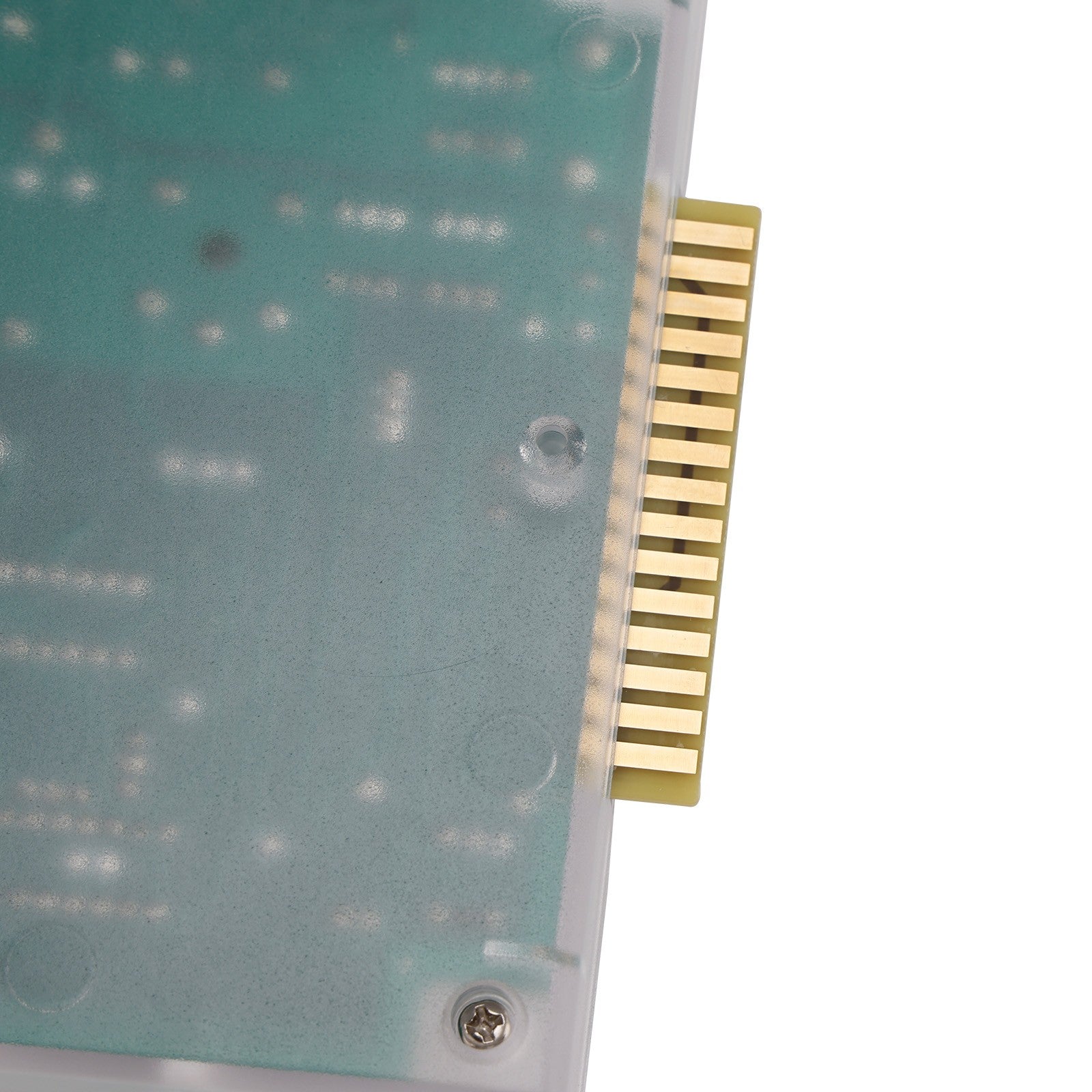

• Features pre-installed terminal connections for straightforward wiring attachment
• Built on heavy-duty PCB material to resist thermal stress and electrical surges

Fits These Machines

• for Quadra-Fire Pellet Stoves requiring SRV7000-205
• for Quadra-Fire Pellet Stoves requiring SRV7000-704

On-The-Job Use

• Replacing a non-responsive pellet stove controller during winter maintenance
• Restoring automatic blower speed adjustments based on stove temperature
• Troubleshooting communication errors between sensors and the heating system

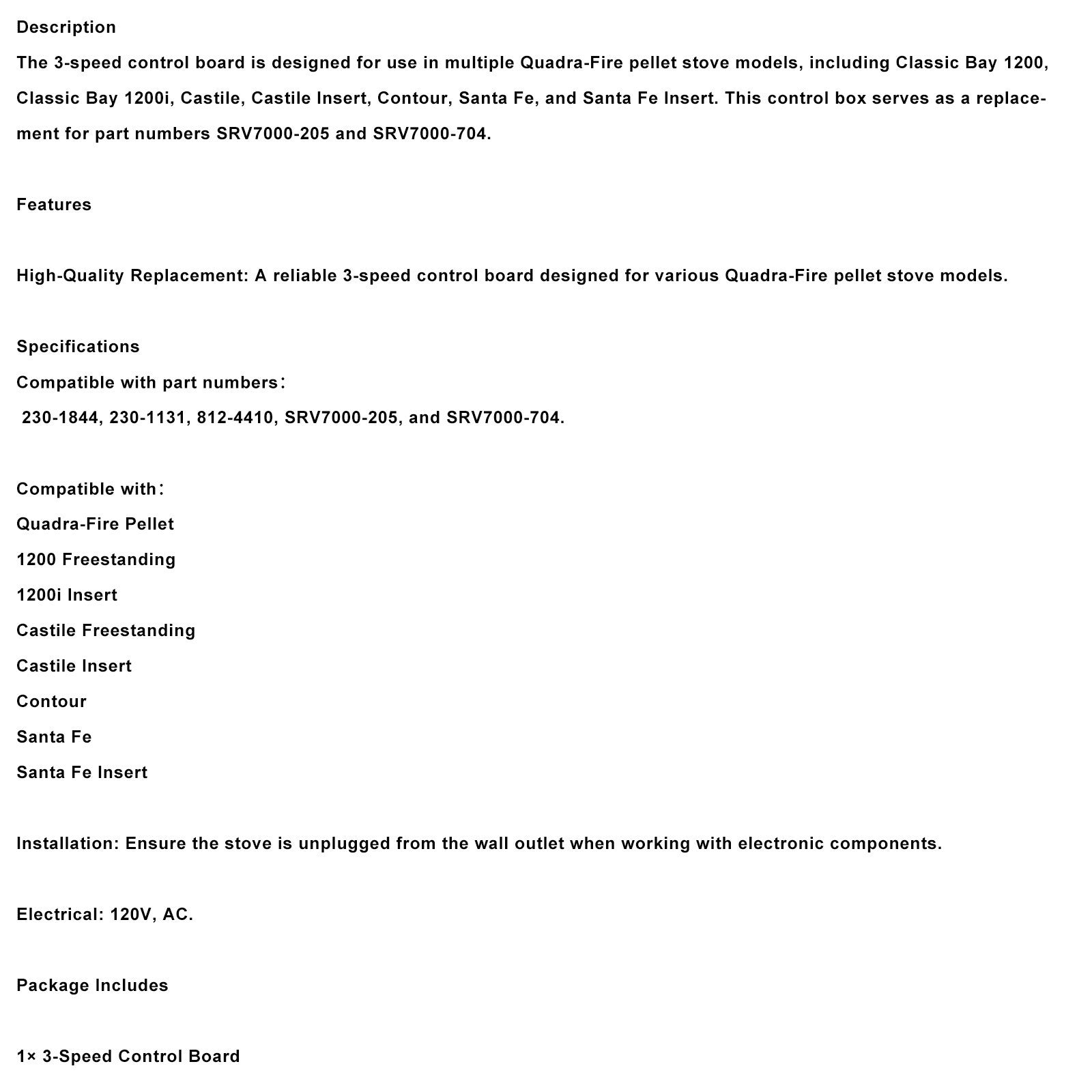

Specs At A Glance

Good To Know

Q: How do I know if this board is compatible with my pellet stove? A: Verify that your existing control box matches OEM numbers SRV7000-205 or SRV7000-704 prior to installation.

Q: Does this replacement circuit board include new control knobs? A: No, this is the main internal circuit board assembly only and utilizes your existing exterior knobs.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
