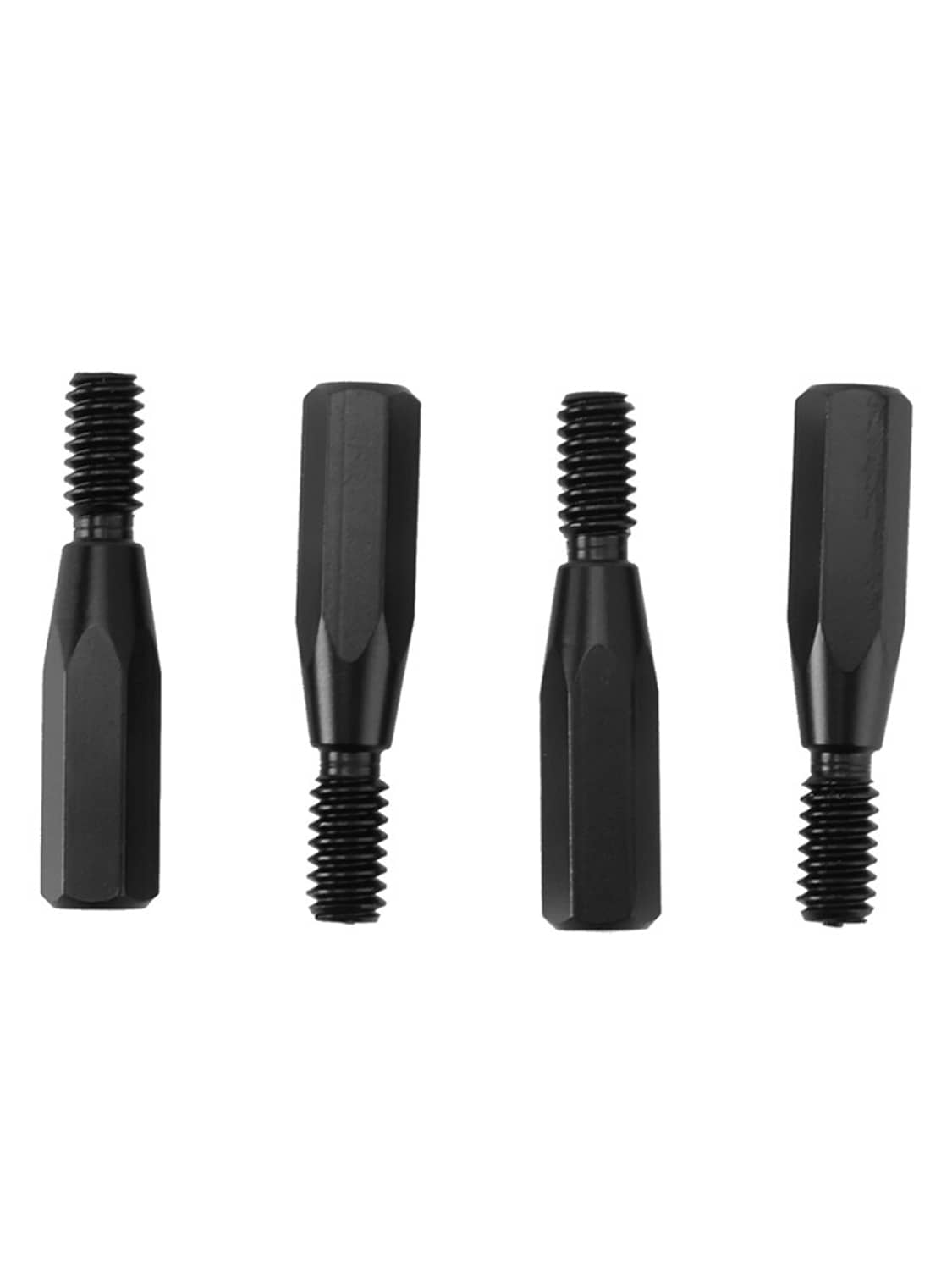

Tappet Guide Oil Pump Alignment Tool For All EVO Big Twin EVO XL Models

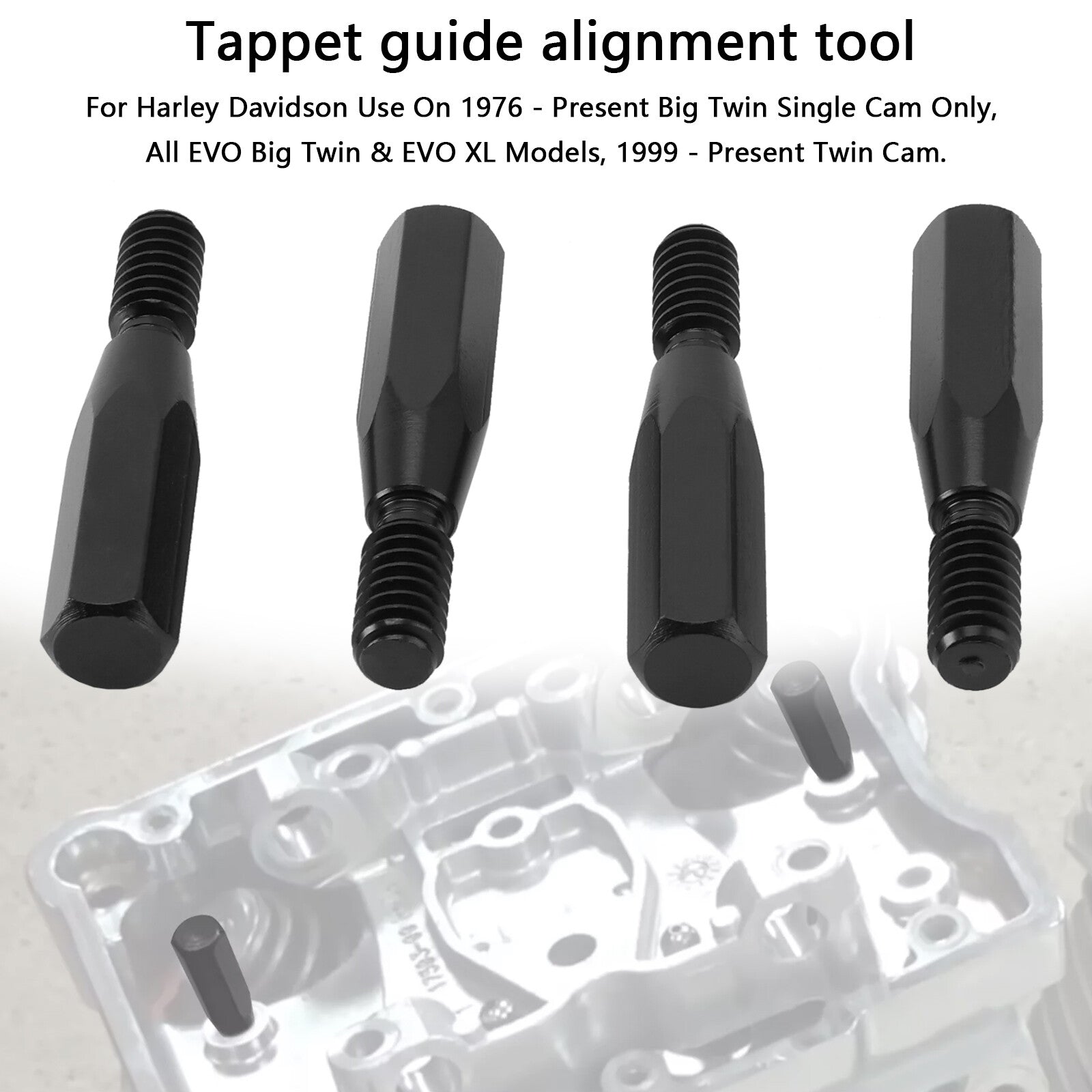

Tappet Guide Oil Pump Alignment Tool for EVO Big Twin and XL models

This tool aligns the tappet guides and oil pump to ensure proper oiling and valvetrain operation on compatible engines.

Overview

The Tappet Guide Oil Pump Alignment Tool is a specialty service tool designed to properly align oil pumps and lifter blocks. This alignment tool ensures precise centering during engine rebuilds to prevent premature wear on components. It is essential for mechanics and engine builders working on classic motorcycle engines.

Built For Performance

• Precision-machined steel construction for lasting durability

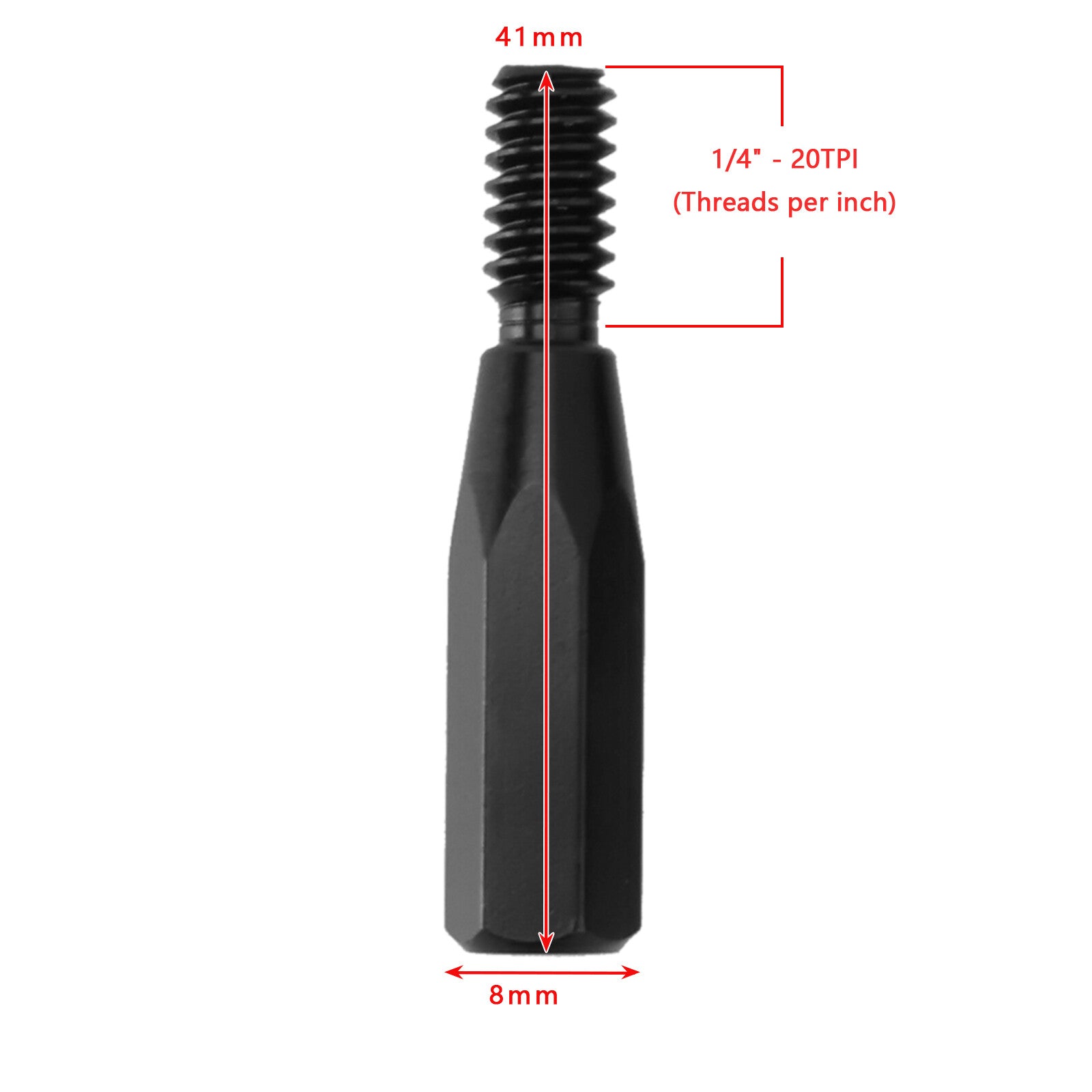

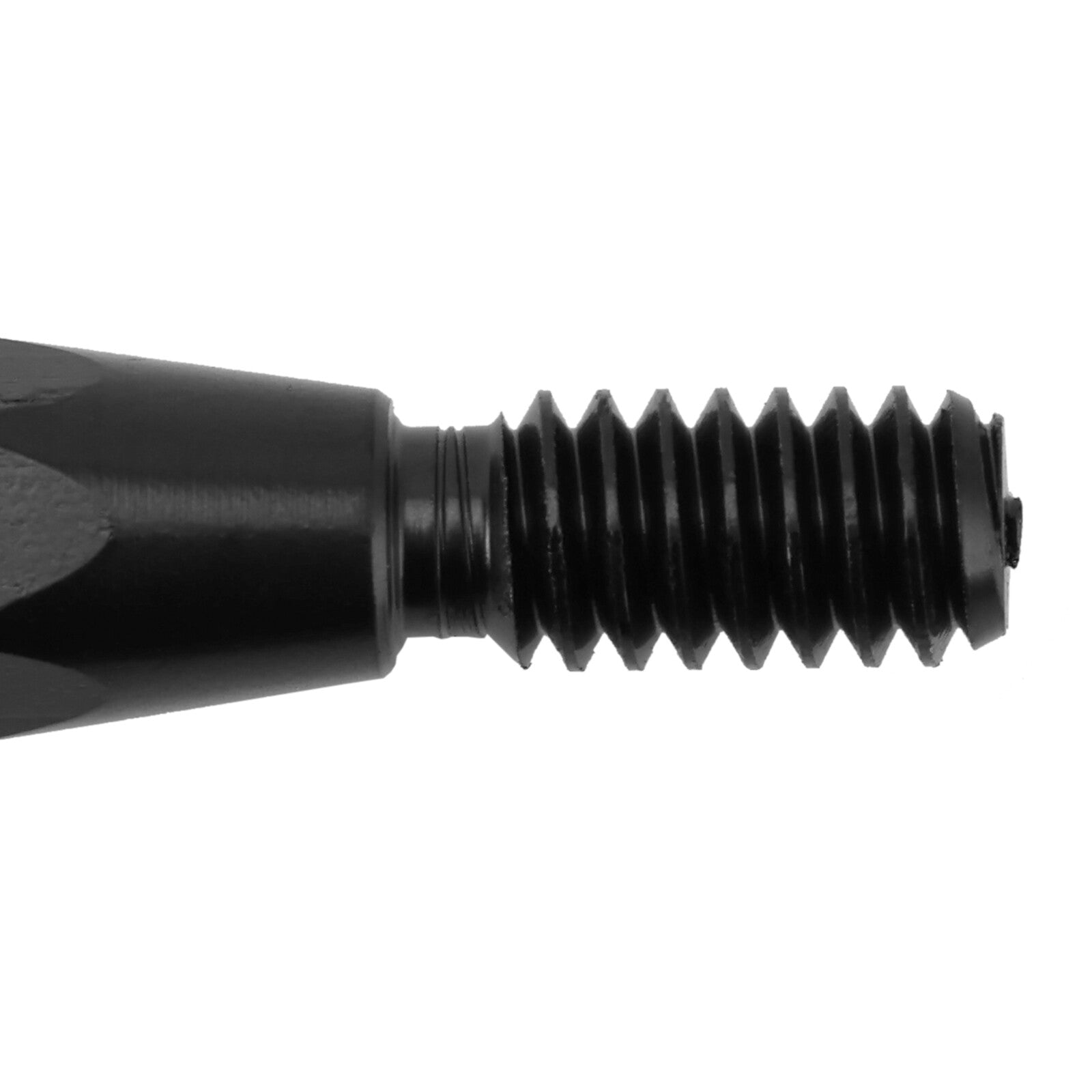

• Threaded design ensures exact centering of pump and lifter guides
• Corrosion-resistant finish helps prevent rust during storage

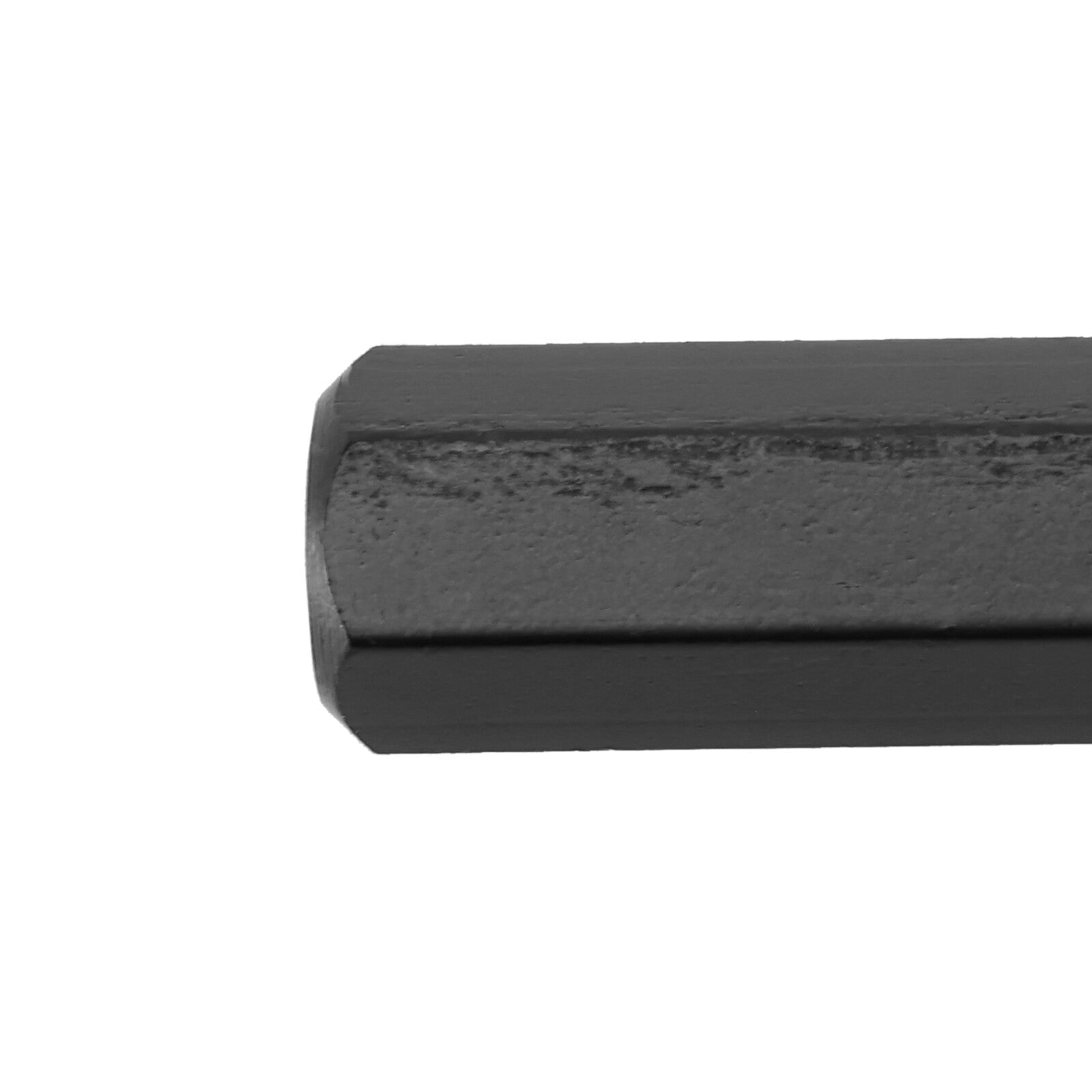

• Knurled grip allows easy hand tightening and control

Fits These Machines

• for EVO Big Twin models
• for EVO XL models

On-The-Job Use

• Aligning oil pump bodies during engine reassembly
• Centering lifter blocks and tappet guides on engine cases
• Preventing oil pressure loss from misaligned oil ports

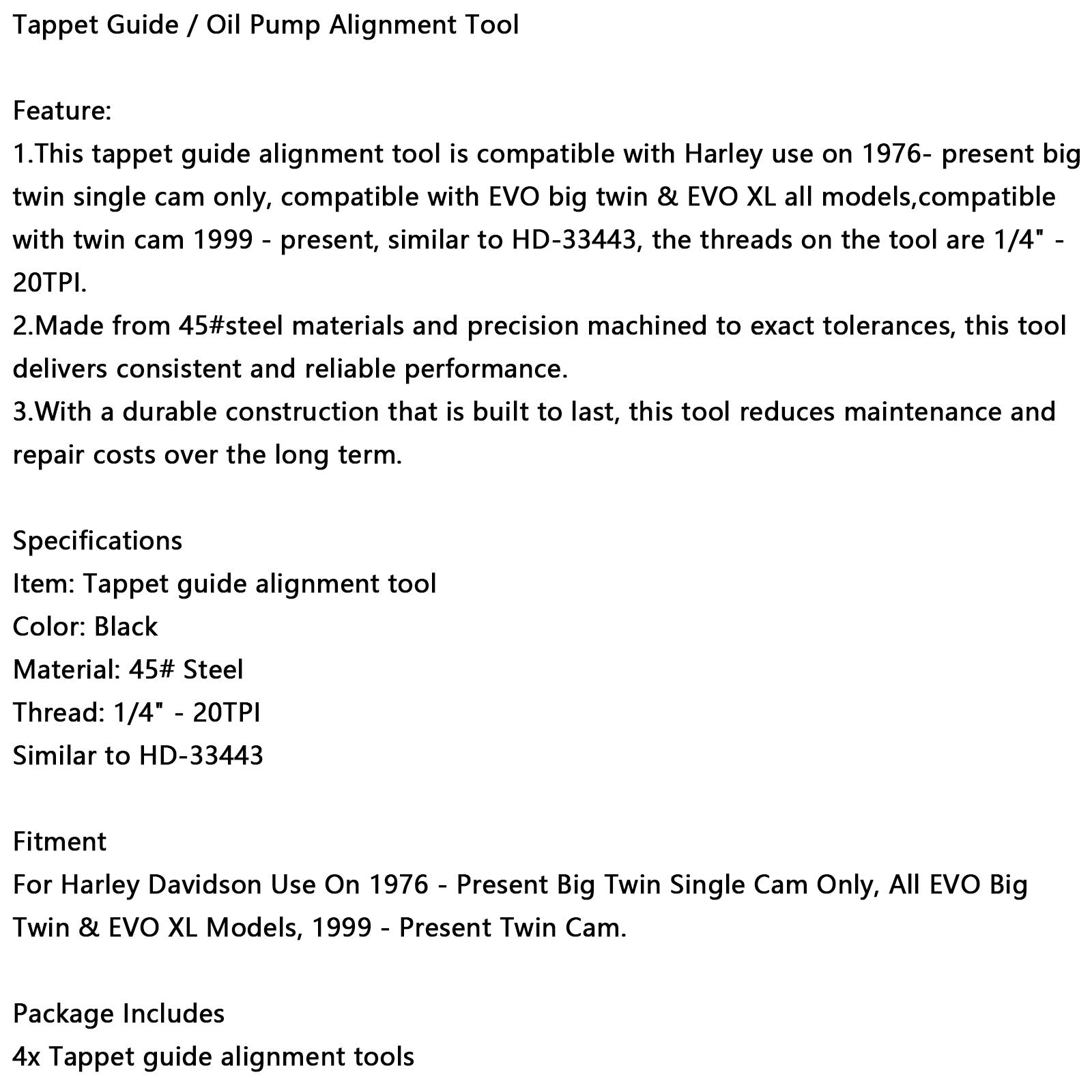

Specs At A Glance

Good To Know

Q: Why is alignment critical for these components? A: Misaligned oil pumps can cause restricted oil flow or premature wear on the drive gear. This tool ensures everything remains perfectly centered during installation.

Q: Does this kit include instructions? A: Standard service manuals should be followed when using this alignment tool. Proper torque specs are critical for the final assembly.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
