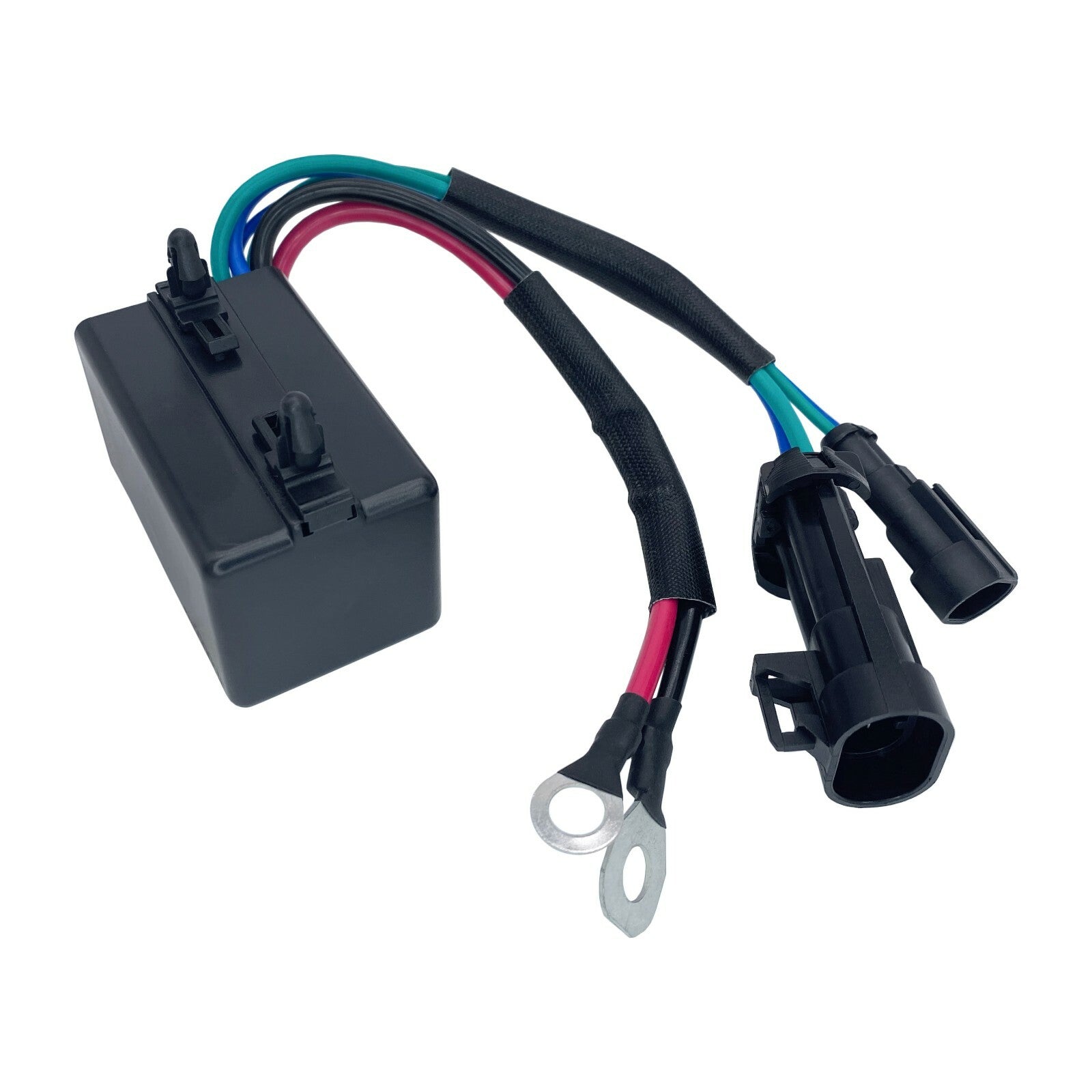

Tilt Trim Relay for Johnson Evinrude 12V 40-300 HP 2004 & Up 586767 0586767

Tilt Trim Relay for Johnson Evinrude

This 12V tilt trim relay replaces the original part on Johnson Evinrude outboard motors from 40 to 300 HP, 2004 and newer, with OEM cross-reference numbers 586767 and 0586767.

Overview

This tilt trim relay is an essential electrical component for Johnson Evinrude outboard motors, controlling the up and down movement of the engine tilt and trim system. Designed for 12V systems and compatible with 40-300 HP models from 2004 onward, it ensures reliable raising and lowering of the outboard. The relay replaces original equipment part numbers 586767 and 0586767 for a direct swap.

Built For Performance

• Rated for 12V DC electrical systems common on marine outboard motors
• Compatible with Johnson Evinrude outboards from 40 to 300 horsepower
• Designed for 2004 and newer model years for accurate fitment
• Direct replacement for OEM part numbers 586767 and 0586767
• Heavy-duty relay construction to withstand marine environment and repeated use

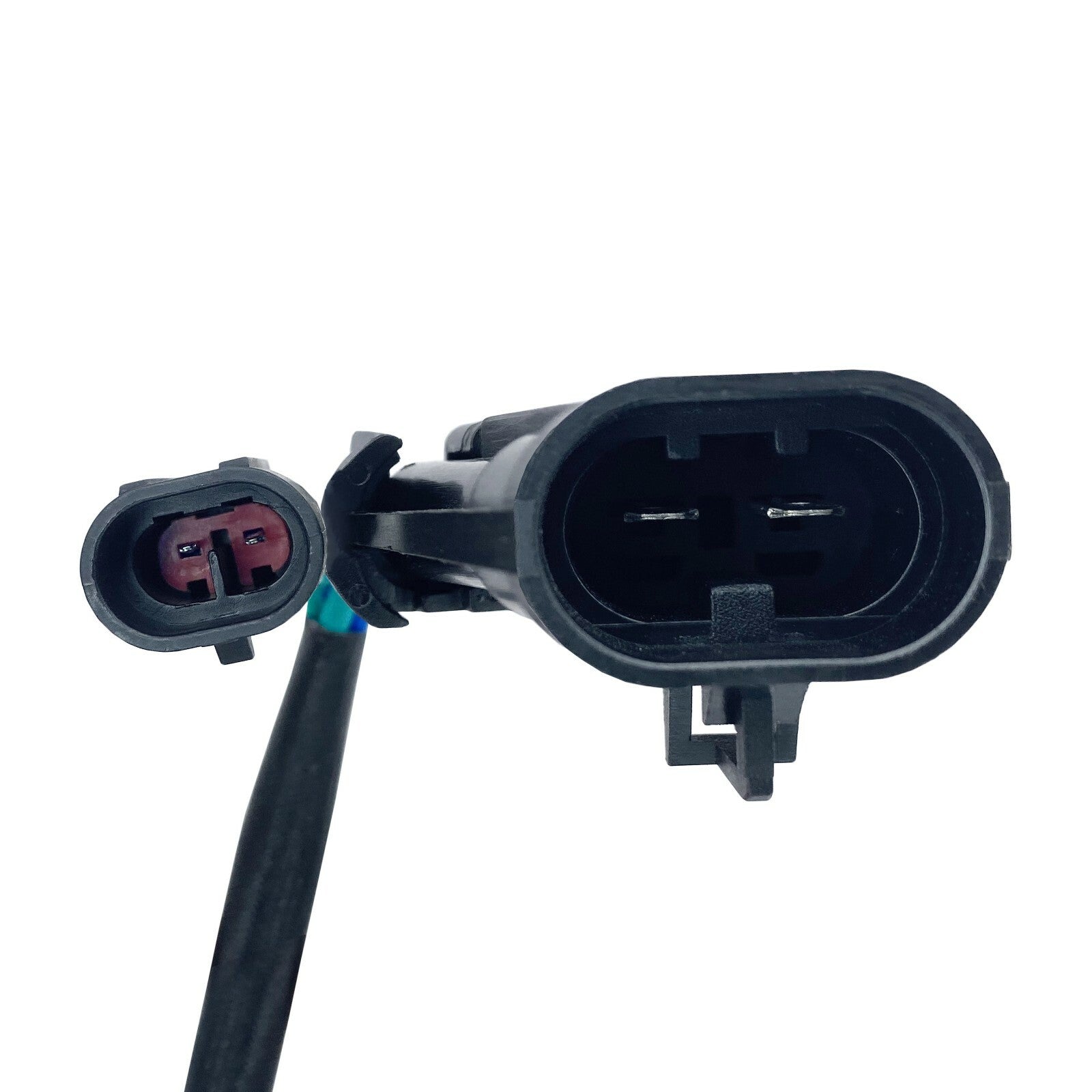

• Easy plug-and-play installation using existing wiring harness

Fits These Machines

• for Johnson Evinrude outboard motors 40-300 HP (2004 & Up)

On-The-Job Use

• Used to control the tilt function for raising and lowering the outboard motor for shallow water or trailering
• Operates the trim system to adjust boat angle for optimal performance and fuel efficiency
• Commonly replaced when tilt/trim stops responding or operates intermittently
• Installed in the relay box or control console of the boat
• Essential for maintaining proper motor positioning during various water conditions

Specs At A Glance

Good To Know

Q: Can this relay be used on older Johnson Evinrude motors before 2004? A: This relay is designed for 2004 and newer models; earlier motors may use a different relay or wiring configuration.

Q: Is the relay waterproof or weather resistant? A: The relay is built to withstand marine conditions but should be mounted in a protected area to extend lifespan.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
