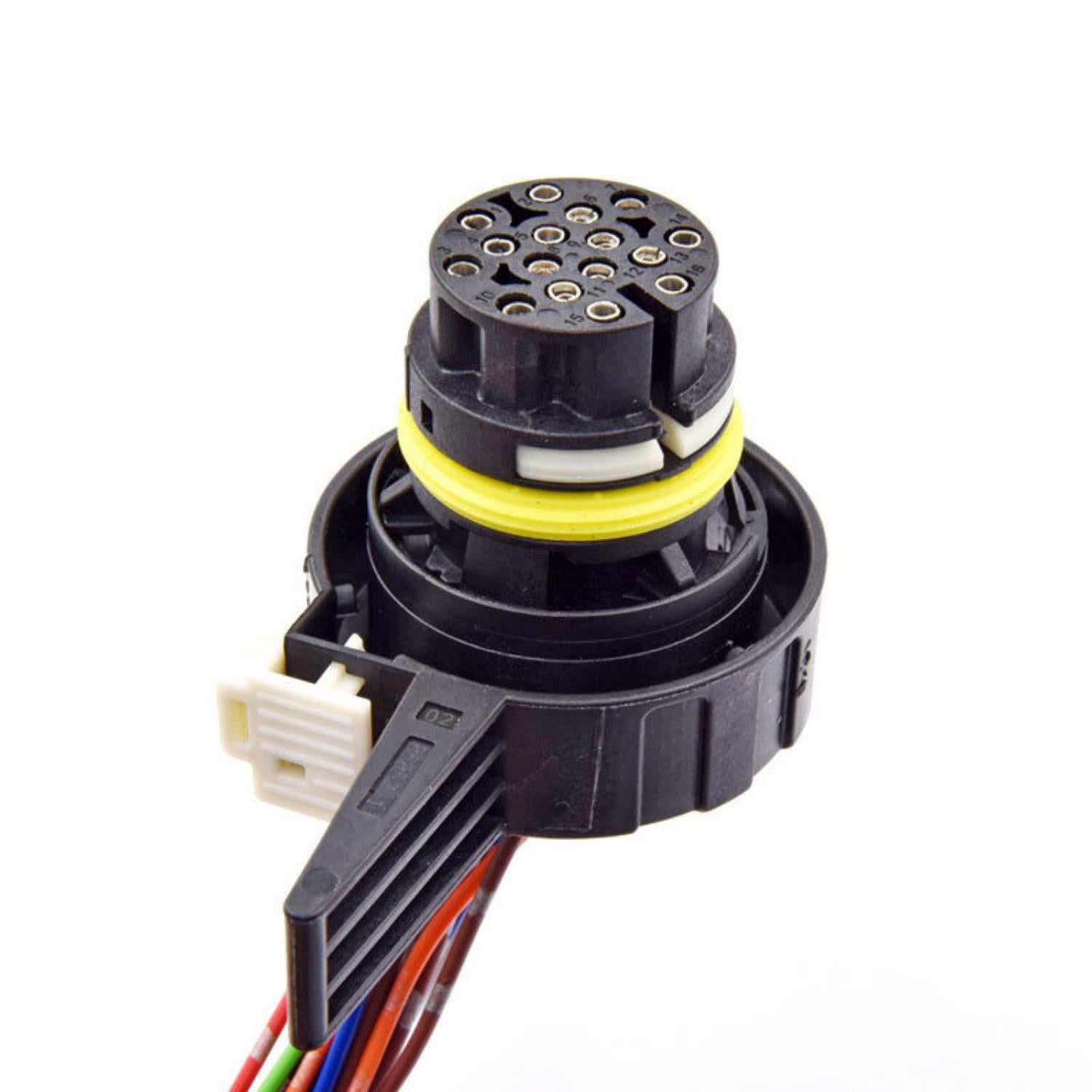

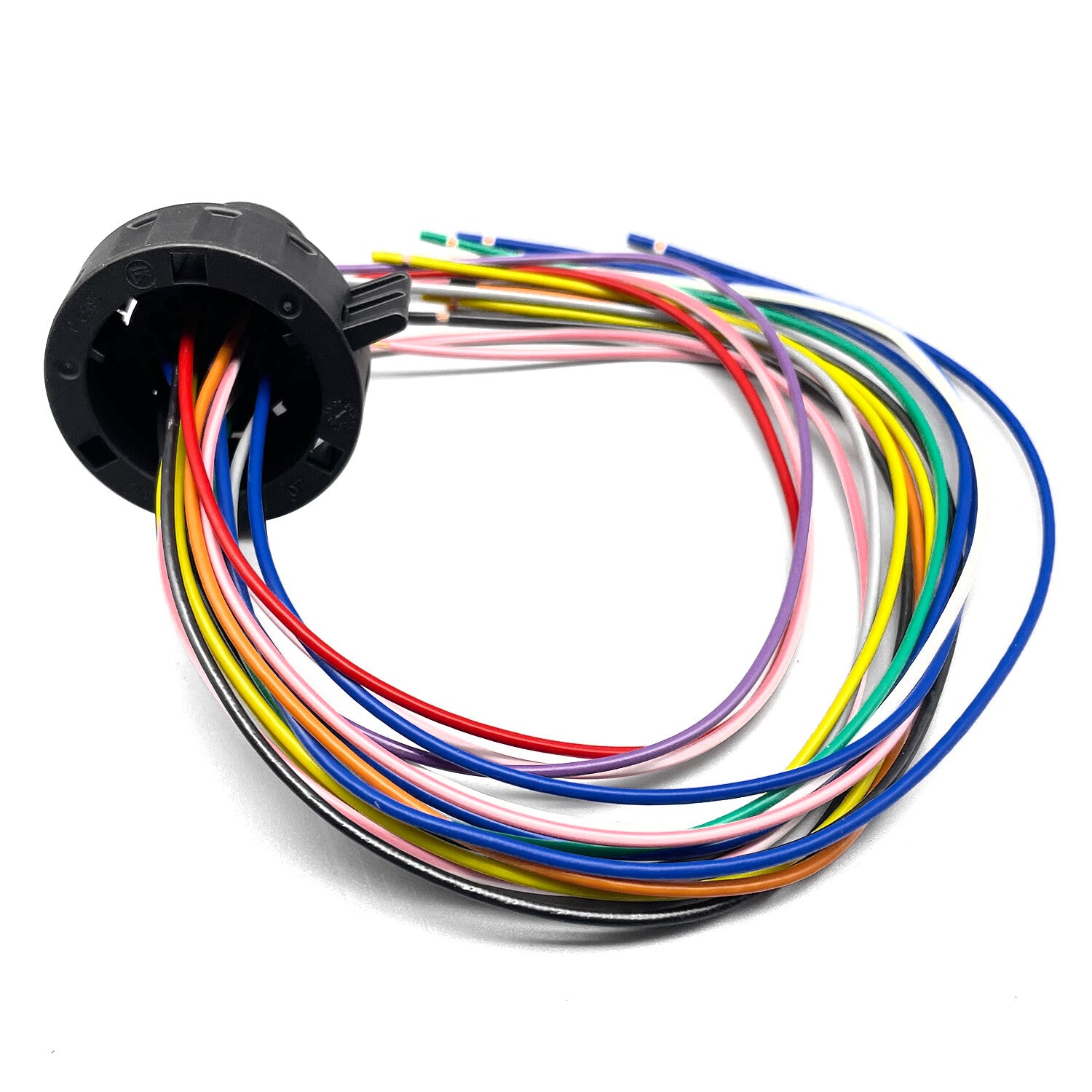

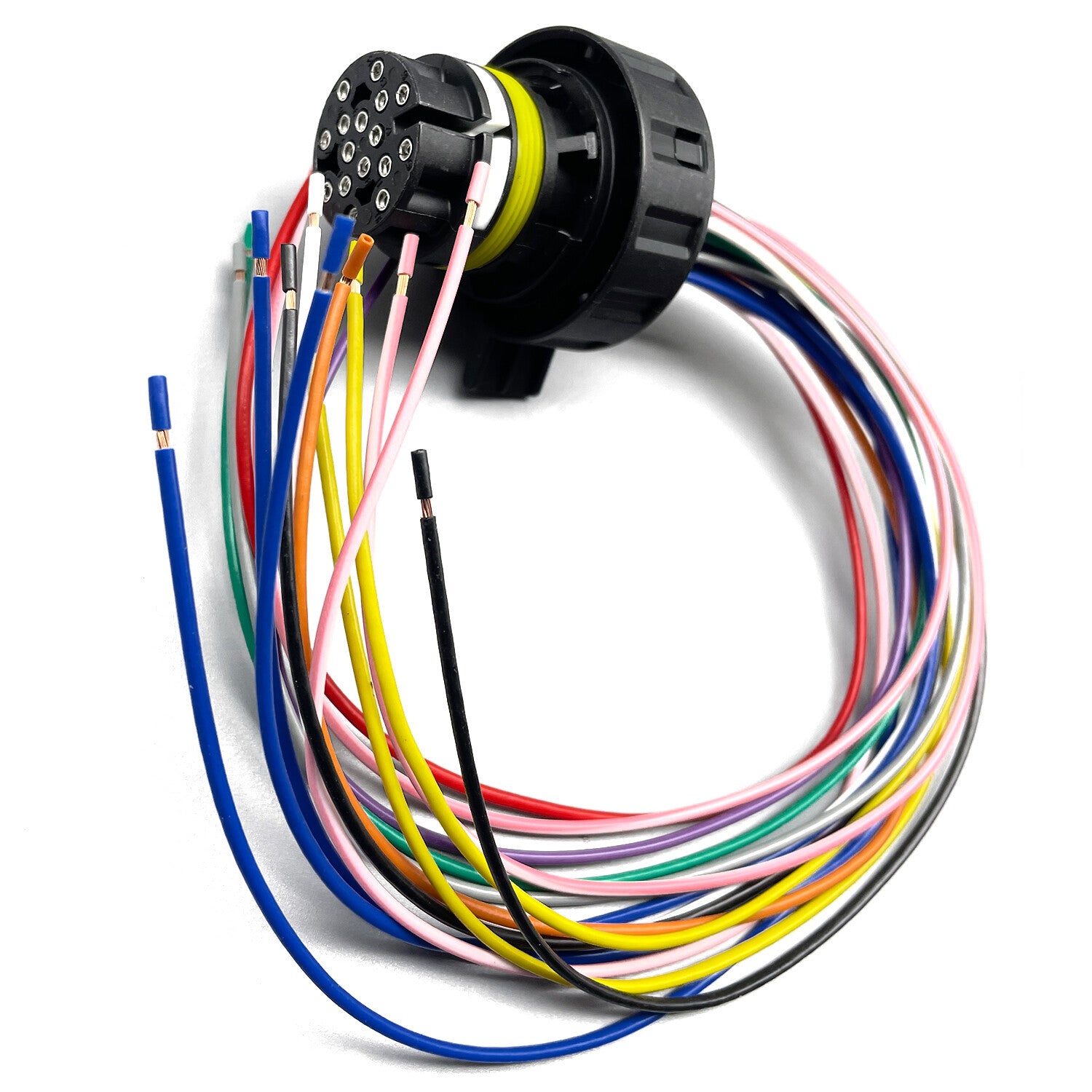

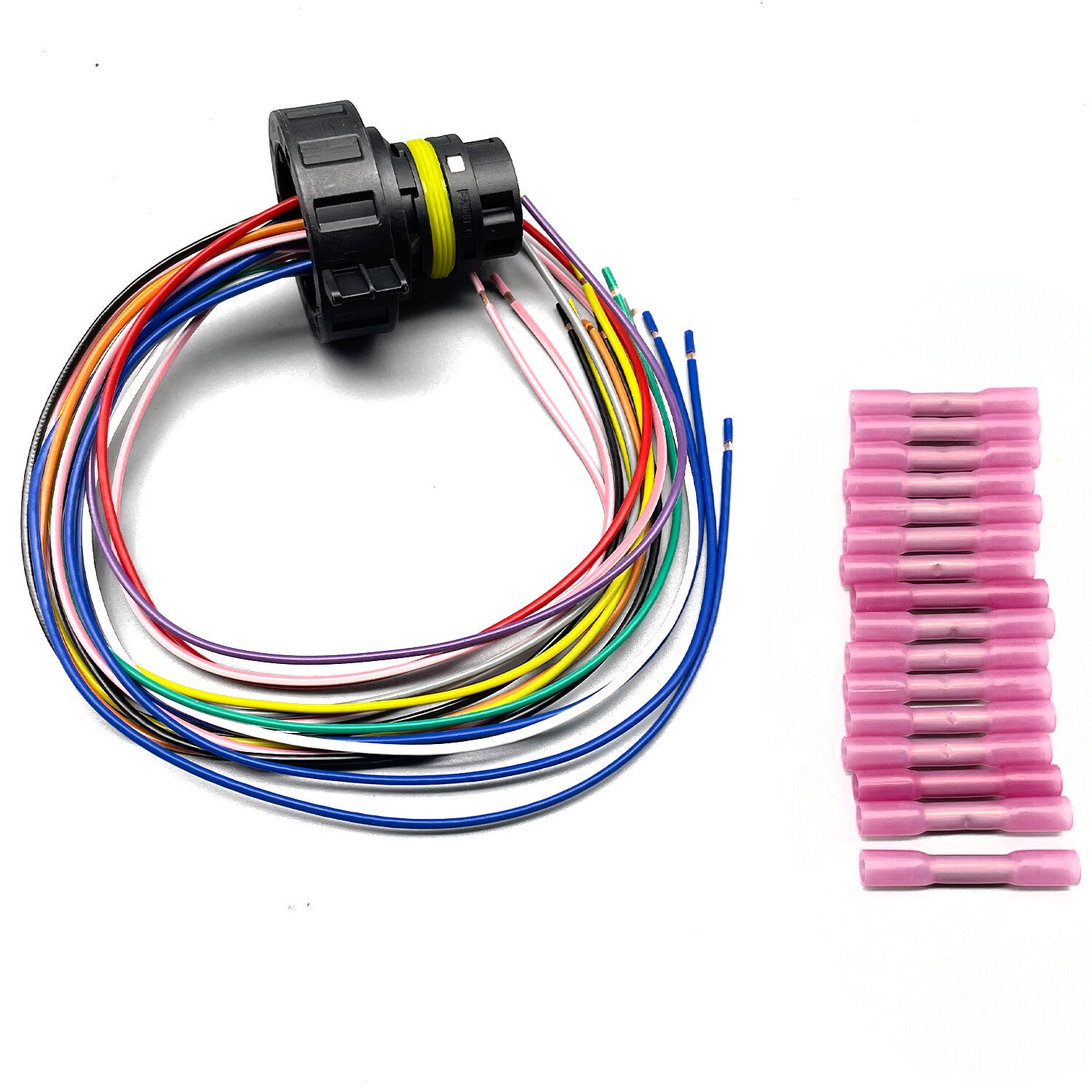

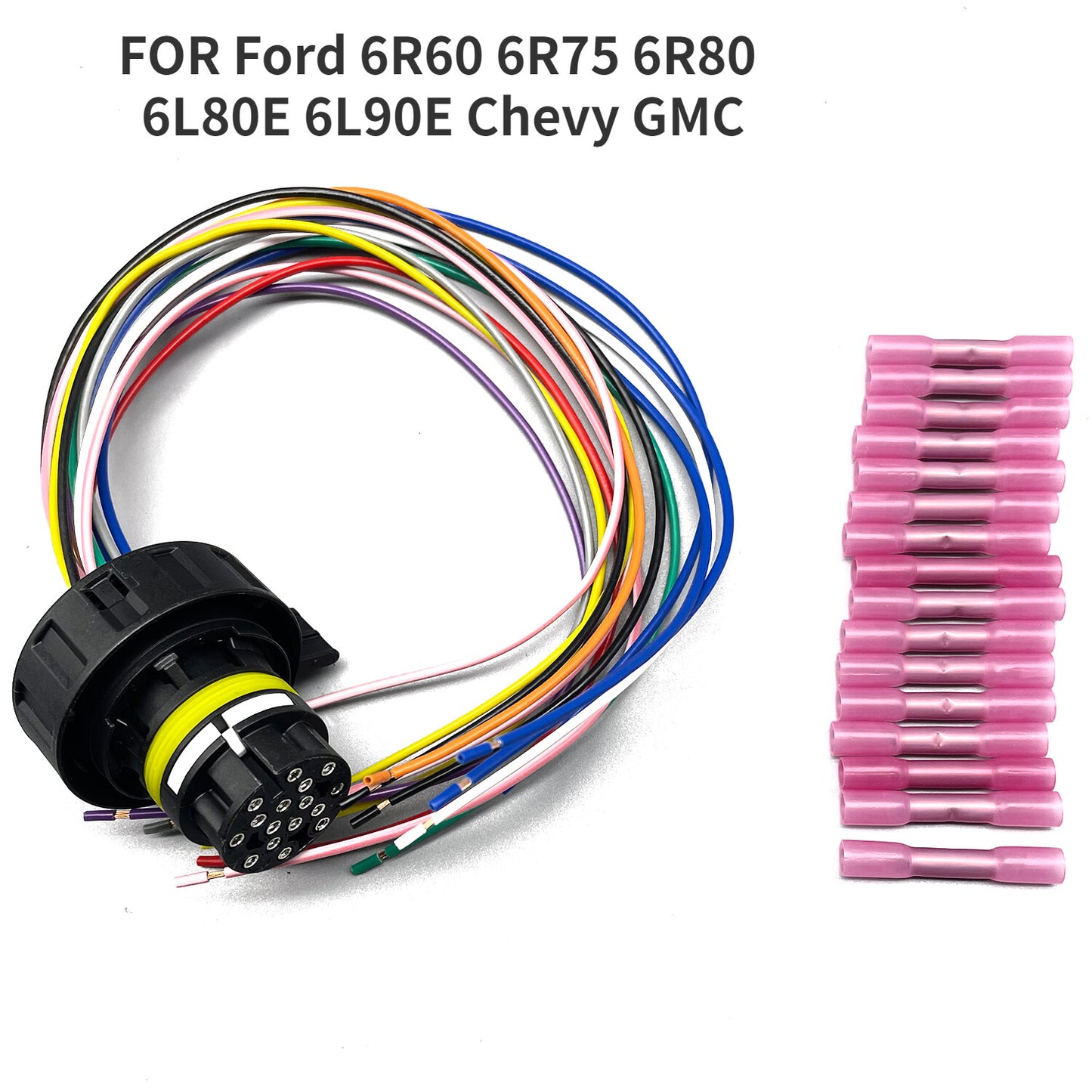

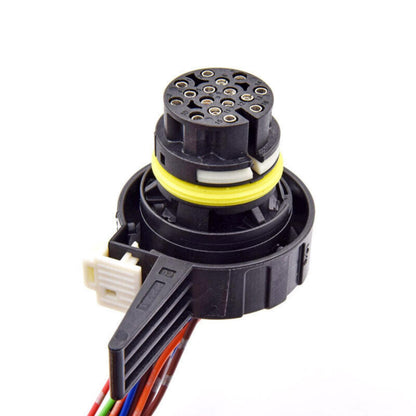

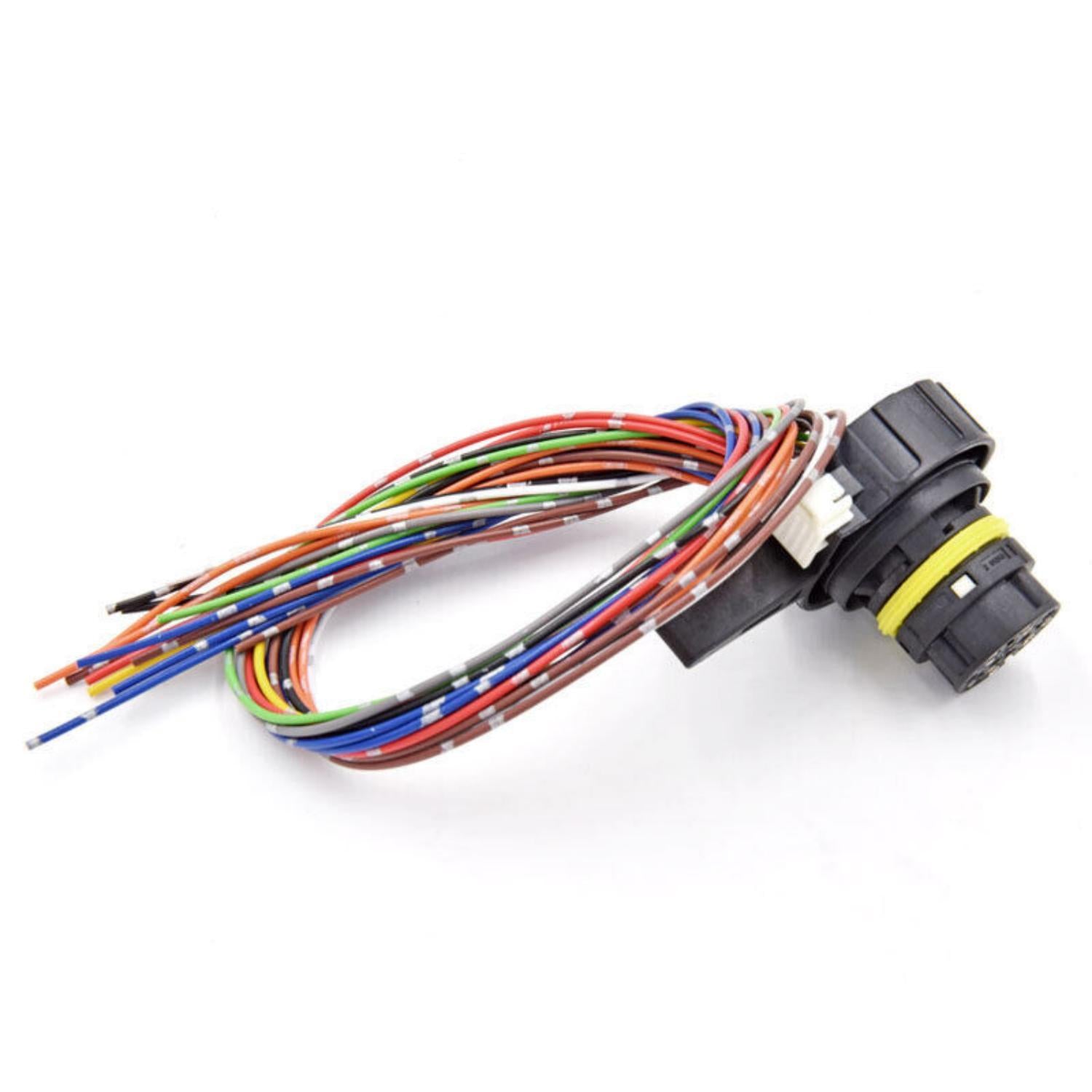

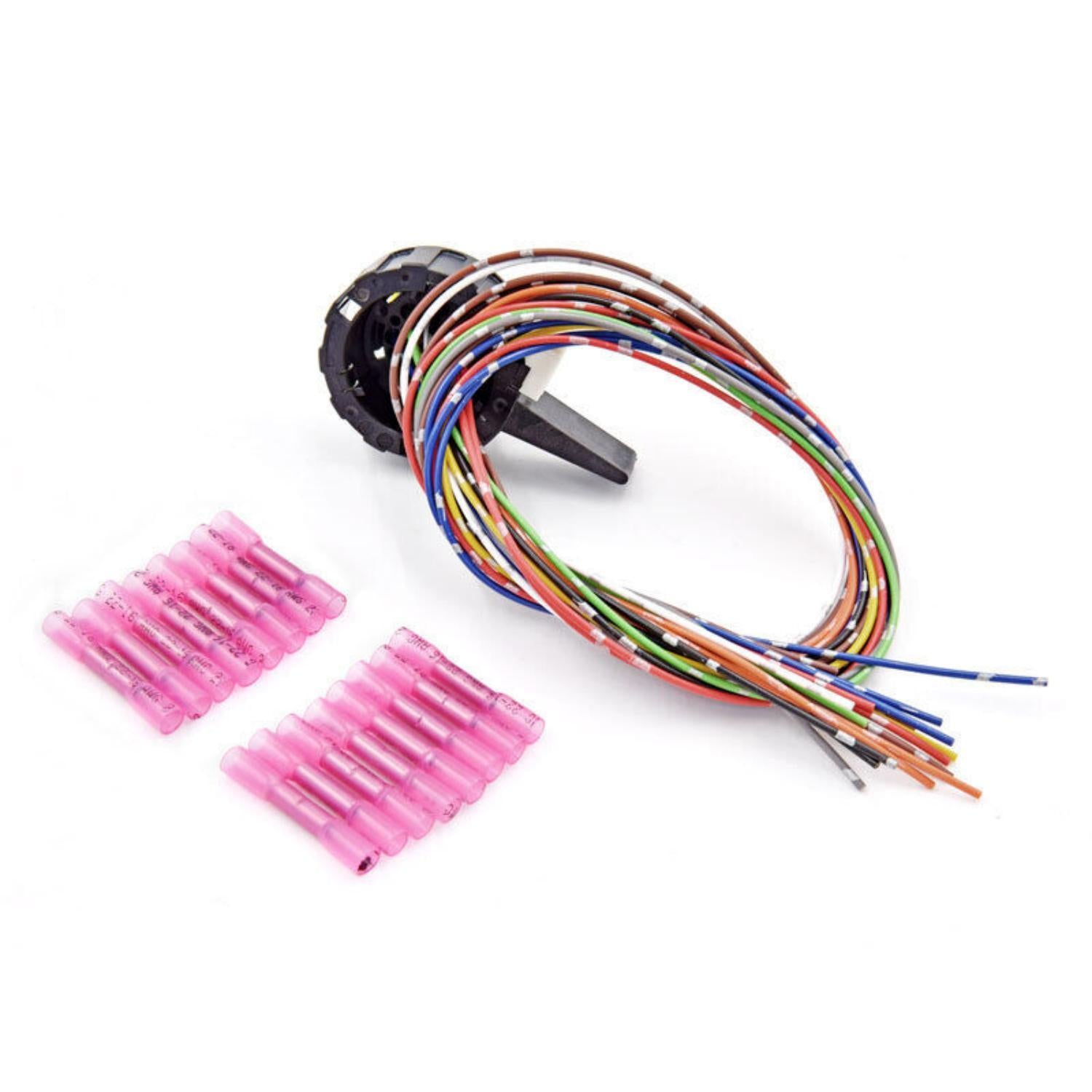

Transmission External Wire Harness For Ford 6R60 6R75 6R80 6L80E 6L90E Chevy GMC

Transmission External Wire Harness for Ford, Chevy, and GMC

This transmission external wire harness provides the critical electrical link between the vehicle powertrain control module and the transmission assembly to manage shifting and sensor data.

Overview

This transmission external wire harness is designed to restore reliable electrical communication in modern automatic transmissions. The transmission external wire harness facilitates precise signal transfer to ensure the solenoids and sensors operate within factory parameters. Technicians and vehicle owners use this transmission external wire harness to resolve connectivity issues caused by heat damage or terminal corrosion.

Built For Performance

• Heat-stabilized cross-linked polyethylene insulation protects internal wiring from high engine bay temperatures.
• Corrosion-resistant terminals maintain signal integrity in harsh environmental conditions.
• Precision-molded connectors ensure a secure click-lock fit with the vehicle side of the harness.
• High-grade copper conductors provide optimal conductivity for low-voltage sensor signals.
• Durable outer loom prevents wire chafing and protects against fluid exposure.

Fits These Machines

• for Ford 6R60
• for Ford 6R75
• for Ford 6R80
• for Chevy 6L80E
• for Chevy 6L90E
• for GMC 6L80E
• for GMC 6L90E

On-The-Job Use

• Repairing electrical communication faults that lead to erratic shifting or limp mode.
• Replacing brittle or cracked external wiring during a complete transmission rebuild.
• Restoring factory performance in heavy-duty trucks used for towing and hauling.

Specs At A Glance

Good To Know

Q: Can this harness fix transmission diagnostic trouble codes? A: If the codes are related to circuit continuity or solenoid communication, replacing a damaged external harness often resolves the issue. Always verify that the pins on the transmission side are clean and straight before installation.

Q: Does this component require special tools for installation? A: This harness is designed for a plug-and-play fit, though access to the transmission connector may require standard hand tools to clear surrounding debris or heat shielding.

Slight variation in finish or dimensions may occur between production runs, and fit can depend on serial number, so confirm compatibility before ordering.
